  1. EE887 Special Topics in Robotics Paper Review A Robotic Wheelchair for Crowded Public Environments 2001. 6. 7. Choi Jung-Yi E. Prassler, J. Scholz, and P. Fiorini, “A robotic wheelchair for crowded public environments,” IEEE Robotics & Automation Magazine, vol. 7, no. 1, pp. 38-45, 2001

  2. Overview • Two difficult situations of using wheelchair • Form conversations with the user community • Navigation in • NARROW & CLUTTERED environments • WIDE & CROWDED areas • MAid (Mobility Aid for Elderly and Disabled People) Combines • Narrow Area Navigation (NAN) Behavior  Semiautonomous Navigation Mode • Wide Area Navigation (WAN) Behavior  Autonomous Navigation Mode

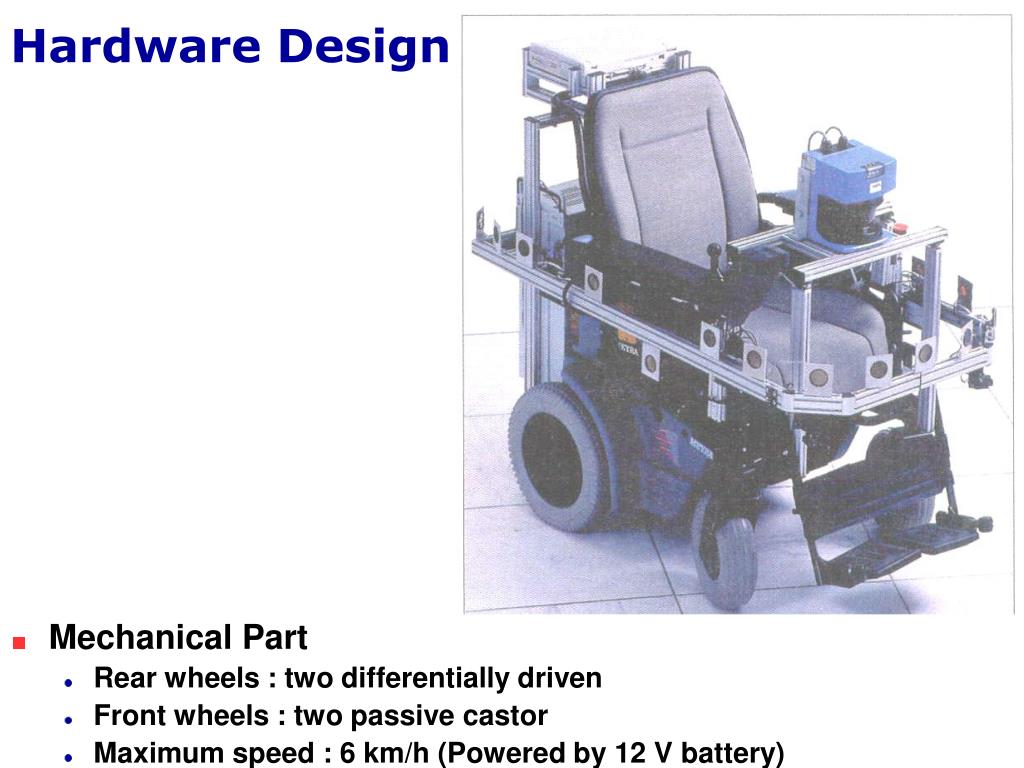

  3. Hardware Design • Mechanical Part • Rear wheels : two differentially driven • Front wheels : two passive castor • Maximum speed : 6 km/h (Powered by 12 V battery)

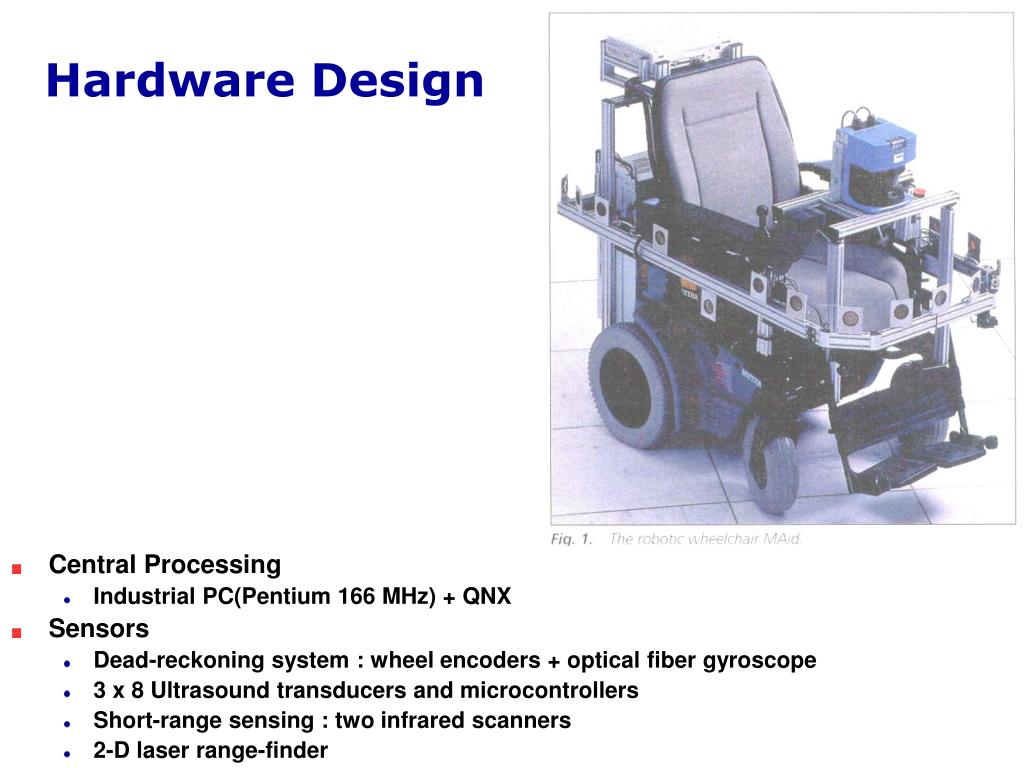

  4. Hardware Design • Central Processing • Industrial PC(Pentium 166 MHz) + QNX • Sensors • Dead-reckoning system : wheel encoders + optical fiber gyroscope • 3 x 8 Ultrasound transducers and microcontrollers • Short-range sensing : two infrared scanners • 2-D laser range-finder

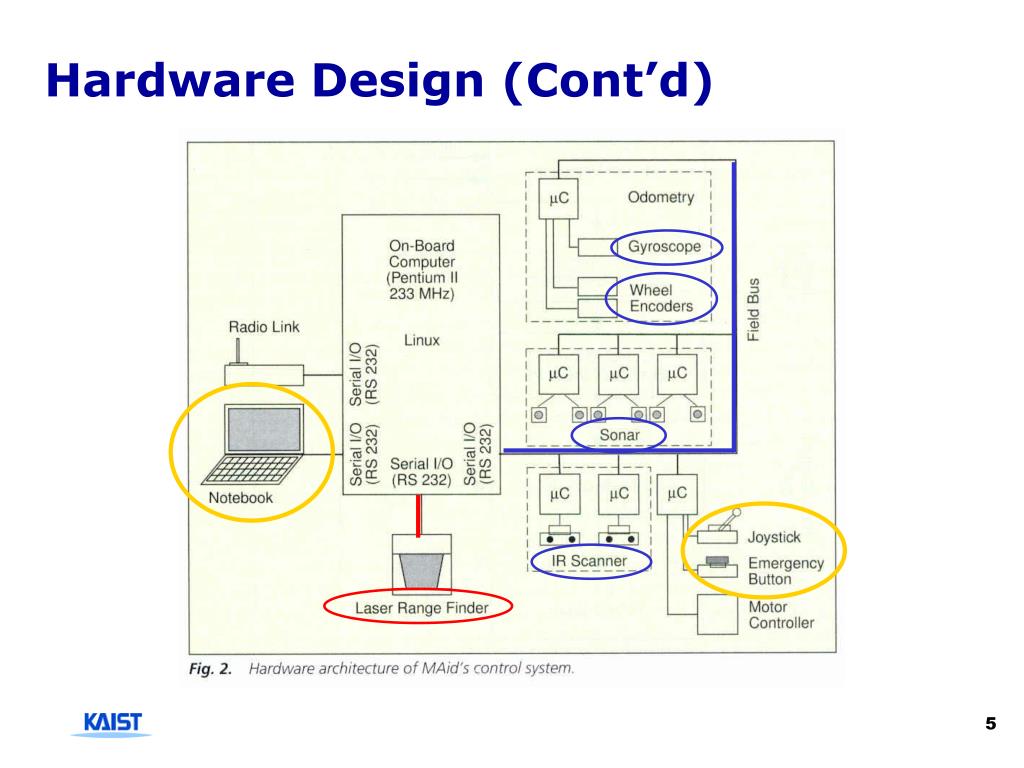

  5. Hardware Design (Cont’d)

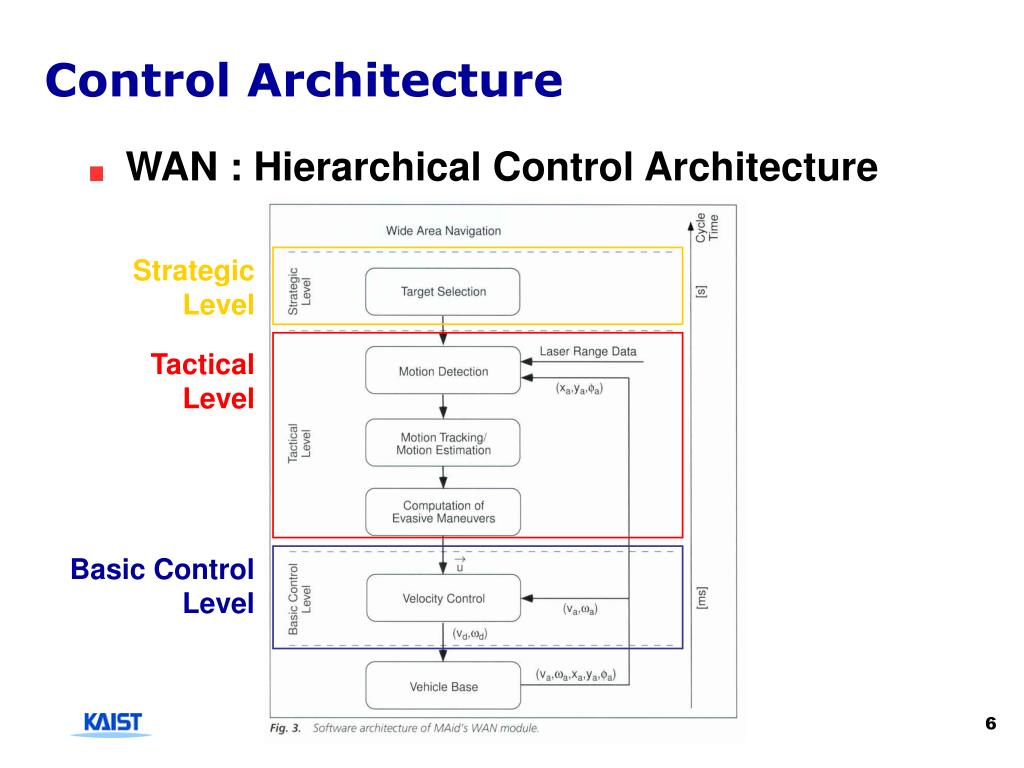

  6. Control Architecture • WAN : Hierarchical Control Architecture Strategic Level Tactical Level Basic Control Level

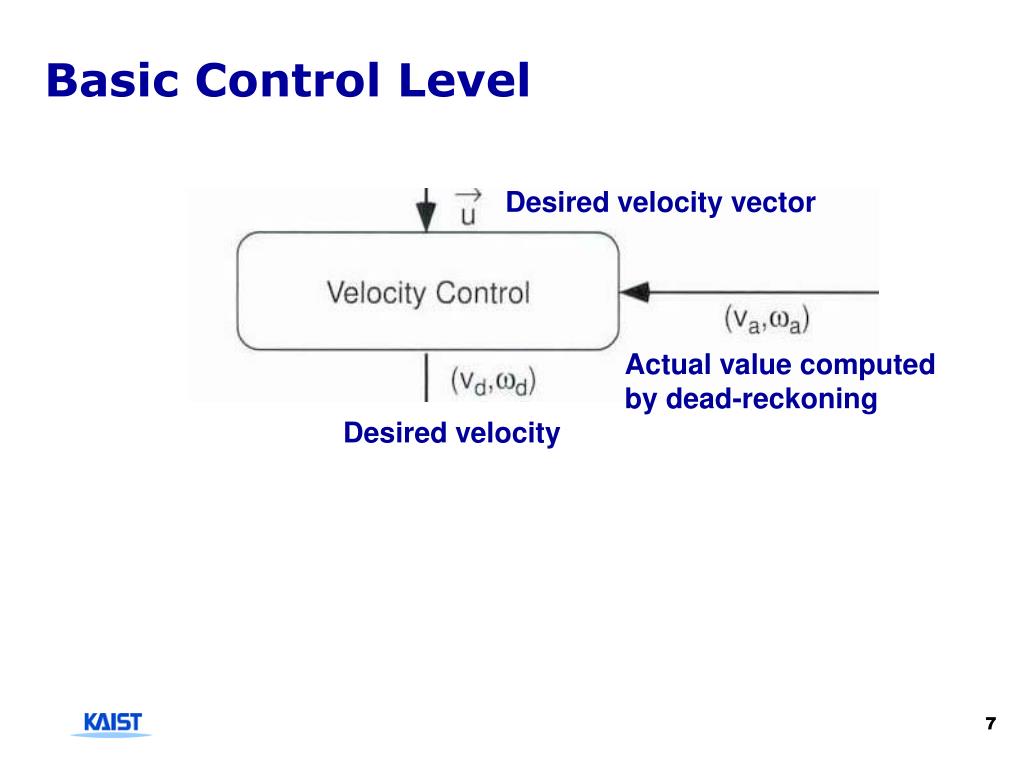

  7. Desired velocity vector Actual value computed by dead-reckoning Desired velocity Basic Control Level

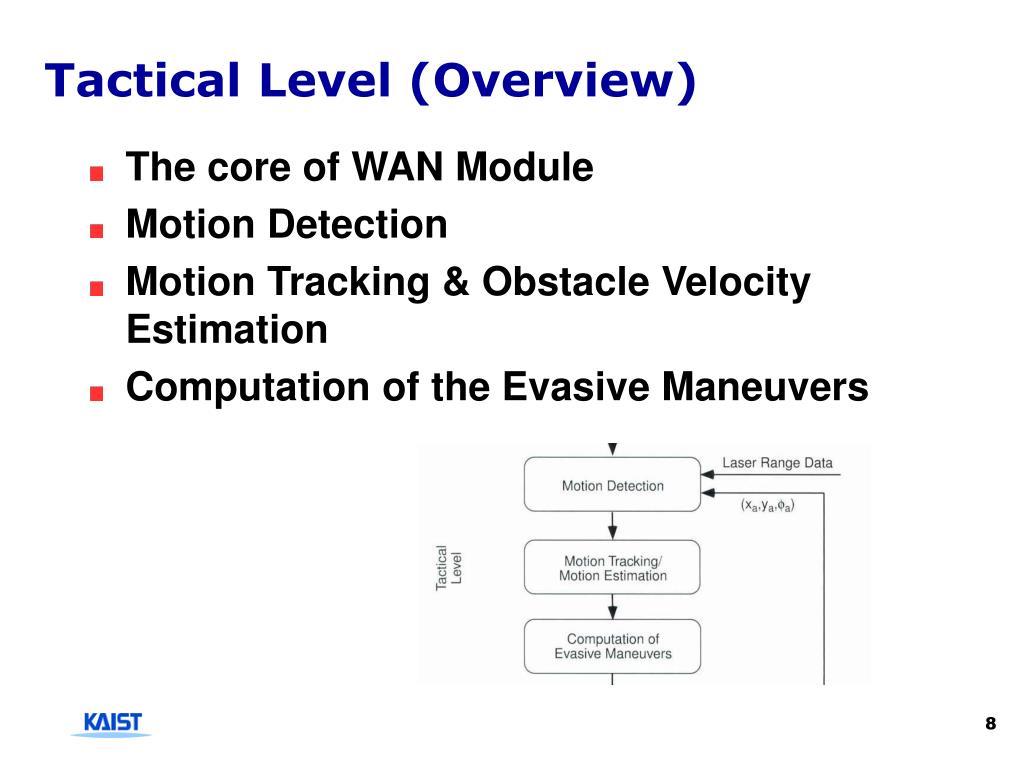

  8. Tactical Level (Overview) • The core of WAN Module • Motion Detection • Motion Tracking & Obstacle Velocity Estimation • Computation of the Evasive Maneuvers

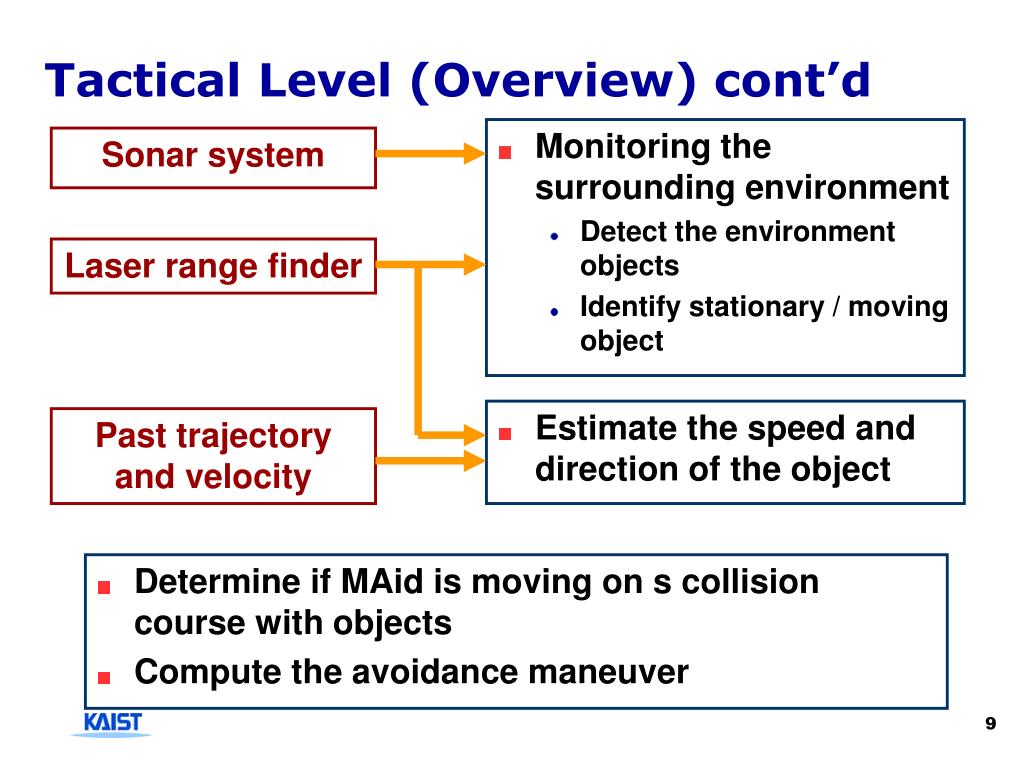

  9. Tactical Level (Overview) cont’d • Monitoring the surrounding environment • Detect the environment objects • Identify stationary / moving object Sonar system Laser range finder Estimate the speed and direction of the object Past trajectory and velocity Determine if MAid is moving on s collision course with objects Compute the avoidance maneuver

  10. Strategic Level • Main task • Navigating in crowded area • Reaching a specific goal • Without any intermediate goal • Selection the nest motion goal by the user • Strategic level will be expended by including a path planner capable of adding the computation of subgoal sequences

  11. Motion Detection and Tracking • A sequence of single observation • Investigating where these observations differ from each other • Discrepancy  potential change • Occupancy Grid Representation • A projection of the range data on a 2-D rectangular grid • Grid element  a small region of the real world • Updating every cell  time consuming process

  12. Time Stamp Map • Modification of occupancy grid representation • Map only cells observed as occupied • Cell coinciding with the range measurement • All other cells  left untouched • Range image  200 x 200 time stamp map • Takes 1.5 msec on a Pentium 166 MHz

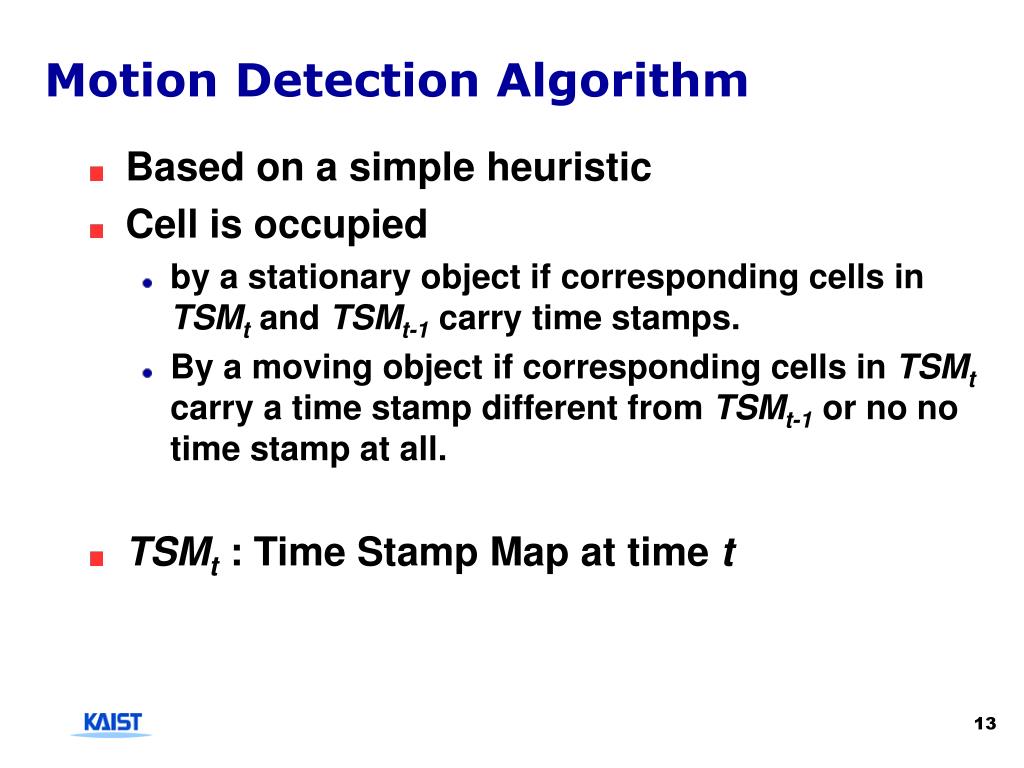

  13. Motion Detection Algorithm • Based on a simple heuristic • Cell is occupied • by a stationary object if corresponding cells in TSMt and TSMt-1 carry time stamps. • By a moving object if corresponding cells in TSMt carry a time stamp different from TSMt-1 or no no time stamp at all. • TSMt : Time Stamp Map at time t

  14. Motion History • Objects are represented by cell ensembles in the sensor map. • Identifying the object in a sequence of maps • Correspondence between objects  using a nearest-neighbor criterion based on a Euclidean distance • The ensembles describes the same object  if the distance to the nearest neighbor is smaller than a certain threshold. • Threshold • For stationary object : 30cm • For moving object : 1 m

  15. Motion Planning • For simplicity • Model the wheelchair and the obstacles as circles.  Planar problem with no rotations obstacle Wheelchair

  16. Velocity Obstacle • VO of A with respect to B • Identifying the set of velocities of A causing a collision with the obstacle B at some time • To avoid collision : selecting the tip of VA outside VO

  17. Velocity Obstacle Collision Cone Velocity Obstacle (cont’d) • Collision Cone v.s. Velocity Obstacle • Avoiding multiple obstacles : • Prioritization among Vos

  18. Velocity Obstacle (cont’d) • Consideration of wheelchair dynamics • Some heuristics for making trajectory Reachable Avoidance Velocity Velocity Obstacle Reachable Velocity Toward Goal Maximum Velocity Structure

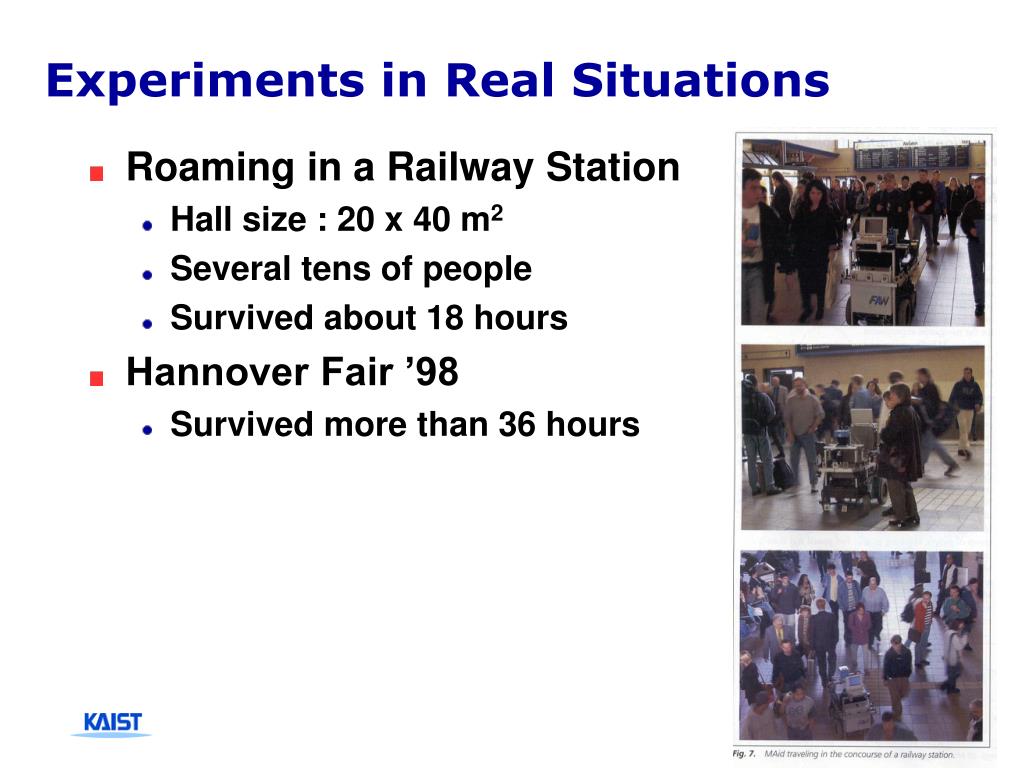

  19. Experiments in Real Situations • Roaming in a Railway Station • Hall size : 20 x 40 m2 • Several tens of people • Survived about 18 hours • Hannover Fair ’98 • Survived more than 36 hours
