  1. Computer ArchitectureLecture 3 – Part 111th May, 2006 Abhinav Agarwal Veeramani V.

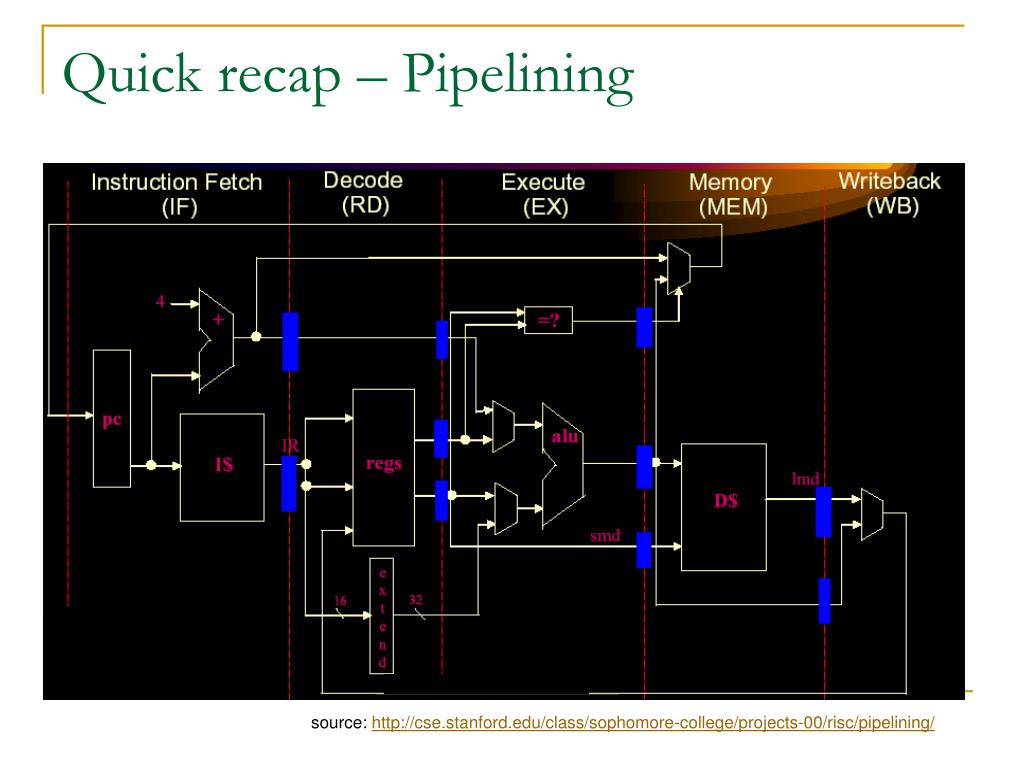

  2. Quick recap – Pipelining source: http://cse.stanford.edu/class/sophomore-college/projects-00/risc/pipelining/

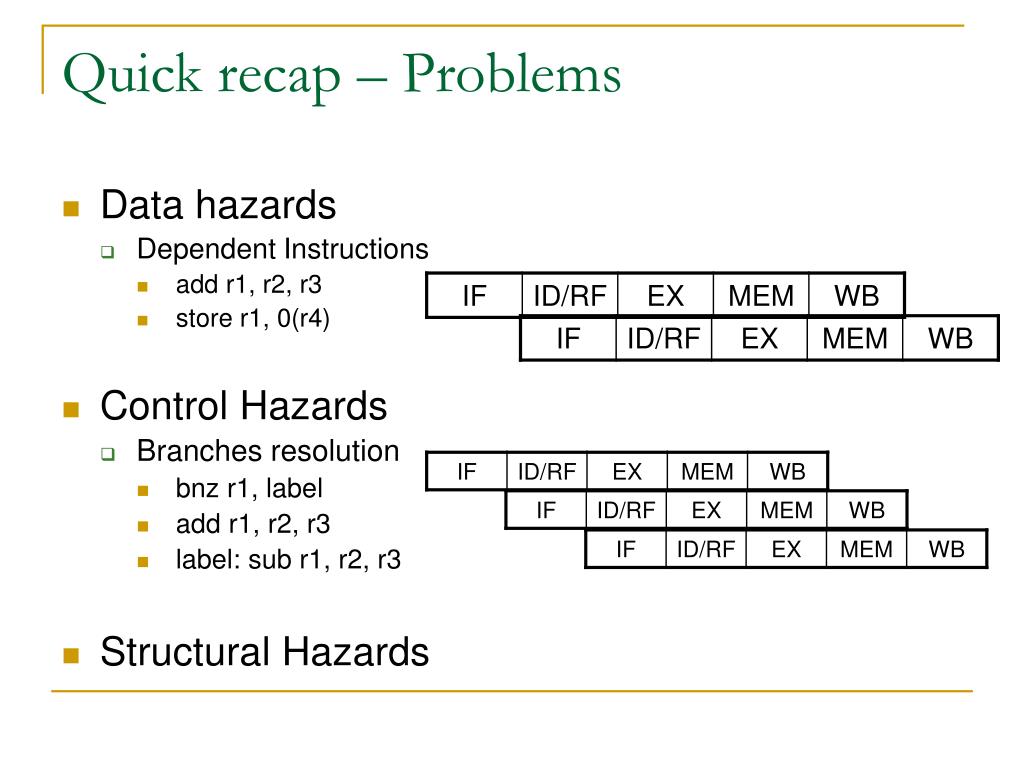

  3. Quick recap – Problems • Data hazards • Dependent Instructions • add r1, r2, r3 • store r1, 0(r4) • Control Hazards • Branches resolution • bnz r1, label • add r1, r2, r3 • label: sub r1, r2, r3 • Structural Hazards

  4. Data Hazards • RAW hazard – Read after Write • add r1, r2, r3 • store r1, 0(r4) • WAW hazard – Write after Write • div r1, r3, r4 • … • add r1, r10, r5 • WAR hazard – Write after Read • Generally not relevant in simple pipelines

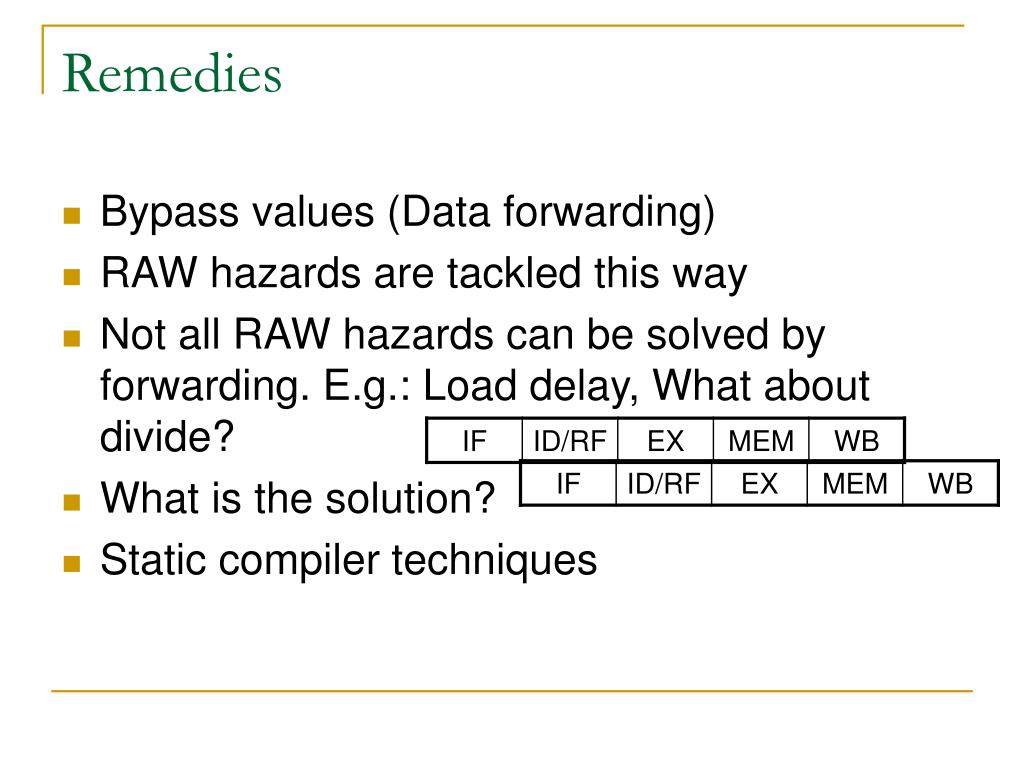

  5. Remedies • Bypass values (Data forwarding) • RAW hazards are tackled this way • Not all RAW hazards can be solved by forwarding. E.g.: Load delay, What about divide? • What is the solution? • Static compiler techniques

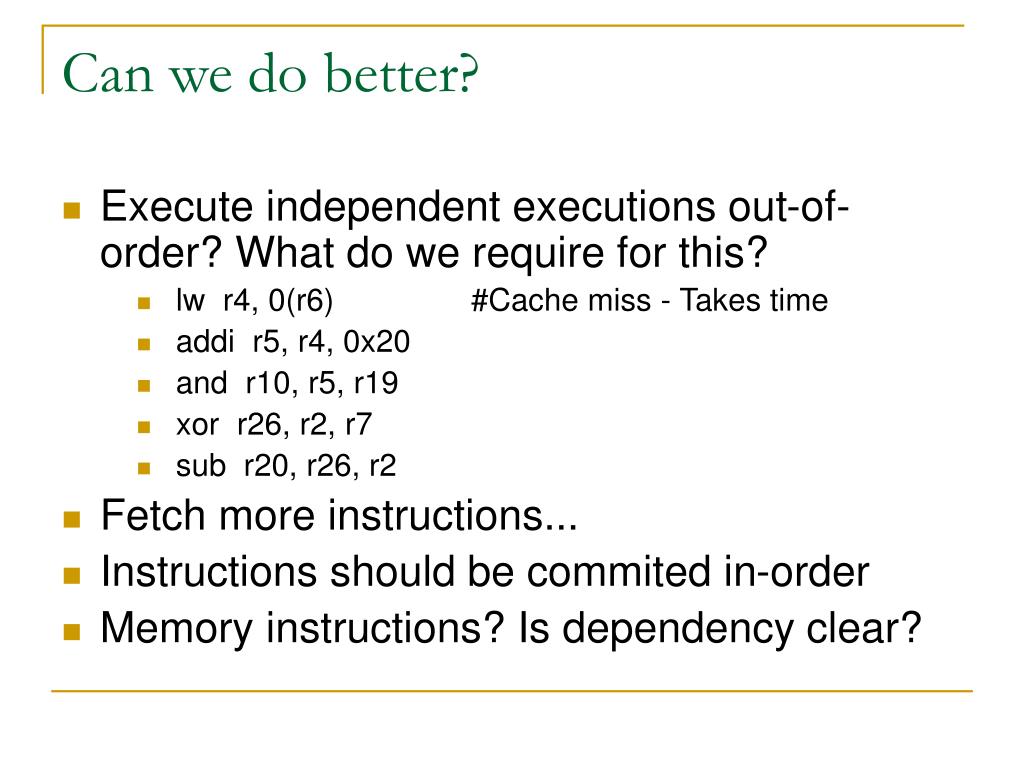

  6. Can we do better? • Execute independent executions out-of-order? What do we require for this? • lw r4, 0(r6) #Cache miss - Takes time • addi r5, r4, 0x20 • and r10, r5, r19 • xor r26, r2, r7 • sub r20, r26, r2 • Fetch more instructions... • Instructions should be commited in-order • Memory instructions? Is dependency clear?

  7. The WAW hazard • Is it unavoidable? What is the reason for such hazard? • Register renaming • More physical registers • Logical registers mapped to physical registers available when the instruction is decoded

  8. References • http://en.wikipedia.org/wiki/Hazard_(computer_architecture) • http://www.csee.umbc.edu/~plusquel/611/slides/chap3_3.html
