Congo, CS, Z53, Mass

Crossing schemes to clone X and Y chromosomes. X. Y. Congo, CS, Z53, Mass. Congo, CS, Z53, Mass. Y. ×. DX. Y. Y. Y. ×. ×. Y. Y. DX. Y. ×. ×. Y. Y. DX. Y. ×. ×. Y. Y. DX. Y. ×. ×. Y. Y. Y. DX. ×. ×.

marrim
Télécharger la présentation

Congo, CS, Z53, Mass

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

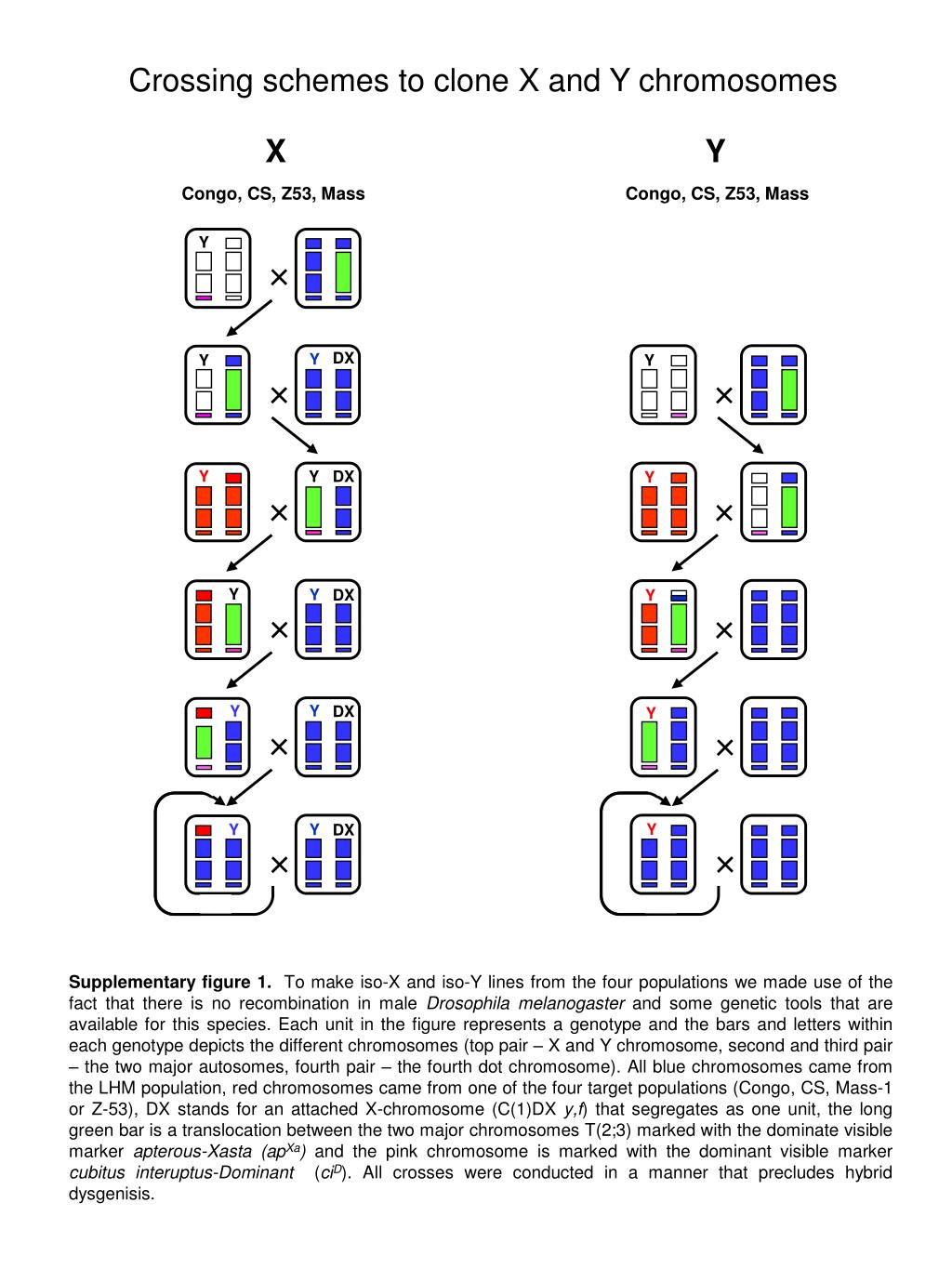

  1. Crossing schemes to clone X and Y chromosomes X Y Congo, CS, Z53, Mass Congo, CS, Z53, Mass Y × DX Y Y Y × × Y Y DX Y × × Y Y DX Y × × Y Y DX Y × × Y Y Y DX × × Supplementary figure 1. To make iso-X and iso-Y lines from the four populations we made use of the fact that there is no recombination in male Drosophila melanogaster and some genetic tools that are available for this species. Each unit in the figure represents a genotype and the bars and letters within each genotype depicts the different chromosomes (top pair – X and Y chromosome, second and third pair – the two major autosomes, fourth pair – the fourth dot chromosome). All blue chromosomes came from the LHM population, red chromosomes came from one of the four target populations (Congo, CS, Mass-1 or Z-53), DX stands for an attached X-chromosome (C(1)DX y,f) that segregates as one unit, the long green bar is a translocation between the two major chromosomes T(2;3) marked with the dominate visible marker apterous-Xasta (apXa) and the pink chromosome is marked with the dominant visible marker cubitus interuptus-Dominant (ciD). All crosses were conducted in a manner that precludes hybrid dysgenisis.
