Synthesizing Sequential Register-Based Computation with Biochemistry Marc Riedel Assistant Professor, Electrical and Computer Engineering Graduate Faculty, Biomedical Informatics and Computational BiologyUniversity of Minnesota IWBDA ─ San Francisco, July 27, 2009

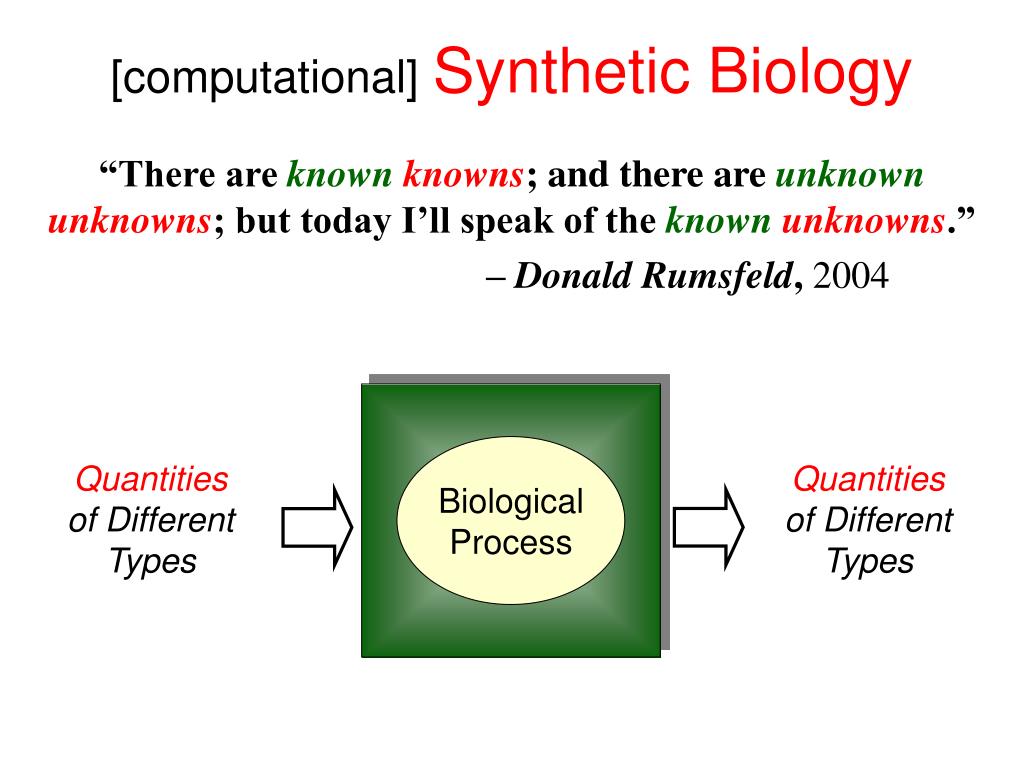

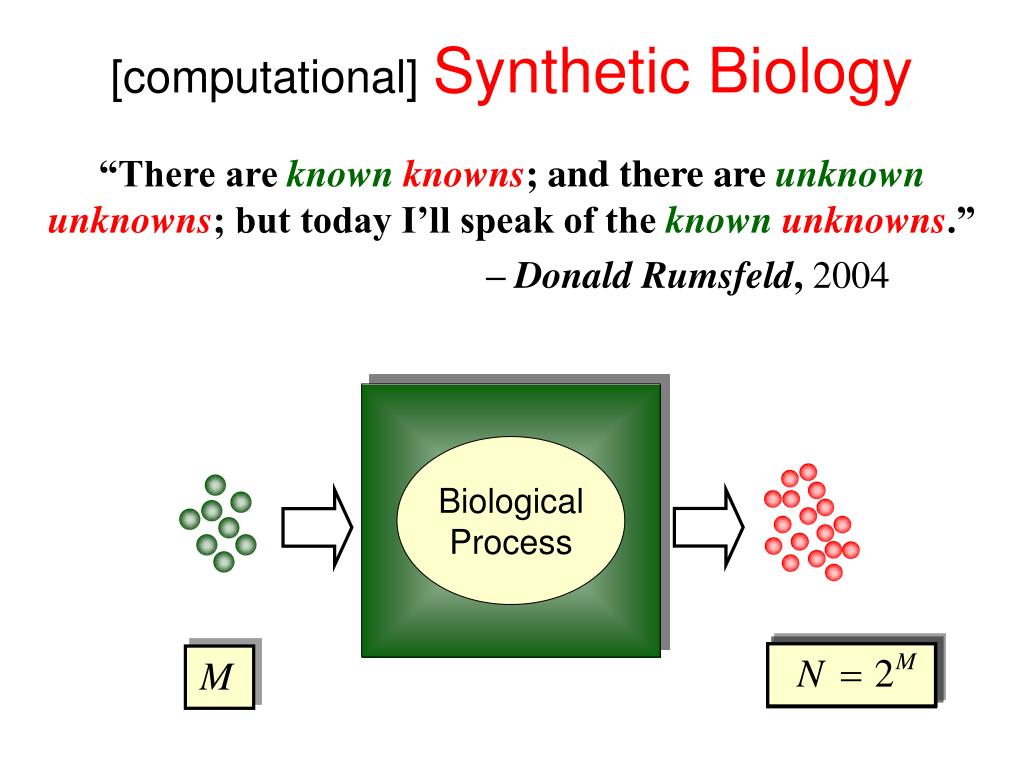

BiologicalProcess [computational]Synthetic Biology “There are knownknowns; and there are unknownunknowns; but today I’ll speak of the knownunknowns.” – Donald Rumsfeld, 2004 Quantities of Different Types Quantities of Different Types

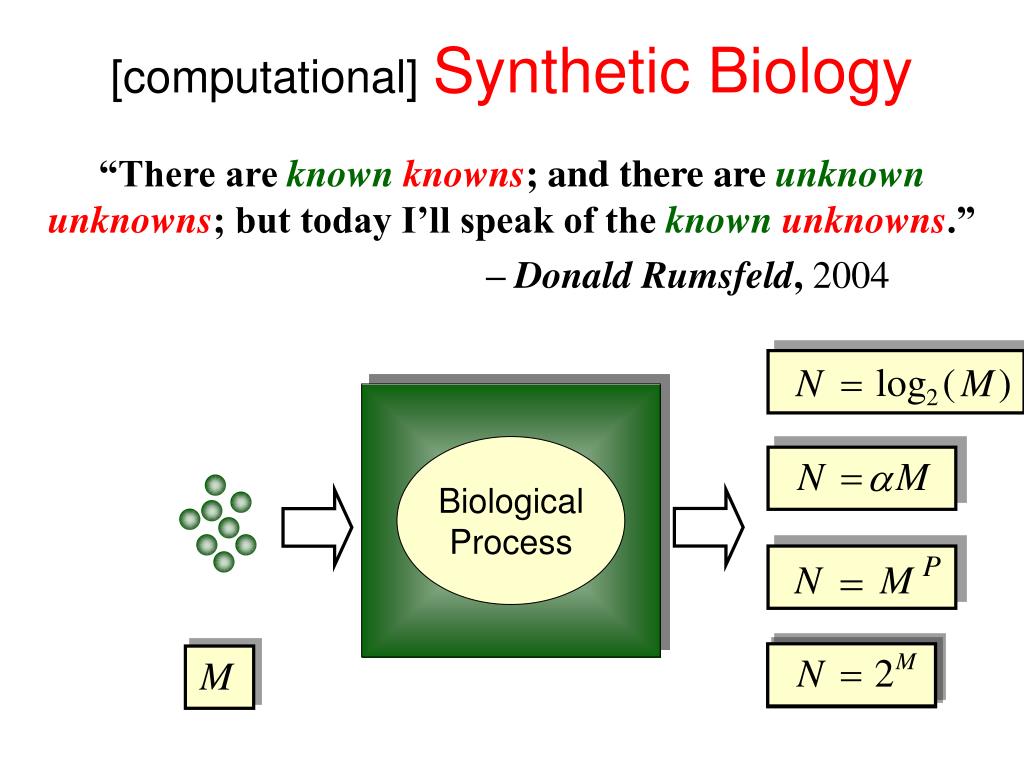

BiologicalProcess M N = 2 = = N N f f ( ( M M ) ) M [computational]Synthetic Biology “There are knownknowns; and there are unknownunknowns; but today I’ll speak of the knownunknowns.” – Donald Rumsfeld, 2004
log ( ) N M = 2 BiologicalProcess = N M a P N = M M N = 2 = N f ( M ) M [computational]Synthetic Biology “There are knownknowns; and there are unknownunknowns; but today I’ll speak of the knownunknowns.” – Donald Rumsfeld, 2004

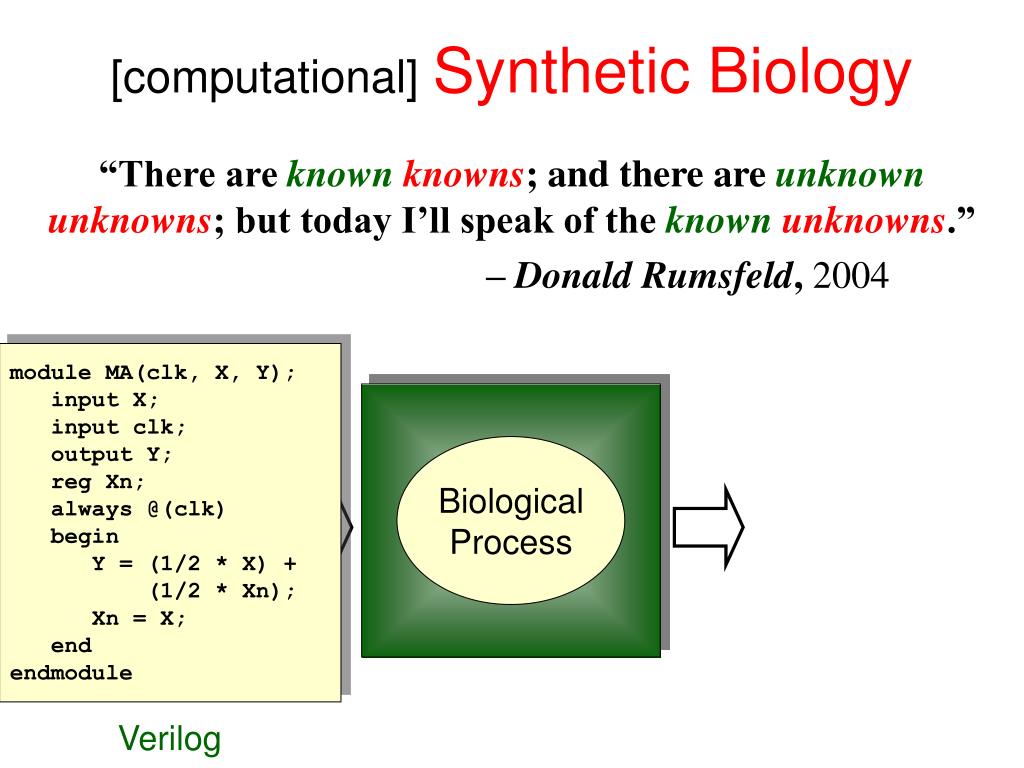

BiologicalProcess [computational]Synthetic Biology “There are knownknowns; and there are unknownunknowns; but today I’ll speak of the knownunknowns.” – Donald Rumsfeld, 2004 module MA(clk, X, Y); input X; input clk; output Y; reg Xn; always @(clk) begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule Verilog

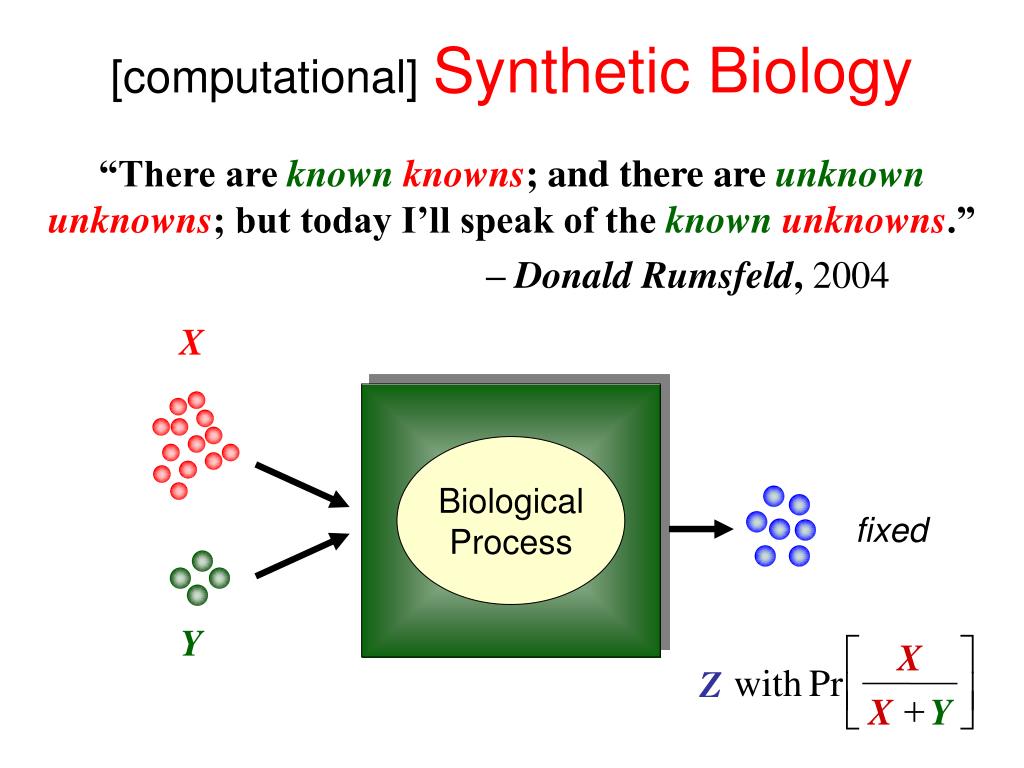

BiologicalProcess [computational]Synthetic Biology “There are knownknowns; and there are unknownunknowns; but today I’ll speak of the knownunknowns.” – Donald Rumsfeld, 2004 Quantities of Different Types ProbabilityDistribution on outcomes
X BiologicalProcess Y é ù X Z with Pr ê ú + X Y ë û [computational]Synthetic Biology “There are knownknowns; and there are unknownunknowns; but today I’ll speak of the knownunknowns.” – Donald Rumsfeld, 2004 fixed

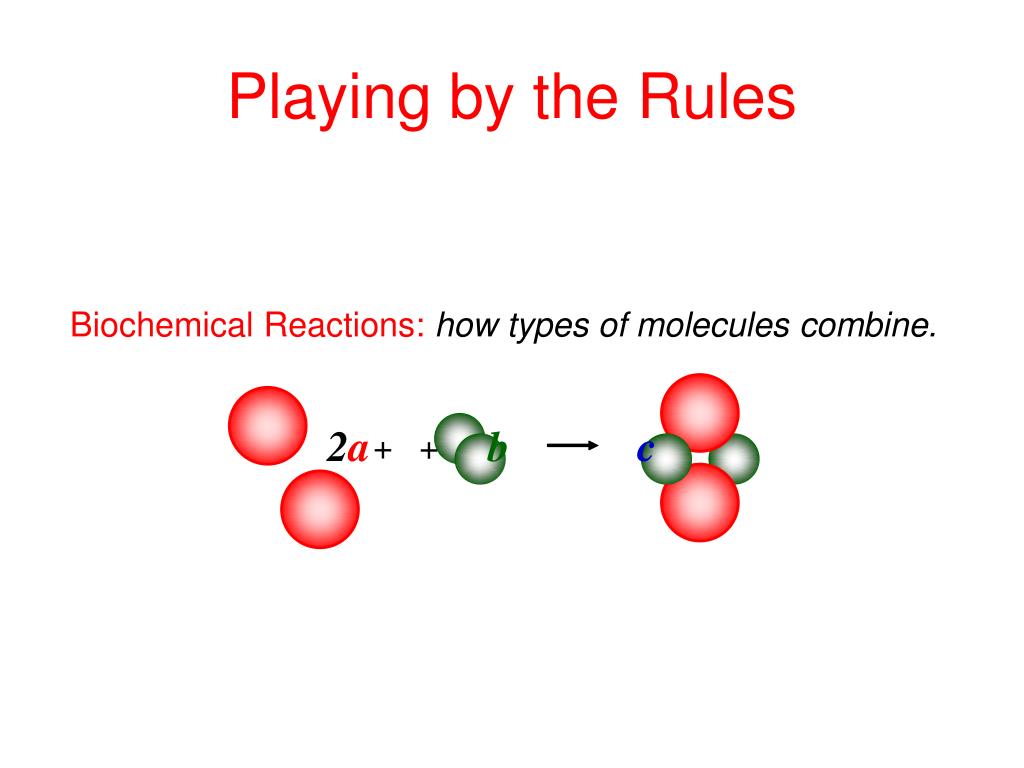

+ 2a c b + Playing by the Rules Biochemical Reactions: how types of molecules combine.
Biochemical Reactions + cell proteins count 9 8 6 5 7 9 Discrete chemical kinetics; spatial homogeneity.
Biochemical Reactions + + + Relative rates or (reaction propensities): slow medium fast Discrete chemical kinetics; spatial homogeneity.
R1 R2 R3 Playing by the Rules Stochastic Chemical Kinetics The probability that a given reaction is the next to fire is proportional to: • Its rate. • The number of ways that the reactants can combine. SeeDan Gillespie, • “Exact Stochastic Simulation of Coupled Chemical Reactions,”1977. • “Stochastic Chemical Kinetics,” 2006.
Stochastic Simulation Algorithm (SSA) R1 R2 R3 S1 = [5, 5, 5] 0 Ri Choose the next reaction according to: where

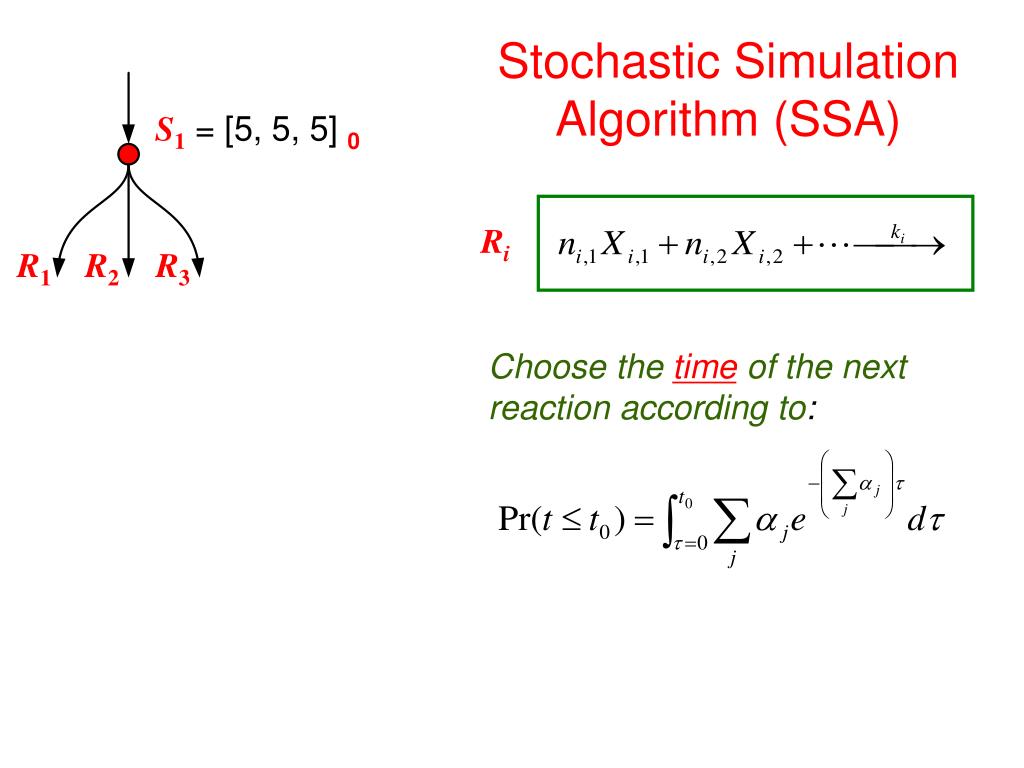

R1 R2 R3 Stochastic Simulation Algorithm (SSA) S1 = [5, 5, 5] 0 Ri Choose the time of the next reaction according to:

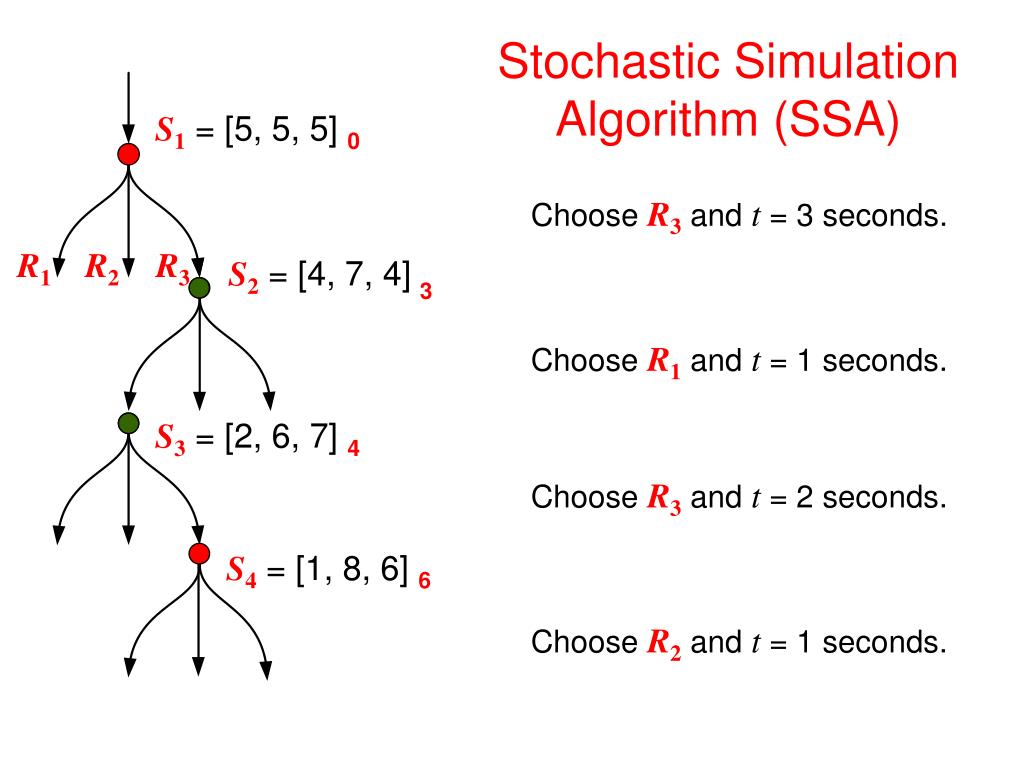

Stochastic Simulation Algorithm (SSA) S1 = [5, 5, 5] 0 Choose R3 and t = 3 seconds. R1 R2 R3 S2 = [4, 7, 4] 3 Choose R1 and t = 1 seconds. S3 = [2, 6, 7] 4 Choose R3 and t = 2 seconds. S4 = [1, 8, 6] 6 Choose R2 and t = 1 seconds.

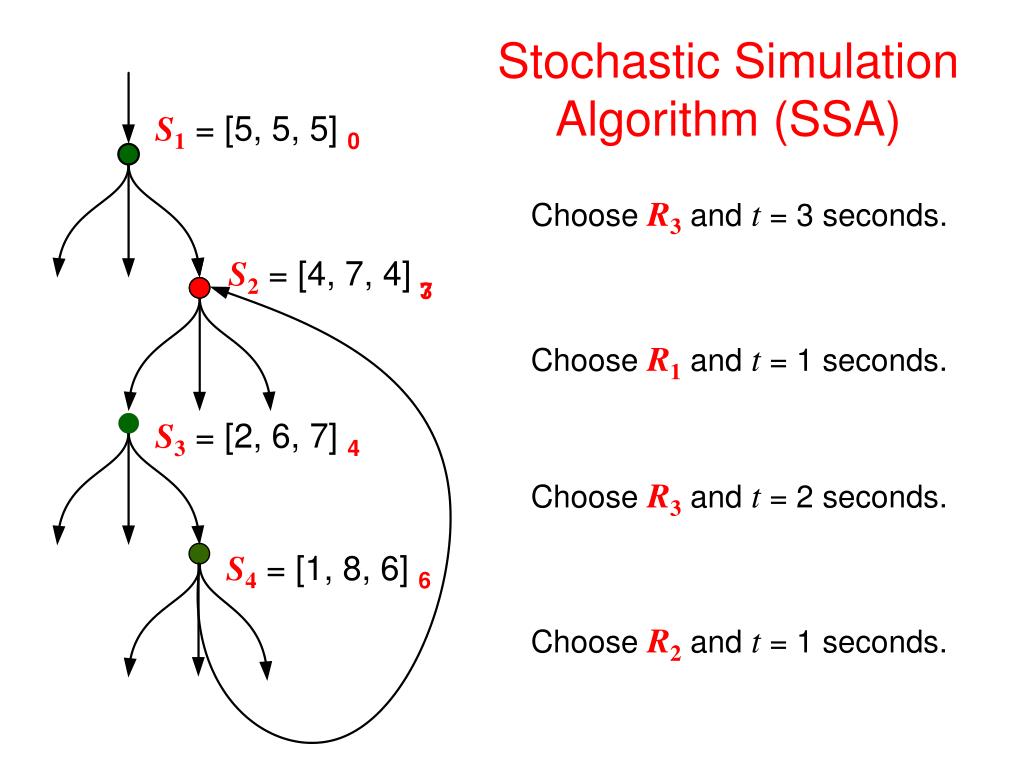

Stochastic Simulation Algorithm (SSA) S1 = [5, 5, 5] 0 Choose R3 and t = 3 seconds. S2 = [4, 7, 4] 3 7 Choose R1 and t = 1 seconds. S3 = [2, 6, 7] 4 Choose R3 and t = 2 seconds. S4 = [1, 8, 6] 6 Choose R2 and t = 1 seconds.
Example: Exponentiation Produce of type n. Bin LadenSchool of Terrorism + fast + a n a n 2 obtain 1 of n med a slow m b + v . fast + n b 2 c b M obtain of n 2 M 2 fast b med . c n Start with M of type m. Use working types a,b,c. Start with anynon-zero amount of types aandn. Start with no amountof types bandc.
g f ( r ) = 1 Mario b f ( g ) = 2 Luigi [computational]Rate Independent Biochemical Computation Biochemical rules are inherently parallel. “The score is still Q to 12.” Sequentialize? Step 1: then Step 2:
Module Locking slow slow slow + slow slow + + Sequentialize computation with only two rates: “fast” and “slow”. fast +
Logic Synthesis SPICE Register Level Design Integrated Circuits Design Automation for Behavioral Specification(e.g., DSP function) Structural Description (e.g., memory and functional units) Circuit-Level Description (e.g., NAND2 and D flip-flops) waveforms
Logic Synthesis SPICE Register Level Design Verilog Elements of Register-basedBiochemical computation Brian’s Automated ModularBiochemical Instantiator Biochemistry Integrated Circuits Design Automation for Behavioral Specification(e.g., DSP function) Structural Description (e.g., memory and functional units) Biochemical Netlist (e.g., Proteins, Enzymes) Biochemical Synthesis STA Engine SSA Engine waveforms “Stochastic Transient Analysis of Biochemical Systems”
Example: FIR Filter Two-Tap Moving-Average Filter: X 1/α= 1/β= Y
Example: FIR Filter Two-Tap Moving-Average Filter: module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter module MA(X, Y); input X; output Y; reg Xn; always begin Y = (1/2 * X) + (1/2 * Xn); Xn = X; end endmodule
Example: FIR Filter Two-Tap Moving-Average Filter: Chemical Design: Clocking and Locking Filter
Example: FIR Filter Two-Tap Moving-Average Filter:
Synthesizing Biological Computation Biochemical Reactions inputs computation outputs Molecular Triggers Molecular Products
Biological Computation at the Populational Level How can we control the quantity of molecular product at the populational level?
Synthesizing Stochasticity Engineer a probabilistic response in each cell. product with Prob.0.3 trigger no product with Prob.0.7
Biological Computation at the Populational Level Obtain a fractional response.

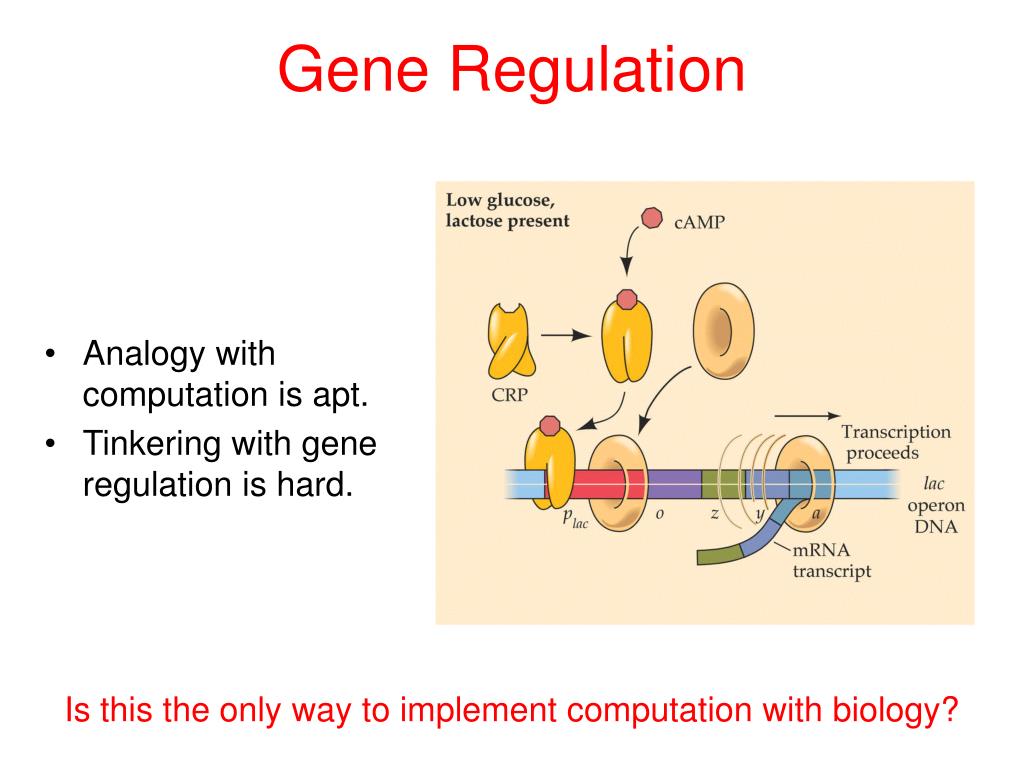

Gene Regulation • Analogy with computation is apt. • Tinkering with gene regulation is hard. Is this the only way to implement computation with biology?
Discussion Synthesize a design for a precise, robust, programmable probability distribution on outcomes – for arbitrary types and reactions. Computational Chemical Design vis-a-vis Technology-Independent Logic Synthesis Experimental Design vis-a-vis Technology Mapping in Circuit Design • Implement design by selecting specific types and reactions – say from “toolkit”.

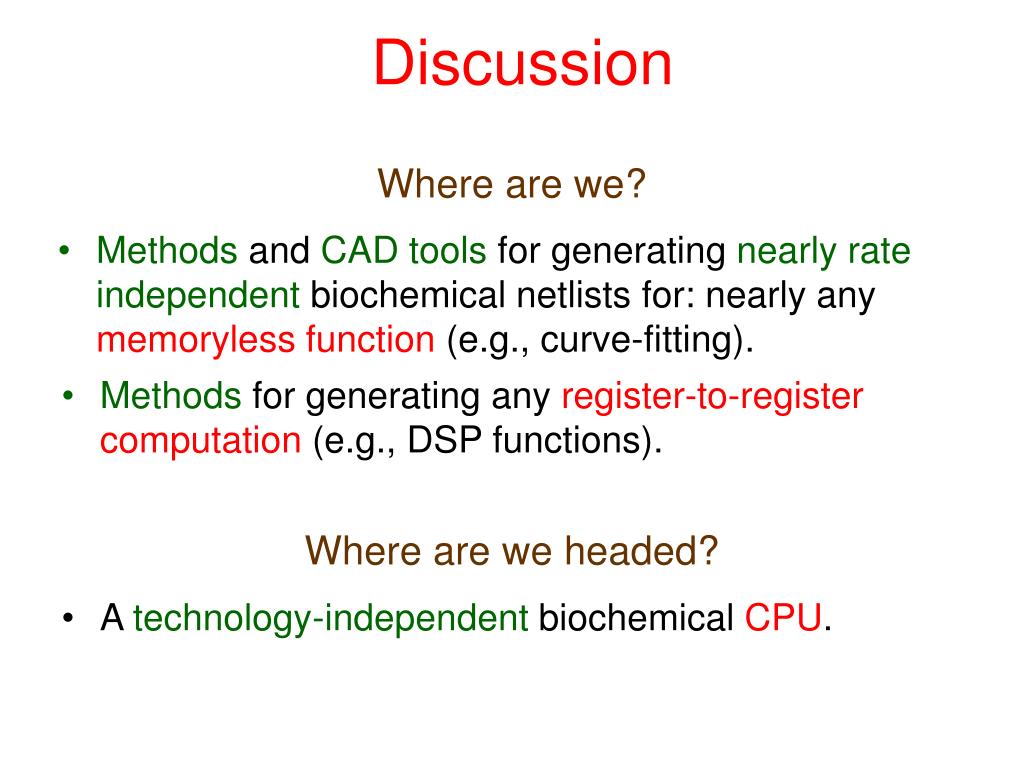

Methods and CAD tools for generating nearly rate independent biochemical netlists for: nearly any memoryless function (e.g., curve-fitting). Discussion Where are we? • Methods for generating any register-to-register computation (e.g., DSP functions). Where are we headed? • A technology-independent biochemical CPU.
Acknowledgements students at theUniv. of Minnesota Adam Shea Brian Fett Weikang Qian Caltech Shuki Bruck Erik Winfree

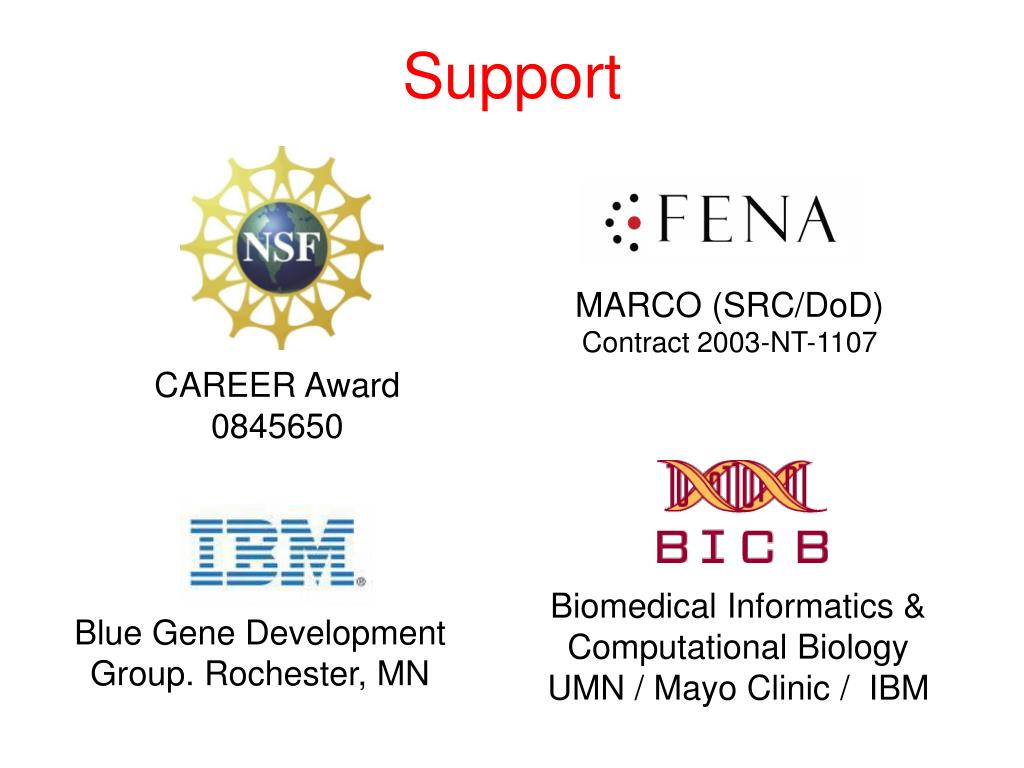

Support MARCO (SRC/DoD) Contract 2003-NT-1107 CAREER Award 0845650 Biomedical Informatics & Computational BiologyUMN / Mayo Clinic / IBM Blue Gene DevelopmentGroup. Rochester, MN
