  1. ZMS TrainingModule 3Operational tools

  2. Operational tools This module covers CPE manager Network maintenance System upgrade Inventory Auto-discovery of nodes Historical trap and alarm view Trap forwarding

  3. Operational toolsCPE managerFeatures CPE manager Allows for easy configuration of CPEs Software upgrade, Database backup and restore, connecting to the management Web UI CPE manager is enabled by default on Zhone CPEs ETHX3xxx series, ZNID 42xx series No additional address space in existing management network is needed Uses port address translation (PAT), all private addresses are automatically assigned Uses VLAN 7 and IP range 1.0.0.0/8 by default

  4. Example CPE manager setup Operational toolsCPE managerExample network setup 1.0.0.0/8 192.168.1.0/24

  5. Operational toolsCPE managerSet up CPE manager To set up CPE manager First, the manager needs to be enabled via CLI This step is only required once per MXK system CPE Manager’s public address is the same as the management address of the MXK This will use the default VLAN 7 and IP address range 1.0.0.0/8 Synchronize the MXK with ZMS, right-click the unit and select Synchronize with device • zSH> cpe-mgradd public 192.168.240.38 • zSH> cpe-mgraddlocalnetwork 1.0.0.0

  6. Operational toolsCPE managerSet up CPE manager To set up CPE manager To add an EFM CPE to the CPE manager, open the BONDED card, open bond-groups and right-click a bond-group Select CPE Management › Add CPE, then click Add When the CPE is initialized, the type will appear in the treeview To access the CPE manager, right click the bond-group and select CPE Management Available options depend on CPE type

  7. Operational toolsCPE managerBackup configuration CPE manager: Backup configuration The configuration file will be placed on the ZMS server

  8. Operational toolsCPE managerRestore configuration CPE manager: Restore configuration

  9. Operational toolsCPE managerSoftware download CPE manager: Software download After new software is downloaded, use Activate Software to effectuate the upgrade

  10. Operational toolsCPE managerRemote connect CPE manager: Remote TELNET, HTTP and HTTPS ZMS supports direct (from the ZMS client) connections to the CPE using the PAT functions

  11. Operational toolsNetwork maintenance Network maintenance Database backup and restore Firmware upgrade Inventory Auto-discovery of nodes Historical trap and alarm view Trap forwarding

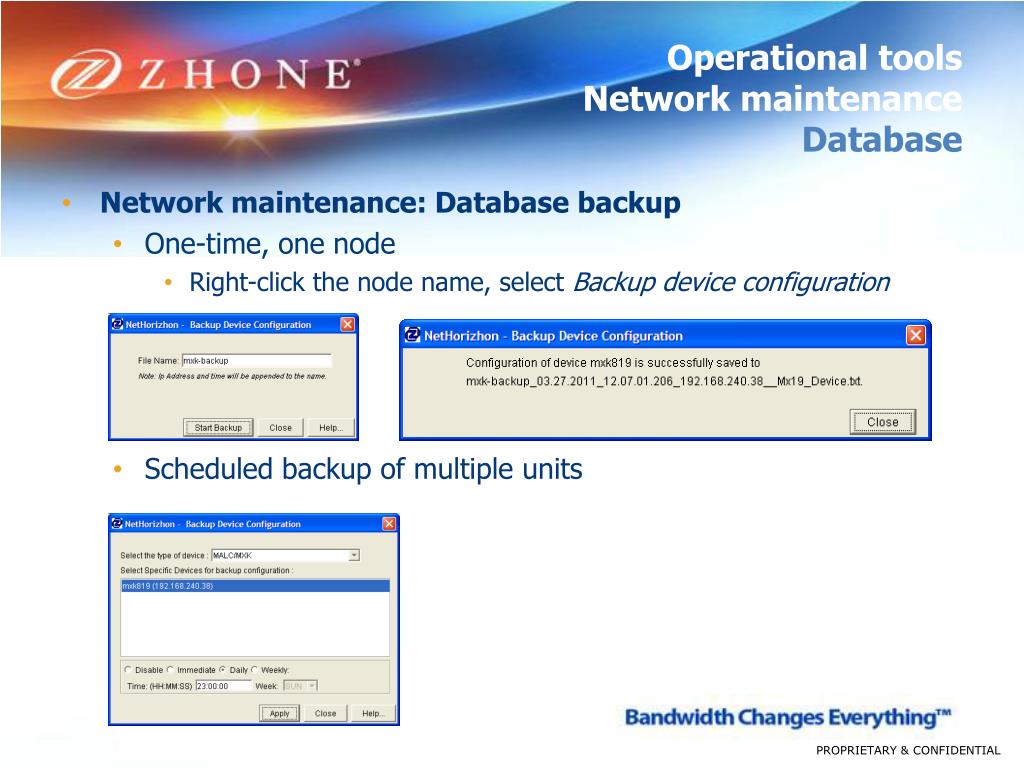

  12. Operational toolsNetwork maintenanceDatabase Network maintenance: Database backup One-time, one node Right-click the node name, select Backup device configuration Scheduled backup of multiple units

  13. Operational toolsNetwork maintenanceDatabase Network maintenance: Database restore One-time, one node Right-click the node name, select Backup device configuration

  14. Operational toolsNetwork maintenanceFirmware upgrade Network maintenance: Firmware upgrade File-list Directory Renaming TFTPd TFTPd Primary and secondary TFTP ZMS managed units

  15. Operational toolsNetwork maintenanceFirmware upgrade Network maintenance: Firmware upgrade Back up node configuration Download new software image(s) to device Flash the boot partition of the node Restore node configuration Synchronize node with ZMS

  16. Operational toolsNetwork maintenanceFirmware upgrade Network maintenance: Firmware upgrade Downloading to multiple sites Node type and model Selected nodes for upgrade TFTP address information List of files to download Schedule Rename download files

  17. Operational toolsNetwork maintenanceFirmware upgrade Network maintenance: Firmware upgrade Managing scheduled downloads

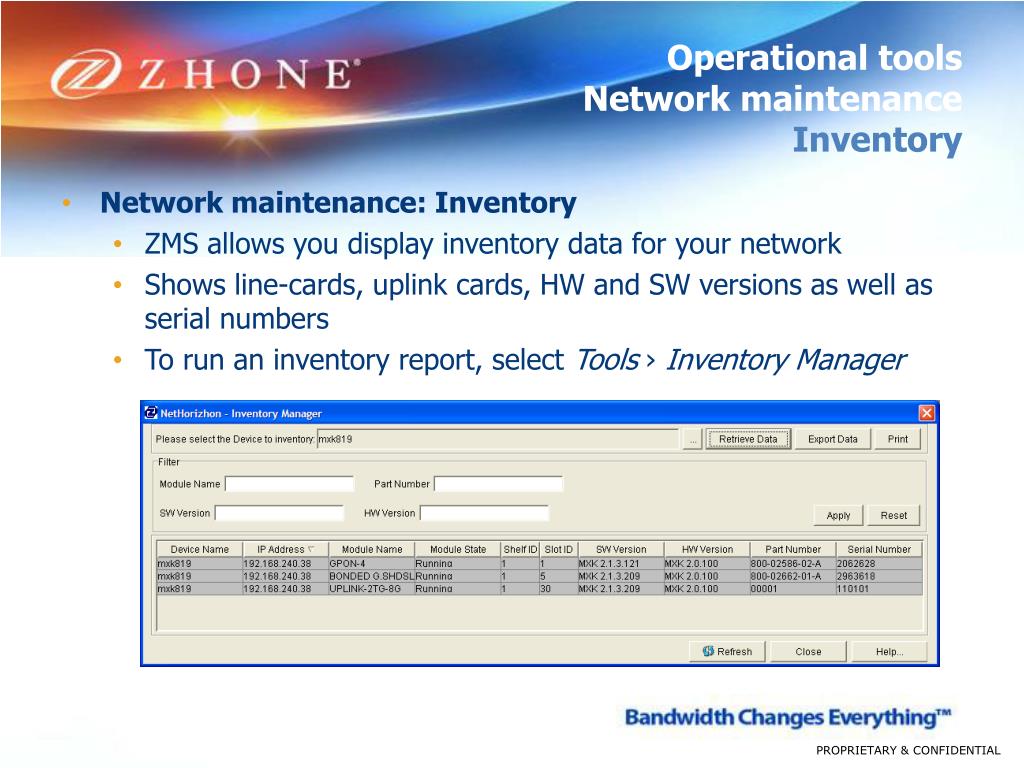

  18. Operational toolsNetwork maintenanceInventory Network maintenance: Inventory ZMS allows you display inventory data for your network Shows line-cards, uplink cards, HW and SW versions as well as serial numbers To run an inventory report, select Tools › Inventory Manager

  19. Operational toolsNetwork maintenanceAuto-discovery Network maintenance: Auto-discovery of nodes ZMS can be scheduled to discover new units installed in the network

  20. Operational toolsNetwork maintenanceTrap and alarm history Network maintenance: Historical trap and alarm view ZMS will keep a record of all received traps and alarms Open View › Faults › View alarm history or View trap history Filter the trap list; units, date and time

  21. Operational toolsNetwork maintenanceTrap forwarder Network maintenance: Trap forwarder ZMS can forward traps from managed unit to external system logger Open View › Faults › Manage trap configuration and add the receiver’s IP address and SNMP community string SNMP

  22. Operational tools This module covers CPE manager Network maintenance System upgrade Inventory Auto-discovery of nodes Historical trap and alarm view Trap forwarding
