Presentation Transcript

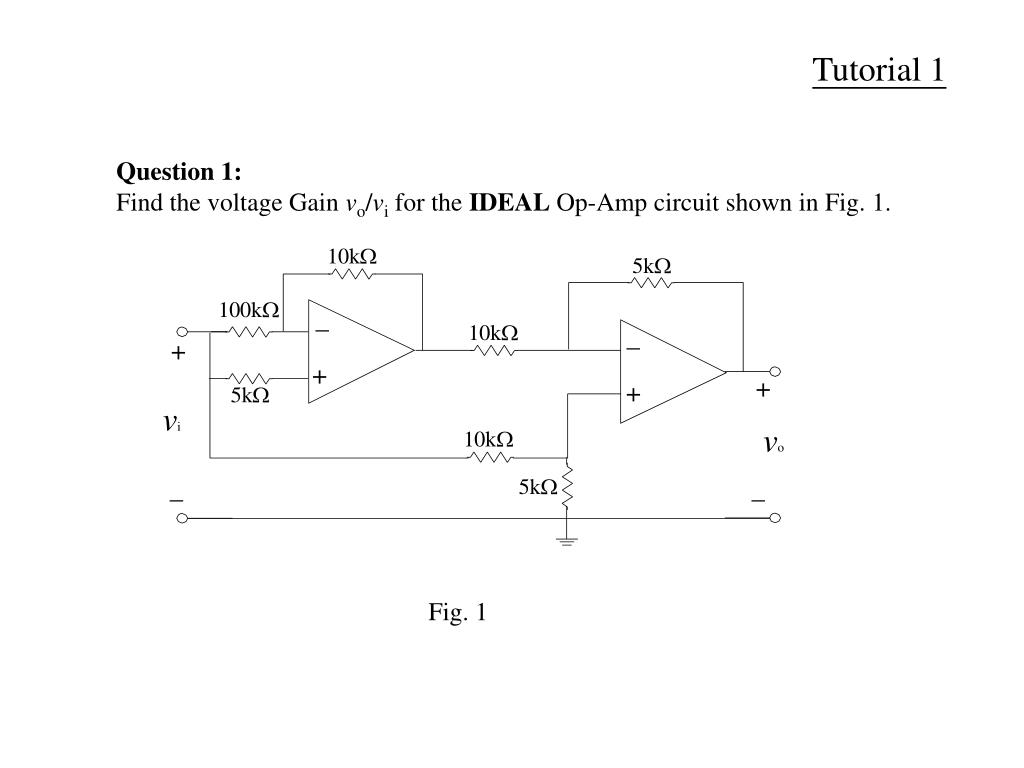

  1. Tutorial 1 Question 1: Find the voltage Gain vo/vi for the IDEAL Op-Amp circuit shown in Fig. 1. Fig. 1

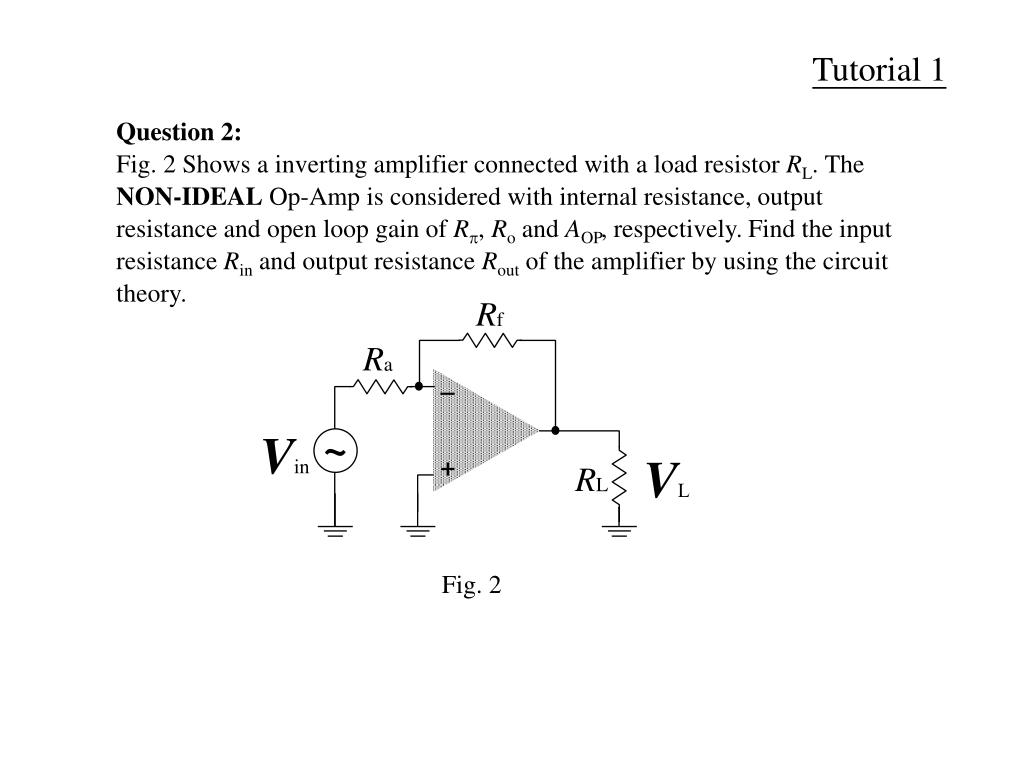

  2. Tutorial 1 Question 2: Fig. 2 Shows a inverting amplifier connected with a load resistor RL. The NON-IDEAL Op-Amp is considered with internal resistance, output resistance and open loop gain of R, Ro and AOP, respectively. Find the input resistance Rin and output resistance Rout of the amplifier by using the circuit theory. Fig. 2

  3. Tutorial 1 Question 3: Fig. 3 Shows a non-inverting amplifier. The NON-IDEAL Op-Amp is considered with internal resistance, output resistance and open loop gain of R, Ro and AOP, respectively. Find the close-loop gain ACL, input resistance Rin and output resistance Rout of the amplifier by using the circuit theory. Fig. 3
