  1. IDN TASK TEAMUpdate Presented by Lola Olsen Budapest, Hungary CEOS WGISS-21 May 9, 2006

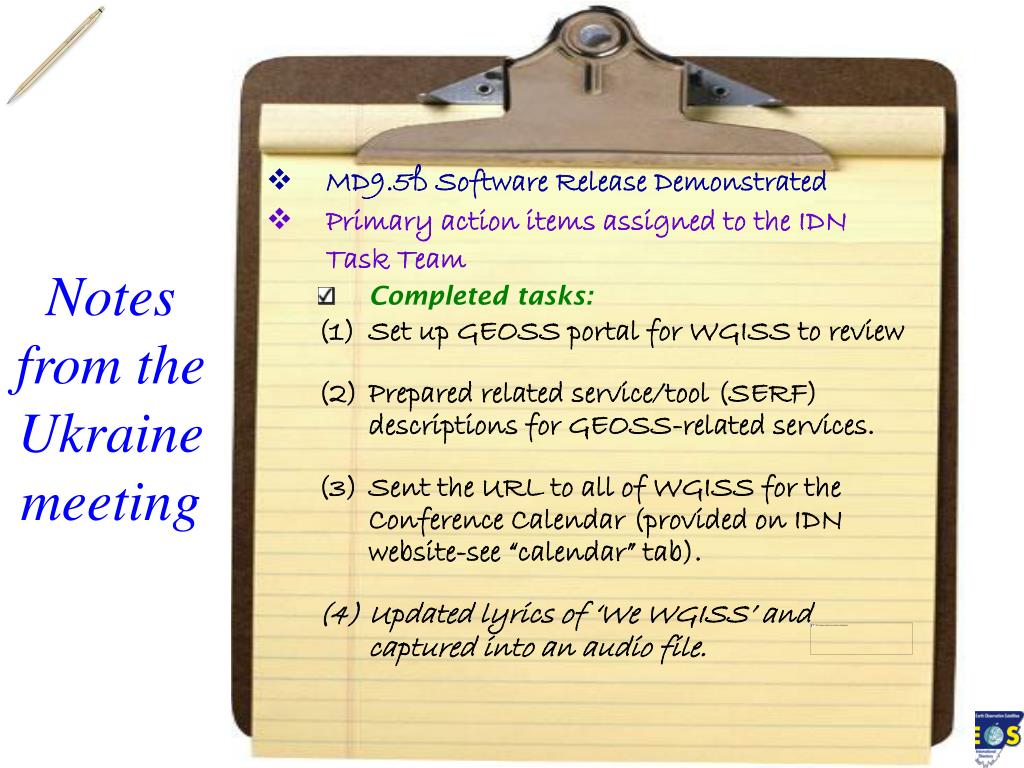

  2. Notes from the Ukraine meeting • MD9.5ß Software Release Demonstrated • Primary action items assigned to the IDN Task Team • Completed tasks: • Set up GEOSS portal for WGISS to review • Prepared related service/tool (SERF) descriptions for GEOSS-related services. • Sent the URL to all of WGISS for the Conference Calendar (provided on IDN website-see “calendar” tab). • Updated lyrics of ‘We WGISS’ and captured into an audio file.

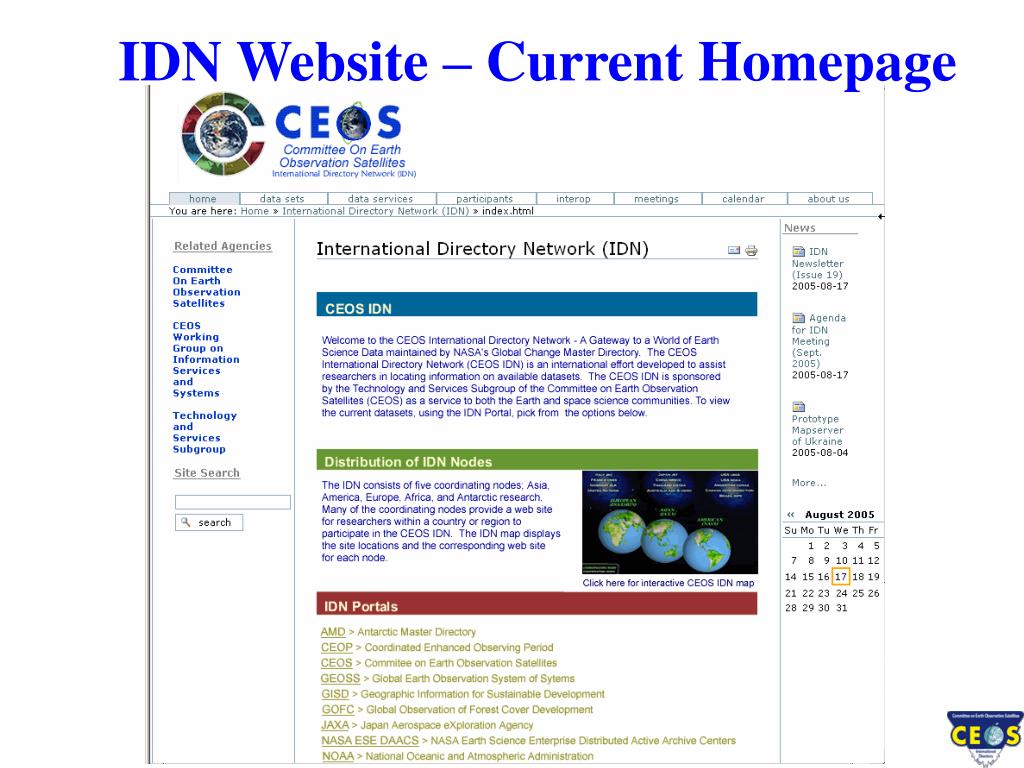

  3. IDN Website – Current Homepage

  4. New IDN Map

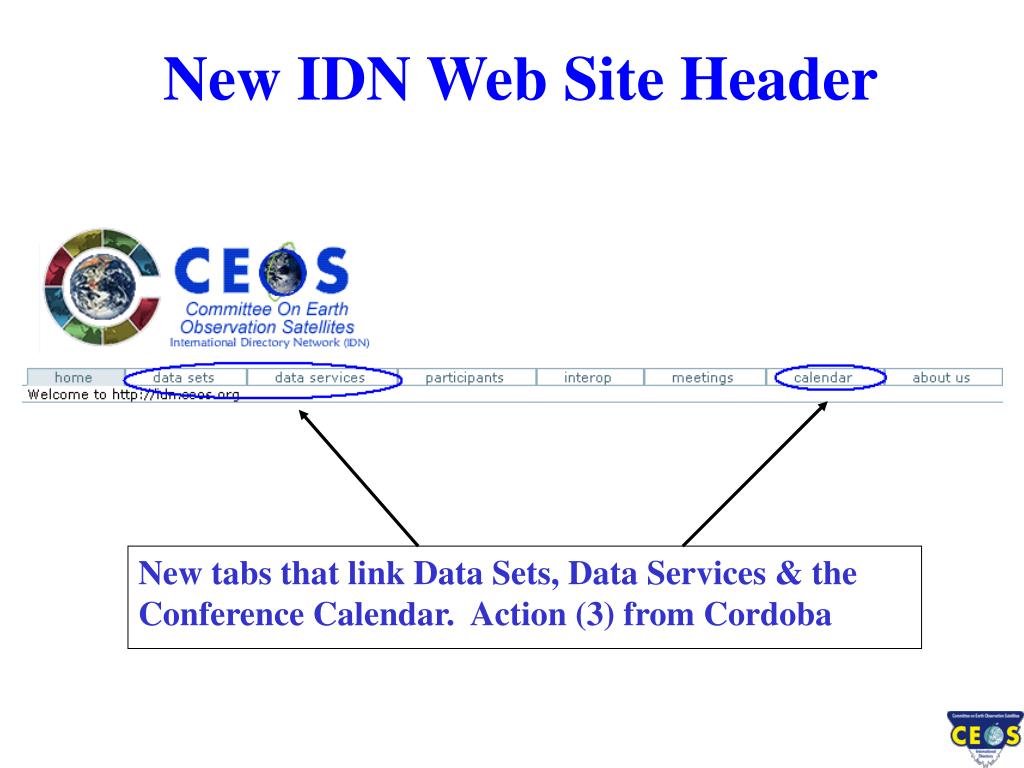

  5. New IDN Web Site Header New tabs that link Data Sets, Data Services & the Conference Calendar. Action (3) from Cordoba

  6. Status of IDN Site • IDN Website continues to use Zope/Plone. • Discussion List. Used the Interoperability Forum to provide feedback on: • Data resolution options • DIF extension for Models • Platform/Instrument Restructure • Renaming of Keyword Fields • Geographic Location Hierarchy

  7. Numerical Model Fields Proposed (2002/03) • Anne Sophie Archambeau from IPSL, France proposed an addition to the DIF to handle numerical output data sets: Group: Numerical_Experiment Model_Name: Model_Version: Model_URL: Model_Configuration: Model_Resolution: Model_Calendar: Group: Model_Integration_Period Start_Date: Stop_Date: End_Group Simulation_Name: Initial_Conditions: Perturbation: Imposed_Boundary_Conditions: End_Group • Interop discussions on the proposed new fields are summarized in the CEOS IDN Interop Newsletter #15 for April 2003: First proposed in 2002 http://gcmd.gsfc.nasa.gov/pipermail/interop/2003-April/000011.html

  8. Instrument and Platform Upgrade • Implement an option to list all instruments and platforms alphabetically for searching. • Expanded database table structures for Instrument and Platform information and categories. • Extend Supplemental Information to include expanded Instrument and Platform information. • Feedback Welcome!

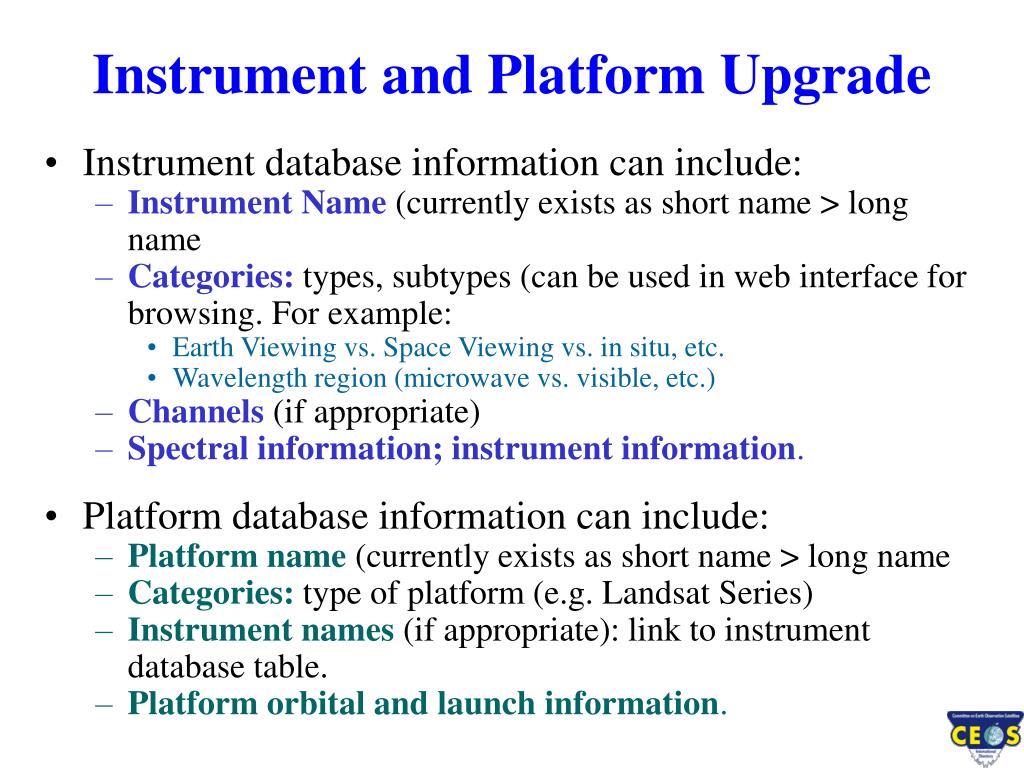

  9. Instrument and Platform Upgrade • Instrument database information can include: • Instrument Name (currently exists as short name > long name • Categories: types, subtypes (can be used in web interface for browsing. For example: • Earth Viewing vs. Space Viewing vs. in situ, etc. • Wavelength region (microwave vs. visible, etc.) • Channels (if appropriate) • Spectral information; instrument information. • Platform database information can include: • Platform name (currently exists as short name > long name • Categories: type of platform (e.g. Landsat Series) • Instrument names (if appropriate): link to instrument database table. • Platform orbital and launch information.

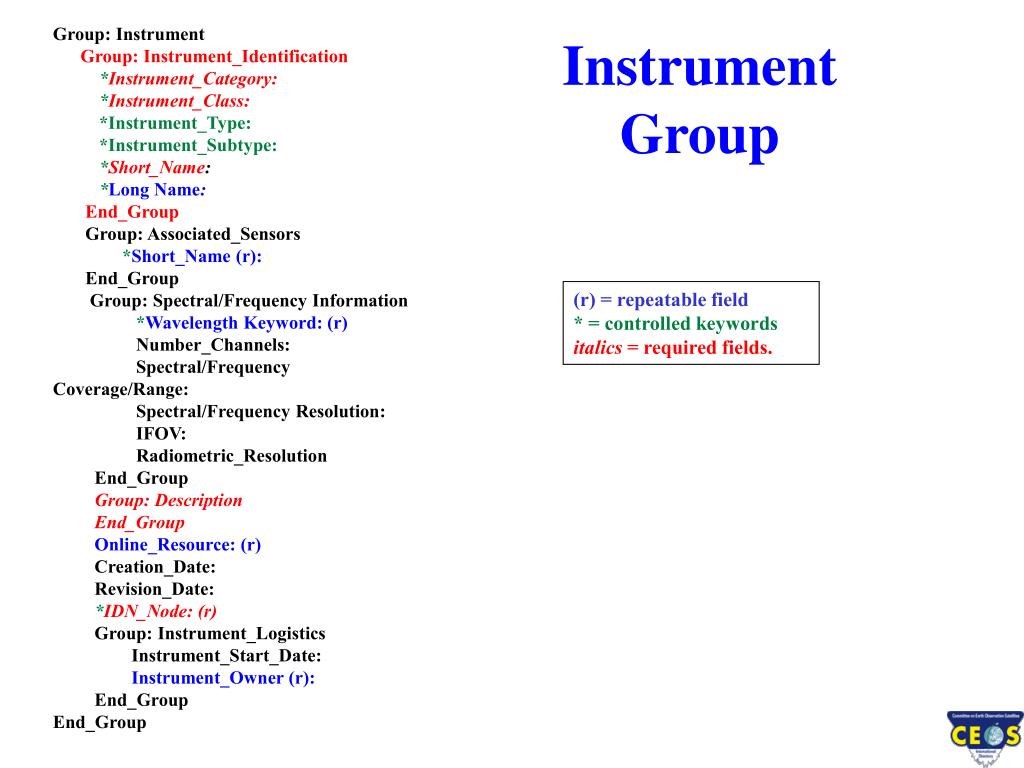

  10. Group: Instrument Group: Instrument_Identification *Instrument_Category: *Instrument_Class: *Instrument_Type: *Instrument_Subtype: *Short_Name: *Long Name: End_Group Group: Associated_Sensors *Short_Name (r): End_Group Group: Spectral/Frequency Information *Wavelength Keyword: (r) Number_Channels: Spectral/Frequency Coverage/Range: Spectral/Frequency Resolution: IFOV: Radiometric_Resolution End_Group Group: Description End_Group Online_Resource: (r) Creation_Date: Revision_Date: *IDN_Node: (r) Group: Instrument_Logistics Instrument_Start_Date: Instrument_Owner (r): End_Group End_Group Instrument Group (r) = repeatable field * = controlled keywords italics = required fields.

  11. Group: Platform Group: Platform_Identification *Platform_Category: *Platform_Series/Entity: *Short_Name: *Long_Name : End_Group Group: Alternate_Platform_Names Short_Name (r): End_Group Group: Associated Instruments *Short_Name: (r) End_Group Group: Orbit Orbit_Altitude: Orbit_Inclination: Equator_Crossing: Period: Repeat_Cycle: Perigee: Apogee: *Orbit_Type: End_Group Group: Description <text> End_Group Creation_Date: Revision_Date: Online_Resource: (r) *IDN_Node: (r) Group: Platform_Logistics Launch_Date: Launch_Site: Primary_Sponsor (r): End_Group End_Group Platform Group (r) = repeatable field * = controlled keywords italics = required fields. Note: Instrument short_names will be valid Sensor_Names in the database. Note: Alternate Platform Names will refer to Platform short names in the database

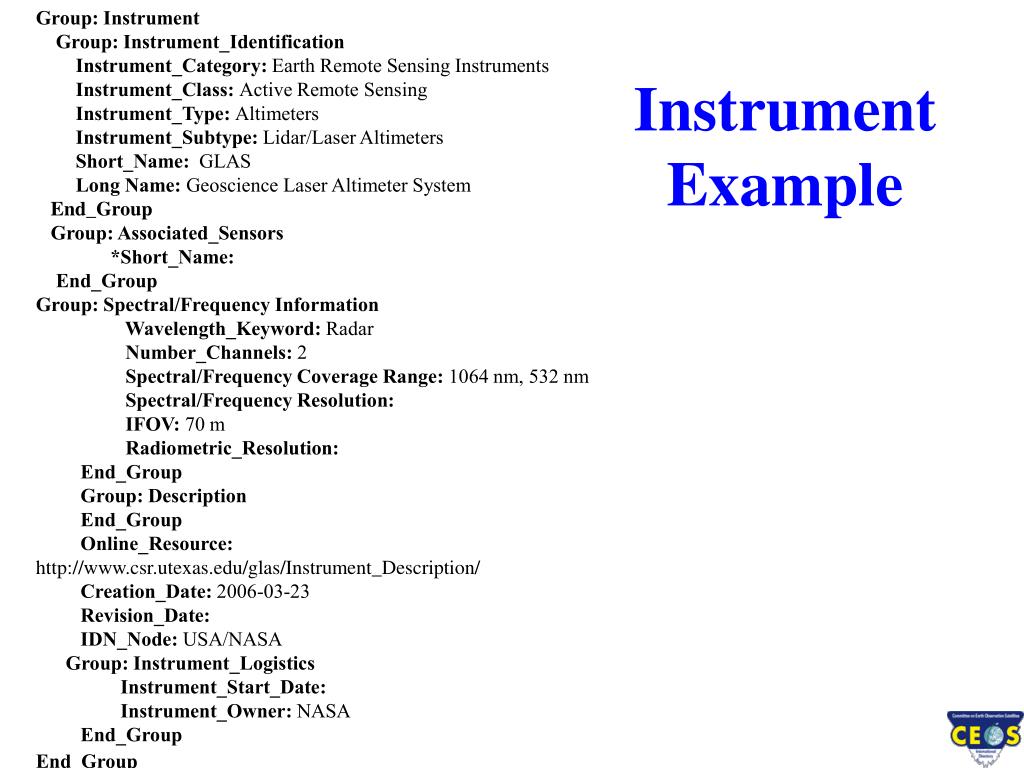

  12. Group: Instrument Group: Instrument_Identification Instrument_Category: Earth Remote Sensing Instruments Instrument_Class: Active Remote Sensing Instrument_Type: Altimeters Instrument_Subtype: Lidar/Laser Altimeters Short_Name: GLAS Long Name: Geoscience Laser Altimeter System End_Group Group: Associated_Sensors *Short_Name: End_Group Group: Spectral/Frequency Information Wavelength_Keyword: Radar Number_Channels: 2 Spectral/Frequency Coverage Range: 1064 nm, 532 nm Spectral/Frequency Resolution: IFOV: 70 m Radiometric_Resolution: End_Group Group: Description End_Group Online_Resource: http://www.csr.utexas.edu/glas/Instrument_Description/ Creation_Date: 2006-03-23 Revision_Date: IDN_Node: USA/NASA Group: Instrument_Logistics Instrument_Start_Date: Instrument_Owner: NASA End_Group End_Group Instrument Example

  13. Instrument Example Group: Instrument Group: Instrument_Identification *Instrument_Category: Earth Remote Sensing Instrument *Instrument_Class:Passive Remote Sensing *Instrument_Type: Photon/Optical Detectors *Instrument_Subtype: Photometer *Short_Name: Sun Photometer *Long Name: Sun Photometer End_Group Group: Associated_Sensors *Short_Name (r): Photometer End_Group Group: Spectral/Frequency Information *Wavelength Keyword: (r) Varied Number_Channels: Spectral/Frequency Coverage Range: Spectral/Frequency Resolution: IFOV: Radiometric_Resolution End_Group Group: Description End_Group Online_Resource: (r) Creation_Date: 2006-04-04 Revision_Date: 2006-04-04 *IDN_Node: USA/NASA Group: Instrument_Logistics Instrument_Start_Date: Instrument_Owner (r): End_Group End_Group

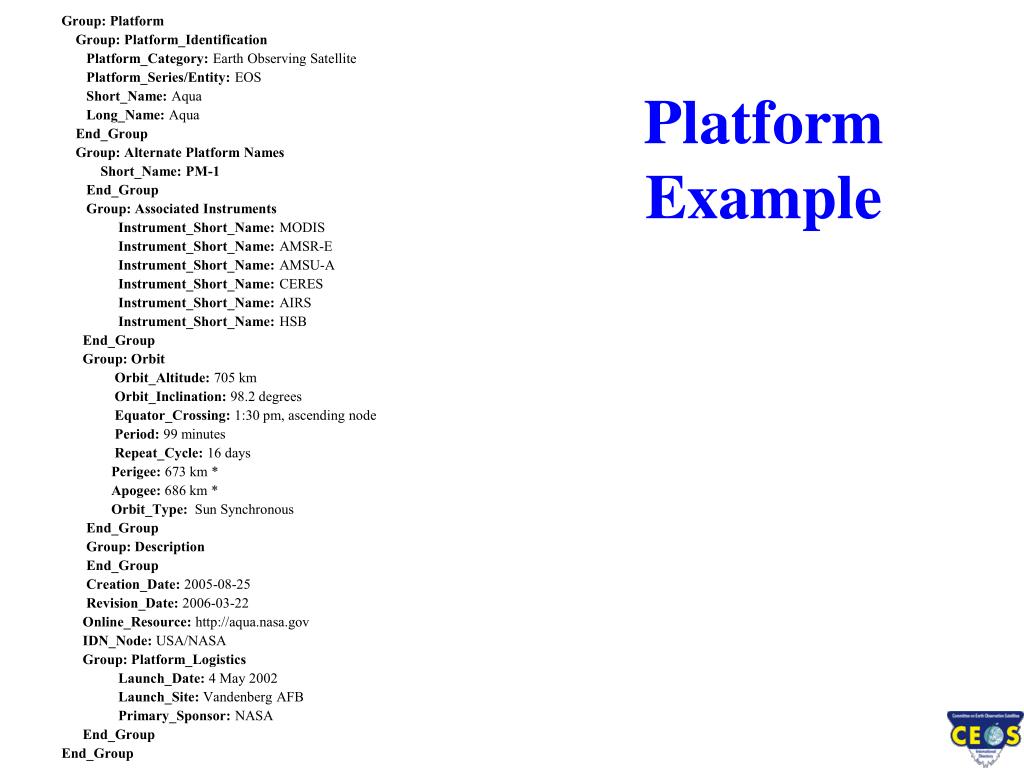

  14. Platform Example Group: Platform Group: Platform_Identification Platform_Category: Earth Observing Satellite Platform_Series/Entity: EOS Short_Name: Aqua Long_Name: Aqua End_Group Group: Alternate Platform Names Short_Name: PM-1 End_Group Group: Associated Instruments Instrument_Short_Name: MODIS Instrument_Short_Name: AMSR-E Instrument_Short_Name: AMSU-A Instrument_Short_Name: CERES Instrument_Short_Name: AIRS Instrument_Short_Name: HSB End_Group Group: Orbit Orbit_Altitude: 705 km Orbit_Inclination: 98.2 degrees Equator_Crossing: 1:30 pm, ascending node Period: 99 minutes Repeat_Cycle: 16 days Perigee: 673 km * Apogee: 686 km * Orbit_Type: Sun Synchronous End_Group Group: Description End_Group Creation_Date: 2005-08-25 Revision_Date: 2006-03-22 Online_Resource: http://aqua.nasa.gov IDN_Node: USA/NASA Group: Platform_Logistics Launch_Date: 4 May 2002 Launch_Site: Vandenberg AFB Primary_Sponsor: NASA End_Group End_Group

  15. Node Reports

  16. JCADM Report

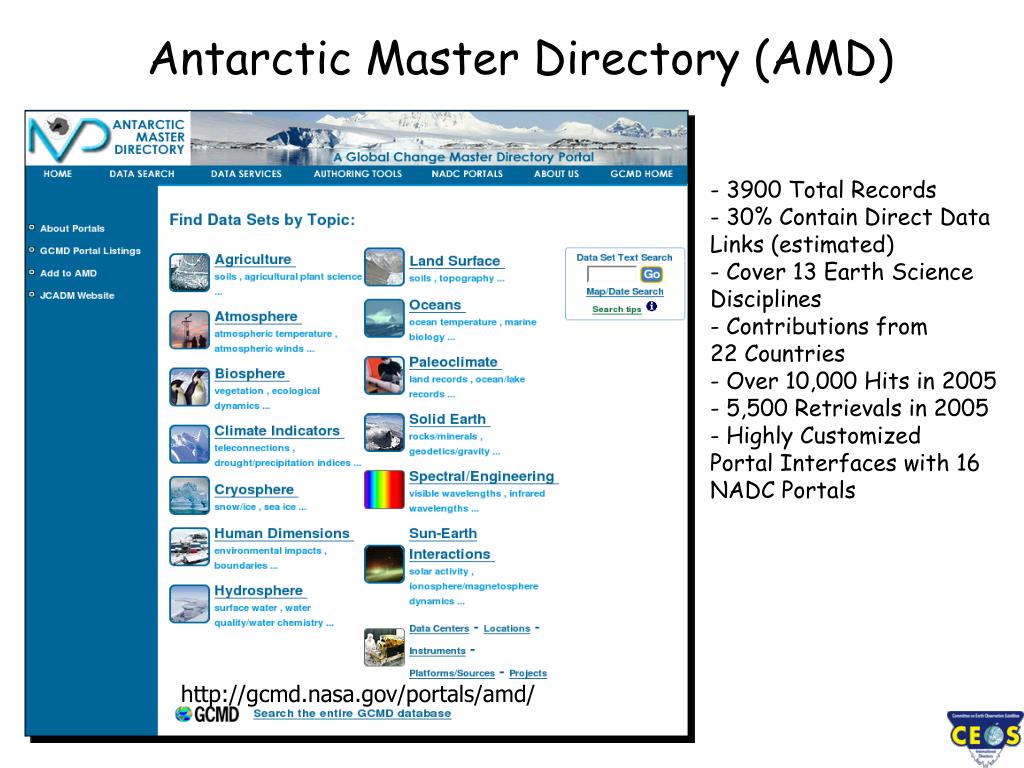

  17. Antarctic Master Directory (AMD) • 3900 Total Records • 30% Contain Direct Data Links (estimated) • Cover 13 Earth Science Disciplines • Contributions from • 22 Countries • Over 10,000 Hits in 2005 • - 5,500 Retrievals in 2005 • Highly Customized • Portal Interfaces with 16 NADC Portals http://gcmd.nasa.gov/portals/amd/

  18. Data Access Portals The GCMD hosts a total of 70 highly customized portals 16 NADC AMD portals 8 new portals: Spain, Uruguay, Italy – Feb. France – Jun. Chile – Jul. New Zealand, Malaysia – Oct. China – Apr. ‘06 http://gcmd.nasa.gov/portals/amd_my/

  19. Antarctic Master Directory - NADC PortalsThe alias format is http://gcmd.nasa.gov/portals/portal_name/Examples of alias: http://gcmd.nasa.gov/portals/amd_ar/ • Belgium Antarctic Program – Jan. 2003 • Finnish Antarctic Program – Jan. 2003 • Centro de Datos Antárticos, Argentina – Aug. 2003 • Canadian Polar Commission/Canadian Committee for Antarctic Research – Oct. 2003 • Swiss Committee on Polar Research – Nov. 2003 • US Antarctic Data Centers/US Antarctic Data Coordination Center - Feb. 2004 • Japan National Institute for Polar Research – Feb. 2004 • Estonian Antarctic Data Center – Jul. 2004 • Centro Nacional de Datos Antárticos, Spain – Feb. 2005 • Instituto Antartico Uruguayo – Feb. 2005 • Italian Antarctic Program – Feb. 2005 • Institut Polaire Francais Paul Emile Victor, France – Jun. 2005 • Centro Nacional de Datos Antarticos, Chile – Jul. 2005 • Malaysian Antarctic Data Center – Oct. 2005 • Antarctica New Zealand Data Center – Oct. 2005 • Chinese Antarctic and Arctic Data Centre – Apr. 2006

  20. AMD Content Growth

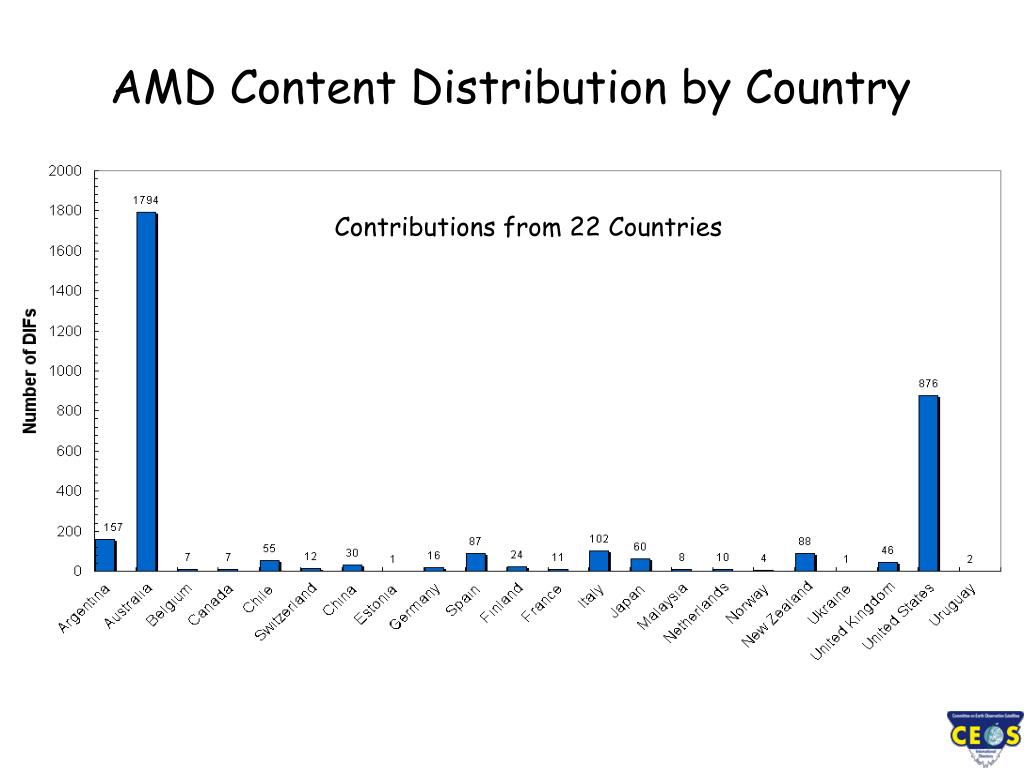

  21. AMD Content Distribution by Country Contributions from 22 Countries

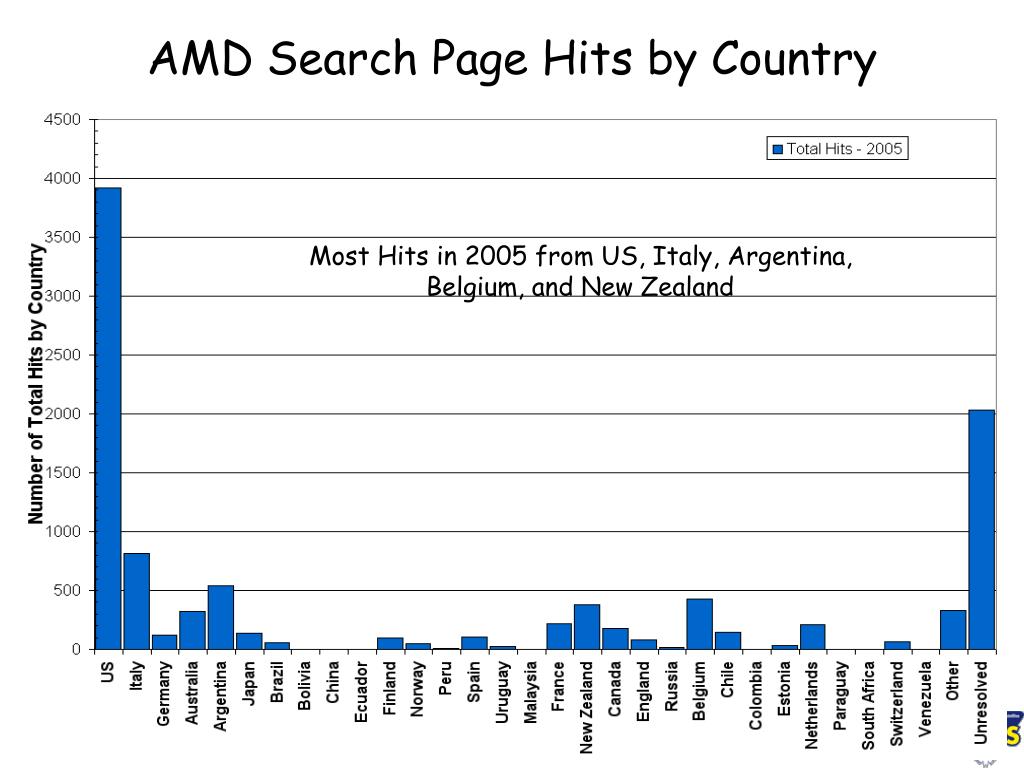

  22. AMD Search Page Hits by Country Most Hits in 2005 from US, Italy, Argentina, Belgium, and New Zealand

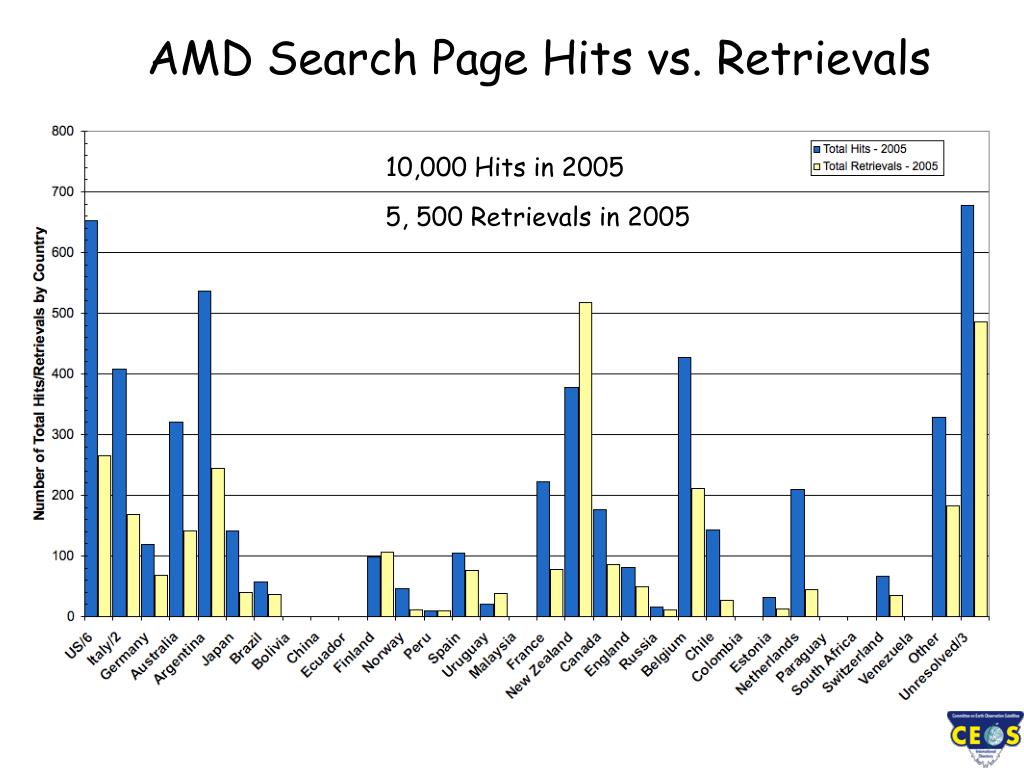

  23. AMD Search Page Hits vs. Retrievals 10,000 Hits in 2005 5, 500 Retrievals in 2005

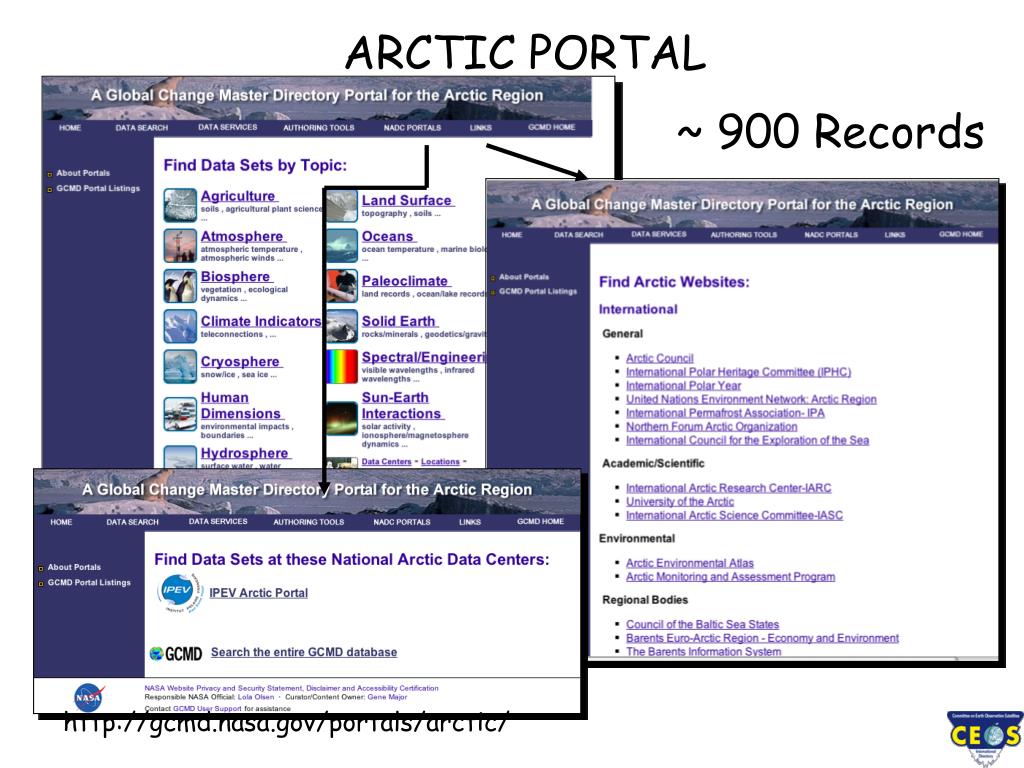

  24. ARCTIC PORTAL ~ 900 Records http://gcmd.nasa.gov/portals/arctic/

  25. OBIS: Following the JCADM Model … • Portal created in Dec. 2005 • 40+ metadata Records • All have a “GET DATA” link • 10 Regional OBIS Portals • Customized “Templates” OBIS Taxonomic Categories http://iobis.org/CategorySearch - to be implemented in GCMD

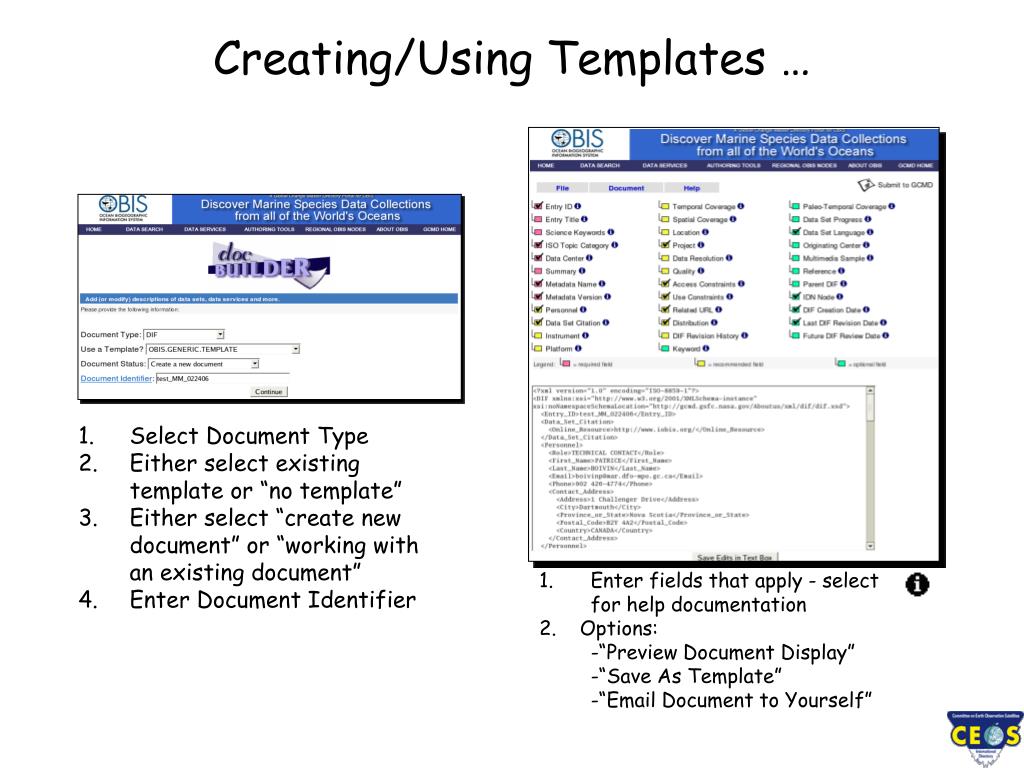

  26. Creating/Using Templates … • Select Document Type • Either select existing template or “no template” • Either select “create new document” or “working with an existing document” • Enter Document Identifier • Enter fields that apply - select • for help documentation • 2. Options: • -“Preview Document Display” • -“Save As Template” • -“Email Document to Yourself”

  27. Support for foreign and mathematical characters in DIF/SERF display DIF SERF

  28. Demo Mapserver for Budapest

  29. GCMD Prototype Mapserver Tools GIS Data Layers Map View OGC WMS Get Capabilities Request: http://mapserver.gsfc.nasa.gov/wmsconnector/com.esri.wms.Esrimap/CEOS_2005?request=getcapabilities&service=WMS&version=1.1.1

  30. Prototype Mapserver Interoperability • Access GCMD’s Web Mapping Service (WMS) through an OGC WMS GET Capabilities Request. • OGC WMS compatible clients can access GCMD’s map services. User Friendly Desktop Internet GIS (WMS Client) GCMD Mapserver

  31. Mapdex Indexes GCMD Mapserver http://www.mapdex.org

  32. New Keywords since Last CEOS Meeting PART C

  33. New/Modified Earth Science Keywords Since September 2005 NEW Variables for Numerical Models • Decision Support Models • Digital Elevation/Terrain Models • Earth System Component Models • Global Coupled Climate System Models • Global General Circulation Models • Phenomenological Models • Process Models • Regulatory Models • Solar-Atmosphere/Space Weather Models

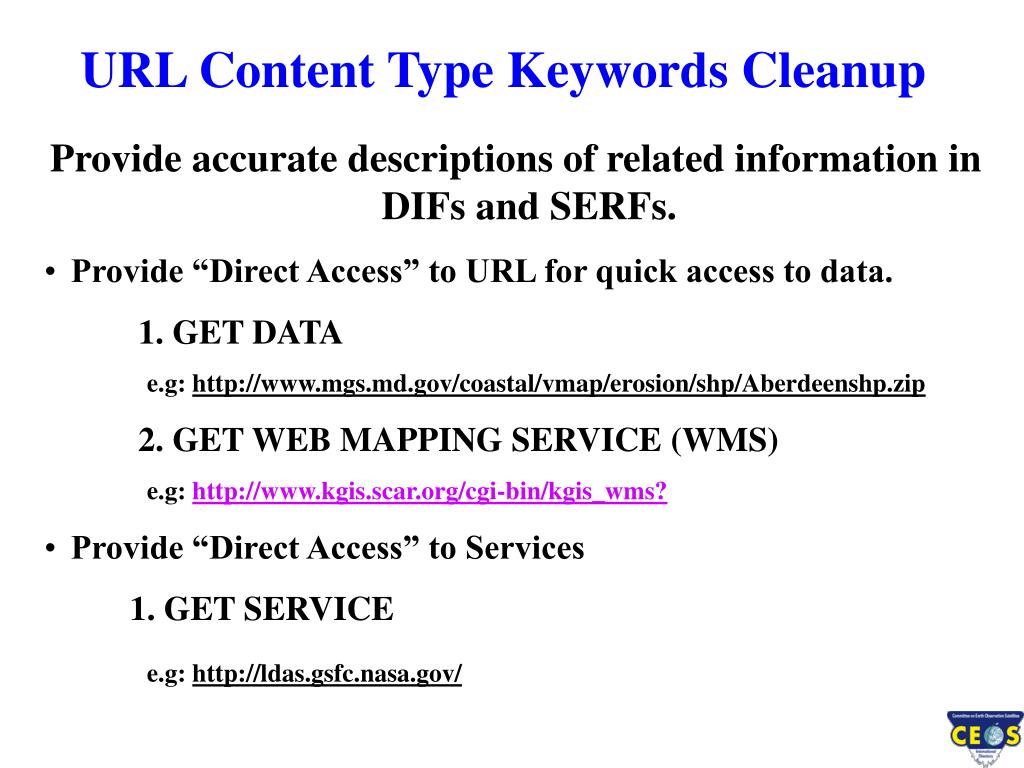

  34. URL Content Type Keywords Cleanup • Provide accurate descriptions of related information in DIFs and SERFs. • Provide “Direct Access” to URL for quick access to data. 1. GET DATA e.g: http://www.mgs.md.gov/coastal/vmap/erosion/shp/Aberdeenshp.zip 2. GET WEB MAPPING SERVICE (WMS) e.g: http://www.kgis.scar.org/cgi-bin/kgis_wms? • Provide “Direct Access” to Services 1. GET SERVICE e.g: http://ldas.gsfc.nasa.gov/

  35. ASSOCIATED DATA SET(S) BDP METADATA CALIBRATION/VALIDATION DATA DIAL DATA SERVER DISC-AIRS DISC-MODIS DISC-OMI DODS_DIR DODS_FILESERVER DODS_LAS DODS_URL EML METADATA FGDC METADATA GCMD MAPSERVER GET DATA GET SERVICE NBII METADATA NOMADS DATA SERVER PROJECT HOME PAGE REFERENCE MATERIALS RELATED DATA SET DESCRIPTION RELATED DATA SET METADATA RELATED SERVICE METADATA SOAP API SOFTWARE PACKAGES UDDI REGISTRY WEB COVERAGE SERVICE (WCS) WEB FEATURE SERVICE (WFS) WEB MAPPING SERVICE (WMS) URL Content Type Keywords Cleanup Previous List New List GET DATA VIEW EXTENDED METADATA GET SERVICE VIEW PROJECT HOME PAGE VIEW RELATED INFORMATION GET RELATED DATA SET METADATA (DIF) GET RELATED SERVICE METADATA (SERF) ACCESS WEB SERVICE GET SOFTWARE PACKAGE GET WEB COVERAGE SERVICE (WCS) GET WEB FEATURE SERVICE (WFS) GET WEB MAPPING SERVICE (WMS) GET MAP SERVICE ACCESS MAP VIEWER

  36. New Data Center, Location, Instrument, and Platform Hierarchies for Improved Search Multi-year Effort Comments Welcome

  37. New Location Hierarchy Search New search box for location Search or map date search

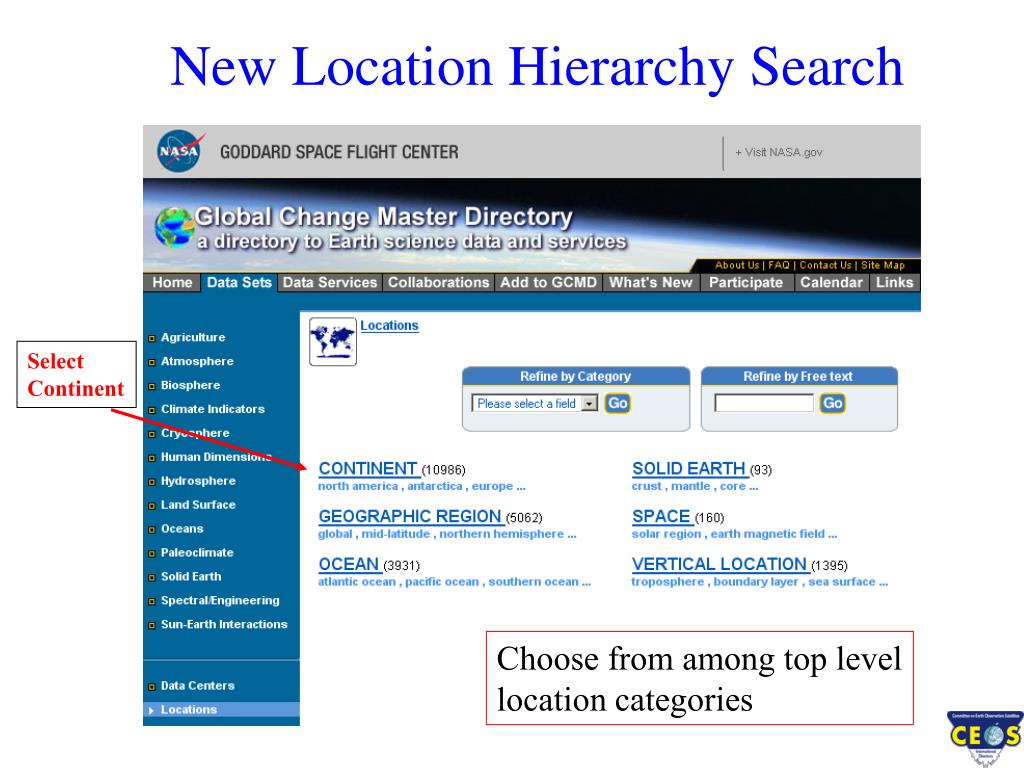

  38. New Location Hierarchy Search Select Continent Choose from among top level location categories

  39. New Location Hierarchy Search Breadcrumbs show where you are in the hierarchy Select Europe “Continent” category subdivided into individual continents

  40. New Location Hierarchy Search Breadcrumbs Category “Europe” is further subdivided into individual countries and regions. Select Eastern Europe

  41. New Location Hierarchy Search Breadcrumbs Category “Eastern Europe” is further subdivided into individual countries and regions. Select Hungary

  42. New Location Hierarchy Search Breadcrumbs Results for search on “Hungary” displayed.

  43. DIF/SERF POPULATION

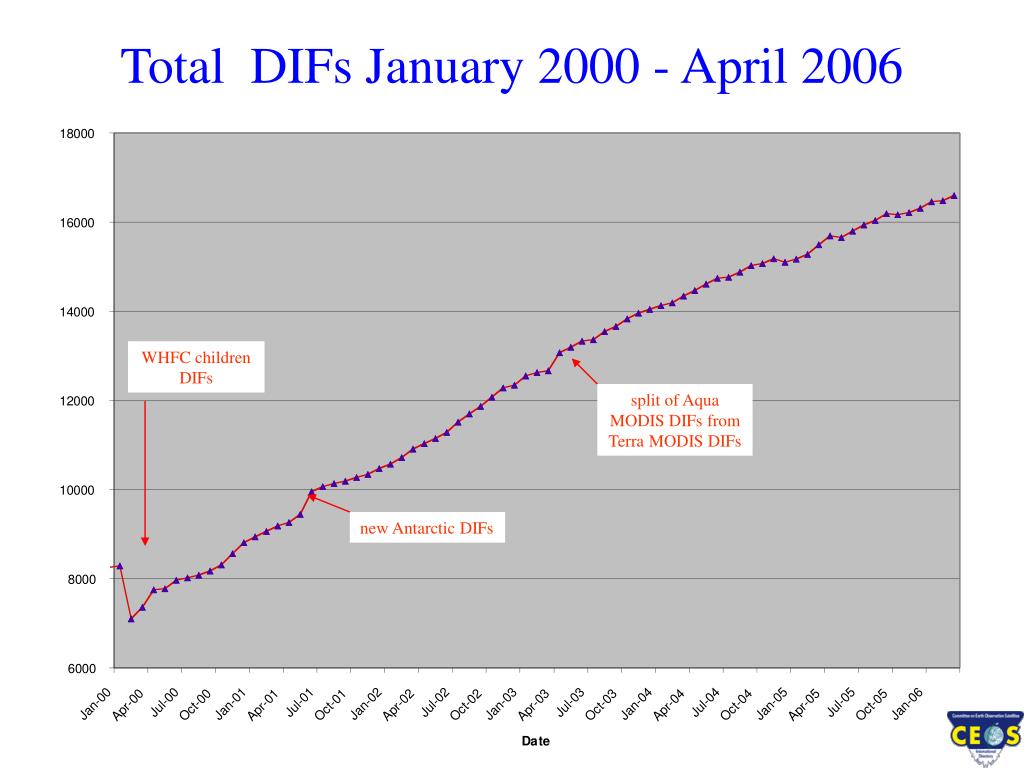

  44. Total DIFs January 2000 - April 2006 WHFC children DIFs split of Aqua MODIS DIFs from Terra MODIS DIFs new Antarctic DIFs

  45. Cumulative DIF Population 2003-2006

  46. New and Revised Supplemental Descriptions

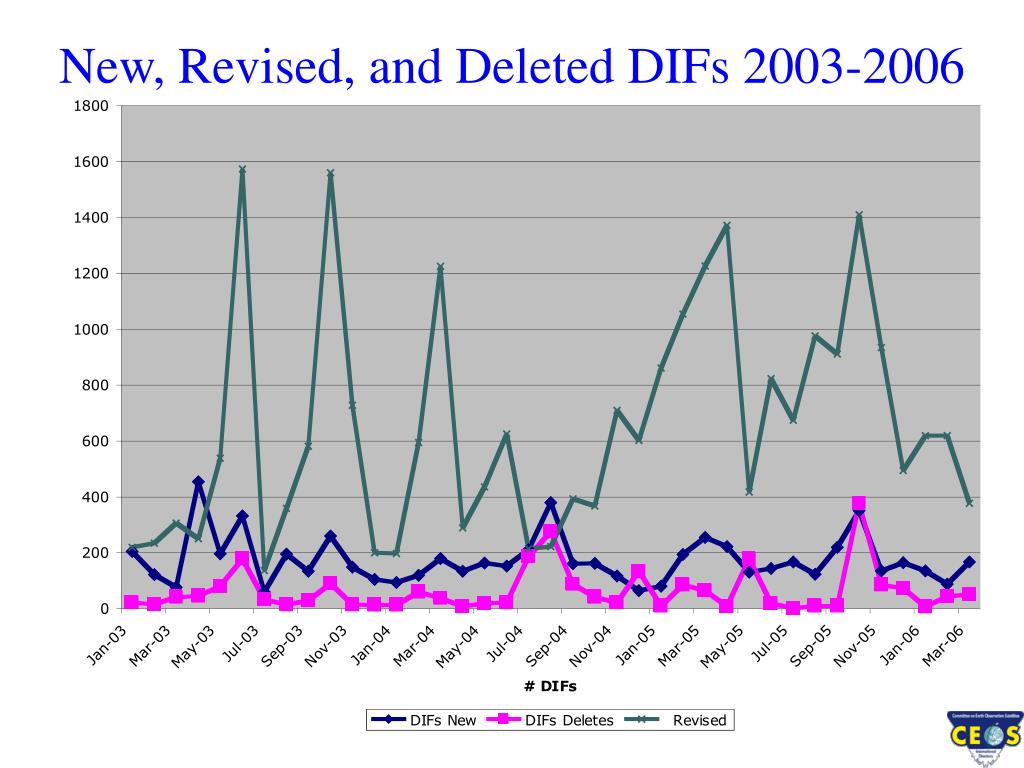

  47. New, Revised, and Deleted DIFs 2003-2006

  48. DIF Population by Earth Science Topic
