Mars Rover. TEAM CPNE Crossen Davis Peter Ramer Nancy Robinson Eric Rodriguez. Description. Wireless vehicle equipped with various sensors. Sensors may include: temperature, SONAR, GPS, video, light, audio, etc. Vehicle can be controlled by serial, RF, and/or 802.11B communication.

mavis
Télécharger la présentation

Mars Rover

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

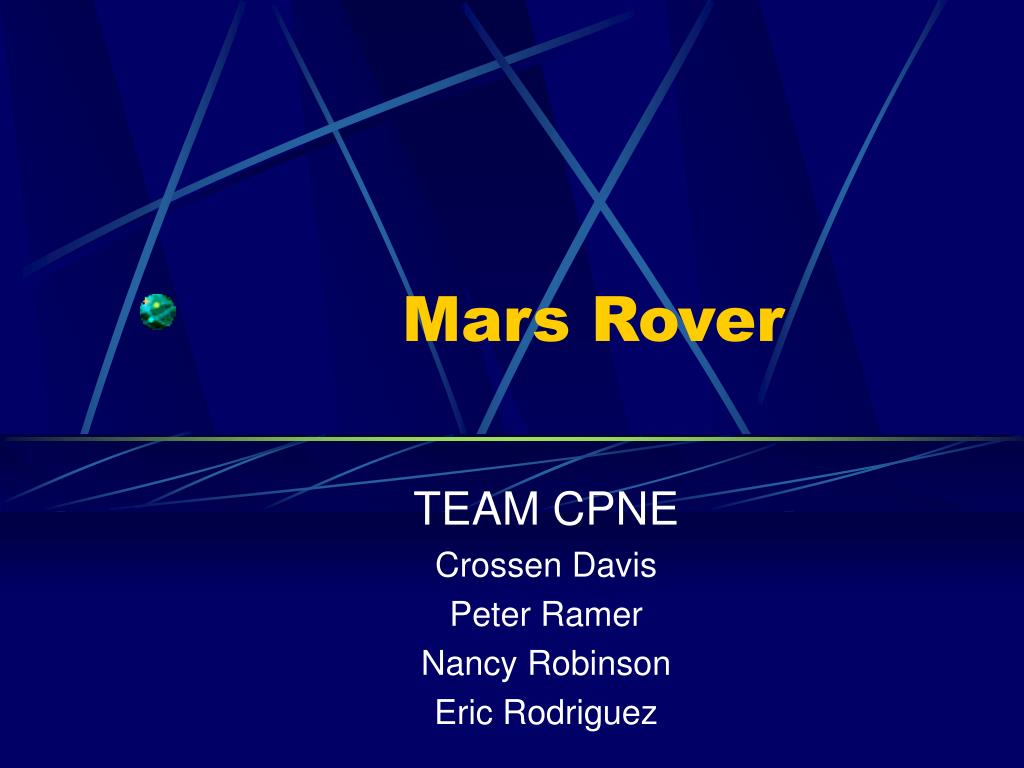

  1. Mars Rover TEAM CPNE Crossen Davis Peter Ramer Nancy Robinson Eric Rodriguez

  2. Description • Wireless vehicle equipped with various sensors. • Sensors may include: temperature, SONAR, GPS, video, light, audio, etc. • Vehicle can be controlled by serial, RF, and/or 802.11B communication. • The data will be transferred back wirelessly to a base station connected to a computer. • Data can be viewed in Real Time by a user interface.

  3. Description(cont.) • An RC or other type of chassis will be used. • We will control 2 stepper motors. • Data can also be stored on a flash card in the car, time permitting.

  4. Hardware Implementation: Base Station Computer Base Station 68HC11 SerialRS-232 802.11b RF Transmitter/Receiver Rover

  5. Hardware Implementation: Red Rover 2 Stepper Motors Temperature Sensor Sonar Transducer LCD Screen Camera Light Sensor Red Rover 68HC11 Serial RS-232 GPS Sensor Flash Card 802.11b RF Transmitter/Receiver

  6. Processor • Motorola 68HC11 micro-controller • Internal SDI Serial Interfaces • Parallel Interface • Several I/O Bus-lines

  7. Possible Parts Long Range 433MHz Serial RF Modem w/ Antenna and Interface Cable One Wire Digital Temperature Sensor

  8. Possible Parts(cont.) GPS RS232 Dual Port Carrier Board - Lassen IQ Ultrasonic 25kHz Transducers

  9. Software Implementation • User interface will be implemented in C/C++. • Drivers and ISR for all the motors, sensors, and communication peripherals will be implemented in a combination of assembly and/or C/C++.

  10. Division of Labor • Crossen – car processor, RF, Motors, User Interface • Peter – car processor, RF, Video, User Interface • Nancy – base station processor, Temp sensor, GPS, User Manual • Eric – base station processor, light sensor, Motors, Data Processing

  11. Schedule

  12. Risks and Contingency Plan • Most of these peripherals are unfamiliar. • However, our design involves many sensors,each of which are small components in the overall project. • If needed, some of these can be dropped from the project while still completing our main goals.

  13. Bandwidth • We will have to figure out how to transmit all of the data we receive from our sensors back to our base station. • The camera especially needs a lot of bandwidth

  14. Questions? • Thank You!
