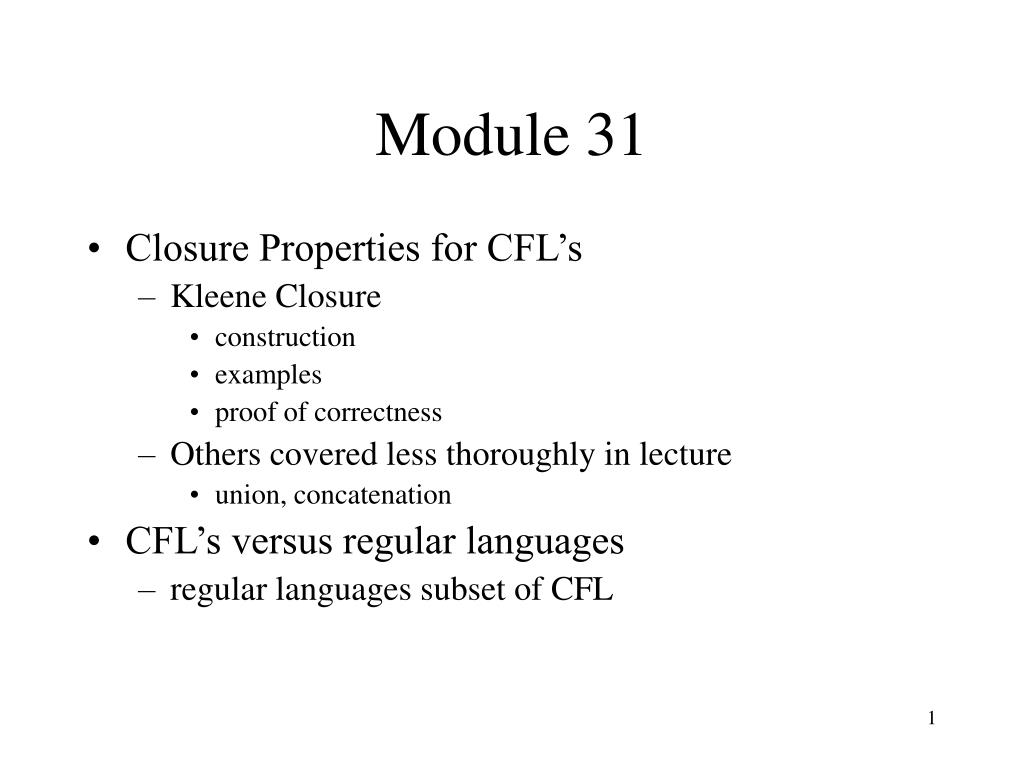

  1. Module 31 • Closure Properties for CFL’s • Kleene Closure • construction • examples • proof of correctness • Others covered less thoroughly in lecture • union, concatenation • CFL’s versus regular languages • regular languages subset of CFL

  2. Closure Properties for CFL’s Kleene Closure

  3. CFL closed under Kleene Closure • Let L be an arbitrary CFL • Let G1 be a CFG s.t. L(G1) = L • G1 exists by definition of L1 in CFL • Construct CFG G2 from CFG G1 • Argue L(G2) = L* • There exists CFG G2 s.t. L(G2) = L* • L* is a CFL

  4. L L* G1 G2 CFG’s Visualization • Let L be an arbitrary CFL • Let G1 be a CFG s.t. L(G1) = L • G1 exists by definition of L1 in CFL • Construct CFG G2 from CFG G1 • Argue L(G2) = L* • There exists CFG G2 s.t. L(G2) = L* • L* is a CFL CFL

  5. A Algorithm Specification • Input • CFG G1 • Output • CFG G2 such that L(G2) = (L(G1))* CFG G1 CFG G2

  6. Construction • Input • CFG G1 = (V1, S, S1, P1) • Output • CFG G2 = (V2, S, S2, P2) • V2 = V1 union {T} • T is a new symbol not in V1 or S • S2 = T • P2 = P1 union ??

  7. Closure Properties for CFL’s Kleene Closure Examples

  8. Input grammar: V = {S} S = {a,b} S = S P: S --> aa | ab | ba | bb Output grammar V = {S, T} S = {a,b} Start symbol is P: Example 1 V2 = V1 union {T} T is a new symbol not in V1 or SS2 = TP2 = P1 union {T --> ST | l}

  9. Input grammar: V = {S, T} S = {a,b} Start symbol is T P: T --> ST | l S --> aa | ab | ba | bb Output grammar V = {S, T, U} S = {a,b} Start symbol is P: Example 2 V2 = V1 union {T} T is a new symbol not in V1 or SS2 = TP2 = P1 union {T --> ST | l}

  10. Closure Properties for CFL’s Kleene Closure Proof of Correctness

  11. Is our construction correct? • How do we prove our construction is correct? • Informal • Test some strings • Review logic behind construction • Formal • First, show every string derived by G2 belongs to (L(G1))* • That is, show L(G2) is a subset of (L(G1))* • Second, show every string in (L(G1))* can be derived by G2 • That is, show (L(G1))* is a subset of L(G2) • Both proofs will be inductive proofs • Inductive proofs and recursive algorithms go well together

  12. L(G2) is a subset of (L(G1))* • We want to prove the following • If x in L(G2), then x is in (L(G1))* • This is equivalent to the following • If T ==>*G2 x, then x is in (L(G1))* • The two statements are equivalent because • x in L(G2) means that T ==>*G2 x • We break the second statement down as follows: • If T ==>1G2 x, then x is in (L(G1))* • If T ==>2G2 x, then x is in (L(G1))* • If T ==>3G2 x, then x is in (L(G1))* • ...

  13. L(G2) is a subset of (L(G1))* • Statement to be proven: • For all n >= 1, if T ==>nG2 x, then x is in (L(G1))* • Prove this by induction on n • Base Case: • n = 1 • Examining G2, what is the only string x such that T ==>1G2 x ? • Prove this string is in (L(G1))*

  14. Inductive Case • Inductive Hypothesis: • For 1 <= j <= n, if T ==>jG2 x, then x is in (L(G1))* • Note, this is a “strong” induction hypothesis • Statement to be Proven in Inductive Case: • For n above, if T ==>n+1G2 x, then x is in (L(G1))* • Proving this statement • Let x be an arbitrary string such that T ==>n+1G2 x • Examining G2, what are the two possible first derivation steps? • Case 1: T ==>G2 ==>nG2 x • Case 2: T ==>G2 ==>nG2 x

  15. Case Analysis • Case 1: T ==>G2 ==>n x is not possible • Why not? • Case 2: T ==>G2 ==>nG2 x • This means x has the form uv where • What can we say about u (no IH)? • What can we say about v (no IH)? • Applying the inductive hypothesis, what can we conclude?

  16. Concluding Case 2: T ==>G2 ==>nG2 x • Concluding string u belongs to L(G1) • Follows from S ==>* G2 u and • Our construction insures that all strings derived from S in L(G2) are also in L(G1) • How do we conclude that x belongs to (L(G1))* • Wrapping up inductive case • In all possible derivations of x, we have shown that x belongs to (L(G1))* • Thus, we have proven the inductive case • Conclusion • By the principle of mathematical induction, we have shown that L(G2) is a subset of (L(G1))*

  17. (L(G1))* is a subset of L(G2) • We want to prove the following • If x is in (L(G1))*, then x is in L(G2) • This is equivalent to the following • If x is in (L(G1))*, then T ==>*G2 x • The two statements are equivalent because • x in L(G2) means that T ==>*G2 x • We break the second statement down as follows: • If x is in (L(G1))0, then T ==>*G2 x • If x is in (L(G1))1, then T ==>*G2 x • If x is in (L(G1))2, then T ==>*G2 x • ...

  18. (L(G1))* is a subset of L(G2) • Statement to be proven: • For all n >= 0, if x is in (L(G1))n, then x is in L(G2) • Prove this by induction on n • Base Case: • n = 0 • What is the only string x in (L(G1))0? • Show this string belongs to L(G2)

  19. Inductive Case • Inductive Hypothesis: • For n>=0, if x is in (L(G1))j, thenT ==>*G2 x • Note, this is a “normal” induction hypothesis • Statement to be Proven in Inductive Case: • For n>=0, if x is in (L(G1))n+1, thenT ==>*G2 x • Proving this statement • Let x be an arbitrary string in (L(G1))n+1 • This means x = uv where • u in L(G1) • What can we say about v?

  20. Deriving x • x = uv where • u is a string in L(G1) • v is a string in • Justify all the steps in the following derivation • T ==> G2 ST ==>* G2 Sv ==>* G2 uv = x • First step: • Second step: • Third step: • Thus T ==>* G2 x • The inductive case follows • The result is proven by the principle of mathematical induction

  21. Construction for Set Union • Input • CFG G1 = (V1, S, S1, P1) • CFG G2 = (V2, S, S2, P2) • Output • CFG G3 = (V3, S, S3, P3) • V3 = V1 union V2 union {T} • Variable renaming to insure no names shared between V1 and V2 • T is a new symbol not in V1 or V2 or S • S3 = T • P3 = P1 union P2 union {T --> }

  22. Construction for Set Concatenation • Input • CFG G1 = (V1, S, S1, P1) • CFG G2 = (V2, S, S2, P2) • Output • CFG G3 = (V3, S, S3, P3) • V3 = V1 union V2 union {T} • Variable renaming to insure no names shared between V1 and V2 • T is a new symbol not in V1 or V2 or S • S3 = T • P3 = P1 union P2 union {T --> }

  23. CFL’s and regular languages

  24. CFL Closure Properties • CFL’s are closed under Kleene closure • Just proven, proof also in book • CFL’s are closed under set union • Proof in book • CFL’s are closed under set concatenation • Proof in book • What can we conclude from these 3 results? • It follows that regular languages are a subset of CFL’s

  25. Regular languages subset of CFL • Recursive definition of regular languages • Base Case: • {}, {l}, {a}, {b} are regular languages over {a,b} • P={}, P={S --> l}, P={S --> a}, P={S --> b} • Inductive Case: • If L1 and L2 are are regular languages, then L1*, L1L2, L1 union L2 are regular languages • Use previous constructions to see that these resulting languages are also context-free

  26. Other CFL Closure Properties • We will show that CFL’s are NOT closed under many other set operations • Examples include • set complement • set intersection • set difference

  27. H Equal ? CFL REC RE All languages over alphabet S H Language class hierarchy REG
