Topics

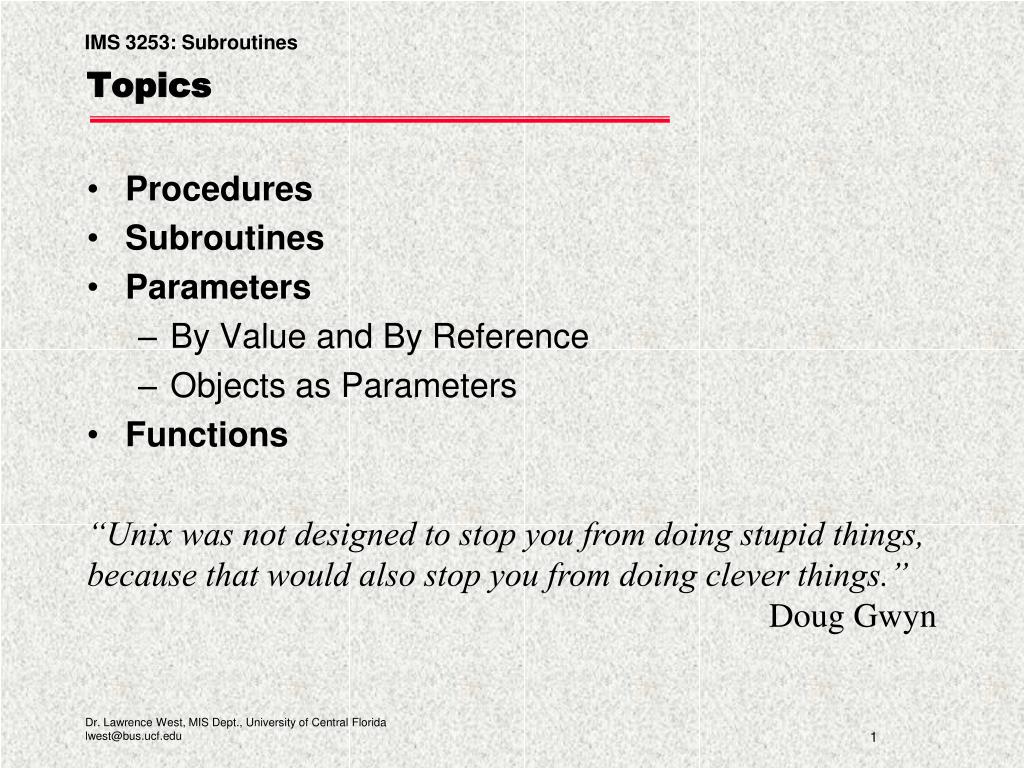

1. Topics • Procedures • Subroutines • Parameters • By Value and By Reference • Objects as Parameters • Functions “Unix was not designed to stop you from doing stupid things, because that would also stop you from doing clever things.” Doug Gwyn

2. Procedures • Functions and Subroutines are generically referred to as procedures • Includes the Event Procedures that we have been working with • Writing procedures is one of the most fundamentally important skills we need in application development • Reuse code • Move code that isn’t important to the application logic into a separate location • Critical to understanding object oriented coding

3. Procedures (cont.) • A procedure lets us package code into its own named location • The code in the named location can be “invoked” (run) on command • This is what happens in event procedures such as button click events Private Sub MyProcedure() <code to execute> End Sub

4. Procedures—What You Need to Know • How to write subroutines and functions • How to cause a subroutine to run • How to cause a function to run • Passing parameters to procedures and how they are used • By Reference • By Value • Return values of functions • Scoping procedures • Remember, “procedures” includes subroutines, functions, and class properties

5. Subroutines • Subroutines are packages of code that do not return a value back to the code that calls them • They execute the code they contain • Subroutines may affect values in the calling code through appropriate use of parameters (later)

6. Creating a Subroutine • Subroutines consist of three parts • Subroutinedeclaration • Body of the subroutine • End Substatement Private Sub SubName (argument list) ‘************************** ‘* Comment for sub ‘************************** <code to run> End Sub

7. Creating a Subroutine (cont.) Private Sub SubName (argument list) • The Subroutine Declaration • “Private” means the subroutine can only be called by code within the current form (or class—later) • “Public” means the subroutine can be invoked by external code • Important in multi-form applications • And classes (object oriented programming) • A public subroutine becomes a “method”

8. Creating Subroutines (cont.) Private Sub SubName (argument list) • The Subroutine Declaration (cont.) • “Sub” is always required • “SubName” should describe the subroutine’s purpose • The argument list • Contains the parameters for the subroutine (we will cover shortly) • If there are no parameters the parentheses will be empty Private Sub SubName ( )

9. Creating Subroutines (cont.) • The subroutine body contains all of the code the subroutine will execute • Any code you can write in an event procedure can be included in the subroutine • The subroutine is aware of all controls on the form and can address them • Variable scoping rules apply • The subroutine can address any module-level variables • The subroutine can have locally scoped variables • It cannot read local variables in other procedures

10. Running a Subroutine • Two ways to cause a subroutine to run • Just state the subroutine name as the only statement on a line • Use the “Call” keyword • VB will add empty parentheses if you do not • I insist that you use the “Call” keyword version • Increases readability • Distinguishes subroutine calls from other statements SubName (argument list) orSubName ( ) Call SubName (argument list) or Call SubName( )

11. How Subroutines Work • When a subroutine is called execution of the current sub is paused and execution branches to the first line of the subroutine • The subroutine executes until either End Sub or Exit Sub is encountered • Control then branches back to the line in the original (calling) code following the subroutine call • Subroutines may call other subroutines up to several levels

12. How Subroutines Work (cont.) Private Sub btnTest_Click (ByVal sender As System.Object, _ ByVal e As System.EventArgs) Handles btnTest.Click <code in the event procedure> Call TestSubroutine() <more code in the procedure> End Sub 1 Private Sub TestSubroutine( ) <code in the subroutine> <more code in the subroutine> <more code in the subroutine> <more code in the subroutine> End Sub 2 3 4

13. Subroutines and Error Handlers • Try…Catch blocks have scope that pertains to subroutines • If the subroutine has a Try…Catch block it will try to handle any error • If the subroutine call is included in a Try…Catch block • And the subroutine has no Try…Catch block • Or the subroutine doesn’t handle the error • Then the calling code’s Try…Catch block will handle an error in the subroutine

14. Parameters • One of the most powerful features of a procedure is the ability to accept parameters or arguments • Values passed from the calling code to the procedure • These values are available in the subroutine in locally scoped variables Call SubName(value) Private Sub SubName (ByVal ParamName As Datatype) <code that uses ParamName>

15. Parameters (cont.) Call SubName(value) Private Sub SubName (ByVal ParamName As Datatype) <code that uses ParamName> • Whatever is in value when the subroutine is called… • …is passed to ParamName in the subroutine • The subroutine can do anything with ParamName it could with any other locally scoped variable • The value datatype must be compatible with the datatype specified for the parameter name (should be the same)

16. Parameters (cont.) • A subroutine may have a large number of parameters • Almost any kind of value can be passed as a parameter • Including complex objects • Controls • Datasets (ISM 4212) • Classes • Arrays • Forms • Collections • There is no requirement at all that the value have the same name in the calling code and subroutine

17. Parameters (cont.) Private Sub AddEmUpParams(ByVal FirstNum As Integer, _ ByVal SecondNum As Integer) Dim intResult As Integer '* Perform the calculation and display the result intResult = FirstNum + SecondNum lblResult.Text = intResult.ToString lblResult.BackColor = Color.LightGreen End Sub Private Sub btnParameter_Click(ByVal sender As System.Object, _ ByVal e As System.EventArgs) Handles btnParameter.Click Dim intFirstValue As Integer Dim intSecondValue As Integer '* Convert text values to integers intFirstValue = Convert.ToInt32(txtValueOne.Text) intSecondValue = Convert.ToInt32(txtValueTwo.Text) '* Call the subroutine to add the two numbers together Call AddEmUpParams(intFirstValue, intSecondValue) End Sub

18. Parameters—ByVal vs. ByRef • By default, values are passed to subroutines by value (ByVal) • A copy of the value is passed to the subroutine • Any changes made to the local copy do not affect the value in the originating code Call SubName(strLastName) Private Sub SubName (ByVal LName As String)

19. Parameters—ByVal vs. ByRef (cont.) • Values may be passed to subroutines by reference (ByRef) • A reference to the memory location of the calling code’s value is passed • Any changes made to the subroutine copy also change the value in the originating code • Both names (calling and subroutine) point to the same location in memory • See sample project Call SubName(strLastName) Private Sub SubName (ByRef LName As String)

20. Passing Arrays as Parameters • Arrays can be easily passed as parameters • In the subroutine argument list indicate that the parameter is an array by following the name with empty parentheses • Do not indicate a size • Omit the parentheses (just pass the array name) when the subroutine is called • You usually must determine the array size in the subroutine Call SubName(sglDailySales) Private Sub SubName (ByRef Sales() as Single)

21. Passing Arrays as Parameters (cont.) Private Sub Button1_Click(ByVal sender As System.Object, _ ByVal e As System.EventArgs) Handles Button1.Click Dim intTest(5) As Integer Dim x As Integer For x = 0 To 5 intTest(x) = x Next Me.TextBox1.Text = AddArray(intTest).ToString End Sub Private Function AddArray(ByVal thearray() As Integer) As Integer Dim intTotal As Integer Dim x As Integer For x = 0 To UBound(thearray) intTotal += thearray(x) Next Return intTotal End Function Just the array name (no parentheses) Array parameter name with emptyparentheses

22. Optional Parameters • Procedures may have optional parameters • No value is required when the procedure is called • A default value must be provided for the parameter in the procedure definition • The default value must be a constant (literal) • But the default value need not ever be used • If there is an optional parameter in the parameter list all subsequent parameters must also be optional Private Sub GradePoints(ByVal CrHr As Integer, _ ByVal LetterGrade As String, _ ByRef TotalGradePoints As Single, _ Optional ByVal ReplacedGrade As String = "")

23. Optional Parameters (cont.) • When calling a procedure with optional parameters the last optional parameters can be completely omitted • Intermediate parameters can be omitted with comma delimited arguments Private Sub TestSub(ByVal First As Integer, _ Optional ByVal Second As Integer = 0, _ Optional ByVal Third as Integer = 0) Call TestSub(1, 2, 3) Call TestSub(1, 2) Call TestSub(1, , 3) Call TestSub( ) All legal statements Illegal statement

24. Passing Objects as Parameters • Objects can easily be passed as parameters by just specifying the correct object type as the datatype of the parameter • When the subroutine is called pass the name of a specific object of the correct type • Pass ByRef if the subroutine needs to change the object • See sample project Private Sub ValidateInput(ByRef theTextBox As TextBox, _ ByVal ValidationString As String) Call ValidateInput(txtPrice, "0123456789.")

25. Functions • Functions are just like subroutines except they can return a value • The function’s results are inserted into the code where the function was called Private Function FunctionName (<parameter list>) As DataType <processing code in the function> Return <value or object of same data type as function> End Function ‘* Call the function intResult = FunctionName(<parameters>)

26. Functions (cont.) Private Function FunctionName (<parameter list>) As DataType • All rules for subroutine declarations apply to functions • Private or Public • Function instead of Sub • Name must be descriptive • All parameter rules apply • No parameters, ByVal, ByRef, Optional • The As DataType is new and required (by me) • As Boolean – As Integer • As String – etc.

27. Functions (cont.) Private Function FunctionName (<parameter list>) As DataType • Functions will perform whatever processing is needed • Will generate a value of the function’s datatype • “Return value” will return the value as the function’s return value (result) • Alternatively, Assigning a value to the function’s name within the body of the function also makes the value the function’s return value

28. Returning Multiple Values from a Function • Functions will only return one object • You can get around the limitation of returning just one value by being creative with coding constructs: • Return an array or collection • Return a complex object such as a class (later) • Especially useful when dissimilar data types need to be returned • Return a single return value but use ByRef parameters to let the function actually affect more than one value that the calling code can see
