  1. An Effect System Combining Alias and Liveness for Explicit Memory Reuse Oukseh Lee ROPAS / KAIST December 17, 2001

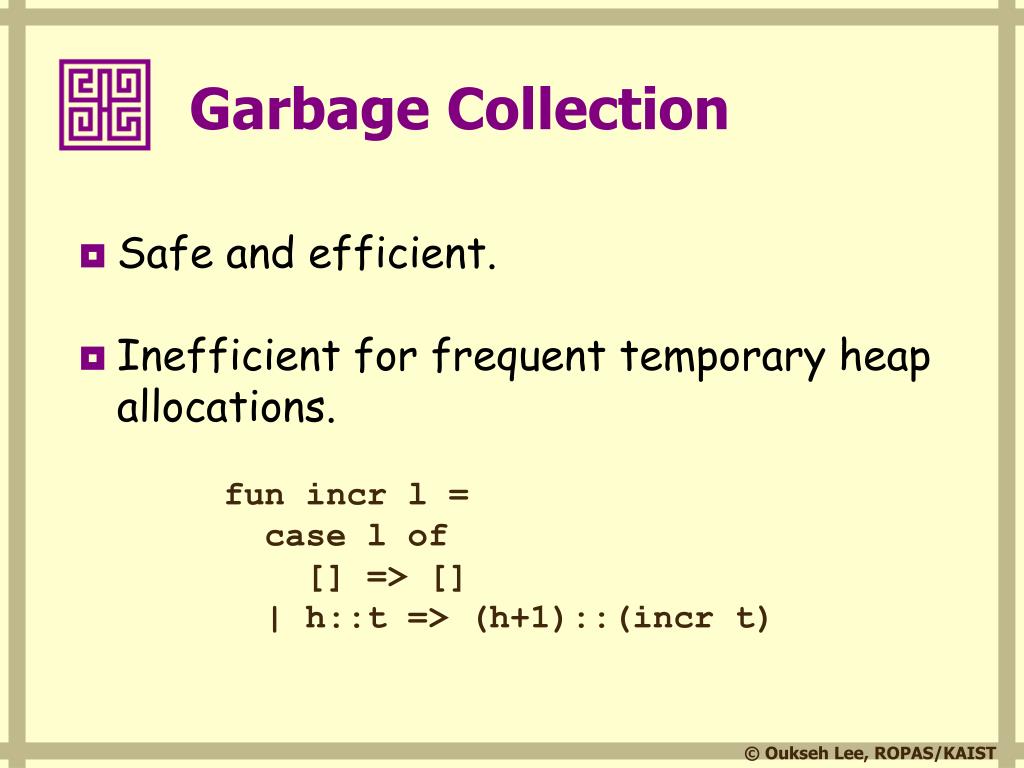

  2. Garbage Collection • Safe and efficient. • Inefficient for frequent temporary heap allocations. fun incr l = case l of [] => [] | h::t => (h+1)::(incr t)

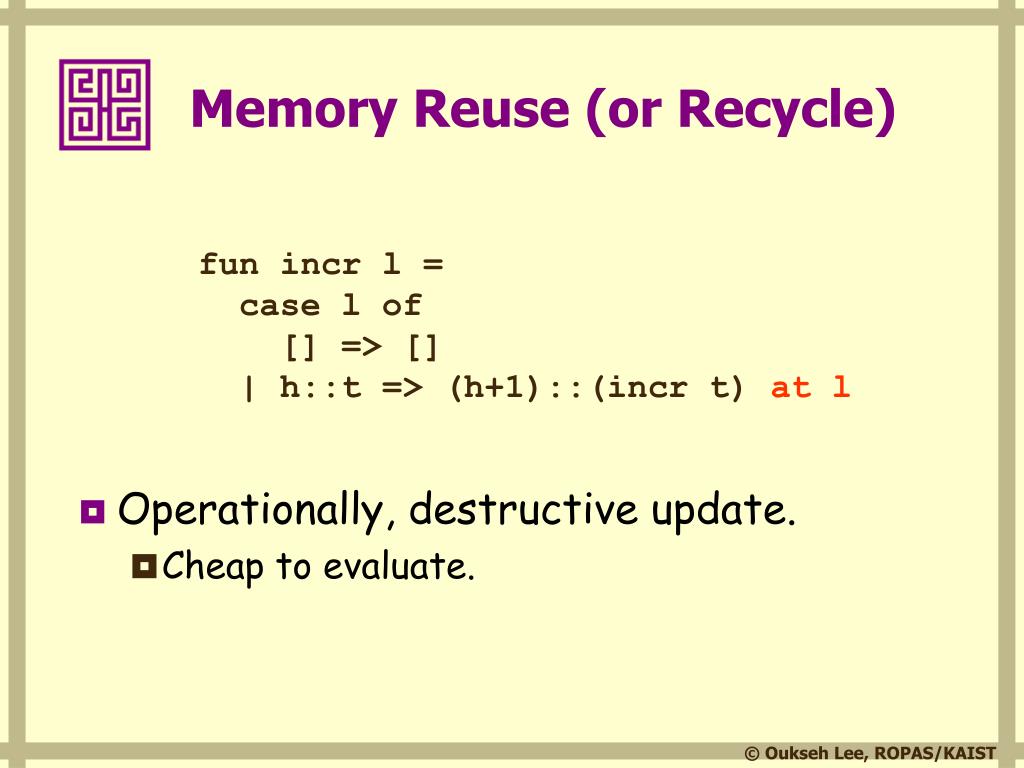

  3. Memory Reuse (or Recycle) • Operationally, destructive update. • Cheap to evaluate. fun incr l = case l of [] => [] | h::t => (h+1)::(incr t) at l

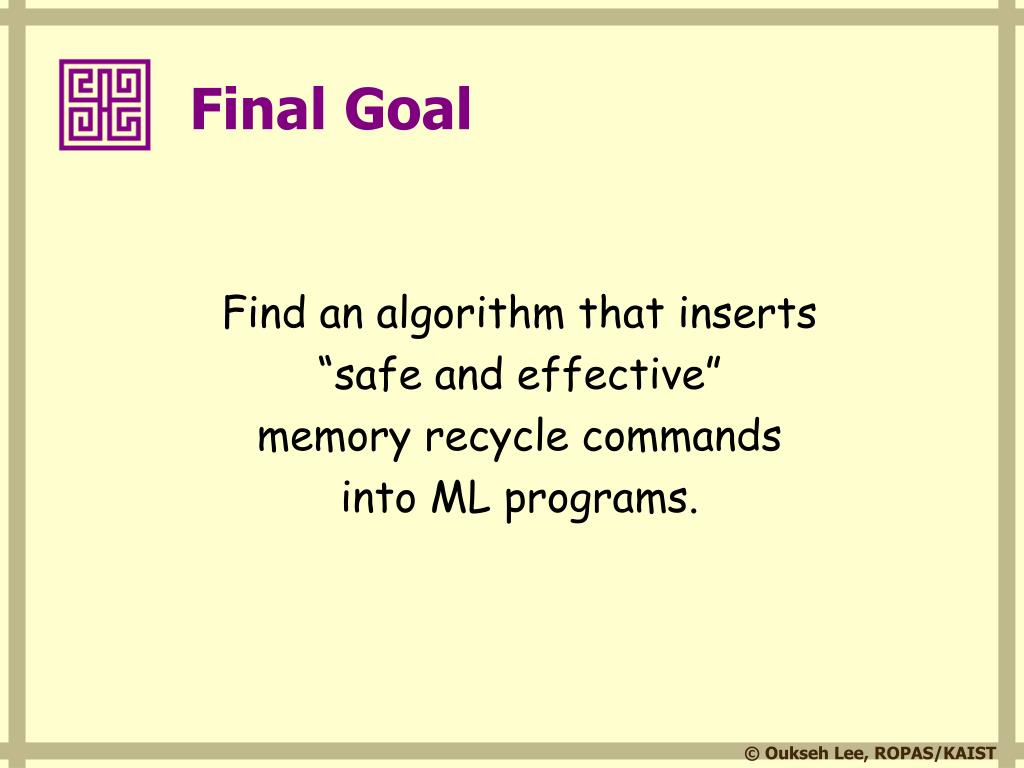

  4. Final Goal Find an algorithm that inserts “safe and effective” memory recycle commands into ML programs.

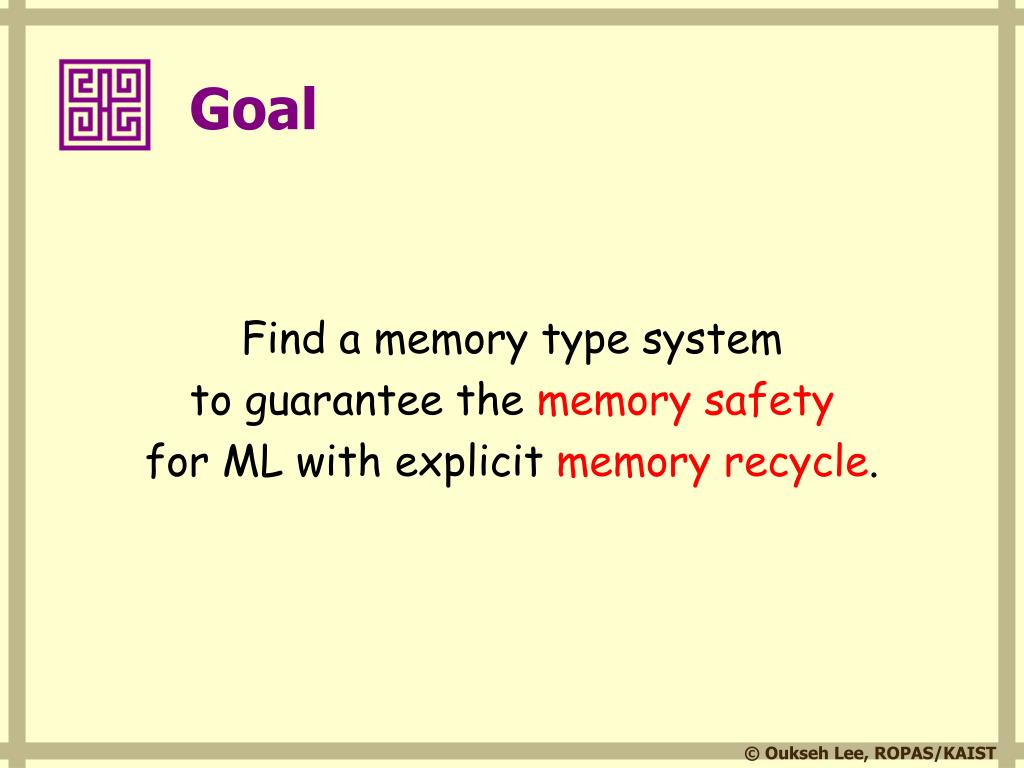

  5. Goal Find a memory type system to guarantee the memory safety for ML with explicit memory recycle.

  6. Memory Safety x = 1::[] y = 2::[] at x case x of … x = 1::[] y = 2::[] at x z = 3::[] at x We cannot recycle heap cells that will be used later (or recycled again). Conceptually, recycle = free + malloc.

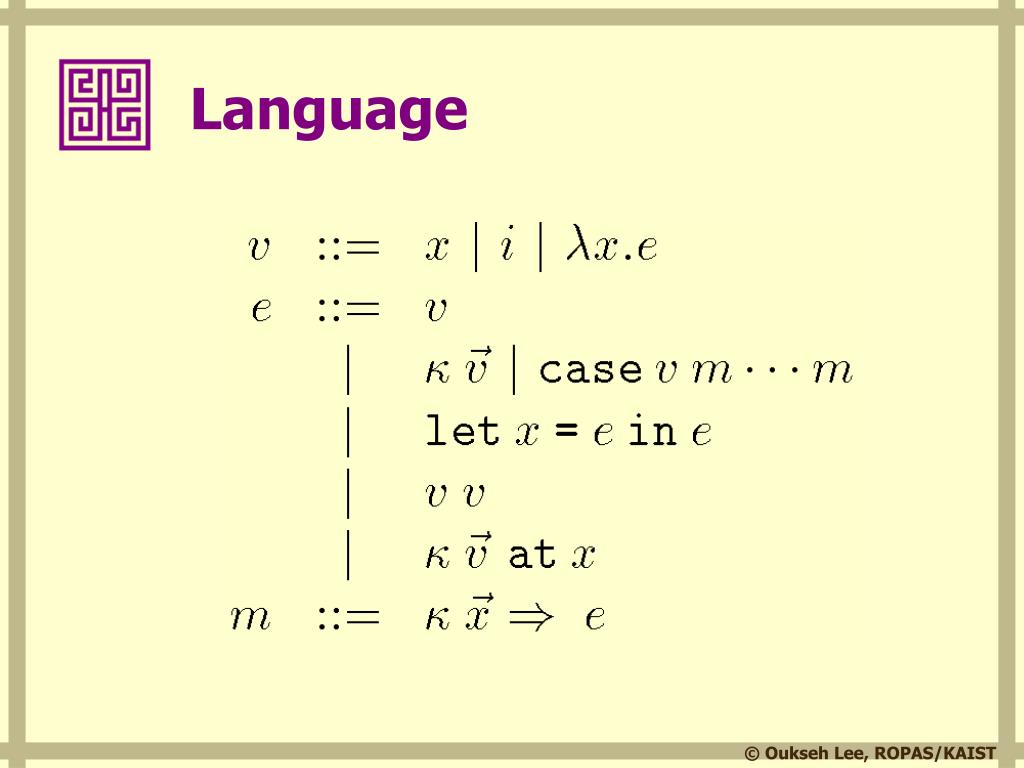

  7. Language

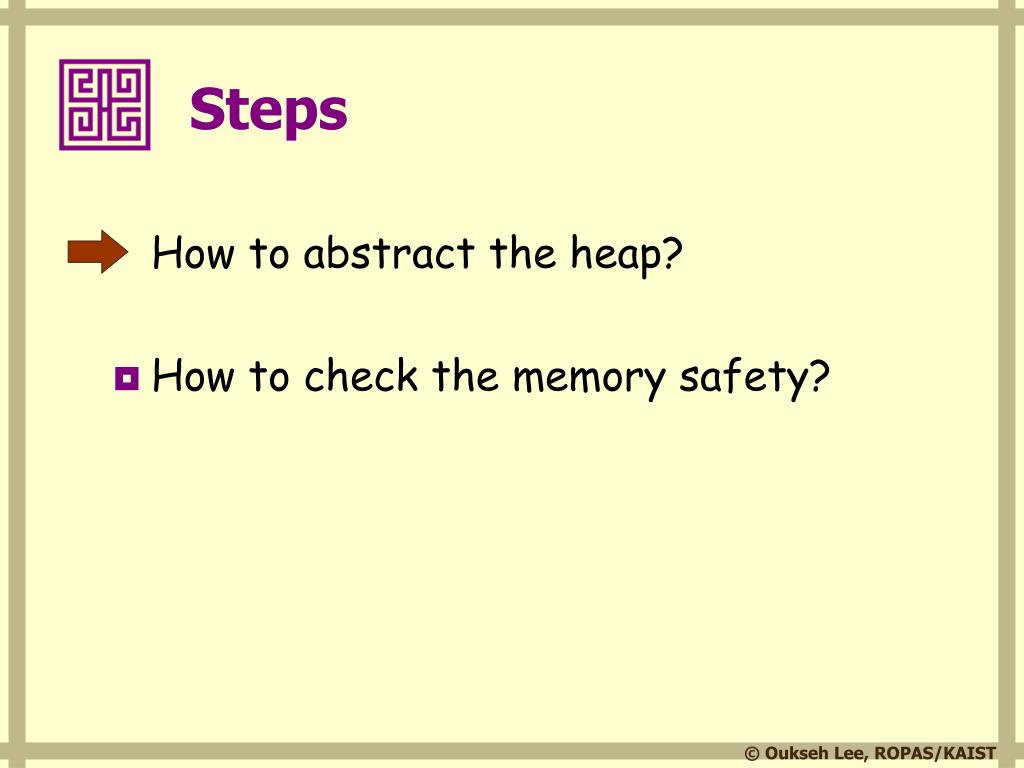

  8. Steps How to abstract the heap? • How to check the memory safety?

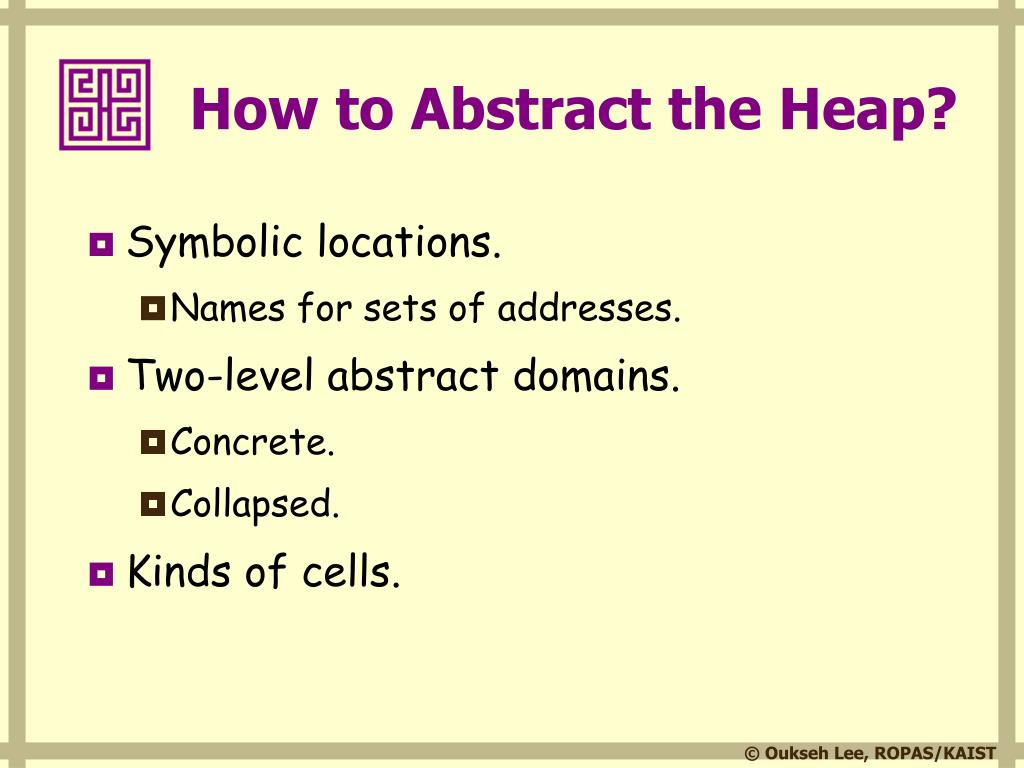

  9. How to Abstract the Heap? • Symbolic locations. • Names for sets of addresses. • Two-level abstract domains. • Concrete. • Collapsed. • Kinds of cells.

  10. Symbolic Locations • Names for sets of addresses. • Allocations / recycles may introduce a new location.

  11. Symbolic Locations for Functions • Locations of arguments and locations newly allocated in the function are bound. • A function call is a substitution for bound locations.

  12. Two-Level Abstract Types • Analyze the heap as concrete as possible. • Need an abstraction for possibly infinite heap structure. • Two-level abstractions: • Concrete: as concrete as the heap cells are. • Collapsed: ignoring the heap structure.

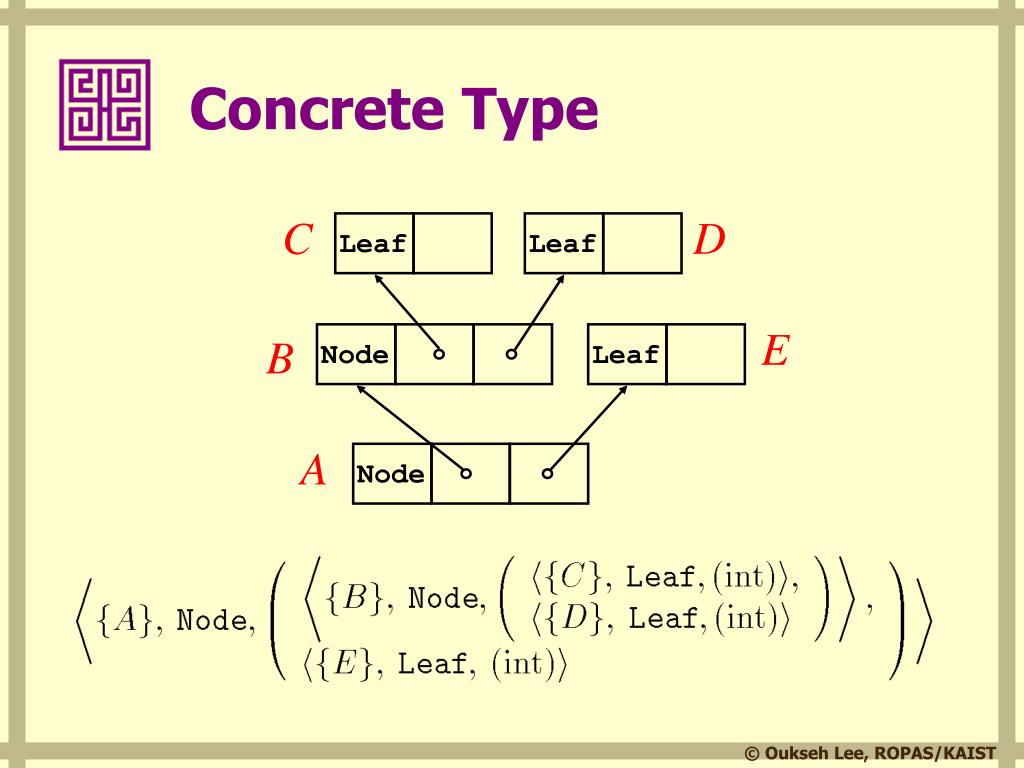

  13. Concrete Type C D Leaf Leaf E B Node Leaf A Node

  14. Two-Level Abstract Types Abstraction: concrete -> collapsed. • When we join two different heap structures. • Reconstruction: collapsed -> concrete. • When we need the structure. If … then [] else [1,2] case x of h::t => …

  15. Collapsing the Structure! C D Leaf Leaf E B Node Leaf A Node

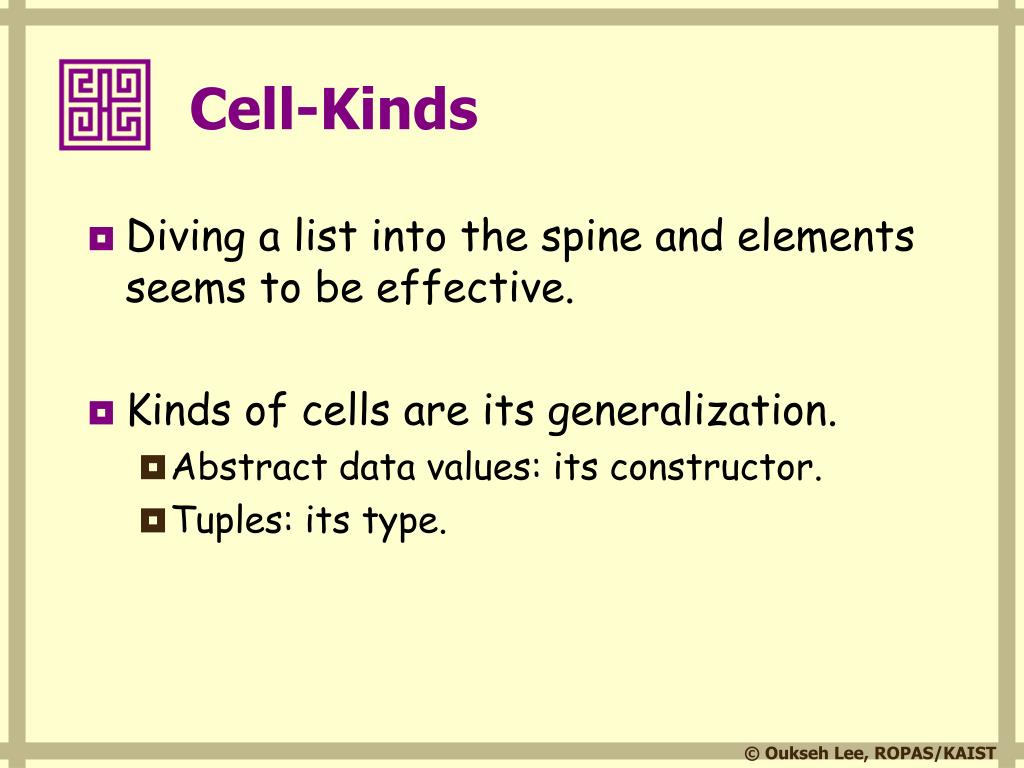

  16. Cell-Kinds • Diving a list into the spine and elements seems to be effective. • Kinds of cells are its generalization. • Abstract data values: its constructor. • Tuples: its type.

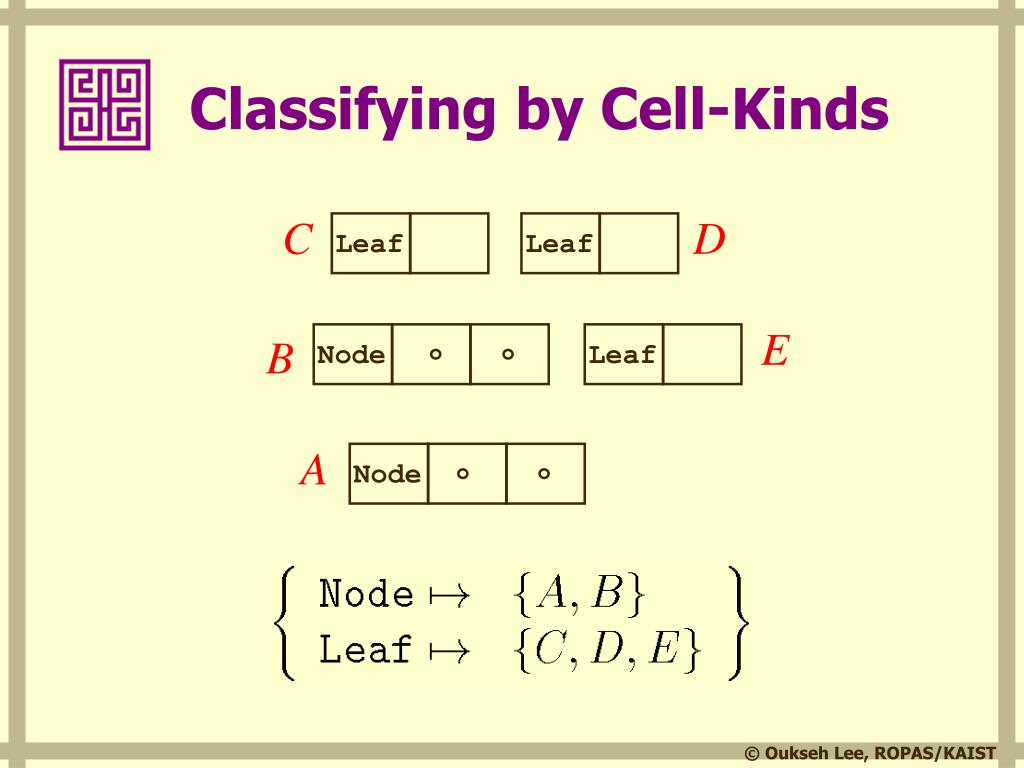

  17. Leaf Leaf Node Leaf Node Classifying by Cell-Kinds C D E B A

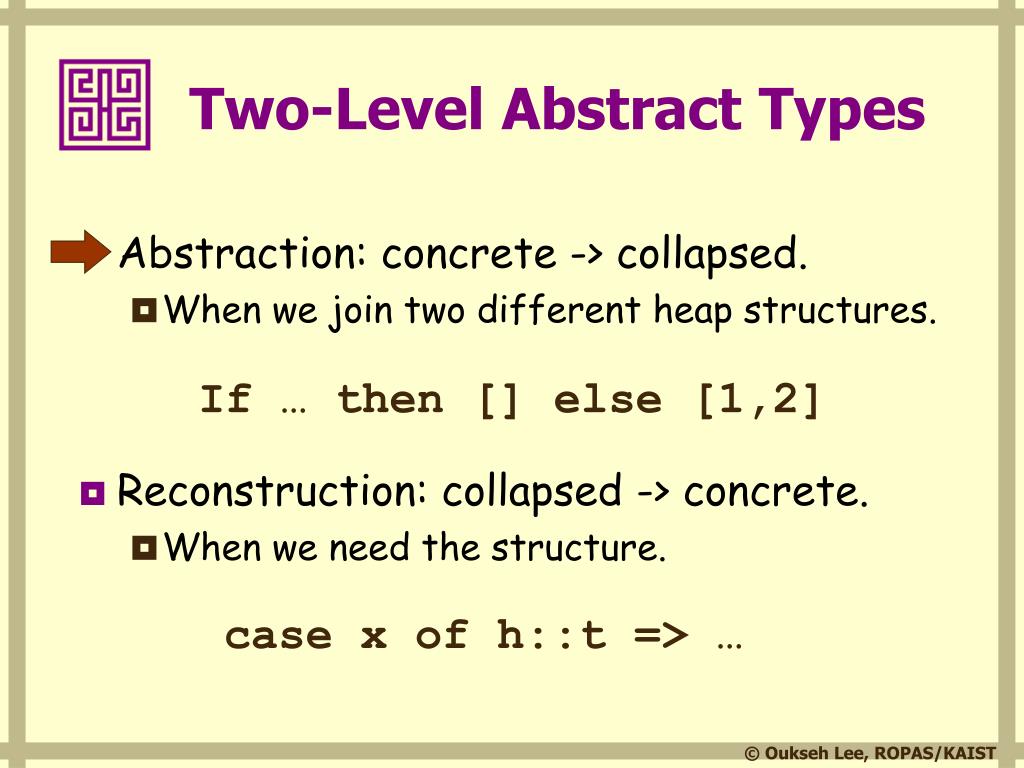

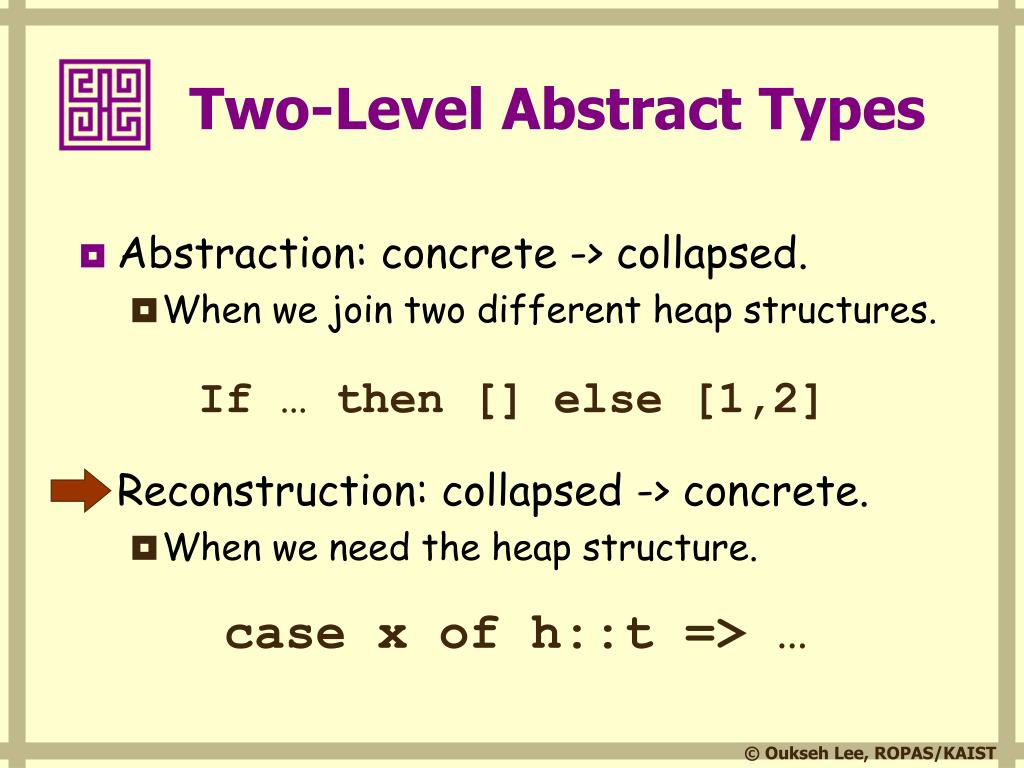

  18. Two-Level Abstract Types • Abstraction: concrete -> collapsed. • When we join two different heap structures. Reconstruction: collapsed -> concrete. • When we need the heap structure. If … then [] else [1,2] case x of h::t => …

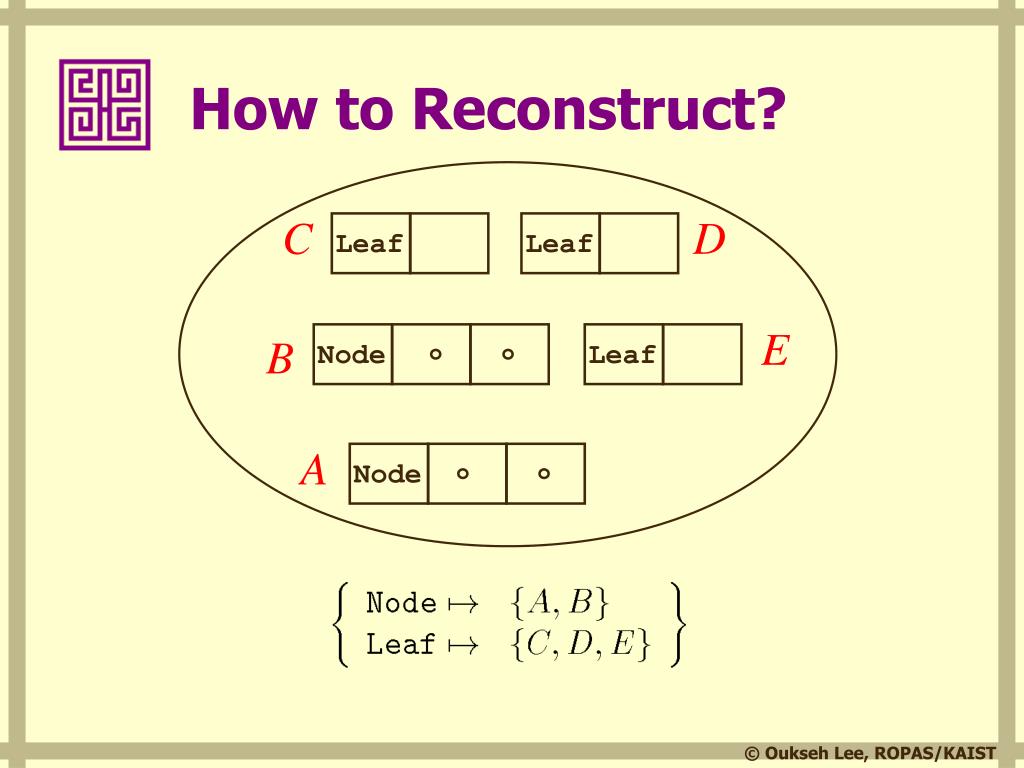

  19. Leaf Leaf Node Leaf Node How to Reconstruct? C D E B A

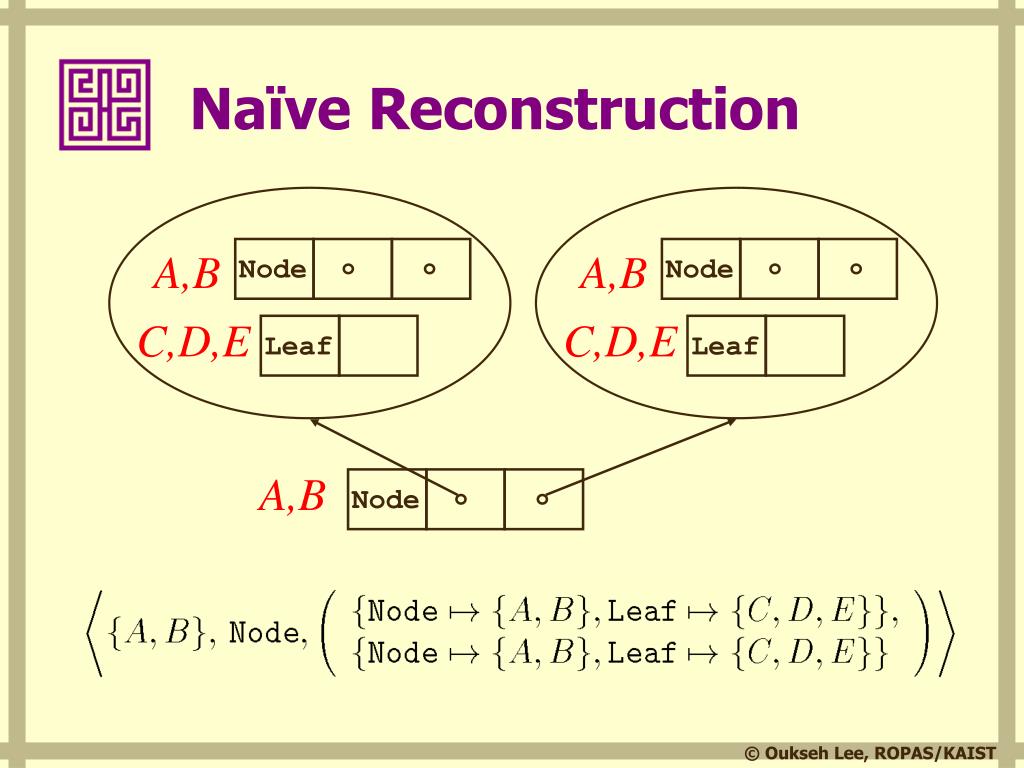

  20. A,B A,B Leaf Leaf C,D,E C,D,E Node Node Node Naïve Reconstruction A,B

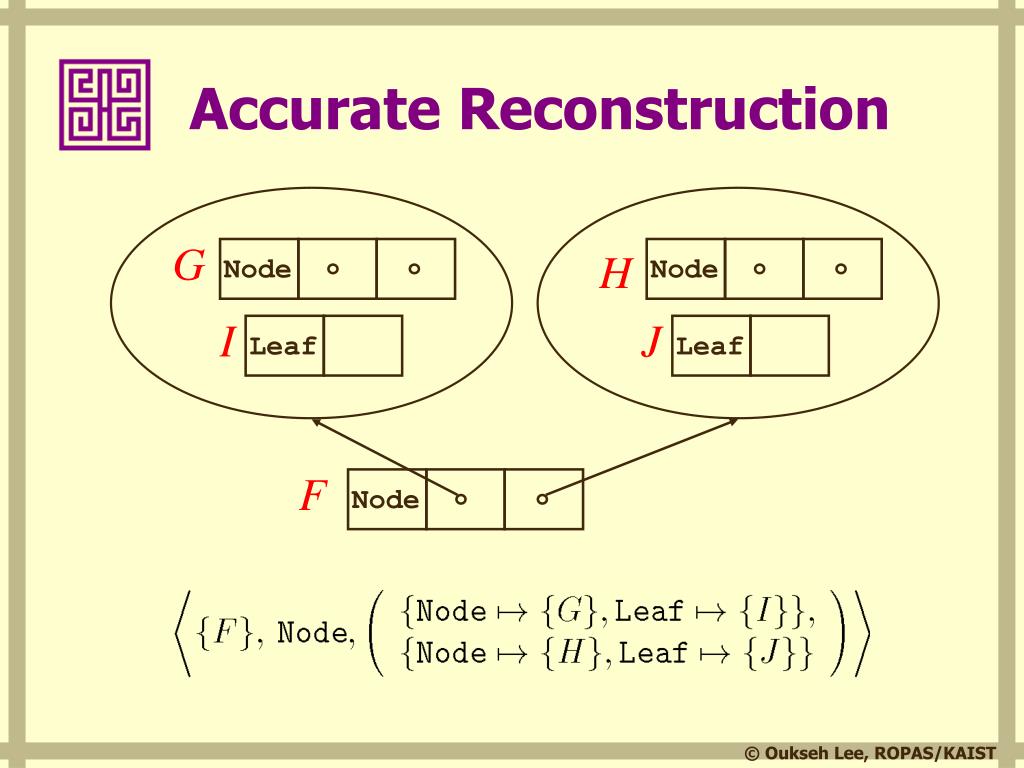

  21. Leaf Leaf Node Node Node Accurate Reconstruction G H I J F

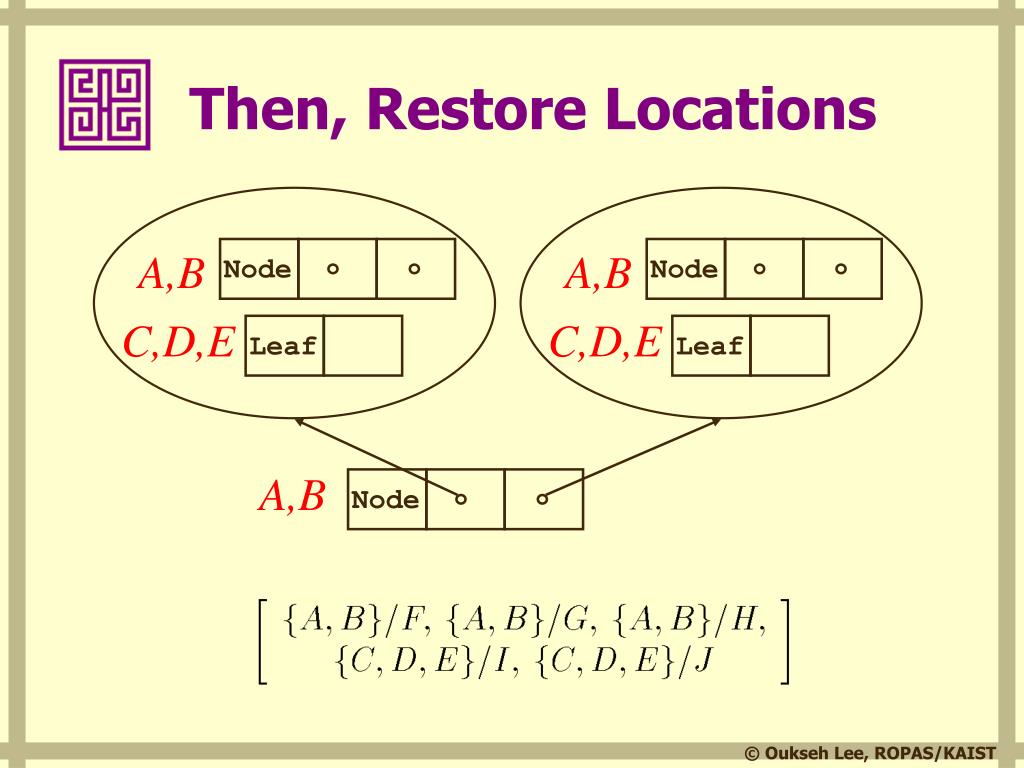

  22. A,B A,B Leaf Leaf C,D,E C,D,E Node Node Node Then, Restore Locations A,B

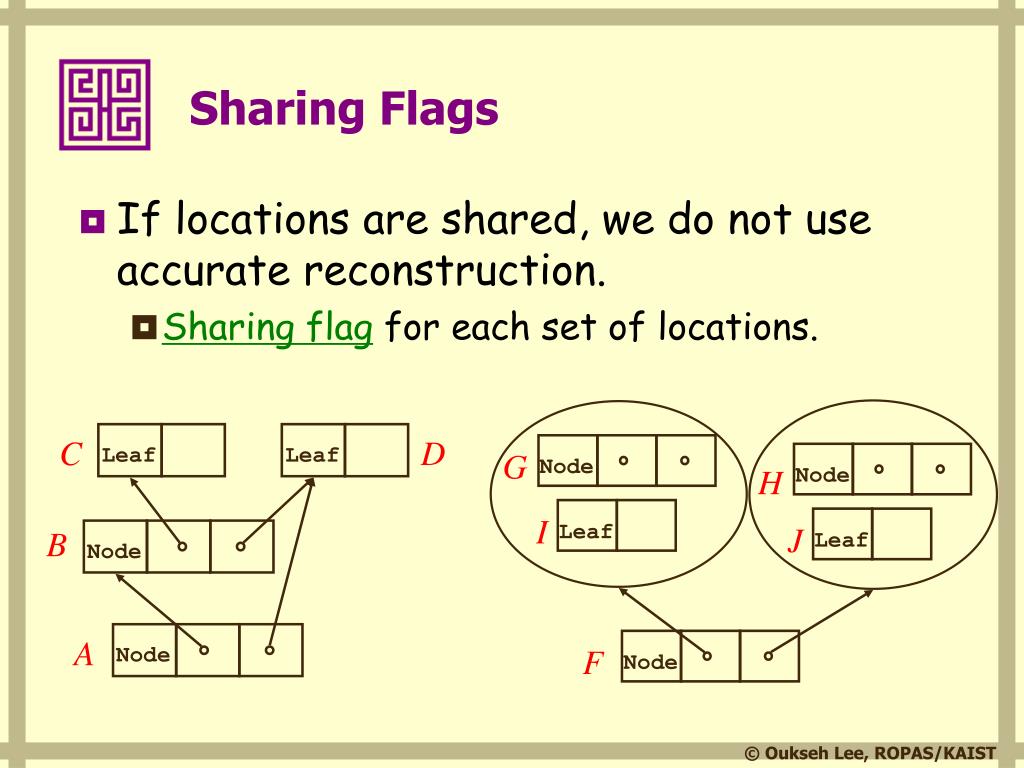

  23. Leaf Leaf Leaf Leaf Node Node Node Node Node Sharing Flags • If locations are shared, we do not use accurate reconstruction. • Sharing flag for each set of locations. C D G H I J B A F

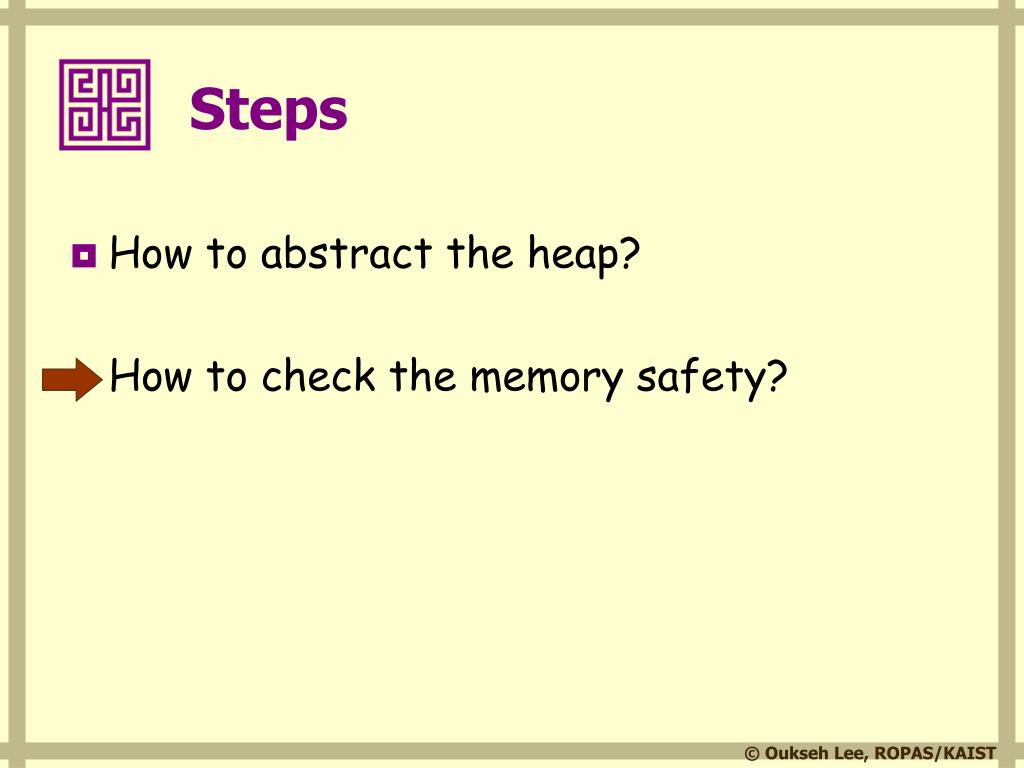

  24. Steps • How to abstract the heap? How to check the memory safety?

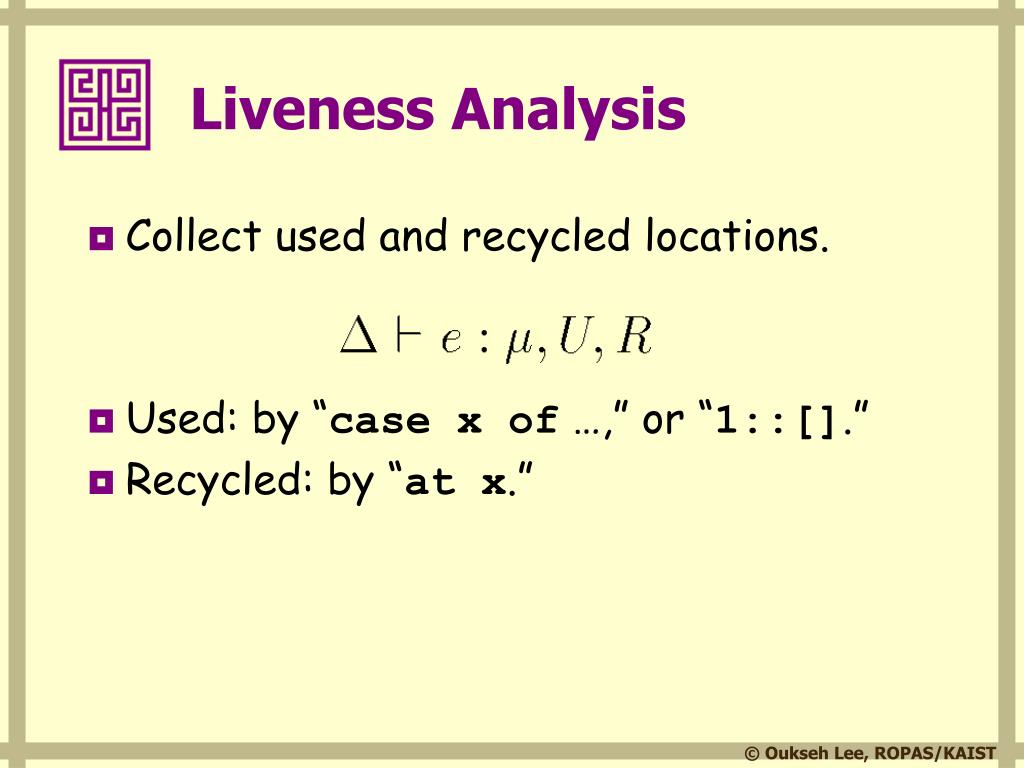

  25. Liveness Analysis • Collect used and recycled locations. • Used: by “case x of …,” or “1::[].” • Recycled: by “at x.”

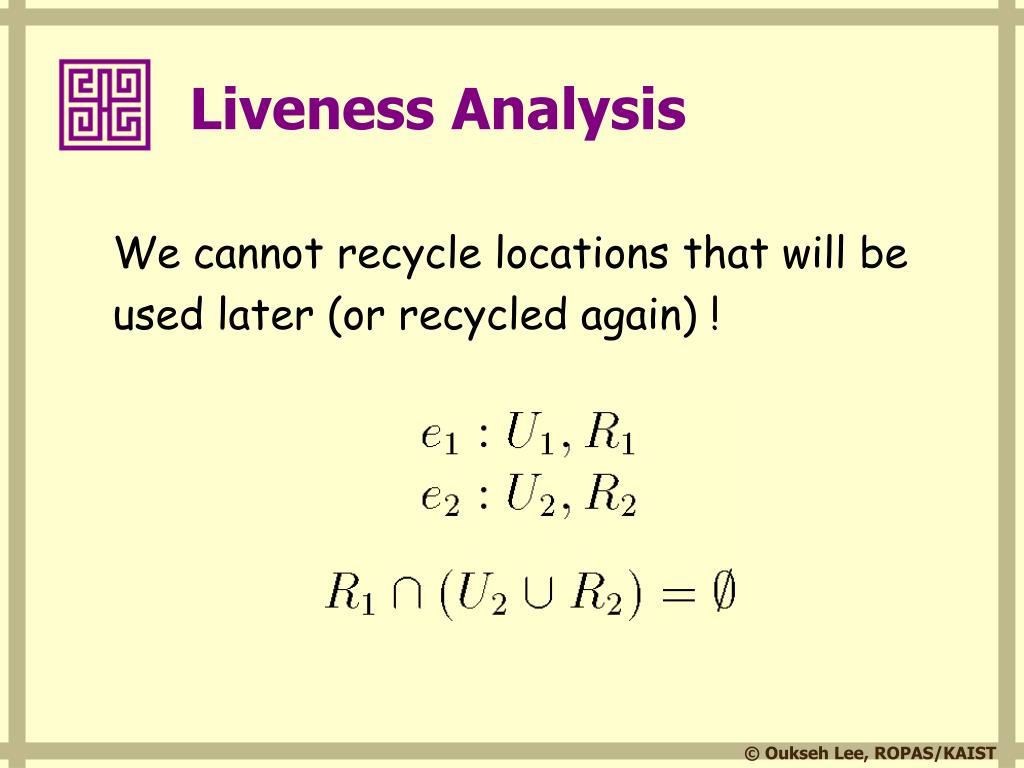

  26. Liveness Analysis We cannot recycle locations that will be used later (or recycled again) !

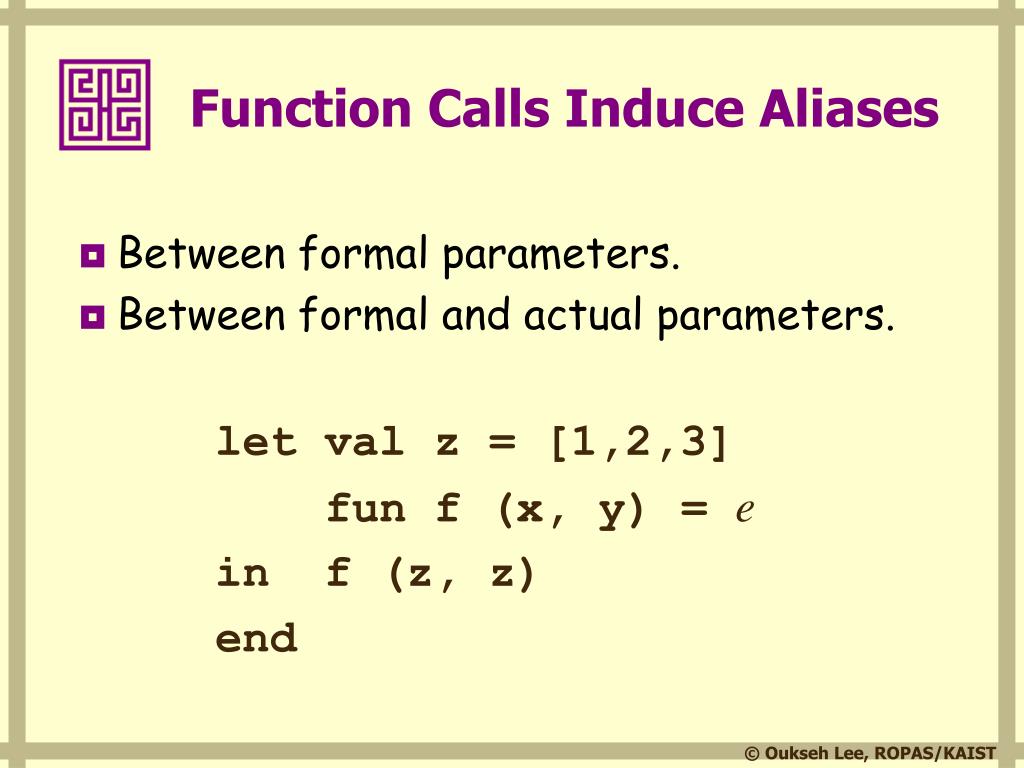

  27. Function Calls Induce Aliases • Between formal parameters. • Between formal and actual parameters. let val z = [1,2,3] fun f (x, y) = e in f (z, z) end

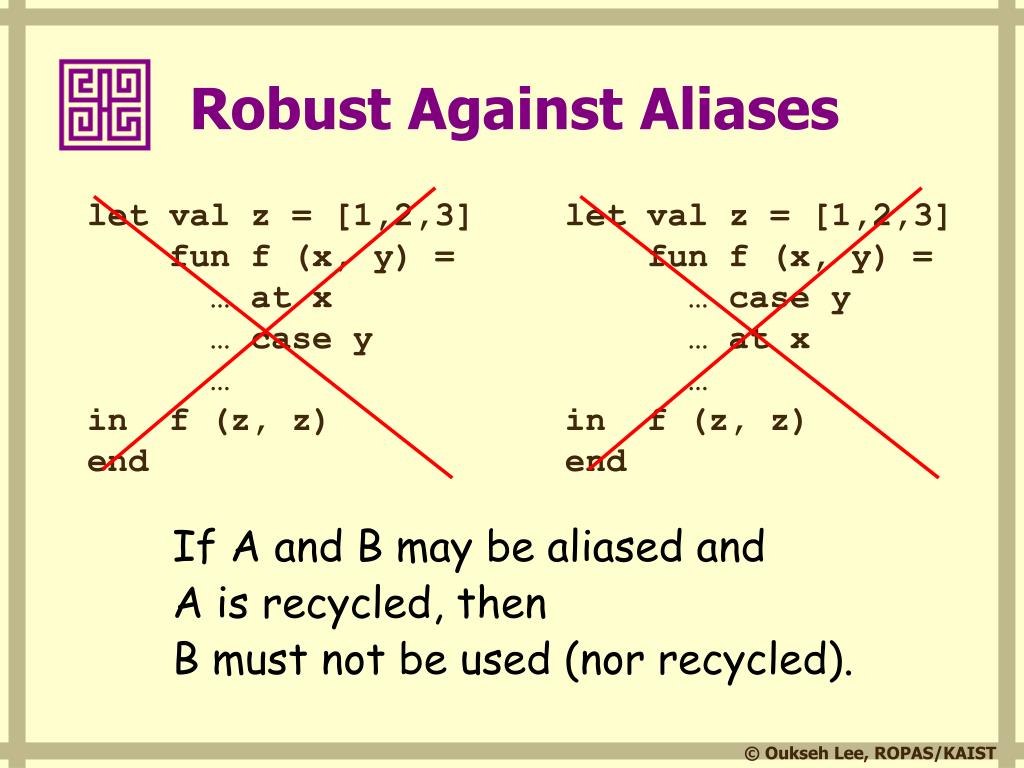

  28. Robust Against Aliases let val z = [1,2,3] fun f (x, y) = … at x … case y … in f (z, z) end let val z = [1,2,3] fun f (x, y) = … case y … at x … in f (z, z) end If A and B may be aliased and A is recycled, then B must not be used (nor recycled).

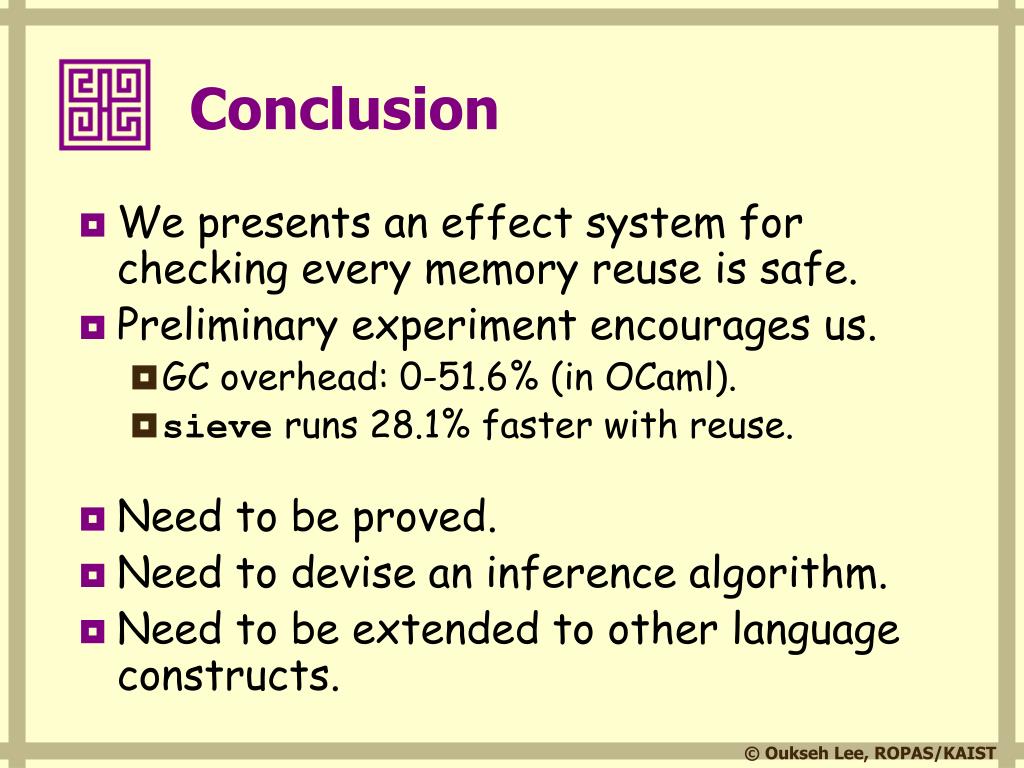

  29. Conclusion • We presents an effect system for checking every memory reuse is safe. • Preliminary experiment encourages us. • GC overhead: 0-51.6% (in OCaml). • sieve runs 28.1% faster with reuse. • Need to be proved. • Need to devise an inference algorithm. • Need to be extended to other language constructs.

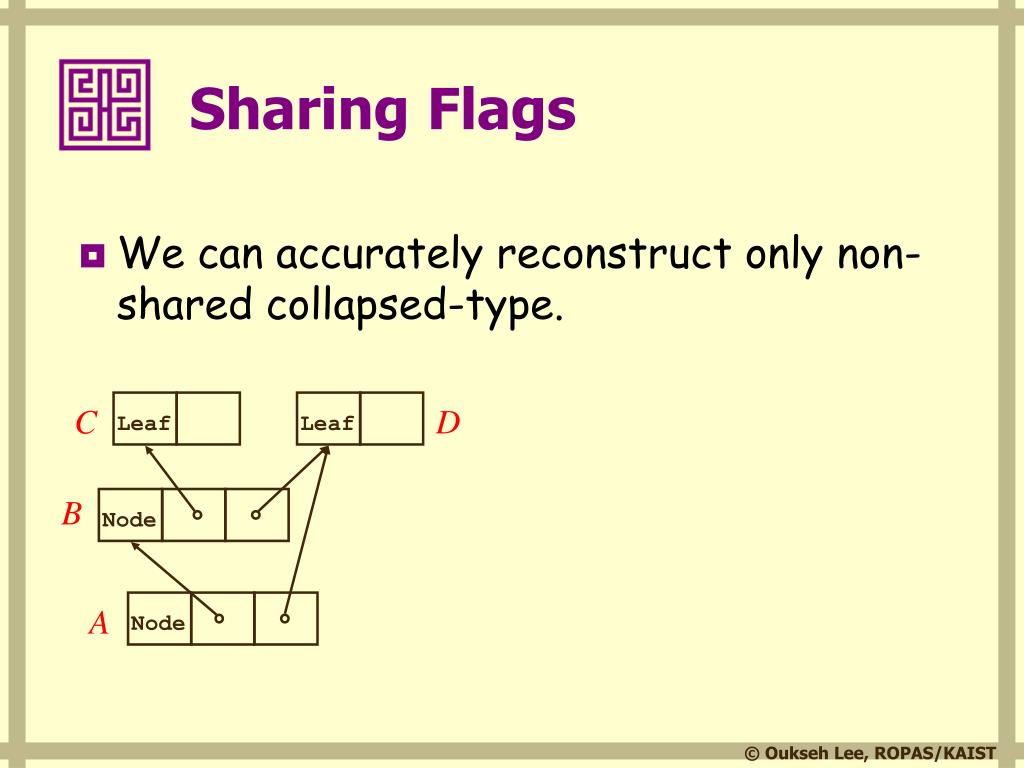

  30. Leaf Leaf Node Node Sharing Flags • We can accurately reconstruct only non-shared collapsed-type. C D B A

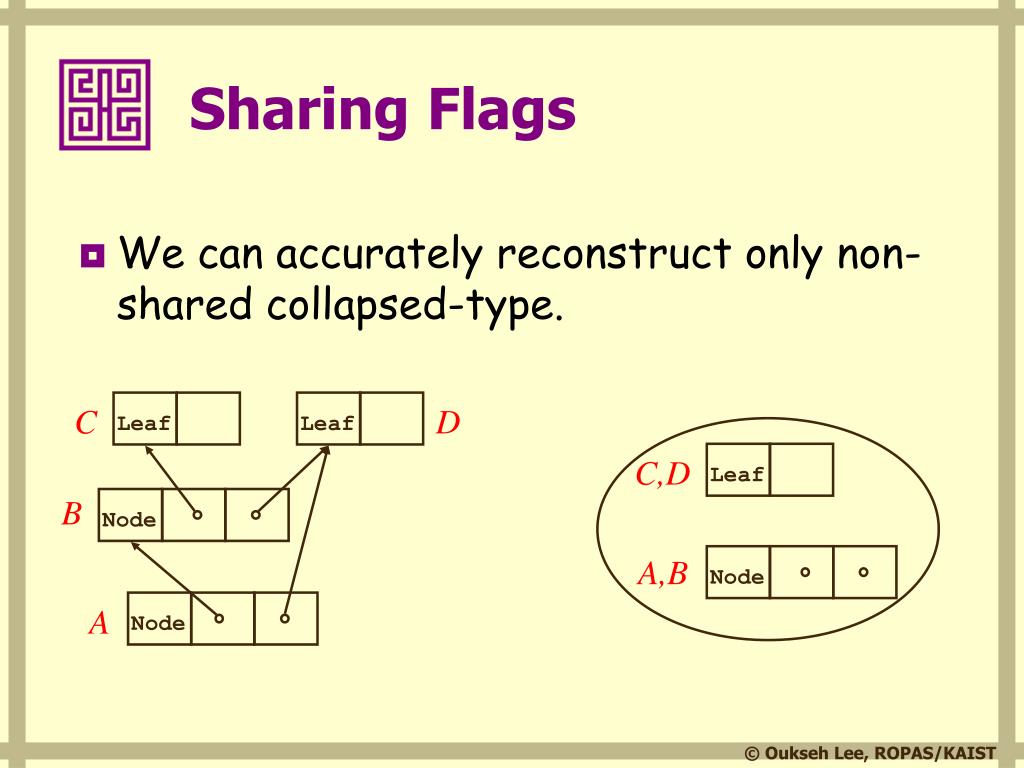

  31. Leaf Leaf Leaf Node Node Node Sharing Flags • We can accurately reconstruct only non-shared collapsed-type. C D C,D B A,B A

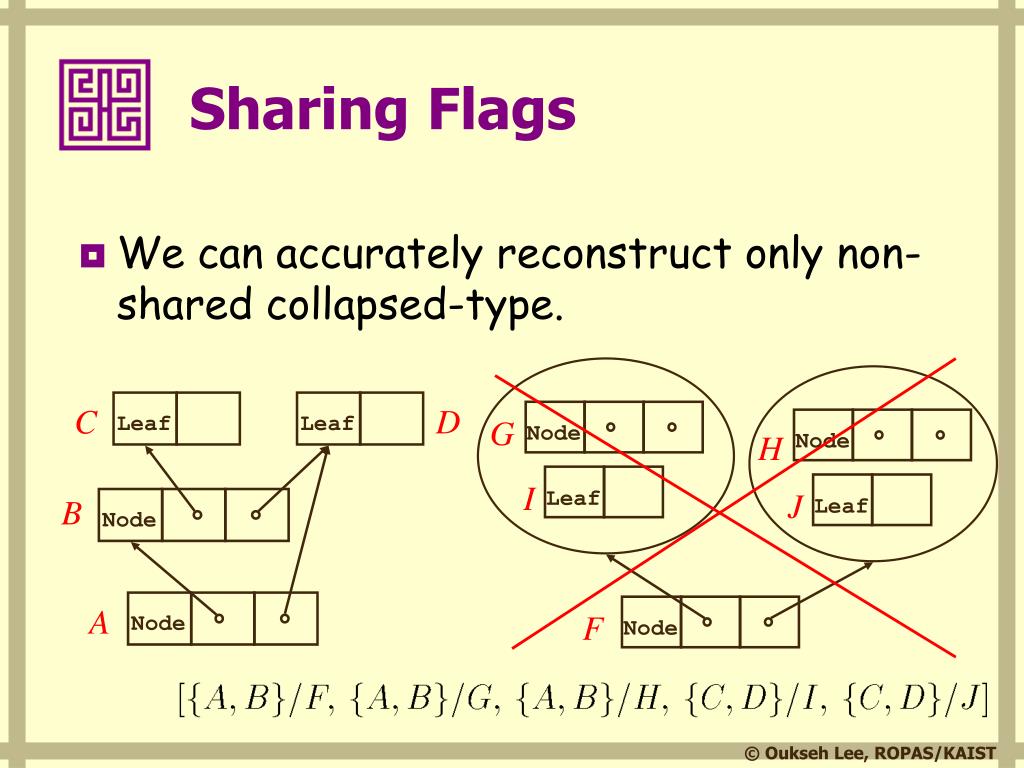

  32. Leaf Leaf Leaf Leaf Node Node Node Node Node Sharing Flags • We can accurately reconstruct only non-shared collapsed-type. C D G H I J B A F

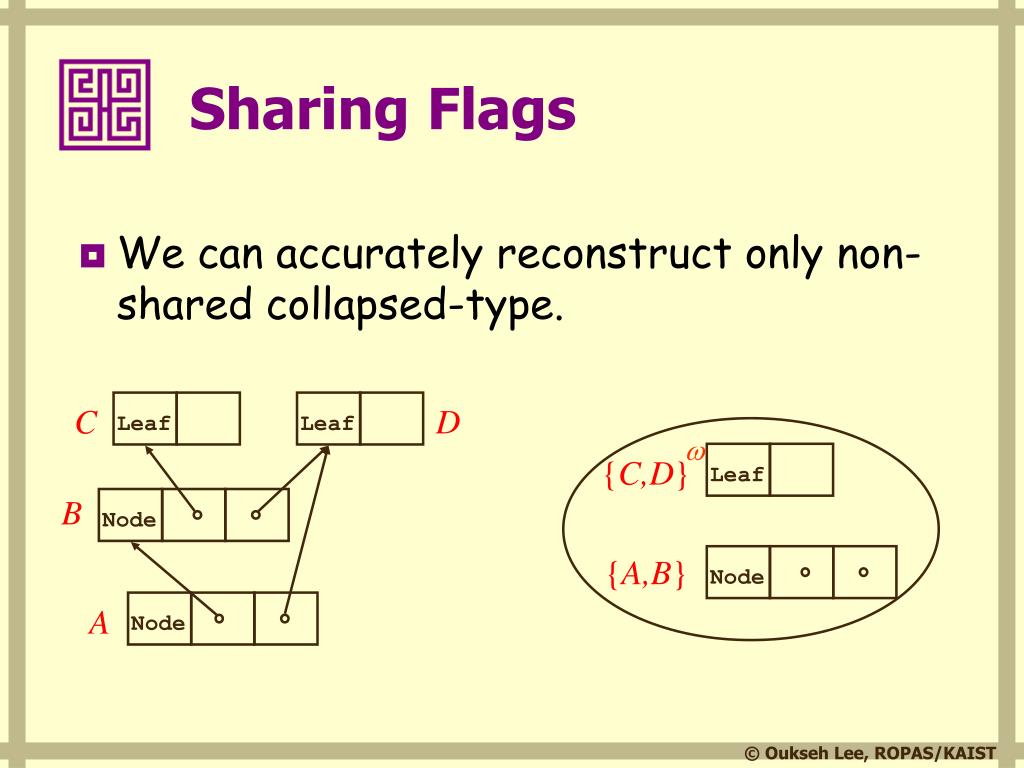

  33. Leaf Leaf Leaf Node Node Node Sharing Flags • We can accurately reconstruct only non-shared collapsed-type. C D w {C,D} B {A,B} A

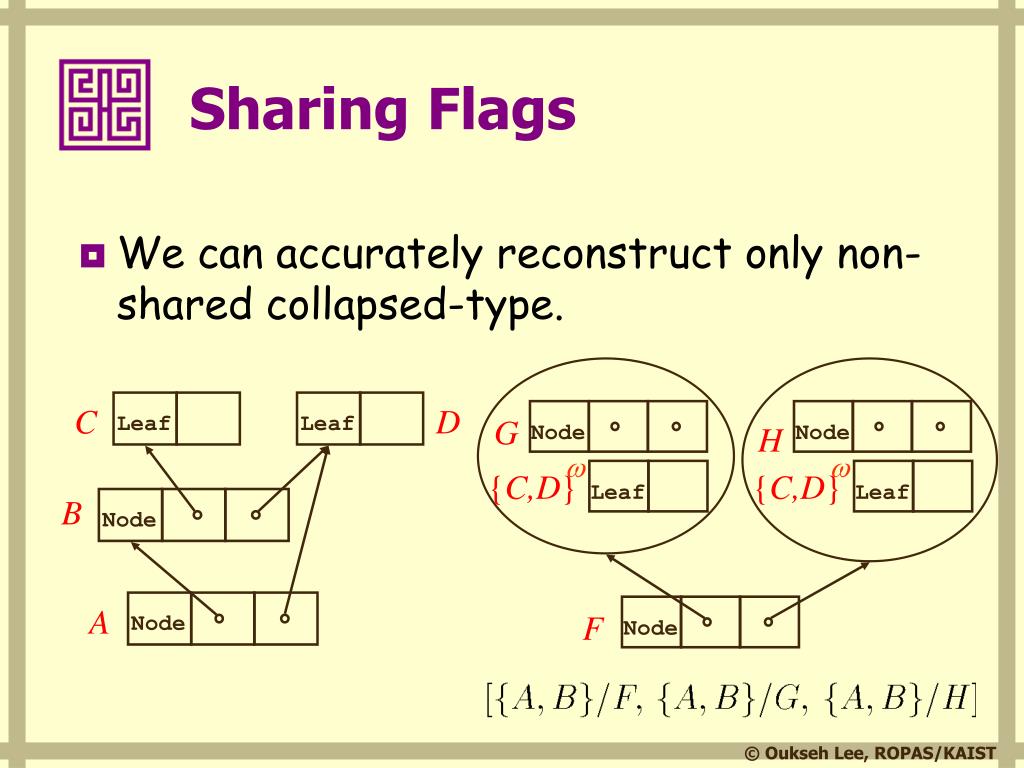

  34. Leaf Leaf Leaf Leaf Node Node Node Node Node Sharing Flags • We can accurately reconstruct only non-shared collapsed-type. C D G H w w {C,D} {C,D} B A F
