  1. On Location Privacy in Vehicular Mix-Networks Julien Freudiger IC-29 Self-Organised Wireless and Sensor Networks Tutors: Maxim Raya Márk Félegyházi

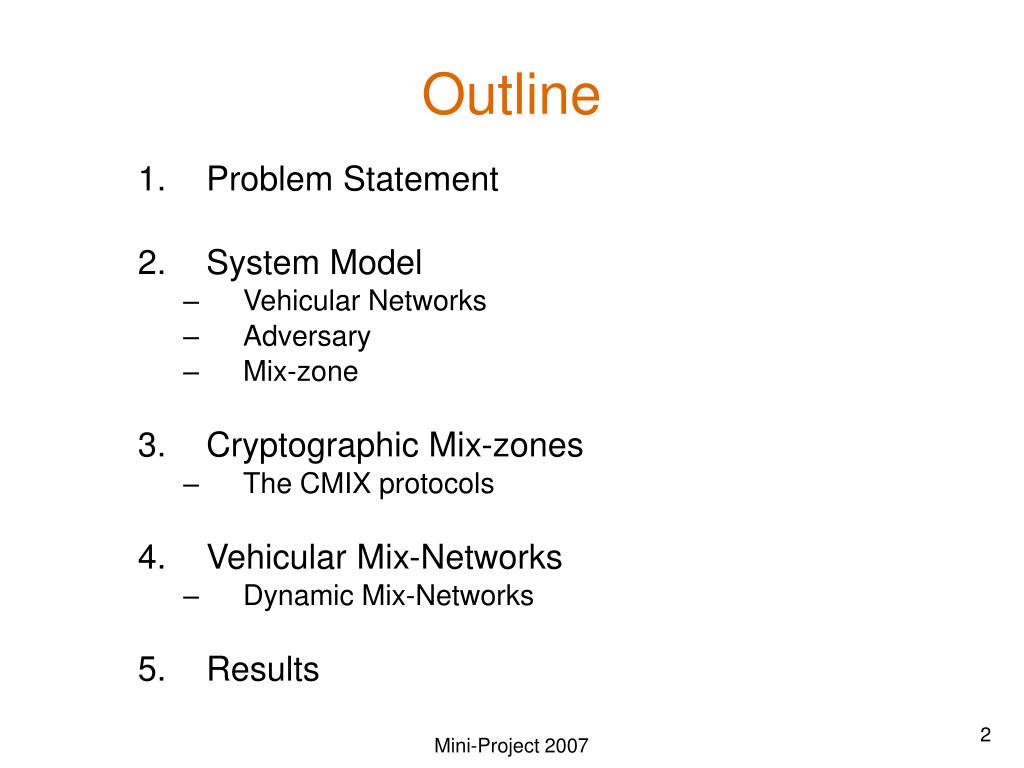

  2. Outline • Problem Statement • System Model • Vehicular Networks • Adversary • Mix-zone • Cryptographic Mix-zones • The CMIX protocols • Vehicular Mix-Networks • Dynamic Mix-Networks • Results

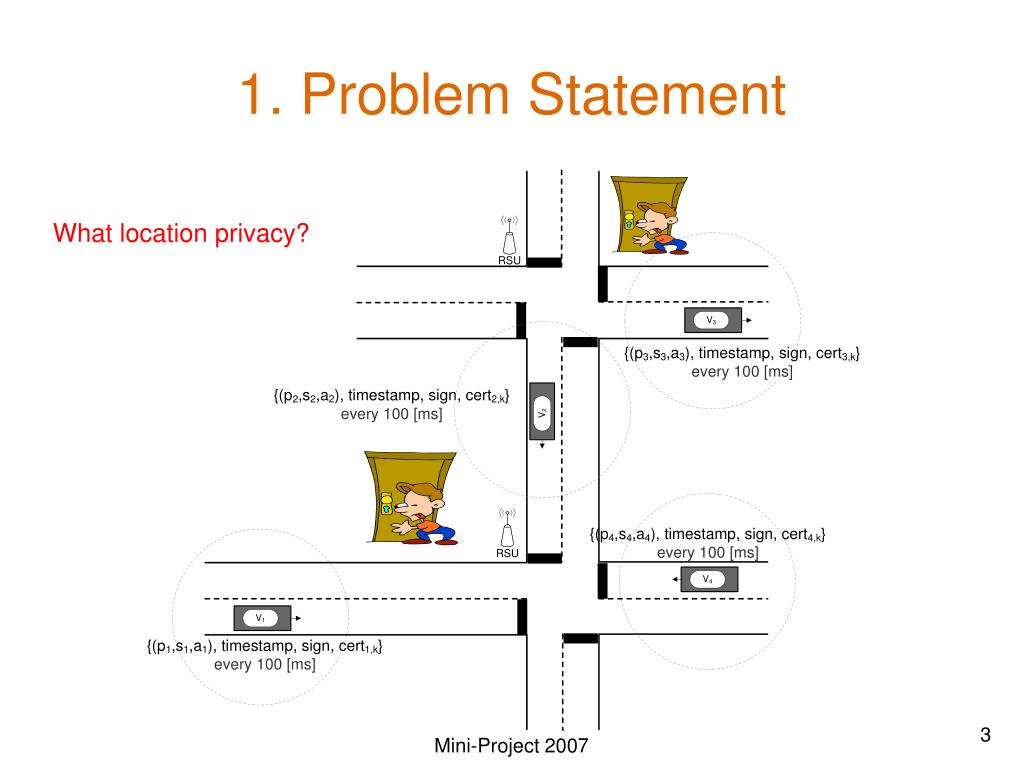

  3. 1. Problem Statement What location privacy?

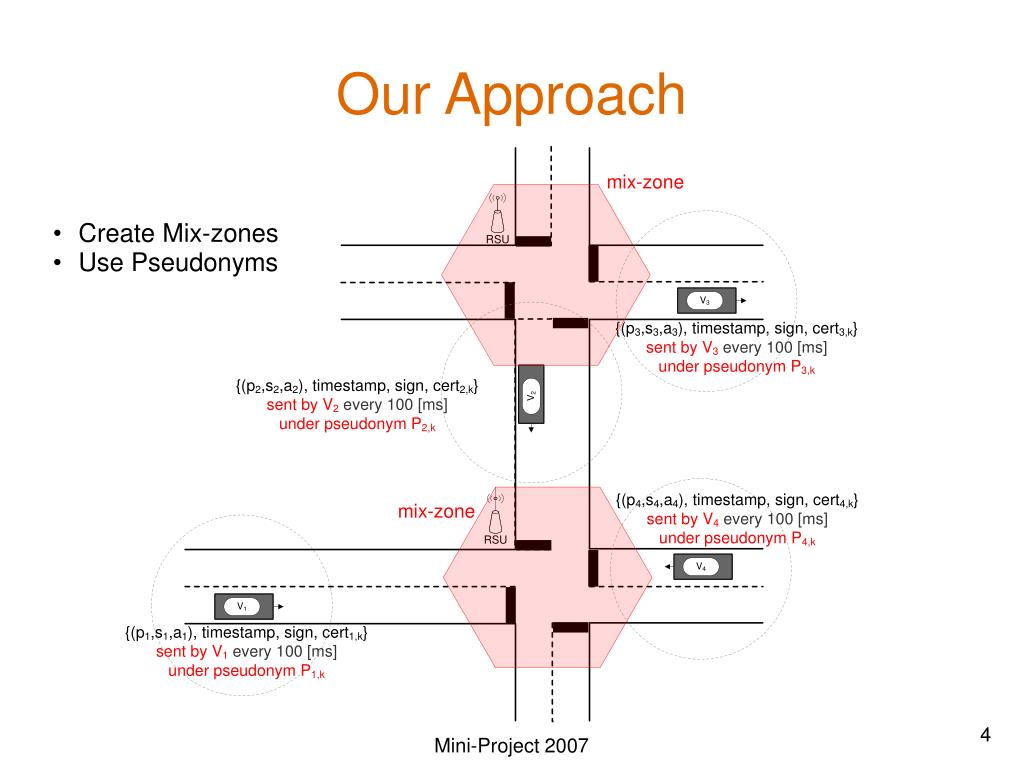

  4. Our Approach • Create Mix-zones • Use Pseudonyms

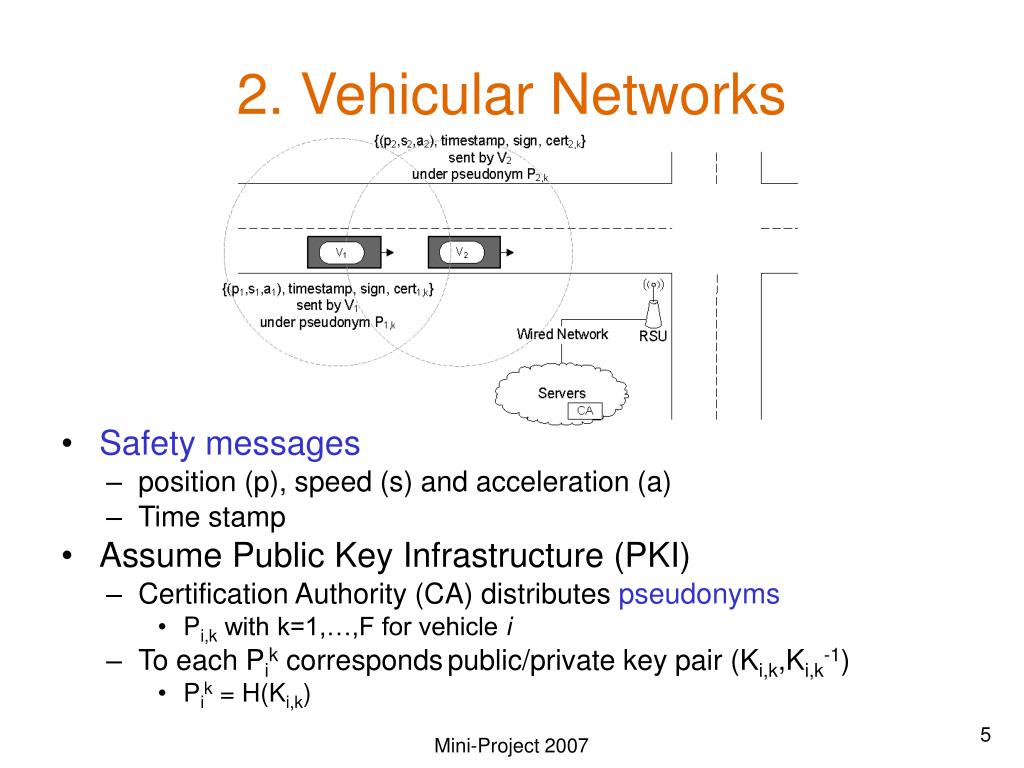

  5. 2. Vehicular Networks • Safety messages • position (p), speed (s) and acceleration (a) • Time stamp • Assume Public Key Infrastructure (PKI) • Certification Authority (CA) distributes pseudonyms • Pi,k with k=1,…,F for vehicle i • To each Pik correspondspublic/private key pair (Ki,k,Ki,k-1) • Pik = H(Ki,k)

  6. Adversary Model Adversary types: • Weak Adversary (WA) • Global Passive External with incomplete information • Strong Adversary (SA) • Global Passive External with complete information • RSU Adversary • Global Passive partially Internal with complete information

  7. Mix-Zones definition • Goal: Obscure relation of incoming and outgoing traffic => Unlinkability • Strong adversary observes location and time of entering/exiting events: • Entering event: k = (n,) i.e., on road n at time  • Exiting event: l = (e,’) i.e., on road e at time ’ • Strong adversary has statistical information about mix-zones • Location: pn,e = Prob(“Vehicle enters on road n and exits on road e”) • Timing: qn,e(t) = Prob(“Time spent between n and e is t”) Prk ! l = Prob(“ Mapping of entering event k to exiting event l ”)

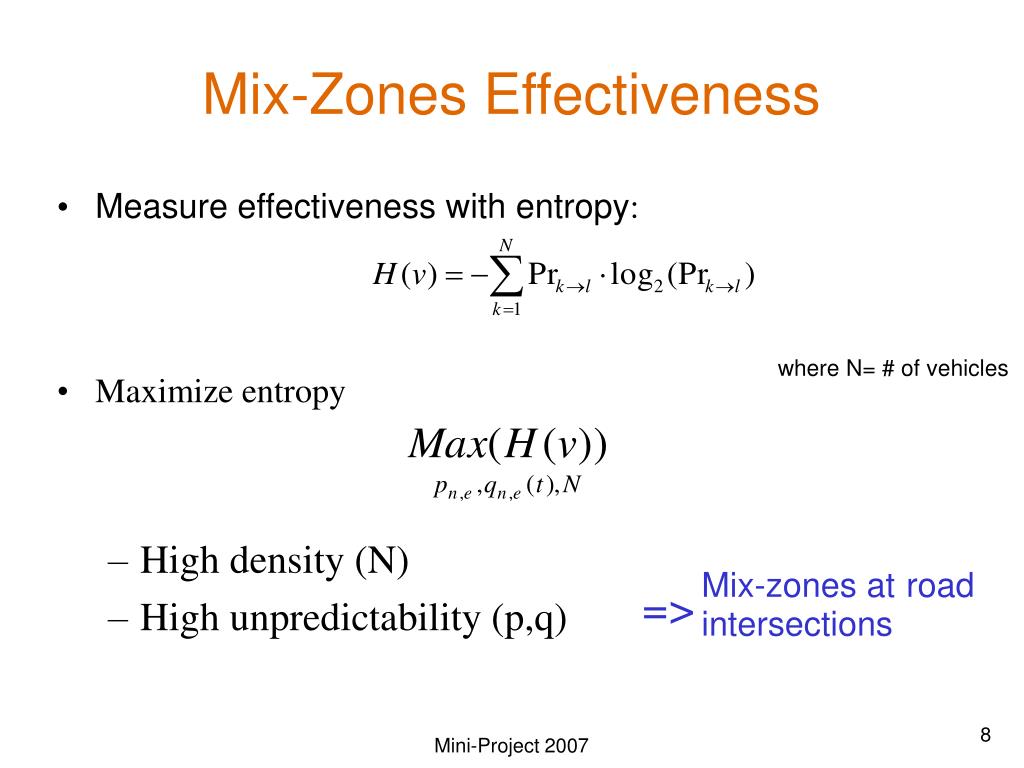

  8. Mix-Zones Effectiveness • Measure effectiveness with entropy: • Maximize entropy • High density (N) • High unpredictability (p,q) where N= # of vehicles Mix-zones at road intersections =>

  9. 3. Cryptographic Mix-Zone • Silent Mix-zones: • Turn off transceivers • Unconditional security • Cryptographic Mix-zones (CMIX): • Encrypt Safety Messages • Symmetric Cryptography • Computational security • Not user centric Not in the scope of Vehicular Networks

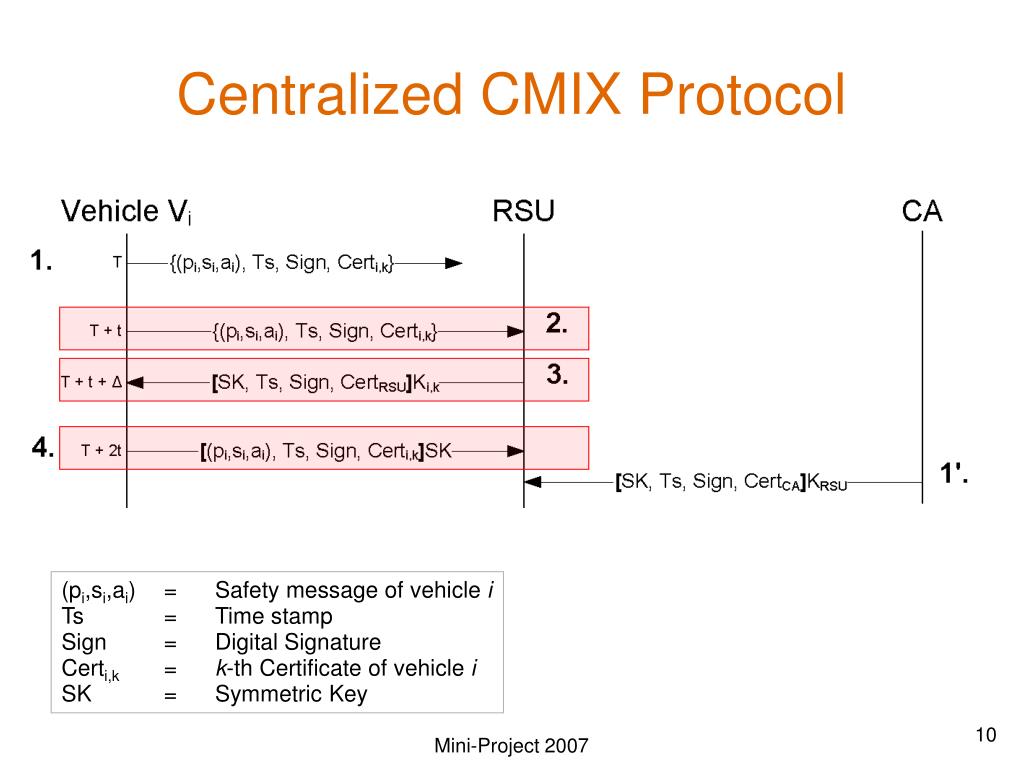

  10. Centralized CMIX Protocol (pi,si,ai) = Safety message of vehicle i Ts = Time stamp Sign = Digital Signature Certi,k = k-th Certificate of vehicle i SK = Symmetric Key

  11. Distributed CMIX Protocol (pi,si,ai) = Safety message of vehicle i Ts = Time stamp Sign = Digital Signature Certi,k = k-th Certificate of vehicle i SK = Symmetric Key

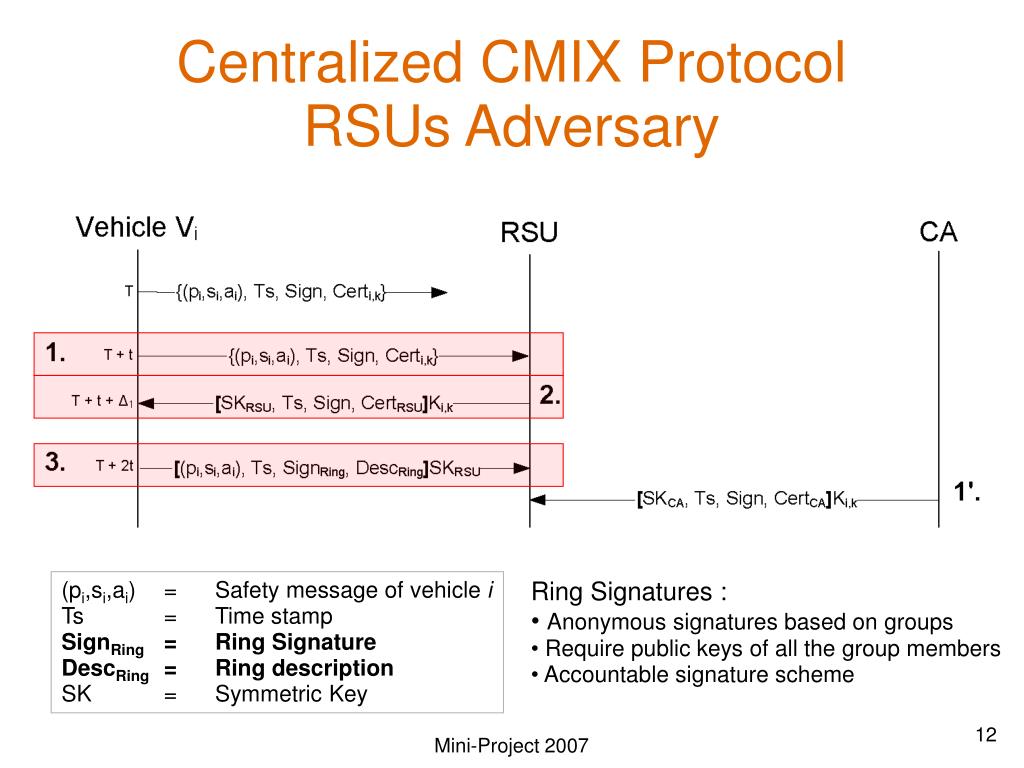

  12. Centralized CMIX ProtocolRSUs Adversary (pi,si,ai) = Safety message of vehicle i Ts = Time stamp SignRing = Ring Signature DescRing = Ring description SK = Symmetric Key • Ring Signatures : • Anonymous signatures based on groups • Require public keys of all the group members • Accountable signature scheme

  13. 4. Vehicular Mix-Networks • Mix-network cumulative entropy for vehicle v: where L= Length of the path

  14. Dynamic Mix-Networks Dynamics • Set of traversed mix-zones always different • Mix-zones have different qn,e(t) • Path length L varies for each vehicle v • Lv ~ N(v, v) Upper Bounds • WA model in Vehicular Mix-zone: • H(v) · log2(N) • WA model in Vehicular Mix-network: • E[log2(N)] · log2(E[N])

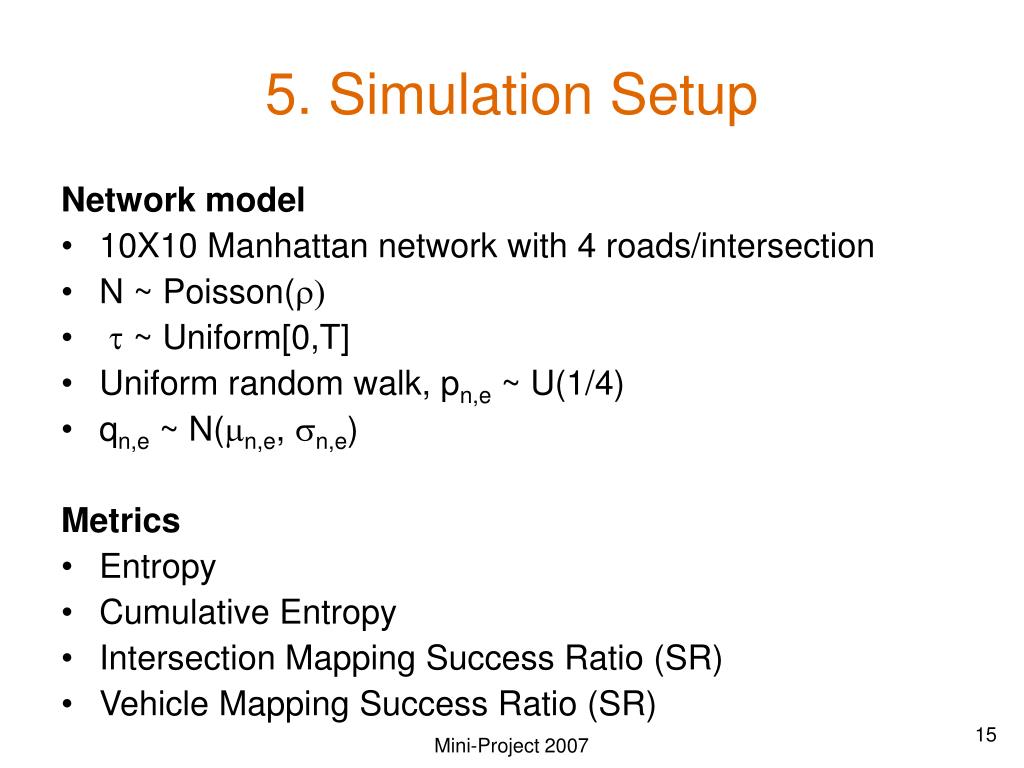

  15. 5. Simulation Setup Network model • 10X10 Manhattan network with 4 roads/intersection • N ~ Poisson() •  ~ Uniform[0,T] • Uniform random walk, pn,e ~ U(1/4) • qn,e ~ N(n,e, n,e) Metrics • Entropy • Cumulative Entropy • Intersection Mapping Success Ratio (SR) • Vehicle Mapping Success Ratio (SR)

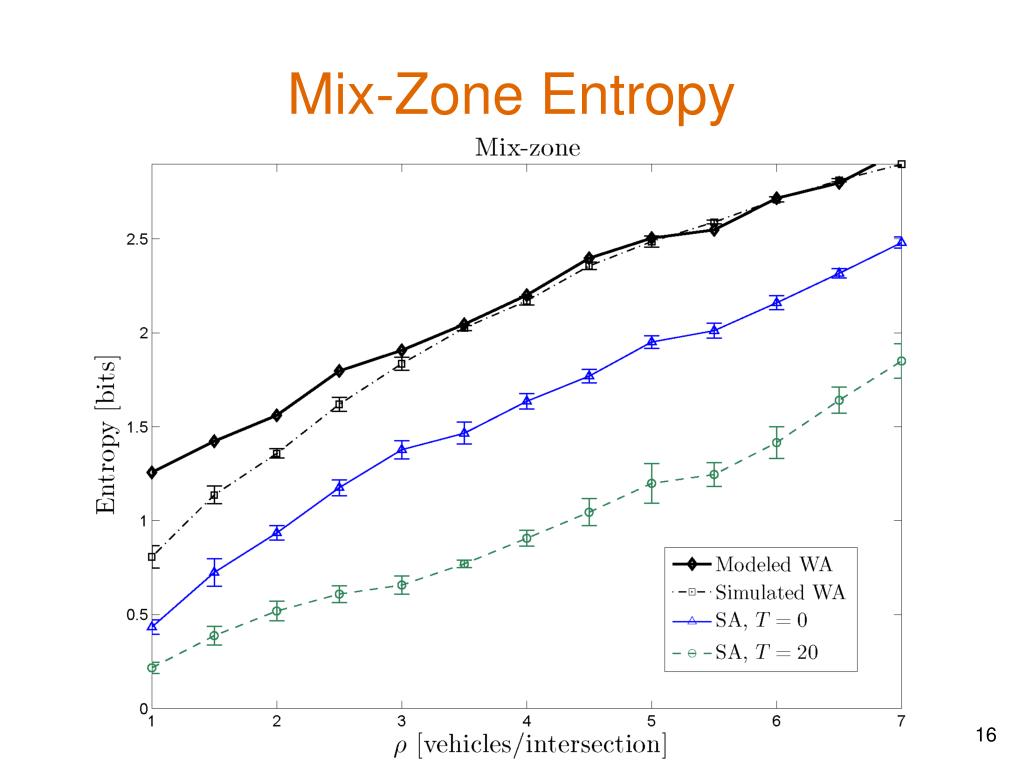

  16. Mix-Zone Entropy

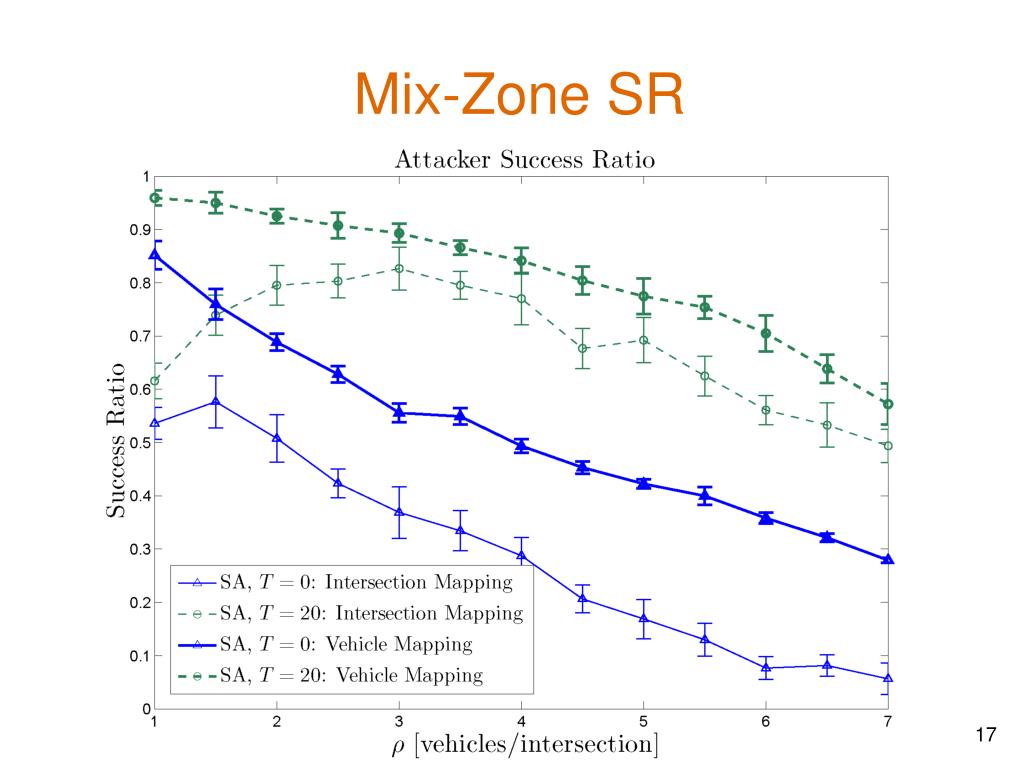

  17. Mix-Zone SR

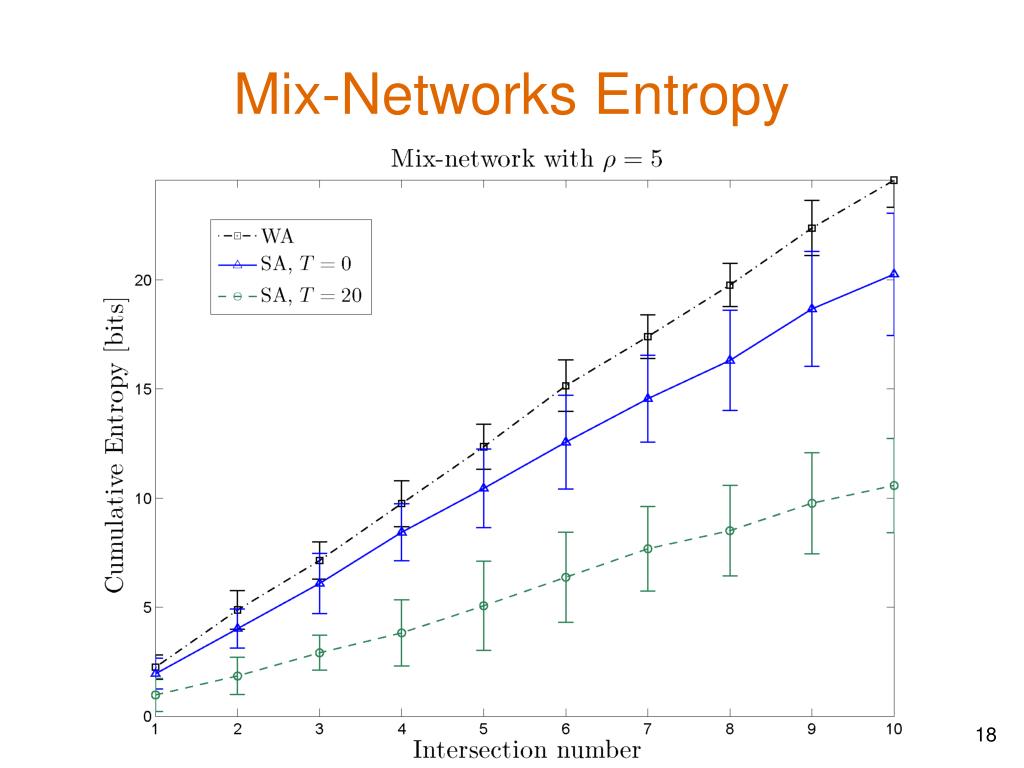

  18. Mix-Networks Entropy

  19. Mix-Networks SR

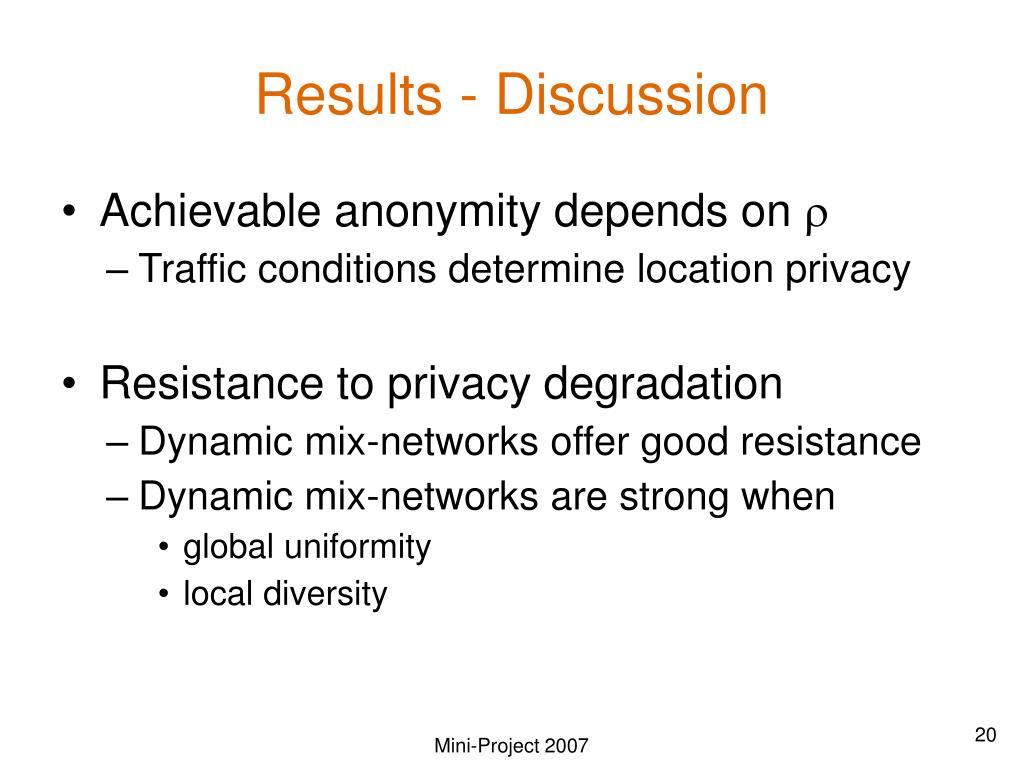

  20. Results - Discussion • Achievable anonymity depends on  • Traffic conditions determine location privacy • Resistance to privacy degradation • Dynamic mix-networks offer good resistance • Dynamic mix-networks are strong when • global uniformity • local diversity

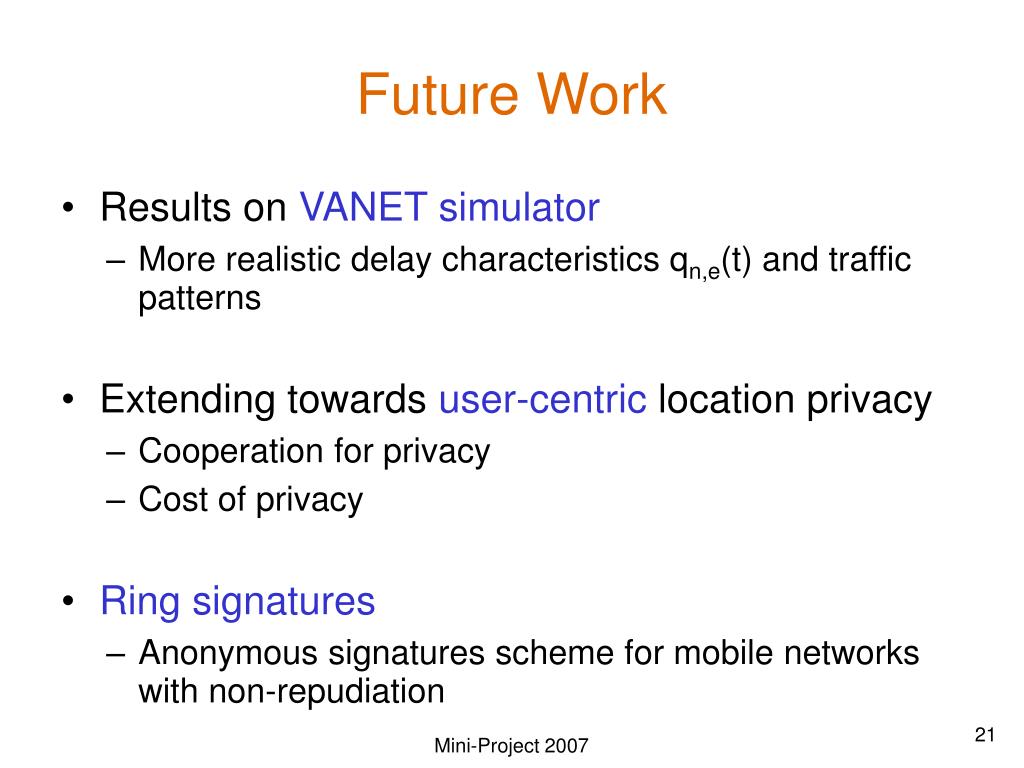

  21. Future Work • Results on VANET simulator • More realistic delay characteristics qn,e(t) and traffic patterns • Extending towards user-centric location privacy • Cooperation for privacy • Cost of privacy • Ring signatures • Anonymous signatures scheme for mobile networks with non-repudiation

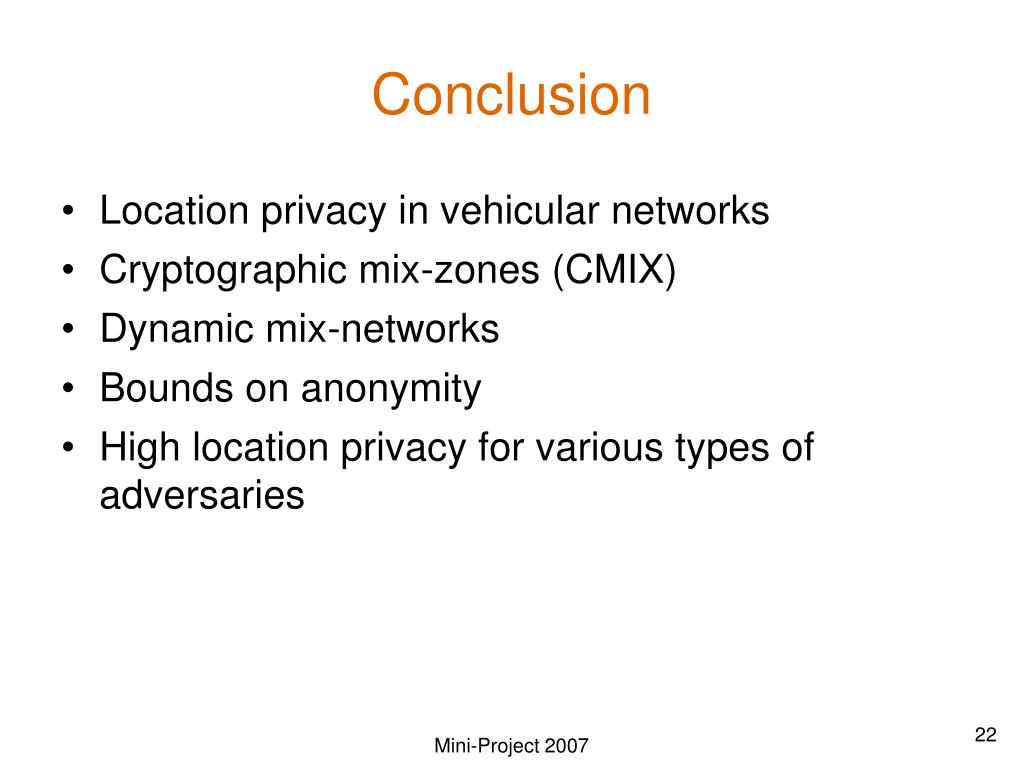

  22. Conclusion • Location privacy in vehicular networks • Cryptographic mix-zones (CMIX) • Dynamic mix-networks • Bounds on anonymity • High location privacy for various types of adversaries

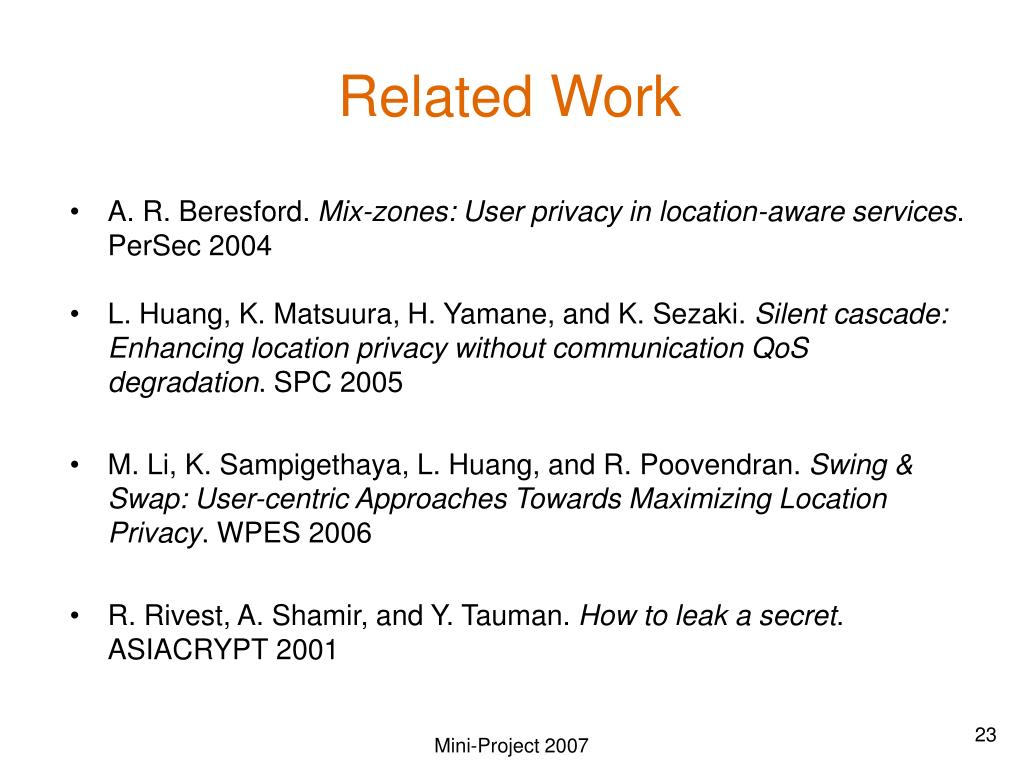

  23. Related Work • A. R. Beresford. Mix-zones: User privacy in location-aware services. PerSec 2004 • L. Huang, K. Matsuura, H. Yamane, and K. Sezaki. Silent cascade: Enhancing location privacy without communication QoS degradation. SPC 2005 • M. Li, K. Sampigethaya, L. Huang, and R. Poovendran. Swing & Swap: User-centric Approaches Towards Maximizing Location Privacy. WPES 2006 • R. Rivest, A. Shamir, and Y. Tauman. How to leak a secret. ASIACRYPT 2001

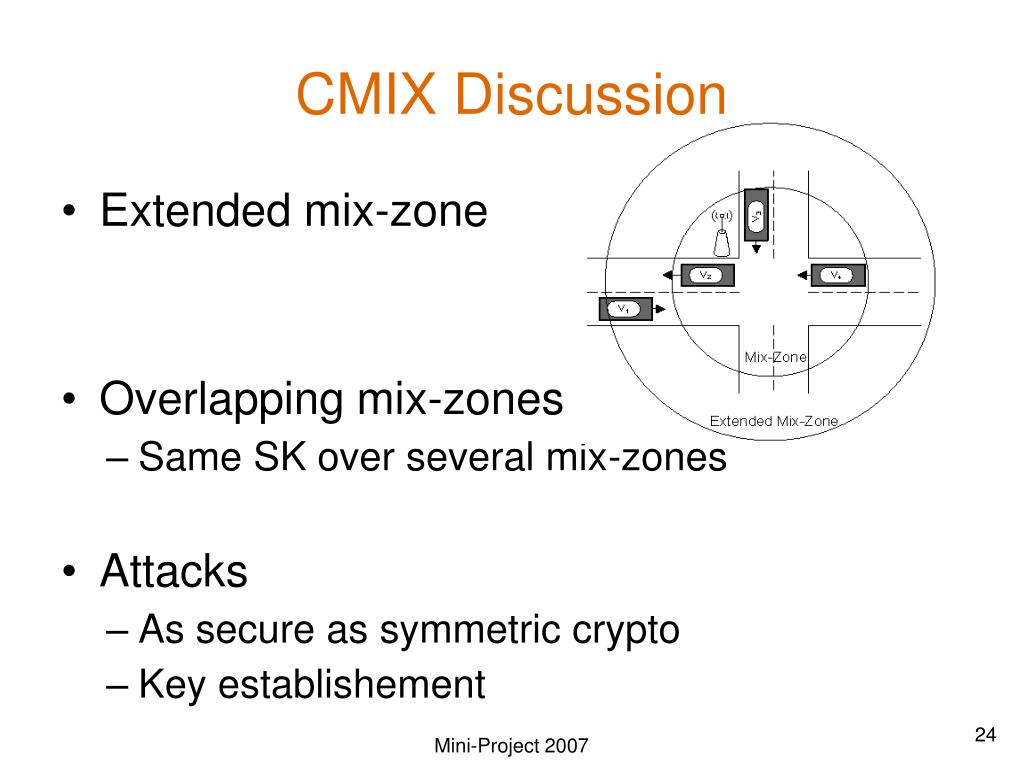

  24. CMIX Discussion • Extended mix-zone • Overlapping mix-zones • Same SK over several mix-zones • Attacks • As secure as symmetric crypto • Key establishement
