  1. AQA Additional Physics Revision

  2. Know how to:Read distance - time graphs

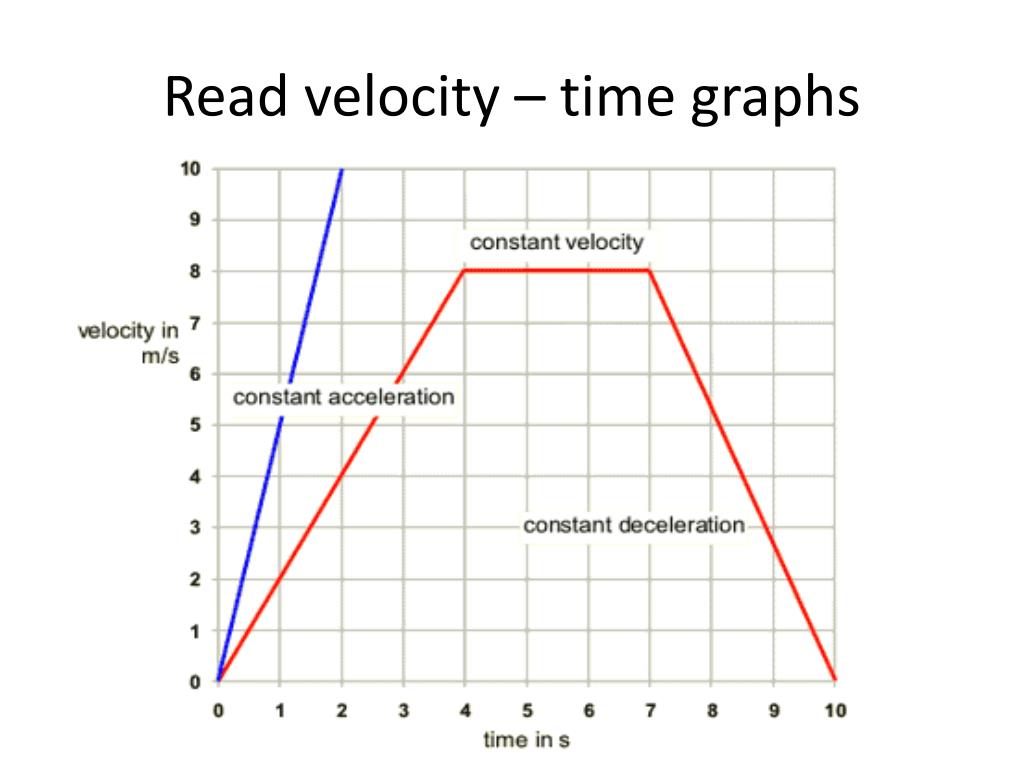

  3. Read velocity – time graphs

  4. How do you calculate acceleration from a speed-time graph?Acceleration = change in velocity/time taken for the changee.g. 10m/s = 2m/s2 5s

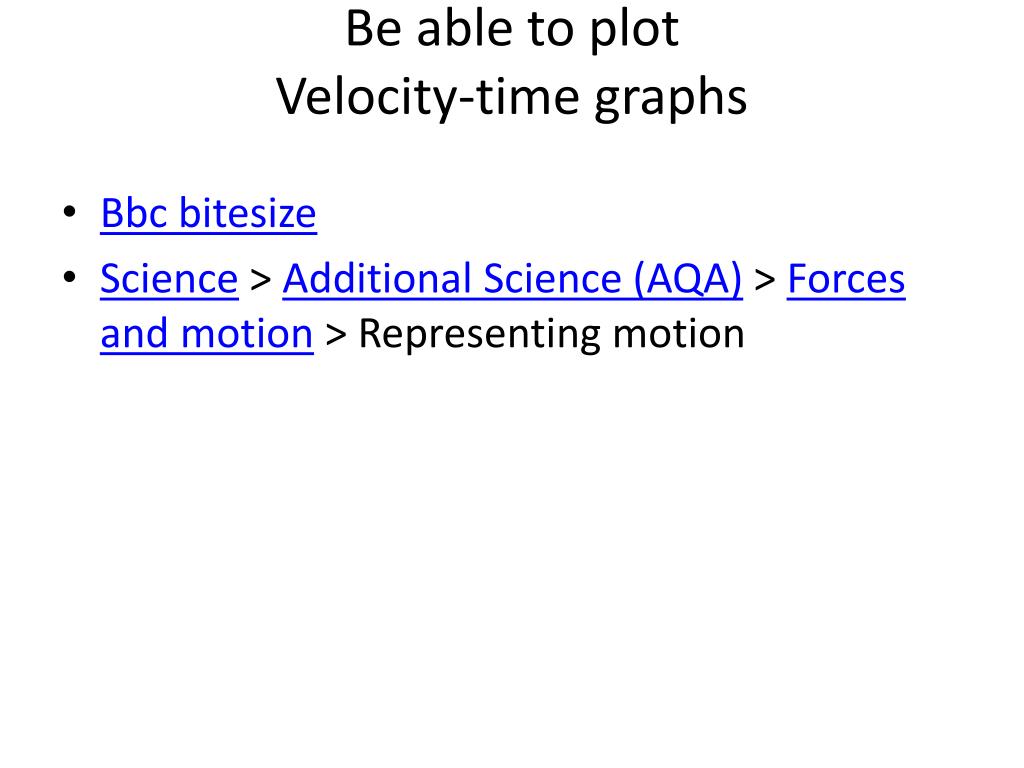

  5. Be able to plotVelocity-time graphs • Bbcbitesize • Science > Additional Science (AQA) > Forces and motion > Representing motion

  6. Understand terminal velocity

  7. Weight= Mass x gravitational field strength

  8. The factors affecting the stopping distance of a vehicle

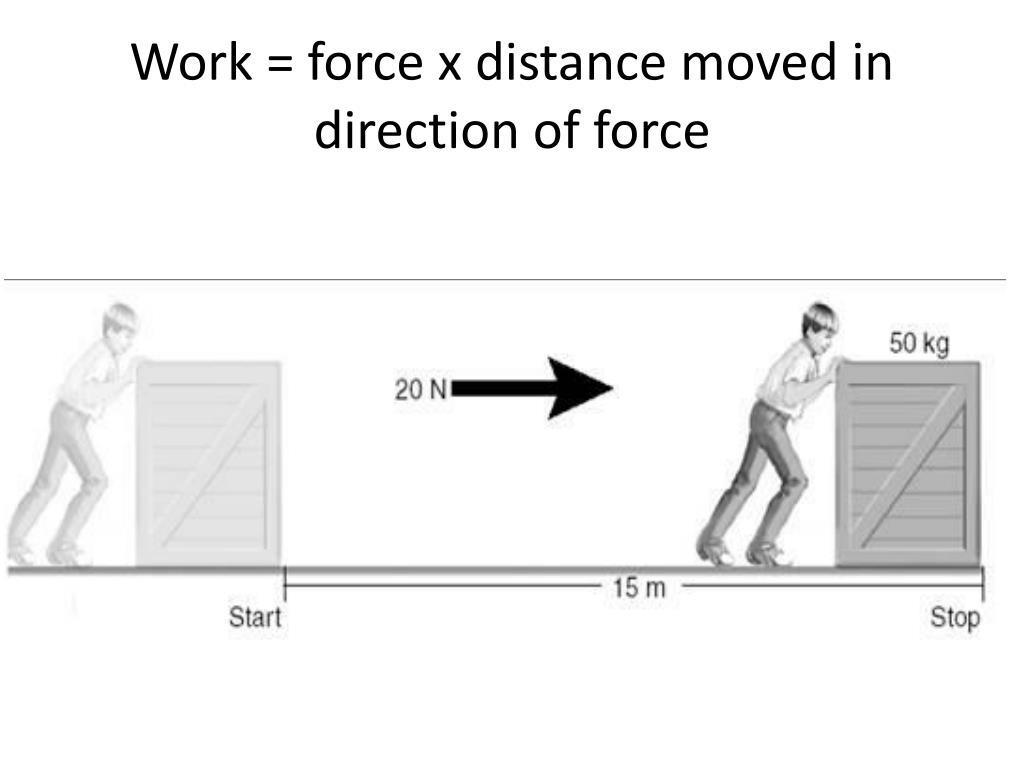

  9. Work = force x distance moved in direction of force

  10. F=MA • See bbcbitesize additional science aqa physics • Forces and motion

  11. Elastic potential energy is stored in an object when a force change its shape

  12. Kinetic energy depends on speed and mass

  13. Kinetic energy= ½ x mass x speed • Bbcbitesize • Science > Additional Science (AQA) > Forces and motion > Kinetic energy

  14. Momentum=mass x velocityMomentum has both magnitudeAnd direction

  15. When a force acts on a body a change in momentum occursMomentum is conserved in any collision/explosion provided no external forces act

  16. To use the idea of momentum to explain safety features

  17. Force = change in momentum/ time taken

  18. How materials become charged by friction

  19. Electrically charged bodies exert forces on each other;LIKE CHARGES REPELUNLIKE CHARGES ATTRACT

  20. Van de Graaff generator

  21. Simple diagrams showing how a lightning conductor works Lightning conductors work to protect tall buildings from lightning strike. This is by providing an easier path for current to flow to the earth other than through the building. It consists of a thick copper strip of very low resistance connected to a large metal plate deep in the damp earth.

  22. How a photocopier works

  23. How a smoke precipitator works

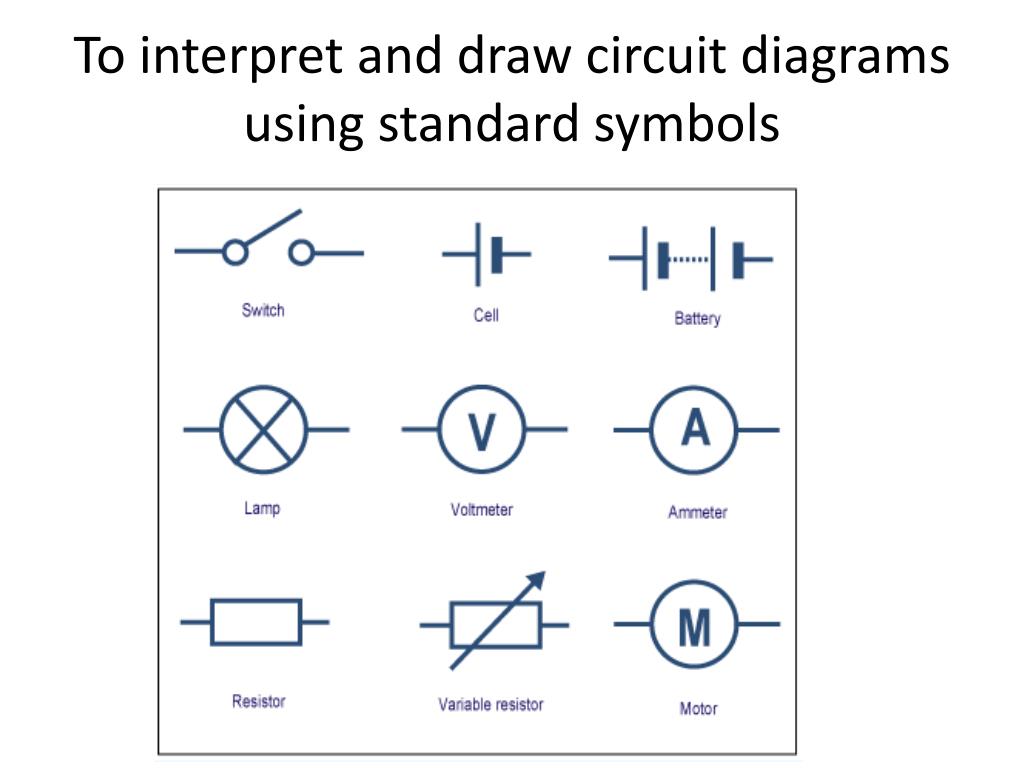

  24. To interpret and draw circuit diagrams using standard symbols

  25. Meaning of series and parallel

  26. graphs for a resistor at constant temperature, a filament lamp and a Diode

  27. Resistance graphs

  28. Potential difference (V)=current(A) X resistance(Ohms)V=IR • Pd Current resistance • 2v .......... 2 ohms • ......... 1.5 amps 2 ohms • 4v 2 amps .......... • .......... 3 amps 2 ohms • A p.d. of 4v is applied to two resistors (6 ohms and 2 ohms) connected in series • What is • 1. the combined resistance • 2.the current flowing • 3. the p.d. across the 6 ohm resistor

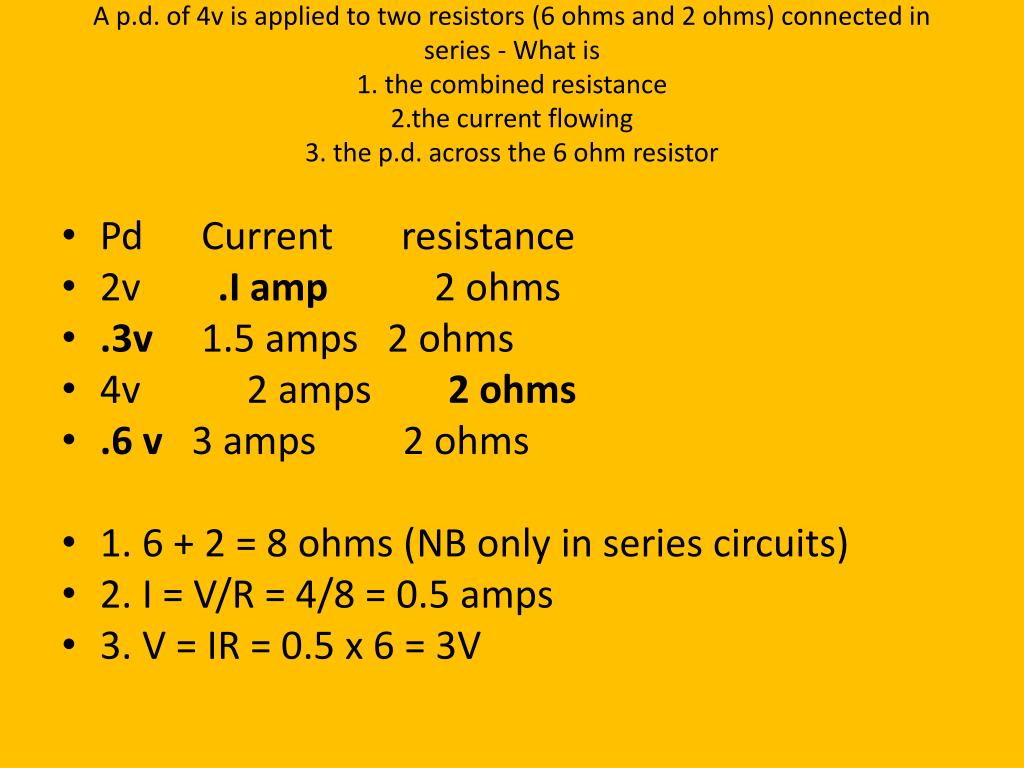

  29. A p.d. of 4v is applied to two resistors (6 ohms and 2 ohms) connected in series - What is1. the combined resistance2.the current flowing3. the p.d. across the 6 ohm resistor • Pd Current resistance • 2v .I amp 2 ohms • .3v 1.5 amps 2 ohms • 4v 2 amps 2 ohms • .6 v 3 amps 2 ohms • 1. 6 + 2 = 8 ohms (NB only in series circuits) • 2. I = V/R = 4/8 = 0.5 amps • 3. V = IR = 0.5 x 6 = 3V

  30. For components connected in seriesThe total resistance is the sum of the resistance of each componentThere is the same current through each componentThe total pd of the supply is shared between the components

  31. Series circuit

  32. For components in connected in parallelThe pd across each component is the sameThe total current through the whole circuit is the sum of the currents through the separate components

  33. Parallel circuit

  34. Cells and batteries supply current which always passes in the same direction. This is called direct current (dc)

  35. An alternating current (ac) is one which is constantly changing direction. Mains electricity is an ac supply. In the UK it has a frequency of 50 cycles per second (50 hertz)

  36. UK mains supply is about 230 voltsTo determine the period and hence the frequency of a supply from the diagrams of oscilloscope traces.

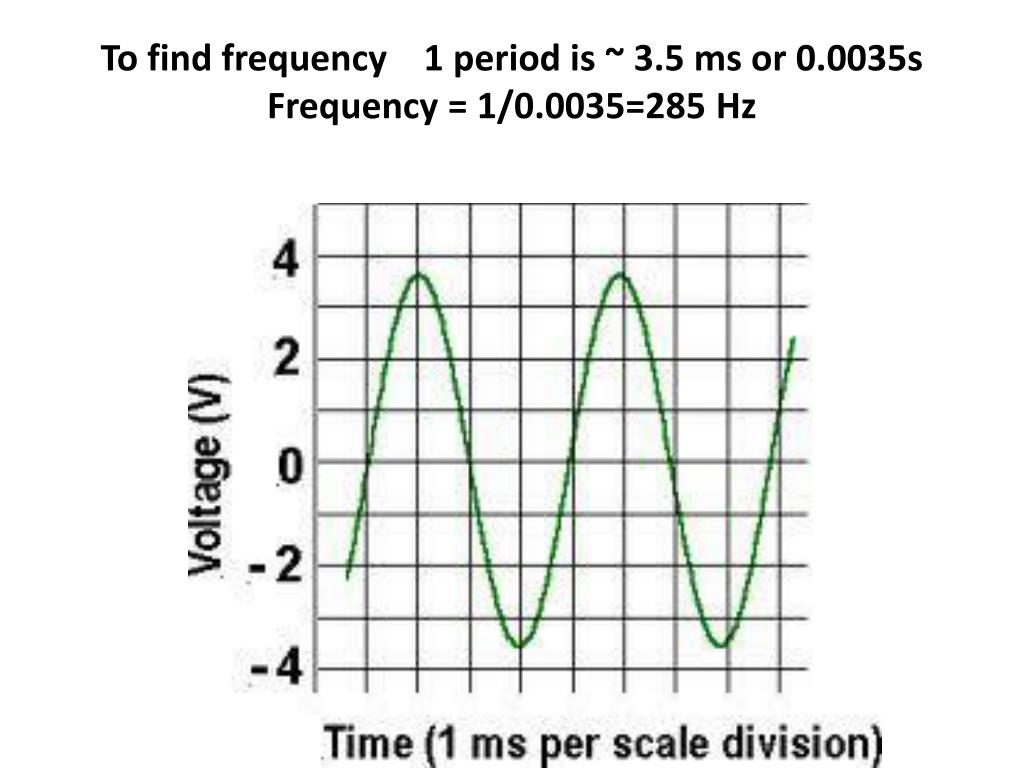

  37. To find frequency 1 period is ~ 3.5 ms or 0.0035sFrequency = 1/0.0035=285 Hz

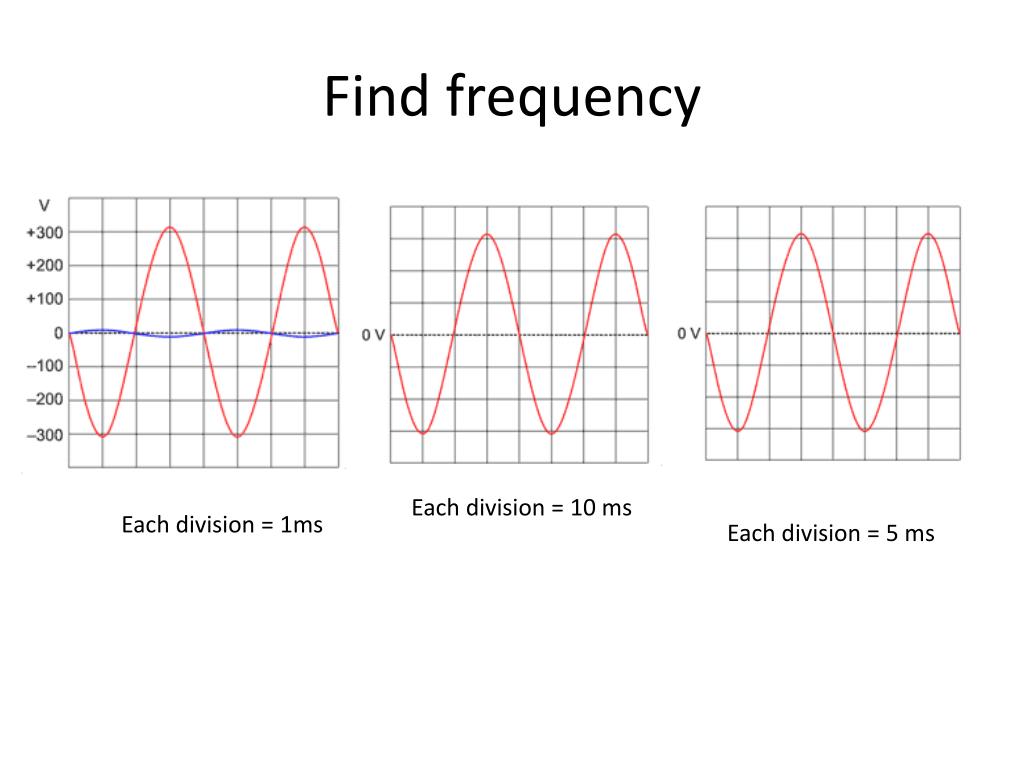

  38. Find frequency Each division = 10 ms Each division = 1ms Each division = 5 ms

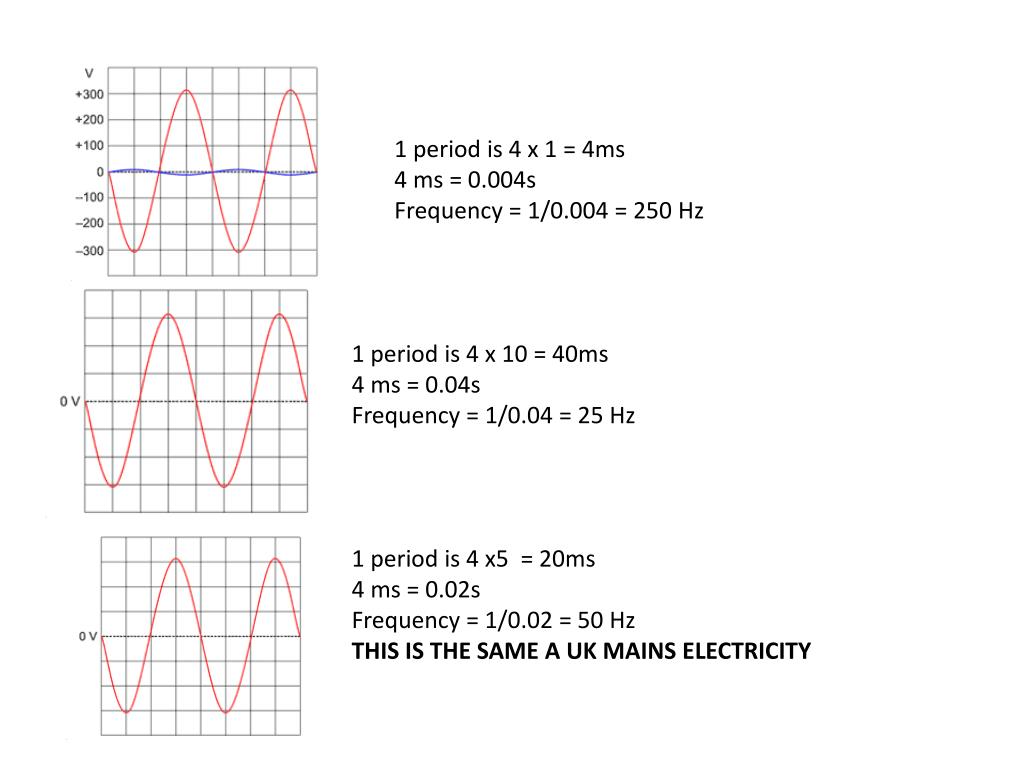

  39. 1 period is 4 x 1 = 4ms 4 ms = 0.004s Frequency = 1/0.004 = 250 Hz 1 period is 4 x 10 = 40ms 4 ms = 0.04s Frequency = 1/0.04 = 25 Hz 1 period is 4 x5 = 20ms 4 ms = 0.02s Frequency = 1/0.02 = 50 Hz THIS IS THE SAME A UK MAINS ELECTRICITY

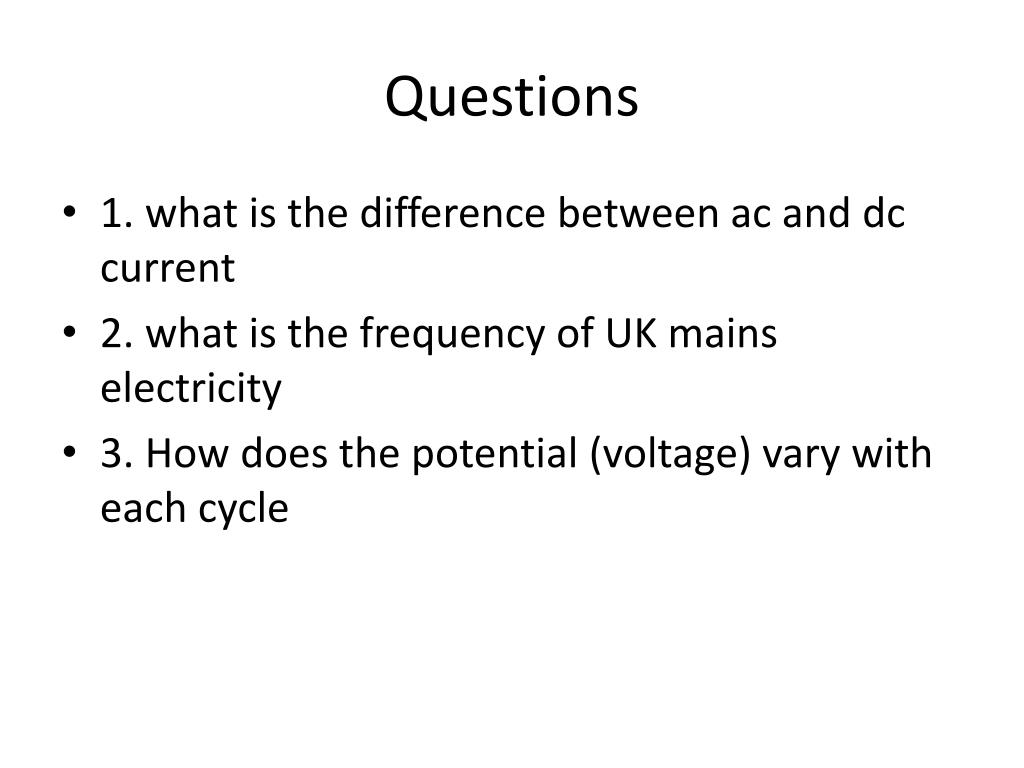

  40. Questions • 1. what is the difference between ac and dc current • 2. what is the frequency of UK mains electricity • 3. How does the potential (voltage) vary with each cycle
