  1. CWNA Guide to Wireless LANs, Second Edition Chapter Four IEEE 802.11 Physical Layer Standards

  2. Objectives • List and describe the wireless modulation schemes used in IEEE WLANs • Tell the difference between frequency hopping spread spectrum and direct sequence spread spectrum • Explain how orthogonal frequency division multiplexing is used to increase network throughput • List the characteristics of the Physical layer standards in 802.11b, 802.11g, and 802.11a networks CWNA Guide to Wireless LANs, Second Edition

  3. Introduction Figure 4-2: OSI data flow CWNA Guide to Wireless LANs, Second Edition

  4. Introduction (continued) Table 4-1: OSI layers and functions CWNA Guide to Wireless LANs, Second Edition

  5. Wireless Modulation Schemes • Four primary wireless modulation schemes: • Narrowband transmission • Frequency hopping spread spectrum • Direct sequence spread spectrum • Orthogonal frequency division multiplexing • Narrowband transmission used primarily by radio stations • Other three used in IEEE 802.11 WLANs CWNA Guide to Wireless LANs, Second Edition

  6. Narrowband Transmission • Radio signals by nature transmit on only one radio frequency or a narrow portion of frequencies • Require more power for the signal to be transmitted • Signal must exceed noise level • Total amount of outside interference • Vulnerable to interference from another radio signal at or near same frequency • IEEE 802.11 standards do not use narrowband transmissions CWNA Guide to Wireless LANs, Second Edition

  7. Narrowband Transmission (continued) Figure 4-3: Narrowband transmission CWNA Guide to Wireless LANs, Second Edition

  8. Spread Spectrum Transmission Figure 4-4: Spread spectrum transmission CWNA Guide to Wireless LANs, Second Edition

  9. Spread Spectrum Transmission (continued) • Advantages over narrowband: • Resistance to narrowband interference • Resistance to spread spectrum interference • Lower power requirements • Less interference on other systems • More information transmitted • Increased security • Resistance to multipath distortion CWNA Guide to Wireless LANs, Second Edition

  10. Frequency Hopping Spread Spectrum (FHSS) • Uses range of frequencies • Change during transmission • Hopping code: Sequence of changing frequencies • If interference encountered on particular frequency then that part of signal will be retransmitted on next frequency of hopping code • FCC has established restrictions on FHSS to reduce interference • Due to speed limitations FHSS not widely implemented in today’s WLAN systems • Bluetooth does use FHSS CWNA Guide to Wireless LANs, Second Edition

  11. Frequency Hopping Spread Spectrum (continued) Figure 4-6: FHSS error correction CWNA Guide to Wireless LANs, Second Edition

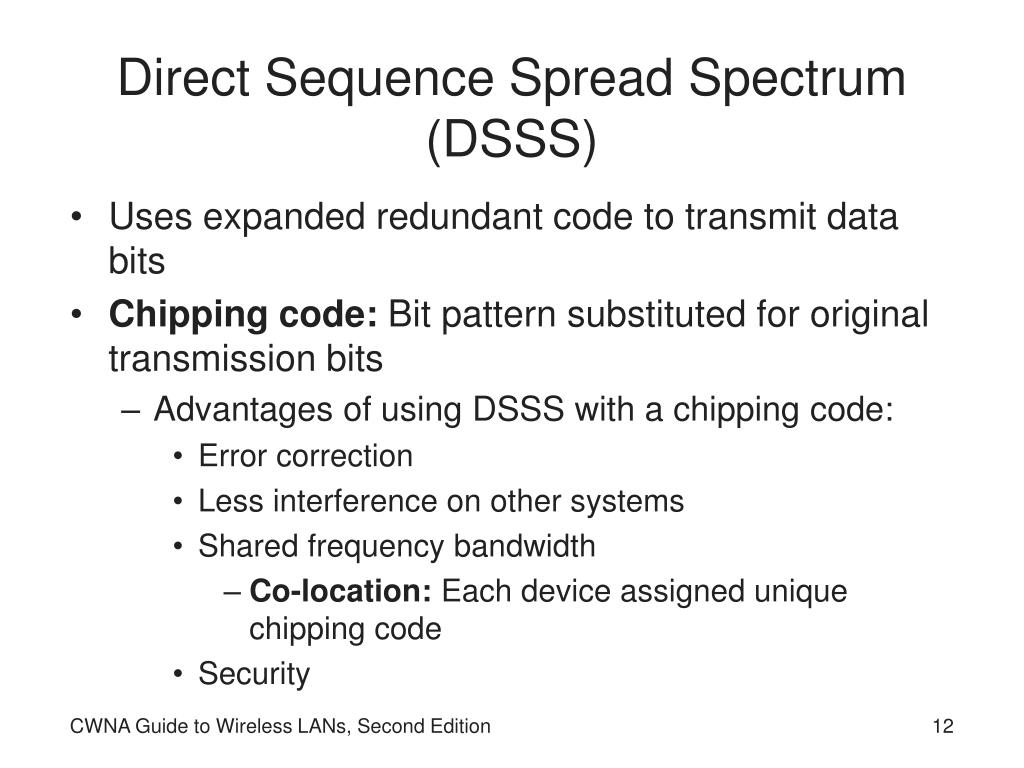

  12. Direct Sequence Spread Spectrum (DSSS) • Uses expanded redundant code to transmit data bits • Chipping code: Bit pattern substituted for original transmission bits • Advantages of using DSSS with a chipping code: • Error correction • Less interference on other systems • Shared frequency bandwidth • Co-location: Each device assigned unique chipping code • Security CWNA Guide to Wireless LANs, Second Edition

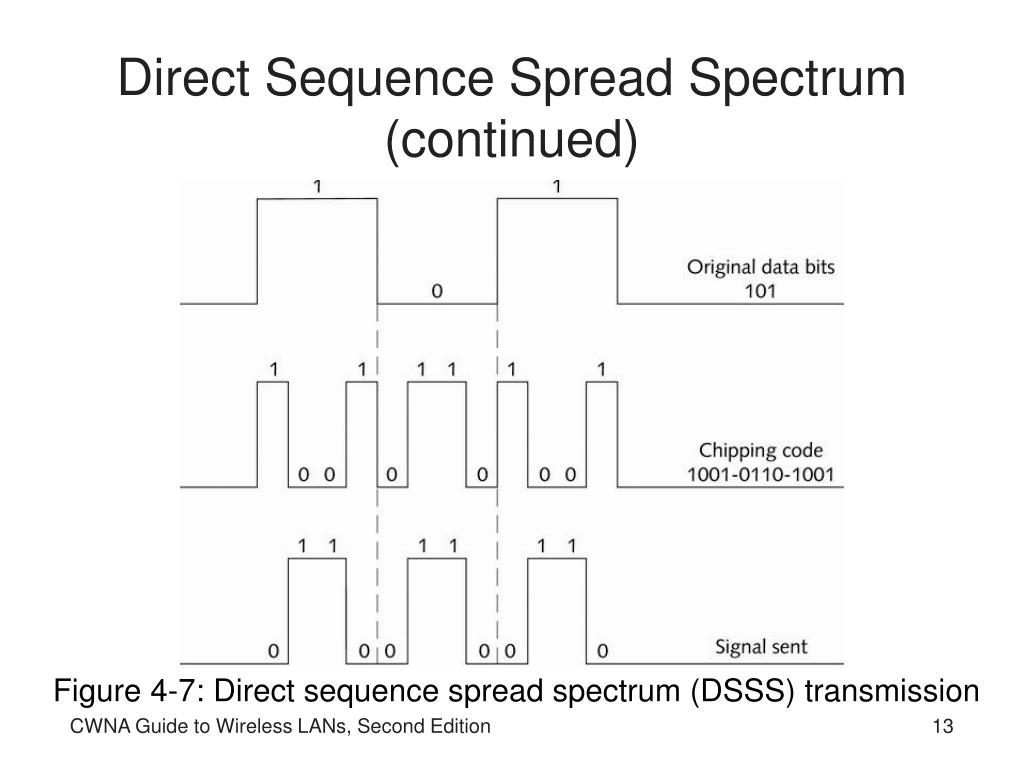

  13. Direct Sequence Spread Spectrum (continued) Figure 4-7: Direct sequence spread spectrum (DSSS) transmission CWNA Guide to Wireless LANs, Second Edition

  14. Orthogonal Frequency Division Multiplexing (OFDM) • With multipath distortion, receiving device must wait until all reflections received before transmitting • Puts ceiling limit on overall speed of WLAN • OFDM: Send multiple signals at same time • Split high-speed digital signal into several slower signals running in parallel • OFDM increases throughput by sending data more slowly • Avoids problems caused by multipath distortion • Used in 802.11a networks CWNA Guide to Wireless LANs, Second Edition

  15. Orthogonal Frequency Division Multiplexing (continued) Figure 4-8: Multiple channels CWNA Guide to Wireless LANs, Second Edition

  16. Orthogonal Frequency Division Multiplexing (continued) Figure 4-9: Orthogonal frequency division multiplexing (OFDM) vs. single-channel transmissions CWNA Guide to Wireless LANs, Second Edition

  17. Comparison of Wireless Modulation Schemes • FHSS transmissions less prone to interference from outside signals than DSSS • WLAN systems that use FHSS have potential for higher number of co-location units than DSSS • DSSS has potential for greater transmission speeds over FHSS • Throughput much greater for DSSS than FHSS • Amount of data a channel can send and receive CWNA Guide to Wireless LANs, Second Edition

  18. Comparison of Wireless Modulation Schemes (continued) • DSSS preferred over FHSS for 802.11b WLANs • OFDM is currently most popular modulation scheme • High throughput • Supports speeds over 100 Mbps for 802.11a WLANs • Supports speeds over 54 Mbps for 802.11g WLANs CWNA Guide to Wireless LANs, Second Edition

  19. IEEE 802.11 Physical Layer Standards • IEEE wireless standards follow OSI model, with some modifications • Data Link layer divided into two sublayers: • Logical Link Control (LLC) sublayer: Provides common interface, reliability, and flow control • Media Access Control (MAC) sublayer: Appends physical addresses to frames CWNA Guide to Wireless LANs, Second Edition

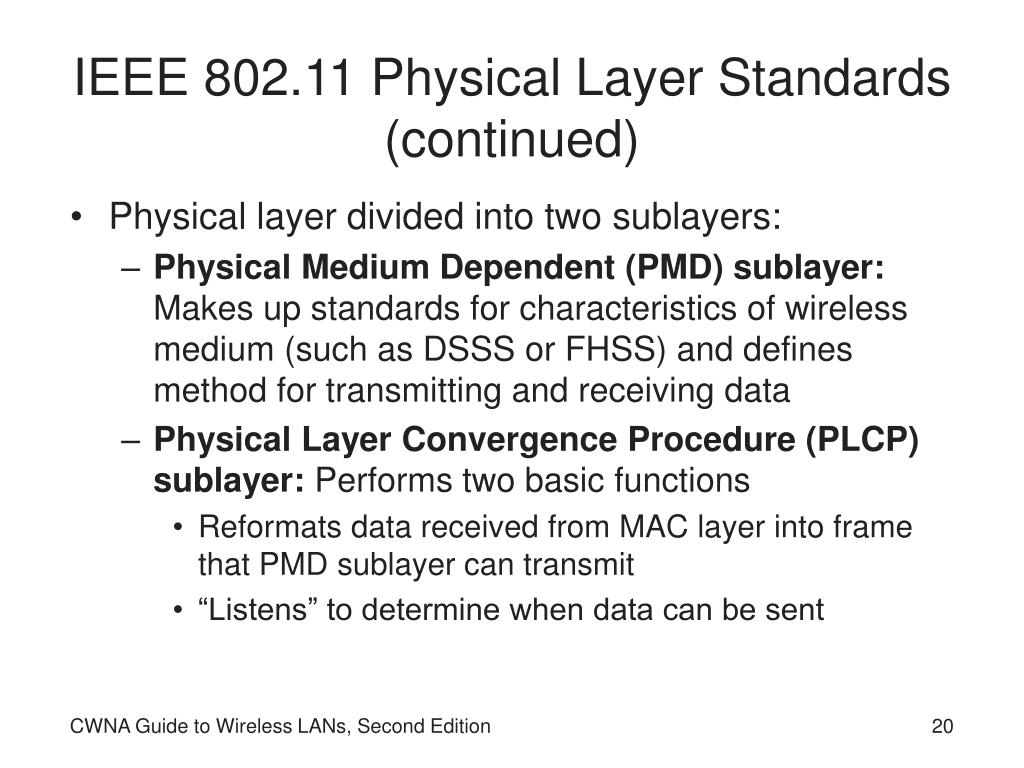

  20. IEEE 802.11 Physical Layer Standards (continued) • Physical layer divided into two sublayers: • Physical Medium Dependent (PMD) sublayer: Makes up standards for characteristics of wireless medium (such as DSSS or FHSS) and defines method for transmitting and receiving data • Physical Layer Convergence Procedure (PLCP) sublayer: Performs two basic functions • Reformats data received from MAC layer into frame that PMD sublayer can transmit • “Listens” to determine when data can be sent CWNA Guide to Wireless LANs, Second Edition

  21. IEEE 802.11 Physical Layer Standards (continued) Figure 4-10: Data Link sublayers CWNA Guide to Wireless LANs, Second Edition

  22. IEEE 802.11 Physical Layer Standards (continued) Figure 4-11: PHY sublayers CWNA Guide to Wireless LANs, Second Edition

  23. IEEE 802.11 Physical Layer Standards (continued) Figure 4-12: PLCP sublayer reformats MAC data CWNA Guide to Wireless LANs, Second Edition

  24. IEEE 802.11 Physical Layer Standards (continued) Figure 4-13: IEEE LANs share the same LLC CWNA Guide to Wireless LANs, Second Edition

  25. Legacy WLANs • Two “obsolete” WLAN standards: • Original IEEE 802.11: FHSS or DSSS could be used for RF transmissions • But not both on same WLAN • HomeRF: Based on Shared Wireless Access Protocol (SWAP) • Defines set of specifications for wireless data and voice communications around the home • Slow • Never gained popularity CWNA Guide to Wireless LANs, Second Edition

  26. IEEE 802.11b Physical Layer Standards • Physical Layer Convergence Procedure Standards: Based on DSSS • PLCP must reformat data received from MAC layer into a frame that the PMD sublayer can transmit Figure 4-14: 802.11b PLCP frame CWNA Guide to Wireless LANs, Second Edition

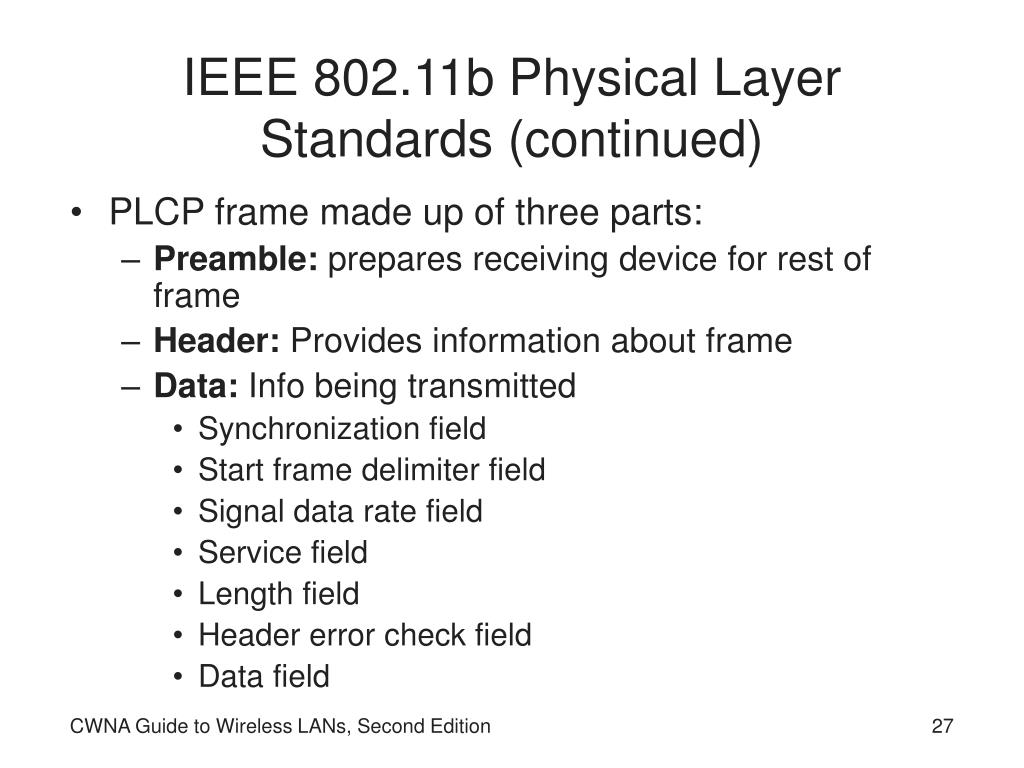

  27. IEEE 802.11b Physical Layer Standards (continued) • PLCP frame made up of three parts: • Preamble: prepares receiving device for rest of frame • Header: Provides information about frame • Data: Info being transmitted • Synchronization field • Start frame delimiter field • Signal data rate field • Service field • Length field • Header error check field • Data field CWNA Guide to Wireless LANs, Second Edition

  28. IEEE 802.11b Physical Layer Standards (continued) • Physical Medium Dependent Standards: PMD translates binary 1’s and 0’s of frame into radio signals for transmission • Can transmit at 11, 5.5, 2, or 1 Mbps • 802.11b uses ISM band • 14 frequencies can be used • Two types of modulation can be used • Differentialbinary phase shift keying (DBPSK): For transmissions at 1 Mbps • Differential quadrature phase shift keying (DQPSK): For transmissions at 2, 5.5, and 11 Mbps CWNA Guide to Wireless LANs, Second Edition

  29. IEEE 802.11b Physical Layer Standards (continued) Table 4-2: 802.11b ISM channels CWNA Guide to Wireless LANs, Second Edition

  30. IEEE 802.11b Physical Layer Standards (continued) Table 4-3: IEEE 802.11b Physical layer standards CWNA Guide to Wireless LANs, Second Edition

  31. IEEE 802.11a Physical Layer Standards • IEEE 802.11a achieves increase in speed and flexibility over 802.11b primarily through OFDM • Use higher frequency • Accesses more transmission channels • More efficient error-correction scheme CWNA Guide to Wireless LANs, Second Edition

  32. U-NII Frequency Band Table 4-4: ISM and U-NII WLAN characteristics Table 4-5: U-NII characteristics CWNA Guide to Wireless LANs, Second Edition

  33. U-NII Frequency Band (continued) • Total bandwidth available for IEEE 802.11a WLANs using U-NII is almost four times that available for 802.11b networks using ISM band • Disadvantages: • In some countries outside U.S., 5 GHz bands allocated to users and technologies other than WLANs • Interference from other devices is growing • Interference from other devices one of primary sources of problems for 802.11b and 802.11a WLANs CWNA Guide to Wireless LANs, Second Edition

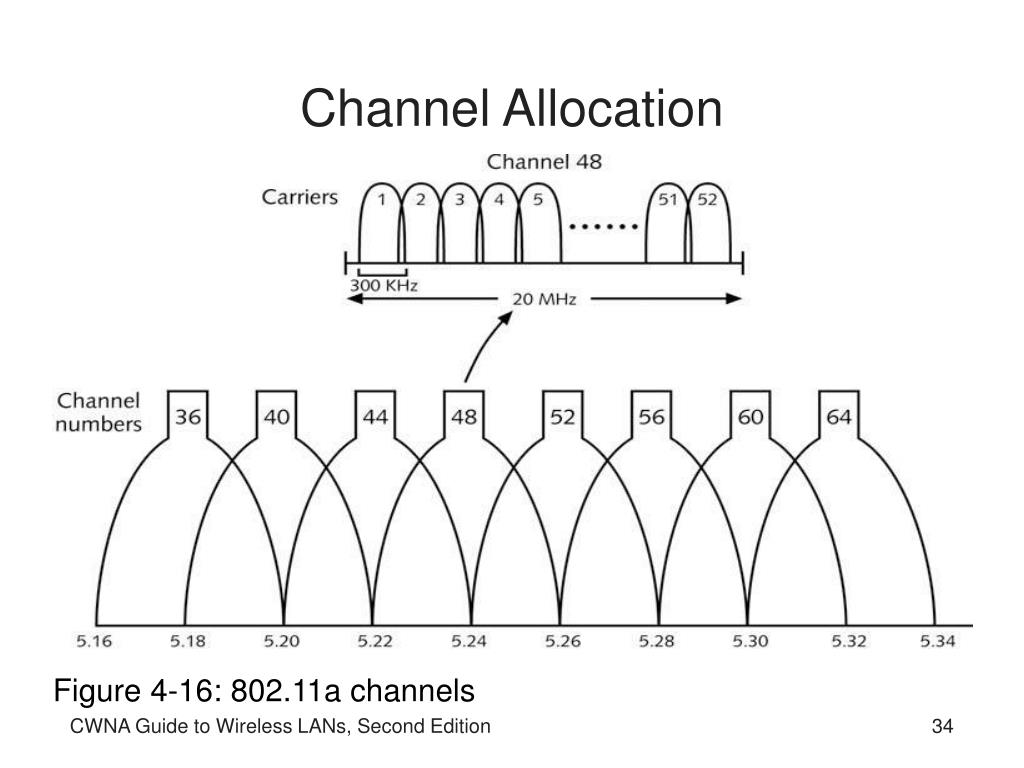

  34. Channel Allocation Figure 4-16: 802.11a channels CWNA Guide to Wireless LANs, Second Edition

  35. Channel Allocation (continued) Figure 4-17: 802.11b vs. 802.11a channel coverage CWNA Guide to Wireless LANs, Second Edition

  36. Error Correction • 802.11a has fewer errors than 802.11b • Transmissions sent over parallel subchannels • Interference tends to only affect one subchannel • Forward Error Correction (FEC): Transmits secondary copy along with primary information • 4 of 52 channels used for FEC • Secondary copy used to recover lost data • Reduces need for retransmission CWNA Guide to Wireless LANs, Second Edition

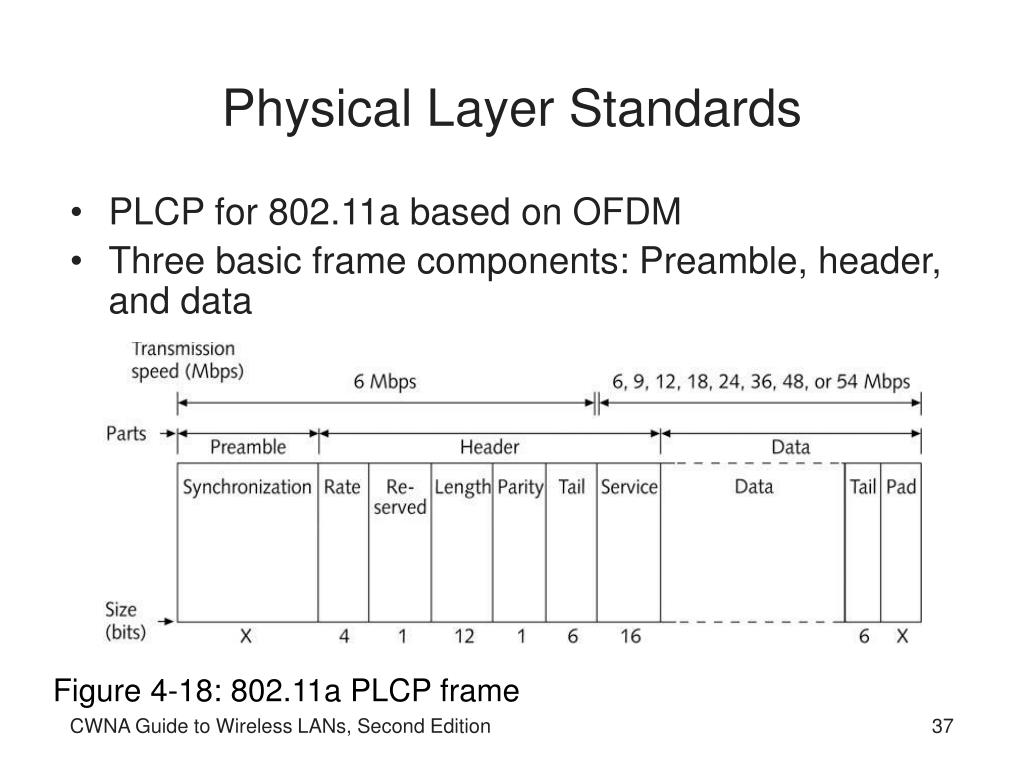

  37. Physical Layer Standards • PLCP for 802.11a based on OFDM • Three basic frame components: Preamble, header, and data Figure 4-18: 802.11a PLCP frame CWNA Guide to Wireless LANs, Second Edition

  38. Physical Layer Standards (continued) Table 4-6: 802.11a Rate field values CWNA Guide to Wireless LANs, Second Edition

  39. Physical Layer Standards (continued) • Modulation techniques used to encode 802.11a data vary depending upon speed • Speeds higher than 54 Mbps may be achieved using 2X modes Table 4-7: 802.11a characteristics CWNA Guide to Wireless LANs, Second Edition

  40. Physical Layer Standards (continued) Figure 4-19: Phase shift keying (PSK) CWNA Guide to Wireless LANs, Second Edition

  41. Physical Layer Standards (continued) Figure 4-20: Quadrature phase shift keying (QPSK) CWNA Guide to Wireless LANs, Second Edition

  42. Physical Layer Standards (continued) Figure 4-21: 16-level quadrature amplitude modulation (16-QAM) CWNA Guide to Wireless LANs, Second Edition

  43. Physical Layer Standards (continued) Figure 4-22: 64-level quadrature amplitude modulation (64-QAM) CWNA Guide to Wireless LANs, Second Edition

  44. IEEE 802.11g Physical Layer Standards • 802.11g combines best features of 802.11a and 802.11b • Operates entirely in 2.4 GHz ISM frequency • Two mandatory modes and one optional mode • CCK mode used at 11 and 5.5 Mbps (mandatory) • OFDM used at 54 Mbps (mandatory) • PBCC-22 (Packet Binary Convolution Coding): Optional mode • Can transmit between 6 and 54 Mbps CWNA Guide to Wireless LANs, Second Edition

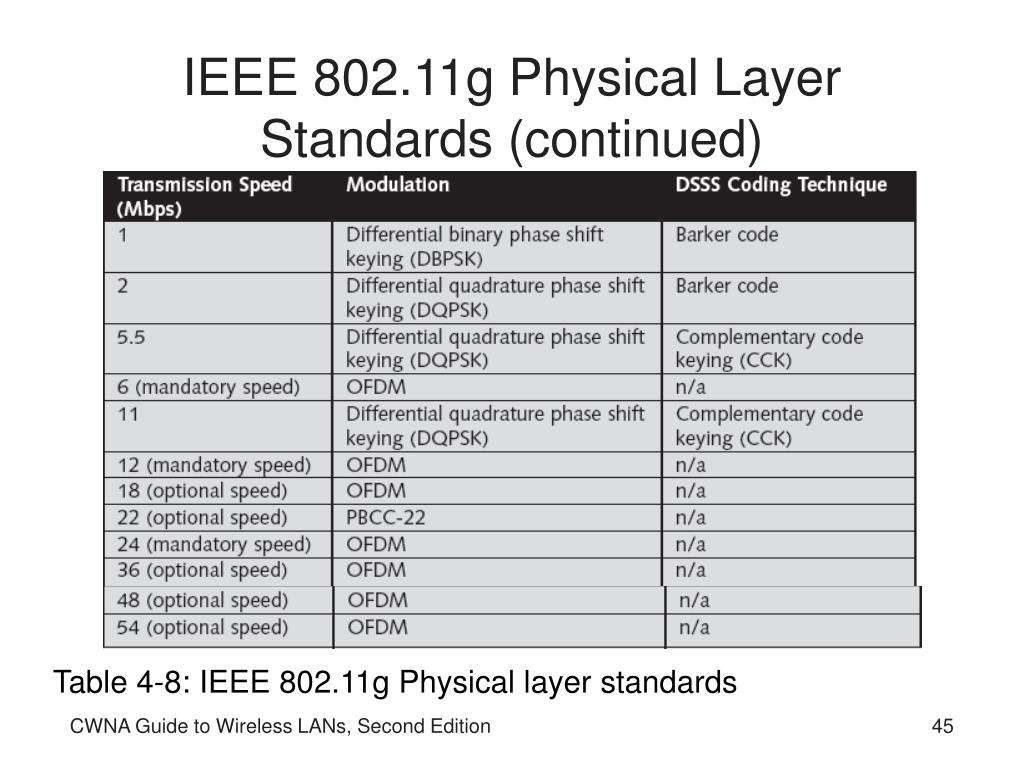

  45. IEEE 802.11g Physical Layer Standards (continued) Table 4-8: IEEE 802.11g Physical layer standards CWNA Guide to Wireless LANs, Second Edition

  46. IEEE 802.11g Physical Layer Standards (continued) • Characteristics of 802.11g standard: • Greater throughput than 802.11b networks • Covers broader area than 802.11a networks • Backward compatible • Only three channels • If 802.11b and 802.11g devices transmitting in same environment, 802.11g devices drop to 11 Mbps speeds • Vendors can implement proprietary higher speed • Channel bonding and Dynamic turbo CWNA Guide to Wireless LANs, Second Edition

  47. Summary • Three modulation schemes are used in IEEE 802.11 wireless LANs: frequency hopping spread spectrum (FHSS), direct sequence spread spectrum (DSSS), and orthogonal frequency division multiplexing (OFDM) • Spread spectrum is a technique that takes a narrow, weaker signal and spreads it over a broader portion of the radio frequency band • Spread spectrum transmission uses two different methods to spread the signal over a wider area: FHSS and DSSS CWNA Guide to Wireless LANs, Second Edition

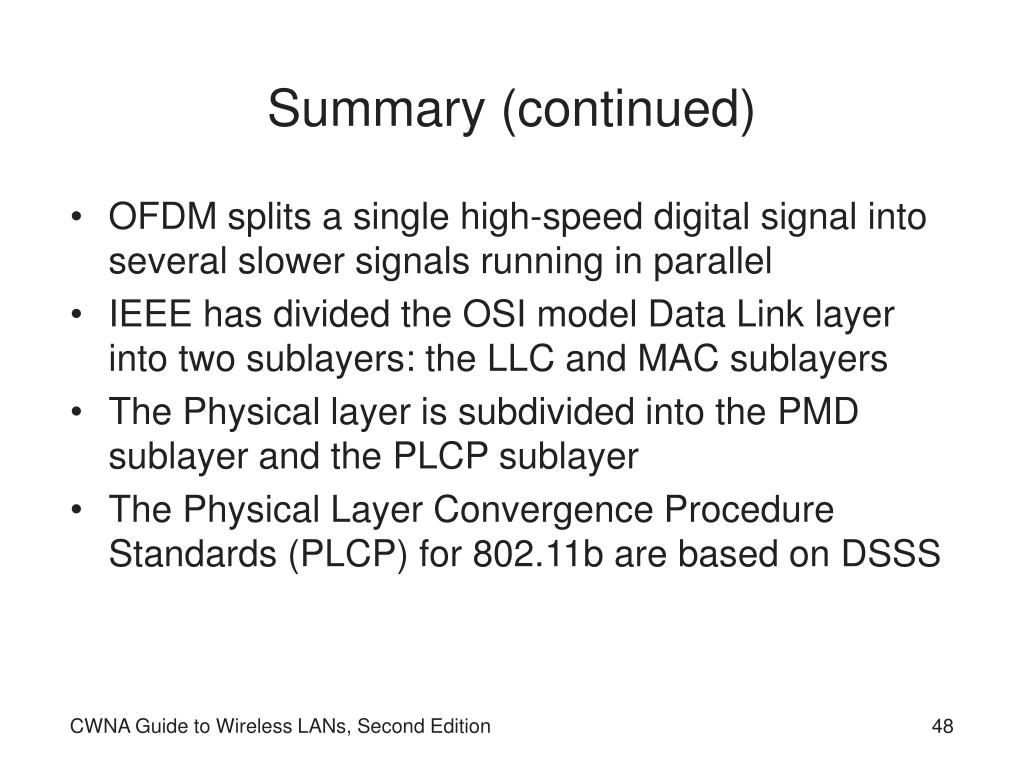

  48. Summary (continued) • OFDM splits a single high-speed digital signal into several slower signals running in parallel • IEEE has divided the OSI model Data Link layer into two sublayers: the LLC and MAC sublayers • The Physical layer is subdivided into the PMD sublayer and the PLCP sublayer • The Physical Layer Convergence Procedure Standards (PLCP) for 802.11b are based on DSSS CWNA Guide to Wireless LANs, Second Edition

  49. Summary (continued) • IEEE 802.11a networks operate at speeds up to 54 Mbps with an optional 108 Mbps • The 802.11g standard specifies that it operates entirely in the 2.4 GHz ISM frequency and not the U-NII band used by 802.11a CWNA Guide to Wireless LANs, Second Edition
