  1. Extending and Inferring Functional Dependencies in Schema Transformation Qi He Tok Wang Ling Dept. of Computer Science School of Computing National Univ. of Singapore

  2. Agenda • Background • Schematic discrepancy and schema transformation • Qualified FD • Inference rules of qualified FD • Propagation rules of qualified FD during schema transformation • Related work • Conclusion

  3. Motivation • Functional dependencies (FDs) are useful • Ensure the integrity of data in insertion, deletion and update • Check lossless join decomposition • Normalize relations • Optimize queries • …

  4. Issues on FDs in Individual DB • Inference rules of FDs in fixed relations • Derivation of dependencies on views from those on original relations How about in multidatabase systems?

  5. FDs in Multidatabase • Multidatabase is distributed (i.e., data may be divided and stored in several databases) and heterogeneous (i.e., similar data may be represented in quite different forms in component databases) • The distribution and heterogeneity of multidatabase require: • Complex schema transformations rather than the relational algebra to integrate database schemas • A flexible expression of FDs to represent dependencies in component databases • Consequently, the expression and derivation of FDs in multidatabase are more difficult than in individual databases

  6. Agenda • Background • Schematic discrepancy and schema transformation • Qualified FD • Inference rules of qualified FD • Propagation rules of qualified FD during schema transformation • Related work • Conclusion

  7. Schematic discrepancy • A semantic heterogeneity among component schemas • Schematic discrepancy occurs when one DB’s attribute values correspond to schema labels (attribute names or relation names) in others • See next page for an example

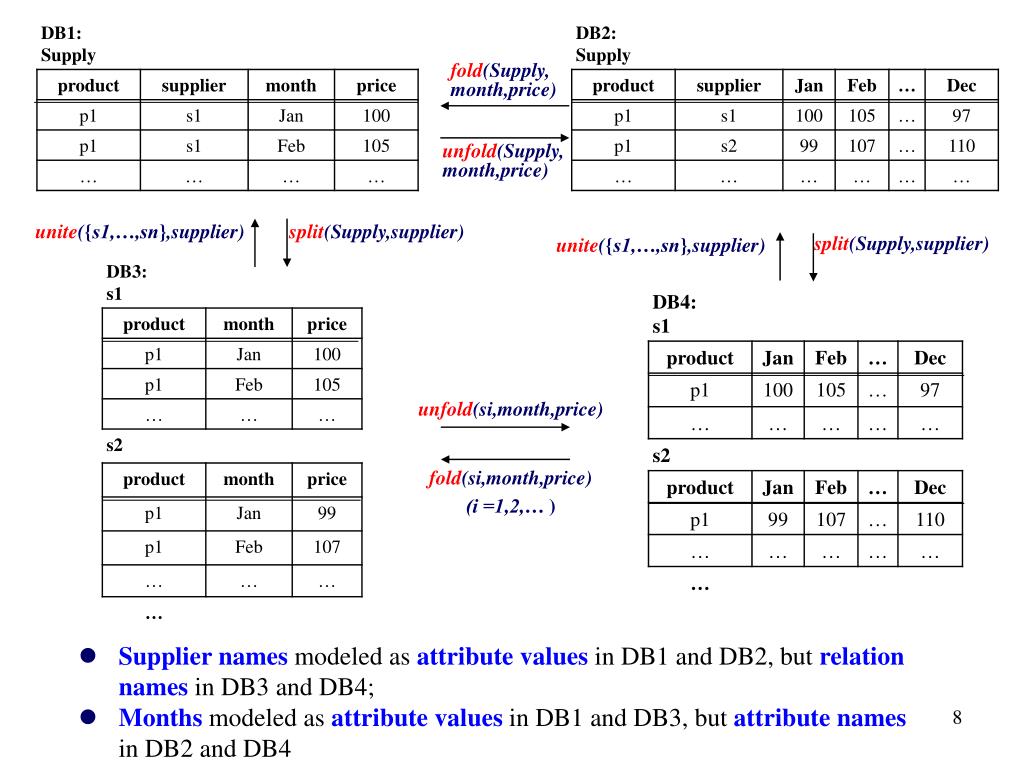

  8. fold(Supply,month,price) unfold(Supply,month,price) unite({s1,…,sn},supplier) split(Supply,supplier) split(Supply,supplier) unite({s1,…,sn},supplier) unfold(si,month,price) fold(si,month,price) (i =1,2,… ) • Supplier names modeled as attribute values in DB1 and DB2, but relation names in DB3 and DB4; • Months modeled as attribute values in DB1 and DB3, but attribute names in DB2 and DB4

  9. Schematic Discrepant Transformation • We call a transformation between schematic discrepant schemas schematic discrepant transformation • A schematic discrepant transformation can be implemented by a sequence of restructuring operators (unfold, fold, split andunite [5]). • Unfold transforms attribute values to attribute names, and fold does the converse. • Split transforms attribute values to relation names, and unite does the converse. [5] L. V. S. Lakshmanan, F. Sadri, and S. N. Subramanian. On efficiently implementing schemaSQL on SQL database system. VLDB, 1999, 471-482.

  10. Agenda • Background • Schematic discrepancy and schema transformation • Qualified FD • Inference rules of qualified FD • Propagation rules of qualified FD during schema transformation • Related work • Conclusion

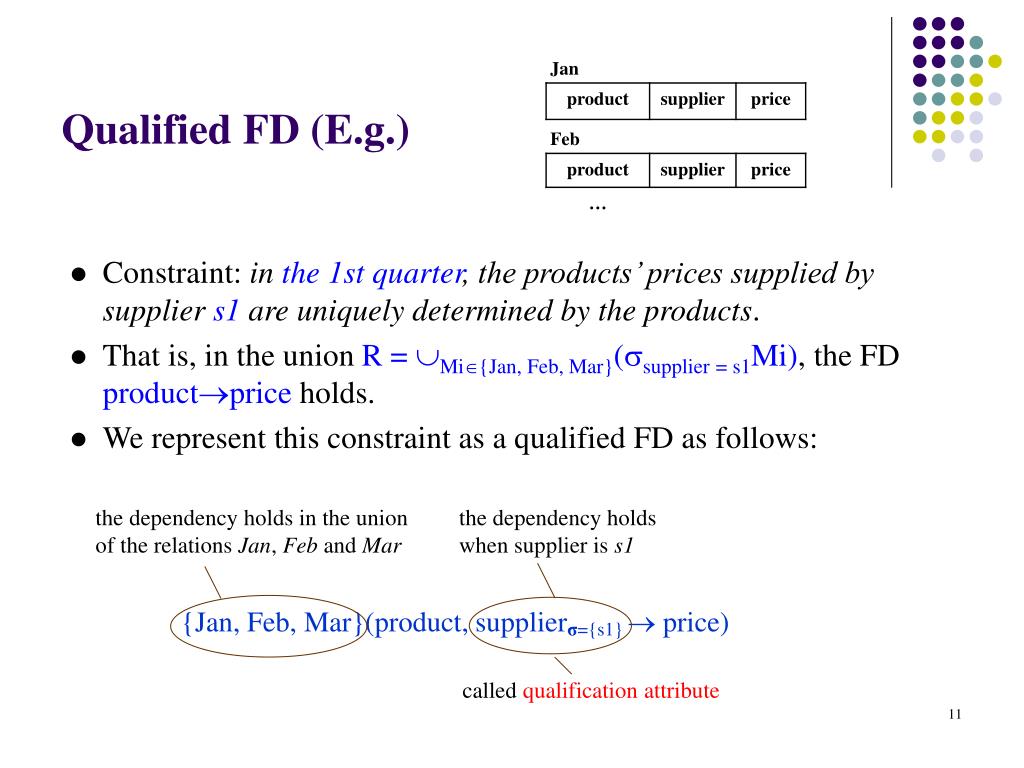

  11. Qualified FD (E.g.) • Constraint: in the1st quarter,the products’ prices supplied by supplier s1 are uniquely determined by the products. • That is, in the union R = Mi{Jan, Feb, Mar}(supplier = s1Mi), the FD productprice holds. • We represent this constraint as a qualified FD as follows: the dependency holds in the union of the relations Jan, Feb and Mar the dependency holds when supplier is s1 {Jan, Feb, Mar}(product, supplierσ={s1}  price) called qualification attribute

  12. Qualified FD • FDs holding over a set of relations or a set of horizontal partitions of relations • If a qualified FD only contains regular attributes and holds in one relation, then it is just a conventional FD. • Flexible to represent dependencies in distributed and heterogeneous schemas

  13. Inference rules of qualified FDs • Let F be a set of qualified FDs and f be a qualified FD for the schemas of a set of relations R . We say Fimpliesf, if every instance of R that satisfies F also satisfies f. • We define F+ to be set of qualified FDs implied by F. • Inference rules will allow us to deduce all the true qualified FDs for R , i.e., those in F+

  14. Inference Rules Given X a mixed set of regular and qualification attributes, Y and Z sets of regular attributes, A an attribute, R a set of relations, R1  R, D1 D dom(A), we have: (A1) Partition on relation set. If R (XY) holds, then R1 (XY) holds. (A2) Composition on relation set. If {Ri, Rj}(XY) holds for any Ri, RjR, then R (XY) holds. (A3) Partition on qualification. If R (Aσ=D, XY) holds, then R (Aσ=D1, XY) holds. (A4) Composition on qualification. If R (A={ai,aj}, XY) holds for any ai, ajD, then R (A=D, XY) holds. (A5) Single-valued qualification.If a  dom(A), then R (Aσ={a}A) holds. (A6) Assembly.If R (Aσ={a}, XY) holds for each a D, then R (Aσ=D, A, XY) holds.

  15. Inference Rules (cont.) (A7) Reflexivity.If YX, then R (XY) holds. (A8) Augmentation. If R (XY) holds, then R (X, ZY, Z). (A9) Transitivity. If R (XY) and R (X1, YZ) hold, where X1 is a set (possibly an empty set) of some qualification attributes in X, then R (XZ) holds. (A10) Dummy qualification.R (XY) iff R (Aσ=dom(A), XY) holds. • A useful rule derived from the above inference rules: (A11) Disassembly.R (A, XY) holds iff R (Aσ={a}, XY) holds for each a dom(A)

  16. Inference Rules • Rule A5 and A7 give trivial dependencies • Rule A7, A8 and A9 extend Armstrong's Axiom, the inference rules for FDs • The rules are sound and complete to infer qualified FDs in fixed relations

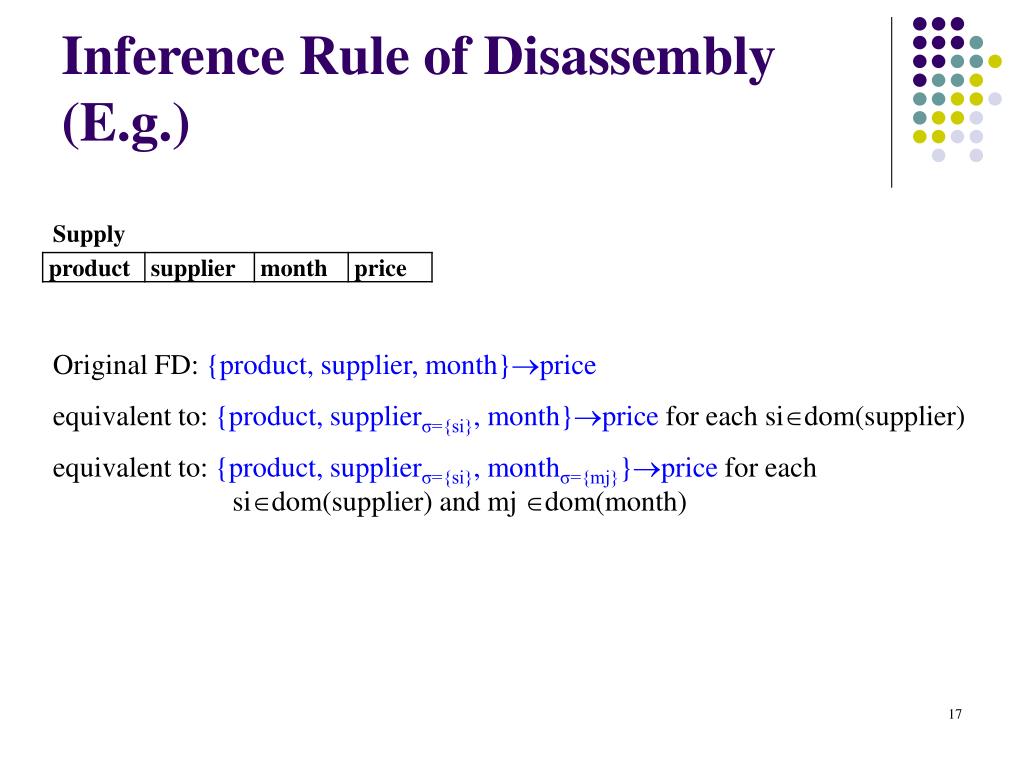

  17. Inference Rule of Disassembly (E.g.) Original FD: {product, supplier, month}price equivalent to: {product, supplierσ={si}, month}price for each sidom(supplier) equivalent to: {product, supplierσ={si}, monthσ={mj}}price for each sidom(supplier) and mj dom(month)

  18. Agenda • Background • Schematic discrepancy and schema transformation • Qualified FD • Inference rules of qualified FD • Propagation rules of qualified FD during schema transformation • Related work • Conclusion

  19. Propagation Rules • Let R be a set of original relations, and S be a set of relations transformed from R by applying some restructuring operator (i.e., unfold, fold, split or unite). • From a given set of qualified FDs F forR, propagation rules allow us to deduce the qualified FDs forS. • We give the rules for split/unite and unfold/fold in a pairwise way.

  20. Propagation Rules for split/unite b1(A1, …, An) split(R, B) where dom(B)= {b1, …, bm} R(A1, …, An, B) … unite({b1,…, bm}, B). bm(A1, …, An) Let X be a mixed set of regular and qualification attributes from {A1, …, An}, Y {A1, …, An} be a set of regular attributes, and R {b1, …, bm} be a set of relation names. We have the following rule: (P1) R(Bσ=R , XY) holds iff R(XY) holds.

  21. Propagation Rules for split/unite • The qualification on the values of attribute B in a qualified FD becomes the qualification on the relation set over which the inferred qualified FD holds, as B values become relation names in the transformed schemas. • unite is a qualified FD preserving transformation, but split is not • The FD R(X  B) will not be transformed to any dependency in application of split

  22. Propagation Rules for unfold/fold unfold(Ri, B, C) for each i = 1, …, k R1(A1, …, An, B, C) S1(A1, …, An, b1, …, bm) … … fold(Si, B, C) for each i = 1, …, k Rk(A1, …, An, B, C) Sk(A1, …, An, b1, …, bm) where dom(B)= {b1, …, bm}, and the values of attributes bi are from dom(C) Let X be a mixed set of regular and qualification attributes from {A1, …, An}, Y {A1, …, An} be a set of regular attributes. Let R{R1, …, Rk} and S {S1, …, Sk}, such that the relations of S are transformed from R. We have the following rules: (P2) R (Bσ={bi}, XC) holds iff S(Xbi) holds. (P3) R(Bσ={bi}, X, CY) holds iff S(X, biY) holds. (P4) R(XY) holds iff S(XY) holds.

  23. Propagation Rules for unfold/fold • The rules are based on a set ofunfold/fold operators because some qualified FDs may hold over a set of relations which are transformed together by unfold/fold operations. • Rule P2 and P3 indicate that the qualification on the value of attribute B in a qualified FD becomes the qualification on the attribute name in the inferred qualified FD. • Both fold and unfold are not qualified FD preserving transformations.

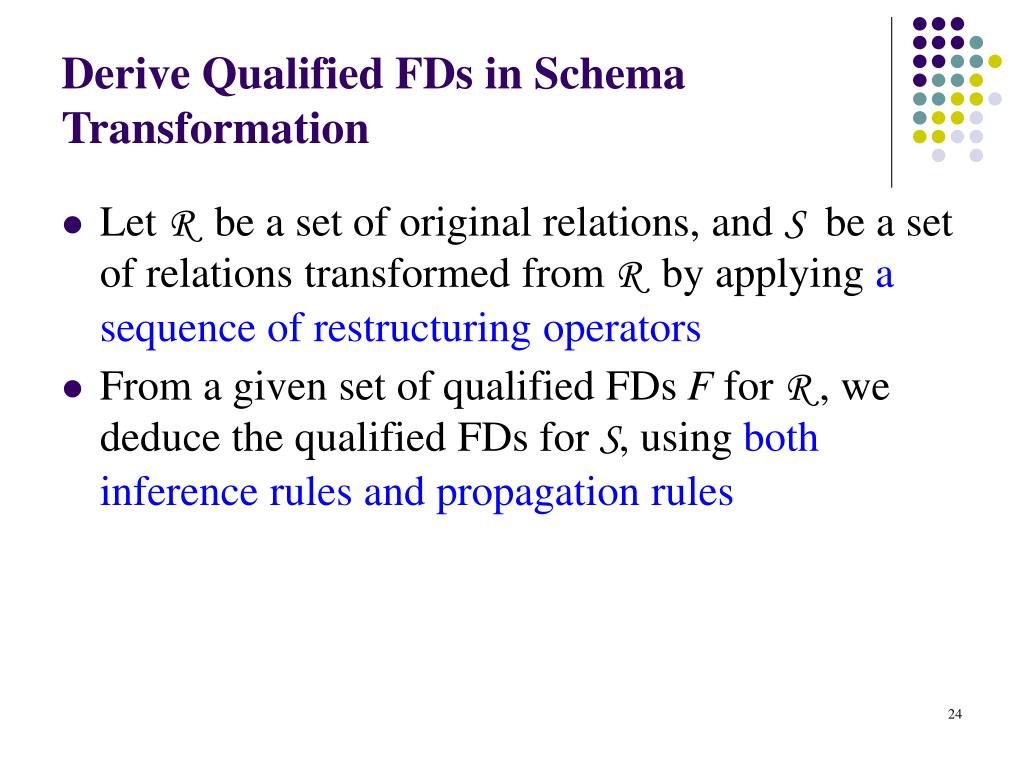

  24. Derive Qualified FDs in Schema Transformation • Let R be a set of original relations, and S be a set of relations transformed from R by applying a sequence of restructuring operators • From a given set of qualified FDs F for R , we deduce the qualified FDs for S, using both inference rules and propagation rules

  25. Derive Qualified FDs in Schema Transformation (E.g.) fold(si,month,price) (i=1,2,…) unite({s1,…,sn},supplier) Given qualified FDs in DB4: si(product Jan,…,Dec)for each si = s1, s2,…,sn After fold, in DB3, we get (by propagation rule P2) si(product, monthσ={mj}price) for each si = s1, s2,…,sn and mj = Jan, …, Dec then (by disassembly rule A11): si(product, month price) After unite, in DB1, we get (by propagation rule P1) Supply(product, month, supplierσ={si}price) for each si = s1, s2,…,sn then (by disassembly rule A11): Supply(product, month, supplier price)

  26. Derive Qualified FDs in Schema Transformation (E.g.) • In the above example, the qualified FD on the original relations are transformed to an equivalent qualified FD on the transformed relation. • Directly applying the inference rules and propagation rules need the computation of qualified FD closure, which take much time. • Instead, in the paper, we gave some derived rules to propagate qualified FDs in schema transformation.

  27. Related work (1) • An extension to FDs in the database design world are FDs partially holding in a relation, in the sense that only some tuples, called exceptions, break the dependencies. These dependencies include weak FDs [7], afunctional dependencies [3] and partial FDs [2]. [2] F. Berzal, J. C. Cubero, F. Cuenca, J. M. Medina. Relational decomposition through partial functional dependencies. Data & Knowledge Engineering 43(2), 2002, 207-234. [3] P. De Bra and J. Paredaens. Conditional dependencies for horizontal decompositions. ICALP, 1983. [7] Tok Wang Ling. Extending classical functional dependencies for physical database design (lecture notes), 2001. http://www.comp.nus.edu.sg/~lingtw/cs4221/extended.fds.pdf

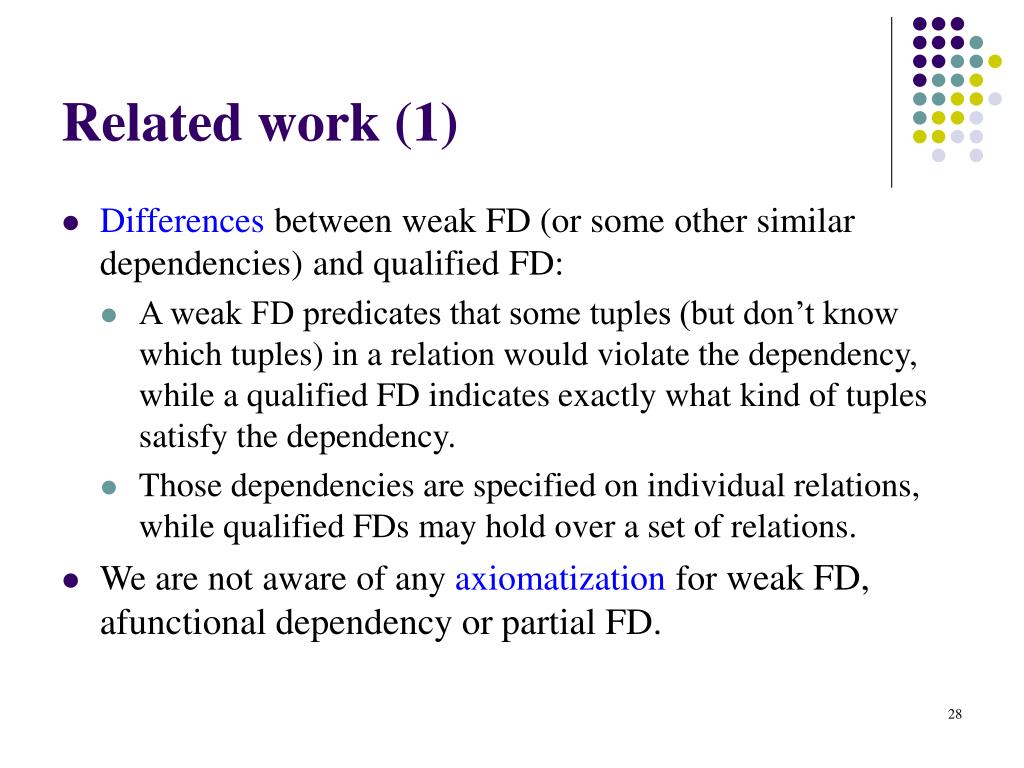

  28. Related work (1) • Differences between weak FD (or some other similar dependencies) and qualified FD: • A weak FD predicates that some tuples (but don’t know which tuples) in a relation would violate the dependency, while a qualified FD indicates exactly what kind of tuples satisfy the dependency. • Those dependencies are specified on individual relations, while qualified FDs may hold over a set of relations. • We are not aware of any axiomatization for weak FD, afunctional dependency or partial FD.

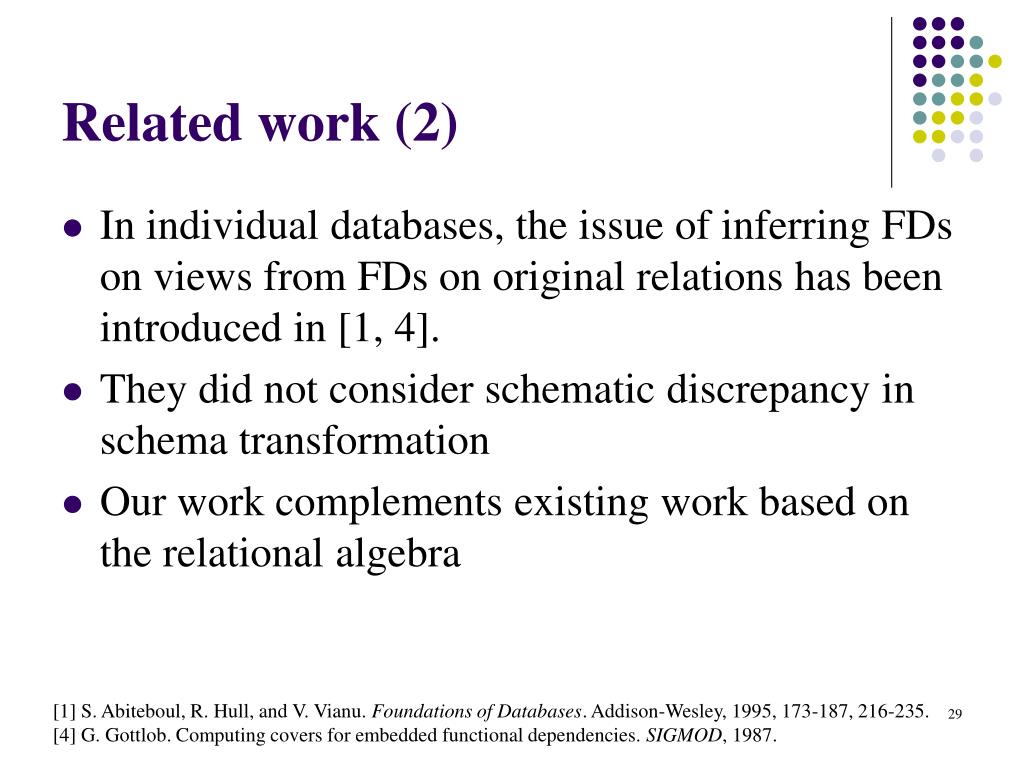

  29. Related work (2) • In individual databases, the issue of inferring FDs on views from FDs on original relations has been introduced in [1, 4]. • They did not consider schematic discrepancy in schema transformation • Our work complements existing work based on the relational algebra [1] S. Abiteboul, R. Hull, and V. Vianu. Foundations of Databases. Addison-Wesley, 1995, 173-187, 216-235. [4] G. Gottlob. Computing covers for embedded functional dependencies. SIGMOD, 1987.

  30. Related work (3) • Some work [6, 8, 9] has been done on the derivation of constraints in schema integration based on ER or OO model. • They did not consider schematic discrepancy in schema integration • They did not prove the completeness of their methods, while we did. [6] Mong Li Lee and Tok Wang Ling. Resolving constraint conflicts in the integration of ER schemas. ER, 1997, 394-407. [8] M. P. Reddy, B. E. Prasad, and A. Gupta. Formulating global integrity constraints during derivation of global schema. Data & Knowledge Engineering, 1995, 241-268 [9] M. W. W. Vermeer and P. M. G. Apers. The role of integrity constraints in database interoperation. VLDB, 1996, 425-435

  31. Conclusion • Proposed qualified FD to represent dependencies for distributed and heterogeneous schemas in a multidatabase system • Found a set of inference rules and propagation rules to derive qualified FDs in schematic discrepant transformation • The rules are sound and complete to derive some classes (not all) of qualified FDs in schema transformation

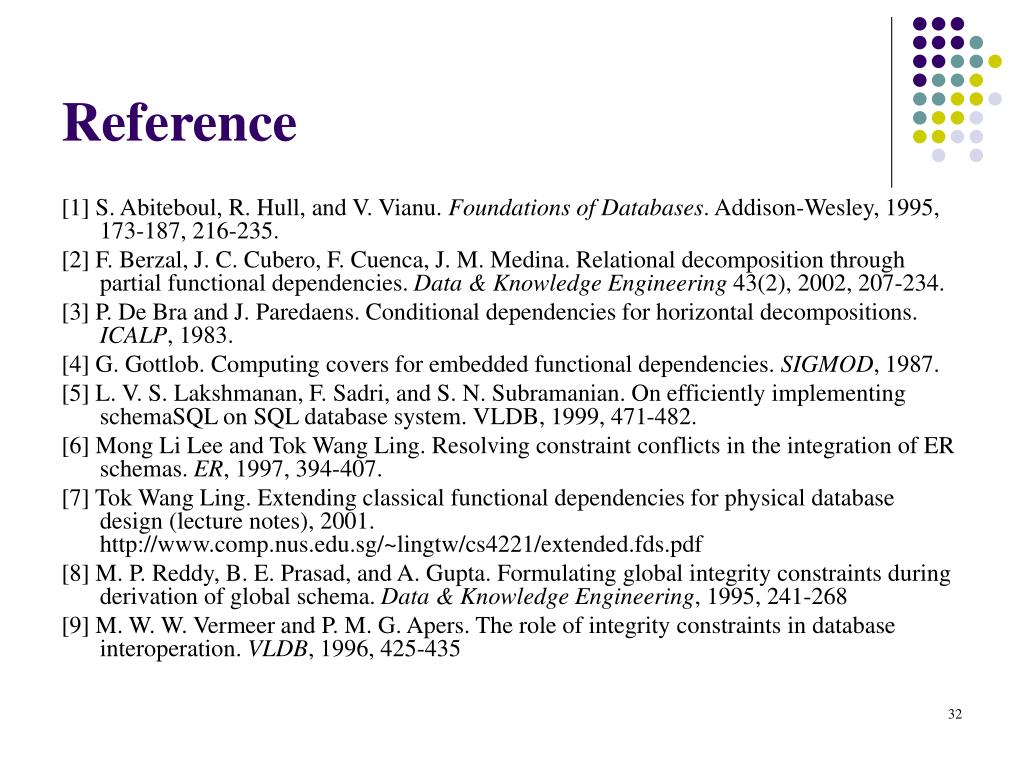

  32. Reference [1] S. Abiteboul, R. Hull, and V. Vianu. Foundations of Databases. Addison-Wesley, 1995, 173-187, 216-235. [2] F. Berzal, J. C. Cubero, F. Cuenca, J. M. Medina. Relational decomposition through partial functional dependencies. Data & Knowledge Engineering 43(2), 2002, 207-234. [3] P. De Bra and J. Paredaens. Conditional dependencies for horizontal decompositions. ICALP, 1983. [4] G. Gottlob. Computing covers for embedded functional dependencies. SIGMOD, 1987. [5] L. V. S. Lakshmanan, F. Sadri, and S. N. Subramanian. On efficiently implementing schemaSQL on SQL database system. VLDB, 1999, 471-482. [6] Mong Li Lee and Tok Wang Ling. Resolving constraint conflicts in the integration of ER schemas. ER, 1997, 394-407. [7] Tok Wang Ling. Extending classical functional dependencies for physical database design (lecture notes), 2001. http://www.comp.nus.edu.sg/~lingtw/cs4221/extended.fds.pdf [8] M. P. Reddy, B. E. Prasad, and A. Gupta. Formulating global integrity constraints during derivation of global schema. Data & Knowledge Engineering, 1995, 241-268 [9] M. W. W. Vermeer and P. M. G. Apers. The role of integrity constraints in database interoperation. VLDB, 1996, 425-435
