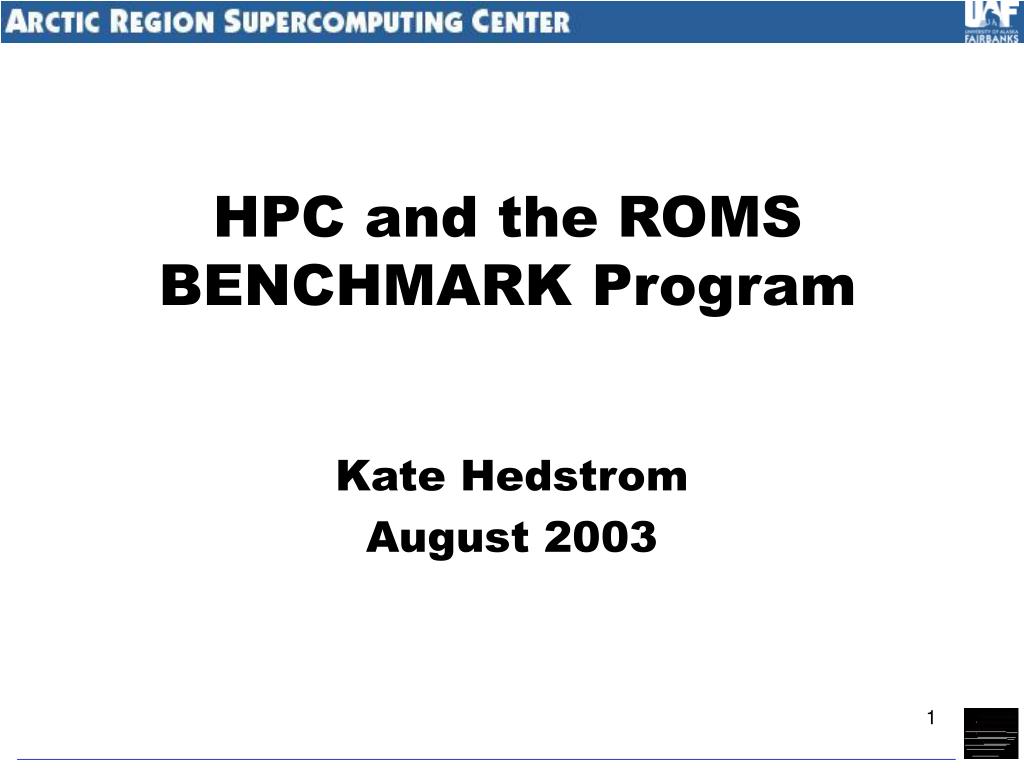

  1. HPC and the ROMS BENCHMARK Program Kate Hedstrom August 2003

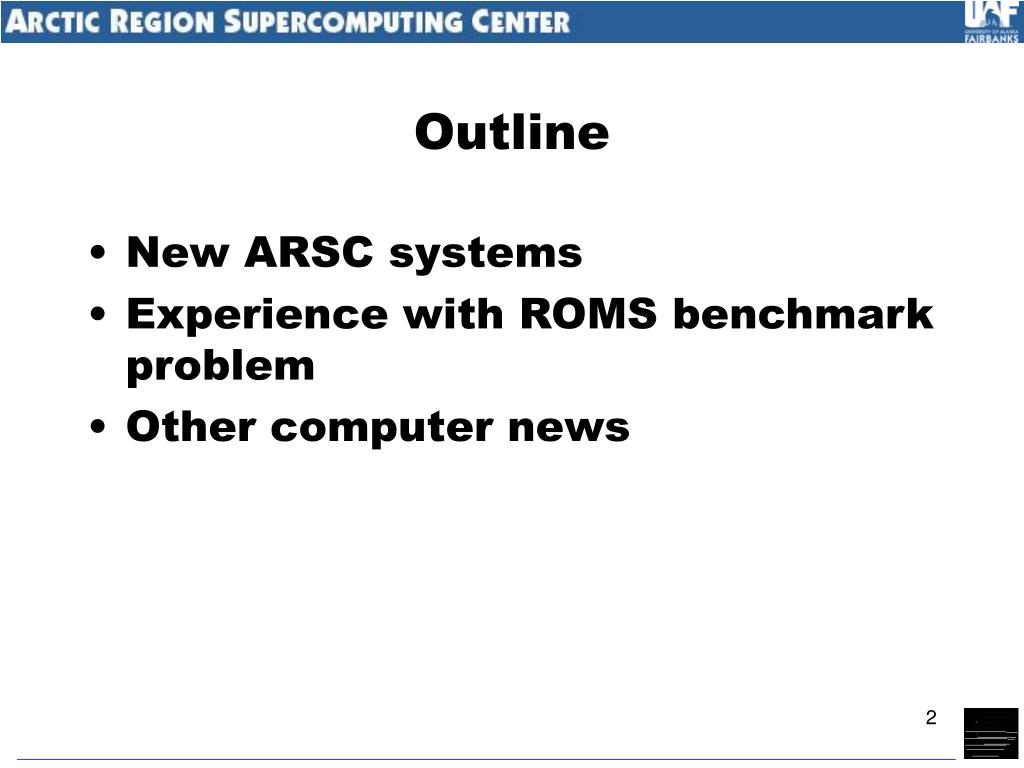

  2. Outline • New ARSC systems • Experience with ROMS benchmark problem • Other computer news

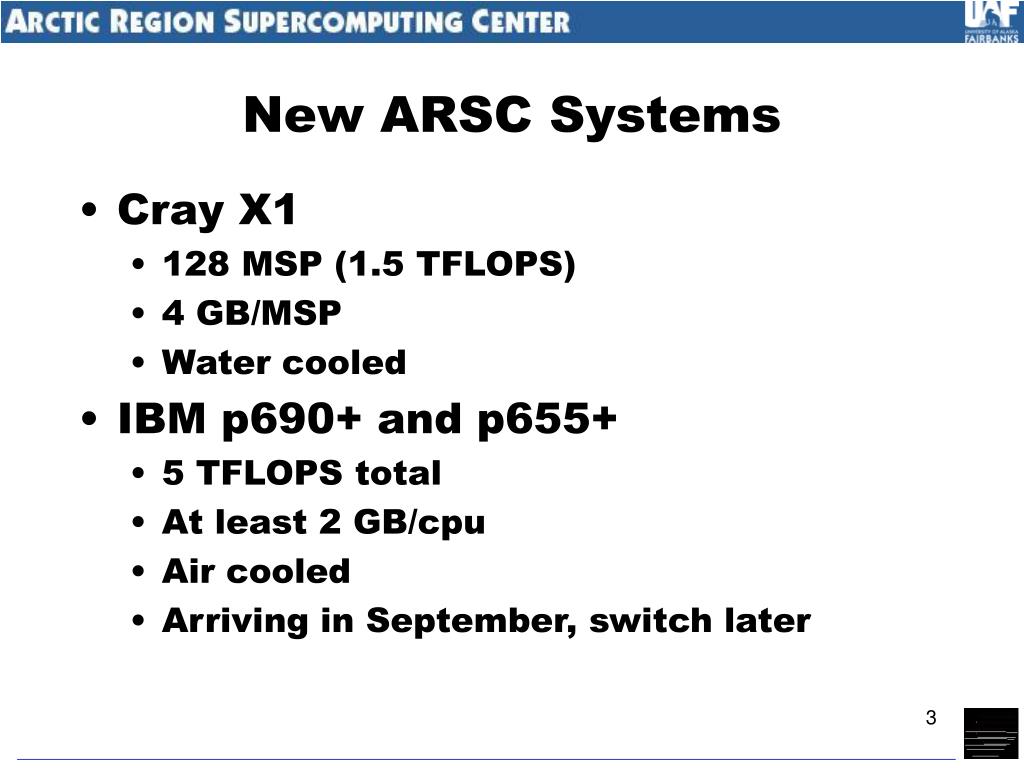

  3. New ARSC Systems • Cray X1 • 128 MSP (1.5 TFLOPS) • 4 GB/MSP • Water cooled • IBM p690+ and p655+ • 5 TFLOPS total • At least 2 GB/cpu • Air cooled • Arriving in September, switch later

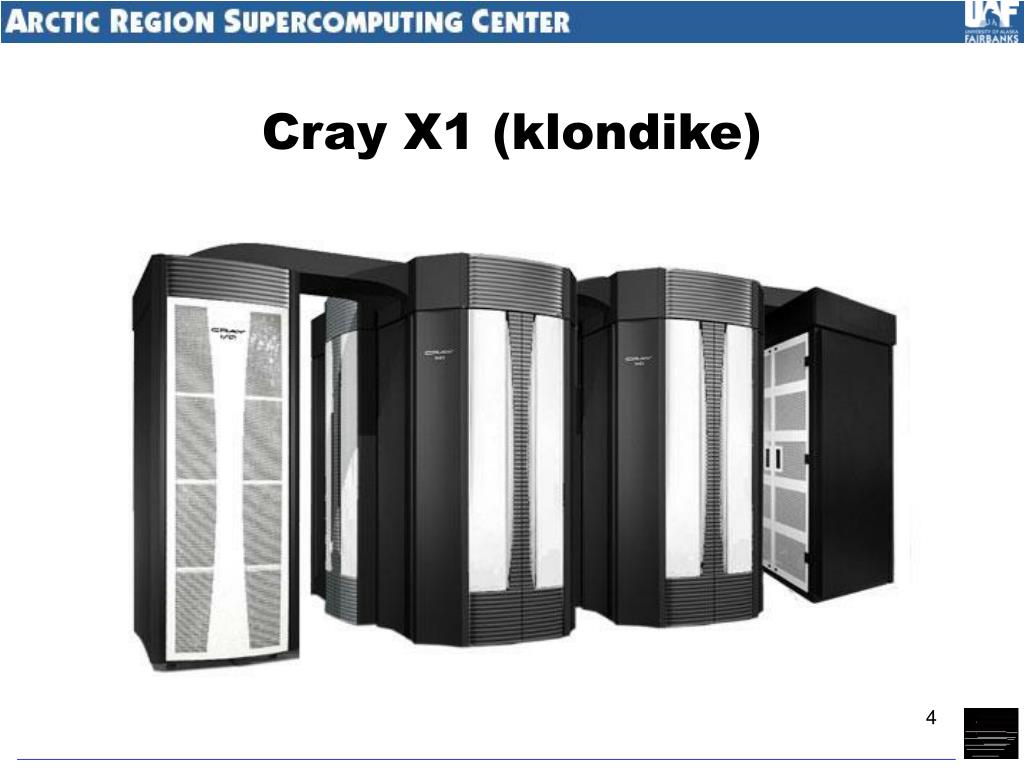

  4. Cray X1 (klondike)

  5. Cray • Cray X1 Node • Node is a 4-way SMP • 16 GB/node • Each MSP has four vector/scalar processors • Processors in MSP share cache • Node usable as 4 MSPs or 16 SSPs • IEEE floating point hardware

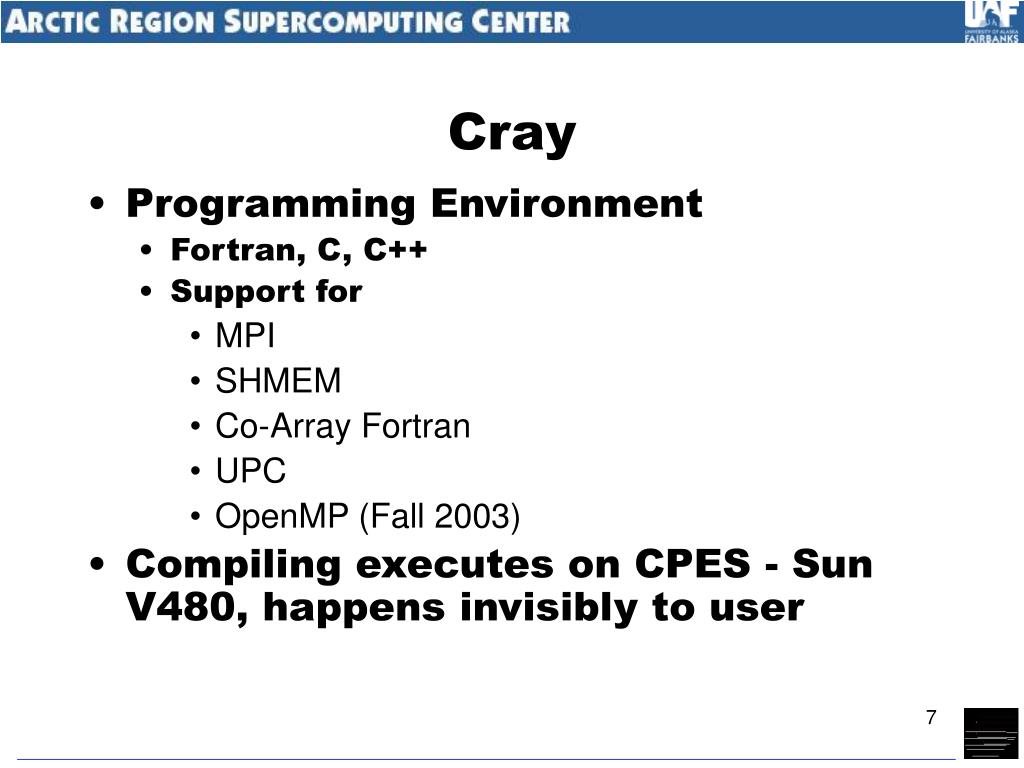

  6. Cray • Programming Environment • Fortran, C, C++ • Support for • MPI • SHMEM • Co-Array Fortran • UPC • OpenMP (Fall 2003) • Compiling executes on CPES - Sun V480, happens invisibly to user

  7. IBM • Two p690+ • Like our Regatta, but faster, more memory (8 GB/cpu) • Shared memory between 32 cpu • For big OpenMP jobs • Six p655+ towers • Like our SP, but faster, more memory (2 GB/cpu) • Shared memory on each 8 cpu node, 92 nodes in all • For big MPI jobs and small OpenMP jobs

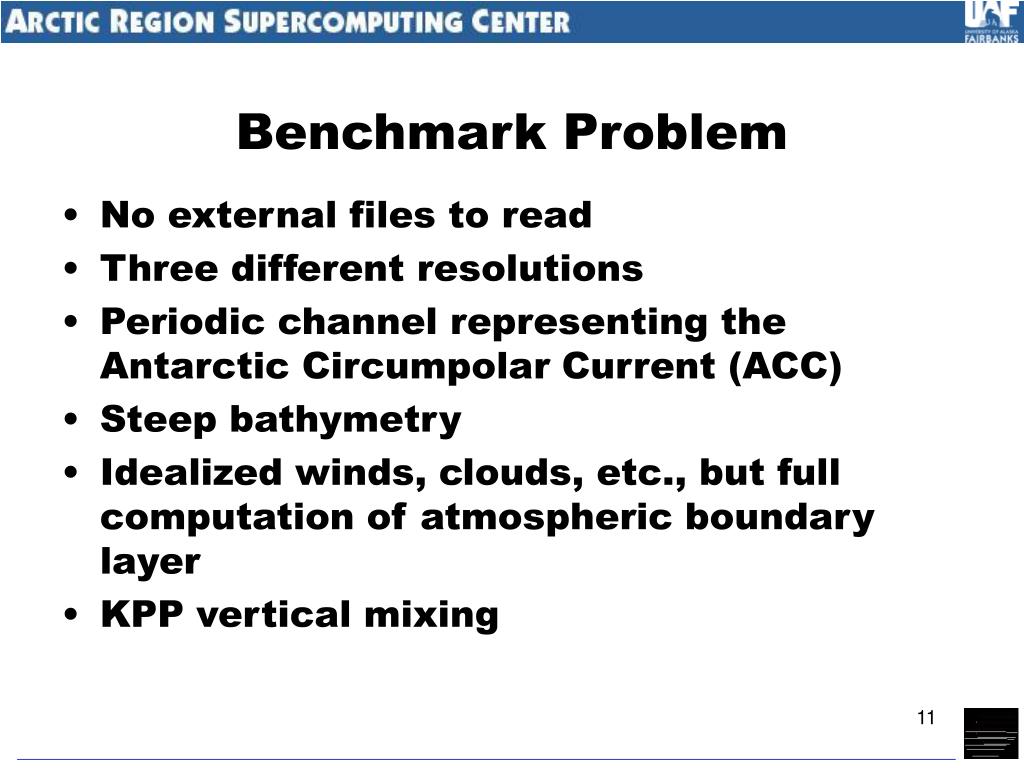

  8. Benchmark Problem • No external files to read • Three different resolutions • Periodic channel representing the Antarctic Circumpolar Current (ACC) • Steep bathymetry • Idealized winds, clouds, etc., but full computation of atmospheric boundary layer • KPP vertical mixing

  9. IBM and SX6 Notes • SX6 is 8 GFLOPS, Power4 is 5.2 GFLOPS peak • Both less than 10% of peak • IBM scales better, Cray person says SX6 is even worse for more than one node • SX6 best for 1xN tiling, IBM better closer to MxM even though this problem is 512x64

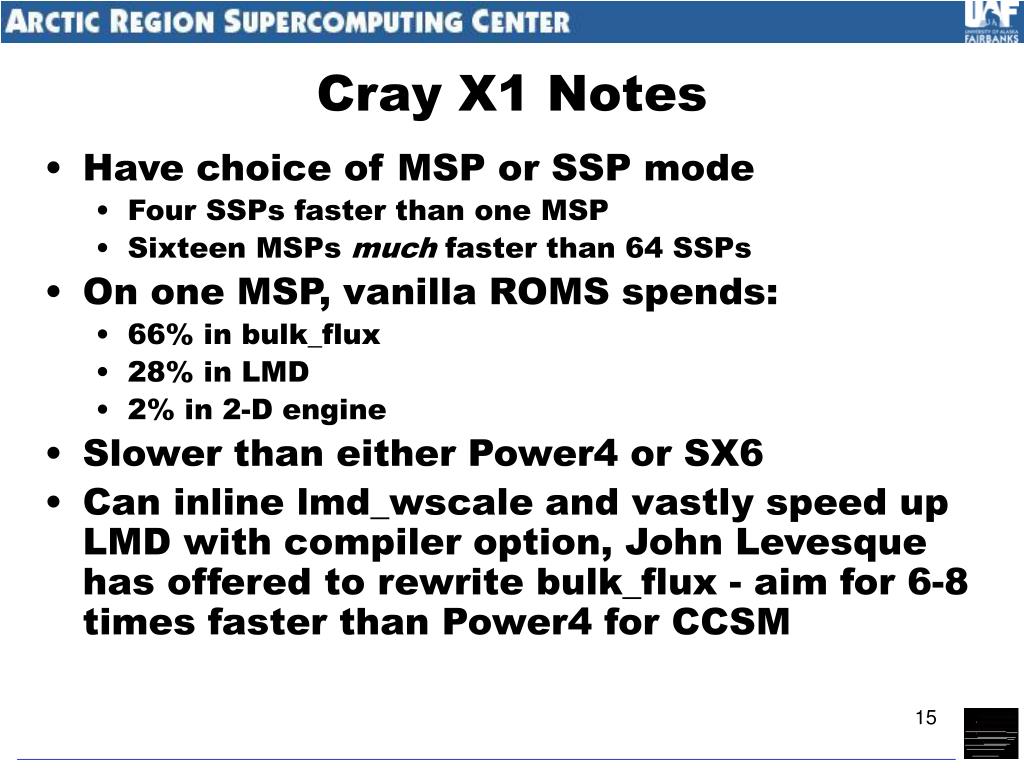

  10. Cray X1 Notes • Have choice of MSP or SSP mode • Four SSPs faster than one MSP • Sixteen MSPs much faster than 64 SSPs • On one MSP, vanilla ROMS spends: • 66% in bulk_flux • 28% in LMD • 2% in 2-D engine • Slower than either Power4 or SX6 • Can inline lmd_wscale and vastly speed up LMD with compiler option, John Levesque has offered to rewrite bulk_flux - aim for 6-8 times faster than Power4 for CCSM

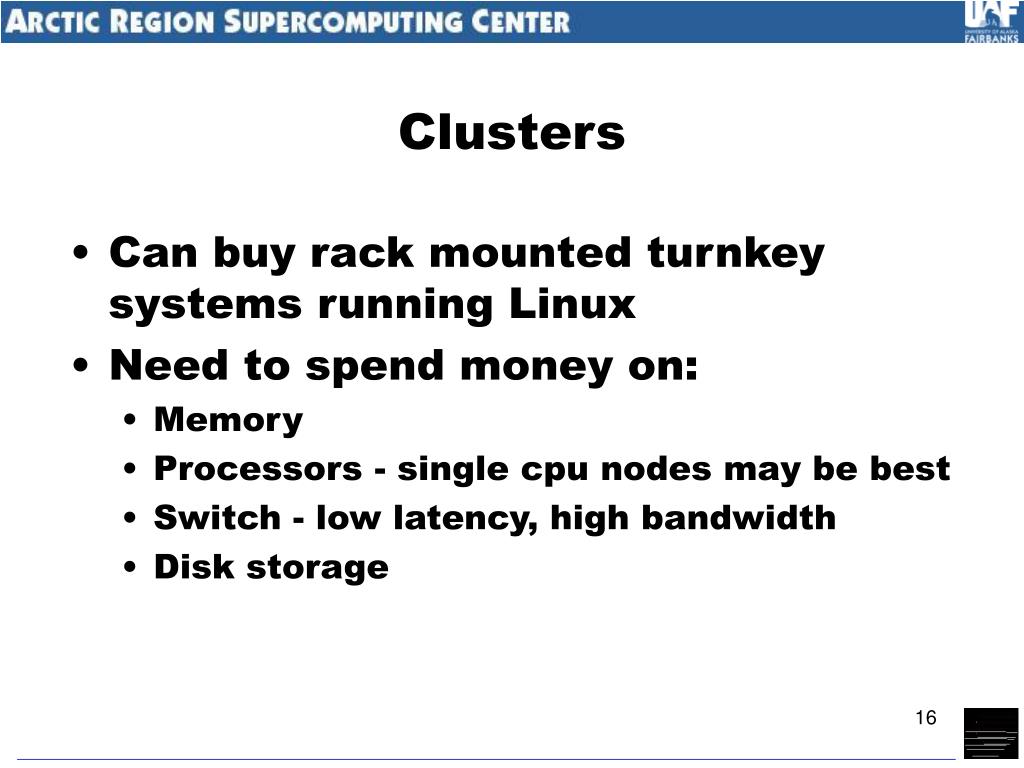

  11. Clusters • Can buy rack mounted turnkey systems running Linux • Need to spend money on: • Memory • Processors - single cpu nodes may be best • Switch - low latency, high bandwidth • Disk storage

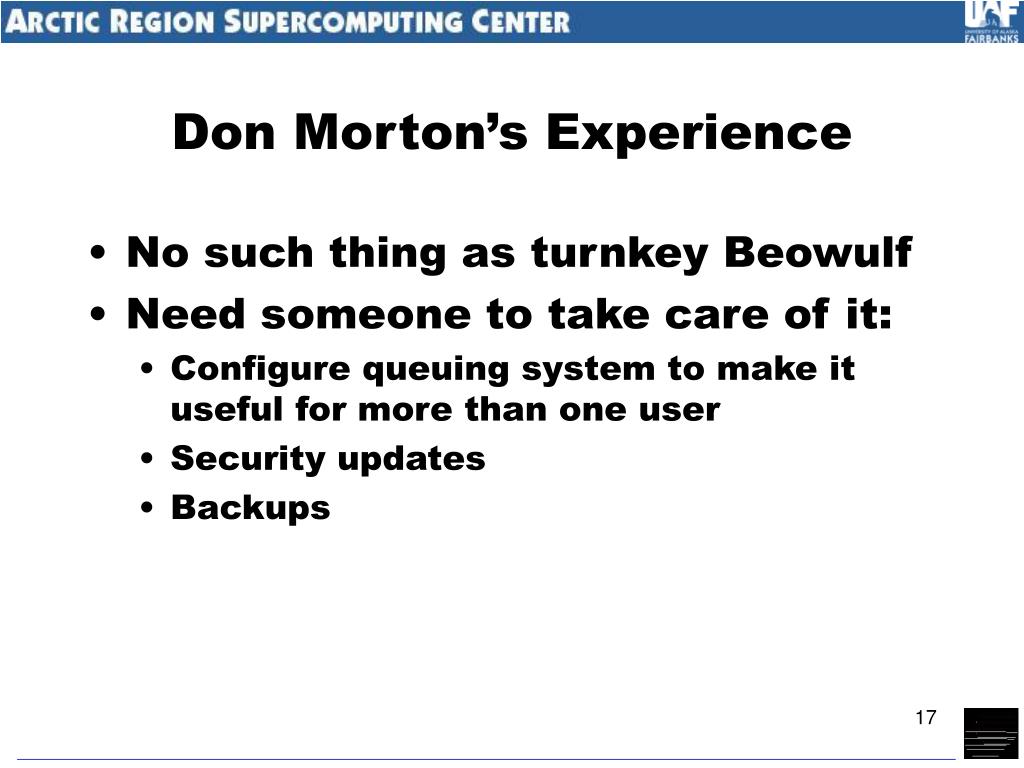

  12. Don Morton’s Experience • No such thing as turnkey Beowulf • Need someone to take care of it: • Configure queuing system to make it useful for more than one user • Security updates • Backups

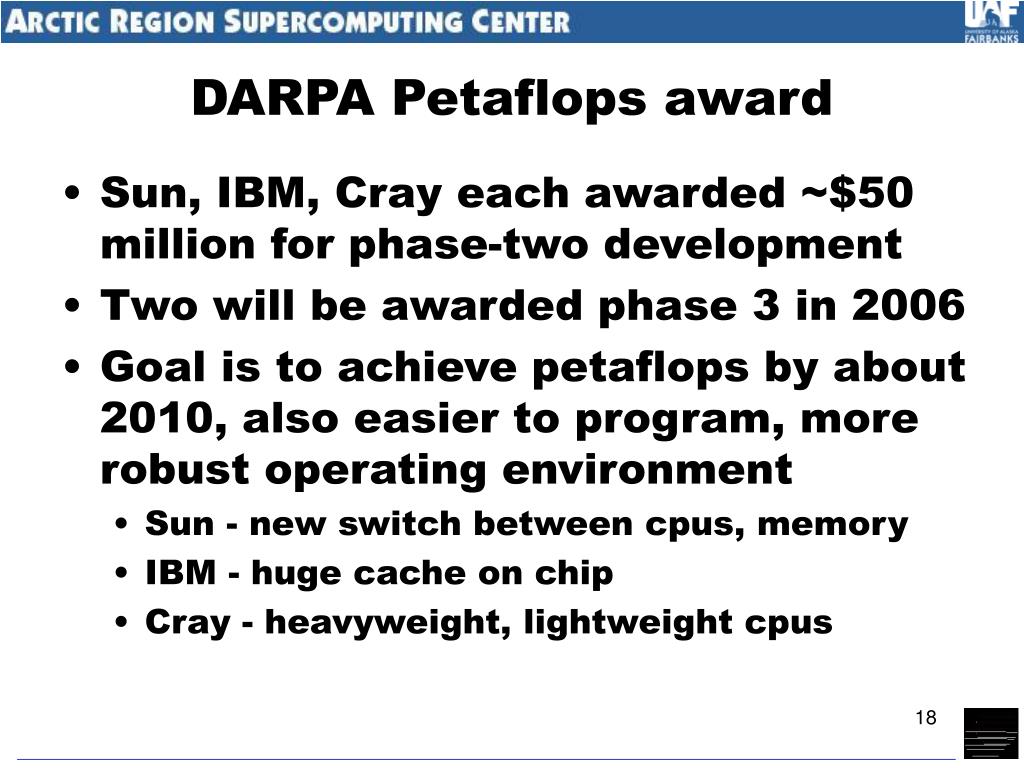

  13. DARPA Petaflops award • Sun, IBM, Cray each awarded ~$50 million for phase-two development • Two will be awarded phase 3 in 2006 • Goal is to achieve petaflops by about 2010, also easier to program, more robust operating environment • Sun - new switch between cpus, memory • IBM - huge cache on chip • Cray - heavyweight, lightweight cpus

  14. Conclusions • Things are still exciting in the computer industry • The only thing you can count on is change
