  1. Battery-BasedEnergy Storage Systems for Stationary Applications Hans Desilvestro Hanmer Springs November 2004

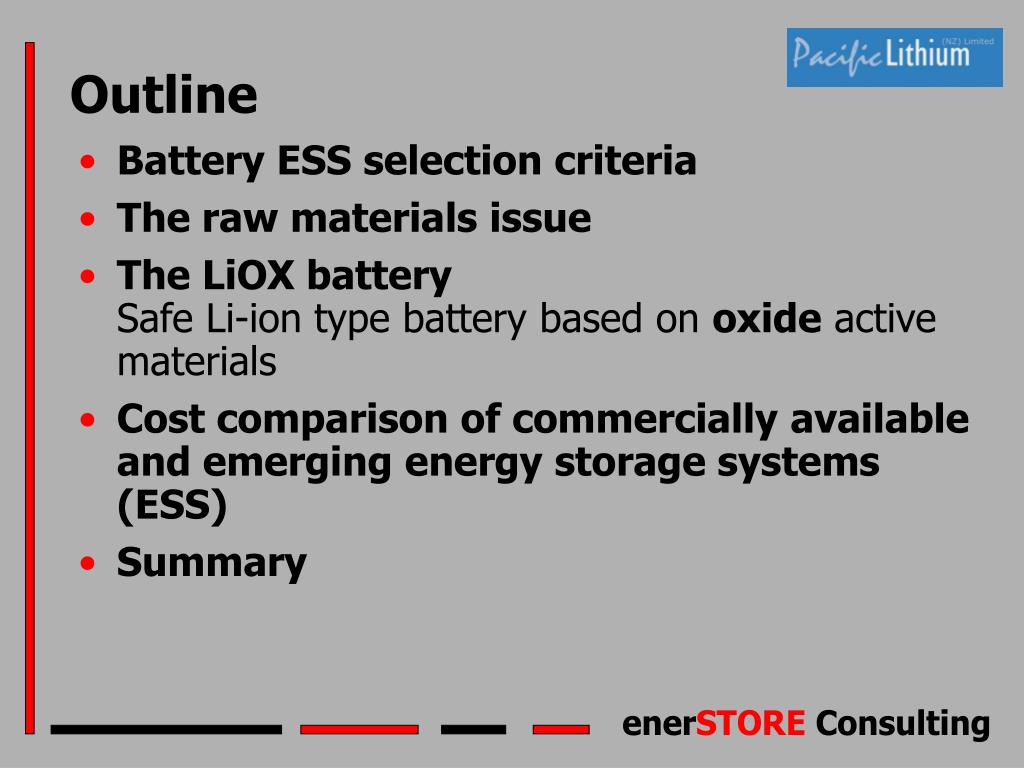

  2. Outline • Battery ESS selection criteria • The raw materials issue • The LiOX batterySafe Li-ion type battery based on oxide active materials • Cost comparison of commercially available and emerging energy storage systems (ESS) • Summary

  3. Courtesy Dr Paul Rüetschi

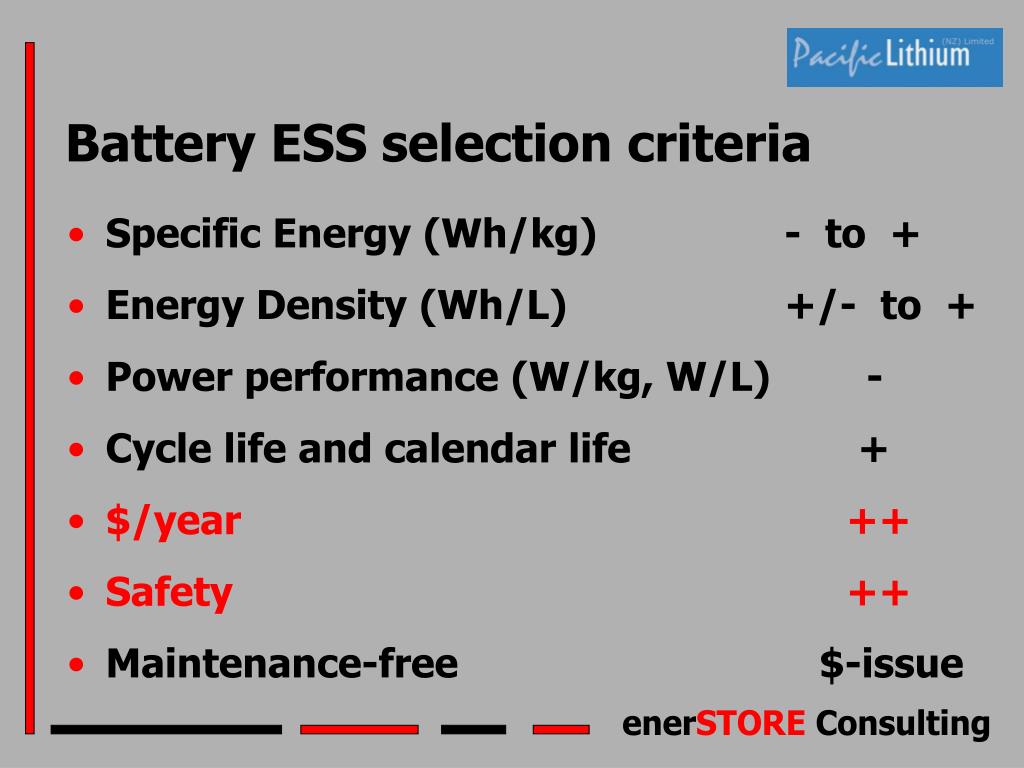

  4. Battery ESS selection criteria • Specific Energy (Wh/kg) - to + • Energy Density (Wh/L) +/- to + • Power performance (W/kg, W/L) - • Cycle life and calendar life + • $/year ++ • Safety ++ • Maintenance-free $-issue

  5. Economic and safety considerations more important than other performance parameters

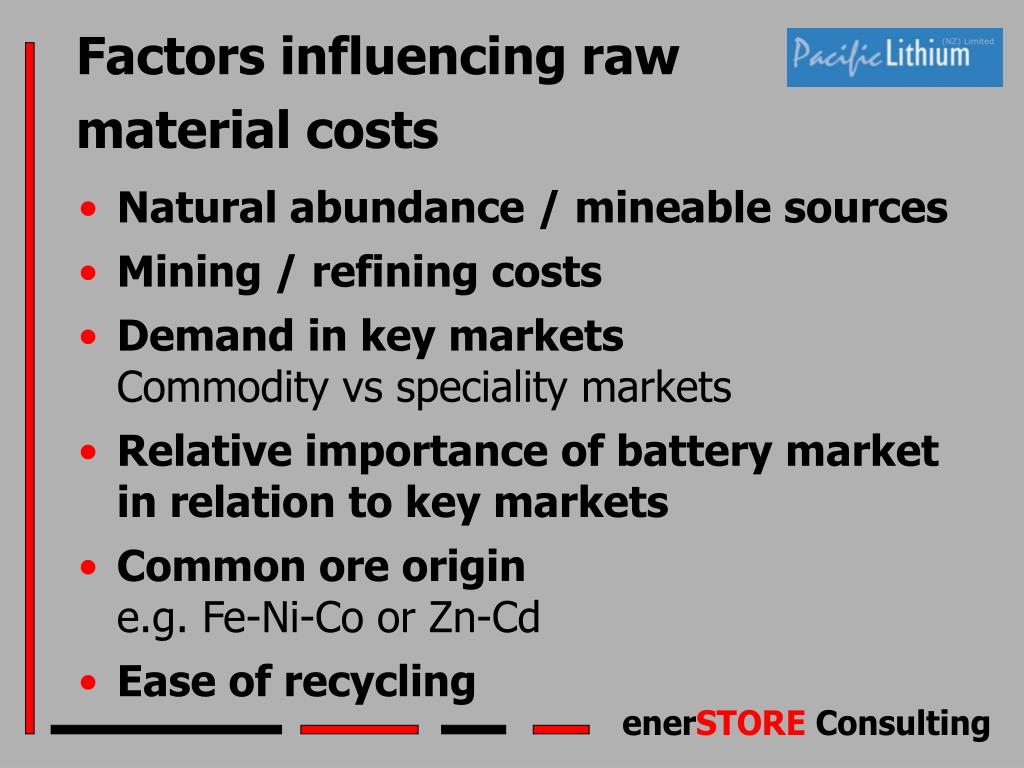

  6. Factors influencing raw material costs • Natural abundance / mineable sources • Mining / refining costs • Demand in key marketsCommodity vs speciality markets • Relative importance of battery market in relation to key markets • Common ore origine.g. Fe-Ni-Co or Zn-Cd • Ease of recycling

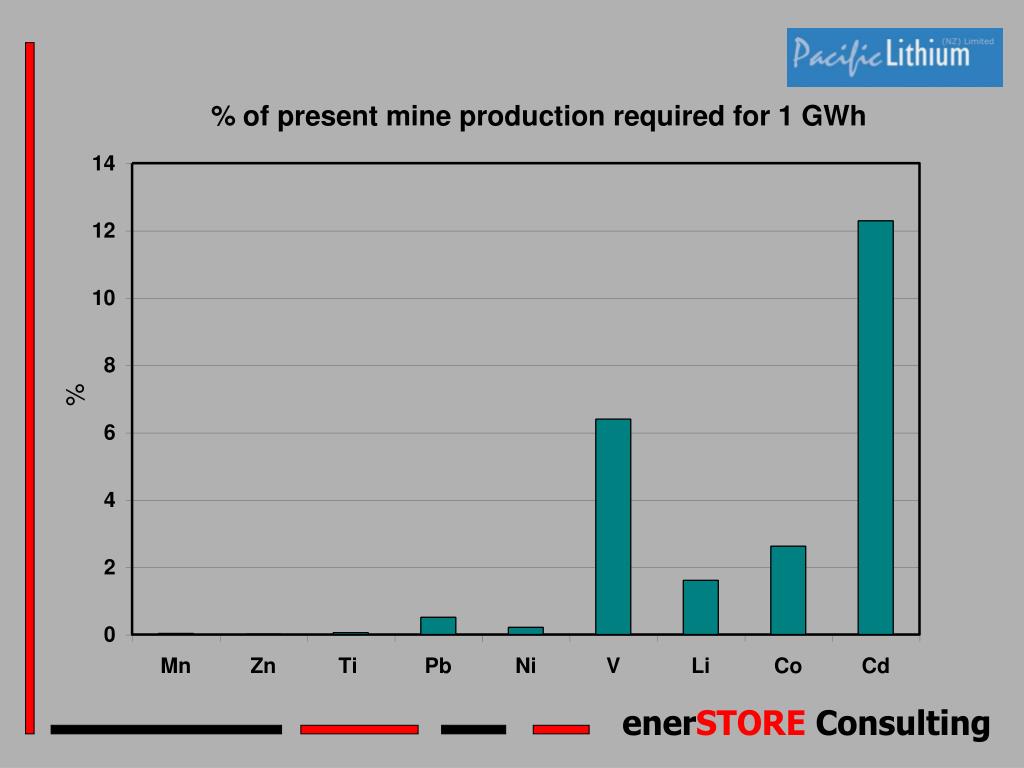

  7. %

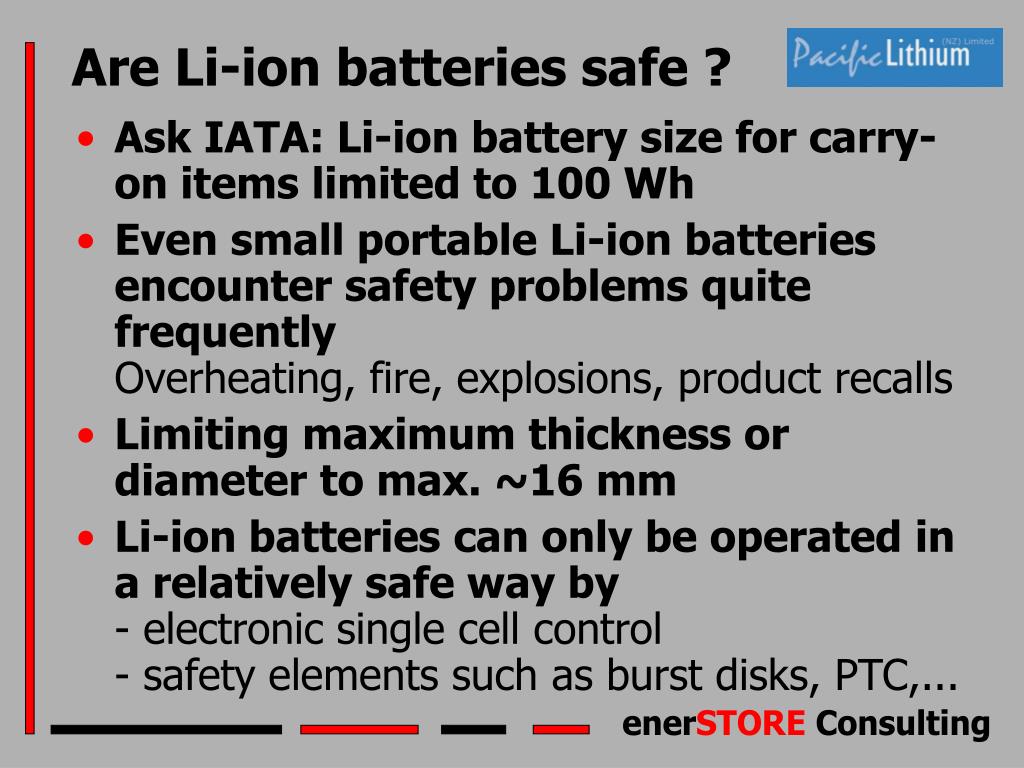

  8. Are Li-ion batteries safe ? • Ask IATA: Li-ion battery size for carry-on items limited to 100 Wh • Even small portable Li-ion batteries encounter safety problems quite frequentlyOverheating, fire, explosions, product recalls • Limiting maximum thickness or diameter to max. ~16 mm • Li-ion batteries can only be operated in a relatively safe way by- electronic single cell control- safety elements such as burst disks, PTC,...

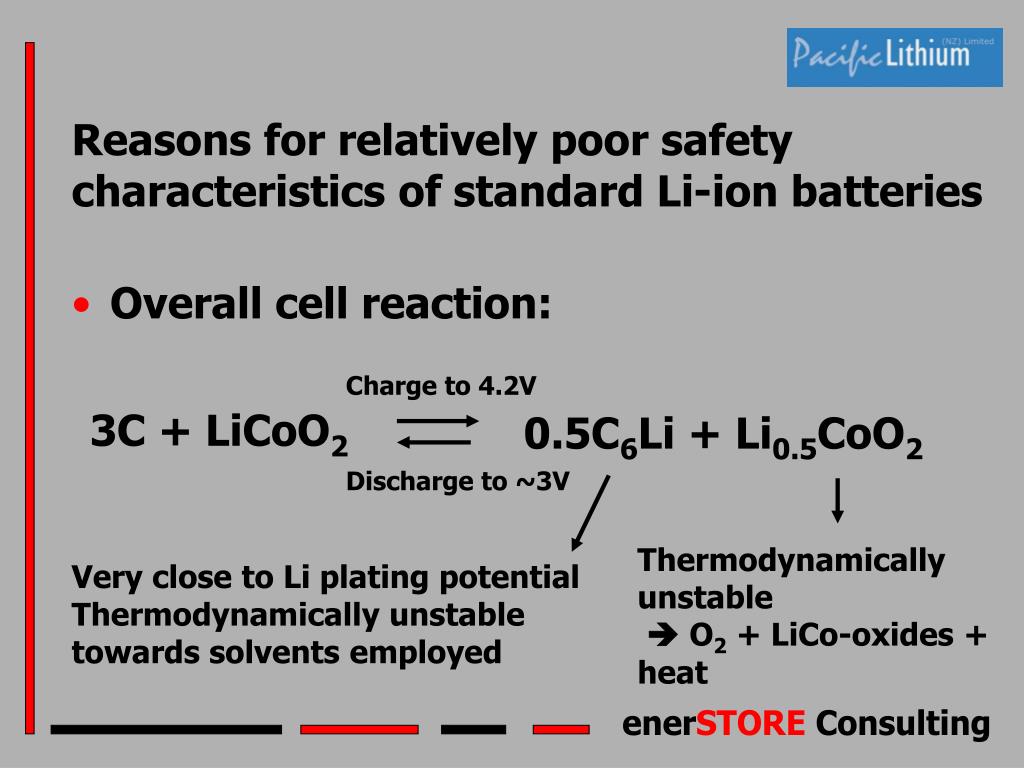

  9. Reasons for relatively poor safety characteristics of standard Li-ion batteries • Overall cell reaction: Charge to 4.2V 3C + LiCoO2 0.5C6Li + Li0.5CoO2 Discharge to ~3V Thermodynamically unstable O2+ LiCo-oxides + heat Very close to Li plating potential Thermodynamically unstable towards solvents employed

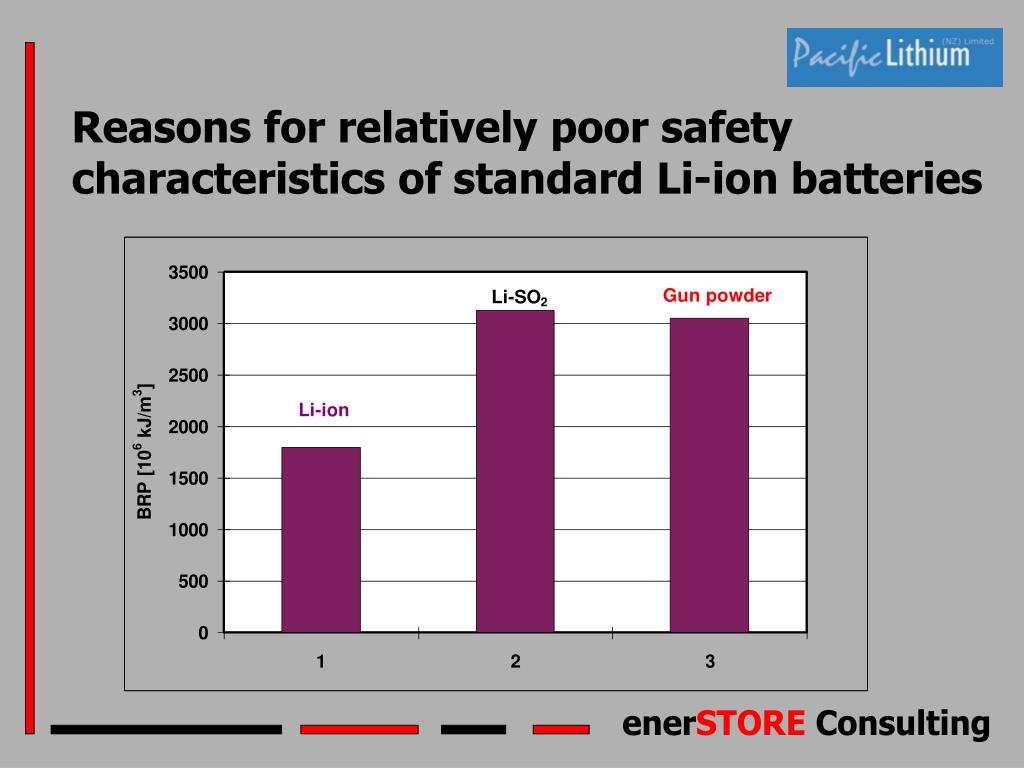

  10. Reasons for relatively poor safety characteristics of standard Li-ion batteries

  11. Pacific Lithium saw market opportunities for a safe Li-ion type batteryLiOX

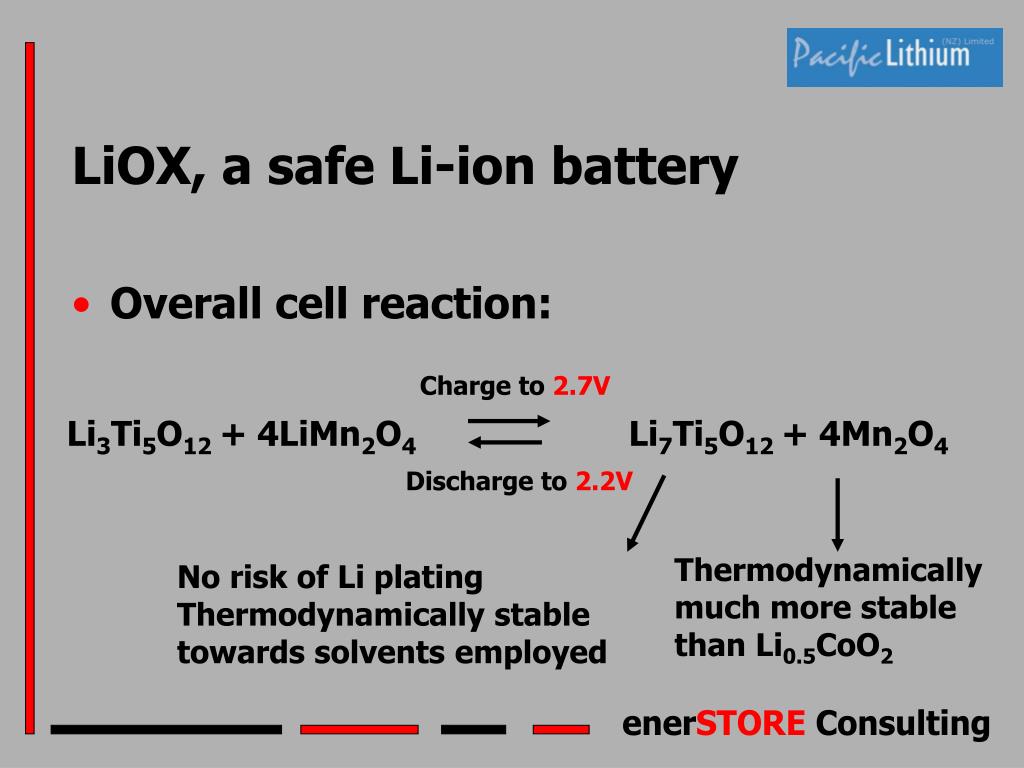

  12. LiOX, a safe Li-ion battery • Overall cell reaction: Charge to 2.7V Li3Ti5O12 + 4LiMn2O4 Li7Ti5O12 + 4Mn2O4 Discharge to 2.2V Thermodynamically much more stable than Li0.5CoO2 No risk of Li plating Thermodynamically stable towards solvents employed

  13. Cycle Life of 5-cell batteries at 22, 45 oC, 55 oC. 1C charge and discharge (100%)

  14. Conclusions
