  1. Mike Morgan Wireless Network Optimisation

  2. Categories of Wireless Device • Fixed • Physically fixed in position e.g. Antenna mounted on tower or rooftop • Commonly used for broadband communications • Portable • Stays in place while being used, but can be picked up and moved to another location • Mobile • In motion during use

  3. Fixed Wireless Network Types • Point to Point • Bus Topology • Point to Multipoint • Star Topology • Consecutive Point • Ring topology: some redundancy • Hamiltonian Cycle • Mesh • Mesh Topology: better redundancy • Design problem is very complex

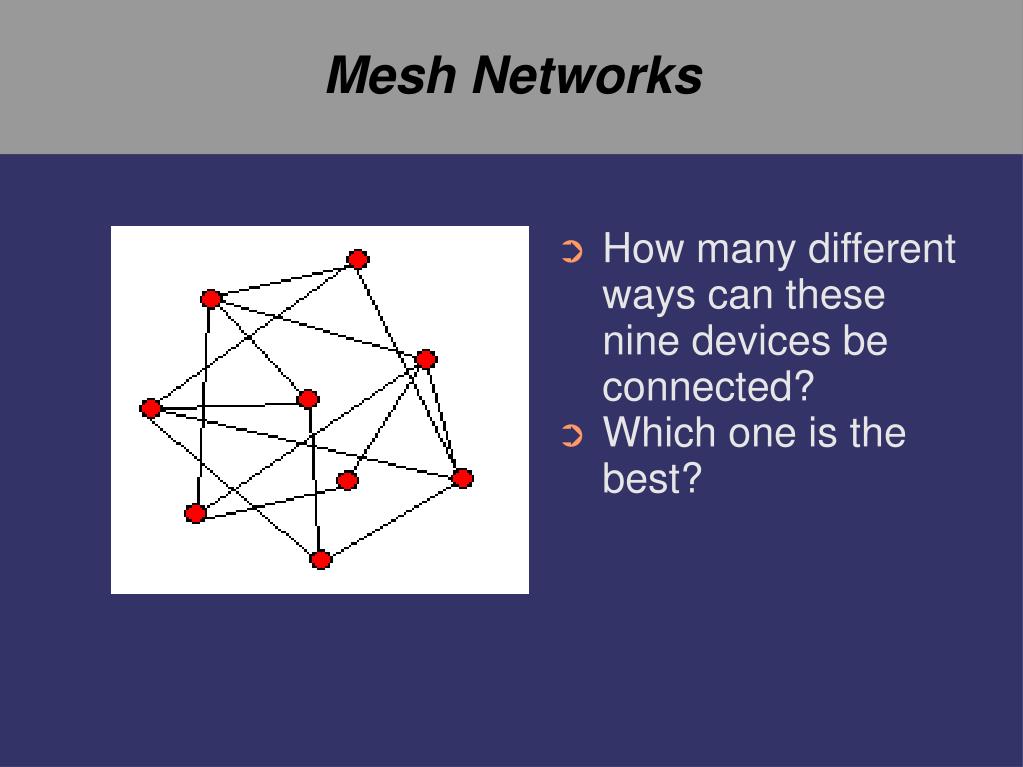

  4. Mesh Networks • How many different ways can these nine devices be connected? • Which one is the best?

  5. Design of Mesh Networks • Some devices perform the task of 'relaying' data on behalf of others. • The equipment needed for relay devices is normally far more expensive than for ordinary terminals. • Two design goals: • The number of relays used ought to be kept to a minimum. • The network should provide adequate redundancy and be able to handle traffic demands.

  6. Heuristics • It is not possible to evaluate all possible mesh structures within a useful time frame • A smaller subset of possible network designs must be evaluated. Optimal answers cannot be guaranteed. • How might it be possible to select good designs for evaluation among so many alternatives?

  7. Construction methods • Greedy construction searches build the network component by component. • Start with nothing and add relays in until all objectives are satisfied. • Start with a maximum number of relays and drop as many as possible without violating constraints • These searches can be adapted using iteration, random factors and memory based techniques.

  8. Perturbation Methods • Make minor alterations to a current solution in the hope of finding an improvement. • Also may be adapted using random factors and memory. • Useful as a means of improving already promising solutions
