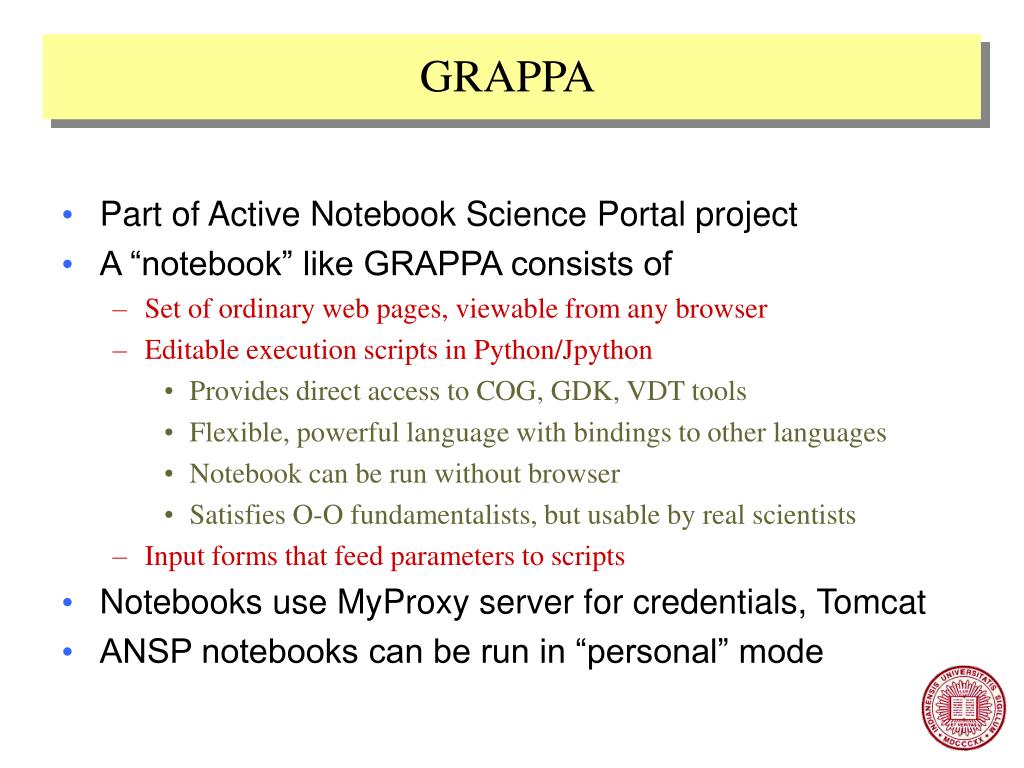

  1. GRAPPA • Part of Active Notebook Science Portal project • A “notebook” like GRAPPA consists of • Set of ordinary web pages, viewable from any browser • Editable execution scripts in Python/Jpython • Provides direct access to COG, GDK, VDT tools • Flexible, powerful language with bindings to other languages • Notebook can be run without browser • Satisfies O-O fundamentalists, but usable by real scientists • Input forms that feed parameters to scripts • Notebooks use MyProxy server for credentials, Tomcat • ANSP notebooks can be run in “personal” mode

  2. GRAPPA • Notebook “sessions” are live XML documents • Can be revisited, rerun later • Can be copied/modified for new run • Archived and shared with a collaborator (including live object references, allowing another user remote method invocation) • Notebook goals are to provide • Scripting, launching of jobs via GRAM, Condor, Condor-G, ssh, exec • Interface to information subsystems • Ability for end user to attach arbitrary data to a session: graphs, notes, links, ....

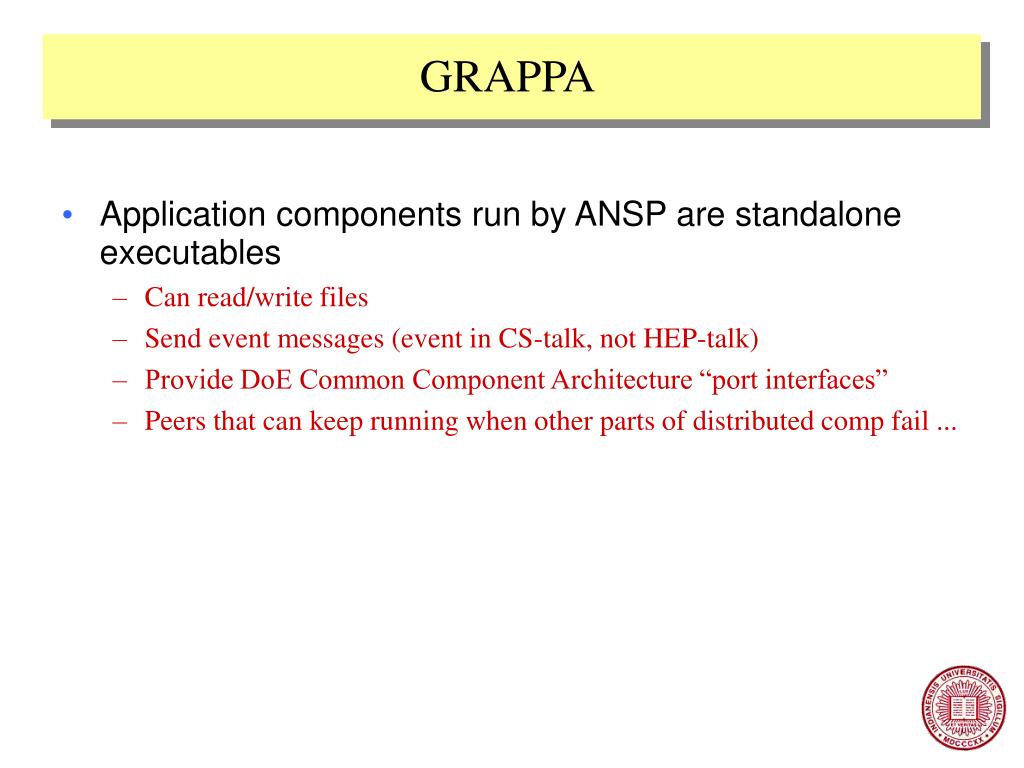

  3. GRAPPA • Application components run by ANSP are standalone executables • Can read/write files • Send event messages (event in CS-talk, not HEP-talk) • Provide DoE Common Component Architecture “port interfaces” • Peers that can keep running when other parts of distributed comp fail ...

  4. Fortran Application (a.out) Component App Manager InputFiles OutFile1 InputFiles InputFiles GRAPPA Component App Manager Model • Application may be untouchable (no source code, etc) • Idea is to make it appear as a fully-enabled component • Create a proxy that manages app and framework comm. exec Start running

  5. Component App Manager Model • App manager is responsible for • making sure all input files are ready before running • event notifications to GRAPPA and other interested parties • publishing file locations, and moving files via a file manager component • When output file of one component is needed as input file of another, receiver is responsible for file move. • App manager can use user's CA to use VDT tools for file transfers, app execution. • App manager can (via resource manager) actually run app on a different machine • Communication about progress, status is primarily via publish/subscribe event messages

  6. File Management • File Manager: component that provides low-level, simple metadata about files • Uses JDBC interface to relational DB • Starts running with a handle to a DB server (may be a “personal mode” DB) • Multiple file managers, with handles to different DB's, can be running in a single application. • File managers use RMI for interchange of data • Likely to be replaced by VDT tools as they come available

  7. File Management • Application developer provides a description of each file an application component reads or writes: <filename>matstruct.gif</filename> Filename the app “opens” <direction>output</direction> Input, output, both <termination>total</termination> Can be streamed or not <format>binary</format> ASCII, binary, or other <mimetype>image/gif</mimetype> Optional; provide if known <description>This is an image of the sparsity structure of the matrix being analyzed; it is part of the overall matstruct.html file </description>

  8. File Management • Notebook developer provides additional information for each file, things which are outside the scope of individual application • Whether file is to be locally archived, remotely archived, or is volatile • Whether file should be cleaned up after/between runs • What kind of compression should be used (if any) • Naming convention for archived files • basename.machine.timestamp.suffix • Location to archive files (machine, directory) • Notebook must provide user with easy, coherent picture of the files • Notebook must also provide for additional files: user notes, etc.

  9. GRAPPA: Overall Picture Users interact via Web browser or scripting Authorization is hidden in server in this picture

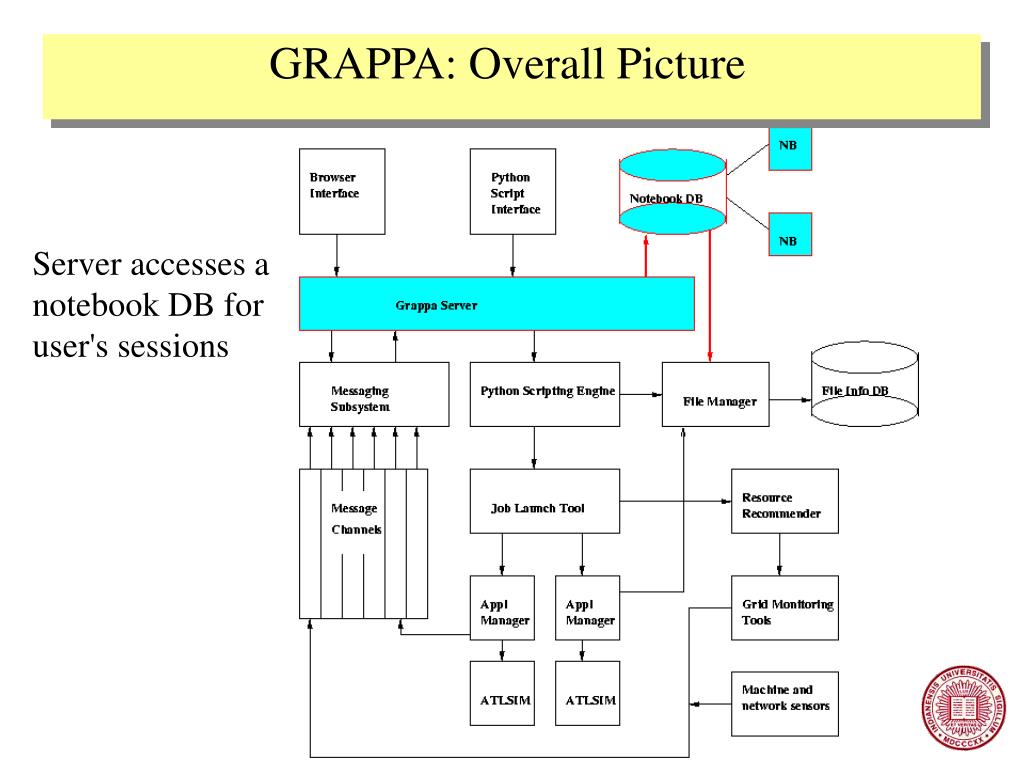

  10. GRAPPA: Overall Picture Server accesses a notebook DB for user's sessions

  11. GRAPPA: Overall Picture User's script is part of stored session Components are started through a job launch tool that consults with resource manager Request might be accompanied by requirements

  12. GRAPPA: Overall Picture Executables run under application manager Python scripts

  13. GRAPPA: Overall Picture Application managers publish event messages to file manager about file events

  14. GRAPPA: Overall Picture Application mgr, Grid resource tools publish events to event channels Filtering event channels allow notebook to select events to record, present

  15. GRAPPA/GriPhyN Generalities • Not intended as competitor with VDT, but a user-level interface to VDT tools • Standalone mode is critical • Federated model of information/data management is highly desirable • Handles some security/privacy issues • Event message channel model provides some robustness • Components run more as peers • Components can continue when framework crashes
