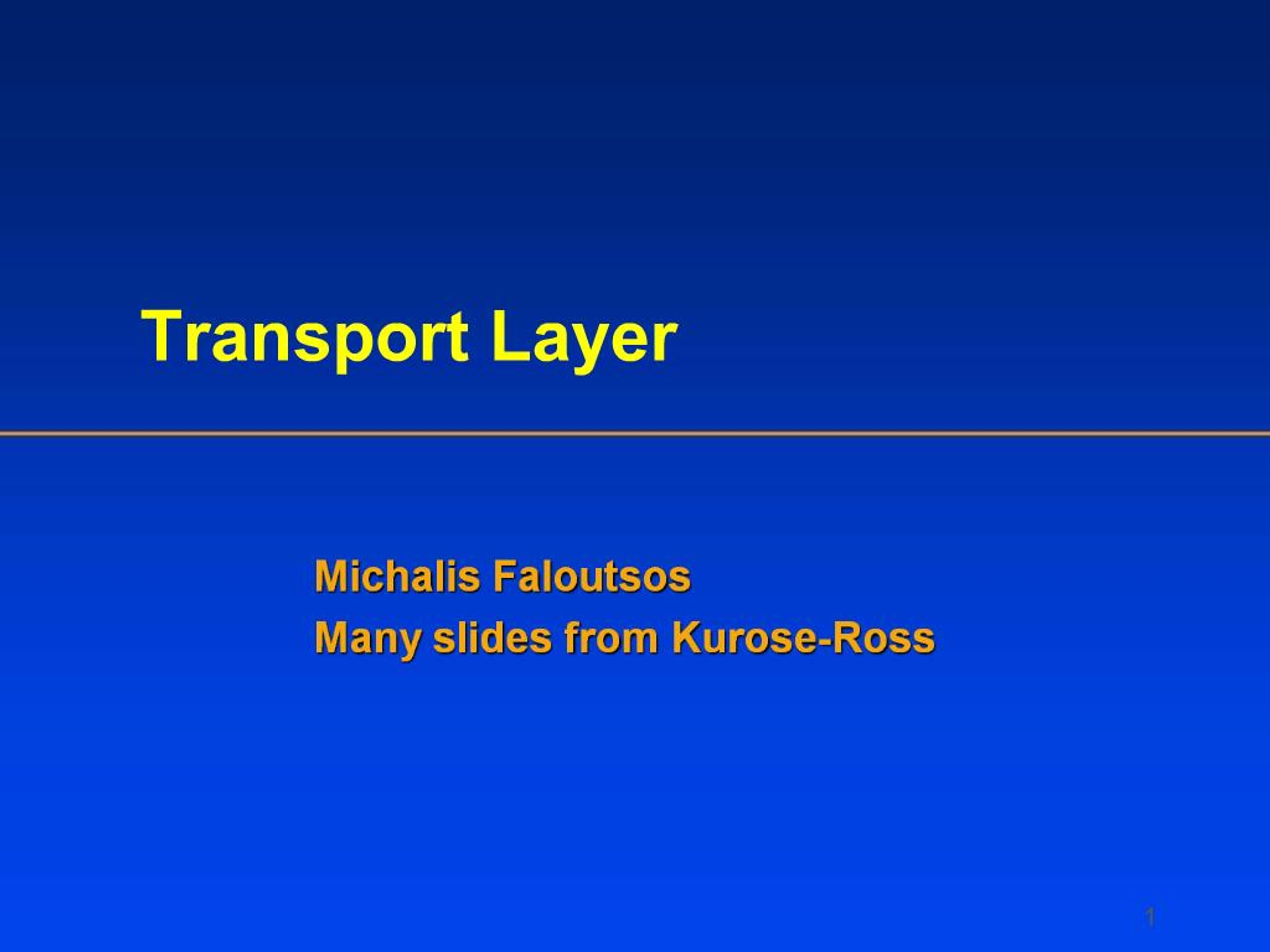

    1. Advanced Networks 2002 1 Transport Layer Michalis Faloutsos Many slides from Kurose-Ross

    2. Advanced Networks 2002 2 Transport Layer Functionality Hide network from application layer Transport layer resides at end points Sees the network as a black box

    3. Advanced Networks 2002 3 Transport Layers of the Internet TCP: reliable protocol Guarantees end-to-end delivery Self-controls rate: congestion and flow control Connection oriented: handshake, state Ordered delivery of packets to application UDP: unreliable protocol Non-regulated sending rate Multiplexing-demultiplexing

    4. Advanced Networks 2002 4 TCP overview

    5. Advanced Networks 2002 5 TCP: What and How For more: RFCs: 793, 1122, 1323, 2018, 2581 full duplex data: bi-directional data flow in same connection MSS: maximum segment size connection-oriented: handshaking (exchange of control msgs) inits sender, receiver state before data exchange flow controlled: sender will not overwhelm receiver point-to-point: one sender, one receiver reliable, in-order byte steam: no message boundaries pipelined: TCP congestion and flow control set window size send & receive buffers

    6. Advanced Networks 2002 6 TCP segment structure

    7. Advanced Networks 2002 7 TCP overview TCP is a sliding window protocol Sender can have (Window) bytes in flight Operates with cumulative ACKs It includes control for the sending rate Flow control: receiver-set sending rate Congestion control: network-aware sending rate

    8. Advanced Networks 2002 8 TCP seq. #s and ACKs Seq. #s: byte stream number of first byte in segments data ACKs: seq # of next byte expected from other side cumulative ACK Q: how receiver handles out-of-order segments A: TCP spec doesnt say, - up to implementor

    9. Advanced Networks 2002 9 TCP in a nutshell I. Slow start phase (actually this is fast increase) Start with a window of 1 (or 2) Successful ACK: Increase window by one 1 max size segment Do this up to a threshold: sshthresh II. Congestion control phase Increase window by 1 max size segment every RTT Drop window in half, if there is congestion Packet loss: duplicate ACKs Time expiration

    10. Advanced Networks 2002 10 TCP Congestion Control end-end control (no network assistance) transmission rate limited by congestion window size, Congwin, over segments:

    11. Advanced Networks 2002 11 TCP congestion control: Intuition TCP is probing for usable bandwidth: ideally: transmit as fast as possible (Congwin as large as possible) without loss increase Congwin until loss (congestion) loss: decrease Congwin, then begin probing (increasing) again

    12. Advanced Networks 2002 12 TCP congestion control: TCP has two phases slow start: start from small, increase quickly congestion avoidance: Additive Increase Multiplicative Decrease important variables: Congwin threshold: defines threshold between two slow start phase, congestion control phase

    13. Advanced Networks 2002 13 TCP Slowstart exponential increase (per RTT) in window size loss event: timeout (Tahoe TCP) and/or or three duplicate ACKs (Reno TCP)

    14. Advanced Networks 2002 14 Why Call it Slow Start ? The original version of TCP suggested that the sender transmit as much as the Advertised Window permitted. Routers may not be able to cope with this burst of transmissions. Slow start is slower than the above version -- ensures that a transmission burst does not happen at once.

    15. Advanced Networks 2002 15 TCP Congestion Avoidance

    16. Advanced Networks 2002 16 TCP Congestion: Real Life is Hairy! Remember: bytes vs packets! CW += MSS * MSS/CW Thres = Max( 2* MSS, InFlightData/2) MSS: max segment size InFlighData: un-ACK-ed data RFC 2581: TCP Congestion Control

    17. Advanced Networks 2002 17 Fairness goal: if N TCP sessions share same bottleneck link, each should get 1/N of link capacity TCP congestion avoidance: AIMD: additive increase, multiplicative decrease increase window by 1 per RTT decrease window by factor of 2 on loss event

    18. Advanced Networks 2002 18 Why is TCP fair? Two competing sessions: Additive increase gives slope of 1, as throughout increases multiplicative decrease decreases throughput proportionally

    19. Advanced Networks 2002 19 Macroscopic Description of Throughput Assume window toggling: W/2 to W High rate: W * MSS / RTT Low rate: W * MSS / 2 RTT Rate increase is linearly between two extremes Average throughput: 0.75 * W * MSS / RTT

    20. Advanced Networks 2002 20 TCP: reliable data transfer

    21. Advanced Networks 2002 21 TCP sender

    22. Advanced Networks 2002 22 TCP Receiver: ACK generation [RFC 1122, RFC 2581]

    23. Advanced Networks 2002 23 TCP: retransmission scenarios

    24. Advanced Networks 2002 24 TCP Round Trip Time and Timeout Q: how to set TCP timeout value? longer than RTT note: RTT will vary too short: premature timeout unnecessary retransmissions too long: slow reaction to segment loss Q: how to estimate RTT? SampleRTT: measured time from segment transmission until ACK receipt ignore retransmissions, cumulatively ACKed segments SampleRTT will vary, want estimated RTT smoother use several recent measurements, not just current SampleRTT

    25. Advanced Networks 2002 25 TCP Round Trip Time and Timeout Setting the timeout EstimtedRTT plus safety margin large variation in EstimatedRTT -> larger safety margin

    26. Advanced Networks 2002 26 A problem

    27. Advanced Networks 2002 27 The Karn Patridge Algorithm Take SampleRTT measurements only for segments that have been sent once ! This eliminates the possibility that wrong RTT estimates are factored into the estimation. Another change -- Each time TCP retransmits, it sets the next timeout to 2 X Last timeout --> This is called the Exponential Back-off (primarily for avoiding congestion).

    28. Advanced Networks 2002 28 Jacobson Karels Algorithm An issue with the Karn/Patridge scheme is that it does not take into account the variation between RTT samples. New method proposed -- the Jacobson Karels Algorithm. Estimated RTT = Estimated RTT + d X Difference Difference = Sample RTT - Estimated RTT Deviation = Deviation + d (|Difference| - deviation) Timeout = m Estimated RTT + f deviation. The values of m and f are computed based on experience -- Typically m = 1 and f = 4.

    29. Advanced Networks 2002 29 Silly Window Syndrome Suppose a MSS worth of data is collected and advertised window is MSS/2. What should the sender do ? -- transmit half full segments or wait to send a full MSS when window opens ? Early implementations were aggressive -- transmit MSS/2. Aggressively doing this, would consistently result in small segment sizes -- called the Silly Window Syndrome.

    30. Advanced Networks 2002 30 Issues .. We cannot eliminate the possibility of small segments being sent. However, we can introduce methods to coalesce small chunks. Delaying ACKs -- receiver does not send ACKs as soon as it receives segments. How long to delay ? Not very clear. Ultimate solution falls to the sender -- when should I transmit ?

    31. Advanced Networks 2002 31 Nagles Algorithm If sender waits too long --> bad for interactive connections. If it does not wait long enough -- silly window syndrome. How do we solve this? Timer -- clock based If both available data and Window = MSS, send full segment. Else, if there is unACKed data in flight, buffer new data until ACK returns. Else, send new data now. Note -- Socket interface allows some applications to turn off Nagles algorithm by setting the TCP-NODELAY option.

    32. Advanced Networks 2002 32 TCP Connection Management Recall: TCP sender, receiver establish connection before exchanging data segments initialize TCP variables: seq. #s buffers, flow control info (e.g. RcvWindow) client: connection initiator Socket clientSocket = new Socket("hostname","port number"); server: contacted by client Socket connectionSocket = welcomeSocket.accept();

    33. Advanced Networks 2002 33 TCP Set-up Three way handshake: Step 1: client end system sends TCP SYN control segment to server specifies initial seq # Step 2: server end system receives SYN, replies with SYNACK control segment ACKs received SYN allocates buffers specifies server-> receiver initial seq. # Step 3: Client replies with an ACK (using servers seq number)

    34. Advanced Networks 2002 34 TCP Connection Management (cont.) Closing a connection: client closes socket: clientSocket.close(); Step 1: client end system sends TCP FIN control segment to server Step 2: server receives FIN, replies with ACK. Closes connection, sends FIN. Last ACK is never ACK-ed!!

    35. Advanced Networks 2002 35 TCP Connection Management (cont.) Step 3: client receives FIN, replies with ACK. Enters timed wait - will respond with ACK to received FINs Step 4: server, receives ACK. Connection closed. Sends FIN. Last ACK is never ACK-ed

    36. Advanced Networks 2002 36 TCP Connection Management (cont)
