Input Reflection Coefficient

Input Reflection Coefficient. Let. and. r L = 0 --> Z L = jX L. r L = ∞. r L = 1 --> Z L =1+jX L. x L = 1. x L = -0.5. Complete Chart. Constant- r circles. Constant- x circles. Phillip Smith. Read a brief biography of Philip Smith: http://sss-mag.com/smith01.html.

michel
Télécharger la présentation

Input Reflection Coefficient

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Input Reflection Coefficient Let and

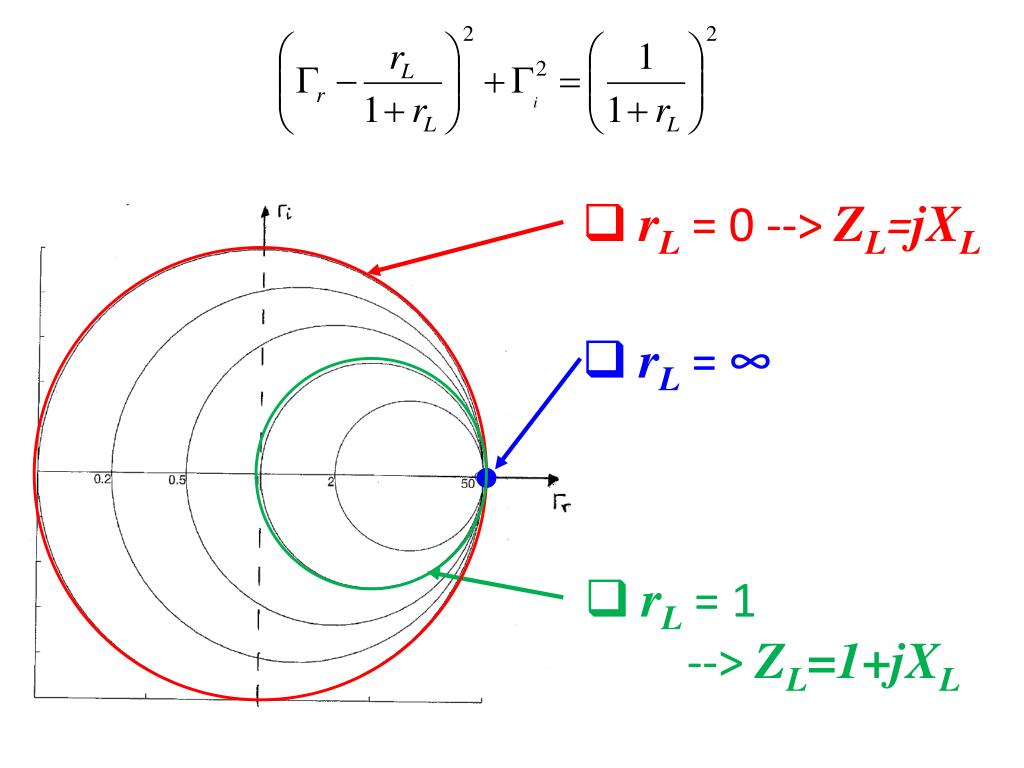

  2. rL = 0 --> ZL=jXL • rL = ∞ • rL = 1 • --> ZL=1+jXL

  3. xL = 1 • xL = -0.5

  4. Complete Chart • Constant-r circles • Constant-xcircles Phillip Smith Read a brief biography of Philip Smith: http://sss-mag.com/smith01.html

  5. Black MagicDesign

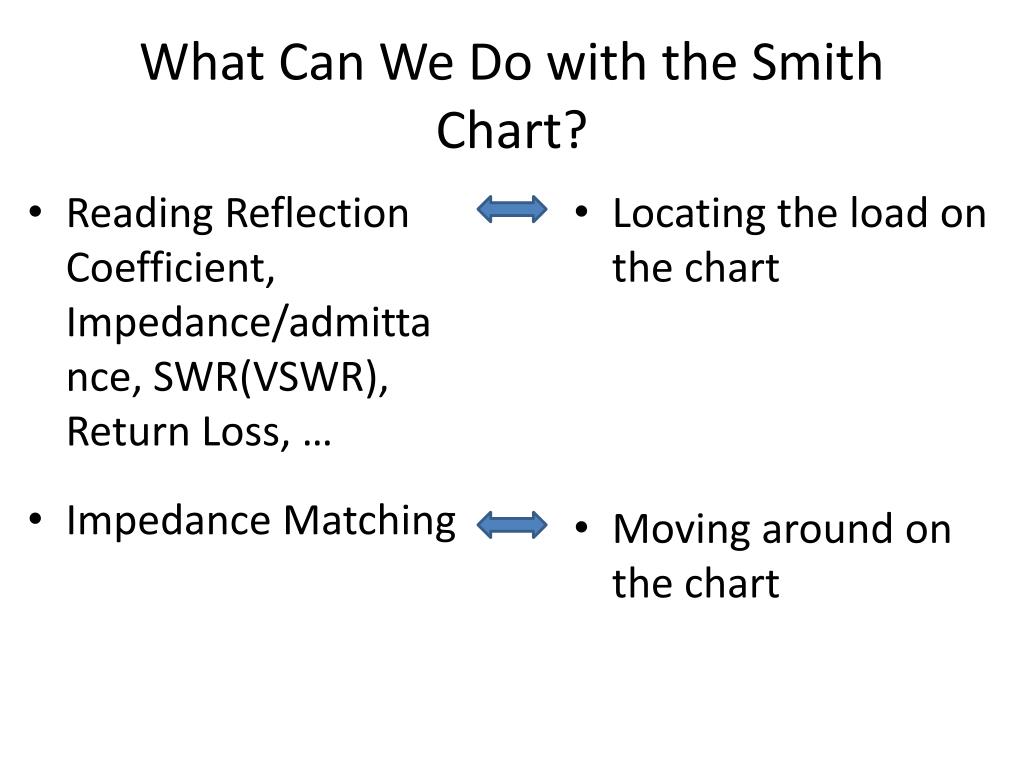

  6. What Can We Do with the Smith Chart? • Reading Reflection Coefficient, Impedance/admittance, SWR(VSWR), Return Loss, … • Locating the loadon the chart • Impedance Matching • Moving around on the chart

  7. Reading Reflection Coefficient • ZL = 10+j25 Ω • zL= 0.2+j0.5 125° • ΓL = 0.725/125° 0.725 • Open? • Short? • Matched Load?

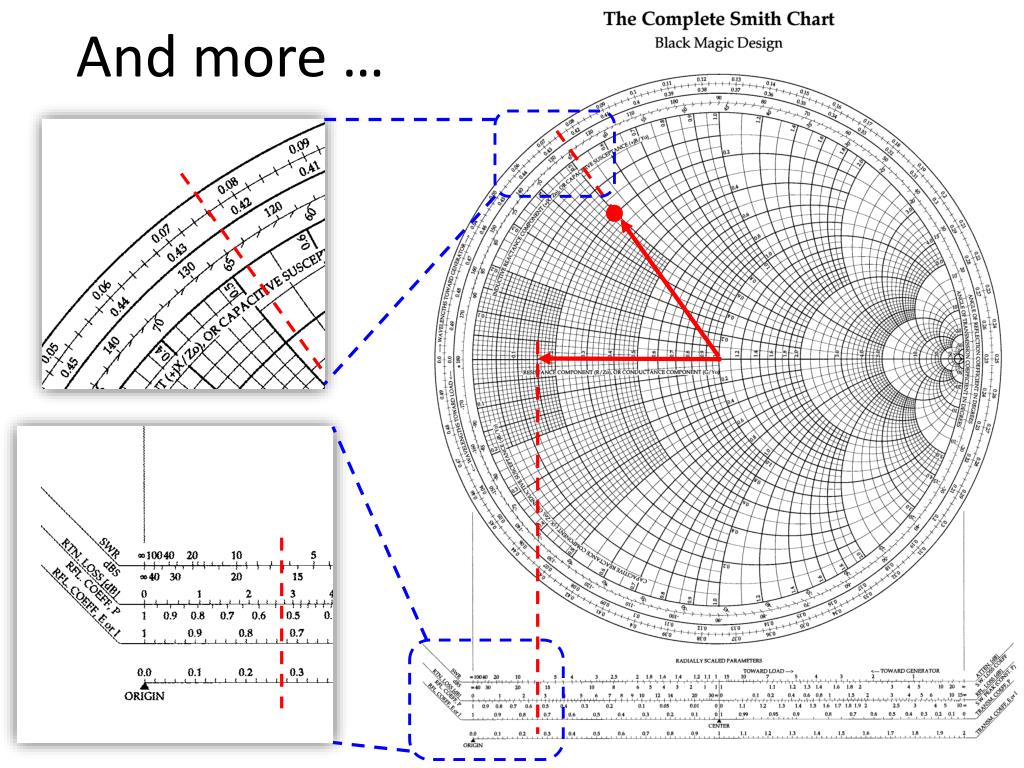

  8. And more …

  9. Reading Load Impedance • ΓL = 0.5/-90° • zL= 0.6-j0.8 If Z0 = 50 Ω • ZL = 30-j40 Ω
