Motion on an Inclined Plane

Lesson #6. Motion on an Inclined Plane. Example Problem. A skier weighing 562 N is resting on an incline of 30 degrees above the horizontal, with her poles planted. Find the component of her weight that is parallel to the incline and the component that is perpendicular to the incline.

michel
Télécharger la présentation

Motion on an Inclined Plane

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson #6 Motion on an Inclined Plane

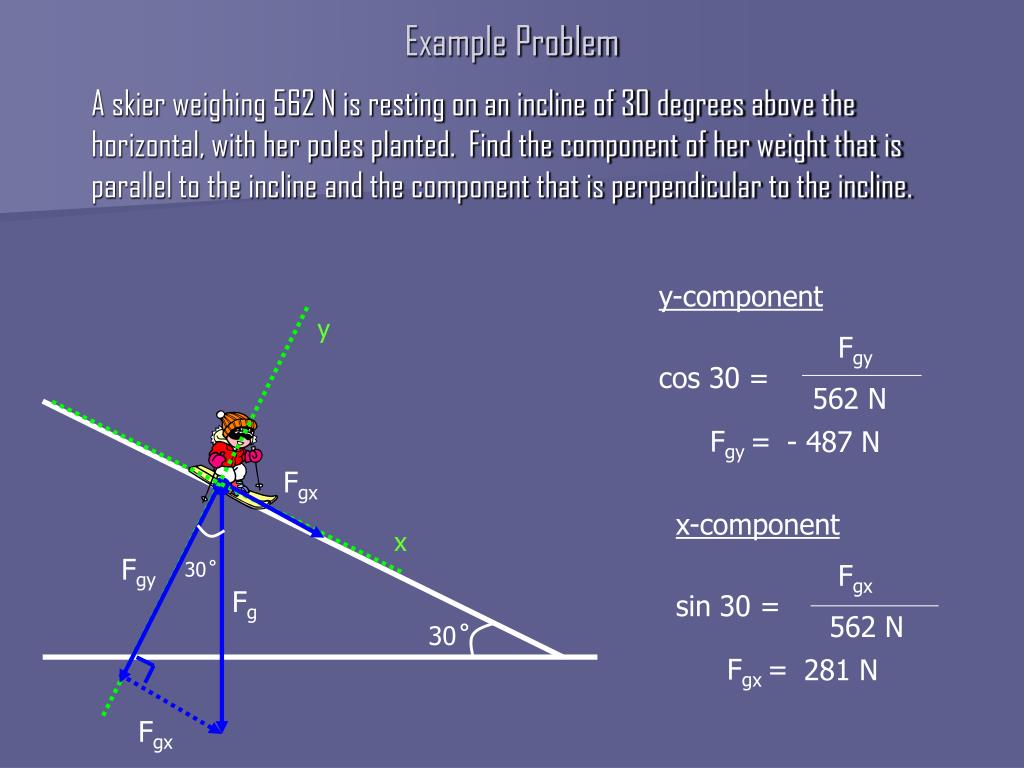

  2. Example Problem A skier weighing 562 N is resting on an incline of 30 degrees above the horizontal, with her poles planted. Find the component of her weight that is parallel to the incline and the component that is perpendicular to the incline. y-component y Fgy cos 30 = 562 N Fgy = - 487 N Fgx x-component x Fgy 30 ̊ Fgx Fg sin 30 = 562 N 30 ̊ Fgx = 281 N Fgx

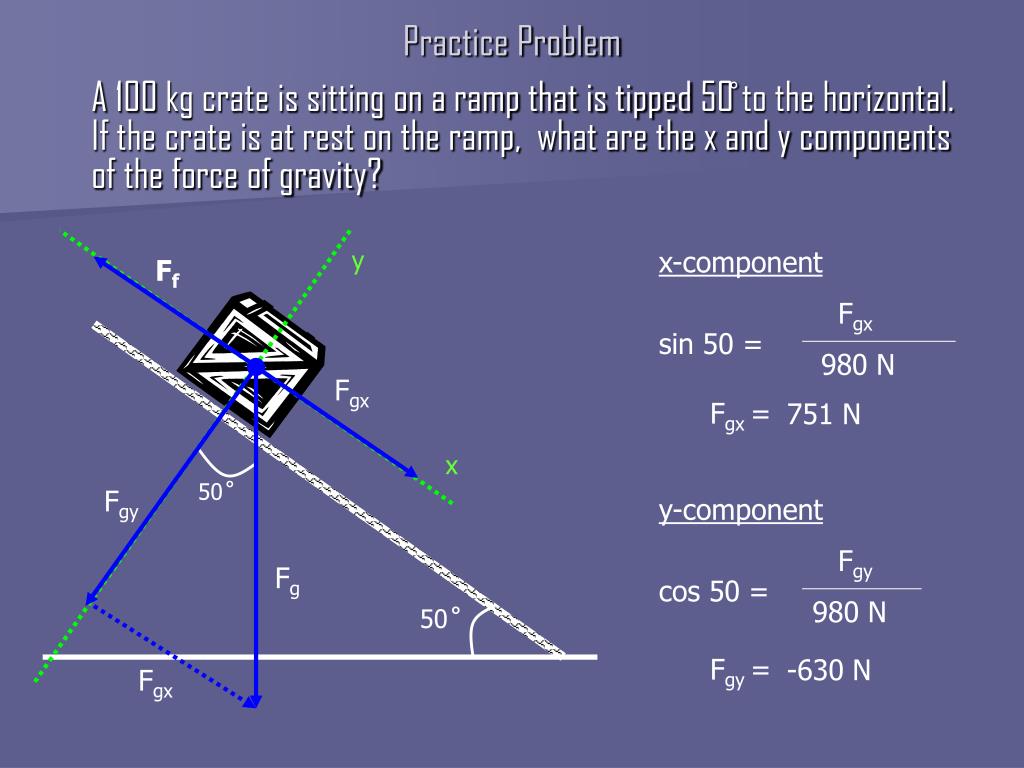

  3. Practice Problem A 100 kg crate is sitting on a ramp that is tipped 50̊ to the horizontal. If the crate is at rest on the ramp, what are the x and y components of the force of gravity? y x-component Ff Fgx sin 50 = 980 N Fgx Fgx = 751 N x 50 ̊ Fgy y-component Fgy Fg cos 50 = 980 N 50 ̊ Fgy = -630 N Fgx

  4. Assessment • Read p. 132-135 • p. 133 #34 • p. 143 #99
