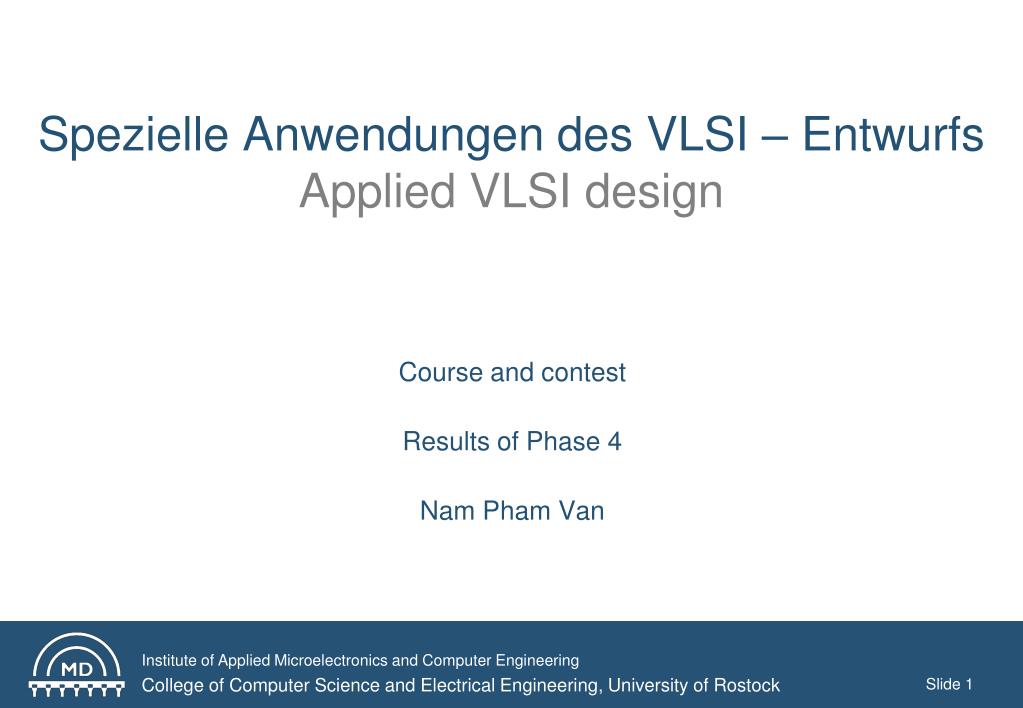

  1. Spezielle Anwendungen des VLSI – Entwurfs Applied VLSI design Course and contest Results of Phase 4 Nam Pham Van

  2. Design comparison P ~ A Power: P = (Pdyn * Pleak) Area: A  Reduction of the area  lower the power consumption

  3. Design & architecture • RCA  small area  low power consumption • Improve speed with Carry Skip architecture

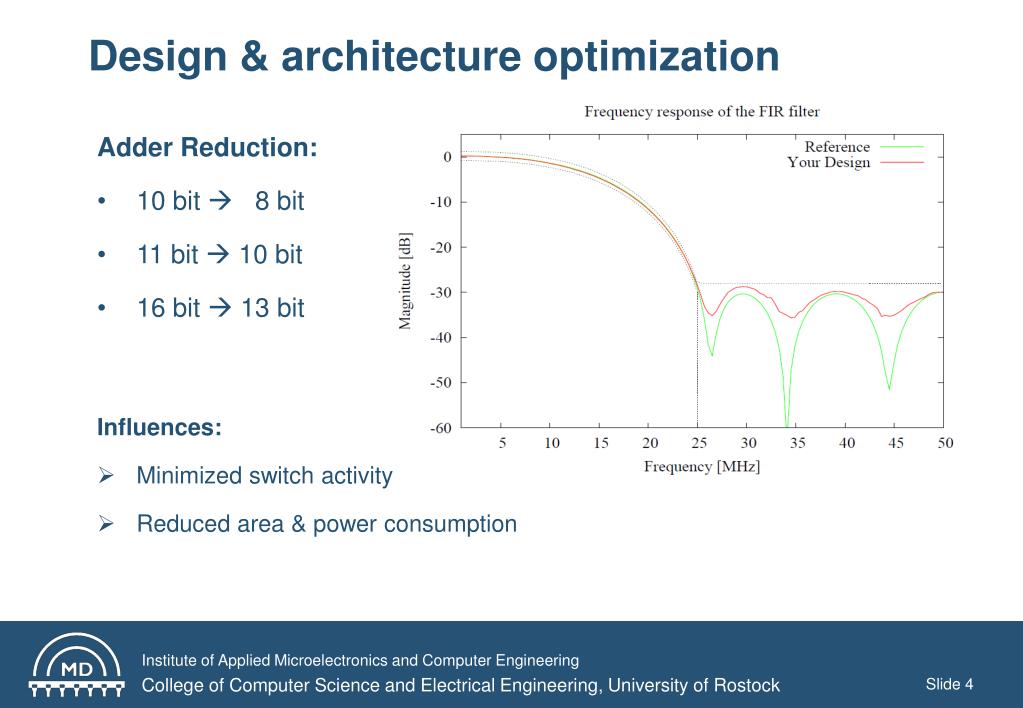

  4. Design & architecture optimization • Adder Reduction: • 10 bit  8 bit • 11 bit  10 bit • 16 bit  13 bit • Influences: • Minimized switch activity • Reduced area & power consumption

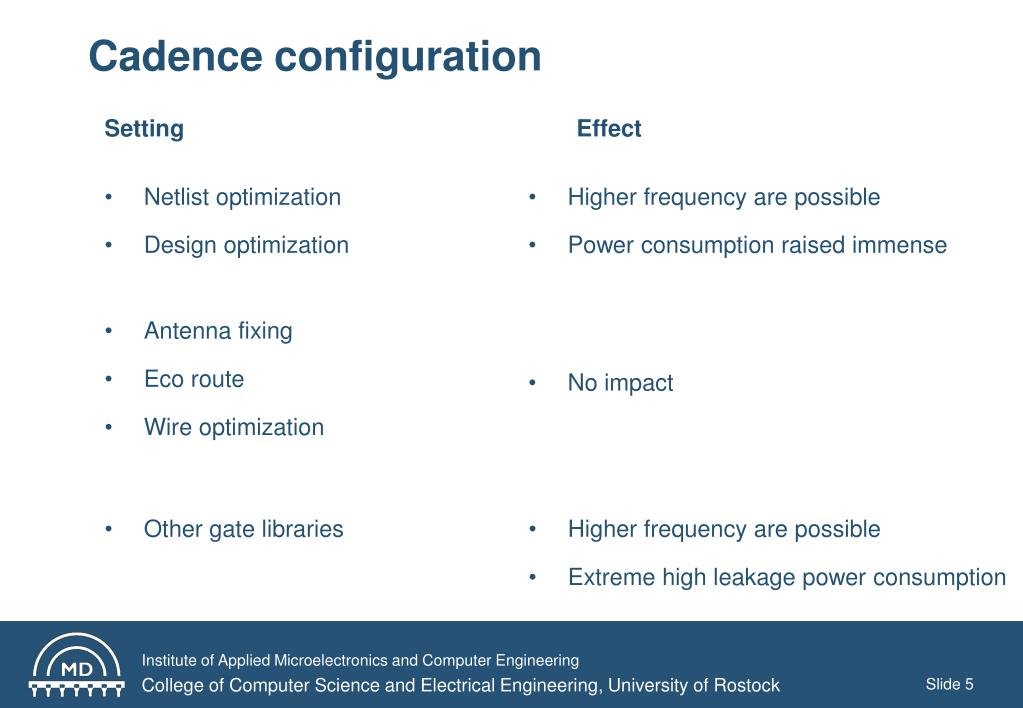

  5. Cadenceconfiguration Setting Effect • Netlist optimization • Design optimization • Higher frequency are possible • Power consumption raised immense • Antenna fixing • Eco route • Wire optimization • No impact • Other gate libraries • Higher frequency are possible • Extreme high leakage power consumption

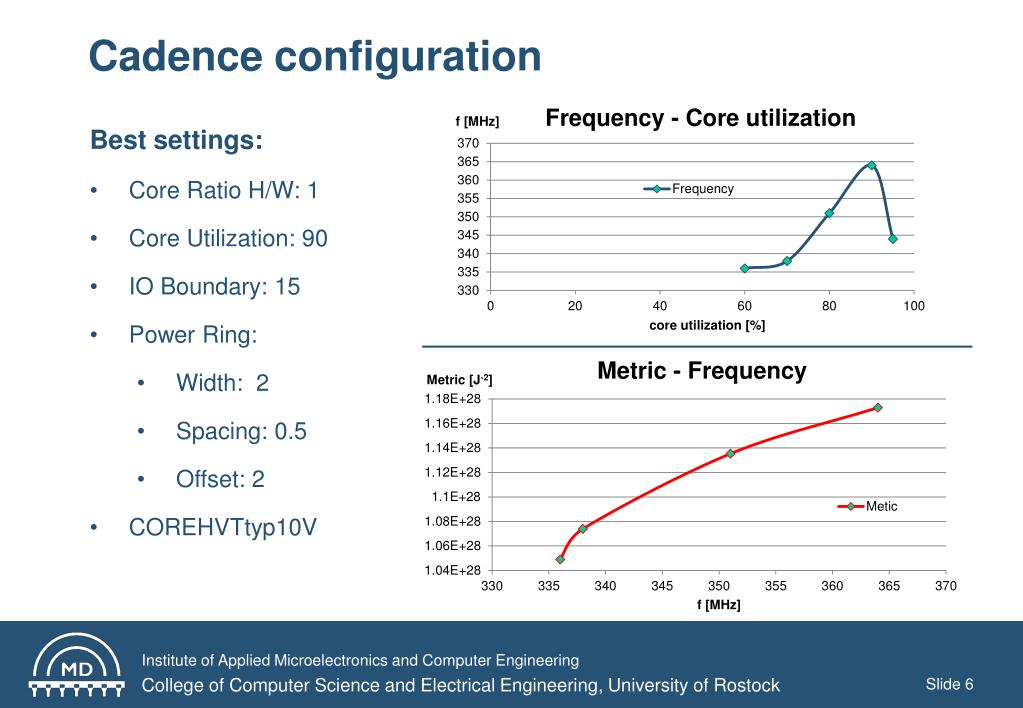

  6. Cadenceconfiguration • Best settings: • Core Ratio H/W: 1 • Core Utilization: 90 • IO Boundary: 15 • Power Ring: • Width: 2 • Spacing: 0.5 • Offset: 2 • COREHVTtyp10V

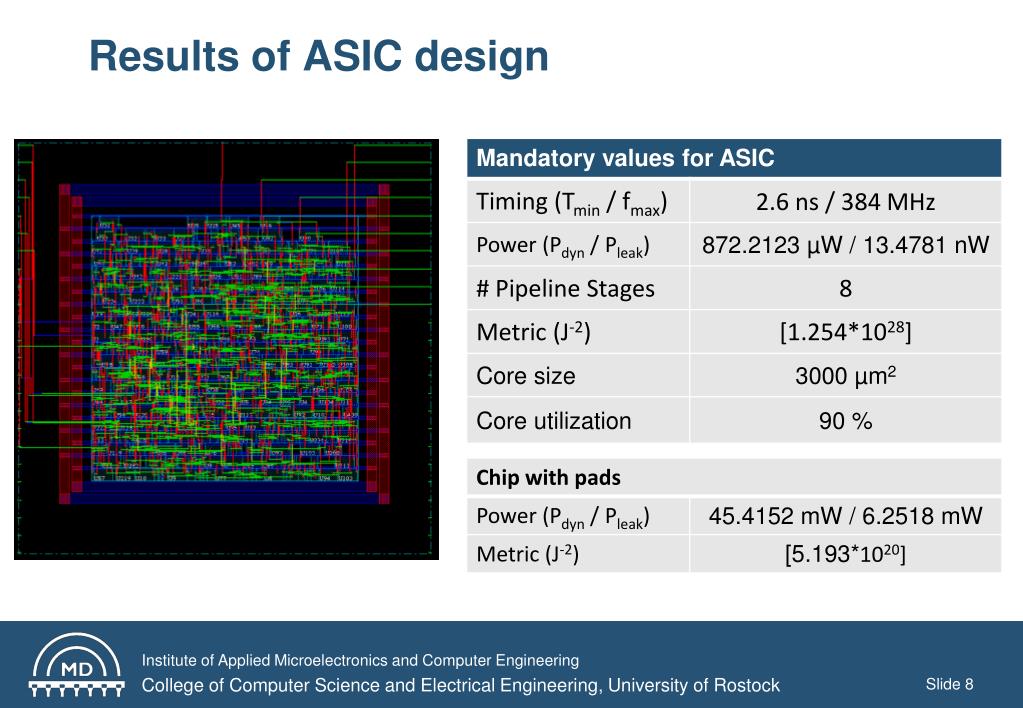

  7. Results of ASIC design

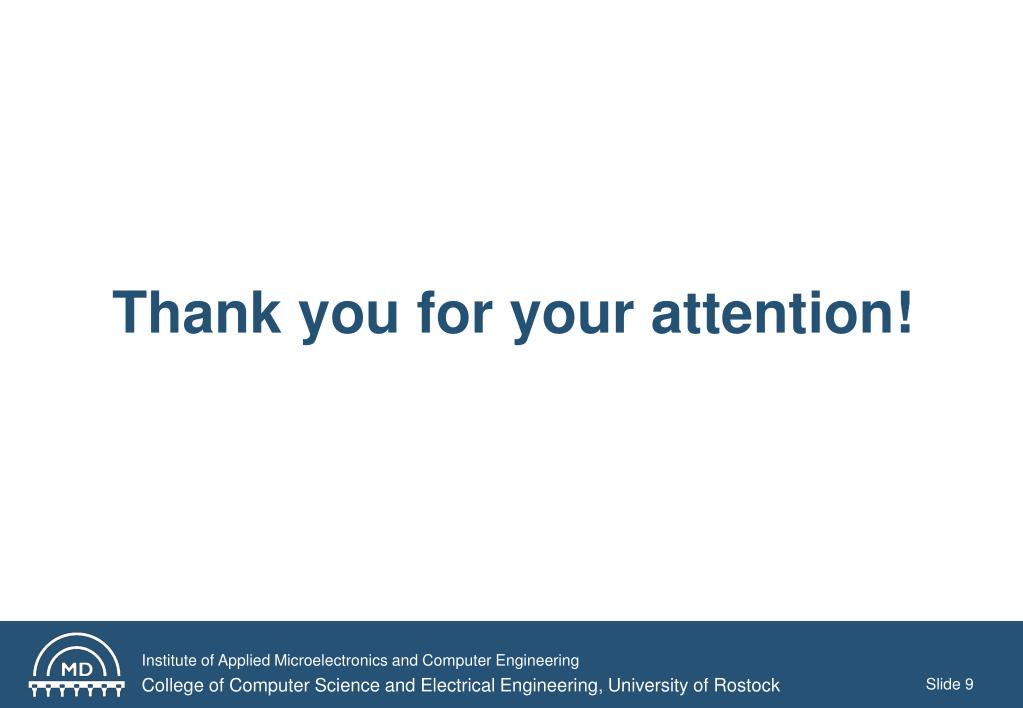

  8. Thank you for your attention!
