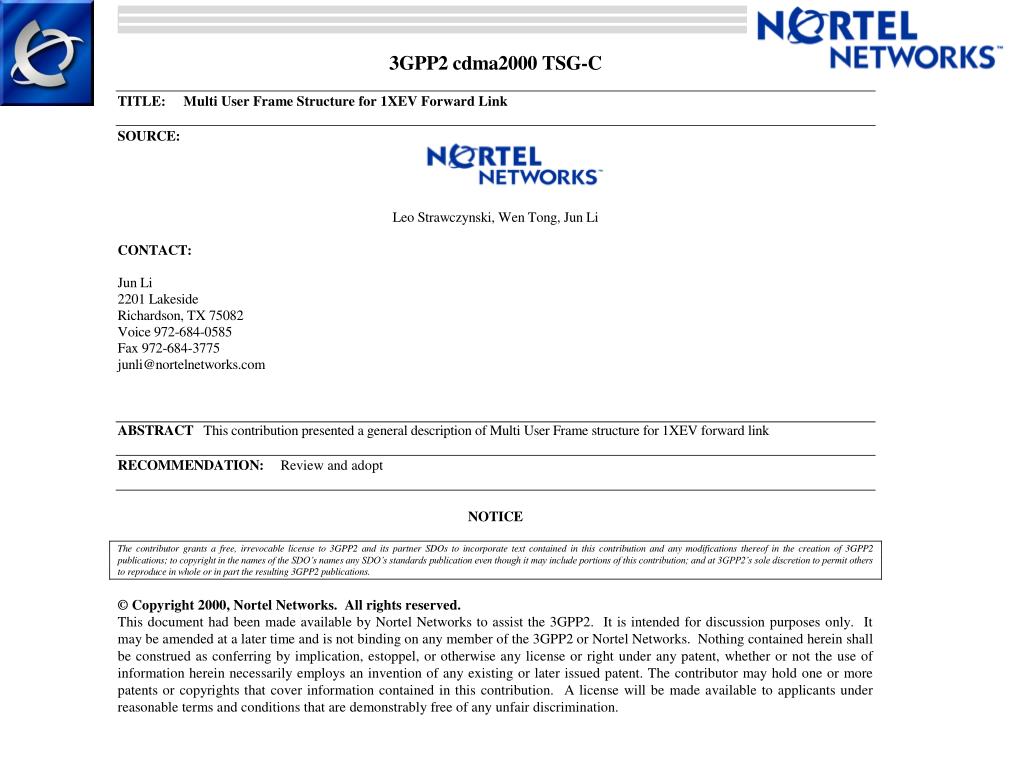

Introduction. Objective Improve the efficiency for transmitting small packets to multiple users Support for low data rate/real-time applications such as Voice over IP Multi User Frame Description

mick
Télécharger la présentation

Introduction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction • Objective • Improve the efficiency for transmitting small packets to multiple users • Support for low data rate/real-time applications such as Voice over IP • Multi User Frame Description • Modified preamble structure for the encoder packets allows the partially filled encoder packets to one multiplex other user’s data if available and/or transmit at a lower data rate to improve the FER • Multiplex up to 4 users in one frame for transmitting high data rates • Reduce the maximum HDR physical layer packet size from 512 bytes to 128 bytes

  2. HDR Preamble Structures HDR Frame Structure • For data rate >= 1.2288 kbps, the traffic payload for the high data rate encoder packets can be shared among several users • Each user may receive one or more FTC packets • In this case, the preamble has ‘head room’ to support more than one AT ID

  3. Modified Preamble Structure • For transmission data rate < 1.2288 Mbps, maintain the HDR preamble structure • For transmission data rate >= 1.2288 Mbps, we propose change the preamble length to 128 chips, and divide it into the several fields Preamble Duration Modulation Phase I- Branch Null I1 I2 Q- Branch EDRI Q1 Q2 64 chips 32 chips 32 chips

  4. Explicit Data Rate Indicator (EDRI) • EDRI is only set when the transmission rate is 1.2288 Mbps or higher. For lower data rate, HDR preamble (MAC identifier on I channel) will be used • EDRI is (8,4,4) bi-orthogonal coded and block repeated 8 times • EDRI specifies one of the following rate: 1.2288 Mbps, 1.8432 Mbps, 2.4576 Mbps • If a user requests DRC >= 1.2288 Mbps, and EDRI is set, then the user have to check the MAC Identifiers to see if the packet is for him

  5. MAC Identifiers • I1,I2,Q1,Q2 are 32-ary Walsh coded MAC Identifiers

  6. Multi-User Frames forData Rates >=1.2288Mbps • Assign FTC Packets destined to one or more ATs to an Encoder Packet such that the data rate requested by each AT is > or = the data rate of the Encoder Packet. • Note: In the event FTC packets are only available for a single AT, then transmit an Encoder Packet at the lowest data rate capable of transporting the available FTC packets. This maintains throughput while improving the Encoder Packet error rate. • For example: Transmission is scheduled for an AT. The data rate requested by the AT is 2457.6 kbps and the queue for this AT contains 2 FTC Packets. No other FTC packets are available for multiplexing. Then the 2 FTC Packets are transmitted in an Encoder Packet at 1228.8 kbps.
