  1. Form Data Encoding • GET – URL encoded • POST – URL encoded • POST – multipart form

  2. <form action="/foo" method="get"> User ID: <input type="text" name="userid" size="10" maxlength="8"> Password: <input type="password" name="passwd" size="10" maxlength="8"> Mail message: <textarea name="mmesg" rows="5" cols="40"></textarea> File: <input type="file" name="image_f">

  3. GET – URL encoding <form action="/foo" method="GET"> ... some_form.html GET /foo?userid=bkoehler&passwd=foo& mmesg=bow+%26+arrow%0D%0A%3D%0D%0A%3F%3F%3F& image_f=C%3A%5CTEMP%5Ccgi.txt HTTP/1.1 Host: www.xyz.org ... HTTP request message

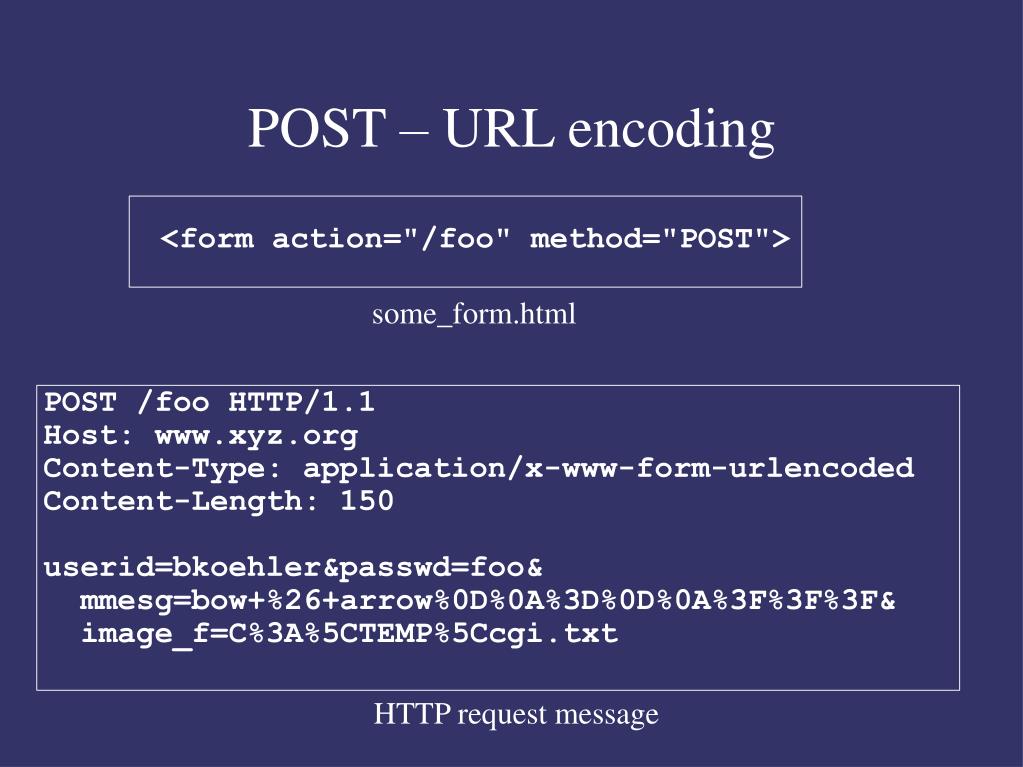

  4. POST – URL encoding <form action="/foo" method="POST"> some_form.html POST /foo HTTP/1.1 Host: www.xyz.org Content-Type: application/x-www-form-urlencoded Content-Length: 150 userid=bkoehler&passwd=foo& mmesg=bow+%26+arrow%0D%0A%3D%0D%0A%3F%3F%3F& image_f=C%3A%5CTEMP%5Ccgi.txt HTTP request message

  5. POST – multipart form <form action="/foo" method="POST" enctype="multipart/form-data"> some_form.html

  6. POST /foo HTTP/1.1 Host: www.xyz.org Content-Type: multipart/form-data; boundary=---123 Content-Length: 2421 ---123 Content-Disposition: form-data; name="userid" brian ---123 Content-Disposition: form-data; name="passwd" foo ---123 Content-Disposition: form-data; name="mmesg" bow & arrow = ???

  7. ---123 Content-Disposition: form-data; name="image_f"; filename="cgi.txt" Content-Type: text/plain The contents of the file would be here. ---123-- HTTP request message

  8. Request Response The Static Web Doc A Origin Server Client Doc B Doc C

  9. Request Response Response The Dynamic Web ENV body Origin Server CGI Program Client

  10. Common Gateway Interface (CGI) • convention for interaction between web servers and external applications that process requests • allows external applications to be reasonably portable across different web servers • external programs can be written in any language: • C, C++, COBOL, FORTRAN, Java, Assembly, csh, sh, Perl, Python, etc

  11. CGI/1.1 overview • some information about the HTTP request is passed through environment variables • the HTTP request message body (if any) is connected to the external application's standard input stream • the external application must generate a valid HTTP response on its standard output stream

  12. CGI Environment Variables • HTTP_* • most of the headers in the request message get passed as environment variables to the CGI program • e.g.: HTTP_ACCEPT, HTTP_ACCEPT_LANGUAGE, HTTP_USER_AGENT

  13. REMOTE_* • REMOTE_ADDR • the numeric IP address of the client sending the request • this may not be the user agent if there are proxies along the chain • REMOTE_HOST • the fully qualified domain name of the client sending the request

  14. SERVER_* • SERVER_SOFTWARE: the name and version of the web server software • SERVER_NAME: the server's hostname or IP address • SERVER_PORT: the port number the request came in on • SERVER_PROTOCOL: the name and version of the protocol the request came in e.g. HTTP/1.1 • GATEWAY_INTERFACE: version of CGI, usually CGI/1.1

  15. CONTENT_* • only generated for POST requests • CONTENT_TYPE: mime type of the message body; usually: application/x-www-form-urlencoded or multipart/form-data • CONTENT_LENGTH: length, in characters of the message body

  16. Request • REQUEST_METHOD: GET, POST, etc. • SCRIPT_NAME: virtual path to script as derived from the URI (no shcheme, host or query component) • e.g. /cgi-bin/foo • QUERY_STRING: all the text past the '?' in the request URI • e.g. arg1=val1&arg2=val2&arg3=val3...

  17. Standard Input • when the external CGI program starts running, its standard input is connected to the request message at the beginning of the message body: POST /foo HTTP/1.1 Host: www.xyz.org Content-Type: application/x-www-form-urlencoded Content-Length: 150 userid=bkoehler&passwd=foo& mmesg=bow+%26+arrow%0D%0A%3D%0D%0A%3F%3F%3F& image_f=C%3A%5CTEMP%5Ccgi.txt

  18. POST /foo HTTP/1.1 Host: www.xyz.org Content-Type: multipart/form-data; boundary=---123 Content-Length: 2421 ---123 Content-Disposition: form-data; name="userid" brian ---123 Content-Disposition: form-data; name="passwd" foo ---123 Content-Disposition: form-data; name="mmesg" bow & arrow = ???

  19. Standard Output • when the external CGI program starts running, anything it writes to standard output will be part of the response to the client • modes: • non-parsed headers (nph): the CGI program must construct a complete HTTP response message which will be delivered unmodified to the client • parsed headers: the web server will fill in any missing required header fields

  20. Parsed Headers Content-Type: text/html <html> ... <== output of CGI program HTTP/1.1 200 OK Date: Mon, 23 Sep 2002 19:11:21 GMT Server: Apache/1.3.20 (Unix) PHP/4.0.6 Content-Length: 699 Content-Type: text/html <html> ...

  21. Apache mod_cgi • two methods of invoking CGI programs: • ScriptAlias directive: all files the specified directory are treated as CGI programs • Options +ExecCGI and AddHandler directives: files with specific file extensions are treated as CGI programs
