  1. Global Positioning Systems (GPS) Jeroen Verplanke Department of Urban and Regional Planning and Geo-Information Management

  2. What is GPS ?  A world wide radio-navigation system  Uses satellites as reference points to calculate positions  Three components:  Space segment  Control segment  User segment

  3. GPS components Spacesegment

  4. GPS components Control segment User segment

  5. How GPS works 1. The basis for GPS is resection from satellites (triangulation) 2. For resection a GPS receiver calculates distance to satellites using travel time of radio signals 3. To measure travel time, GPS needs exact timing 4. Along with distance you need to know the satellite position 5. For accurate positioning you must correct for errors

  6. What GPS accuracy do we need? • Soil map (1:250,000) : • Road map (1:100,000) : • Topographical map (1:50,000) : • Ecological map (1:25,000) : • Cadastral map (1:10,000) : • Architectural plan (1:1,000) : • Sketch map (1: ???) :

  7. ? ? ? ? ? ? Cálculo de la posición usando la tecnología GPS X X Superficie de la Tierra

  8. 1. Resection from satellites Resection from satellites: determination of an unknown location using 1, 2 and 3 distances to known locations of satellite(s). X Da A Da 1 satellite A X

  9. 1. Resection from satellites X A Da Db B Da Db X 2 satellites A + B

  10. 1. Resection from satellites C Dc X Da Db A B 3 satellites A + B + C

  11. 2. Measuring distance to satellites Distance = velocity * travel time Distance is about 22,000 km  We cannot see satellites We cannot measure exact distance Calculating distance to satellite Using travel time of radio signal Travel time = ? approx. 0.07 sec ! Using radio signal to calculate distance This signal travels with speed of light Speed of light = 299,174 km/sec

  12. 3. Exact timing How to measure travel time  satellite and receiver generate radio signal at the same time  travel time = phase difference between signals 1 msec Satellite’s signal GPS receiver’s signal

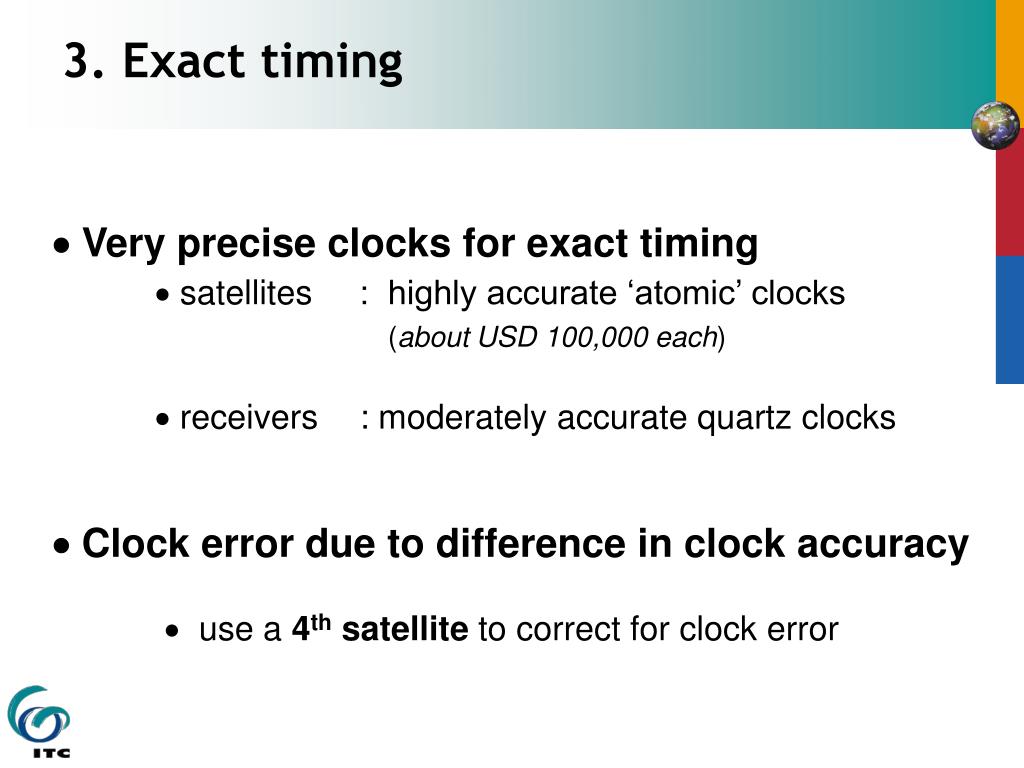

  13. 3. Exact timing  Very precise clocks for exact timing  satellites : highly accurate ‘atomic’ clocks (about USD 100,000 each)  receivers : moderately accurate quartz clocks  Clock error due to difference in clock accuracy  use a 4th satellite to correct for clock error

  14. 4. The satellite position in space  Using satellites as reference points for positioning also requires that you know the exact position in space of each satellite, at any place and at any time.  The GPS control segment monitors the satellite position in space.  All details of satellite orbits is available in an ‘almanac’  This satellite status information can be downloaded to the GPS receiver

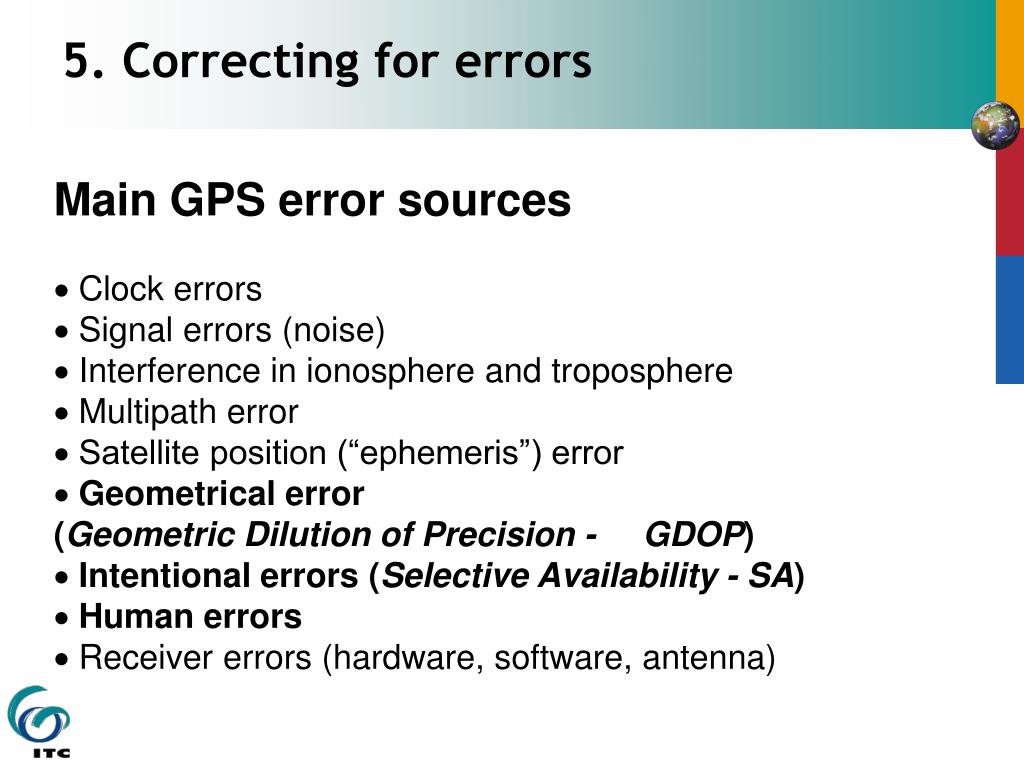

  15. 5. Correcting for errors Main GPS error sources  Clock errors  Signal errors (noise)  Interference in ionosphere and troposphere  Multipath error  Satellite position (“ephemeris”) error  Geometrical error (Geometric Dilution of Precision - GDOP)  Intentional errors (Selective Availability - SA)  Human errors  Receiver errors (hardware, software, antenna)

  16. 5. GPS Signal – optimal

  17. POOR GDOP (2-6) GOOD GDOP ( 2) 5. Correcting for errors Geometric Dilution Of Precision (GDOP)

  18. 5. GPS Signal – good GDOP, poor visibility

  19. 5. GPS Signal – beware of yourself

  20. 5. GPS Signal - solution

  21. 5. Correcting for errors Selective Availability (SA) SA off (after May 2000) SA on (before May 2000)

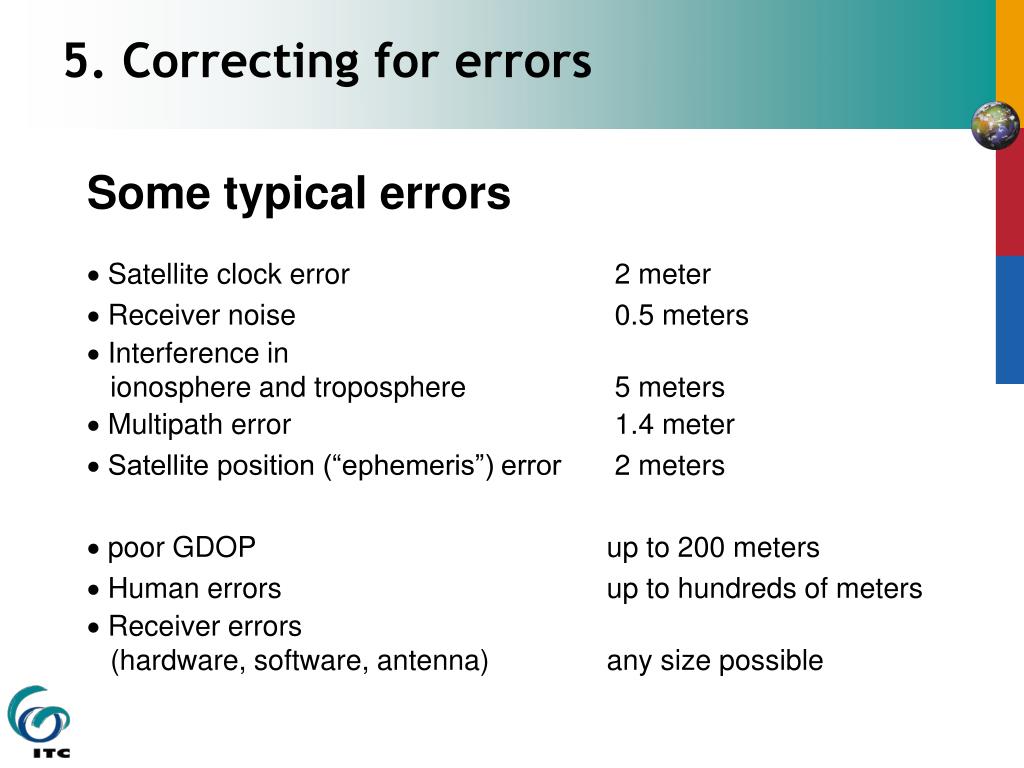

  22. 5. Correcting for errors • Some typical errors •  Satellite clock error 2 meter •  Receiver noise 0.5 meters •  Interference in • ionosphere and troposphere 5 meters •  Multipath error 1.4 meter • Satellite position (“ephemeris”) error 2 meters •  poor GDOPup to 200 meters •  Human errors up to hundreds of meters •  Receiver errors • (hardware, software, antenna) any size possible

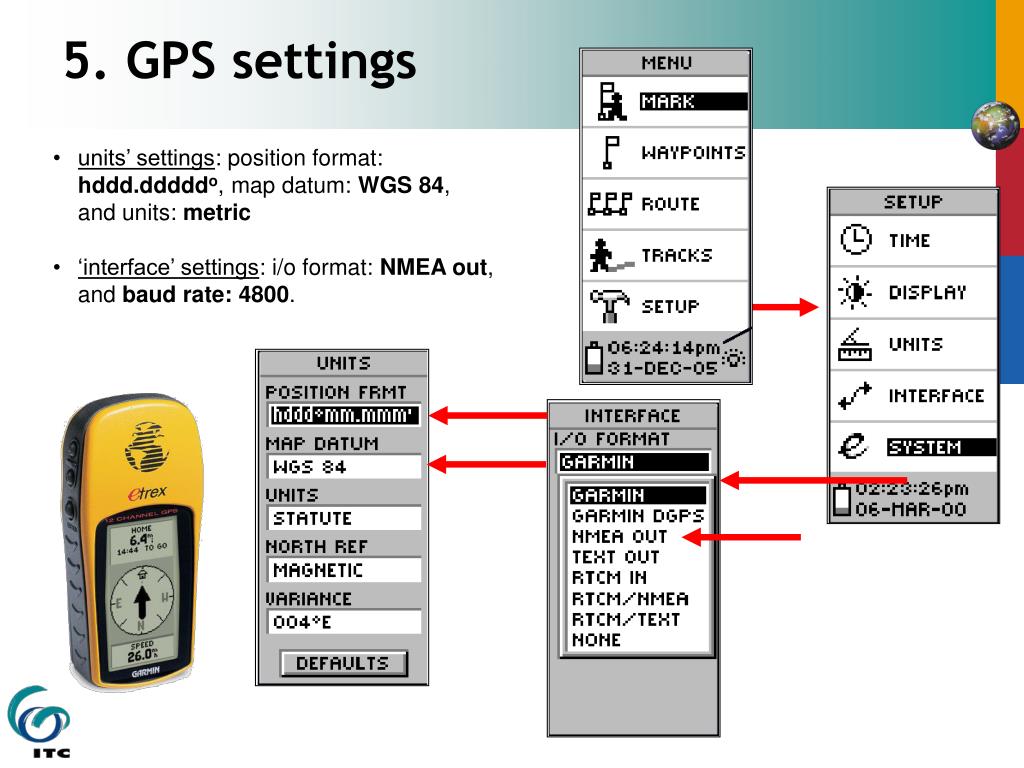

  23. 5. GPS settings • units’ settings: position format: hddd.dddddo, map datum: WGS 84, and units: metric • ‘interface’ settings: i/o format: NMEA out, and baud rate: 4800.

  24. About GPS accuracy • Accuracy can be from 100m to 1mm • Accuracy depends on purpose • Soil map (1:250,000) : • Road map (1:100,000) : • Topographical map (1:50,000) : • Ecological map (1:25,000) : • Cadastral map (1:10,000) : • Architectural plan (1:1,000) : • Sketch map (1: ???) :

  25. Using a handheld GPS receiver Typical accuracy: 10 m Horizontal ( civil use,good GDOP) Results for a Month (Garmin 12XL) Horizontal Accuracy (50%) 3.9 meters Vertical Accuracy (50%) 9.6 meters Horizontal Accuracy (95%) 9.3 meters Vertical Accuracy (95%) 21.9 meters Source: GPS ACCURACY MONITOR by Dennis Milbert (http://mywebpages.comcast.net/dmilbert/handacc/accur.htm)

  26. In conclusion 3. Exact timing 1. Resection from satellites 2. Distance to satellites 5. errors 4. Position in space
