  1. Explicit Prediction of Supercooled Liquid WaterApplication to Aircraft and Ground Icing Problems Gregory Thompson, Roy Rasmussen, TrudeEidhammer WRF User’s Workshop 27 Jun 2012, Boulder, CO

  2. Motivation Aircraft Icing Ground Icing

  3. Coming soon … aerosols & droplet number • activated fraction depends on: • aerosol concentration • updraft velocity • temperature • hygroscopicity (kappa) • aerosol mean radius • implementation details: • nearest neighbor T, k = 0.4, r= 0.02 • interpolated Na, w • grid-scale vertical velocity only • negative wuses 1 cm s-1 • added 2 components to WRF scalar array (Nc, Nccn) • potential improvements: • vertical velocity variance • variable kappa and mean size depend on ocean vs. land • connect to radiation • separate sulfates, sea salts, other aerosol species • couple with WRF-CHEM

  4. Cloud droplets (size) (1) (2) (3) (4) Continental more drops smaller mean size Maritime fewer drops larger mean size Affects “autoconversion” 3 characteristic diameters considered when converting cloud water to rain • Affects accretion • due to changes in MVD • Affects droplet freezing • larger drops more likely to freeze than small drops Liquid water content = 0.25 g m–3

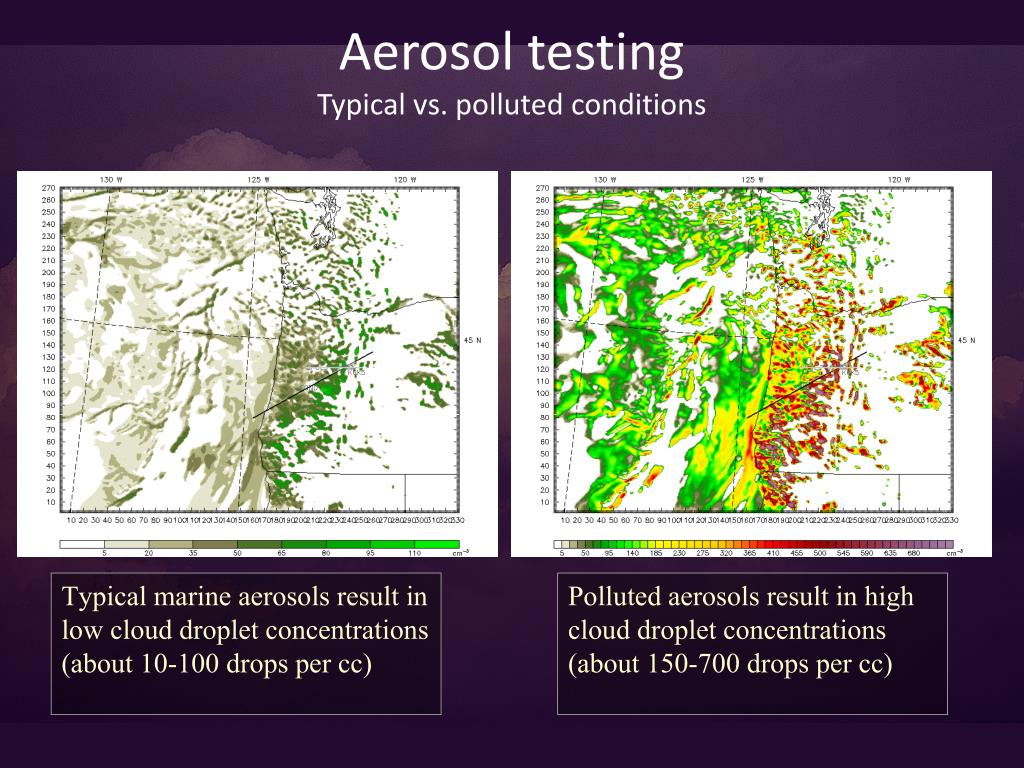

  5. Aerosol testingTypical vs. polluted conditions Typical marine aerosols result in low cloud droplet concentrations (about 10-100 drops per cc) Polluted aerosols result in high cloud droplet concentrations (about 150-700 drops per cc)

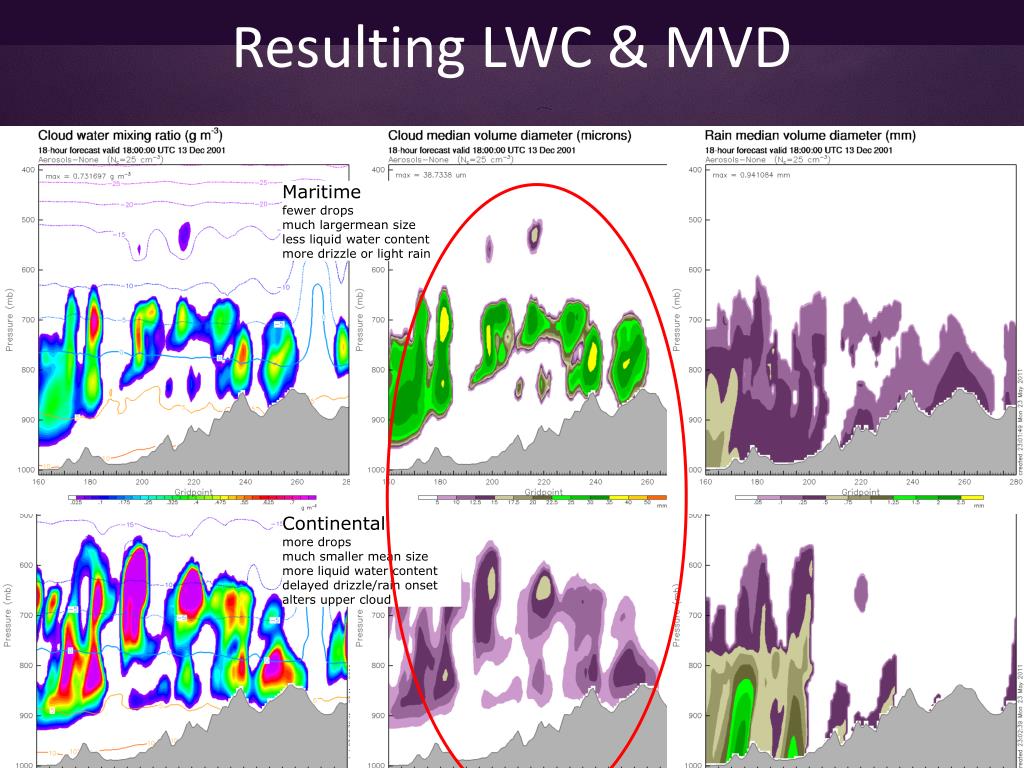

  6. Resulting LWC & MVD Maritime fewer drops much largermean size less liquid water content more drizzle or light rain Continental more drops much smaller mean size more liquid water content delayed drizzle/rain onset alters upper cloud

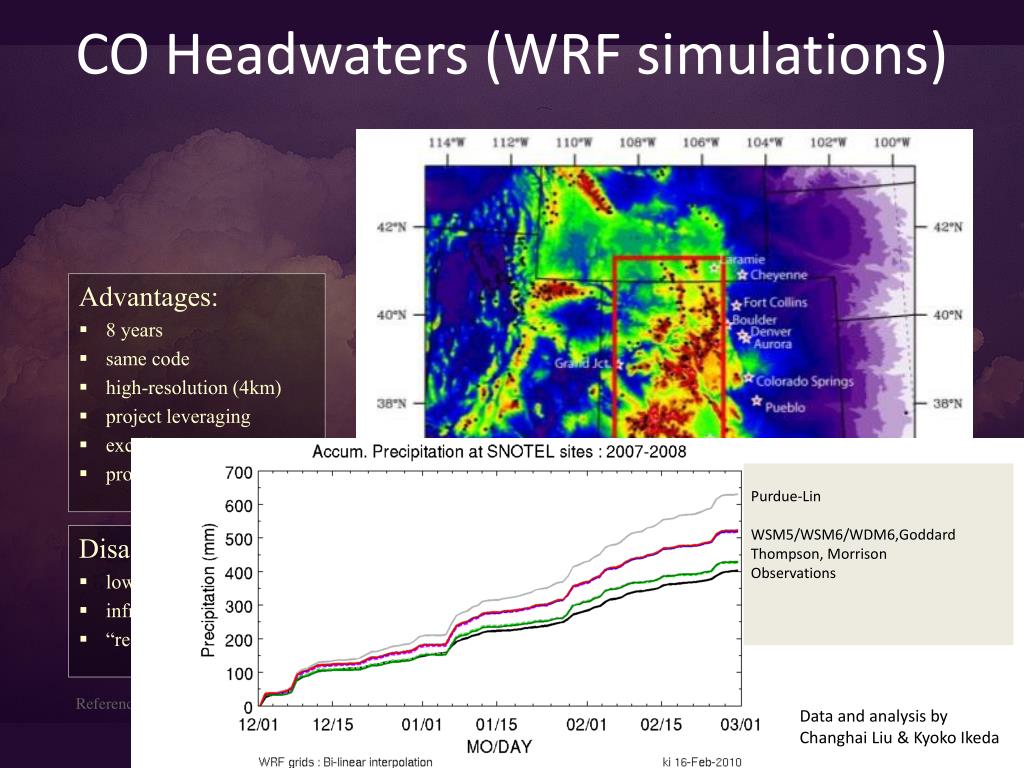

  7. CO Headwaters (WRF simulations) Advantages: • 8 years • same code • high-resolution (4km) • project leveraging • excellent QPF (5-10%) • prototype HRRR model Purdue-Lin WSM5/WSM6/WDM6,Goddard Thompson, Morrison Observations Disadvantages: • low air traffic • infrequent FZDZ/FZRA • “reanalysis” system References: Ikeda et al, 2010 Rasmussen et al, 2011 Liu et al, 2011 Data and analysis by Changhai Liu & Kyoko Ikeda

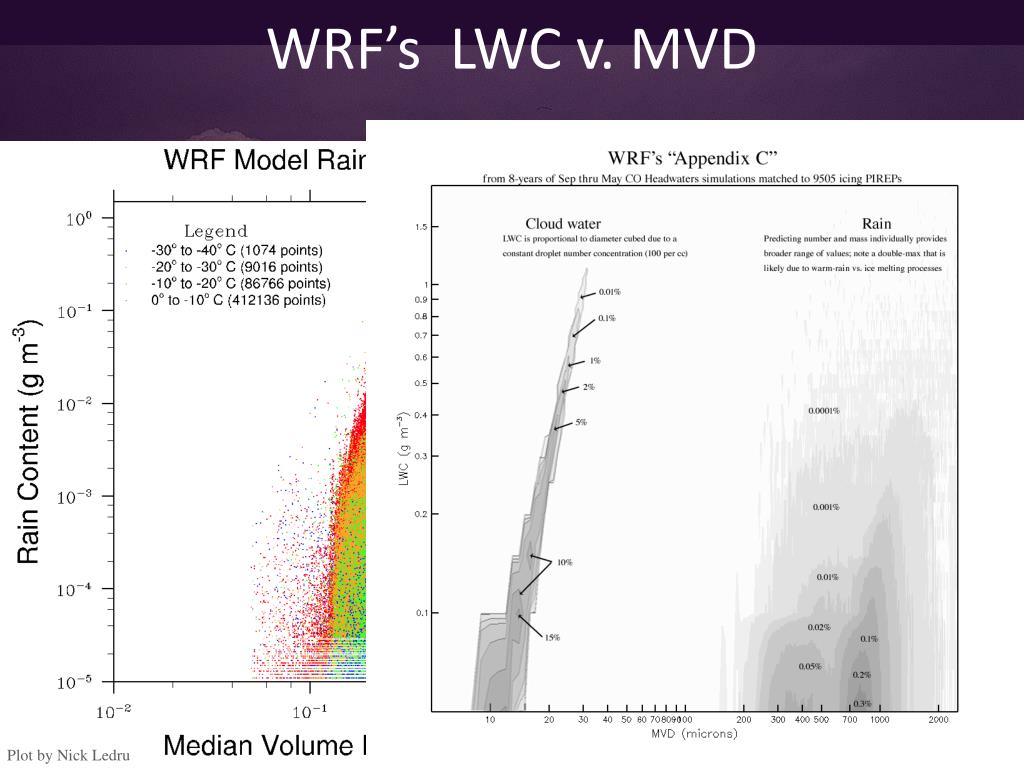

  8. WRF’s LWC v. MVD Plot by Nick Ledru

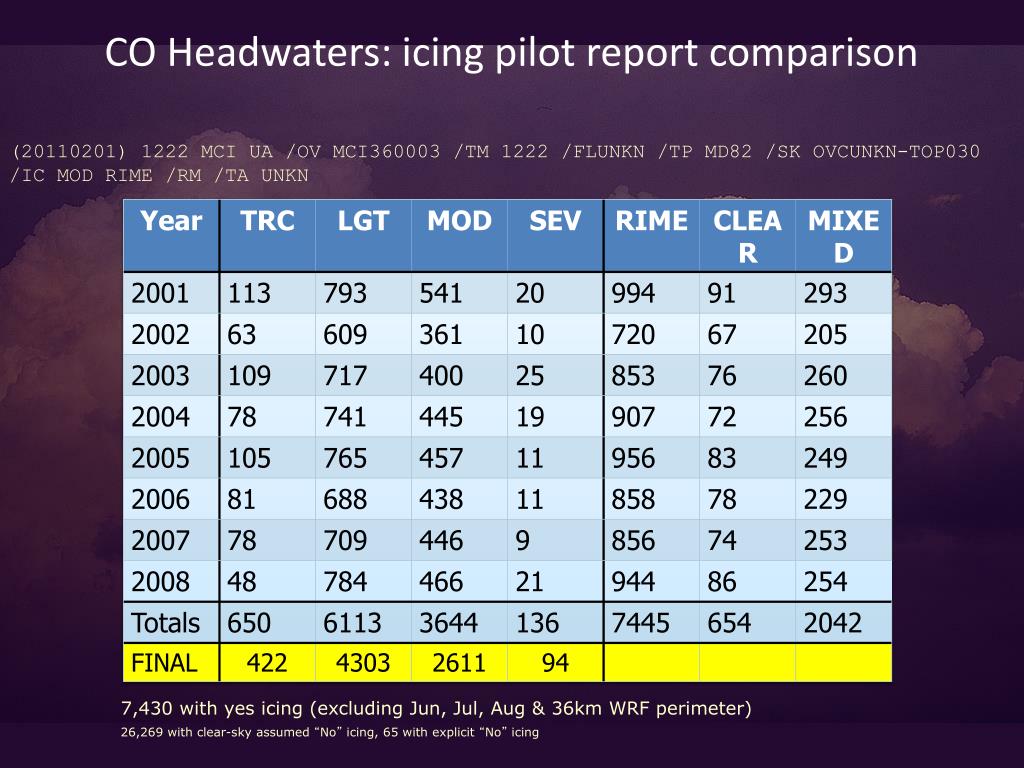

  9. CO Headwaters:icing pilot report comparison (20110201) 1222 MCI UA /OV MCI360003 /TM 1222 /FLUNKN /TP MD82 /SK OVCUNKN-TOP030 /IC MOD RIME /RM /TA UNKN 7,430 with yes icing (excluding Jun, Jul, Aug & 36km WRF perimeter) 26,269 with clear-sky assumed “No” icing, 65 with explicit “No” icing

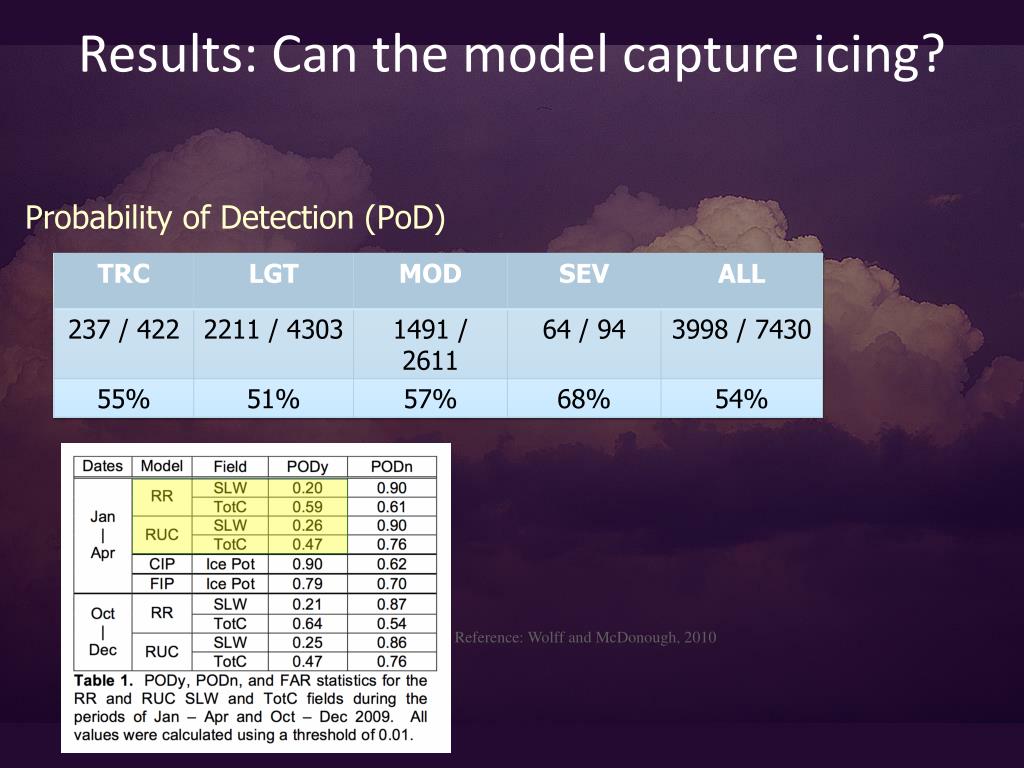

  10. Results: Can the model capture icing? Probability of Detection (PoD) Reference: Wolff and McDonough, 2010

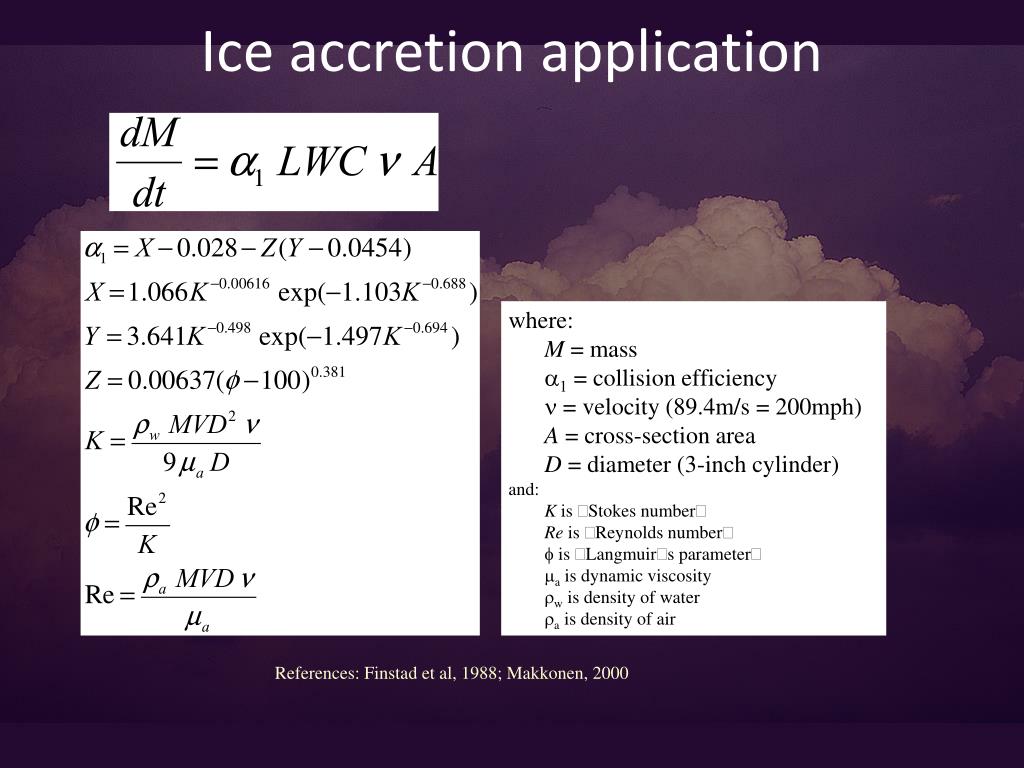

  11. Ice accretion application where: M = mass a1 = collision efficiency n = velocity (89.4m/s = 200mph) A = cross-section area D = diameter (3-inch cylinder) and: K is “Stokes number” Re is “Reynolds number” f is “Langmuir’s parameter” ma is dynamic viscosity rw is density of water ra is density of air References: Finstad et al, 1988; Makkonen, 2000

  12. Final application of predicted ice load on TV tower Provided by Bjorn EgilNygaard

  13. Summary and future plans • Microphysics scheme produces physically reasonable characteristic water contents and droplet size. • Initial tests with variable aerosols produce well correlated cloud droplet concentrations and resulting precip stays within bounds of constant/imposed droplet number tests. • Explicit forecasts of supercooled water capture significant portion of pilot-reported icing. • Continue testing and advancing the “aerosol-aware” scheme. • Directly utilize explicit SLW forecasts into future FAA icing end-user applications (eventual replacement of CIP/FIP). • Incorporate Thompson et al (2008) scheme into H-WRF and NMM-B
