  1. INVARIANTS EEN 417 Fall 2013

  2. When is a Design of a System “Correct”? • A design is correct when it meets its specification (requirements) in its operating environment • “A design without specification cannot be right or wrong, it can only be surprising!” • Simply running a few tests is not enough! • Many embedded systems are deployed in safety-critical applications (avionics, automotive, medical, …)

  3. Ariane disaster, 1996 $500 million software failure FDIV error, 1994 $500 million Estimated worst-case worm cost: > $50 billion

  4. Ariane 5 Flight 501 • 4 June 1996, the first test flight of the Ariane 5 rocket system • Rocket self-destructed 37 seconds after launch.

  5. Ariane 5 Flight 501 • What caused the disaster? • A data conversion from 64-bit floating point to 16-bit signed integer

  6. Ariane 5 Flight 501 • Max value for 16-bit signed integer • 32,768 • Max value for a 64-bit floating point? • 1.79*10^308

  7. Ariane 5 Flight 501 • Software had been written and tested for the Ariane 4, where the variables had been protected by a handler. • Code was include in Ariane 5 for reuse, despite the fact that the software was not required for the Ariane 5.

  8. Pentium FDIV Bug • Intel’s Pentium 5 • Professor Thomas Nicely noticed inconsistencies in calculations when addingPentiums to his cluster • Floating-point divisionoperations didn’t quite comeout right.Off by 61 parts per million

  9. Pentium FDIV Bug • Intel acknowledged the flaw, but claimed it wasn’t serious. Wouldn’t affect most users. • Byte magazine estimatedonly 1 in 9 billion floatingpoint operations wouldsuffer the error.

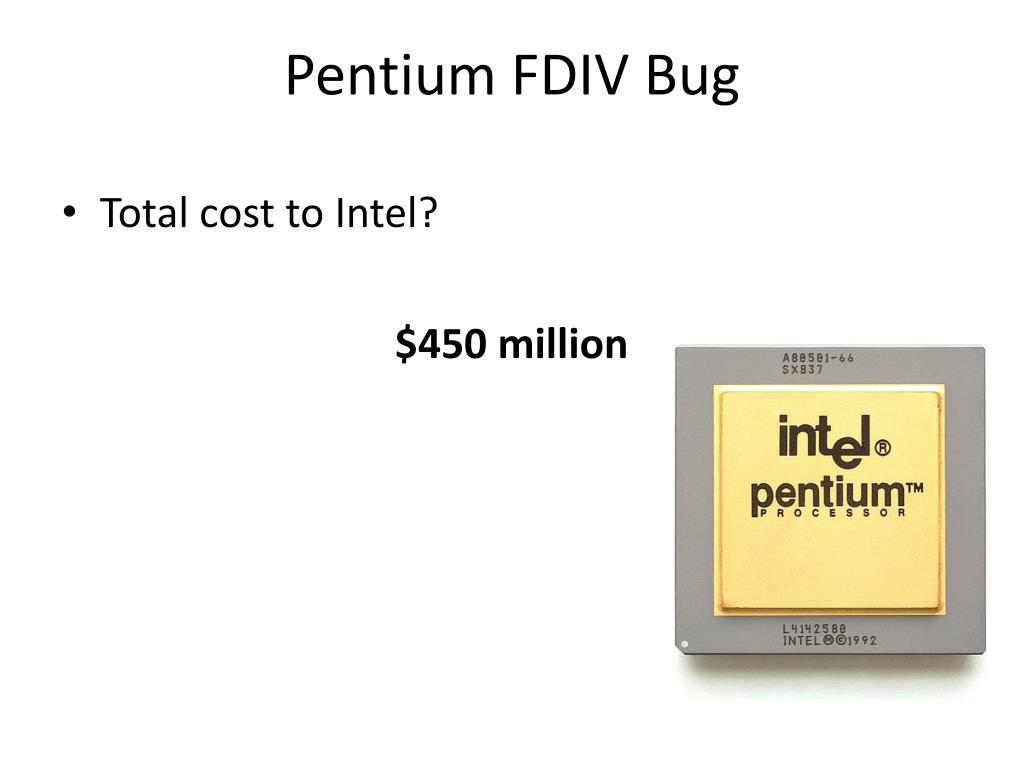

  10. Pentium FDIV Bug • Total cost to Intel? $450 million

  11. Korean Air Flight 801 • Air Traffic Control Minimum Safe Altitude Warning system – lets pilots know when they are too close to the ground. • System in Guam had been giving off spurious alarms, and prevented the airport’s other systems from detecting aircrafts approaching below minimum safe altitude • Engineers modified the system to limit alarms.

  12. 200 Deaths

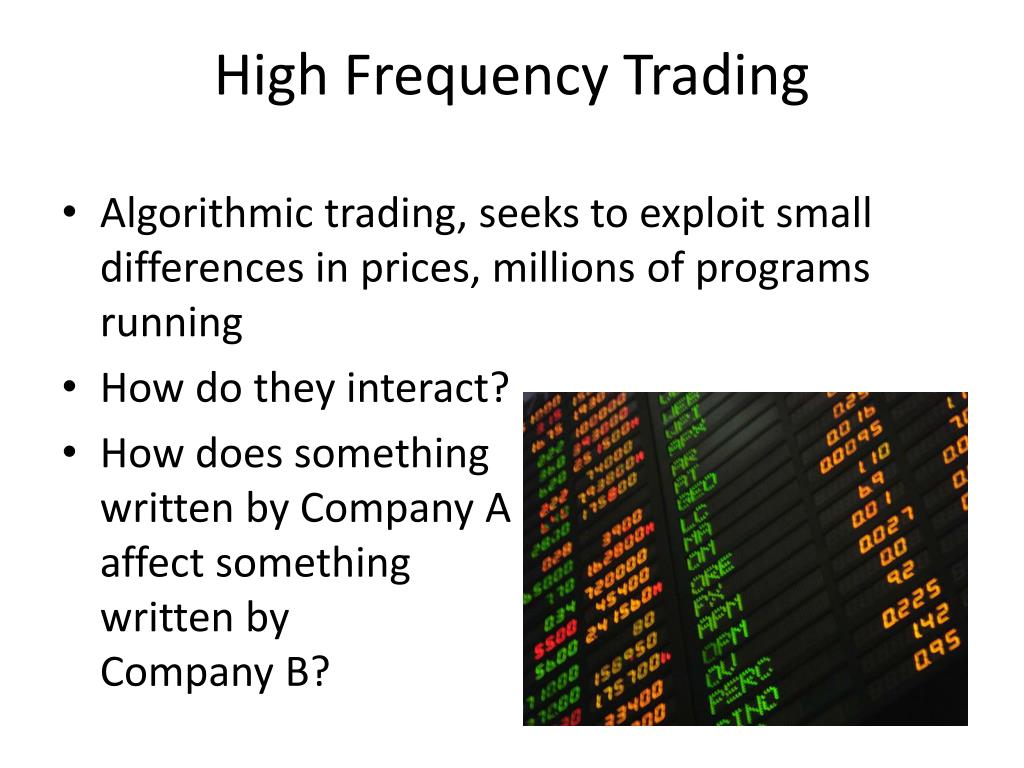

  13. High Frequency Trading • Algorithmic trading, seeks to exploit small differences in prices, millions of programs running • How do they interact? • How does somethingwritten by Company Aaffect somethingwritten by Company B?

  14. High Frequency Trading • 2010 Flash Crash – largest intraday point loss • Losses recovered in minutes, but scared regulatory bodies • US SEC and CFTCconsluded that HFTcontributed to thevolatility.

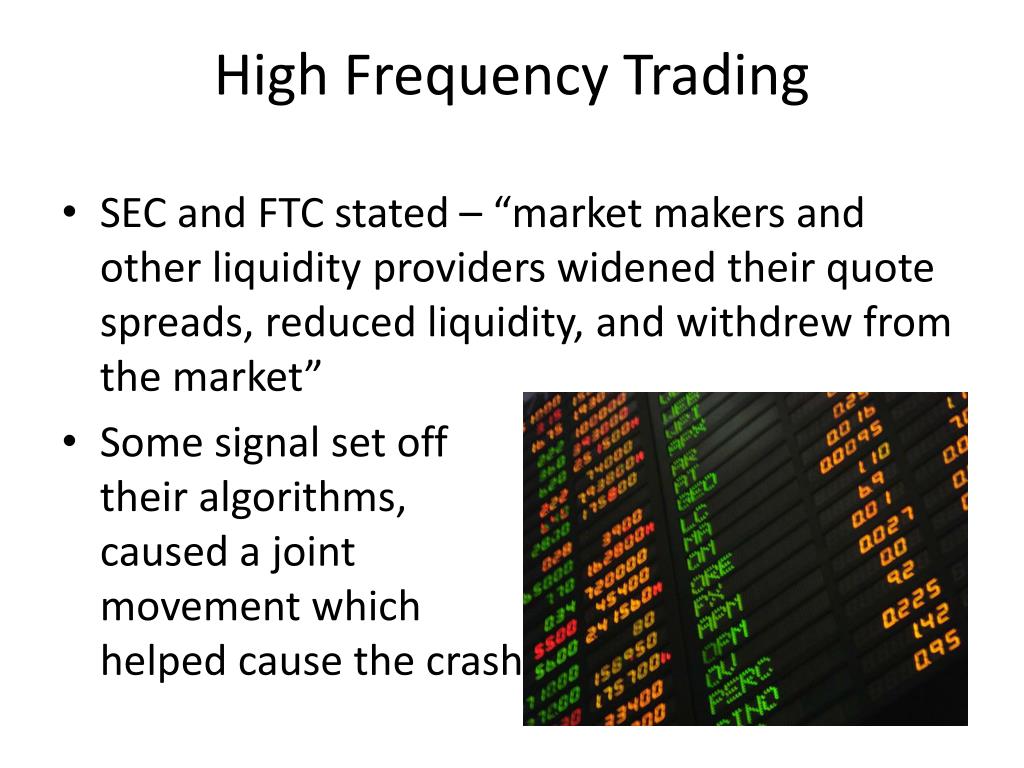

  15. High Frequency Trading • SEC and FTC stated – “market makers and other liquidity providers widened their quote spreads, reduced liquidity, and withdrew from the market” • Some signal set offtheir algorithms,caused a jointmovement whichhelped cause the crash

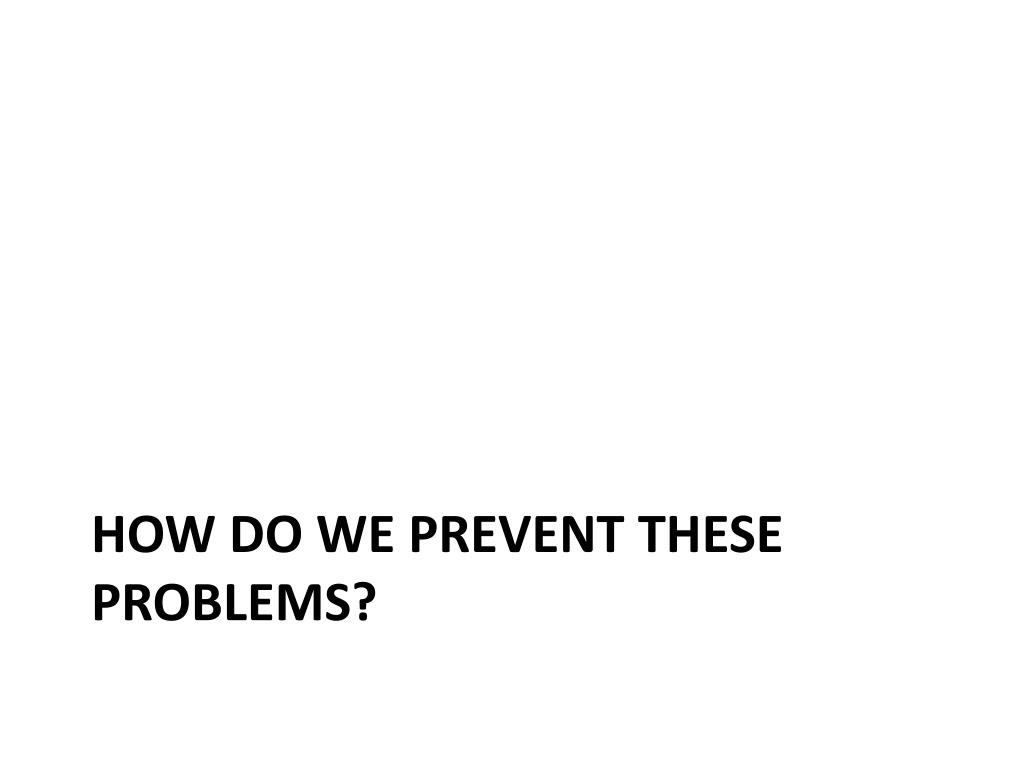

  16. How do we prevent these problems?

  17. Specification, Verification, and Control • Specification • A mathematical statement of the design objective (desired properties of the system) • Verification • Does the designed system achieve its objective in the operating environment? • Controller Synthesis • Given an incomplete design, synthesize a strategy to complete the system so that it achieves its objective in the operating environment

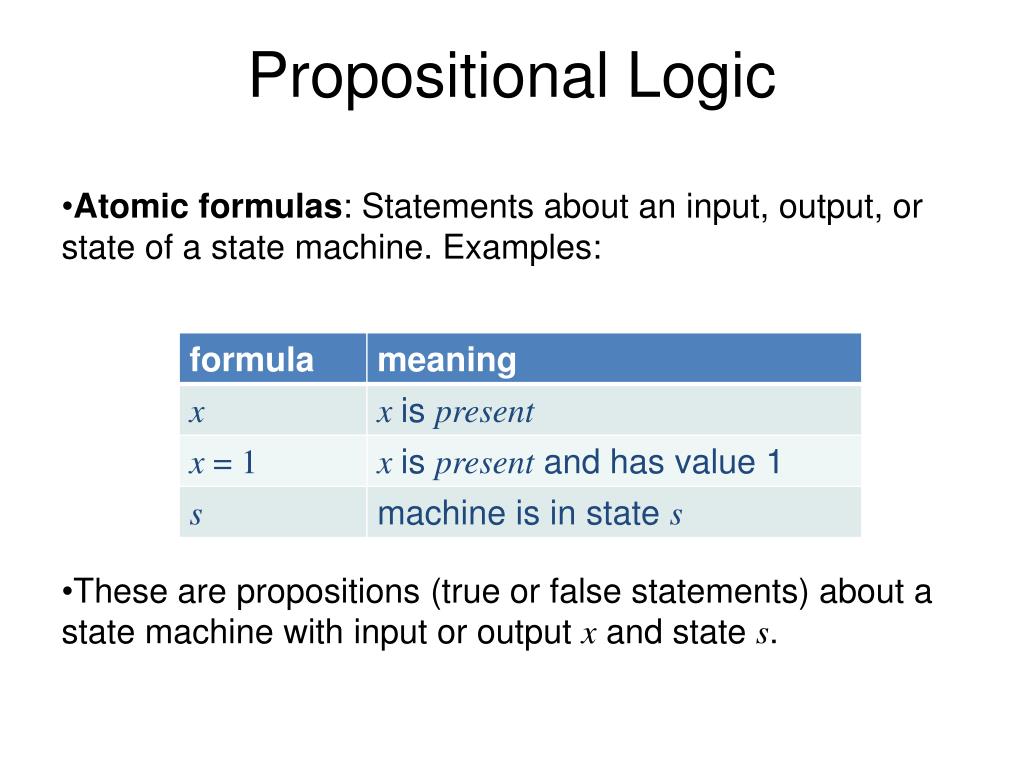

  18. Propositional Logic • Atomic formulas: Statements about an input, output, or state of a state machine. Examples: • These are propositions (true or false statements) about a state machine with input or output x and state s.

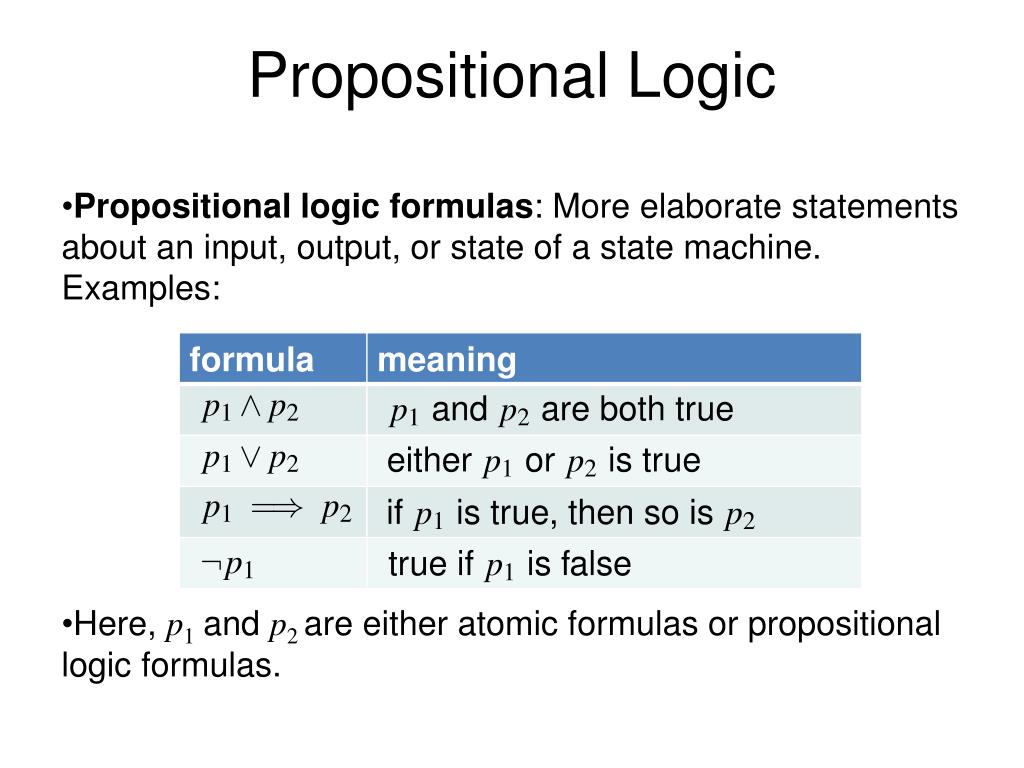

  19. Propositional Logic • Propositional logic formulas: More elaborate statements about an input, output, or state of a state machine. Examples: • Here, p1and p2 are either atomic formulas or propositional logic formulas.

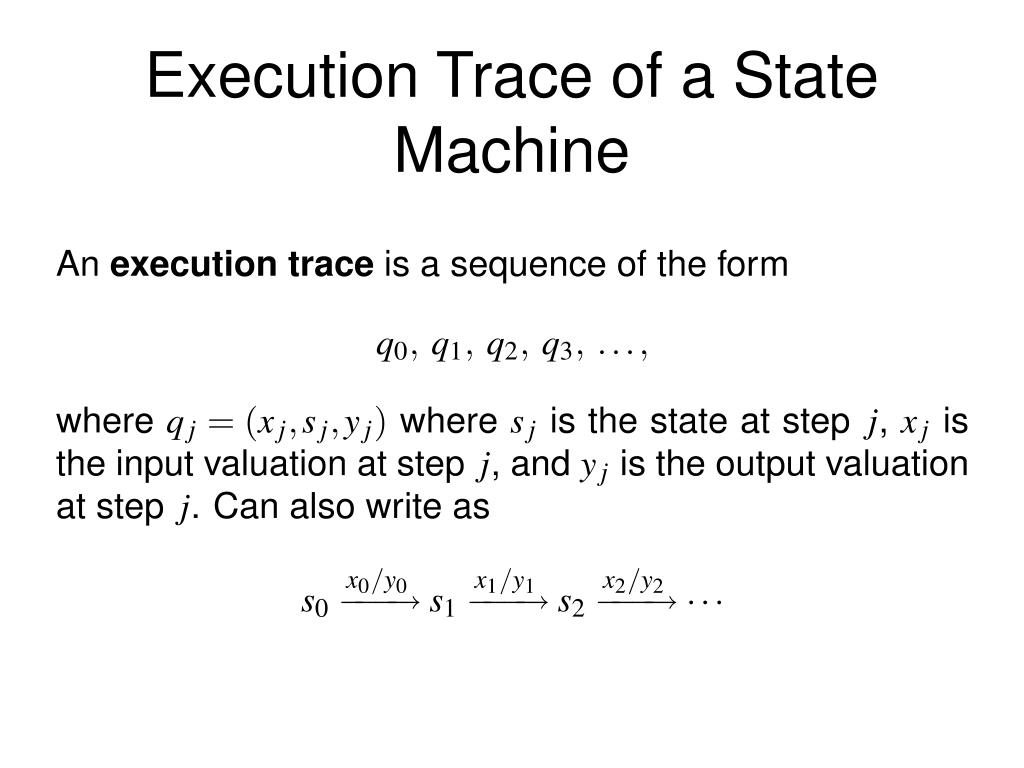

  20. Execution Trace of a State Machine

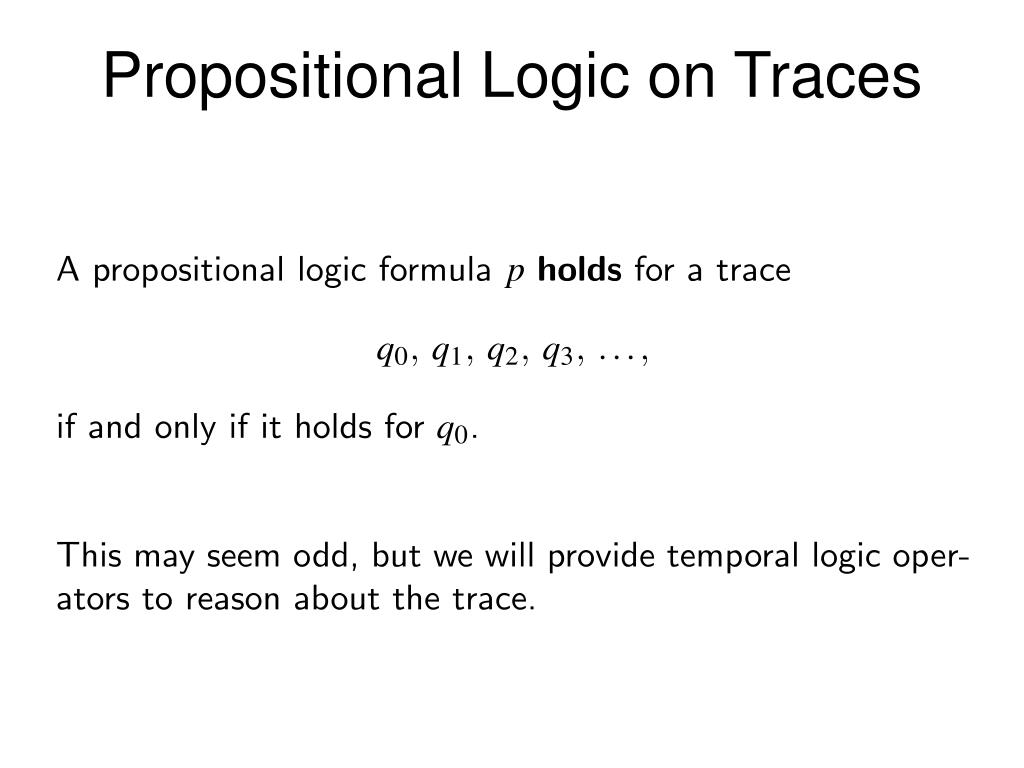

  21. Propositional Logic on Traces

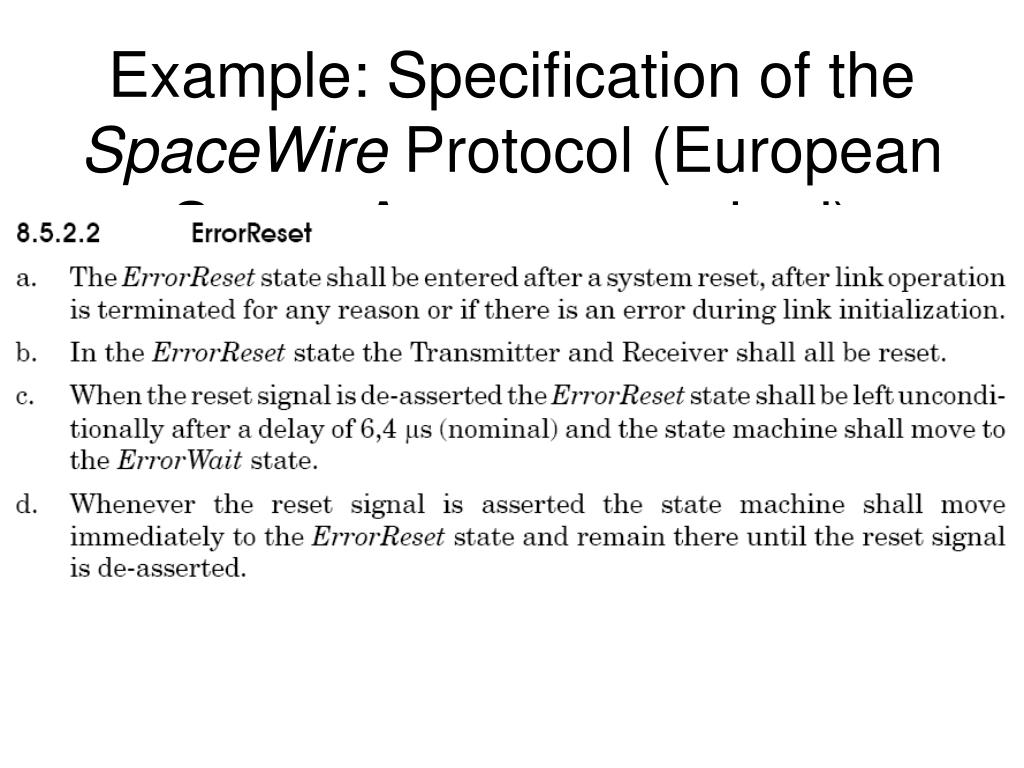

  22. Example: Specification of the SpaceWire Protocol (European Space Agency standard)

  23. The problem with most specifications • Specifications tend to be written by non-engineers, and tend to be written in English. • Why is this a problem?

  24. WRAP UP

  25. For next time Read Chapter 12 – Invariants and Temporal Logic
