  1. Lightning in the Anvils of Supercells Stephanie A. Weiss, Donald R. MacGorman, and Kristin M. Kuhlman

  2. Why Anvil Lightning? • Scientifically Interesting • Lifetime of charge • Charging of hydrometeors in the anvil • Societal Impacts • Ground flashes beneath the anvil • Predictability Anvil lightning flash example from 26 May 2004 supercell

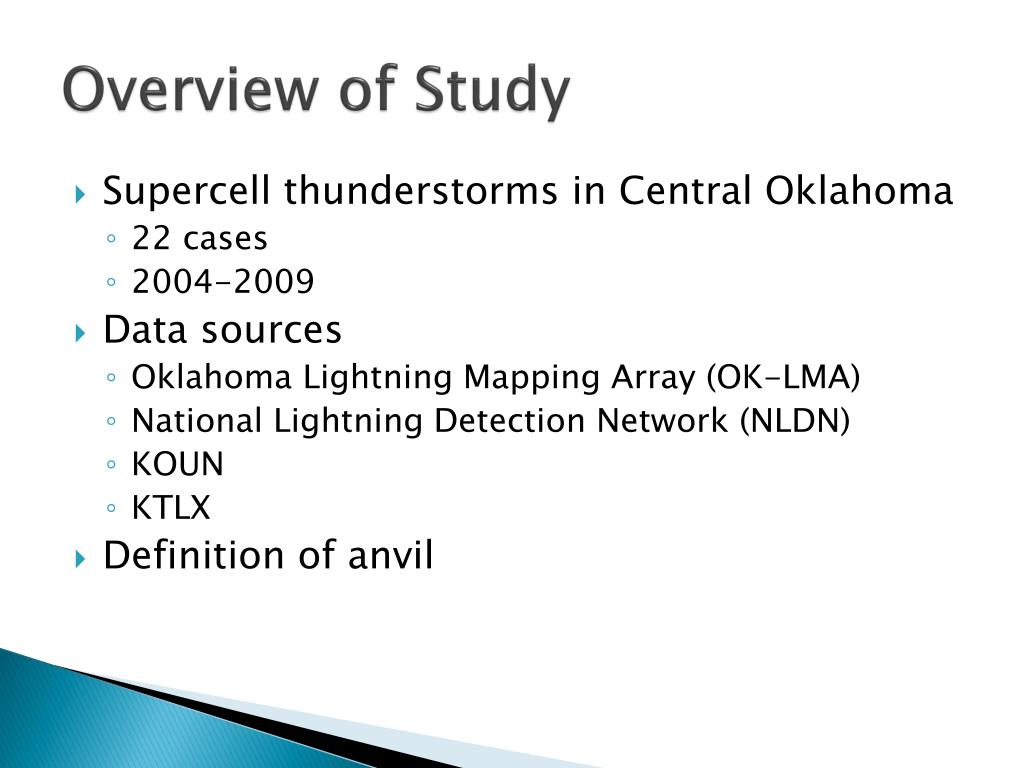

  3. Overview of Study • Supercell thunderstorms in Central Oklahoma • 22 cases • 2004-2009 • Data sources • Oklahoma Lightning Mapping Array (OK-LMA) • National Lightning Detection Network (NLDN) • KOUN • KTLX • Definition of anvil

  4. Flash Initiation in Core 2236:44 UTC 24 May 2004 2236:44 UTC 24 May 2004

  5. Flash Initiation in Core 2236:44 UTC 24 May 2004 Negative Screening Layer Charge Initiation Positive Storm Charge Negative Storm Charge

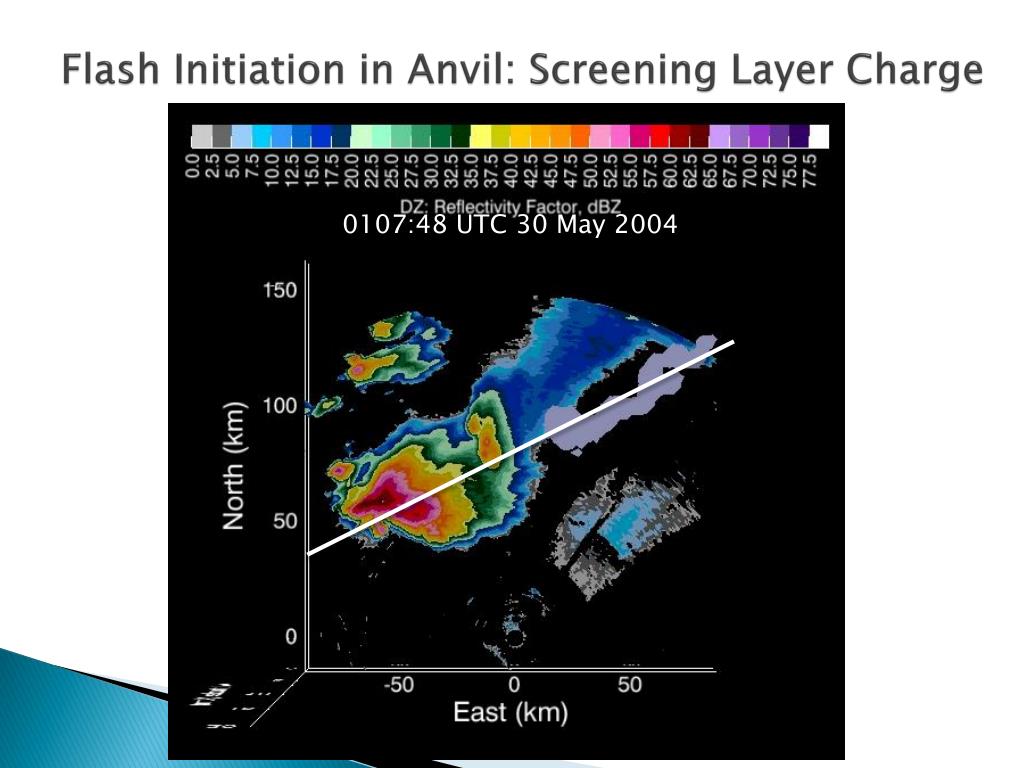

  6. Flash Initiation in Anvil: Screening Layer Charge 0107:48 UTC 30 May 2004

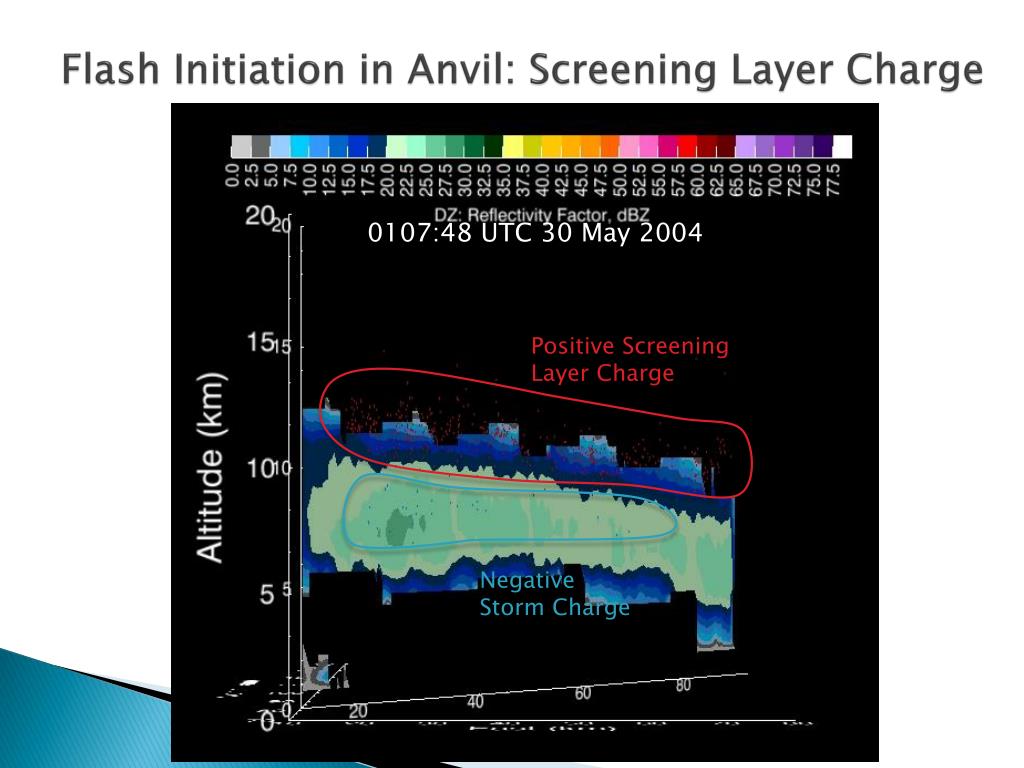

  7. Flash Initiation in Anvil: Screening Layer Charge 0107:48 UTC 30 May 2004 Positive Screening Layer Charge Negative Storm Charge

  8. Flash Initiation in Anvil: Reflectivity Maximum 2328:43 UTC 24 May 2004

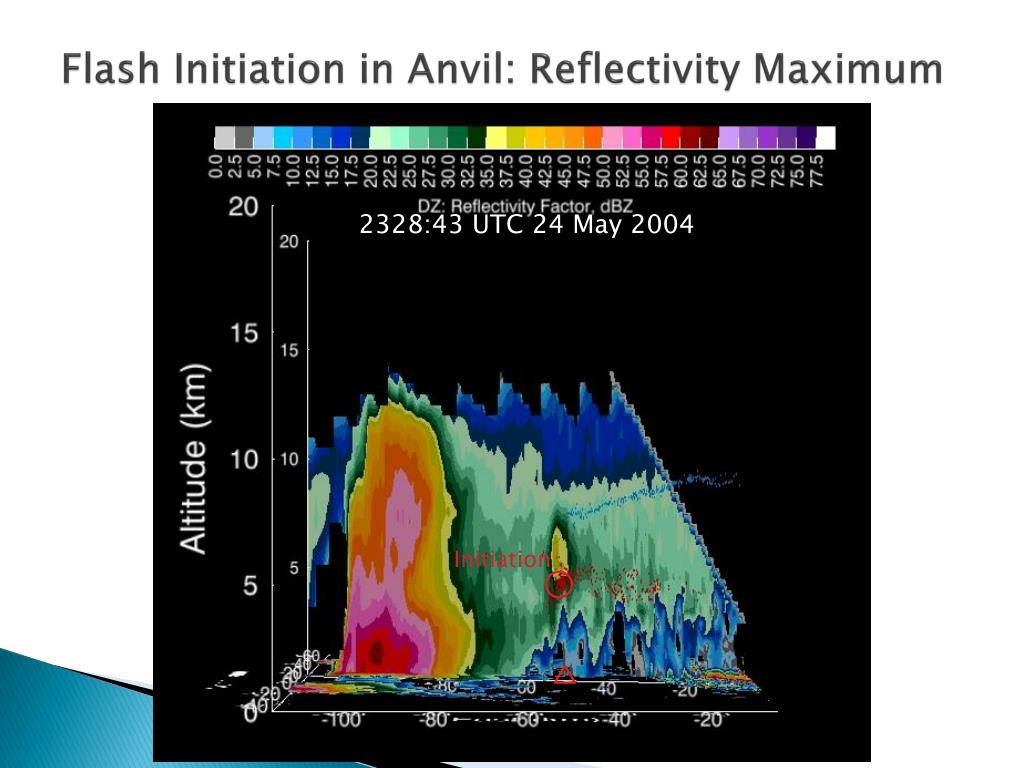

  9. Flash Initiation in Anvil: Reflectivity Maximum 2328:43 UTC 24 May 2004 Initiation

  10. Ground Flashes beneath Anvil: Rain or Virga 2324:30 UTC 24 May 2004

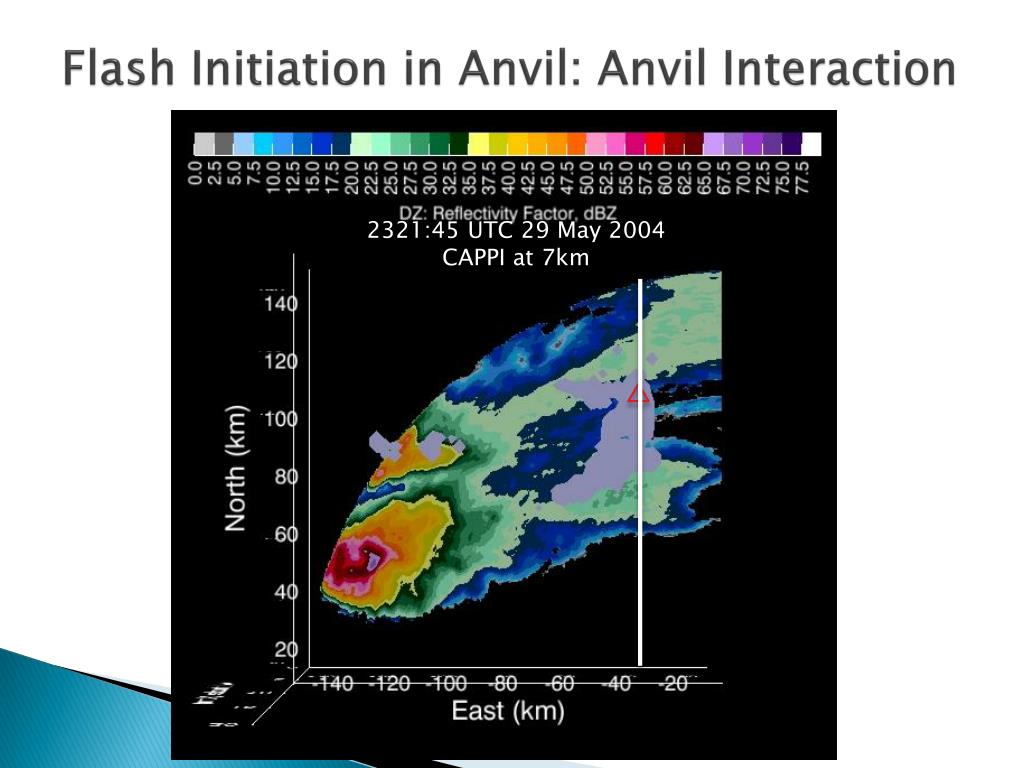

  11. Flash Initiation in Anvil: Anvil Interaction 2321:45 UTC 29 May 2004 CAPPI at 7km

  12. Flash Initiation in Anvil: Anvil Interaction 2321:45 UTC 29 May 2004 Anvil of Southern Storm Anvil of Northern Storm Initiation

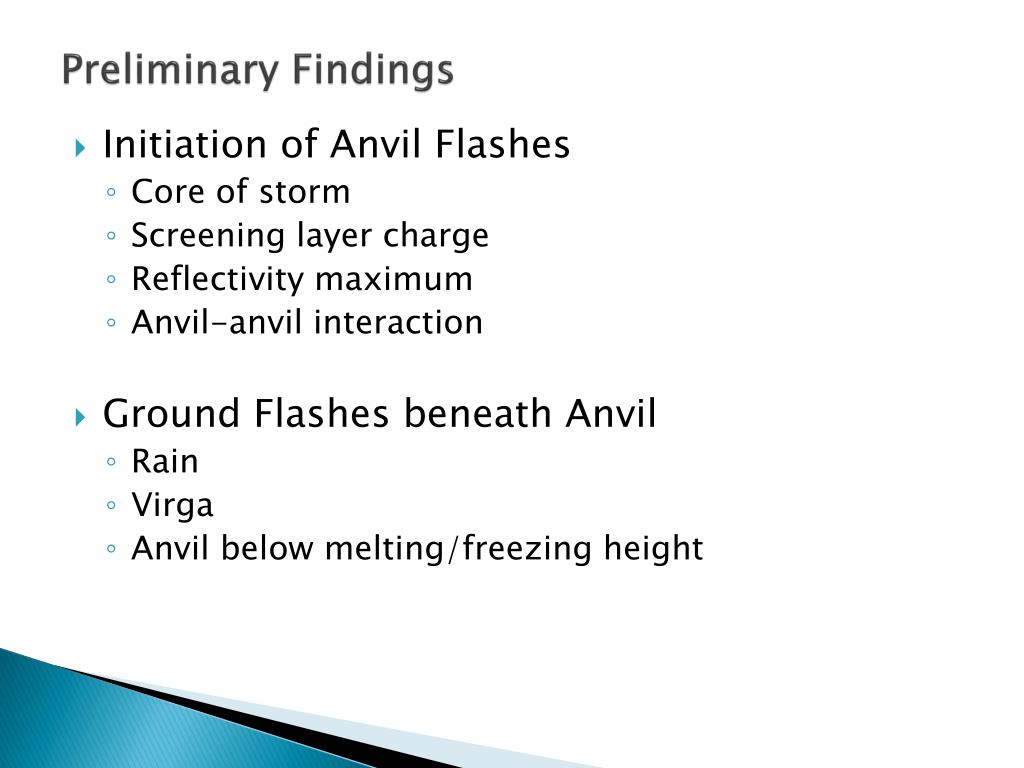

  13. Preliminary Findings • Initiation of Anvil Flashes • Core of storm • Screening layer charge • Reflectivity maximum • Anvil-anvil interaction • Ground Flashes beneath Anvil • Rain • Virga • Anvil below melting/freezing height

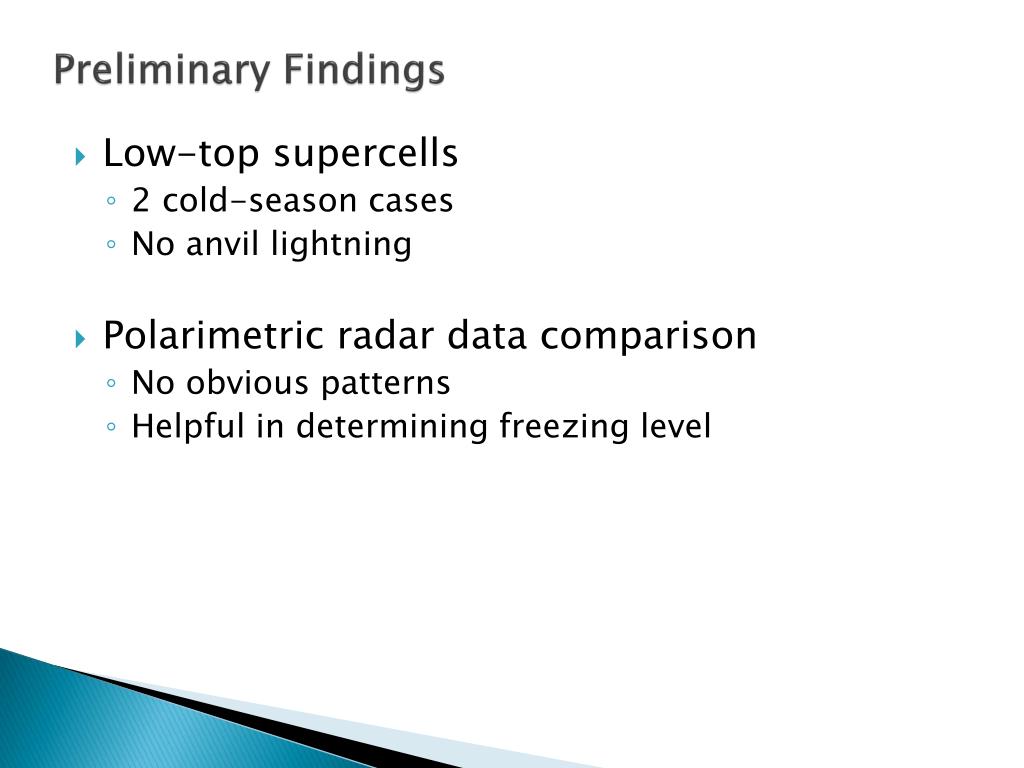

  14. Preliminary Findings • Low-top supercells • 2 cold-season cases • No anvil lightning • Polarimetric radar data comparison • No obvious patterns • Helpful in determining freezing level

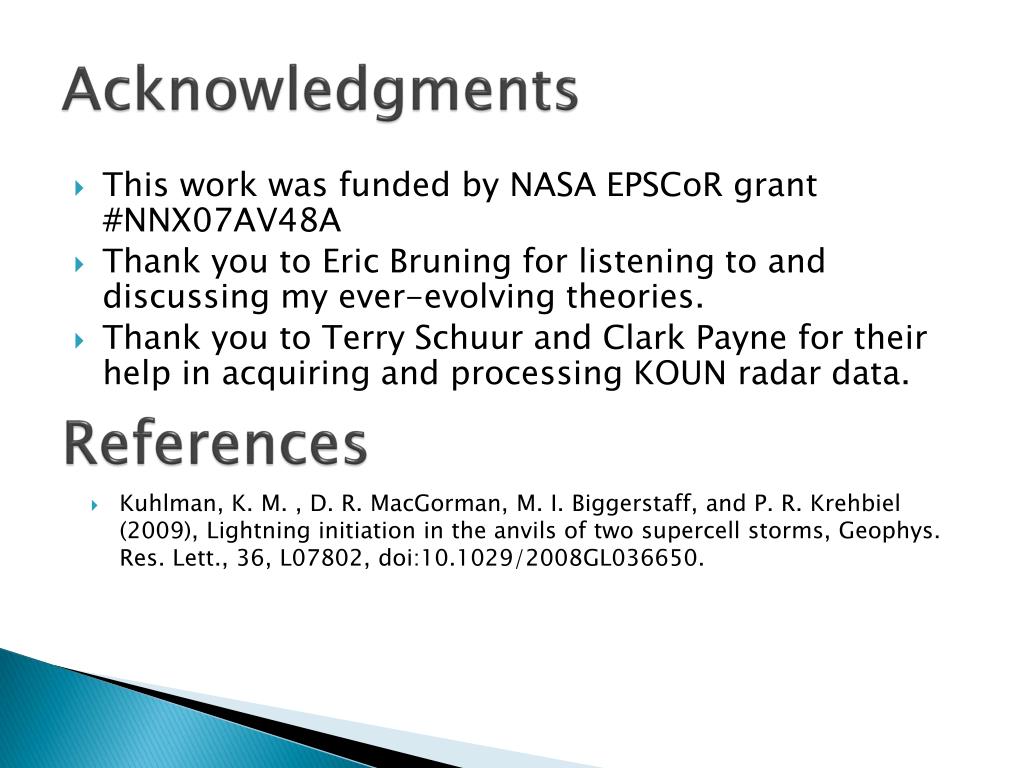

  15. Acknowledgments • This work was funded by NASA EPSCoR grant #NNX07AV48A • Thank you to Eric Bruning for listening to and discussing my ever-evolving theories. • Thank you to Terry Schuur and Clark Payne for their help in acquiring and processing KOUN radar data. References • Kuhlman, K. M. , D. R. MacGorman, M. I. Biggerstaff, and P. R. Krehbiel (2009), Lightning initiation in the anvils of two supercell storms, Geophys. Res. Lett., 36, L07802, doi:10.1029/2008GL036650.
