  1. Reliable Transmissions in Large Scale Sensor Networks for Medical Monitoring Applications 曾俊元 C. Henry Tseng

  2. Academia Experience • Degree • University of California, Davis, PhD in Computer Science, 2006 • Current position • NTPU CSIE, Assistant Professor, 2009~ • NTPU Information Center, Section Chief of System, 2012~ • Experience • NTPU MIS, Joint Appointment Asst. Prof., 2010~2011 • NTPU Office of R&D, Section Chief of Planning, 2010~2011

  3. Industrial Experience • Telcordia Taiwan Research Center, 2009 • Senior Research Scientist • Telmatics projects with III & ITRI • Cisco Systems Inc., 2006~2008 • Software Engineer III, IOS OSPF Developer • Core Campus, San Jose, CA, USA • McAFee Software Engineer, 2001 • IntruShield IDS prototype development

  4. Security research topics • Past • Intrusion detection for MANET Routing • Malicious Domain name detection • Current • Rootkit detection & prevention • Malware sample collection, analysis & evaluation • Automation for web logs of intrusions • HoneyPod of SQL injection attacks • Future • Online game anti-bot detection & prevention at server side

  5. Outline of Zigbee research • Zigbeestack • Issues of Zigbee stack • Solutions • New monitoring applications

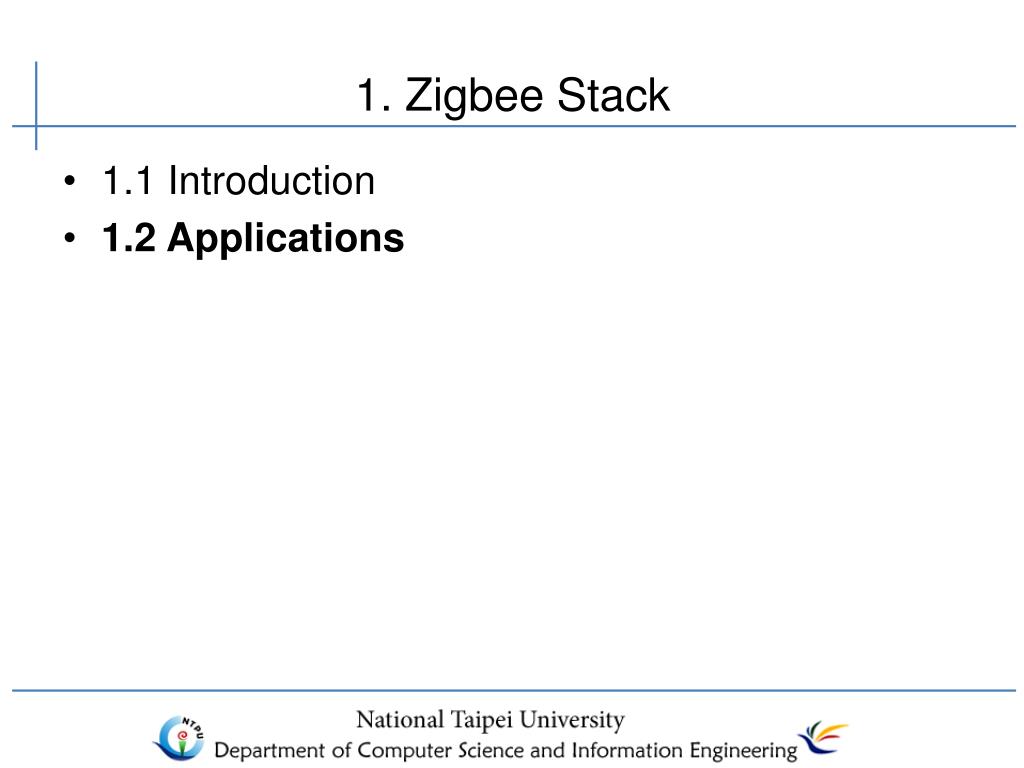

  6. 1. Zigbee Stack • 1.1 Introduction • 1.2 Applications

  7. Overview • Zigbeenetwork • Nodes：Coordinator, Router, End device • PAN: Personal Area Network • End devices send sensor data to Coordinator • Coordinator forwards data to sink node (backend data server)

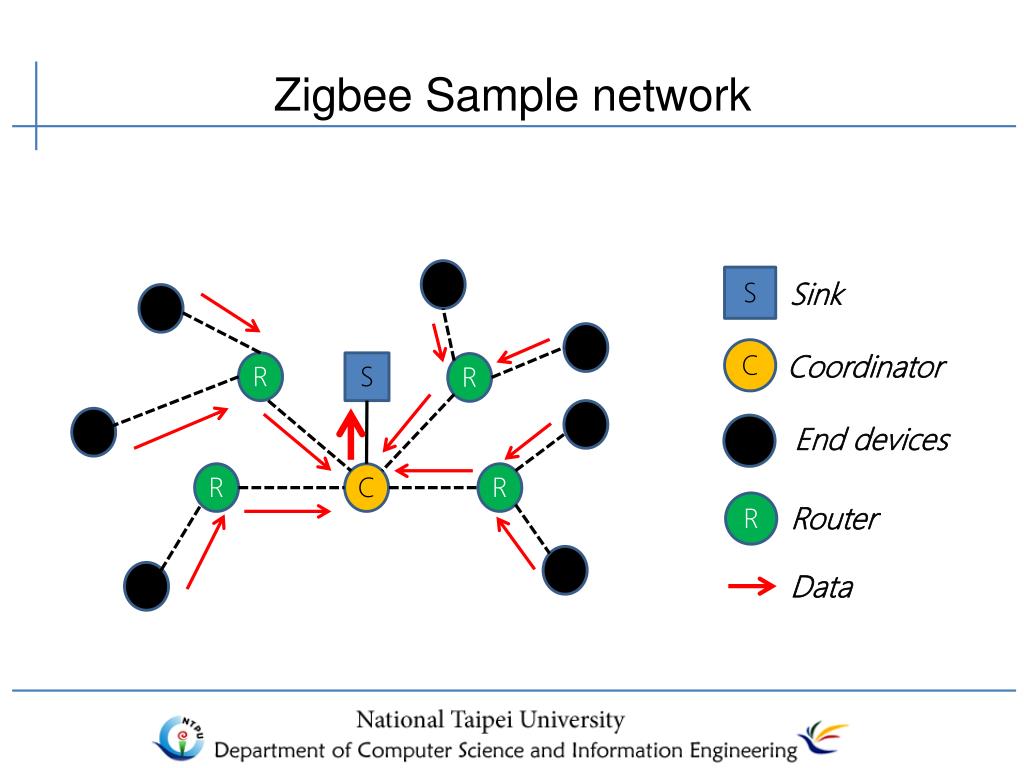

  8. Zigbee Sample network S Sink C Coordinator R S R End devices R C R R Router Data

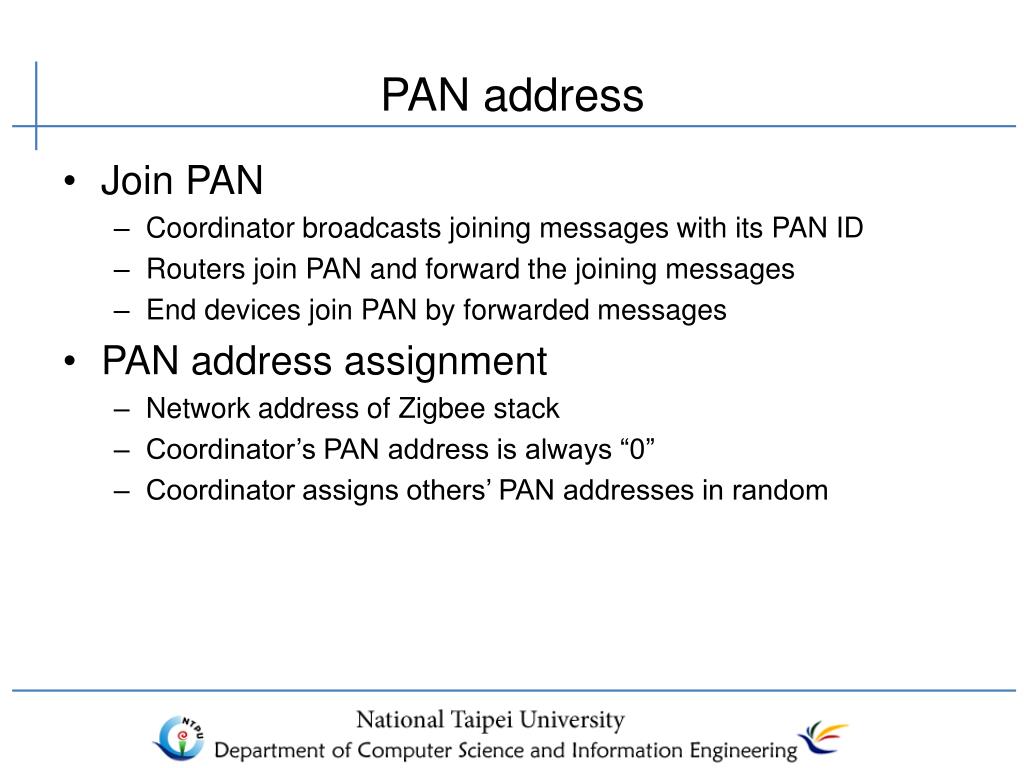

  9. PAN address • Join PAN • Coordinator broadcasts joining messages with its PAN ID • Routers join PAN and forward the joining messages • End devices join PAN by forwarded messages • PAN address assignment • Network address of Zigbee stack • Coordinator’s PAN address is always “0” • Coordinator assigns others’ PAN addresses in random

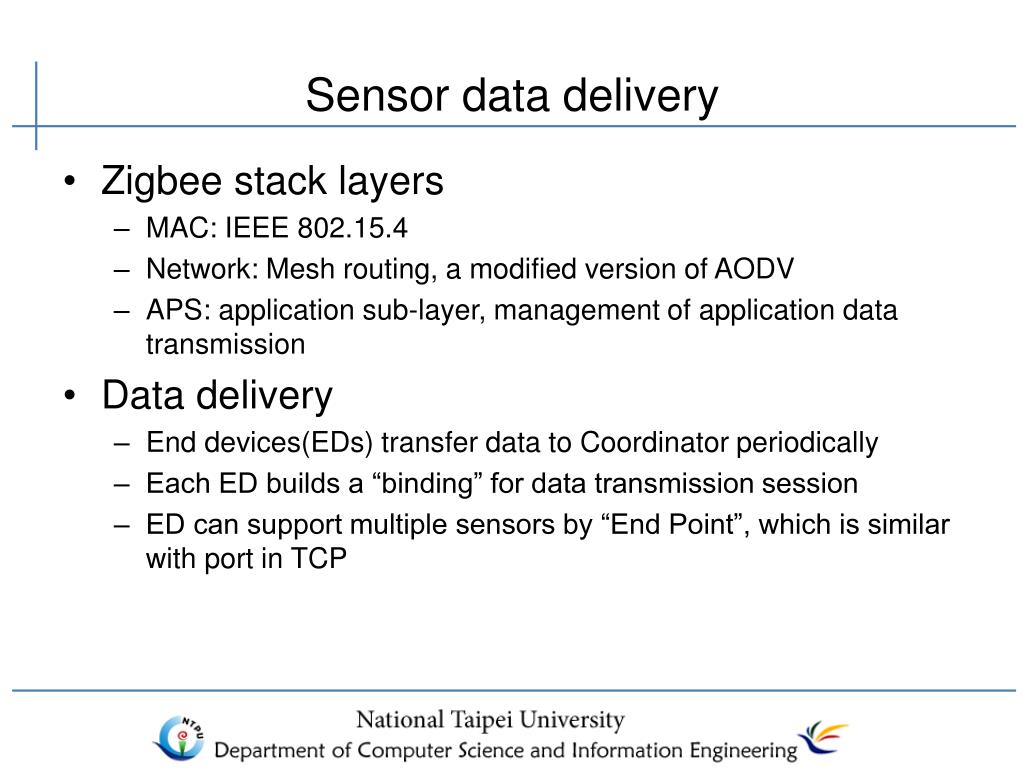

  10. Sensor data delivery • Zigbee stack layers • MAC: IEEE 802.15.4 • Network: Mesh routing, a modified version of AODV • APS: application sub-layer, management of application data transmission • Data delivery • End devices(EDs) transfer data to Coordinator periodically • Each ED builds a “binding” for data transmission session • ED can support multiple sensors by “End Point”, which is similar with port in TCP

  11. Reliable transferring • Acknowledgement • MAC ACK • APS ACK • MAC ACK • Each link transmission requires a MAC ACK • Ensure reliability of each wireless link transmission • APS • Each remote transmission of a binding requires a APS ACK • Ensure reliability of each remote transferring • Independent from MAC ACK

  12. Example data delivery Coordinator End Device Router [3] Send the data [1] Send the data [2] MAC ACK [4] MAC ACK [7] APS ACK [5] APS ACK [8] MAC ACK [6] MAC ACK

  13. 1. Zigbee Stack • 1.1 Introduction • 1.2 Applications

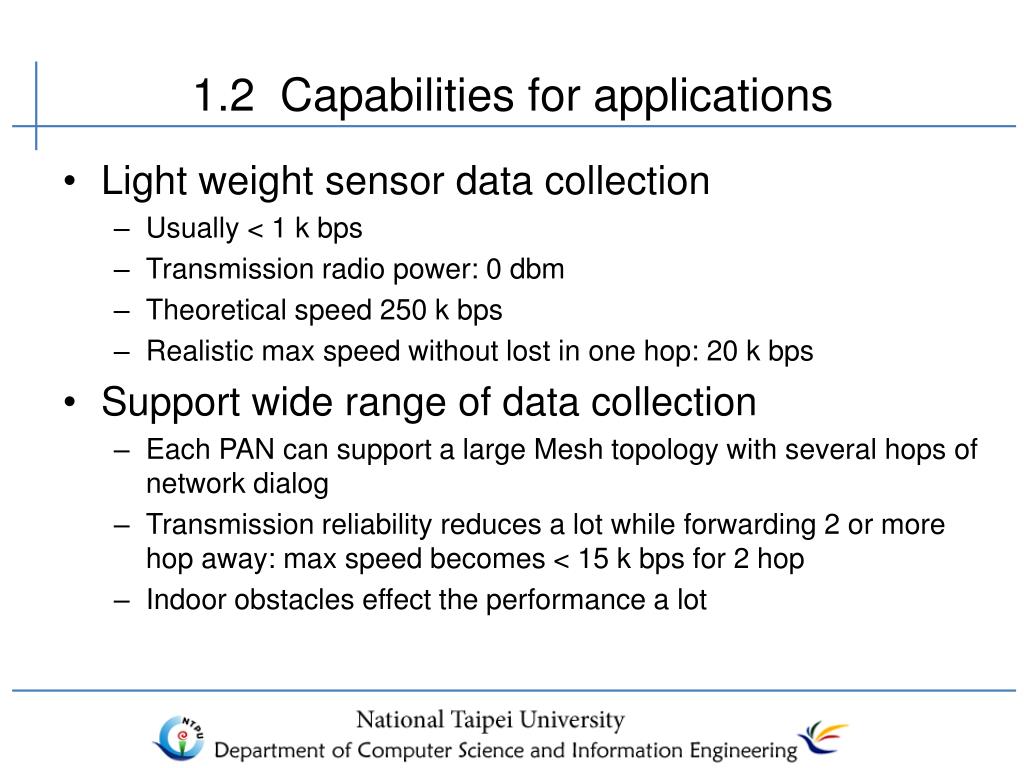

  14. 1.2 Capabilities for applications • Light weight sensor data collection • Usually < 1 k bps • Transmission radio power: 0 dbm • Theoretical speed 250 k bps • Realistic max speed without lost in one hop: 20 k bps • Support wide range of data collection • Each PAN can support a large Mesh topology with several hops of network dialog • Transmission reliability reduces a lot while forwarding 2 or more hop away: max speed becomes < 15 k bps for 2 hop • Indoor obstacles effect the performance a lot

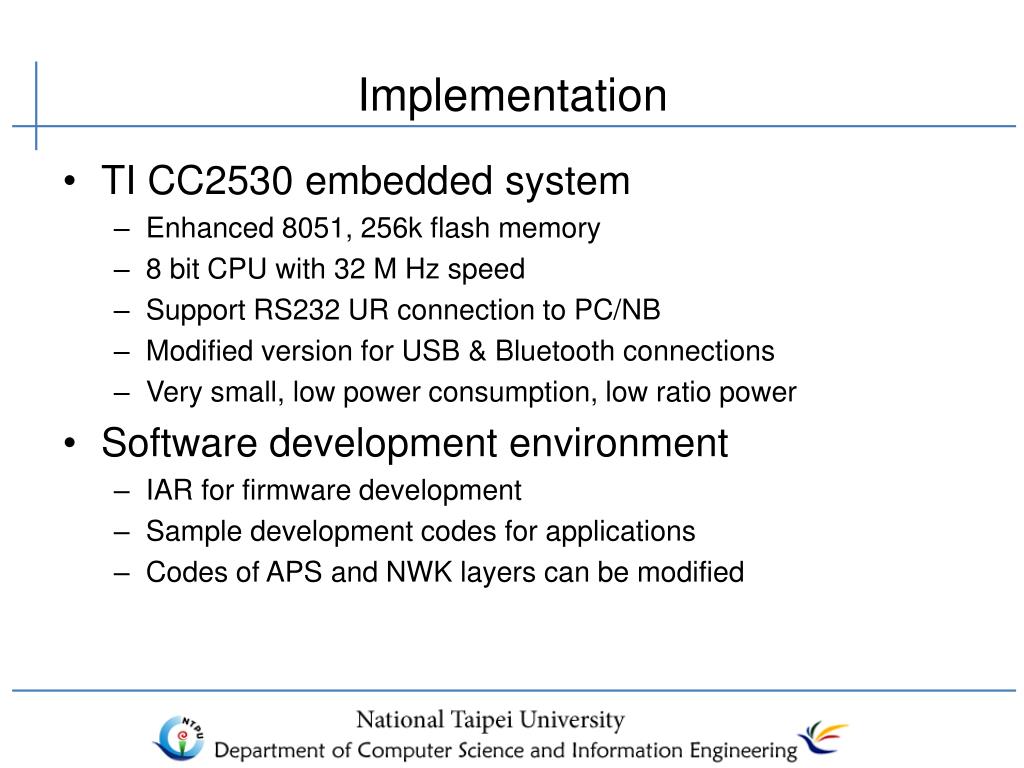

  15. Implementation • TI CC2530 embedded system • Enhanced 8051, 256k flash memory • 8 bit CPU with 32 M Hz speed • Support RS232 UR connection to PC/NB • Modified version for USB & Bluetooth connections • Very small, low power consumption, low ratio power • Software development environment • IAR for firmware development • Sample development codes for applications • Codes of APS and NWK layers can be modified

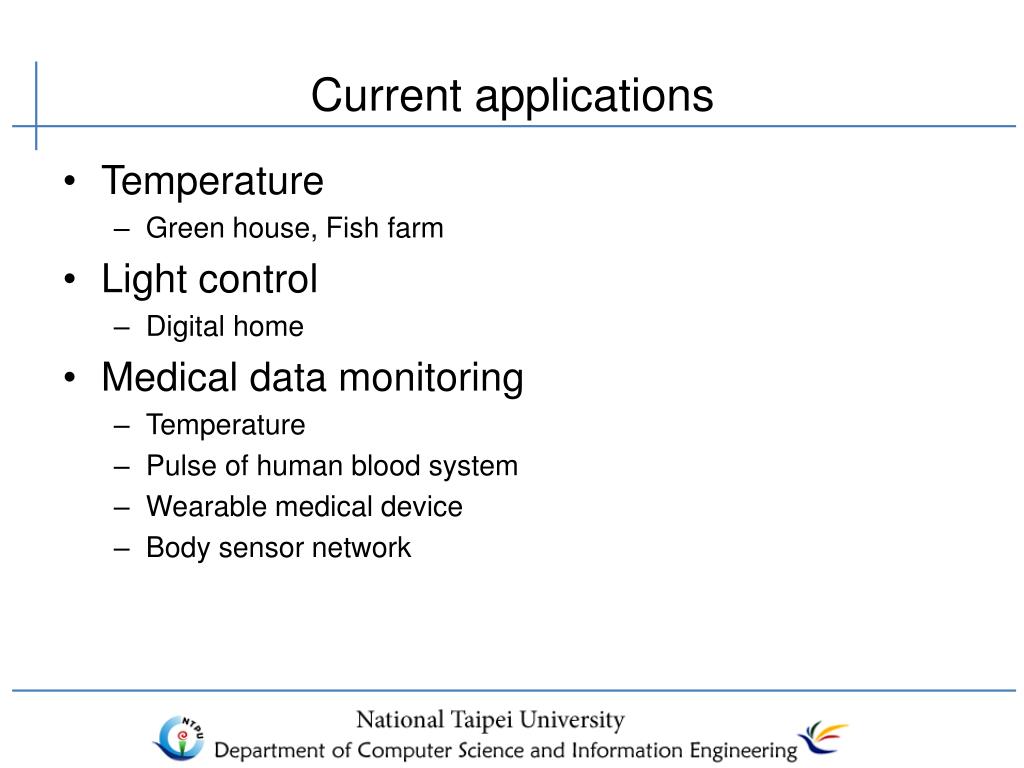

  16. Current applications • Temperature • Green house, Fish farm • Light control • Digital home • Medical data monitoring • Temperature • Pulse of human blood system • Wearable medical device • Body sensor network

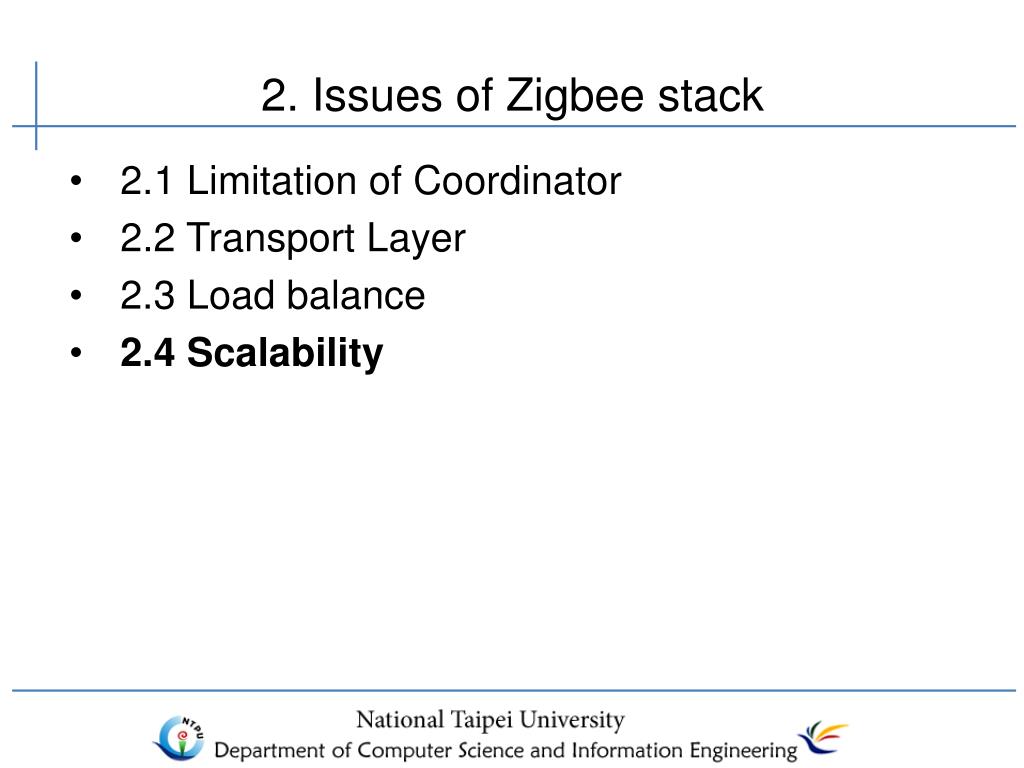

  17. 2. Issues of Zigbee stack • 2.1 Limitation of Coordinator • 2.2 Transport Layer • 2.3 Load balance • 2.4 Scalability

  18. Role of Coordinator • PAN management • Coordinator (CO) must be unique in a PAN • Node joining relies on CO • IEEE802.15.4 can hardly be modified • Data transmission • EDs send data to CO by default • Manual binding setting is costly • Failure of CO

  19. Failure of CO • PAN network services collapse • PAN management fails • Data transmission may completely stop • No solution for CO failure • A PAN cannot have 2 COs • No automatic solution

  20. 2. Issues of Zigbee stack • 2.1 Limitation of Coordinator • 2.2 Transport Layer • 2.3 Load balance • 2.4 Scalability

  21. Transport Layer • Included functions in APS • ACK service • Binding • End port • ID of data packet • Between UDP & TCP • UDP is too simple • TCP is too heavy for Zigbee • Sufficient but limited functions

  22. New demands • Issues • Cannot send a large data message • No flow control • Resent times is fixed (3 times) • RTT is fixed • Desirable functions • Data fragmentation & re-assembling • Receive window • Enhanced timeout & resending strategy • Sequence number

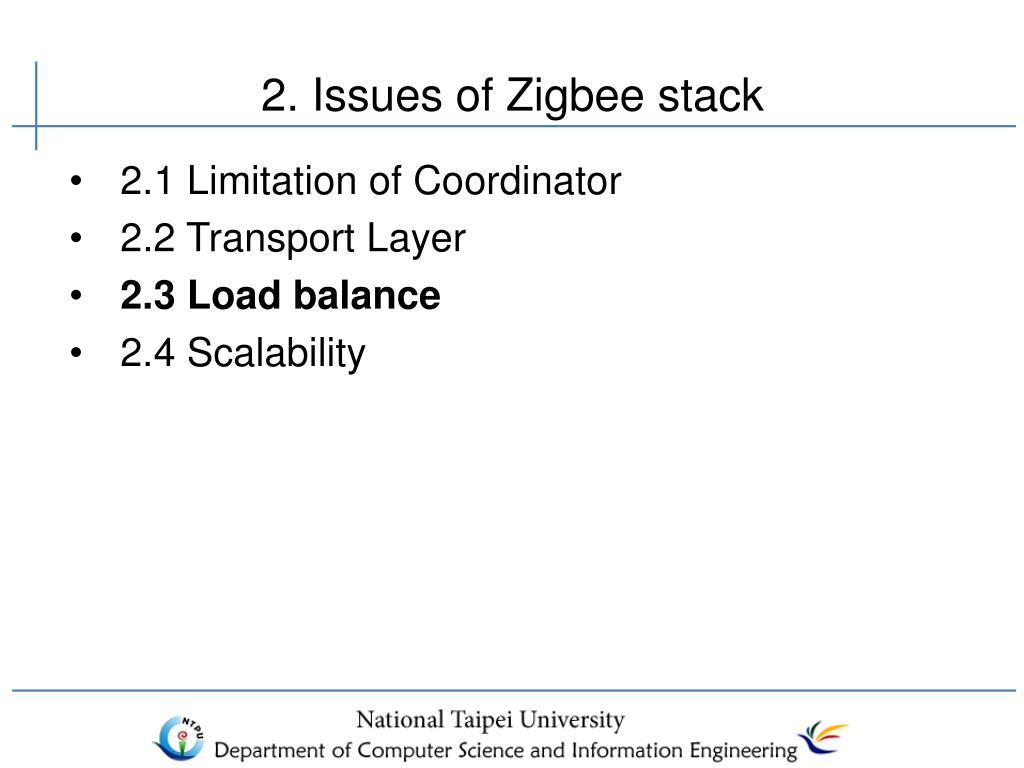

  23. 2. Issues of Zigbee stack • 2.1 Limitation of Coordinator • 2.2 Transport Layer • 2.3 Load balance • 2.4 Scalability

  24. Load Balance • First ring nodes • Nodes directly connected to Sink or Coordinator • Can directly forward data to Sink or Coordinator • Usually accumulate large amount of data traffic • Can be network bottleneck or die out easily • Balancing traffic of whole PAN • Local balance vs. global balance

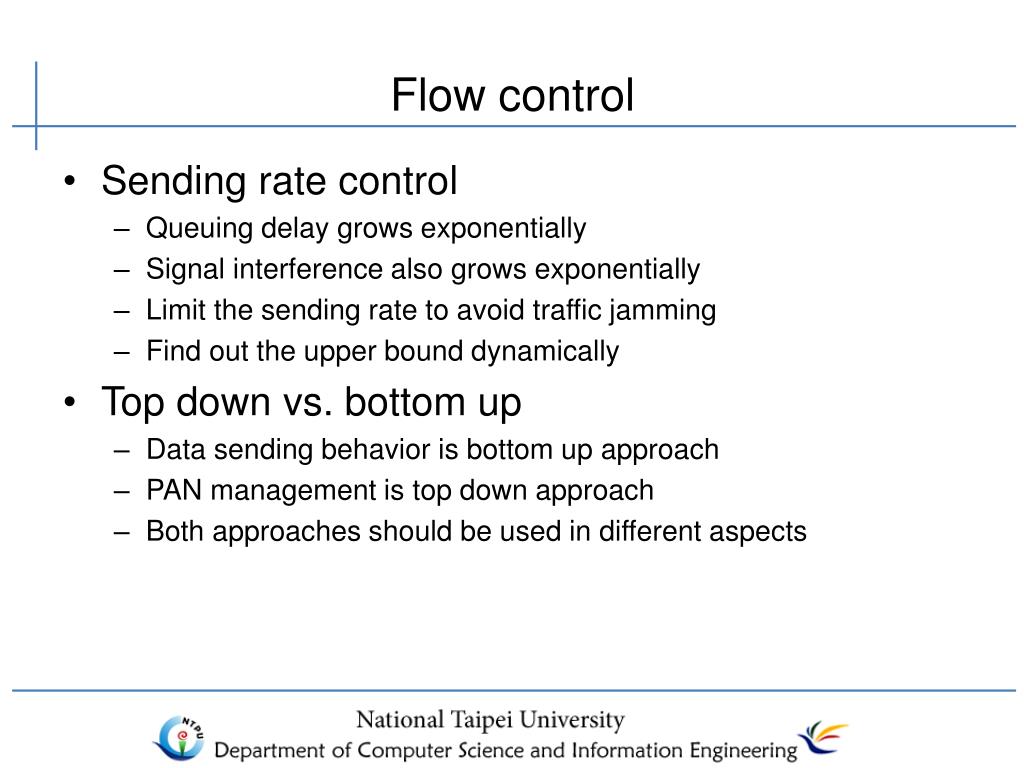

  25. Flow control • Sending rate control • Queuing delay grows exponentially • Signal interference also grows exponentially • Limit the sending rate to avoid traffic jamming • Find out the upper bound dynamically • Top down vs. bottom up • Data sending behavior is bottom up approach • PAN management is top down approach • Both approaches should be used in different aspects

  26. 2. Issues of Zigbee stack • 2.1 Limitation of Coordinator • 2.2 Transport Layer • 2.3 Load balance • 2.4 Scalability

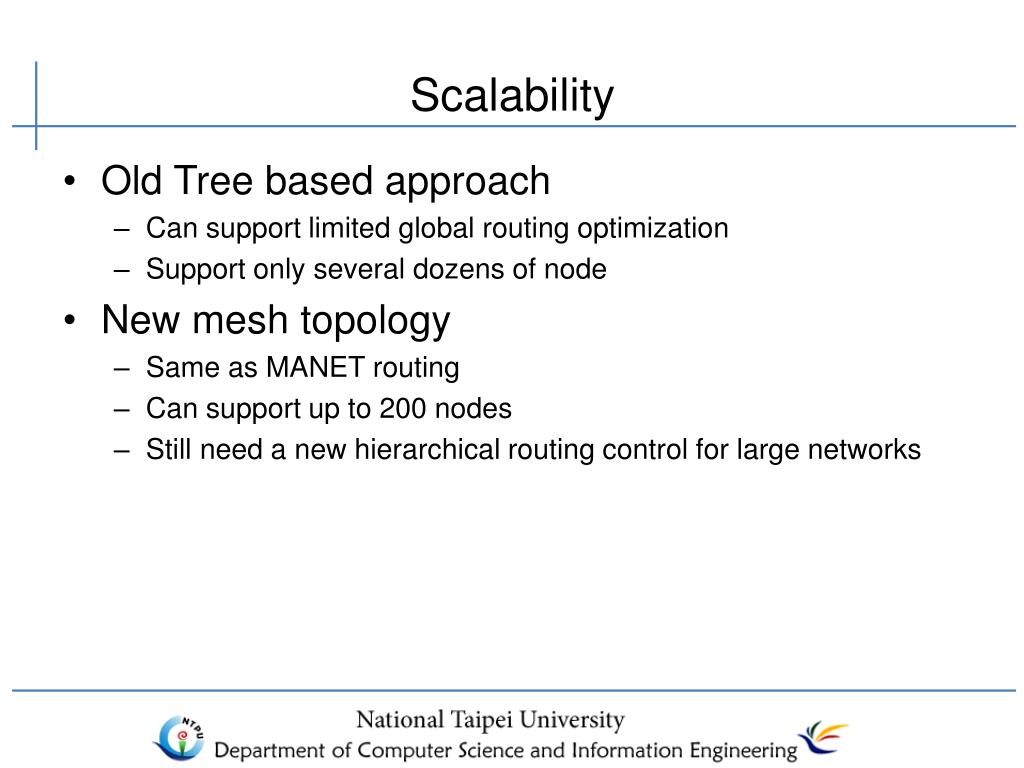

  27. Scalability • Old Tree based approach • Can support limited global routing optimization • Support only several dozens of node • New mesh topology • Same as MANET routing • Can support up to 200 nodes • Still need a new hierarchical routing control for large networks

  28. Measure metrics • Number of nodes • Tree level • Topology dialog • Node density • Number of neighbors • Routing load • Signal interference

  29. 3. Solutions • 3.1 CDTS • 3.2 Backup Coordinator

  30. Coordinator Data Traffic Shunt (CDTS) • CDTS Router • Helper node of Coordinator traffic forwarding • Connect sink node with Direct Communication Link (DCL) • RS232, Bluetooth, USB • CDTS Group • CDTS routers nearby the sink node • Absorb traffic toward the sink node without going through Coordinator

  31. Example Topology

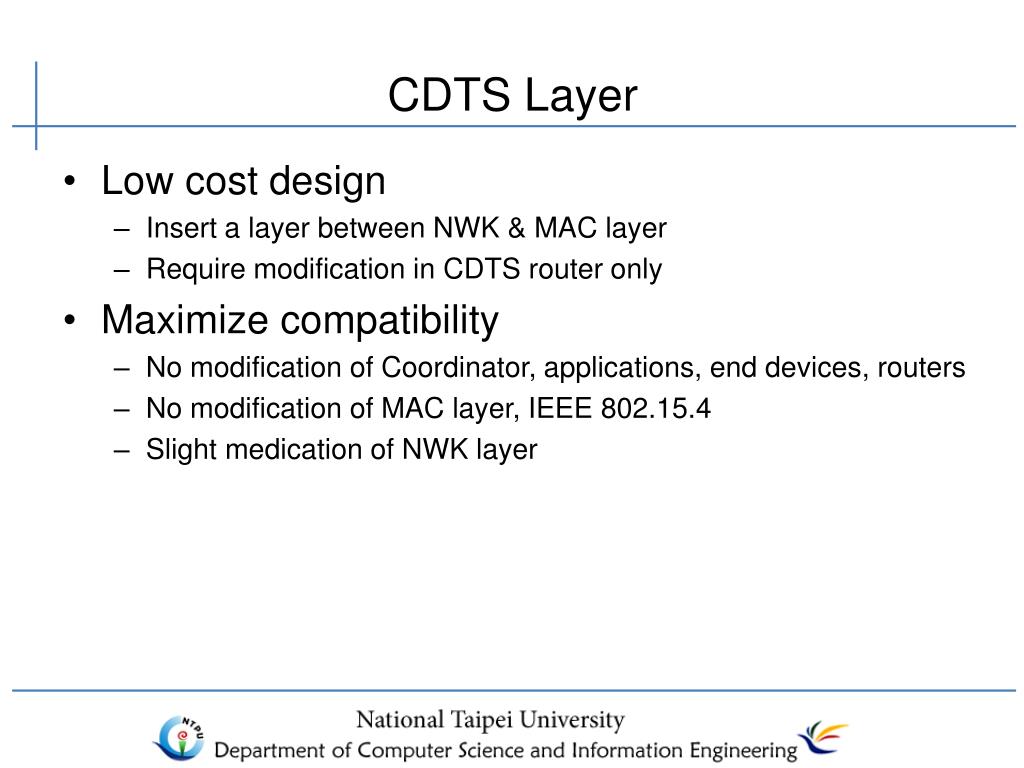

  32. CDTS Layer • Low cost design • Insert a layer between NWK & MAC layer • Require modification in CDTS router only • Maximize compatibility • No modification of Coordinator, applications, end devices, routers • No modification of MAC layer, IEEE 802.15.4 • Slight medication of NWK layer

  33. Address modification CDTS layer in Zigbeestack Address Modification

  34. CDTSrouter Reuse APS functions End-device [1] Send the data [2] APS ACK CDTS

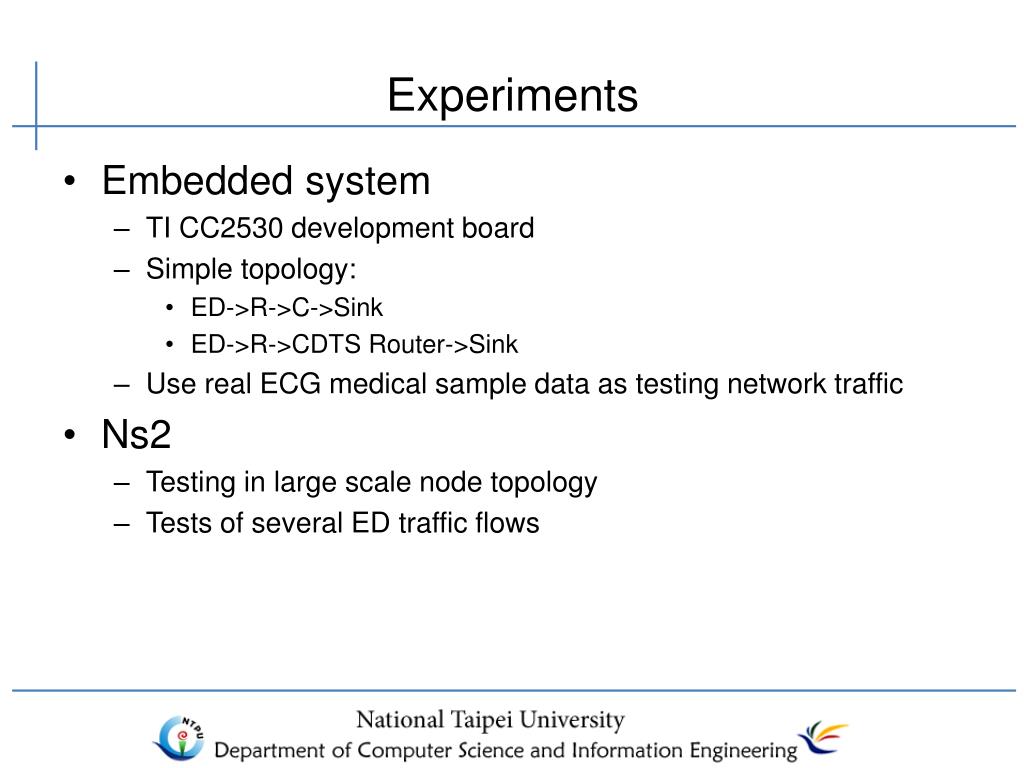

  35. Experiments • Embedded system • TI CC2530 development board • Simple topology: • ED->R->C->Sink • ED->R->CDTS Router->Sink • Use real ECG medical sample data as testing network traffic • Ns2 • Testing in large scale node topology • Tests of several ED traffic flows

  36. Deliver ratio vs. Sending rate threshold 80% Embedded system

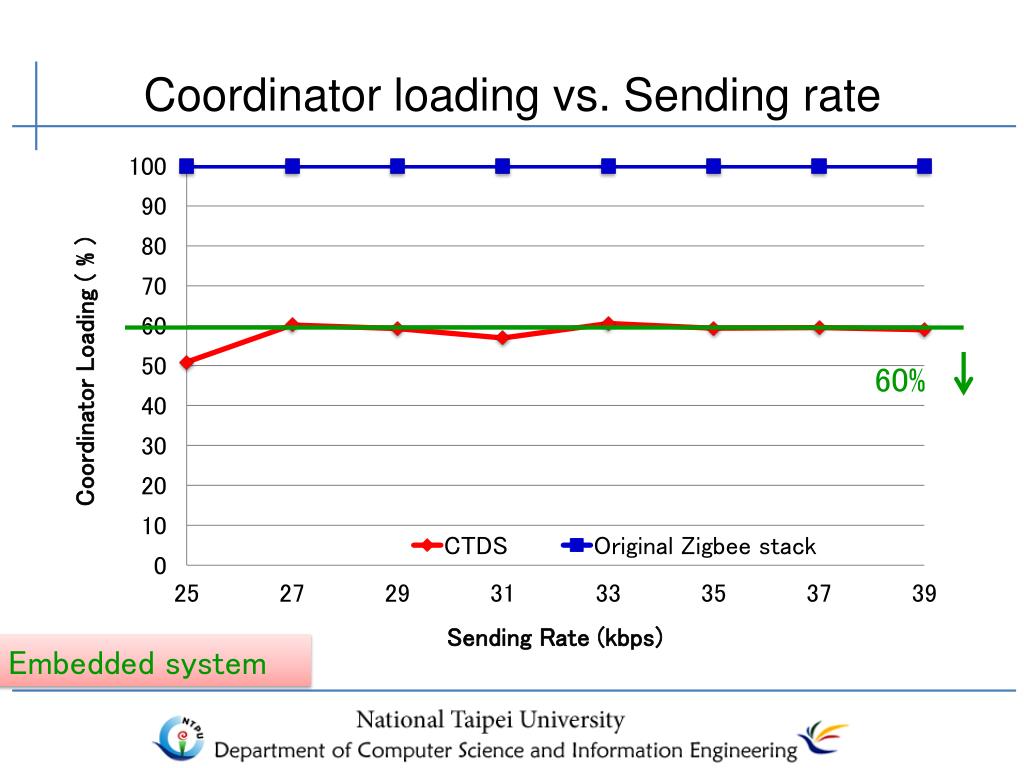

  37. Coordinator loading vs. Sending rate 60% Embedded system

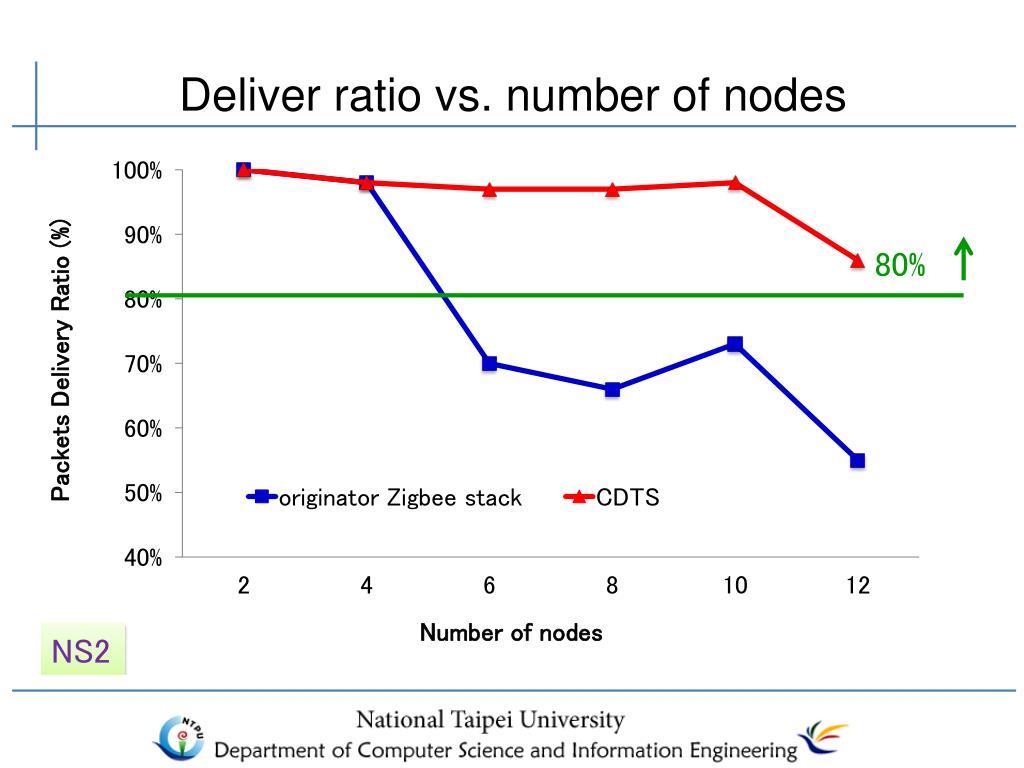

  38. Deliver ratio vs. number of nodes 80%

  39. Achievement • TBME • ChinyangHenry Tseng, "Coordinator Traffic Diffusion for Data-Intensive Zigbee Transmission in Real-time Electrocardiography Monitoring", IEEE Transactions on Biomedical Engineering, to appear. • ICS 2012 • Chinyang Henry Tseng, ShiauHuey Wang, Bor-Shing Lin, Tong-Ying Junag, Xiao-RuJi, "CDTS: Coordinator Data Traffic Shunt model for Zigbee networks", International Computer Symposium (ICS 2012)

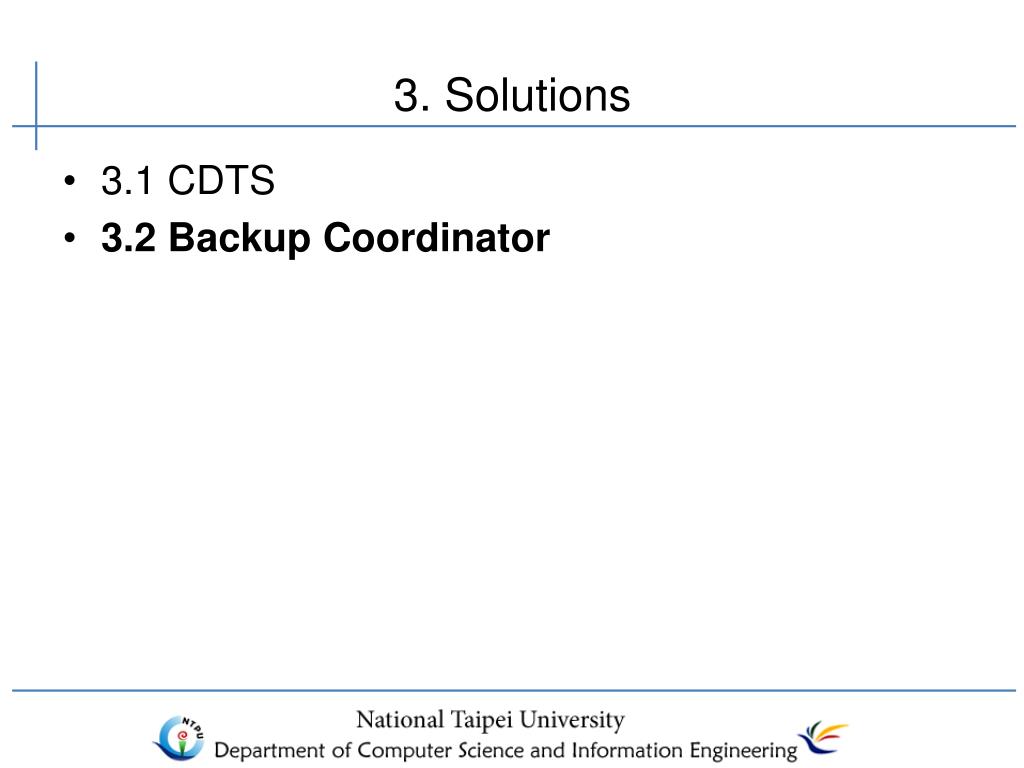

  40. 3. Solutions • 3.1 CDTS • 3.2 Backup Coordinator

  41. Back Coordinator • Back Coordinator group • BC1, BC2, … • Compatible with CDTS group • Automatic Coordinator recovery • Monitoring Coordinator network status • Detection of Coordinator failure • Replace Coordinator automatically

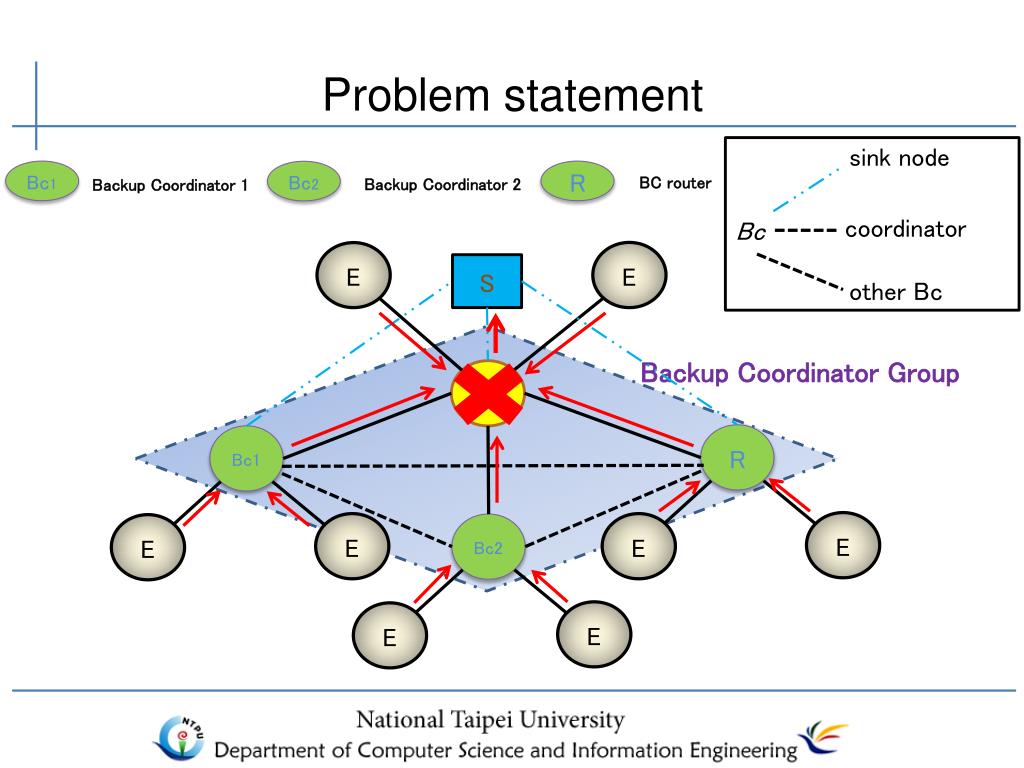

  42. Problem statement R Bc2 Bc1 sink node E E E E E E coordinator Bc E E S other Bc Backup Coordinator Group C Bc1 R Bc2 BC router Backup Coordinator 2 Backup Coordinator 1

  43. Coordinator recovery E E E E E E E E S Backup Coordinator Group R Bc1 Bc1 Bc2 R C Bc2 Bc1

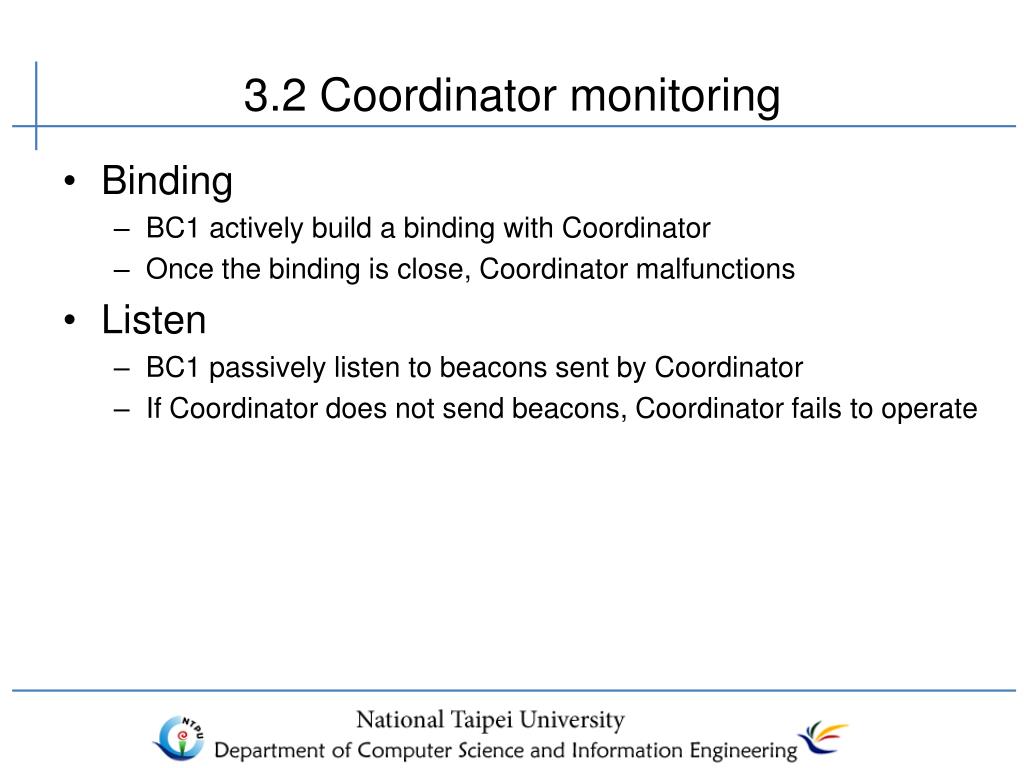

  44. 3.2 Coordinator monitoring • Binding • BC1 actively build a binding with Coordinator • Once the binding is close, Coordinator malfunctions • Listen • BC1 passively listen to beacons sent by Coordinator • If Coordinator does not send beacons, Coordinator fails to operate

  45. Coordinator recovery steps • BC1 -> C • Change its setting as Coordinator • Execute Coordinator mechanisms • No need of rebooting the firmware • Modification requirements • Only in BC • APS for Coordinator monitoring • NWK for Coordinator mechanism re-establishment

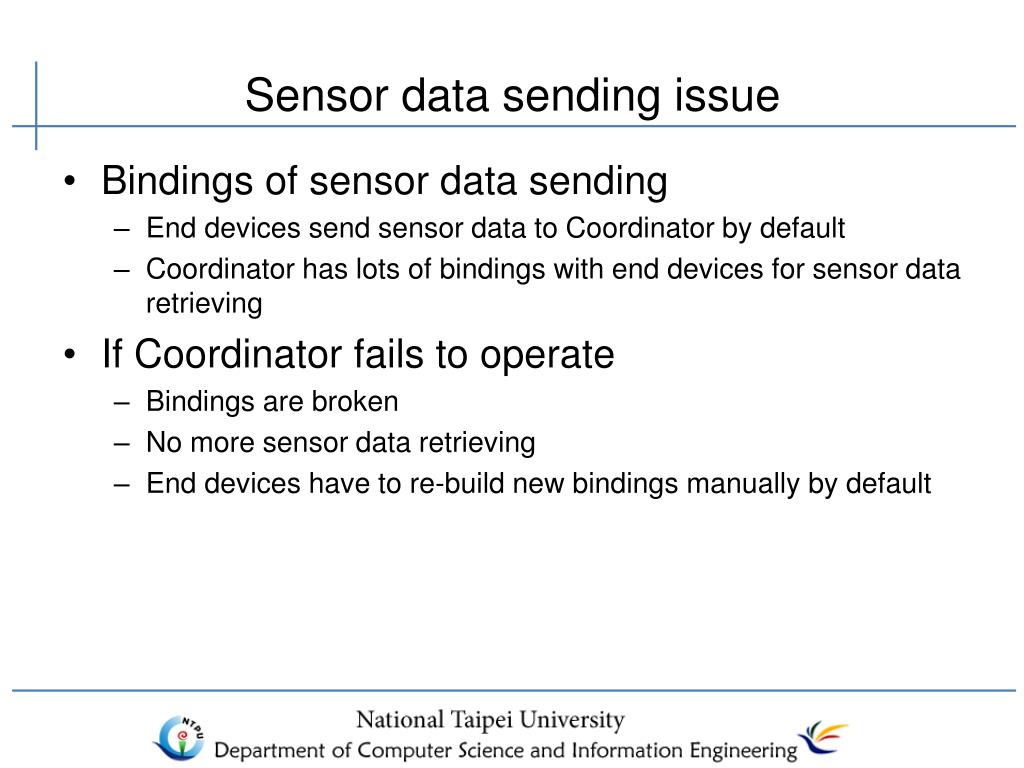

  46. Sensor data sending issue • Bindings of sensor data sending • End devices send sensor data to Coordinator by default • Coordinator has lots of bindings with end devices for sensor data retrieving • If Coordinator fails to operate • Bindings are broken • No more sensor data retrieving • End devices have to re-build new bindings manually by default

  47. Automatic data traffic recovery • Re-connect with new Coordinator • End devices require updating Coordinator info • Automatically maintenance of bindings with the Coordinator • Recovery steps • New Coordinator floods its new info to entire PAN • End devices receive flooding messages from new Coordinator • End devices update its Coordinator info, including the bindings

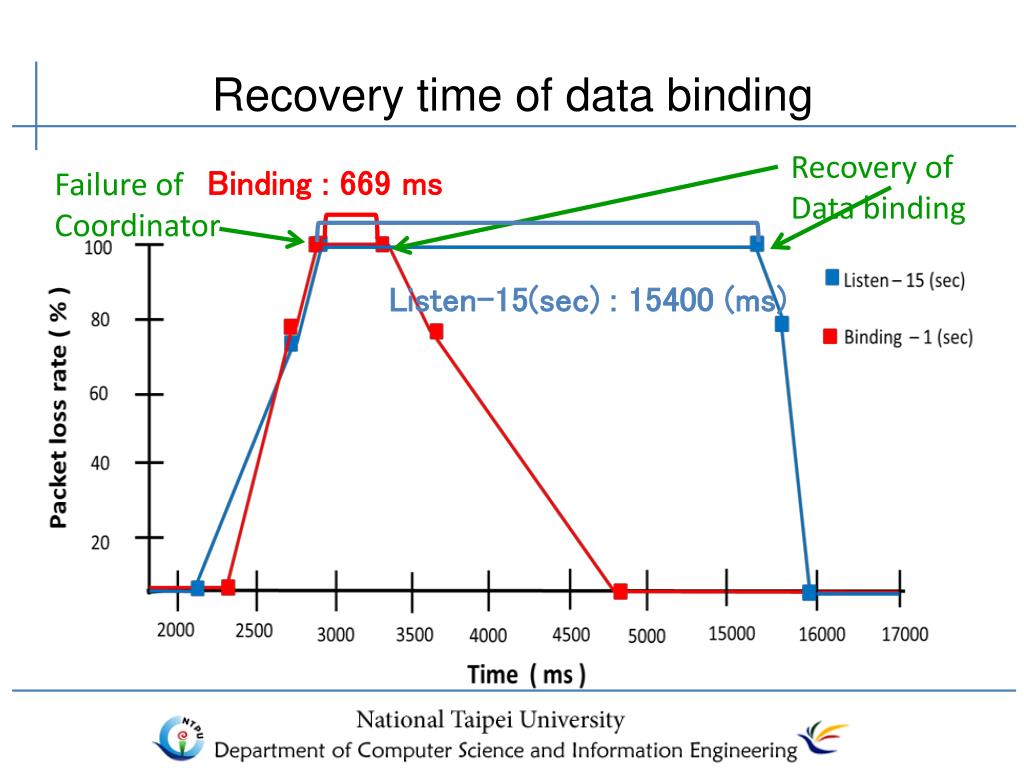

  48. Recovery time of data binding Recovery of Data binding Binding : 669 ms Failure of Coordinator • Listen-15(sec) :15400 (ms)

  49. Recovery time (Binding vs. Listen)

  50. Achievement • Advantech Co. • They are highly interested in this work • Patent • Should be done soon • Paper • Journal paper submission will be done this year
