  1. How to run simulation job in BOSS Deng ziyan 2006.03.01

  2. Introduction • Generator • Based on BESII GENBES • Integrated with BOSS • 30 generators included • Simulation • Based on Geant4 • BOOST integrated with BOSS • Ascii data format

  3. How to run simulation job • Assuming you have done: • Setup your environment in ~/cmthome • Checkout package TestRelease to your $workarea • (1) cd TestRelease/*/cmt • (2) vi requirements • #======== for Generator ============ • use PartPropSvc PartPropSvc-* Generator • use Tester Tester-* Generator/BesGenInterface • use Howl Howl-* Generator/BesGenInterface • use Radee Radee-* Generator/BesGenInterface • …………………………………………………………….. • #========= for Simulation ============== • use BesSim BesSim-* Simulation/BOOST

  4. How to run simulation job • (3) cmt broadcast cmt config • (4) cmt broadcast gmake • (5) source setup.csh • (6) cd ../run • (7) edit jobOption file: jobOptions_sim.txt

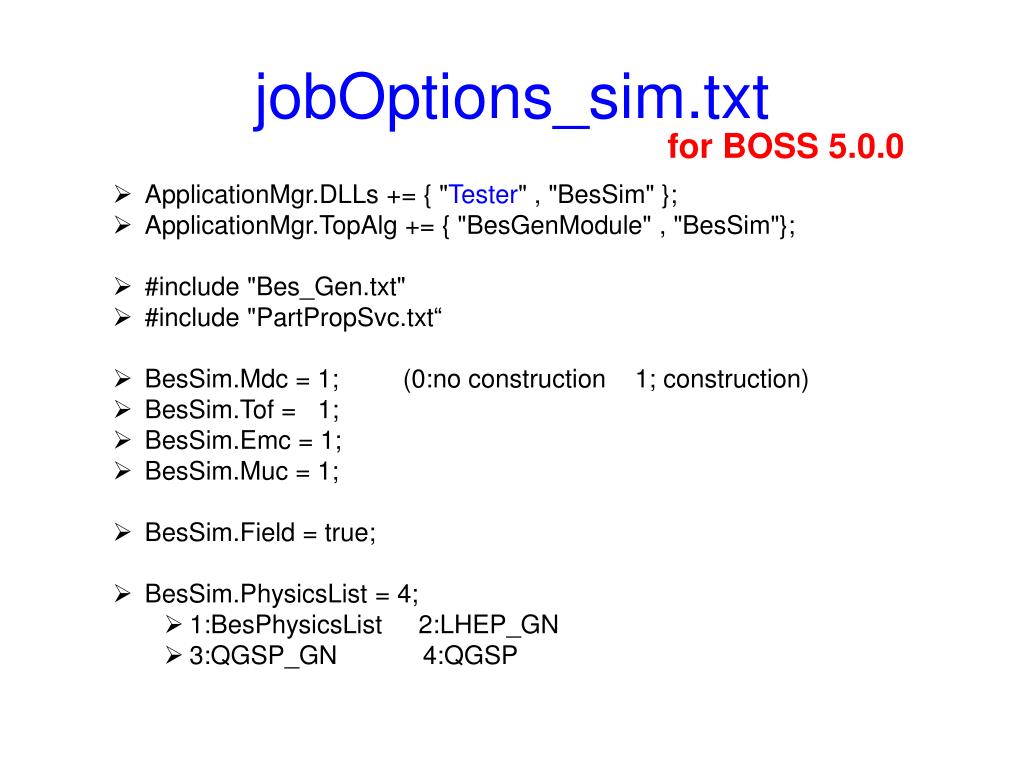

  5. jobOptions_sim.txt for BOSS 5.0.0 • ApplicationMgr.DLLs += { "Tester" , "BesSim" }; • ApplicationMgr.TopAlg += { "BesGenModule" , "BesSim"}; • #include "Bes_Gen.txt" • #include "PartPropSvc.txt“ • BesSim.Mdc = 1; (0:no construction 1; construction) • BesSim.Tof = 1; • BesSim.Emc = 1; • BesSim.Muc = 1; • BesSim.Field = true; • BesSim.PhysicsList = 4; • 1:BesPhysicsList 2:LHEP_GN • 3:QGSP_GN 4:QGSP

  6. jobOptions_sim.txt for BOSS 5.0.0 • ApplicationMgr.DLLs += { "G4Svc" }; • ApplicationMgr.ExtSvc += { "G4Svc" }; • // interactive mode • G4Svc.InteractiveG4 = false; • //Geant4 run macro, to set directory and file name of output data • G4Svc.FADSMacro = "run.mac"; • // geant4 verbosity • G4Svc.RunVerbosity = 1; • G4Svc.EventVerbosity = 0; • G4Svc.TrackingVerbosity = 0; • //number of events to simulate • ApplicationMgr.EvtMax = 10;

  7. How to run simulation job for BOSS 5.0.0 • (8) edit generator card (run.cards) • same as genbes.cards in BESII • the generator name in run.cards must match with algorithm name in jobOptions_sim.txt • ApplicationMgr.DLLs += { “Rhopi" , "BesSim" }; • ApplicationMgr.TopAlg += { "BesGenModule" , "BesSim"}; • generator_name 'rhopi‘ • rhopi_ipar 1 • Ineffective control in run.cards • Event range (controlled in jobOption) • Random seed (will be added in the future by yugw)

  8. Particle ID in run.cards same as BESII

  9. How to run simulation job for BOSS 5.0.0 • (9) edit run.mac • /run/runID -9 • /runAction/ascii 1 1 1 1 1 1 1 1 /home/dengzy/boost.dat • you must specify a full directory name, such as • /ihepbatch/besdata/public/dengzy/boost.dat • (10) boss -q jobOptions_sim.txt

  10. How to run simulation job for BOSS 5.0.0 • In brief • specify generator algorithm injobOptions_sim.txt • ApplicationMgr.DLLs += { “Rhopi" , "BesSim" }; • G4Svc.FADSMacro = "run.mac"; • ApplicationMgr.EvtMax = 10; • open generator in run.cards • generator_name ‘rhopi’ • specify output data file inrun.mac • /runAction/ascii 1 1 1 1 1 1 1 1 /home/dengzy/boost.dat • using all the other default settings

  11. New interface in BOSS 5.1.0 • BOSS 5.0.0 • G4Svc.FADSMacro = "run.mac"; • /runAction/ascii 1 1 1 1 1 1 1 1 /home/dengzy/boost.dat • BOSS 5.1.0 • Control data output in jobOption, not in run.mac • BesSim.AsciiFlag = “11111111"; • BesSim.AsciiFile =“/home/dengzy/boost.dat”;

  12. Ascii data format (boost.dat) { EVHEAD runNo eventNo } EVHEAD { TrackTRUTH trackIndex PDGcode charge originalVertexIndex terminalVertexIndex px py pz minDaughterIndex maxDaughterIndex } TrackTRUTH { VertexTRUTH vertexIndex parentTrackIndex x y z time } VertexTRUTH

  13. Ascii data format (boost.dat) { MDCTRUTH trackIndex layerId cellId edep driftD x y z posFlag } MDCTRUTH { MDCDIGI trackIndex layerNo cellNo energyDeposit driftTime } MDCDIGI { TOFTRUTH trackIndex partId scinNb x y z px py pz trackLength time } TOFTRUTH { TOFDIGI trackIndex partId scinNb forwADC forwTDC backADC backTDC } TOFDIGI

  14. Ascii data format (boost.dat) { EMCTRUTH trackIndex partId numTheta numPhi x y z px py pz totalEdep } EMCTRUTH { EMCDIGI trackIndex partId numTheta numPhi energyDeposit time } EMCDIGI { MUCTRUTH trackIndex partId segId gapId stripId x y z px py pz } MUCTRUTH { MUCDIGI trackIndex partId segId gapId stripId } MUCDIGI http://boss.ihep.ac.cn/SofPro/simulation/AsciiData_format.txt

  15. Geant4 PDGcode http://boss.ihep.ac.cn/SofPro/simulation/PDGsheme.pdf

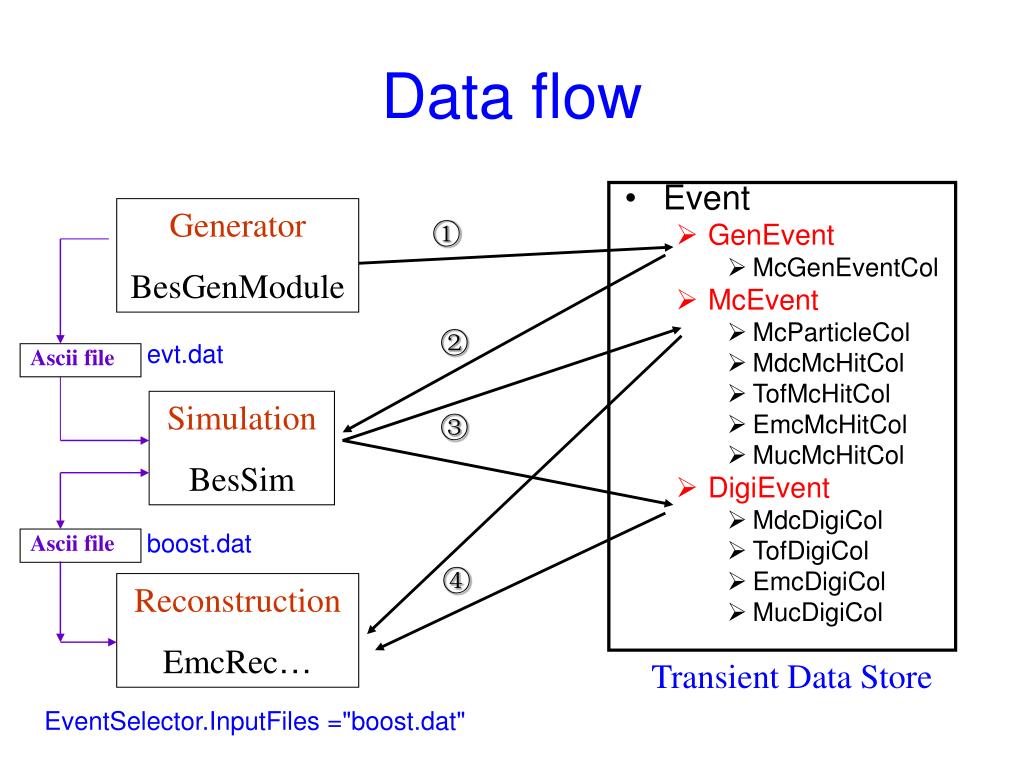

  16. Data flow • Event • GenEvent • McGenEventCol • McEvent • McParticleCol • MdcMcHitCol • TofMcHitCol • EmcMcHitCol • MucMcHitCol • DigiEvent • MdcDigiCol • TofDigiCol • EmcDigiCol • MucDigiCol Generator BesGenModule ① ② evt.dat Ascii file Simulation BesSim ③ boost.dat Ascii file ④ Reconstruction EmcRec… Transient Data Store EventSelector.InputFiles ="boost.dat"

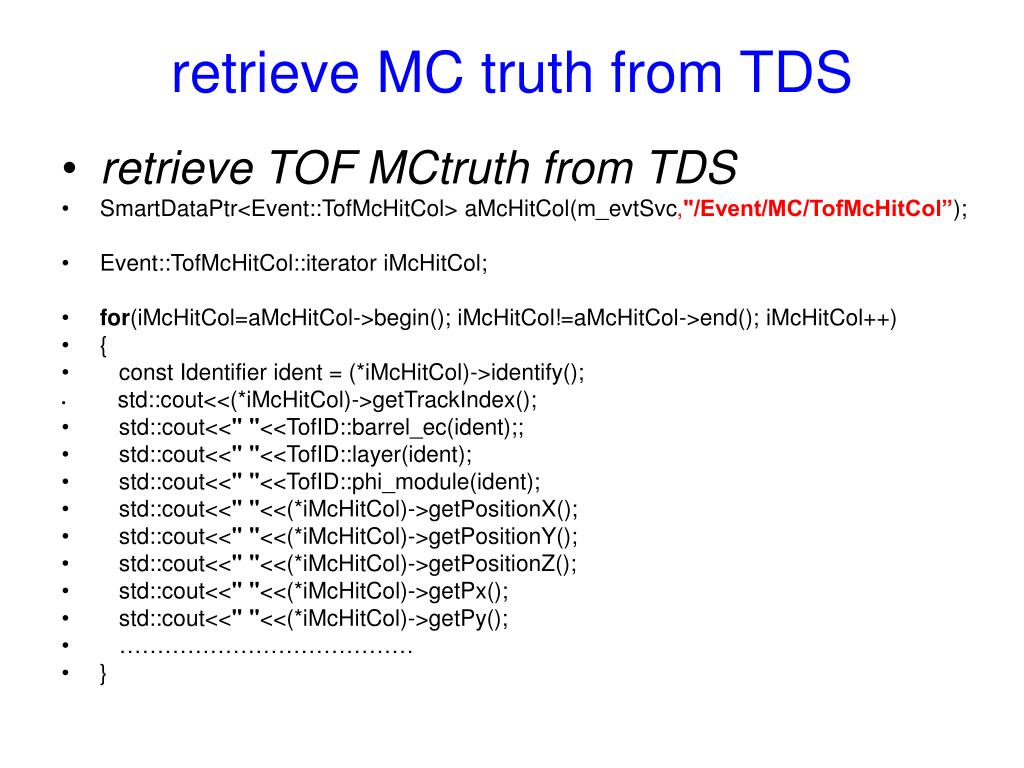

  17. retrieve MC truth from TDS • retrieve TOF MCtruth from TDS • SmartDataPtr<Event::TofMcHitCol> aMcHitCol(m_evtSvc,"/Event/MC/TofMcHitCol”); • Event::TofMcHitCol::iterator iMcHitCol; • for(iMcHitCol=aMcHitCol->begin(); iMcHitCol!=aMcHitCol->end(); iMcHitCol++) • { • const Identifier ident = (*iMcHitCol)->identify(); • std::cout<<(*iMcHitCol)->getTrackIndex(); • std::cout<<" "<<TofID::barrel_ec(ident);; • std::cout<<" "<<TofID::layer(ident); • std::cout<<" "<<TofID::phi_module(ident); • std::cout<<" "<<(*iMcHitCol)->getPositionX(); • std::cout<<" "<<(*iMcHitCol)->getPositionY(); • std::cout<<" "<<(*iMcHitCol)->getPositionZ(); • std::cout<<" "<<(*iMcHitCol)->getPx(); • std::cout<<" "<<(*iMcHitCol)->getPy(); • ………………………………… • }

  18. retrieve digit from TDS • retrieve TOF digits from TDS • SmartDataPtr<TofDigiCol> aDigiCol(m_evtSvc,"/Event/Digi/TofDigiCol"); • TofDigiCol::iterator iDigiCol; • for(iDigiCol=aDigiCol->begin(); iDigiCol!=aDigiCol->end(); iDigiCol++) • { • const Identifier ident = (*iDigiCol)->identify(); • std::cout<<"partId: "<<TofID::barrel_ec(ident); • std::cout<<" layer: "<<TofID::layer(ident); • std::cout<<" scinNb: "<<TofID::phi_module(ident); • std::cout<<" charge: "<<(*iDigiCol)->getChargeChannel(); • std::cout<<" time: "<<(*iDigiCol)->getTimeChannel()<<std::endl; • }

  19. The end! Any questions or suggestions?
