  1. Softronics EMULATORS -DspIce* PCI bus XDS510 -Ice*Pack Isa bus XDS510 -MIce*Pack Parallel Port XDS510pp -xICE* PCI bus Multi-target Emulator Softronics Pty Ltd http://www.softronx.com

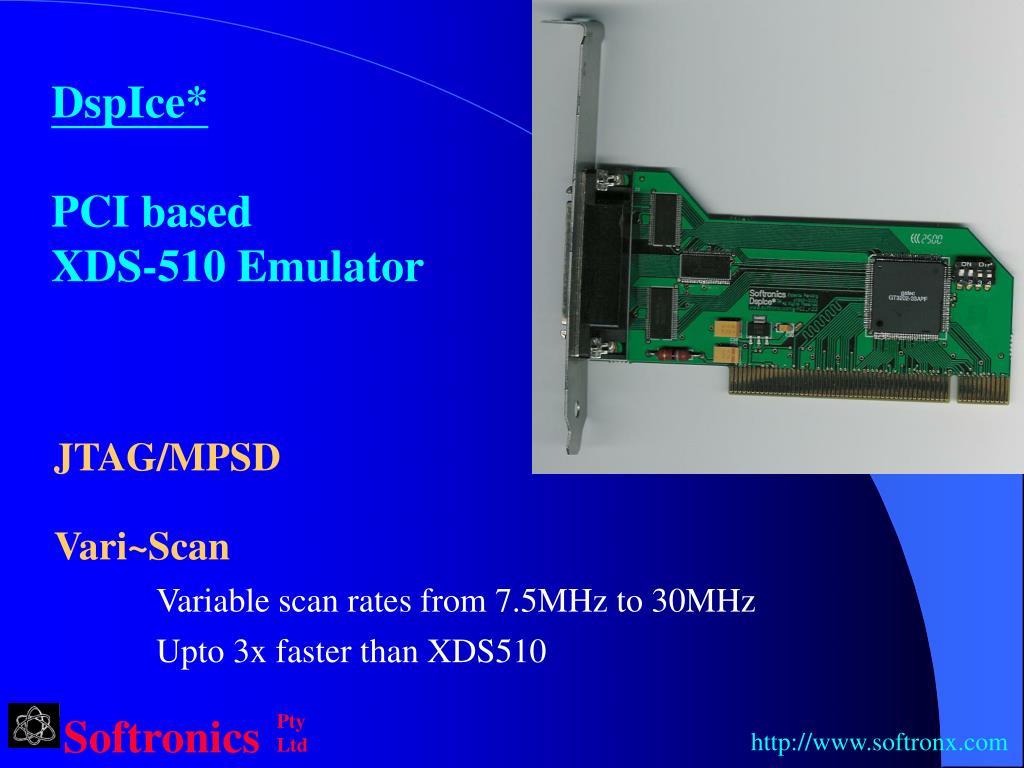

  2. JTAG/MPSD Vari~Scan Variable scan rates from 7.5MHz to 30MHz Upto 3x faster than XDS510 DspIce* PCI based XDS-510 Emulator Softronics Pty Ltd http://www.softronx.com

  3. JTAG/MPSD Vari~Scan Variable scan rates from 5MHz to 30MHz Upto 3x faster than XDS510 Ice*Pack ISA based XDS-510 Emulator Softronics Pty Ltd http://www.softronx.com

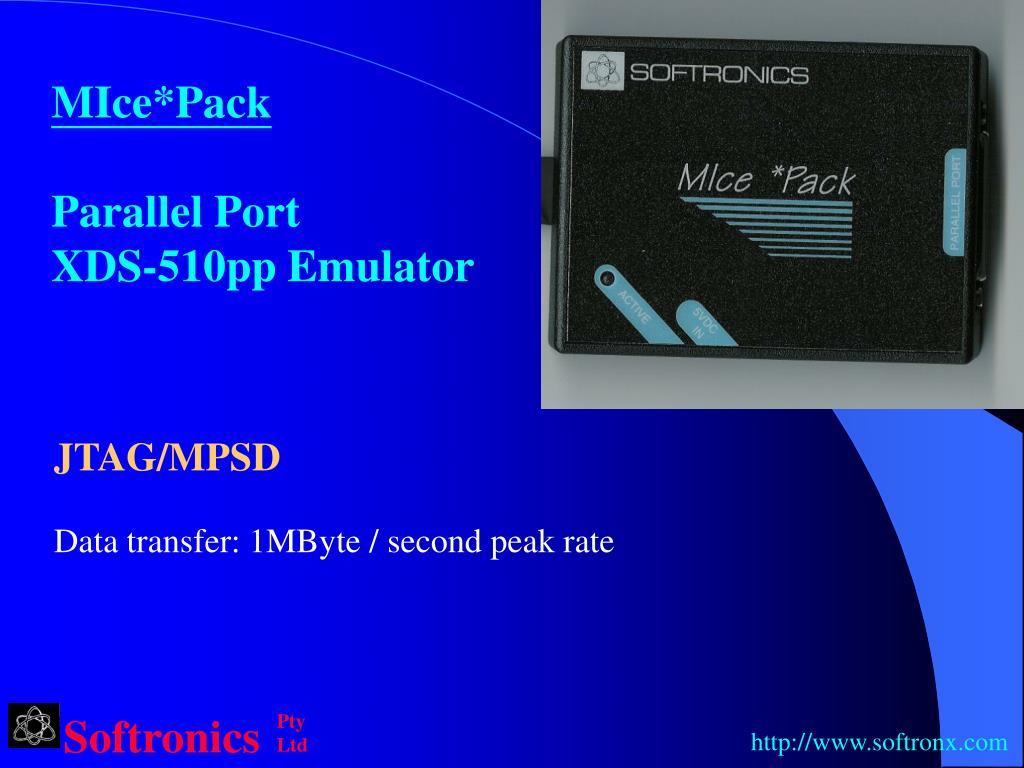

  4. JTAG/MPSD Data transfer: 1MByte / second peak rate MIce*Pack Parallel Port XDS-510pp Emulator Softronics Pty Ltd http://www.softronx.com

  5. Multiple DSPs/RISCs • on separate scan paths • from one PCI slot • all at full scan rates upto 30MHz. xICE* PCI based Multi-target XDS-510 Emulator Softronics Pty Ltd http://www.softronx.com

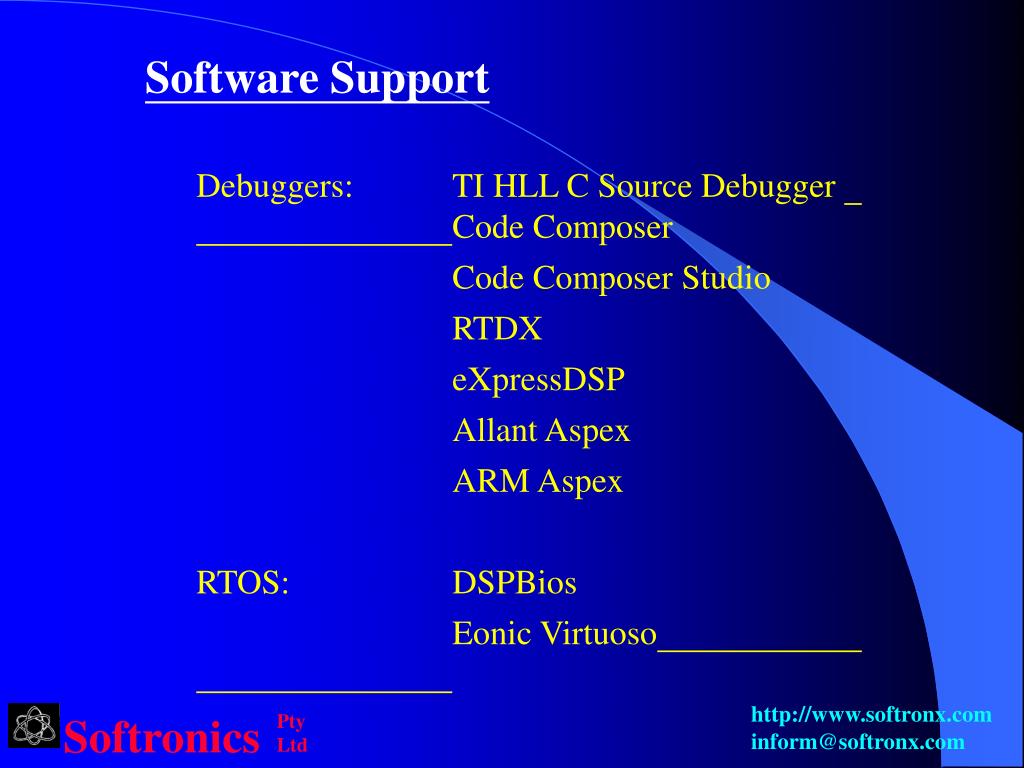

  6. Software Support Debuggers: TI HLL C Source Debugger Code Composer Code Composer Studio RTDX eXpressDSP Allant Aspex ARM Aspex RTOS: DSPBios Eonic Virtuoso http://www.softronx.com inform@softronx.com Softronics Pty Ltd

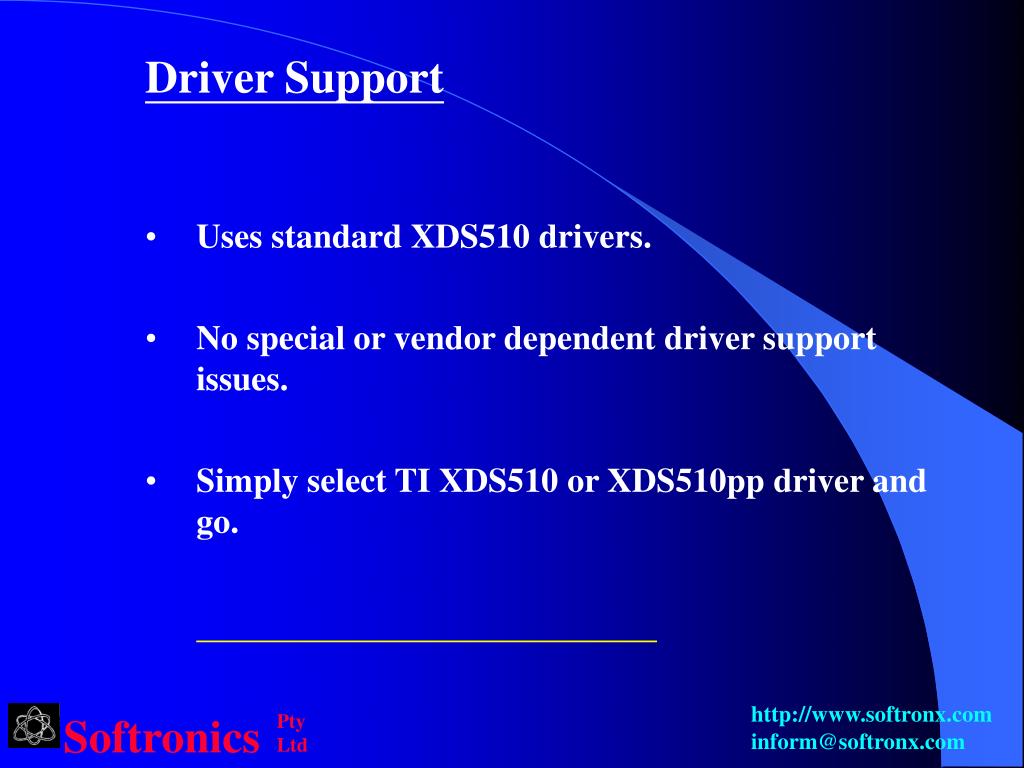

  7. Driver Support • Uses standard XDS510 drivers. • No special or vendor dependent driver support issues. • Simply select TI XDS510 or XDS510pp driver and go. http://www.softronx.com inform@softronx.com Softronics Pty Ltd

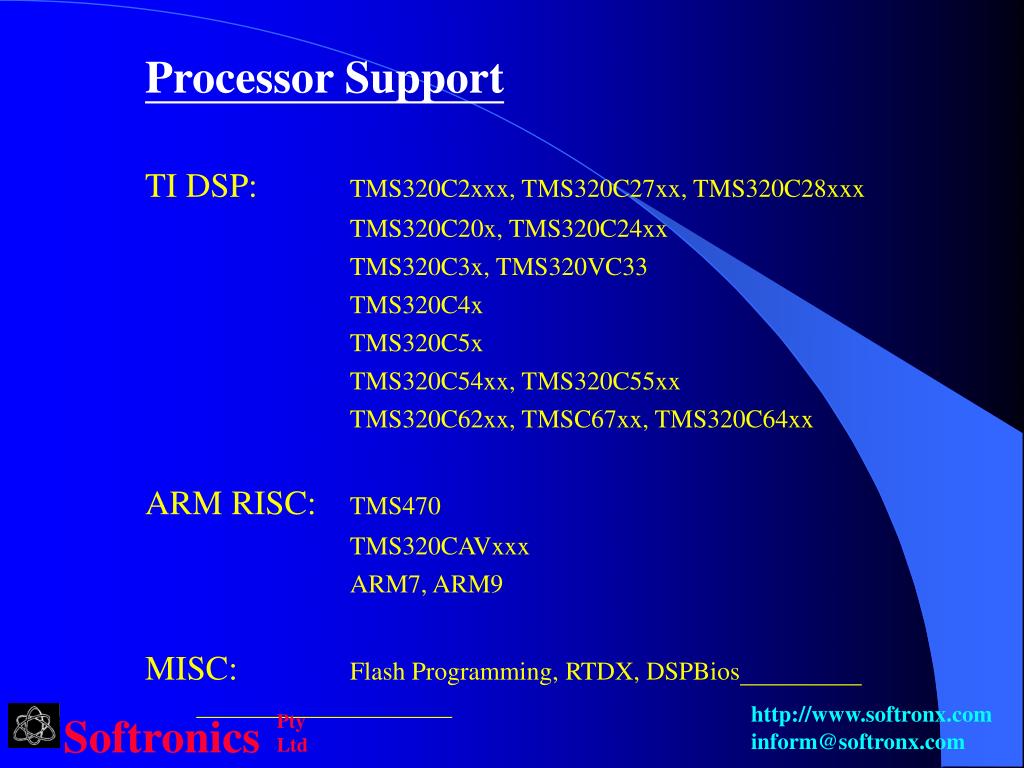

  8. Processor Support TI DSP: TMS320C2xxx, TMS320C27xx, TMS320C28xxx TMS320C20x, TMS320C24xx TMS320C3x, TMS320VC33 TMS320C4x TMS320C5x TMS320C54xx, TMS320C55xx TMS320C62xx, TMSC67xx, TMS320C64xx ARM RISC: TMS470 TMS320CAVxxx ARM7, ARM9 MISC: Flash Programming, RTDX, DSPBios http://www.softronx.com inform@softronx.com Softronics Pty Ltd

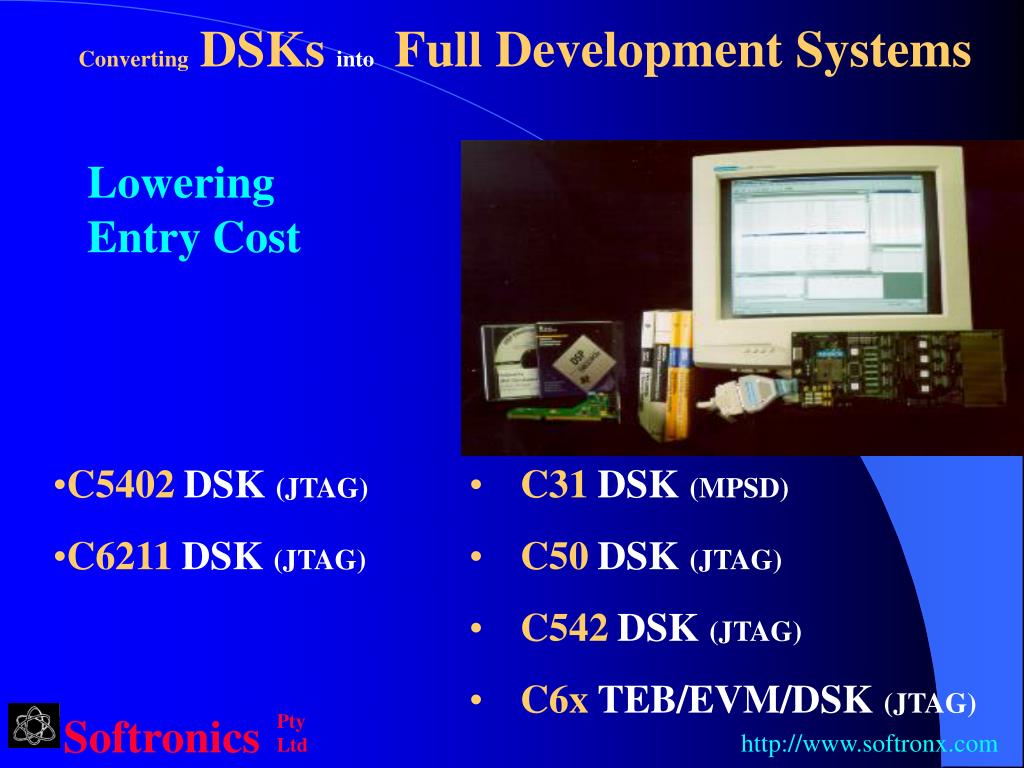

  9. ConvertingDSKsintoFull Development Systems Lowering Entry Cost • C5402DSK (JTAG) • C6211DSK (JTAG) • C31DSK (MPSD) • C50DSK (JTAG) • C542DSK (JTAG) • C6xTEB/EVM/DSK (JTAG) Softronics Pty Ltd http://www.softronx.com

  10. PCI / ISA / Parallel Port - XDS510 Emulators xIce* Multi-target PCI emulator DspIce* PCI based XDS510 emulator Ice*Pack ISA based XDS510 emulator MIce*Pack Parallel Port XDS510pp emulator Convert DSKs to full Development Systems Full RANGE of DSPs and RISCssupported Broad Software Support http://www.softronx.com inform@softronx.com Softronics Pty Ltd
