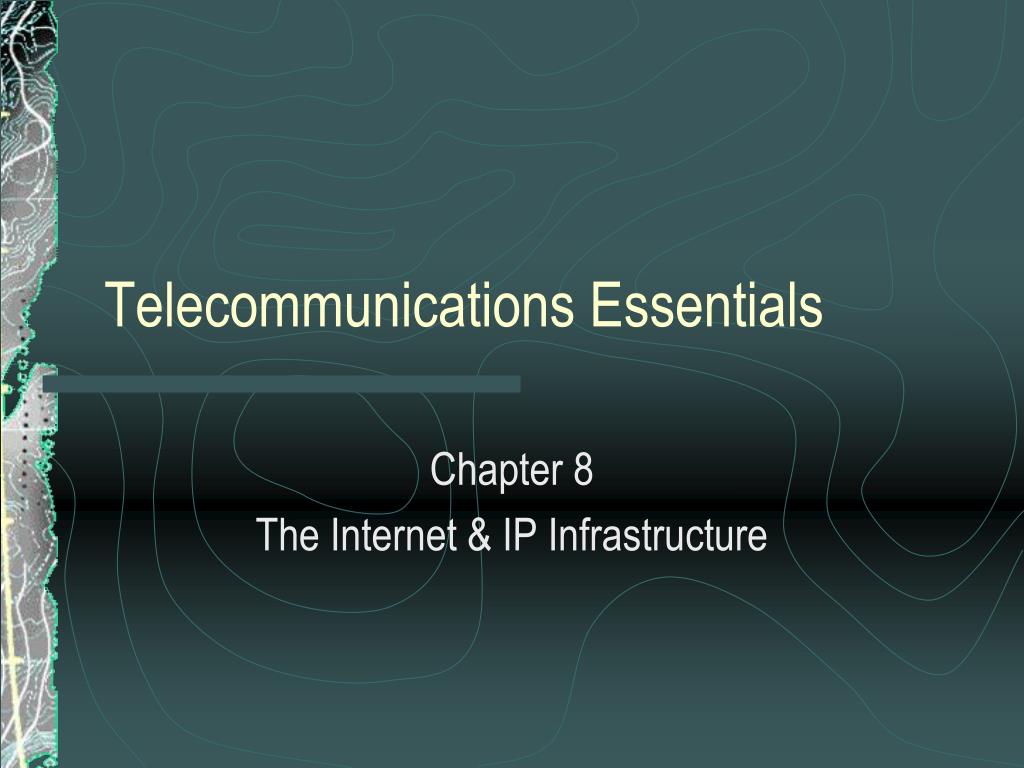

Telecommunications Essentials. Chapter 8 The Internet & IP Infrastructure. Internet Basics. Time to reach 50,000,000 people Telephone – 74 years Internet – 4 years ARPA – 1969 – develops a distributed data network Bomb resistant network Shared computing resources

mohawk
Télécharger la présentation

Telecommunications Essentials

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Telecommunications Essentials Chapter 8 The Internet & IP Infrastructure

  2. Internet Basics • Time to reach 50,000,000 people • Telephone – 74 years • Internet – 4 years • ARPA – 1969 – develops a distributed data network • Bomb resistant network • Shared computing resources • Developing LANs, paging systems, satellite networks • 1980 – TCP/IP • Cisco

  3. Internet Organizations • No one is in charge • ISOC • An international non-profit organization • Oversees the IETF (designs standards through consensus) • Registry organizations • ARIN, APNIC, RIPE NCC, IANA, ICANN

  4. Internet Structure • An ad hoc internetwork of networks • Uses the IP protocol suite • Uses routers to move packets between networks • Routers operate at OSI Layer 3 • Routers know the address of network segments and the various interconnecting paths

  5. Internet Protocols - IP • Defines the datagram (packet) • Connectionless • Operates at OSI layer 3 • Handles packet forwarding, addressing, error notification • Segments the data to 1500 byte chunks (64000 bytes is allowed but never used)

  6. Internet Protocols - UDP • Adds application multiplexing & checksum to IP • Used for multicasting & VoIP • No error correction (the application must provide error correction)

  7. Internet Protocols - TCP • TCP – Assigns packet and port numbers • Connection oriented • Operates at OSI layer 4 • Sets up virtual circuits, flow control, ACK, retransmission

  8. Port Numbers • 1 – 65,535 • Assigned to user sessions • Socket = port number + IP address • Identify server applications • 21 – FTP • 25 – E-mail • 80 – Web servers Firewalls can use port numbers & IP addresses to control information flow

  9. Other Internet Protocols • ICMP - Used by operating systems to send error messages. Ping - sends ICMP Echo Request to determine delay • IGMP - Manages the membership of Internet Protocolmulticast groups • ARP & RARP – maps between IP and MAC addresses

  10. Network (Routing) Protocols • Used to connect to the service provider • SLIP, PPP • Interior - used within autonomous systems • OSPF • Exterior - used between autonomous systems (service providers) • BGP

  11. Routing Protocols • Distance Vector – each router sends a copy of its routing table to its neighbor • RIP, IXP, RTMP,IGRP • Link State – shares information regarding numbers of hops, line speed, traffic, cost, etc. • OSPF, IS-IS, NLSP • More reliable, easier to debug, less network traffic

  12. ISP Terminology POP – Point of presence GigaPOP NAP – Network access point IXP – Internet exchange point MAE – Metropolitan exchange area Backbone Network NSP – Network service provider Tier 1, Tier 2, Tier 3

  13. IPv4 Addressing • 32 Bits long • 2 Parts – Network ID and host ID • 5 Classes • Class A – very large networks (126) • Class B – medium sized networks (16,384) • Class C – small to mid size business (2,097,152 each of which can have 254 hosts) • Class D – multicast or mbone • Class E – experimental CIDR – Allows blocks of addresses to be grouped together in routing tables

  14. IPv6 Addressing • 128 bits long • 2 Parts - 64 bits network ID, 64 bits host ID • Uses hexadecimal notation • Advantages • Improved routing efficiency • QoS capabilities • Better security mechanisms • Deployment • Not widely used in the US • Required in Japan & far east (3G wireless phones) • Moonv6 largest multivendor IPv6 network

  15. DNS & TLD Translates host names to IP addresses Local name server – in a company or ISP Domain name resolvers – local computers duplicating root domain servers Root domain servers - 13

  16. IP QoS • Present System • Best Effort – no guarantees • QoS Parameters: • Latency • Jitter • Loss • Sequencing • Errors • Needed for real-time traffic • VoIP • Video • Interactive applications • QoS Mechanisms • Classification (different kinds of packets) • Conditioning (traffic shaping) • Queue management (RED) • Queue scheduling (prioritizing) • Queuing Mechanisms • Fair queuing • Weighted fair queuing • Weighted round robin • Deficit round robin

  17. IP QoS • DiffServ – Differentiated services • Header flags set hop behaviors • Defines latency, and jitter • IntServ - Integrated services • Uses RSVP to reserve bandwidth • Not practical on the internet • RSVP-TE used on MPLS • NSIS – Next steps in signaling
