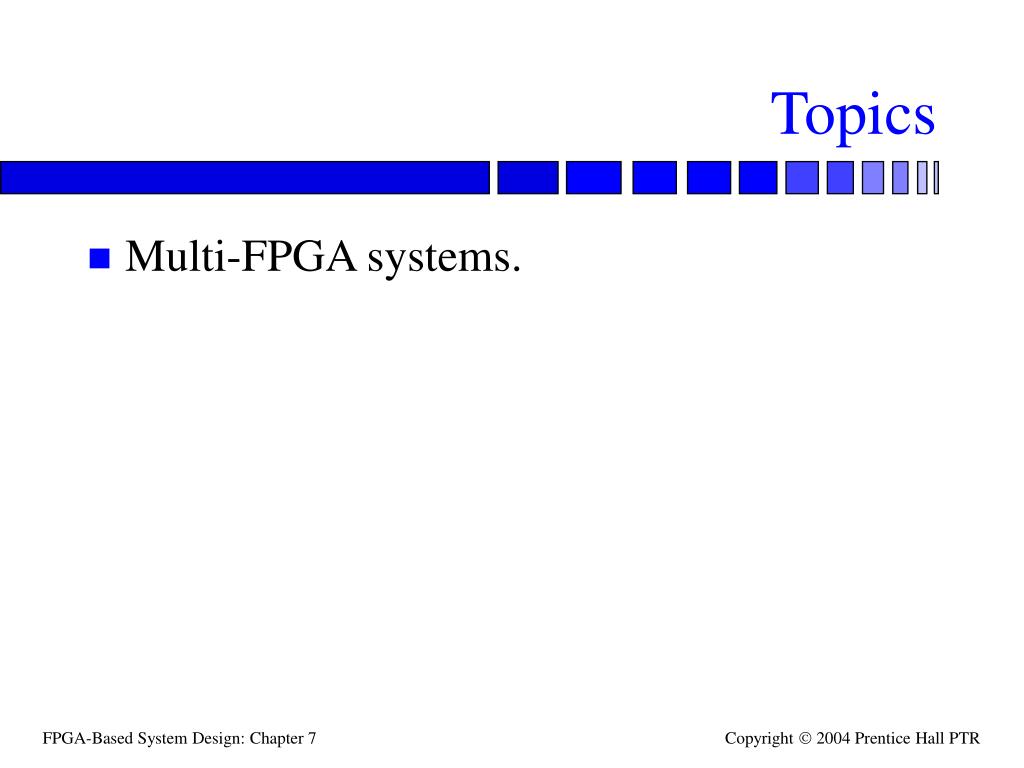

  1. Topics • Multi-FPGA systems.

  2. Issues • Types of multi-FPGA systems. • Multi-FPGA networks. • Multi-FPGA partitioning.

  3. Types of systems • Can build a specialized multi-FPGA system. • Wired for one purpose. • Can build reusable multi-FPGA system. • Emulators, other debugging systems.

  4. Networks • Ad hoc. • Best suited for specialized systems. • Crossbar. • Fully connected. • Specialized crossbars. • Multi-stage. • Not often used in multi-FPGA systems.

  5. Crossbar • Fully connected: w x y z a b c d

  6. Properties of crossbar • Fully connected: • Single source/destination. • Multi-point. • n2 area.

  7. Clos network • System of crossbars that has less than n2 area. • Fully connected for single-destination connections. • Not fully connected for multiple destinations.

  8. Clos network organization

  9. Net size distribution • Most nets are small, making Clos network feasible for logic: # nets # pins 1 2 3

  10. Partial crossbar • Takes advantage of FPGA reprogrammability. • Several small crossbars. • If your crossbar doesn’t have room for the connection, reprogram to use another crossbar on another pin.

  11. Trees and fat trees • Trees allow communication between leaves. • Fat trees provide more bandwidth near root. …

  12. Multi-chip partitioning • Somewhat similar to partitioning for LE placement. • Differences: • k-way partitioning; • pins are a major cost; • must handle large problems.

  13. K-way partitioning • Direct: • Divide into k sets. • Iterative: • Extract one set, then another, etc.

  14. Clustering-based partitioning • Grow a cluster to form a partition. • Start with a seed for the cluster. • Choose new nodes to add to the cluster. • Next move depends on the quality of the previous moves.

  15. Fiduccia-Mattheyses partitioning • Can deal with variable-sized blocks. • Related to Kernighan-Lin partitioning. • Uses a new data structure to determine the best cell to move. • Uses an improved algorithm for updating cell gains after a move. • Total gain recomputation can be performed by a set of constant time gain increments/decrements.
