  1. Regionalized Stroke CareVision for the Upper Peninsula Karl Meisel, MD Vascular Neurology Marquette General Hospital

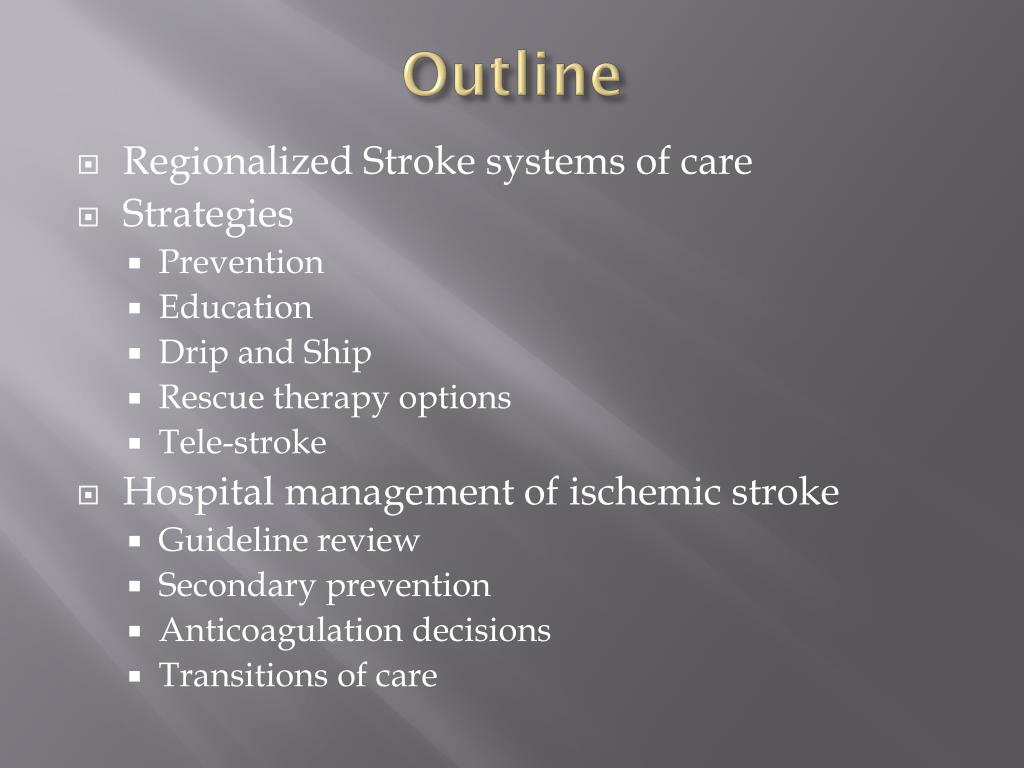

  2. Outline • Regionalized Stroke systems of care • Strategies • Prevention • Education • Drip and Ship • Rescue therapy options • Tele-stroke • Hospital management of ischemic stroke • Guideline review • Secondary prevention • Anticoagulation decisions • Transitions of care

  3. Marquette General Hospital • Only Joint Commission Primary Stroke Center • Re-certification as a Stroke Center Gold Award • Michigan Stroke Registry & Quality Improvement award • About 300 stroke patients per year.

  4. Regional Stroke Impact

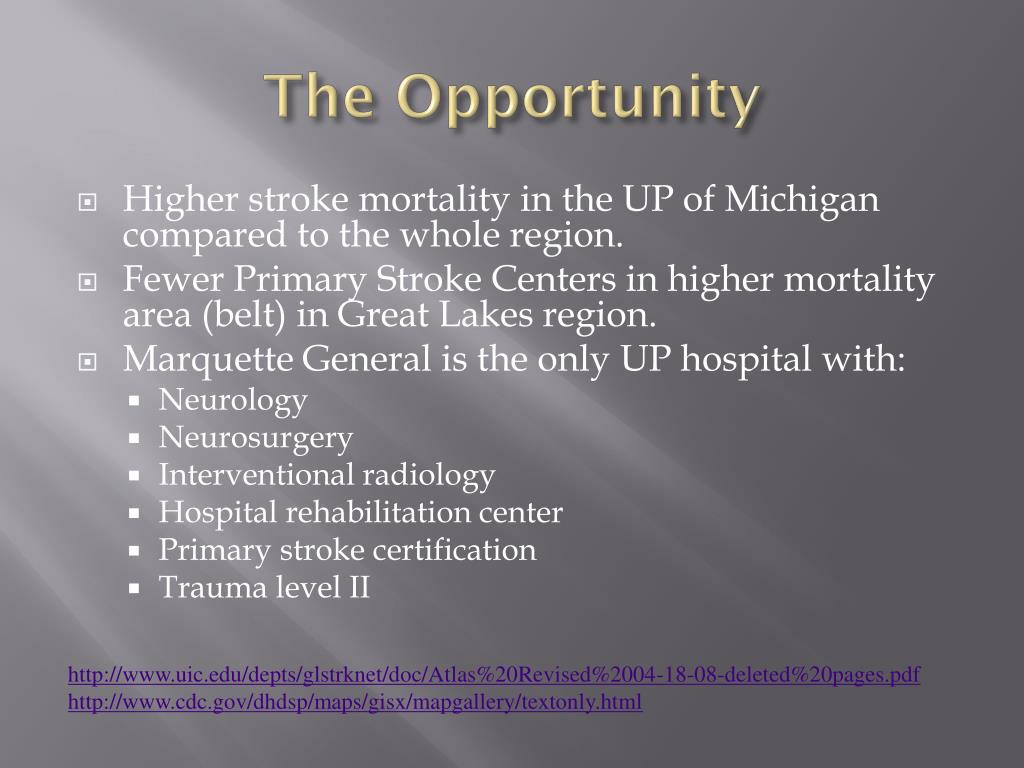

  5. The Opportunity • Higher stroke mortality in the UP of Michigan compared to the whole region. • Fewer Primary Stroke Centers in higher mortality area (belt) in Great Lakes region. • Marquette General is the only UP hospital with: • Neurology • Neurosurgery • Interventional radiology • Hospital rehabilitation center • Primary stroke certification • Trauma level II http://www.uic.edu/depts/glstrknet/doc/Atlas%20Revised%2004-18-08-deleted%20pages.pdf http://www.cdc.gov/dhdsp/maps/gisx/mapgallery/textonly.html

  6. The Ideal System Components ● Primary prevention ● Community education ● Notification and response of emergency medical services ● Acute stroke treatment, including the hyper acute and emergency department phases ● Sub acute stroke treatment and secondary prevention ● Rehabilitation ● Continuous quality improvement (CQI) activities Stroke. 2005;36:690-703

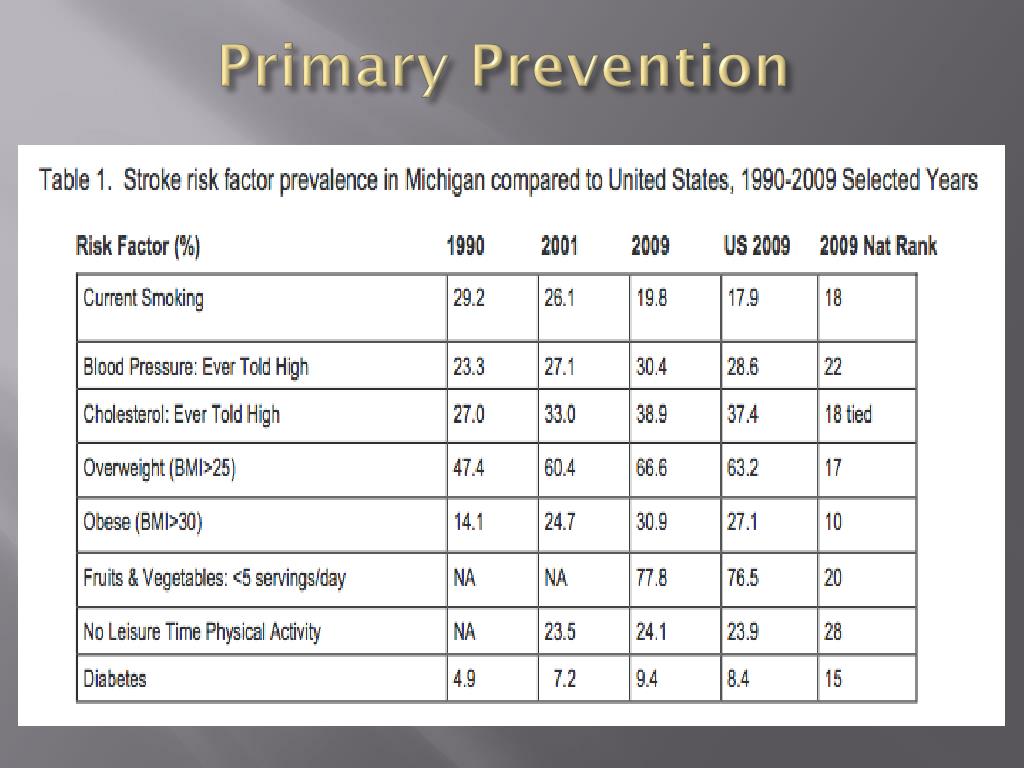

  7. Primary Prevention

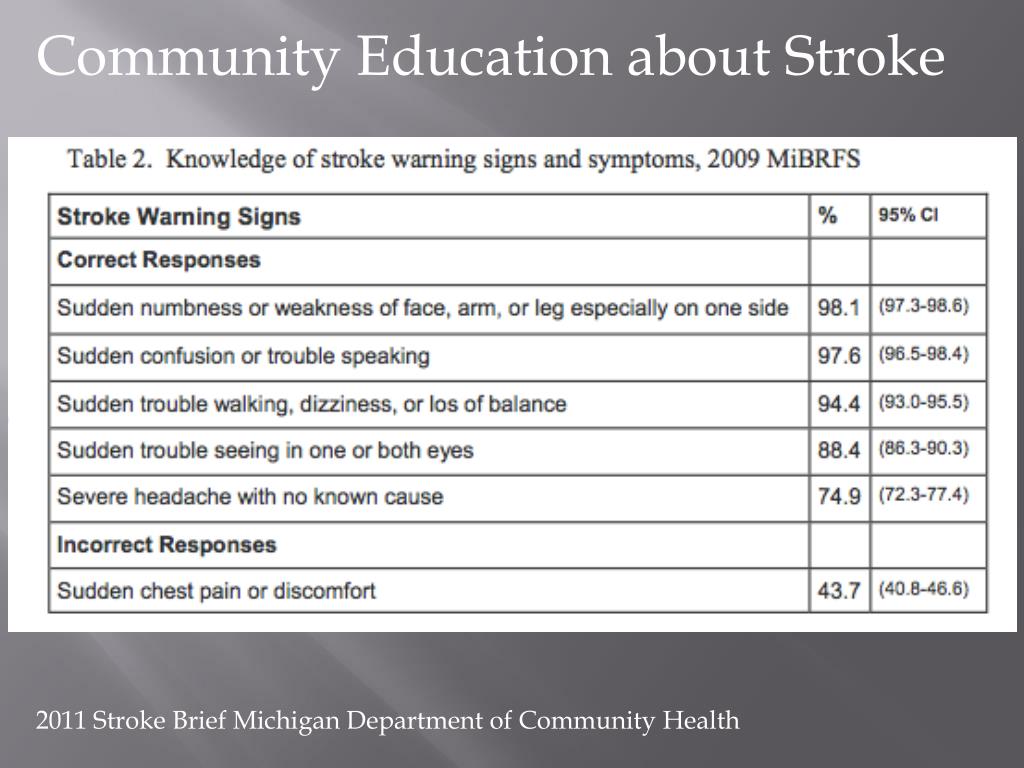

  8. Community Education about Stroke 2011 Stroke Brief Michigan Department of Community Health

  9. 90 + Smoking + Diabetes + Hypertension 60 % Coronary Surface Covered Plasma Cholesterol Level of 200 mg/dl (5.17 mmol/L) 30 0 30 40 50 60 70 80 Age Impact of Primary Prevention • 12 point reduction in BP reduces stroke by 37% • Each 10% LDL reduction reduced risk of stroke by 15.6% • 1% reduction in HbA1C decreased hazard ratio by 21% Grundy SM, JAMA 1986

  10. Atrial Fibrillation Circulation.2012;126:860-865

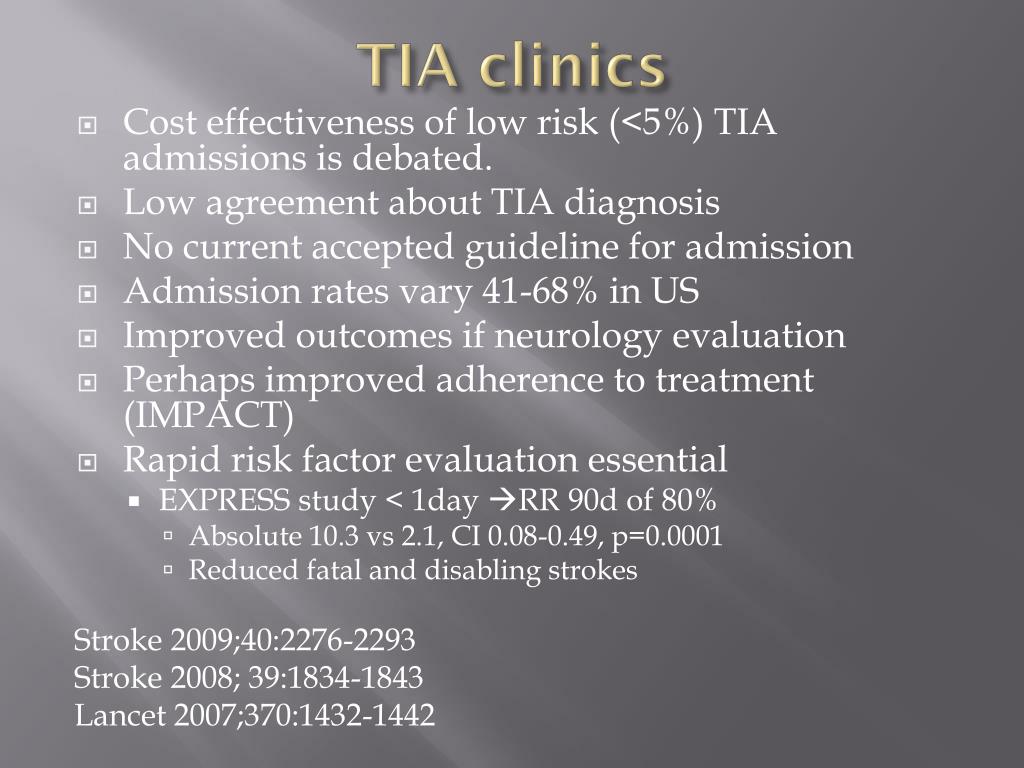

  11. TIA clinics • Cost effectiveness of low risk (<5%) TIA admissions is debated. • Low agreement about TIA diagnosis • No current accepted guideline for admission • Admission rates vary 41-68% in US • Improved outcomes if neurology evaluation • Perhaps improved adherence to treatment (IMPACT) • Rapid risk factor evaluation essential • EXPRESS study < 1day RR 90d of 80% • Absolute 10.3 vs 2.1, CI 0.08-0.49, p=0.0001 • Reduced fatal and disabling strokes Stroke 2009;40:2276-2293 Stroke 2008; 39:1834-1843 Lancet 2007;370:1432-1442

  12. TIA clinics • Cost effectiveness of low risk (<5%) TIA admissions is debated. • Low agreement about TIA diagnosis • No current accepted guideline for admission • Admission rates vary 41-68% in US • Improved outcomes if neurology evaluation • Perhaps improved adherence to treatment (IMPACT) • Rapid risk factor evaluation essential • EXPRESS study < 1day RR 90d of 80% • Absolute 10.3 vs 2.1, CI 0.08-0.49, p=0.0001 • Reduced fatal and disabling strokes Stroke 2009;40:2276-2293 Stroke 2008; 39:1834-1843 Lancet 2007;370:1432-1442

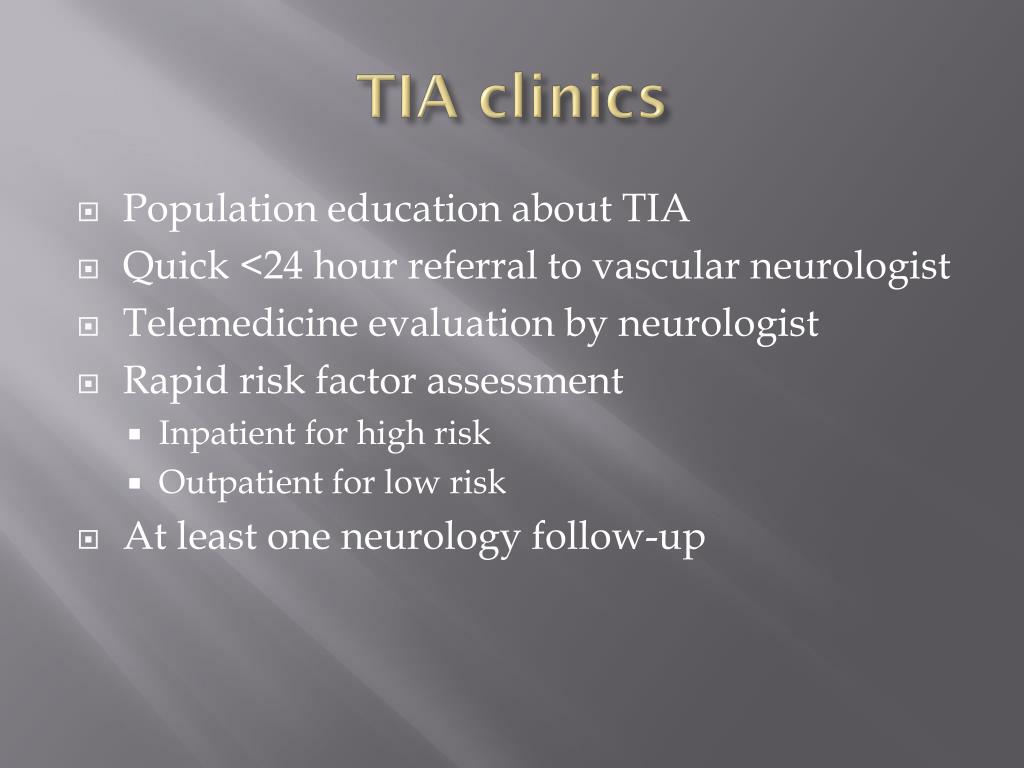

  13. TIA clinics • Population education about TIA • Quick <24 hour referral to vascular neurologist • Telemedicine evaluation by neurologist • Rapid risk factor assessment • Inpatient for high risk • Outpatient for low risk • At least one neurology follow-up

  14. Stroke Centers • Stroke centers are present in only 3.6% of European hospitals • Less than 50% of the American population has access within 45 minutes. • Secondary transfers from primary hospitals cause too much delay of time-dependent recanalization • Triage directly to the most appropriate destination is important. Neurology 2012;78:1849–1852

  15. Smart Planning = Big Impact • North Carolina found that expanding the scope of stroke care services to just 6 hospitals could improve access to basic acute stroke services from 52% to 84%. • Rapid evaluation, referral, and transfer may be established through the application of stroke care protocols.

  16. Acute Stroke Care • Using a regionalized system for acute stroke • Hub and spoke • Time is brain/Increasing tPA use safely • Telemedicine • Drip and Ship • Rescue Therapy • Hospital care • Transitions of care

  17. Hub and Spoke • Identify roles of each hospital in the system • Define the responsibilities in those roles. • Formal transfer agreements • Stroke Unit established at the hub • Continuity of care between centers • Standard forms and protocols to improve communication during transitions of care

  18. Quality Improvement Tasks • Effectiveness of primary prevention strategy • Measure knowledge of stroke in community • EMS and hospital information exchange • Timeliness of acute stroke evaluation and care • Secondary prevention effectiveness • Avoidance of complications, readmissions • Rehabilitation access and outcomes Stroke. 2005;36:690-703

  19. Strategies to Improve Care • Faster identification of stroke symptoms • Fast emergency services access and evaluation • Vascular neurology acute consultative services • Comprehensive and timely risk factor evaluation • Access to appropriate rehabilitation services • Adherence to secondary prevention therapies

  20. Faster Door to Needle Times • 1,082 hospitals were in the GWTGS 2003-09. • Less than 1/3 of patients treated with IV rtPAhad door-to-needle times < 60 minutes. • Pre-hospital delay is the largest proportion of delay in time. • The likelihood of receiving intra-arterial therapies decreases rapidly with increasing transfer time. • Every 15 minute reduction in DTN = 5% lower odds of in-hospital mortality Neurology 2012;78:1809–1810 Fonarow GC et al. Circulation. 2011;123:750-758

  21. Normal/near normal = NNT 8.3 • Improved = NNT 3.1 • For 100 patients treated with tPA 32 benefit and 3 harmed • 3 – 4.5 hrs (not FDA approved) but 16% more have good outcome Hacke, W., G. Donnan, et al. Association of outcome with early stroke treatment: pooled analysis of ATLANTIS, ECASS, and NINDS rt-PA stroke trials. Lancet 2004;363:768-74.

  22. 3 – 4.5 Hours of Last Normal • Not FDA approved but is supported by guidelines • Suggest some attempt at obtaining consent • Trial exclusion criteria • Age >80 • Baseline NIHSS >25 • Any oral anticoagulant • Previous stroke and diabetes

  23. NIHSS • LOC: Responsiveness, Questions, Commands • Eye Movement • Visual fields • Facial Palsy • Motor Arm : left and right • Motor Leg: left and right • Ataxia • Sensory • Language • Speech • Extinction and inattention • Minor is 1 - 4 • Moderate 5 - 15 • Moderate to severe 16 - 20 • Severe 21 - 42

  24. Timing of Acute Stroke Evaluation • Initial ED Evaluation within 10 minutes • Notify stroke team within 15 minutes of arrival • CT scan within 25 minutes • Read on CT within 45 minutes • IV tPA within 60 minutes • Other studies: glucose, O2 sat, BMP, cardiac enzymes, INR/PT/PTT, EKG. AHA website strokeassociation.org/targetstroke

  25. Acute neurology consultative services

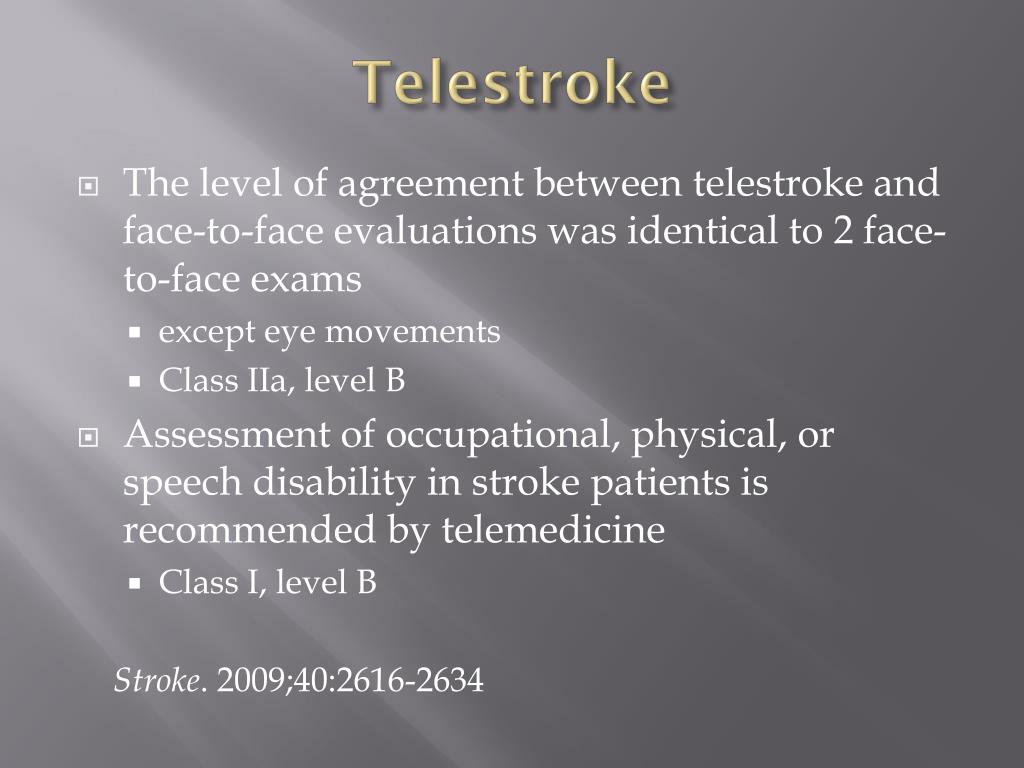

  26. Telestroke • The level of agreement between telestroke and face-to-face evaluations was identical to 2 face-to-face exams • except eye movements • Class IIa, level B • Assessment of occupational, physical, or speech disability in stroke patients is recommended by telemedicine • Class I, level B Stroke. 2009;40:2616-2634

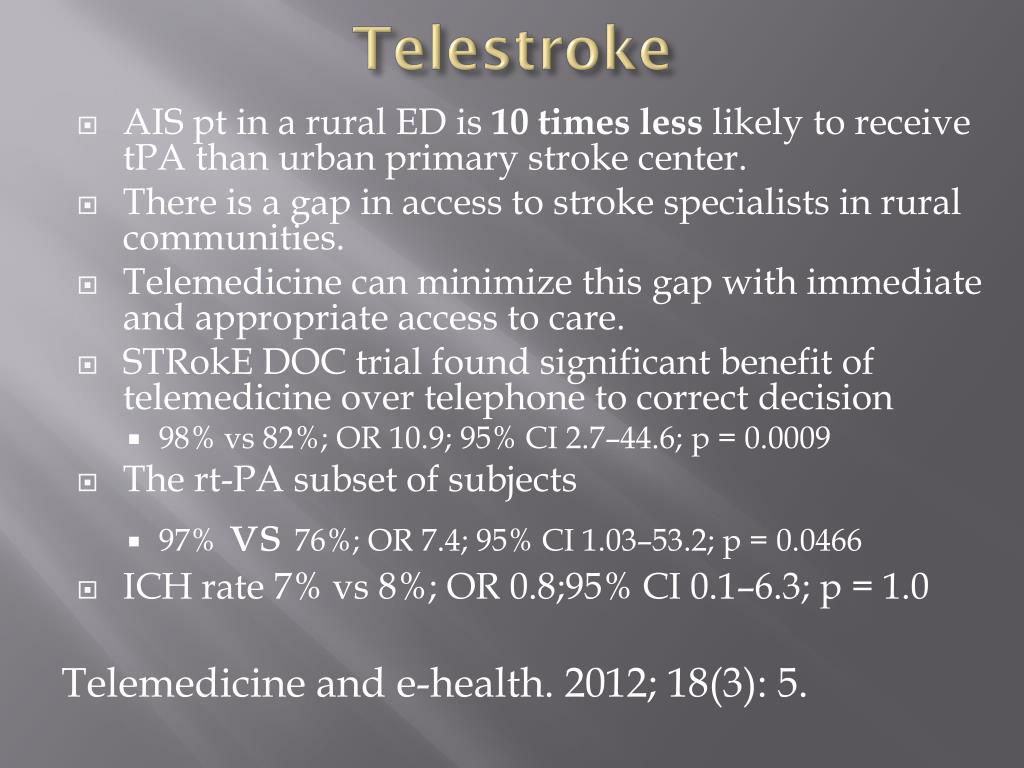

  27. Telestroke • AIS pt in a rural ED is 10 times less likely to receive tPA than urban primary stroke center. • There is a gap in access to stroke specialists in rural communities. • Telemedicine can minimize this gap with immediate and appropriate access to care. • STRokE DOC trial found significant benefit of telemedicine over telephone to correct decision • 98% vs 82%; OR 10.9; 95% CI 2.7–44.6; p = 0.0009 • The rt-PA subset of subjects • 97%vs 76%; OR 7.4; 95% CI 1.03–53.2; p = 0.0466 • ICH rate 7% vs 8%; OR 0.8;95% CI 0.1–6.3; p = 1.0 Telemedicine and e-health. 2012; 18(3): 5.

  28. Telestroke • Summary of 12 telestroke networks found the thrombolysis administration rate increase 23% • 10-fold from baseline • without protocol violation or hemorrhagic rates. • AHA recommends the use of telestroke if on-site stroke expertise is insufficient for 24/7 coverage • Class I, Level A • In 3 years the risk of a poor outcome was 18% lower for telestroke hospitals vs non-telestroke linked hospitals. • The cost of telestroke over a person's lifetime was less than $2500 per quality-adjusted life year. Stroke 2009;40:902-8. Neurology 2011;77:1590-8.

  29. Example of Telestroke Network • REACH-MUSC study provided acute stroke coverage 24/7 to 12 community hospitals in South Carolina located 61 to 187 miles away • 35.7% were treated with tPA • 64.3% were transferred to the hub • 2.9% received combination of IV and IA/thrombectomy • 2.1% were treated with IA therapy alone

  30. Keys to Success • Privileges at all the spoke hospitals • Stroke pathways • Algorithms, step-by-step flow charts • Order sets to rural hospitals • Common thrombolysis eligibility checklist • On-site education • ED nurses and MD certified in NIHSS • Hub neurologists encouraged to visit spokes

  31. When IV tPA fails • Recanalization Rate: • ICA terminus – 6% • M1 – 30 % • Basilar – 33%

  32. Drip and Ship • Transfer to tertiary center while IV tPA drips • Goal to receive patients within 5 – 6 hours of symptom onset. • Tertiary center obtains CT angiogram of head and neck • Determine eligibility for intra-arterial tPA or mechanical embolectomy. • IA tPA time limit is about 6 hours • Mechanical embolectomy about 8 hours • Basilar artery thrombus about 12 hours

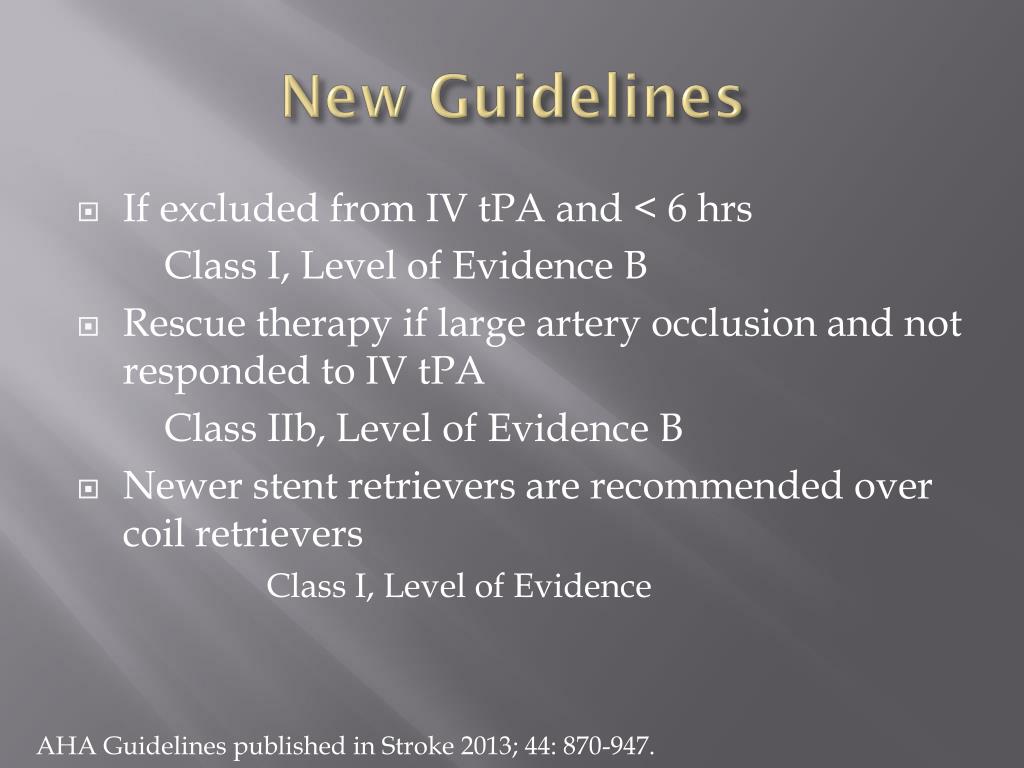

  33. New Guidelines • If excluded from IV tPA and < 6 hrs Class I, Level of Evidence B • Rescue therapy if large artery occlusion and not responded to IV tPA Class IIb, Level of Evidence B • Newer stent retrievers are recommended over coil retrievers Class I, Level of Evidence AHA Guidelines published in Stroke 2013; 44: 870-947.

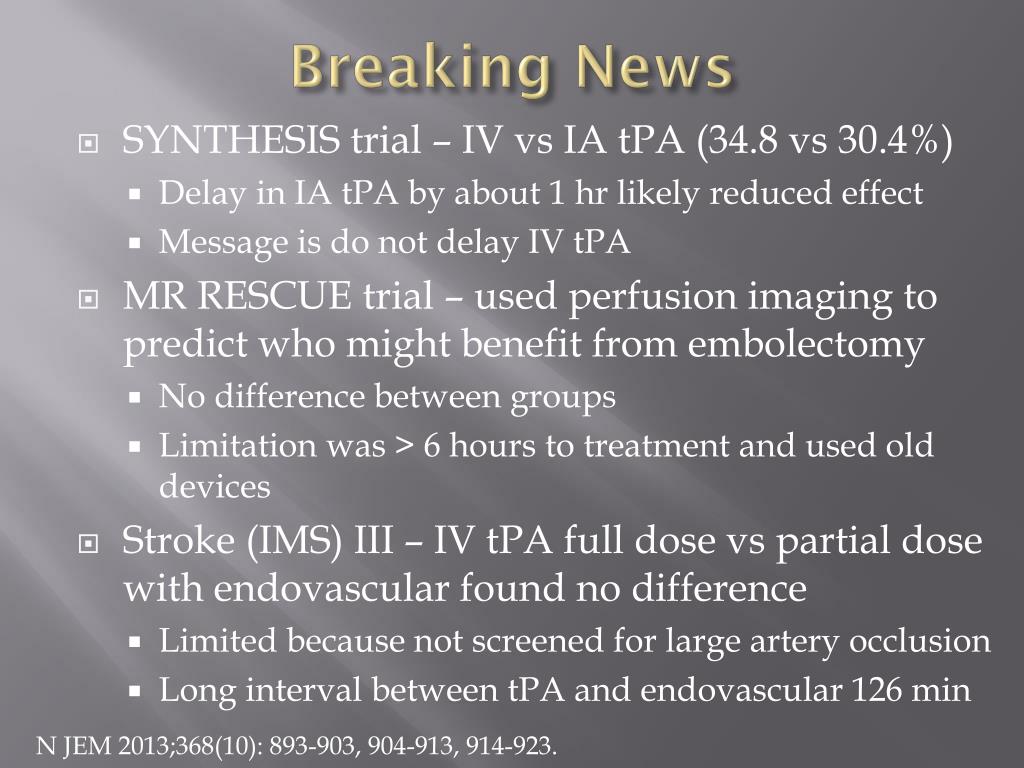

  34. Breaking News • SYNTHESIS trial – IV vs IA tPA (34.8 vs 30.4%) • Delay in IA tPA by about 1 hr likely reduced effect • Message is do not delay IV tPA • MR RESCUE trial – used perfusion imaging to predict who might benefit from embolectomy • No difference between groups • Limitation was > 6 hours to treatment and used old devices • Stroke (IMS) III – IV tPAfull dose vs partial dose with endovascular found no difference • Limited because not screened for large artery occlusion • Long interval between tPA and endovascular 126 min N JEM 2013;368(10): 893-903, 904-913, 914-923.

  35. My Opinion • No clear algorithm for endovascular therapy • Do not delay IV tPA, give full dose • If a young patient < 60 strongly consider • If > 8 NIHSS • Basilar artery involvement • Suspicion for dissection

  36. Admitting the Stroke Patient Post tPA • ICU for frequent Neuro and Vital Sign monitoring • Every 15 minutes for 2 hours • Every 30 minutes for 6 hours • Every 1 hour until 24 hours post tPA • Stop tPA if severe HA, worsening exam • BP goal < 180/105 • No heparin products, anti-platelets for 24 hours • Obtain HCT or MRI in 12-24 hrs before starting aspirin 325mg • Avoid or delay invasive procedures (NG, Foley) • NPO unless passes swallow screen • TEDs/SCDs

  37. Admission Orders for non-tPA • Aspirin 325mg or 300mg rectal if no NG or NPO • Permissive blood pressure < 220/120 for 48 hours • Can consider ICU vs Medical/Stroke Unit with telemetry based on clinical scenario • Lovenox for DVT prophylaxis • NG if fails formal speech evaluation

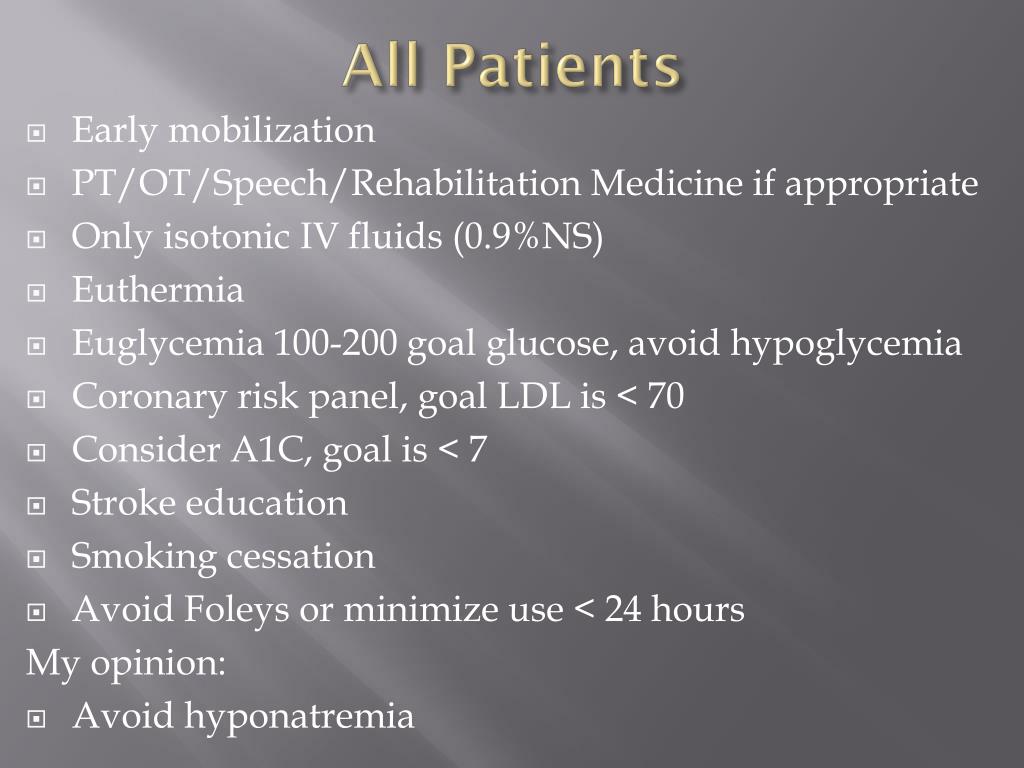

  38. All Patients • Early mobilization • PT/OT/Speech/Rehabilitation Medicine if appropriate • Only isotonic IV fluids (0.9%NS) • Euthermia • Euglycemia 100-200 goal glucose, avoid hypoglycemia • Coronary risk panel, goal LDL is < 70 • Consider A1C, goal is < 7 • Stroke education • Smoking cessation • Avoid Foleys or minimize use < 24 hours My opinion: • Avoid hyponatremia

  39. Inpatient Emergency • Stroke patient decompensates • Coma exam: respiration, pupils, occulocephalics, corneals, gag, posturing • Mannitol 1 gram / kg • Head of bed, neck straight • If on ventilator hyperventilation to pCO2 30-35 • Emergent CT • Decompressive craniotomy Class I, B • NNT 2 mortality, NNT 4 to be ambulatory • Advanced age and patient/family values may change this • Evaluate for EVD

  40. Secondary Stroke Prevention • What is the etiology: • Artery-to-artery embolism (carotid disease) • Cardioembolic (atrial fibrillation) • Small vessel disease (diabetes, hypertension) • Hypercoagulable • Studies: • Carotid Ultrasound if anterior circulation • CT or MR angiogram if posterior circulation • Echocardiogram (TTE bubble study usually) • Telemetry (must be reviewed by physician daily) • Lupus anticoagulant, anticardiolipin, HC, MTHFR

  41. Carotid Endarterectomy • Did ultrasound find >70% stenosis or 50-69% stenosis on ipsilateral side of infarct? • Then confirm with CT or MR angiogram • If occlusion is present is it focal (acute) or long-segment (chronic)? • If focal (acute) occlusion then cerebral angiogram to confirm. • If >70% stenosis confirmed or critical stenosis but not occlusion then endarterectomy within 2 weeks

  42. Treatment • Hypertension: • Avoid venodilators (nitro, hydralazine) • Prefer: Diureticand ACE-I • Dyslipidemia: • Statin (atorvastatin) goal LDL <70 • Antiplatelet • Aspirin (15% RR), clopidogrel, or dipyridamole-aspirin • Clopidogrel and dipyridamole-aspirin are superior to aspirin and non-inferior to each other

  43. Atrial Fibrillation • At least 15% of ischemic stroke • Likely 30% of cryptogenic stroke if prolonged monitoring performed • Average time to detection was about 1 month • Anti-coagulate about 1 – 2 weeks post large territory infarct. • Consider sooner if small infarcts or mechanical heart valve • No heparin bridging required

  44. Choice of Anticoagulation • Warfarin – INR goal 2-3, only 60% are in range • Dabigatran - 150mg twice daily • Superior to warfarin in RE-LY study. • Major bleeding same, but less intracranial bleeds • Apixaban – 5mg twice daily • Superior to warfarin in ARISTOTLE study. • Fewer major bleeding events and lower mortality • Rivaroxaban- 20mg daily • Non-inferior to warfarin in ROCKET-AF trial • No difference in bleeding and less intracranial bleeds NEJM 361(12),1139-1151; NEJM 365(11),981-992; NEJM 365(10), 883-891

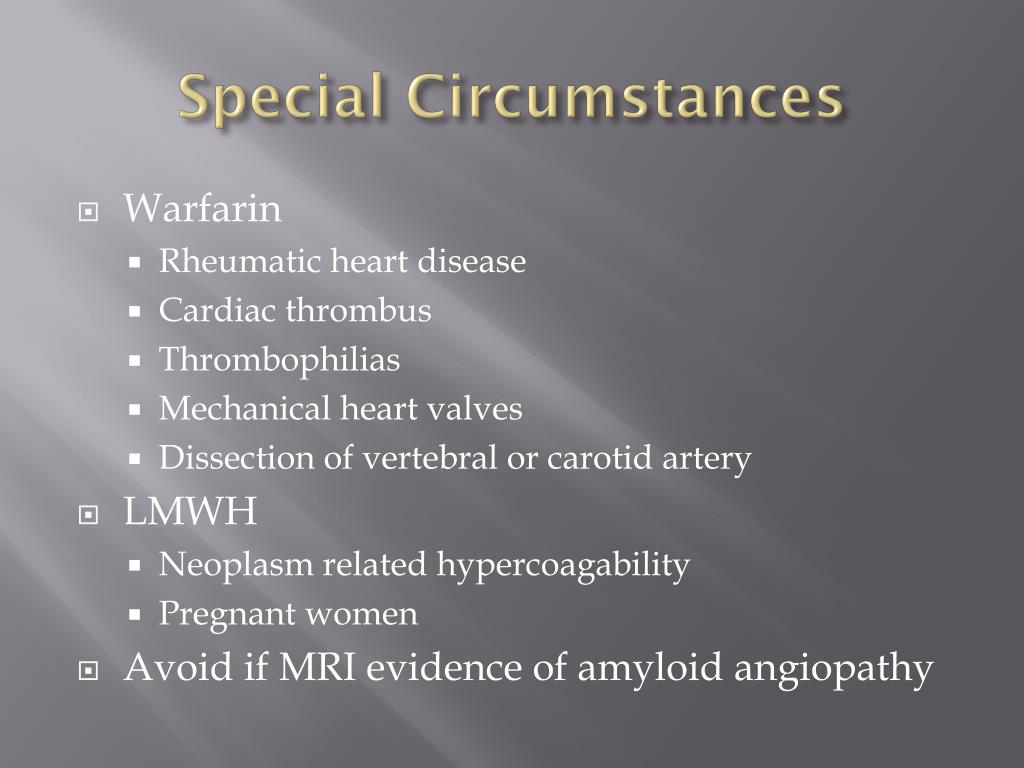

  45. Special Circumstances • Warfarin • Rheumatic heart disease • Cardiac thrombus • Thrombophilias • Mechanical heart valves • Dissection of vertebral or carotid artery • LMWH • Neoplasm related hypercoagability • Pregnant women • Avoid if MRI evidence of amyloid angiopathy

  46. Discharge • Communication • Send discharge summary to primary care • Contact primary care directly • Stroke education • Medication education • Smoking cessation • Follow-up appointments/INR/Holter • Alert family to signs of decompensation and post-stroke depression • Follow-up phone call • Rehab arrangements

  47. Adherence to Secondary PreventionThe Problem • 1/3 of stroke patients discontinued >1 secondary prevention medications within 1 year • Never seen by a neurologist • Communication lacking from the inpatient to rehabilitation to outpatient primary physician • 2/3 of Medicare patients who had a stroke died or were rehospitalized within 1 year Stroke2011;42:159-66. Neurology 2011;77:1182-1190

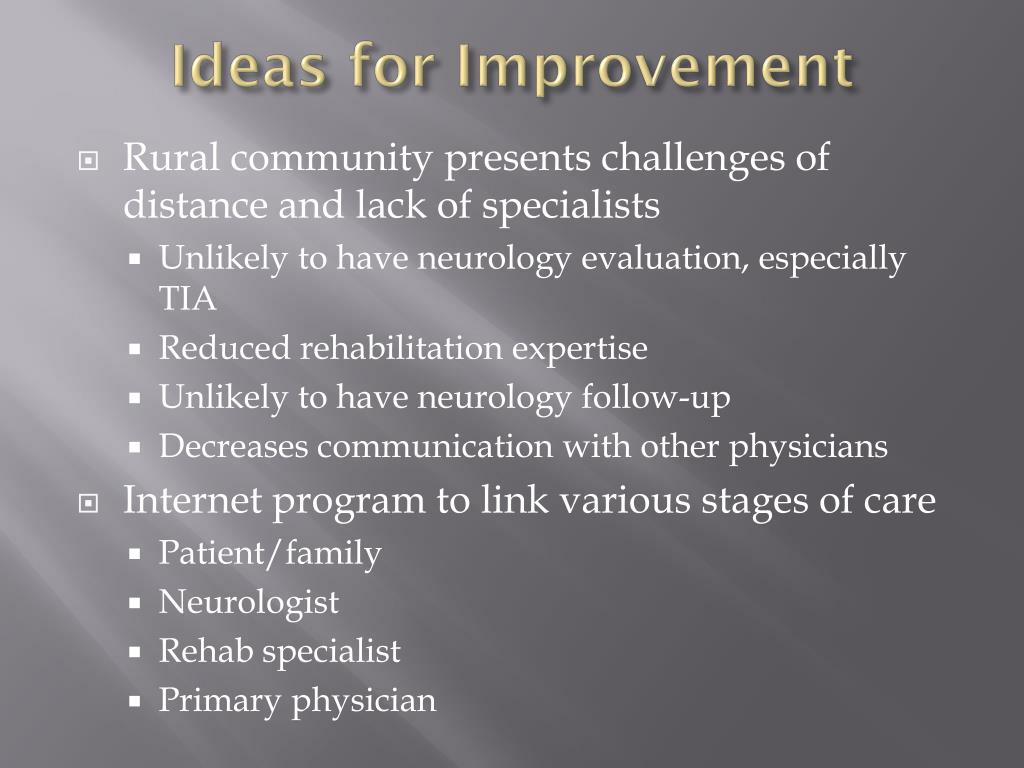

  48. Ideas for Improvement • Rural community presents challenges of distance and lack of specialists • Unlikely to have neurology evaluation, especially TIA • Reduced rehabilitation expertise • Unlikely to have neurology follow-up • Decreases communication with other physicians • Internet program to link various stages of care • Patient/family • Neurologist • Rehab specialist • Primary physician
