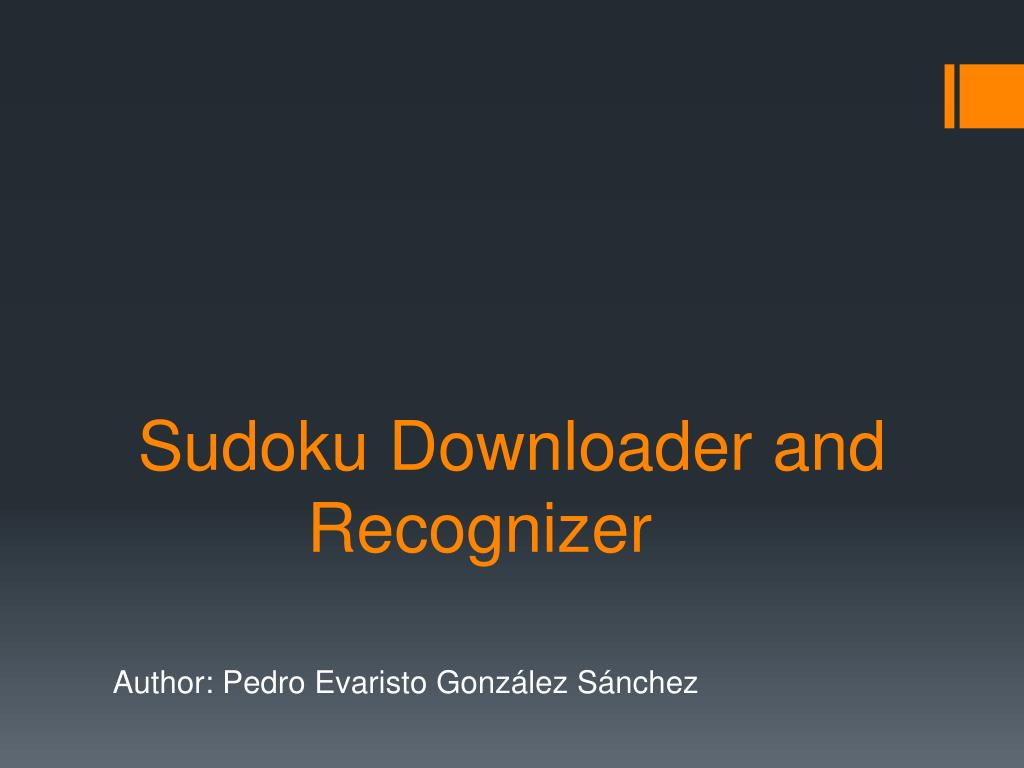

  1. Sudoku Downloader and Recognizer Author: Pedro Evaristo González Sánchez

  2. MainActivity(Portrait) Recognizement Custom View Gaming Backtracking BoardDownloader

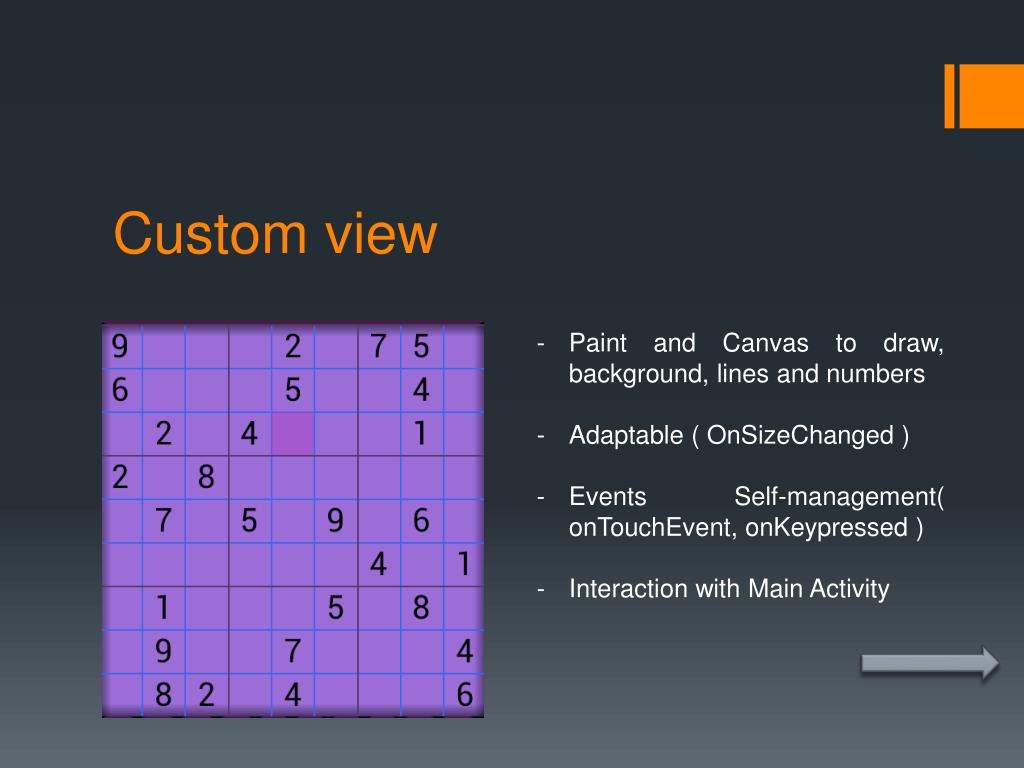

  3. Customview • Paintand Canvastodraw, background, lines and numbers • Adaptable ( OnSizeChanged) • EventsSelf-management( onTouchEvent, onKeypressed ) • InteractionwithMainActivity

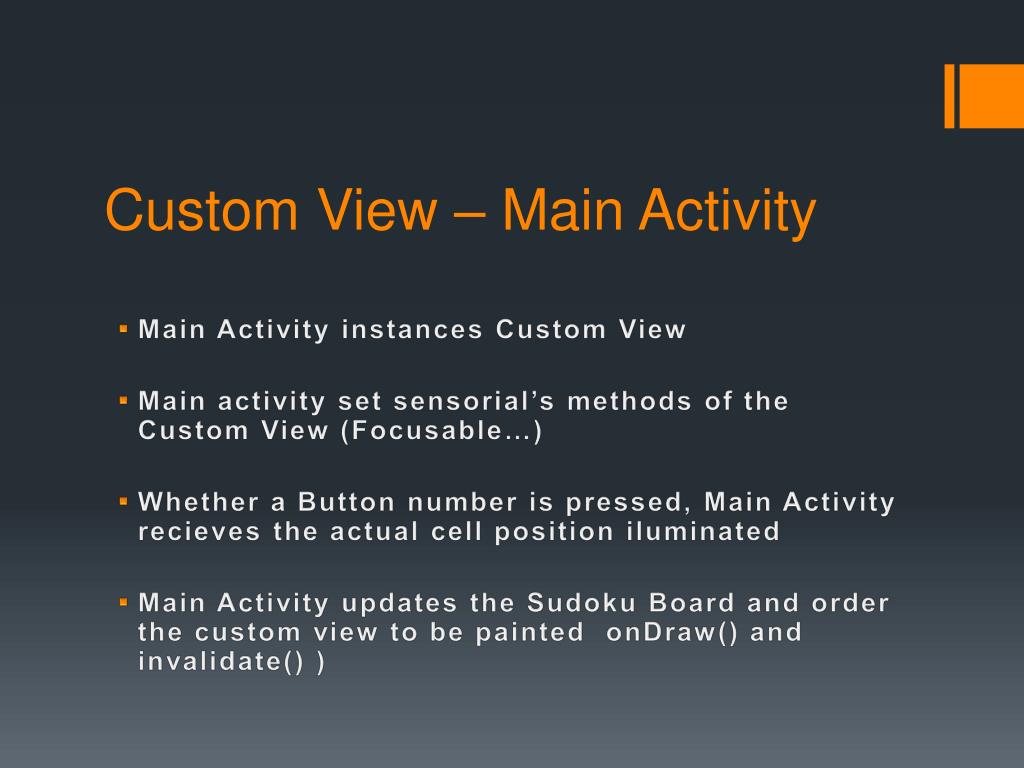

  4. Custom View –MainActivity • MainActivityinstancesCustom View • Mainactivity set sensorial’smethods of theCustom View (Focusable…) • Whether a Buttonnumberispressed, MainActivityrecievesthe actual cell position iluminated • MainActivityupdatesthe Sudoku Board and orderthecustomviewto be paintedonDraw() and invalidate() )

  5. ClassSudoku (I) • Matrix[9][9] of Integers • Constructor overload( String) toimplementthecommunicationbetweenactivities • Theclassreturn a Stringwhichcontainsthe sudoku board. Thisisveryhelpfulforseveralsituations. Forinnstance( Bundleand Activitiescommunication) • Neighborchecking( row, column and block )

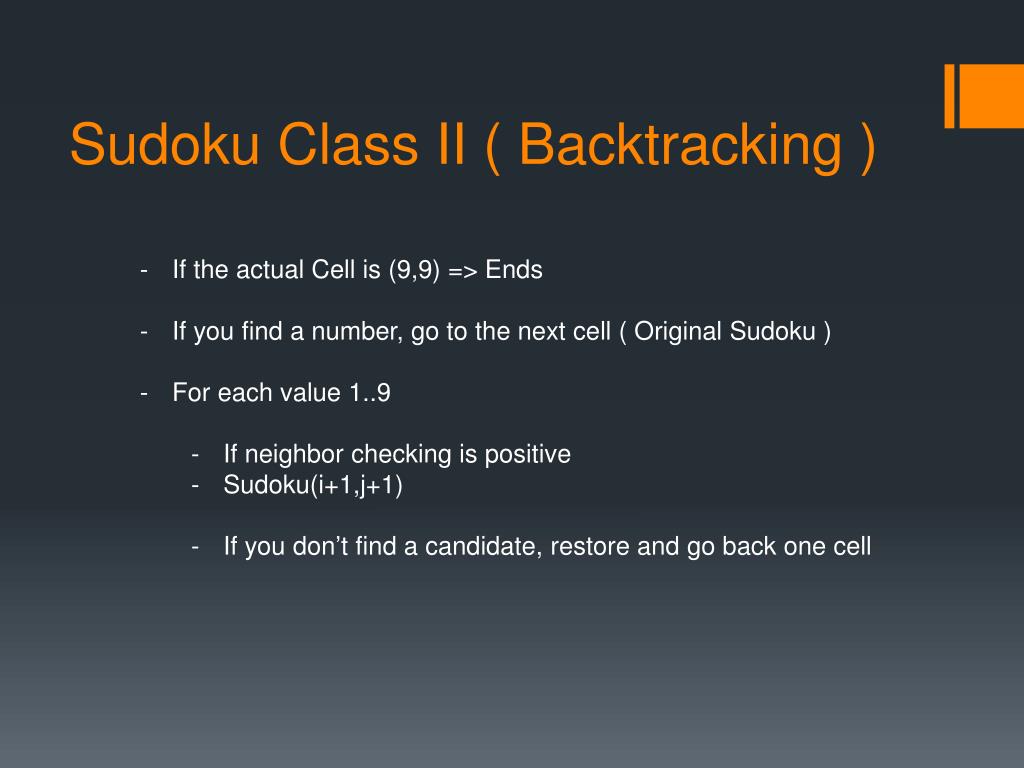

  6. Sudoku Class II ( Backtracking ) • Ifthe actual Cellis(9,9) => Ends • Ifyoufind a number, gotothenextcell ( Original Sudoku ) • Foreachvalue1..9 • Ifneighborcheckingis positive • Sudoku(i+1,j+1) • Ifyoudon’tfind a candidate, restore and go back onecell

  7. DownloadActivity (I) • A waytoupdatetheappgame • Itexist a Sudoku boardholded in a web server • “Goodformed” Boardwithin a *.txt file. • Thegoalistorescuethisboard and takeittotheGame

  8. DownloadActivity (II)

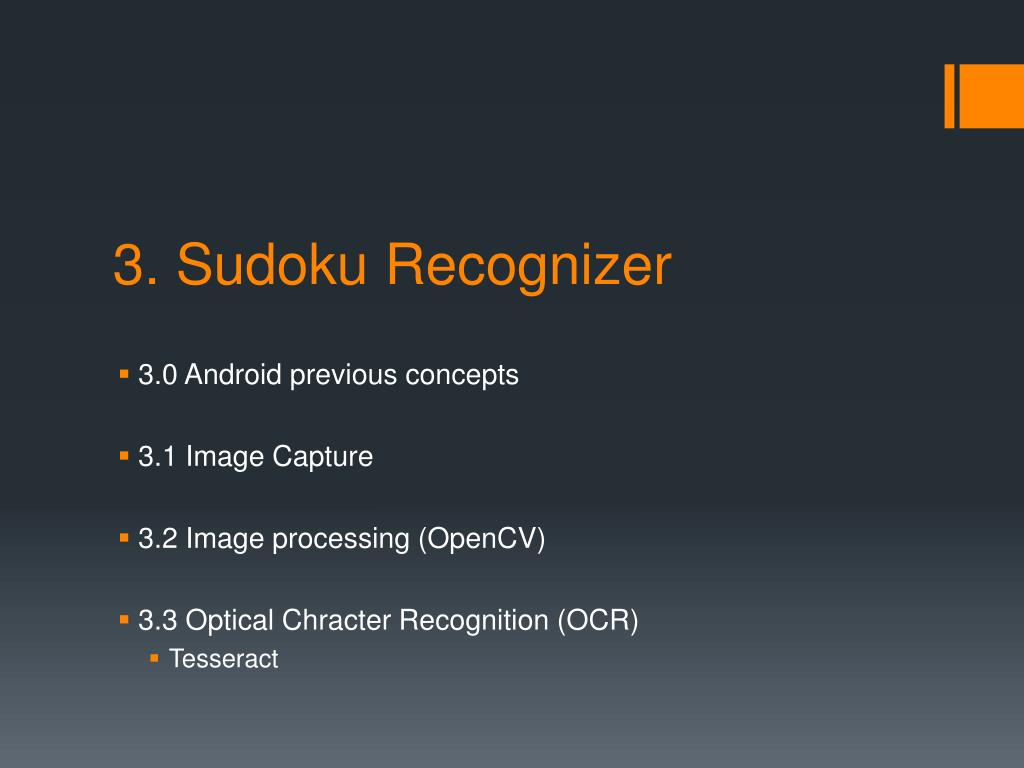

  9. 3. Sudoku Recognizer • 3.0 Androidpreviousconcepts • 3.1 Image Capture • 3.2 Imageprocessing(OpenCV) • 3.3 OpticalChracterRecognition (OCR) • Tesseract

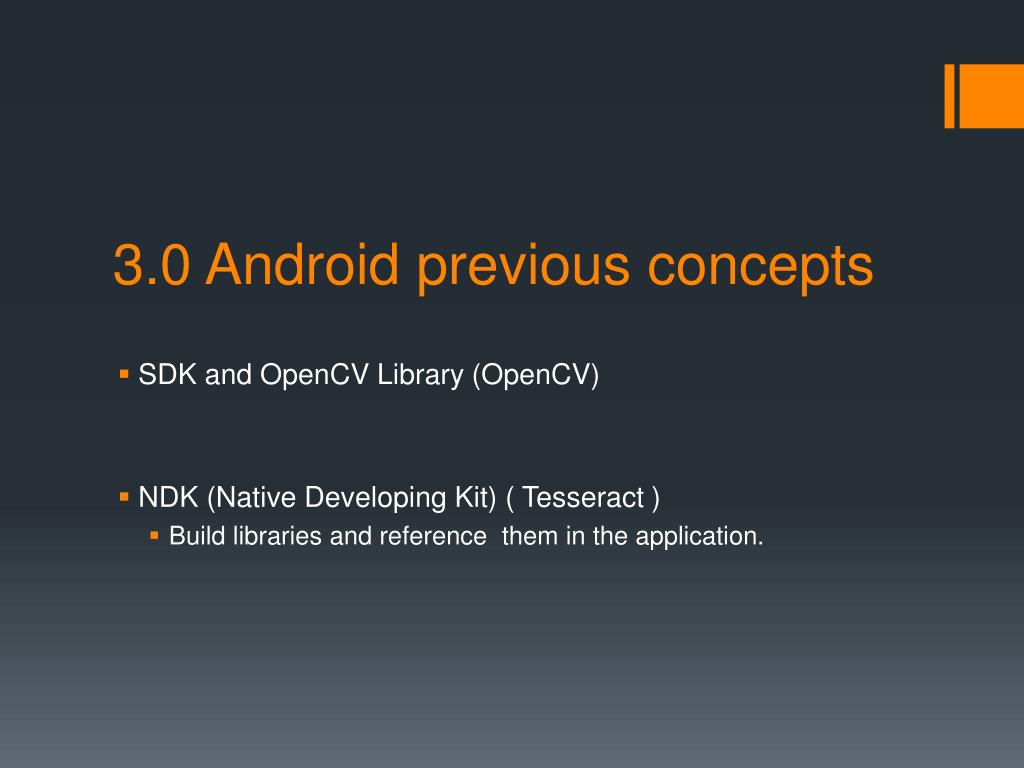

  10. 3.0 Androidpreviousconcepts • SDK and OpenCV Library (OpenCV) • NDK (NativeDeveloping Kit) ( Tesseract ) • Buildlibraries and referencethem in theapplication.

  11. 3.1 Image Capture • CallingtheIntentin charge of capturingimages of Android • Capture and savetheimage in a temporal file • Pre-processing=> Findingthe balance betweengoodqualitiy and computability

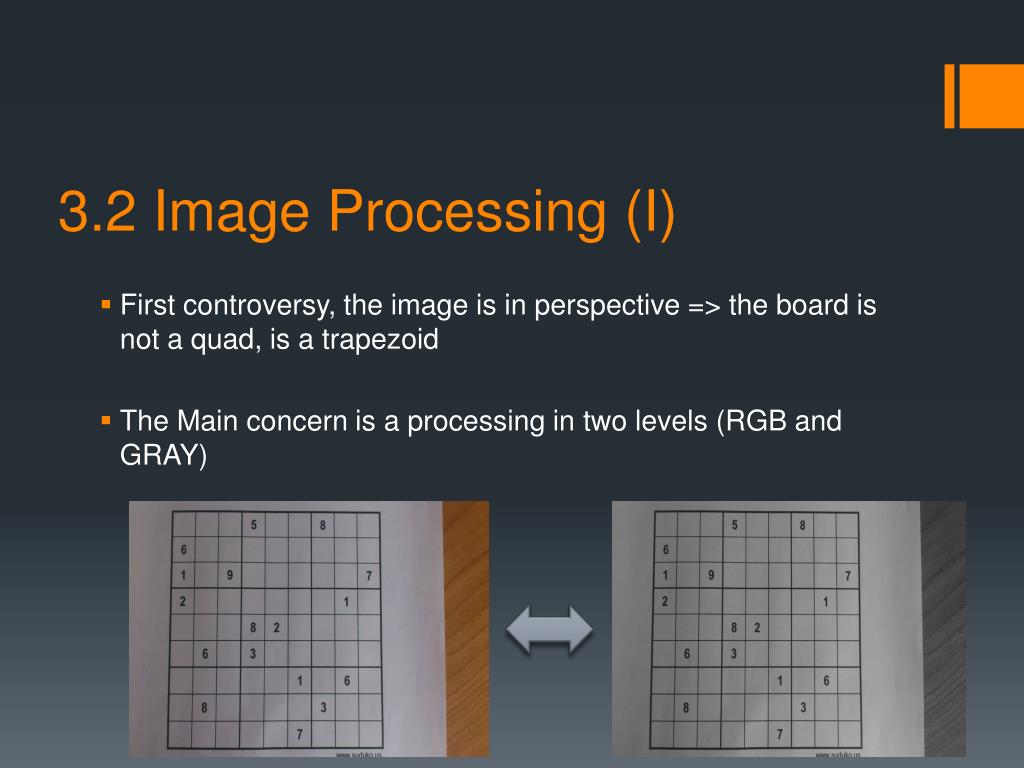

  12. 3.2 ImageProcessing (I) • Firstcontroversy, theimageis in perspective=> theboardisnot a quad, is a trapezoid • TheMainconcernis a processing in twolevels (RGB and GRAY)

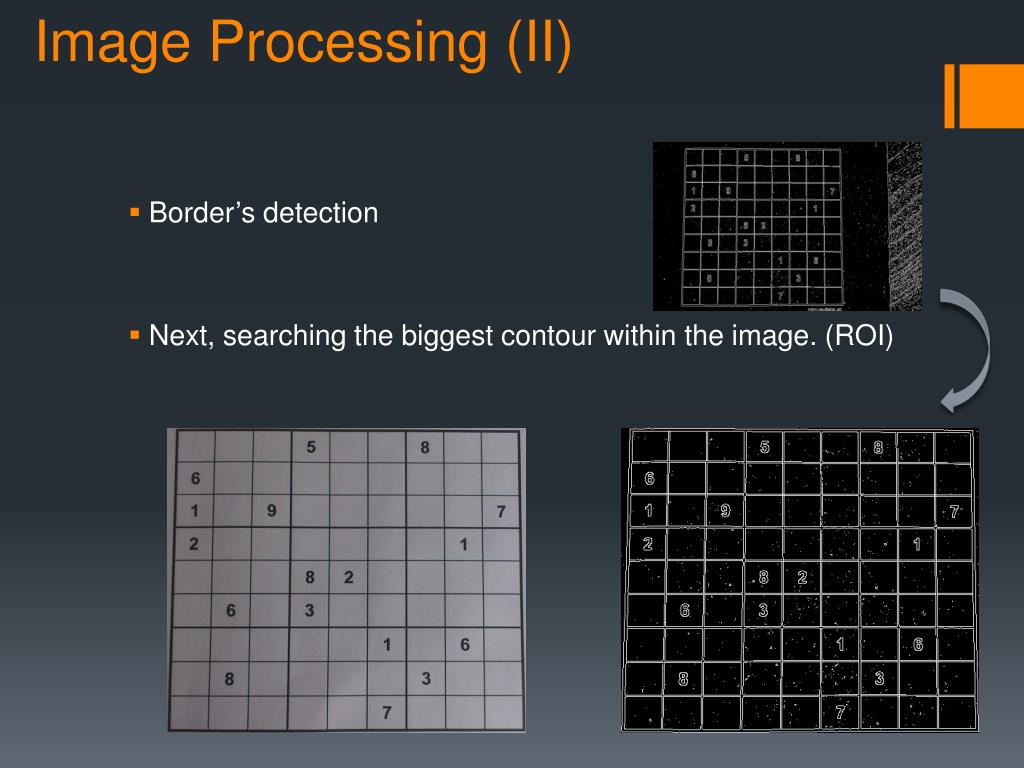

  13. ImageProcessing (II) • Border’sdetection • Next, searchingthebiggestcontourwithintheimage. (ROI)

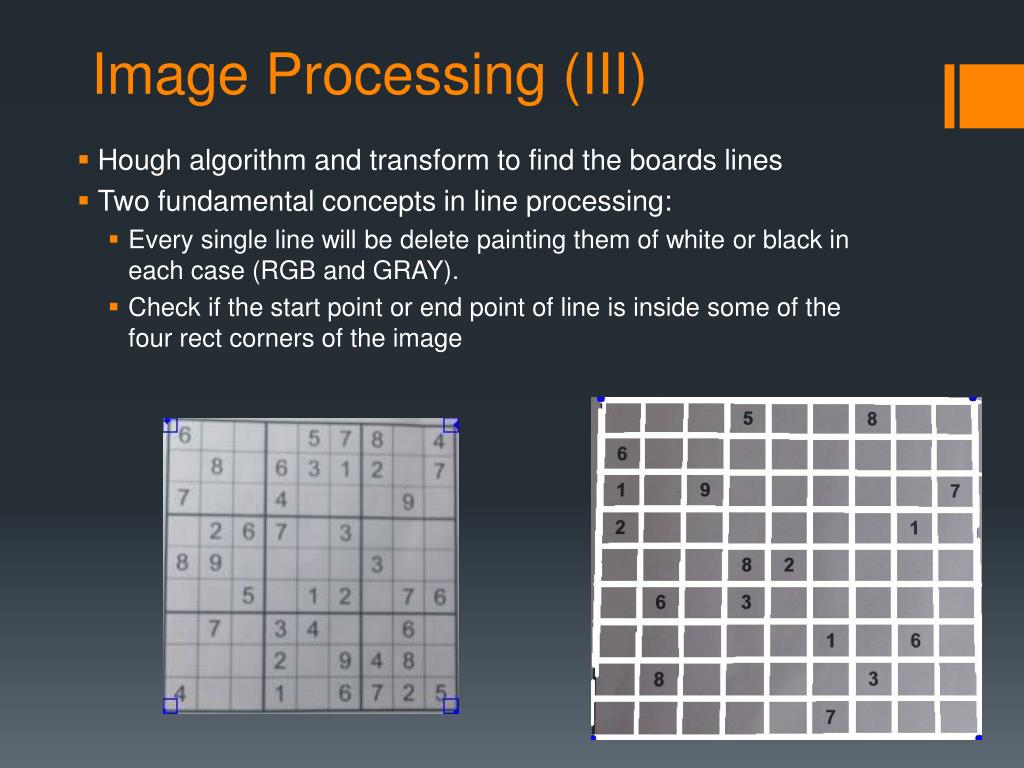

  14. ImageProcessing (III) • Houghalgorithm and transformtofindtheboardslines • Two fundamental concepts in line processing: • Every single line will be deletepaintingthem of whiteorblack in each case (RGB and GRAY). • Checkifthestartpointorendpoint of line isinsidesome of thefourrectcorners of theimage

  15. ImageProcessing (IV) • Gettingthematrixthat defines theperspectivetransformationneededtoextrapolatethecorners of theboardtothecorners of theimage • Apply a WarpPerspectiveTransformationwiththe matriz obtained.

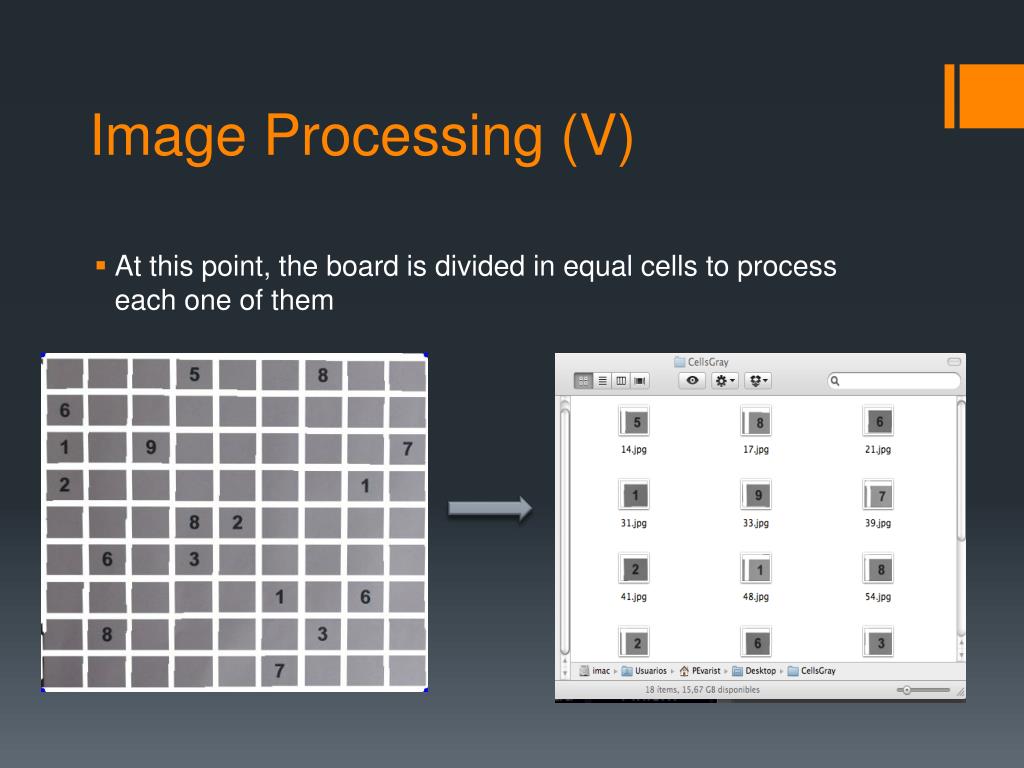

  16. ImageProcessing (V) • At thispoint, theboardisdivided in equalcellstoprocesseachone of them

  17. Procesamiento de la Imagen (VI) • Single cellprocessing in paralell (RGB and Gray) bearing in mindTesseractsrequeriments. Equalizing Histogram Threshold Smooth + Dilate findContours()

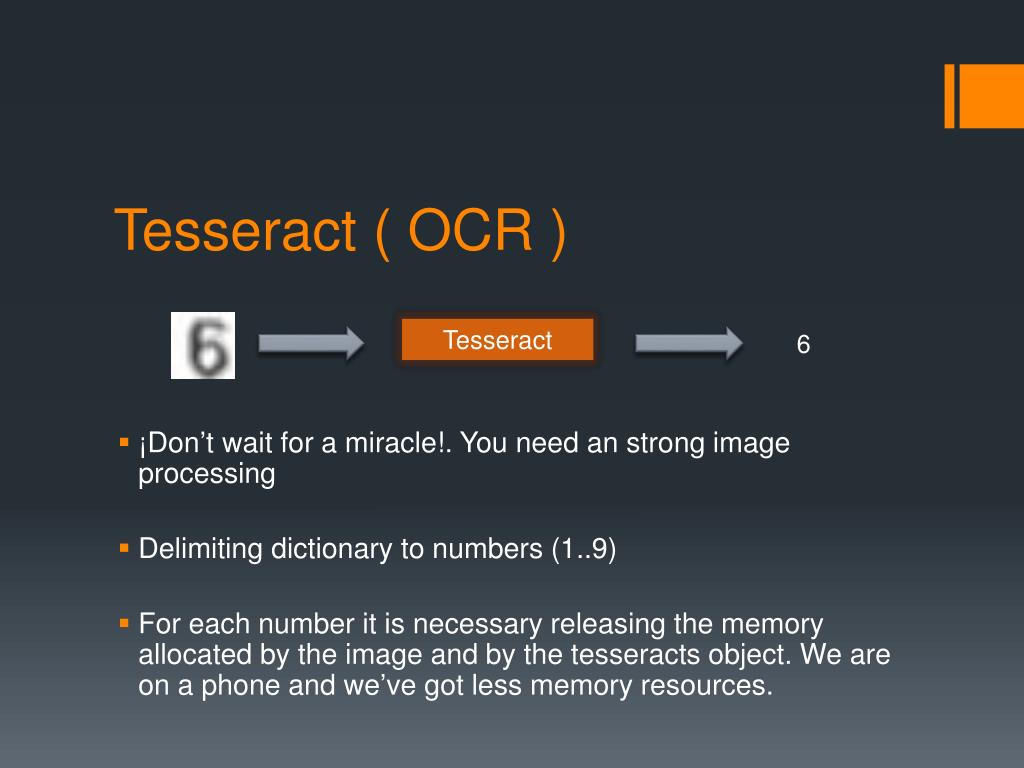

  18. Tesseract ( OCR ) • ¡Don’twaitfor a miracle!. Youneedanstrongimageprocessing • Delimitingdictionarytonumbers(1..9) • Foreachnumberitisnecessaryreleasingthememoryallocatedbytheimage and bythetesseractsobject. We are on a phone and we’vegotlessmemoryresources. Tesseract 6
