  1. Computer Science DepartmentTechnion – Israel Institute of TechnologyGenomic Sorting with Length-Weighted ReversalsRon Y. PinterTechnionSteve SkienaSUNY Stony Brook

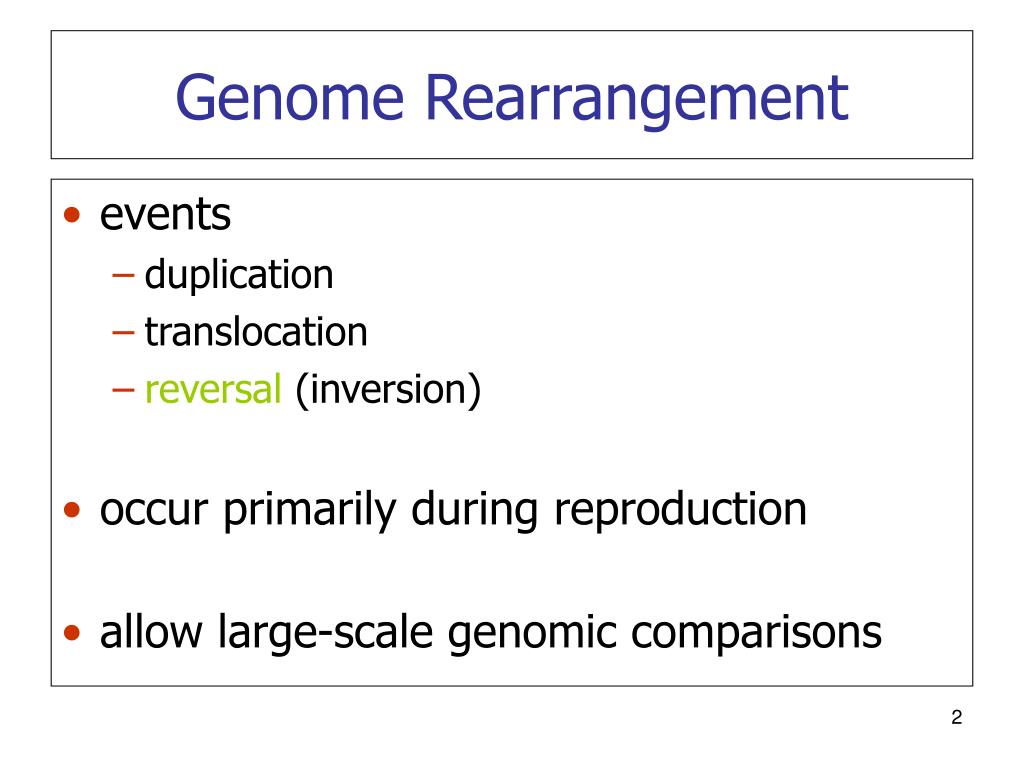

  2. Genome Rearrangement • events • duplication • translocation • reversal (inversion) • occur primarily during reproduction • allow large-scale genomic comparisons

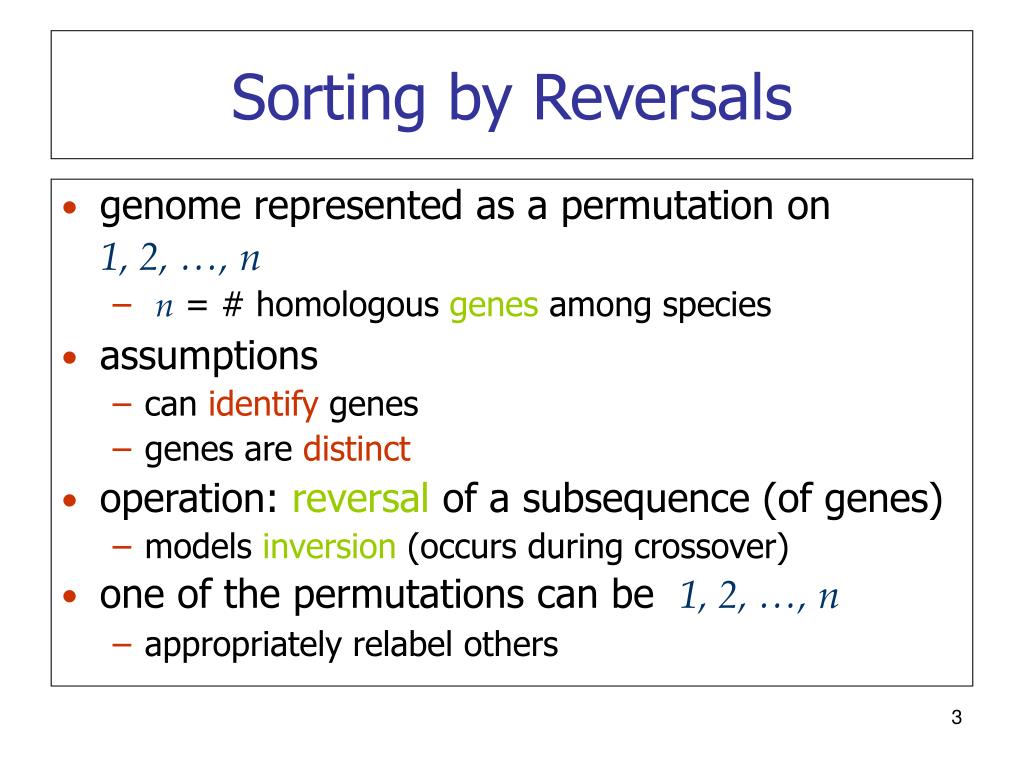

  3. Sorting by Reversals • genome represented as a permutation on 1, 2, …, n • n = # homologous genes among species • assumptions • can identify genes • genes are distinct • operation: reversalof a subsequence (of genes) • models inversion(occurs during crossover) • one of the permutations can be 1, 2, …, n • appropriately relabel others

  4. Example • 6 reversal • in our model (for f(l) = l): cost = 18

  5. Our Model • unsigned • cost of reversal of subsequence of length l is f(l) • total sorting cost (or distance) is f (length(sj)) S Sj are reversed subsequences

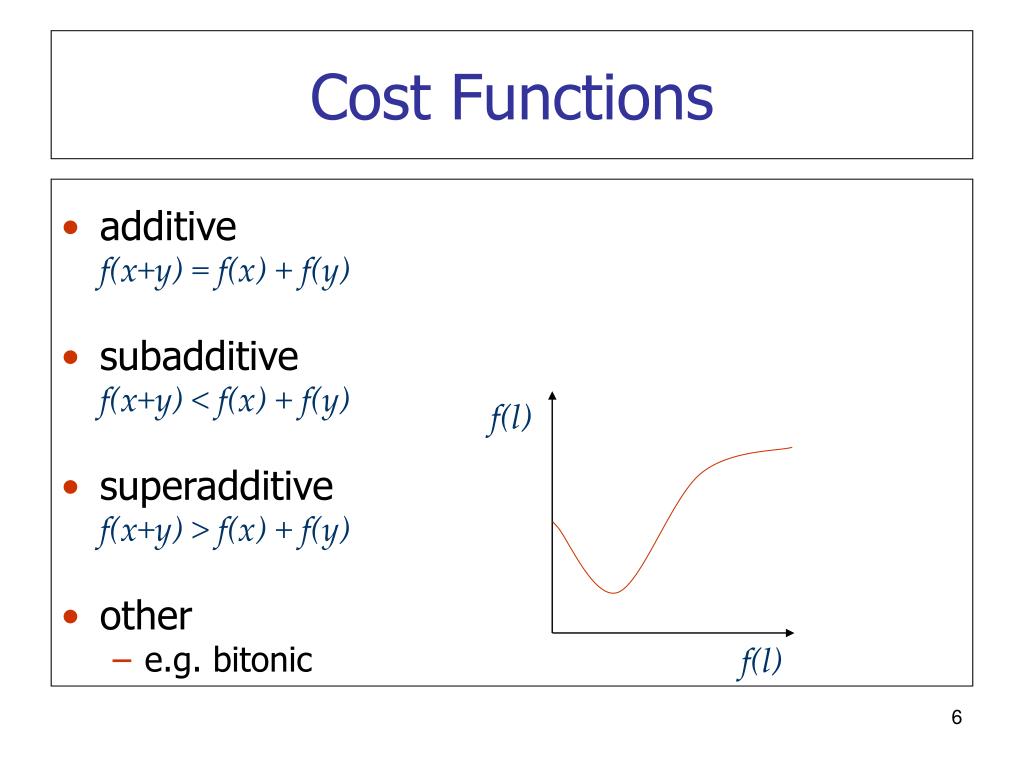

  6. f(l) f(l) Cost Functions • additive f(x+y) = f(x) + f(y) • subadditive f(x+y) < f(x) + f(y) • superadditive f(x+y) > f(x) + f(y) • other • e.g. bitonic

  7. Problems • algorithm to sort any permutation • worst-case min cost • approximate min cost for a given permutation

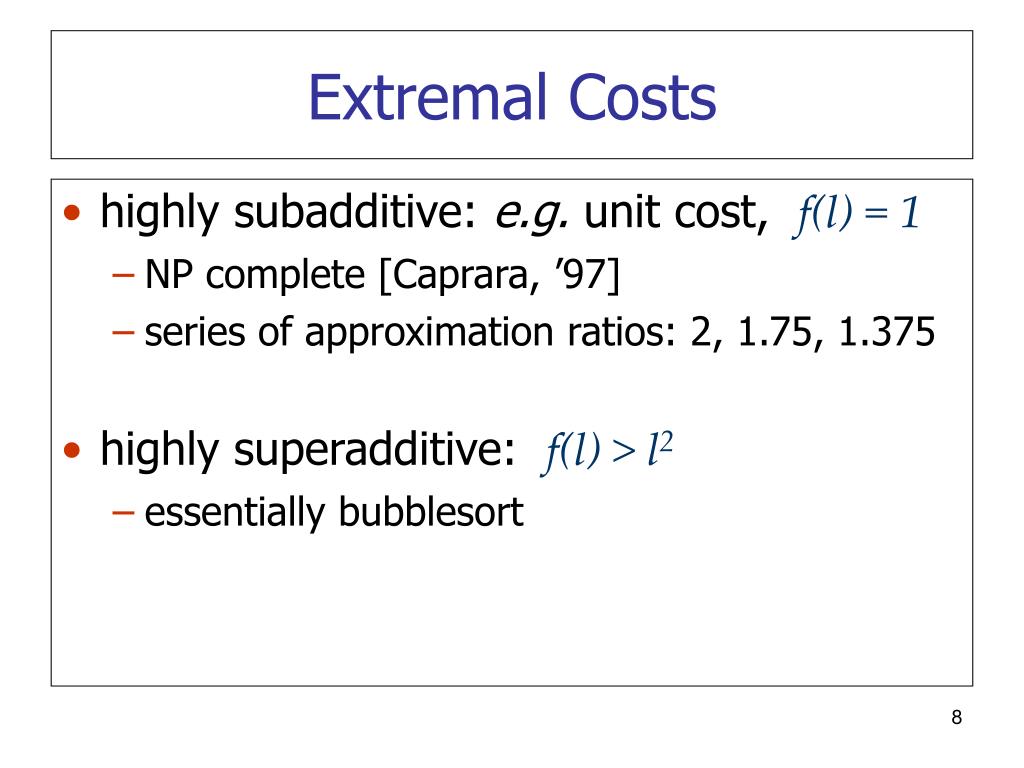

  8. Extremal Costs • highly subadditive: e.g. unit cost, f(l) = 1 • NP complete [Caprara, ’97] • series of approximation ratios: 2, 1.75, 1.375 • highly superadditive: f(l) > l2 • essentially bubblesort

  9. Our Results • additive cost function • specifically f(l) = l • QuickSort-like algorithm for worst-case • complexity: O(n lg2n) • min cost approximation ratio of O(lg2n)

  10. MedianEject(a,b) • find r maximal blocks of wrong-sided elements with respect to median • for lg r do: flip every other pair of blocks of wrong-sided and adjacent blocks • move wrong-sided blocks to median boundary • reverse left and right blocks

  11. Sample Run complexity: O((b-a) lg r)

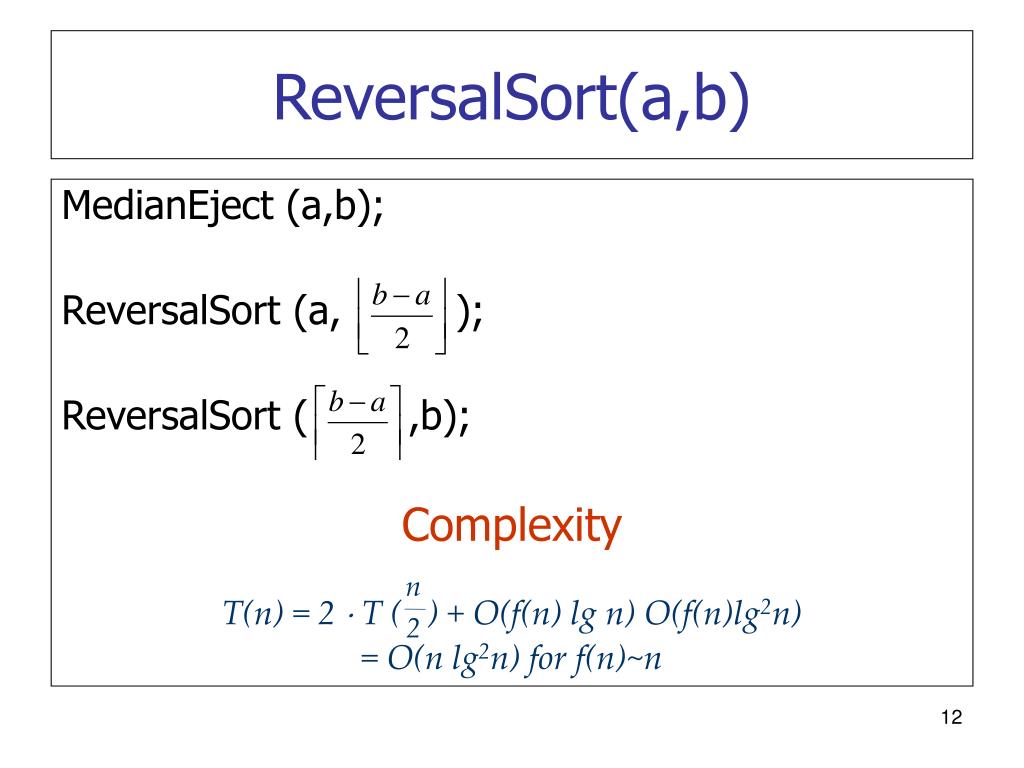

  12. n 2 ReversalSort(a,b) MedianEject (a,b); ReversalSort (a, ); ReversalSort ( ,b); Complexity T(n) = 2  T ( ) + O(f(n) lg n) O(f(n)lg2n) = O(n lg2n) for f(n)~n

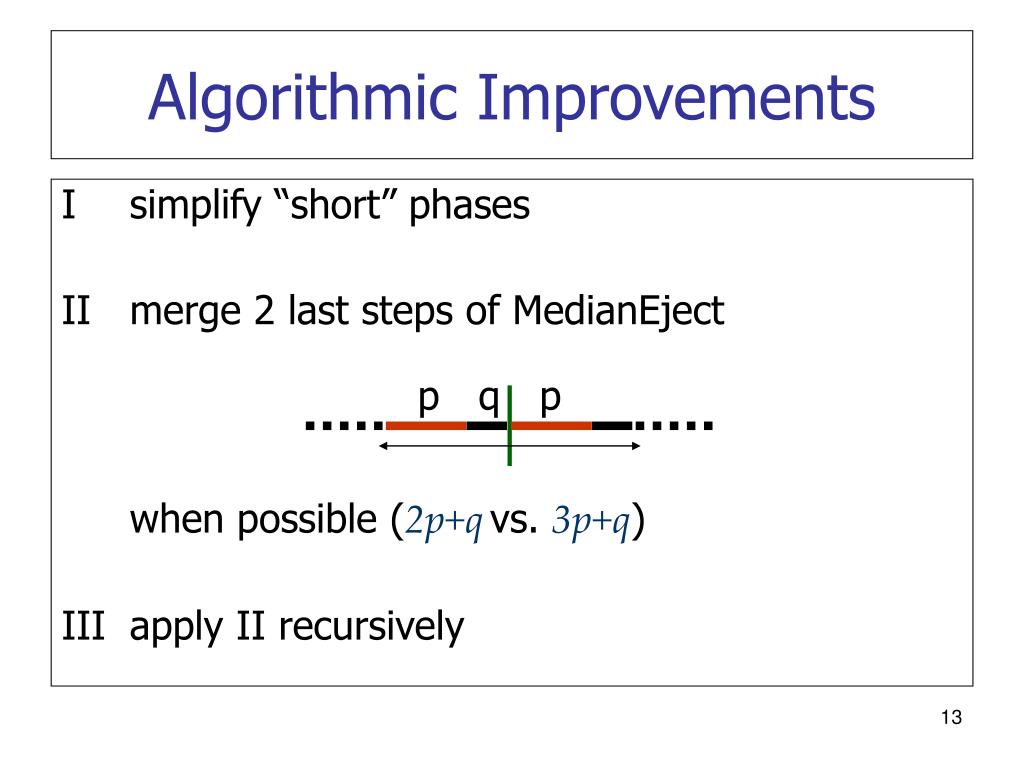

  13. p q p Algorithmic Improvements Isimplify “short” phases II merge 2 last steps of MedianEject when possible (2p+qvs. 3p+q) III apply II recursively

  14. Approximation Ratio • M(p) is the maximal total distance between pairs of out-of order elements Lemma 4: min cost is (M(p)) but Lemma 6: # of out-of order elts < 3  M(p) + Lemma 7: MedianEject touches only elements within linear range from out-of-order elements yields: • each round of MedianEject takes O(M(p)  lg2n) • ReversalSort costs O(M(p)  lg2n) • ReversalSort is at most O((lg2n) timesoptimal

  15. Bioinformatic “Validation” • use our cost (= distance) to build phylogenetic trees • 4 plants (chloroplastic genes) • consistent with [Martin et al., PNAS Sept ‘02] • work in progress [M. Shoham] Cyanophora Cyanidium Guilardia Porphyra

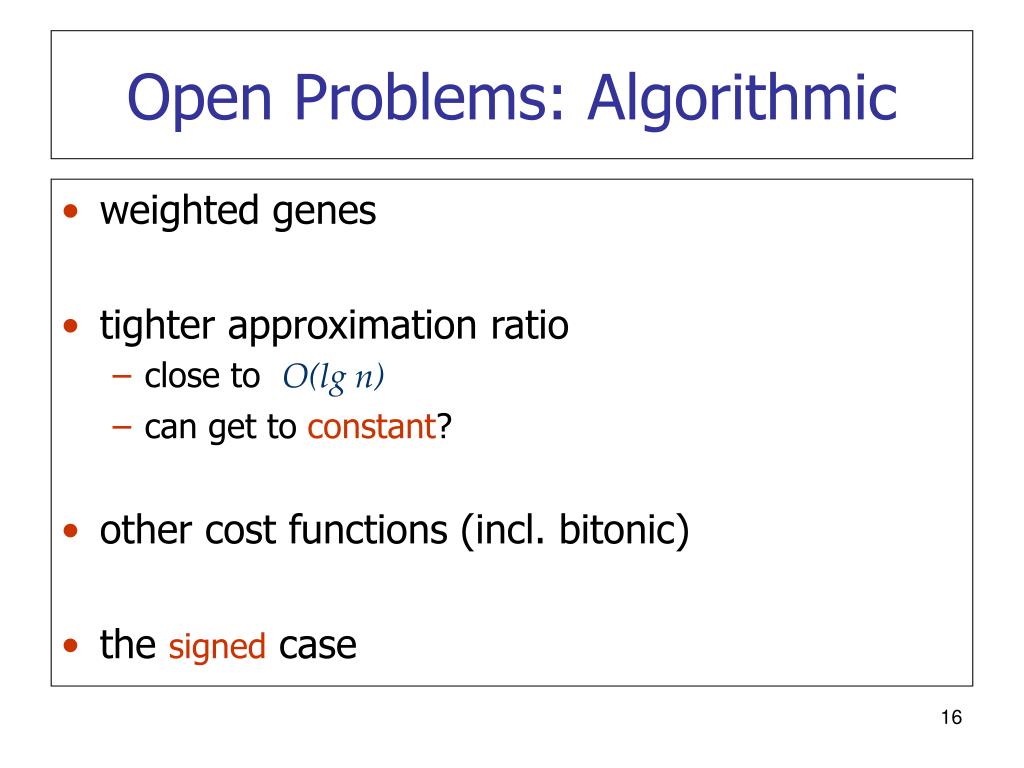

  16. Open Problems: Algorithmic • weighted genes • tighter approximation ratio • close to O(lg n) • can get to constant? • other cost functions (incl. bitonic) • the signed case

  17. Open Problems: Modeling • chromosomal ordering • what is the right cost function? • consider cost(l) = ld • combine with constant-based models • restricted regions • “undesired” reversal sequences • deal with duplication and translocation events
