  1. Making Your Mobile Apps Sexy Using the Compact Framework 3.5 Stephen Leverett DotNetConsult

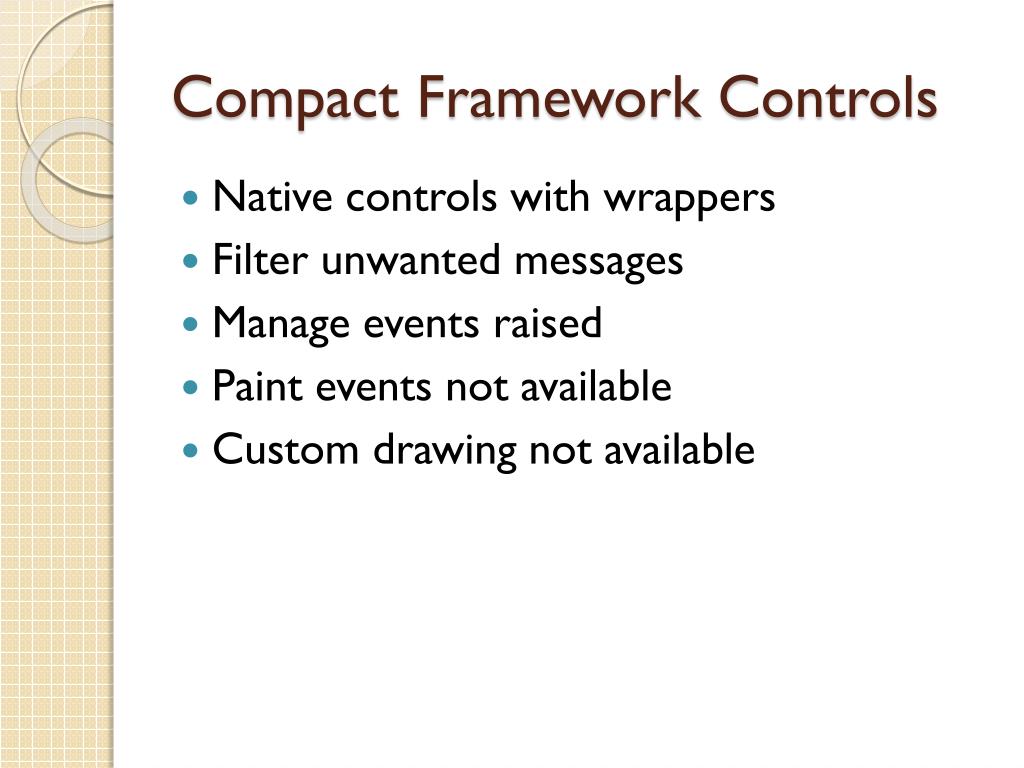

  2. Compact Framework Controls • Native controls with wrappers • Filter unwanted messages • Manage events raised • Paint events not available • Custom drawing not available

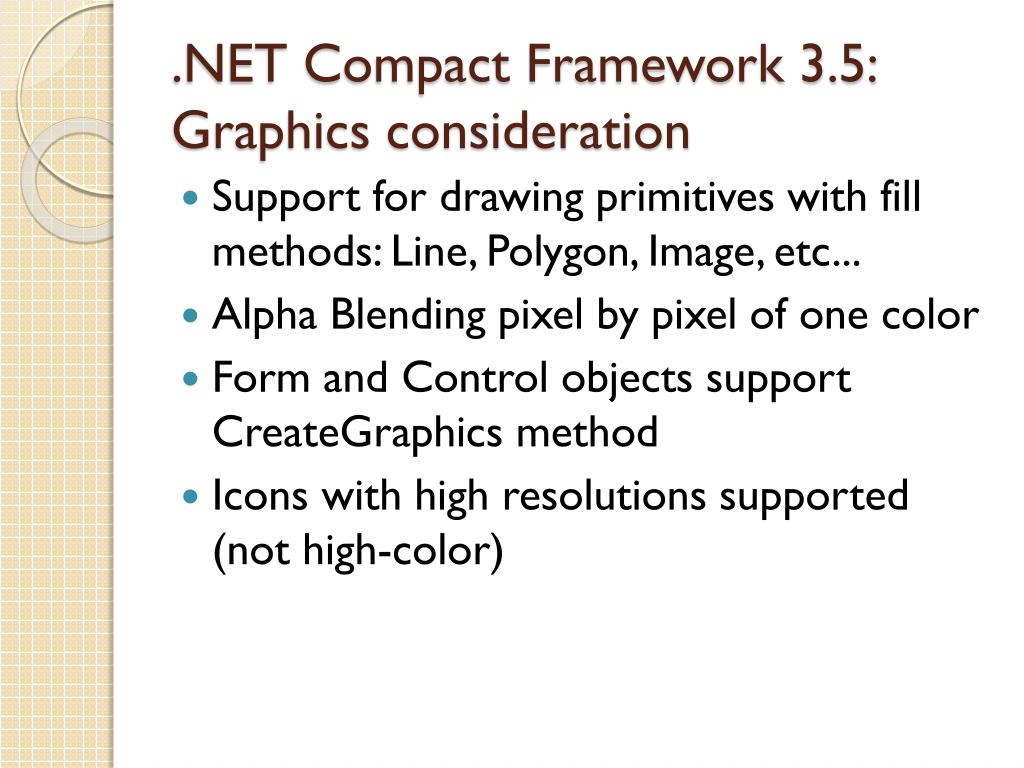

  3. .NET Compact Framework 3.5: Graphics consideration • Support for drawing primitives with fill methods: Line, Polygon, Image, etc... • Alpha Blending pixel by pixel of one color • Form and Control objects support CreateGraphics method • Icons with high resolutions supported (not high-color)

  4. .NET Compact Framework 3.5: Performance considerations • OnPaint with a PaintEventArgs when using an object • Draw graphics to off-screen bitmap • Design drawing with item changes determined by cursor position

  5. Basic Drawing &Graphics features • Set up a Background Image • Zoom effect • Gradient Fill • Draw Image with Transparency • Draw Image Off-Screen

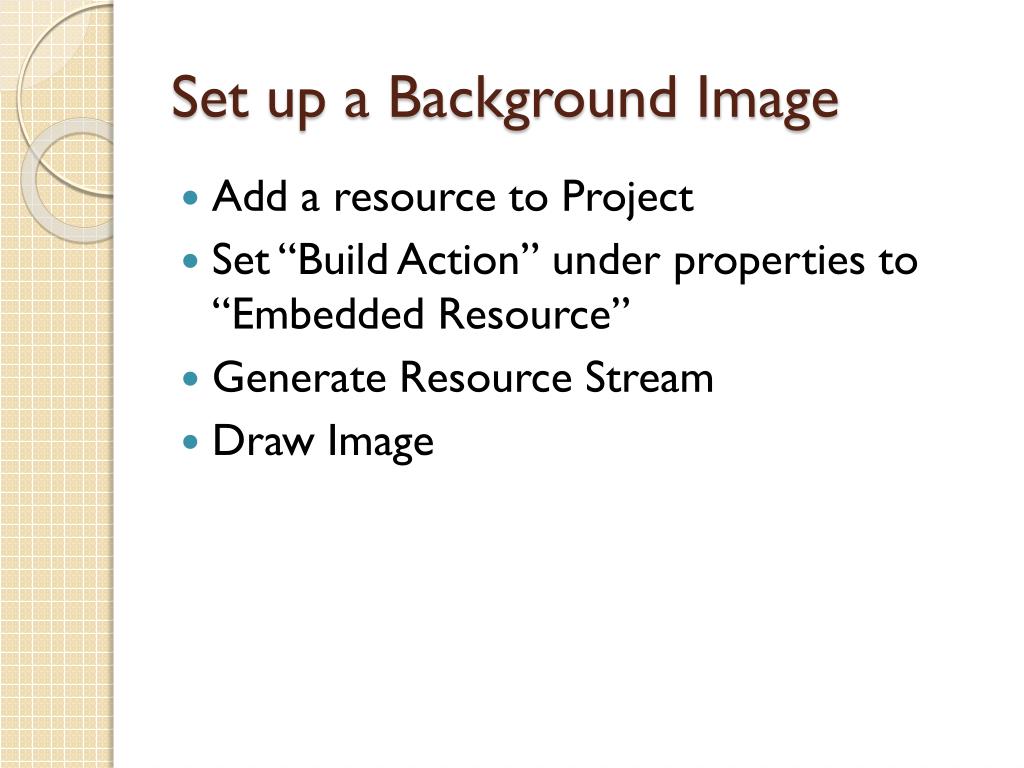

  6. Set up a Background Image • Add a resource to Project • Set “Build Action” under properties to “Embedded Resource” • Generate Resource Stream • Draw Image

  7. Assembly asm = Assembly.GetExecutingAssembly(); Bitmap backgroundImage = new Bitmap(asm.GetManifestResourceStream("BackgroundIMG.Toucan.jpg")); e.Graphics.DrawImage(backgroundImage, this.ClientRectangle, new Rectangle(0, 0, backgroundImage.Width, backgroundImage.Height), GraphicsUnit.Pixel);

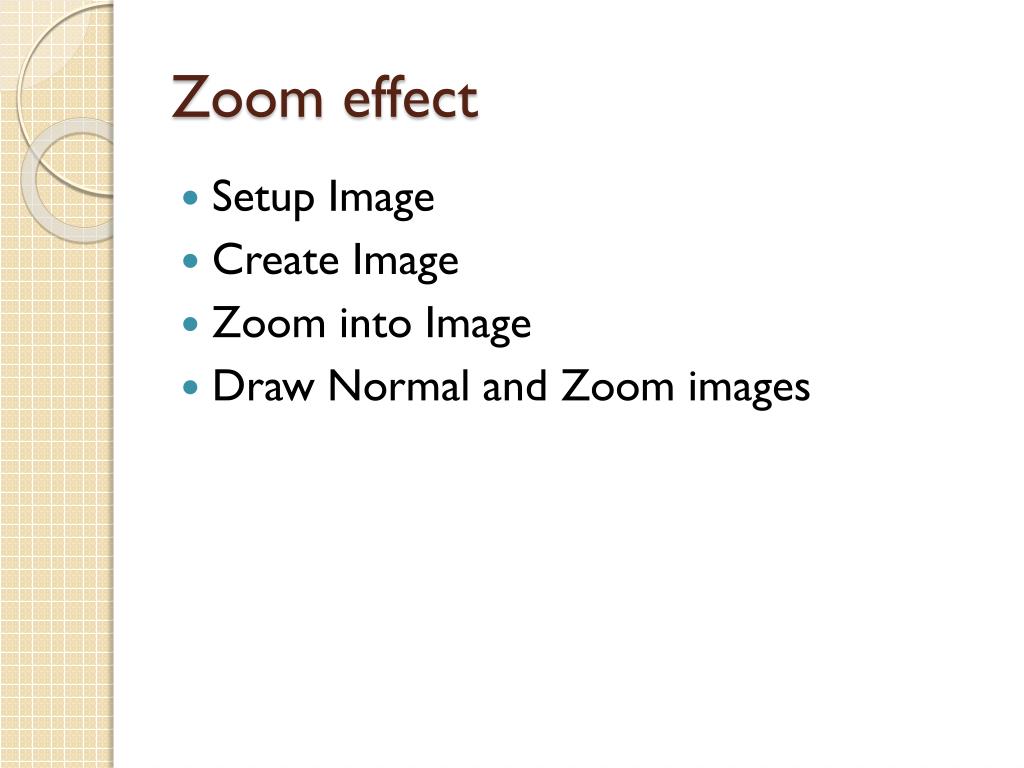

  8. Zoom effect • Setup Image • Create Image • Zoom into Image • Draw Normal and Zoom images

  9. void CreateBitmap() { bmp = new Bitmap(75, 75); Graphics g = Graphics.FromImage(bmp); SolidBrushBlueBrush = new SolidBrush(Color.Blue); SolidBrushRedBrush = new SolidBrush(Color.Red); Rectangle OuterRect = new Rectangle(0, 0, 200, 200); g.FillRectangle(BlueBrush, OuterRect); Rectangle InnerRect = new Rectangle(25, 25, 25, 25); g.FillRectangle(RedBrush, InnerRect); g.Dispose(); }

  10. private void ZoomIMG() { bmpZoom = new Bitmap(bmp.Width, bmp.Height); Graphics g = Graphics.FromImage(bmpZoom); int new4W = bmp.Width / 4; int new4H = bmp.Height / 4; int new2W = bmp.Width / 2; int new2H = bmp.Height / 2; Rectangle srcRect = new Rectangle(new4W, new4H, new2W, new2H); Rectangle dstRect = new Rectangle(0, 0, bmpZoom.Width, bmpZoom.Height); g.DrawImage(bmp, dstRect, srcRect, GraphicsUnit.Pixel); } protected override void OnPaint(PaintEventArgs e) { e.Graphics.DrawImage(bmp, 0, 0); e.Graphics.DrawImage(bmpZoom, 125, 0); base.OnPaint(e); }

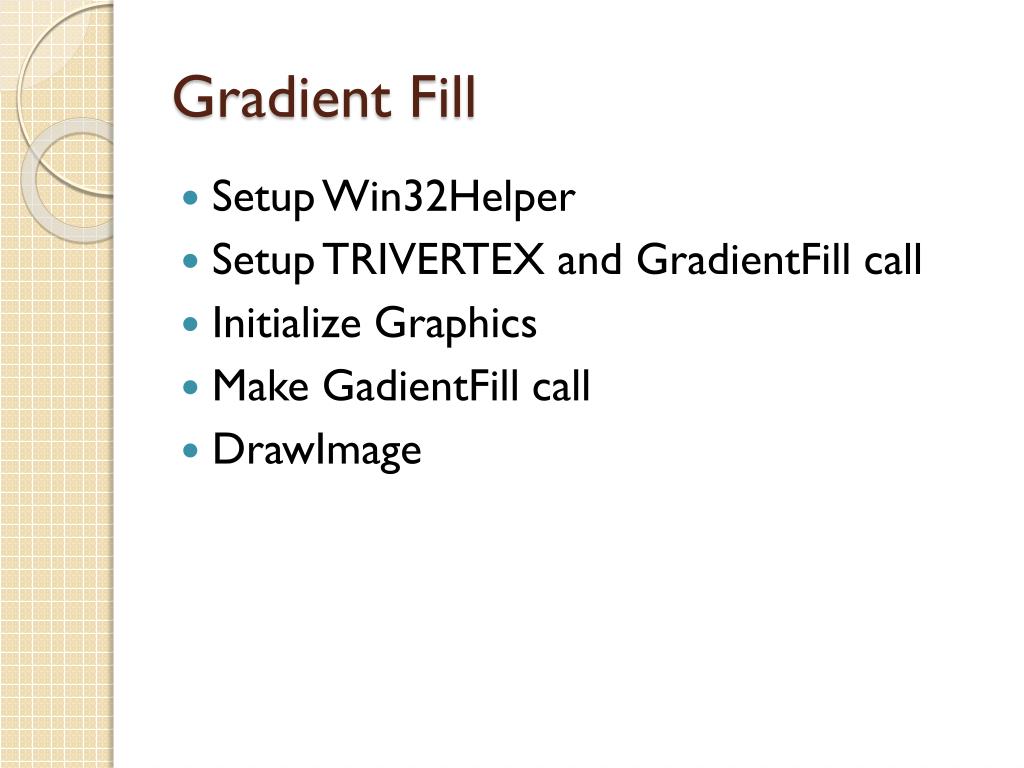

  11. Gradient Fill • Setup Win32Helper • Setup TRIVERTEX and GradientFill call • Initialize Graphics • Make GadientFill call • DrawImage

  12. public TRIVERTEX( int x, int y, ushort red, ushort green, ushort blue, ushort alpha) { this.x = x; this.y = y; this.Red = (ushort)(red << 8); this.Green = (ushort)(green << 8); this.Blue = (ushort)(blue << 8); this.Alpha = (ushort)(alpha << 8); } public struct GRADIENT_RECT { public uintUpperLeft; public uintLowerRight; public GRADIENT_RECT(uintul, uintlr) { this.UpperLeft = ul; this.LowerRight = lr; } }

  13. [DllImport("coredll.dll", SetLastError = true, EntryPoint = "GradientFill")] public extern static boolGradientFill( IntPtrhdc, TRIVERTEX[] pVertex, uintdwNumVertex, GRADIENT_RECT[] pMesh, uintdwNumMesh, uintdwMode); public const int GRADIENT_FILL_RECT_H = 0x00000000; public const int GRADIENT_FILL_RECT_V = 0x00000001;

  14. Win32Helper.TRIVERTEX[] tva = new Win32Helper.TRIVERTEX[2]; tva[0] = new Win32Helper.TRIVERTEX(r.X, r.Y, startColor); tva[1] = new Win32Helper.TRIVERTEX(r.Right, r.Bottom, endColor); Win32Helper.GRADIENT_RECT[] gr = new Win32Helper.GRADIENT_RECT[] { new Win32Helper.GRADIENT_RECT(0, 1)}; // Get the handle from the Graphics object. IntPtrhdc = g.GetHdc(); // PInvoke to GradientFill. bool b; b = Win32Helper.GradientFill( hdc, tva, (uint)tva.Length, gr, (uint)gr.Length, (uint)fillDirection); System.Diagnostics.Debug.Assert(b, string.Format( "GradientFill failed: {0}", System.Runtime.InteropServices.Marshal.GetLastWin32Error()));

  15. Color Topcolor = Color.Red; Color BottomColor = Color.RoyalBlue; Bitmap bmp = new Bitmap(Width, Height); Graphics g = System.Drawing.Graphics.FromImage(bmp); GradientFill.Fill(g, this.ClientRectangle, Topcolor, BottomColor, GradientFill.FillDirection.TopToBottom); //Draw Graphic Image e.Graphics.DrawImage(bmp, 0, 0); g.Dispose(); bmp.Dispose();

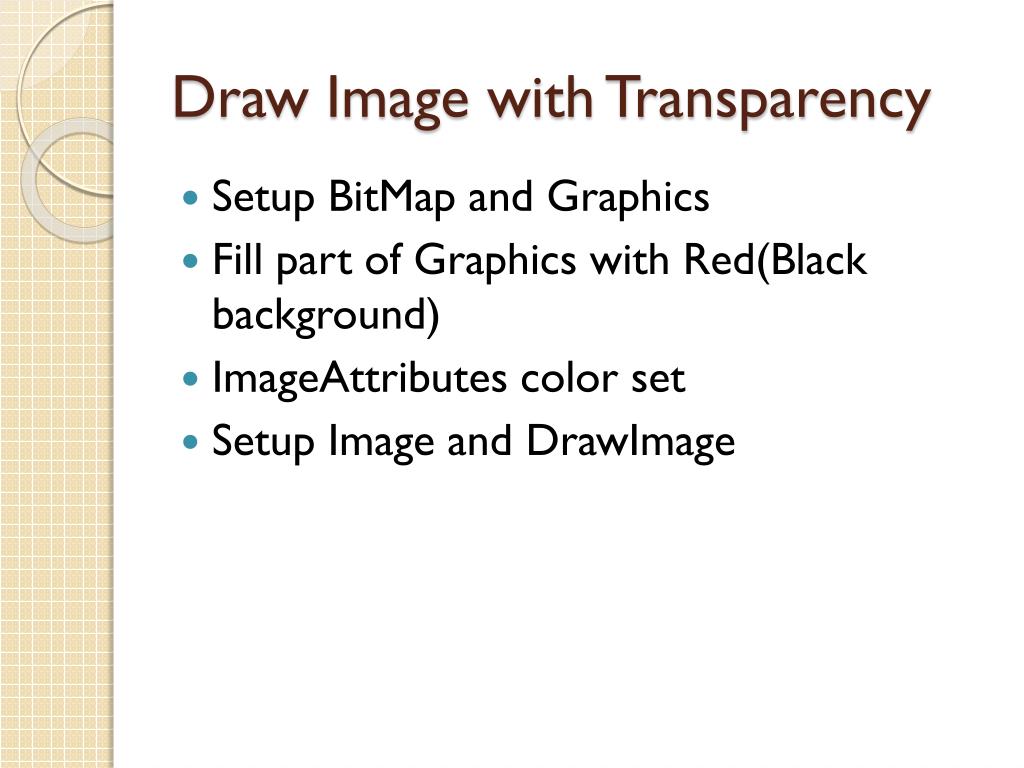

  16. Draw Image with Transparency • Setup BitMap and Graphics • Fill part of Graphics with Red(Black background) • ImageAttributes color set • Setup Image and DrawImage

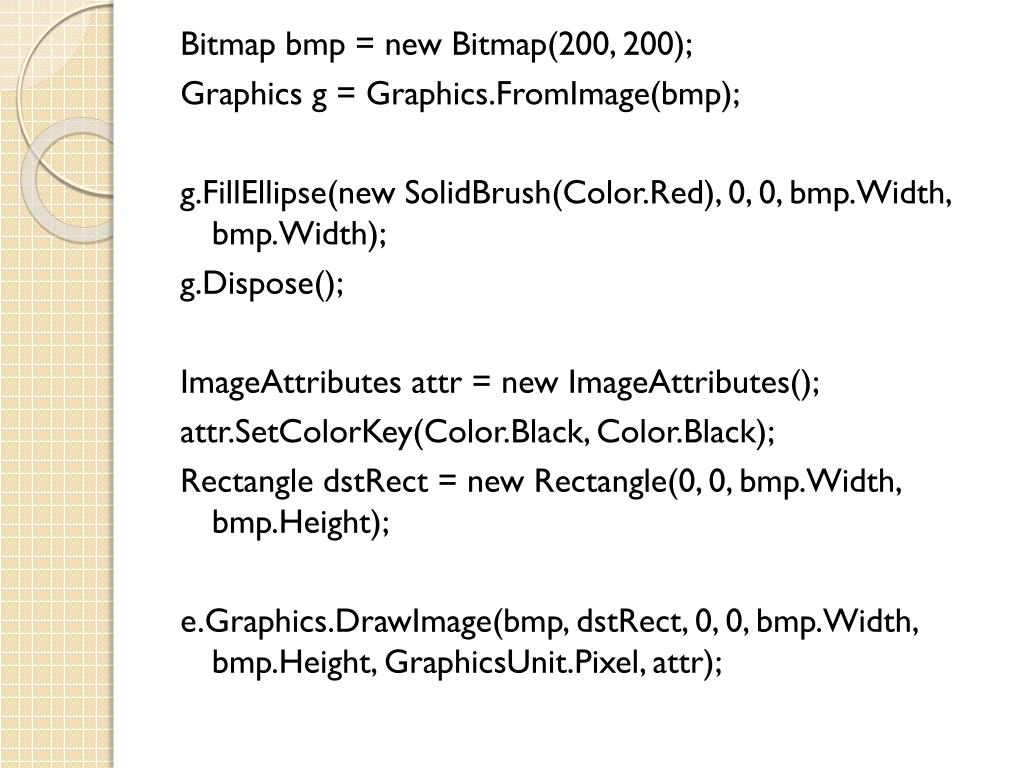

  17. Bitmap bmp = new Bitmap(200, 200); Graphics g = Graphics.FromImage(bmp); g.FillEllipse(new SolidBrush(Color.Red), 0, 0, bmp.Width, bmp.Width); g.Dispose(); ImageAttributesattr = new ImageAttributes(); attr.SetColorKey(Color.Black, Color.Black); Rectangle dstRect = new Rectangle(0, 0, bmp.Width, bmp.Height); e.Graphics.DrawImage(bmp, dstRect, 0, 0, bmp.Width, bmp.Height, GraphicsUnit.Pixel, attr);

  18. Draw Image off-screen • Setup BitMap and Graphics • Fill Graphics Bitmap with Red • Create white rectangle with Green Circle • Draw the Bitmap onto the screen

  19. Bitmap bmp = new Bitmap(200, 200); SolidBrushGreenBrush = new SolidBrush(Color.DarkSeaGreen); Pen WhitePen = new Pen(Color.White, 3); Graphics g = Graphics.FromImage(bmp); g.FillRectangle(new SolidBrush(Color.Red), 0, 0, bmp.Width, bmp.Height); Rectangle rect = new Rectangle(x, y, 20, 20); g.DrawRectangle(WhitePen, rect); g.FillEllipse(GreenBrush, rect); e.Graphics.DrawImage(bmp, 0, 0, ClientRectangle, GraphicsUnit.Pixel); g.Dispose();

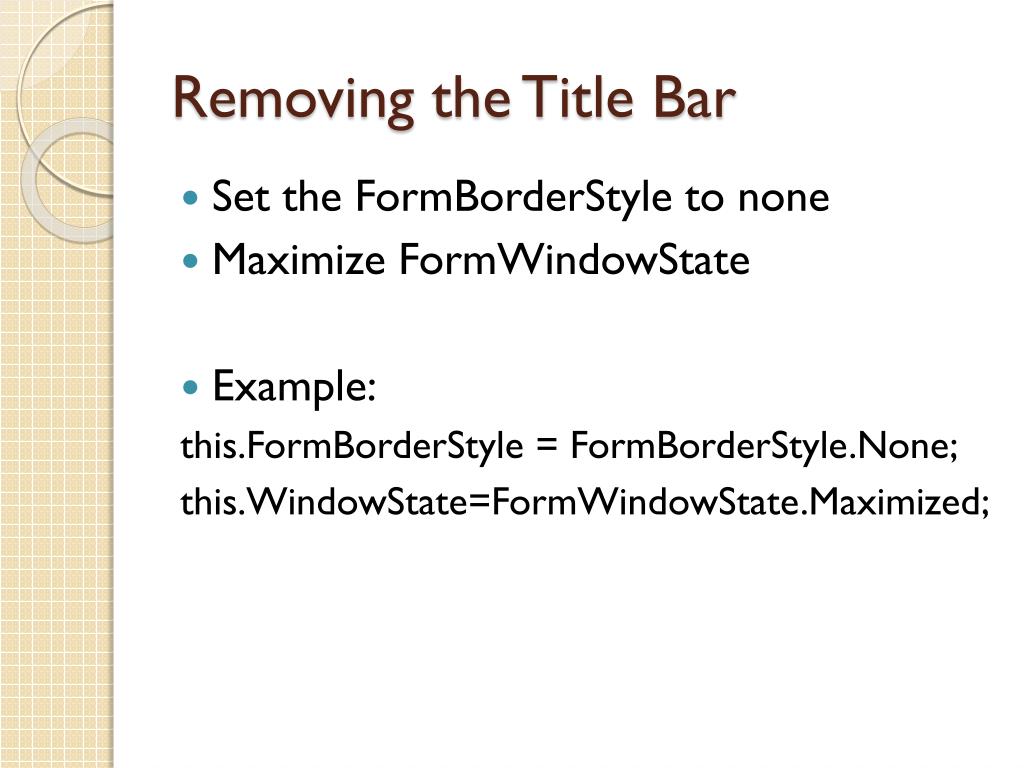

  20. Removing the Title Bar • Set the FormBorderStyle to none • Maximize FormWindowState • Example: this.FormBorderStyle = FormBorderStyle.None; this.WindowState=FormWindowState.Maximized;

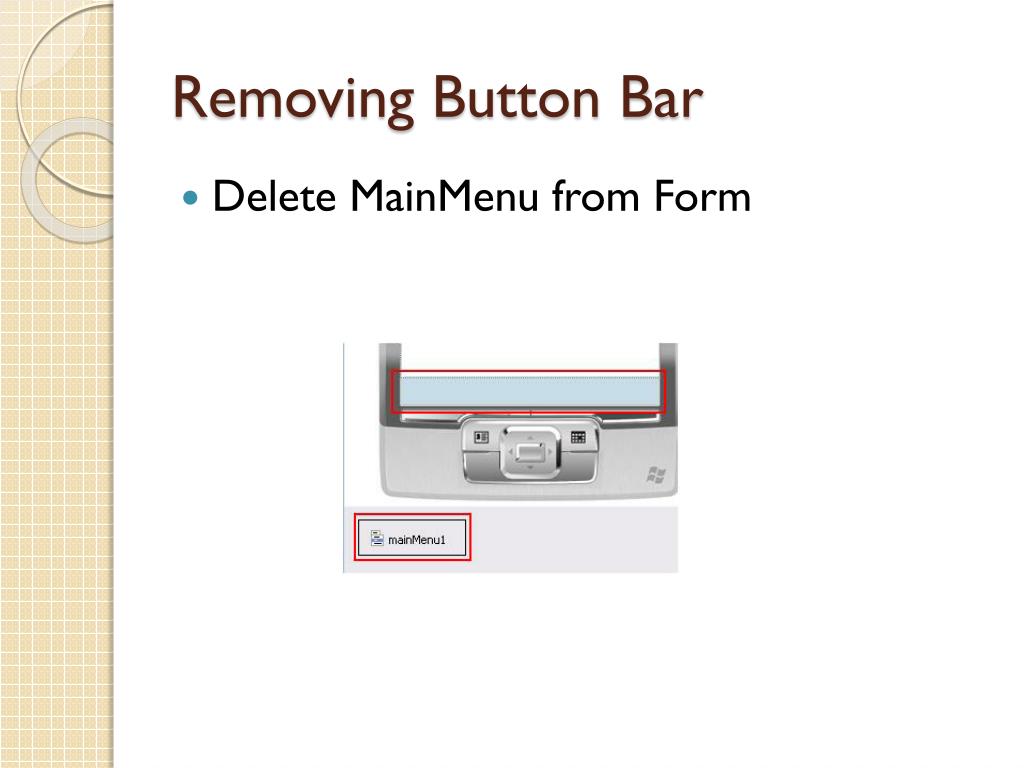

  21. Removing Button Bar • Delete MainMenu from Form

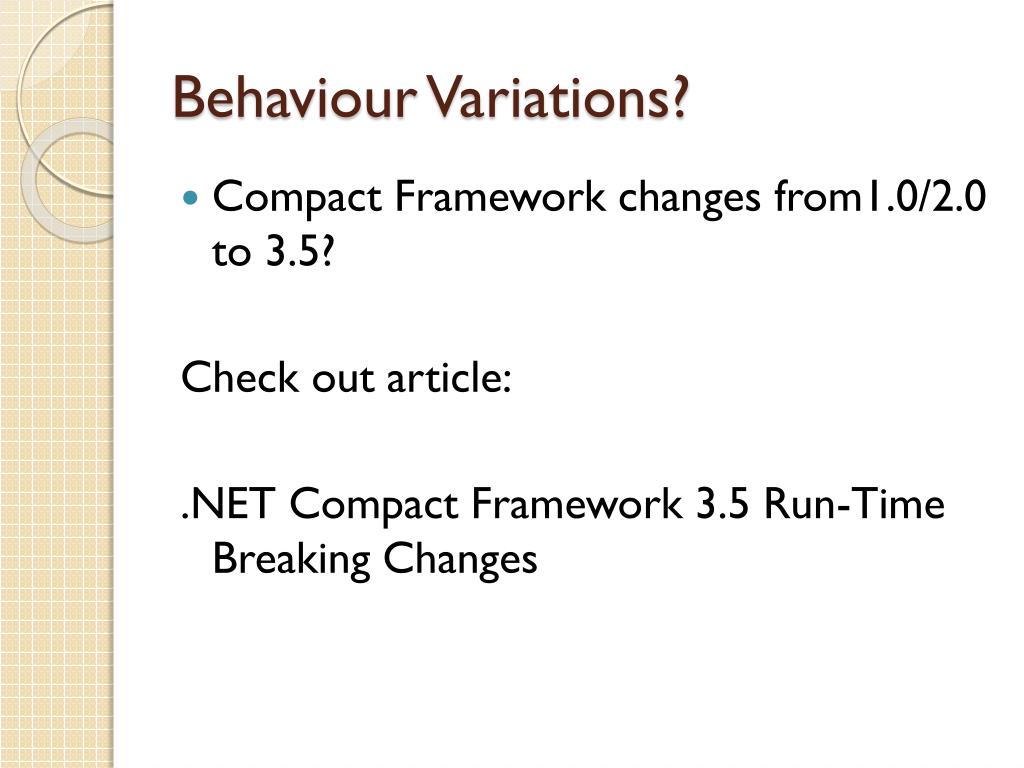

  22. Behaviour Variations? • Compact Framework changes from1.0/2.0 to 3.5? Check out article: .NET Compact Framework 3.5 Run-Time Breaking Changes

  23. Articles: • Graphics and Drawing in the .NET Compact Framework http://msdn.microsoft.com/en-us/library/hf85w92t.aspx • How to: Set a Background Image on a Form http://msdn.microsoft.com/en-us/library/ms172529.aspx • How to: Create a Zoom Effect http://msdn.microsoft.com/en-us/library/ms229648.aspx • How to: Display a Gradient Fill http://msdn.microsoft.com/en-us/library/ms229655.aspx • How to: Draw Images with Transparency http://msdn.microsoft.com/en-us/library/ms172507.aspx • How to: Draw Images Off-Screen http://msdn.microsoft.com/en-us/library/ms172506.aspx

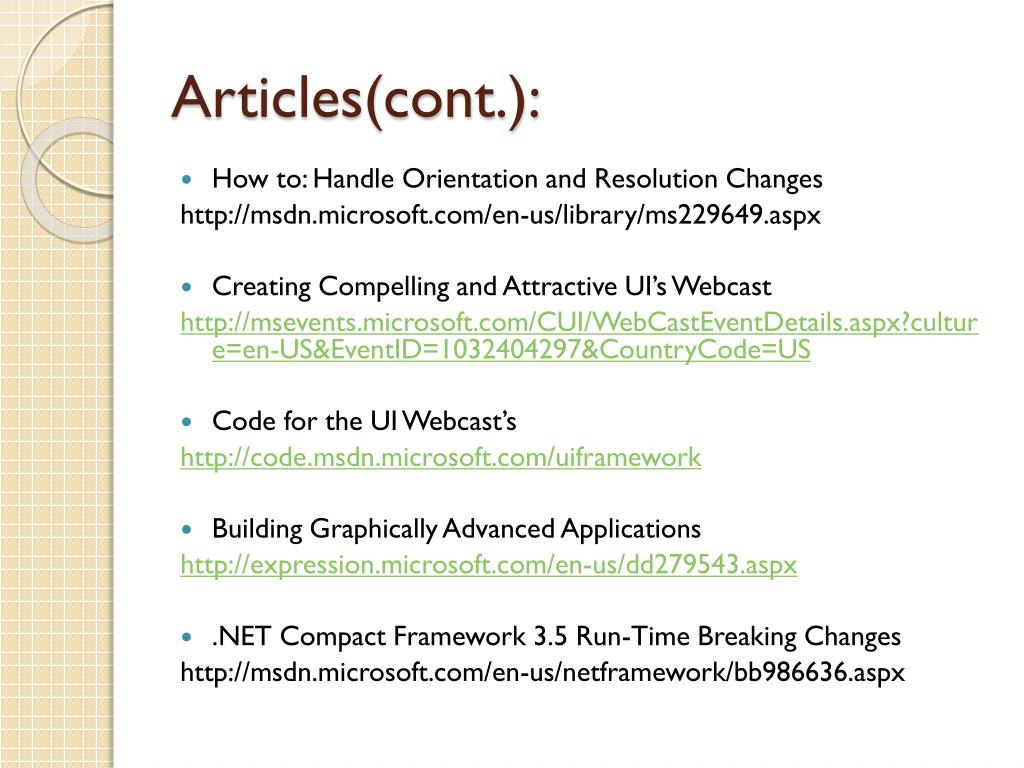

  24. Articles(cont.): • How to: Handle Orientation and Resolution Changes http://msdn.microsoft.com/en-us/library/ms229649.aspx • Creating Compelling and Attractive UI’s Webcast http://msevents.microsoft.com/CUI/WebCastEventDetails.aspx?culture=en-US&EventID=1032404297&CountryCode=US • Code for the UI Webcast’s http://code.msdn.microsoft.com/uiframework • Building Graphically Advanced Applications http://expression.microsoft.com/en-us/dd279543.aspx • .NET Compact Framework 3.5 Run-Time Breaking Changes http://msdn.microsoft.com/en-us/netframework/bb986636.aspx
