Numerical Analysis – Linear Equations(I)

1. Numerical Analysis – Linear Equations(I) Hanyang University Jong-Il Park

2. Linear equations • N unknowns, M equations coefficient matrix where

3. Solving methods • Direct methods • Gauss elimination • Gauss-Jordan elimination • LU decomposition • Singular value decomposition • … • Iterative methods • Jacobi iteration • Gauss-Seidel iteration • …

4. Basic properties of matrices(I) • Definition • element • row • column • row matrix, column matrix • square matrix • order= MxN (M rows, N columns) • diagonal matrix • identity matrix : I • upper/lower triangular matrix • tri-diagonal matrix • transposed matrix: At • symmetric matrix: A=At • orthogonal matrix: At A= I

5. Basic properties of matrices(II) • Diagonal dominance • Transpose facts

6. Basic properties of matrices(III) • Matrix multiplication

7. Determinant C

8. Determinant facts(I)

9. Determinant facts(II)

10. Geometrical interpretation of determinant

11. Over-determined/Under-determined problem • Over-determined problem (m>n) • least-square estimation, • robust estimation etc. • Under-determined problem (n<m) • singular value decomposition

12. Augmented matrix

13. Cramer’s rule

14. Triangular coefficient matrix

15. Substitution Upper triangular matrix Lower triangular matrix

16. Gauss elimination • Step 1: Gauss reduction • =Forward elimination • Coefficient matrix  upper triangular matrix • Step 2: Backward substitution

17. Gauss reduction Gauss reduction

18. Eg. Gauss elimination(I)

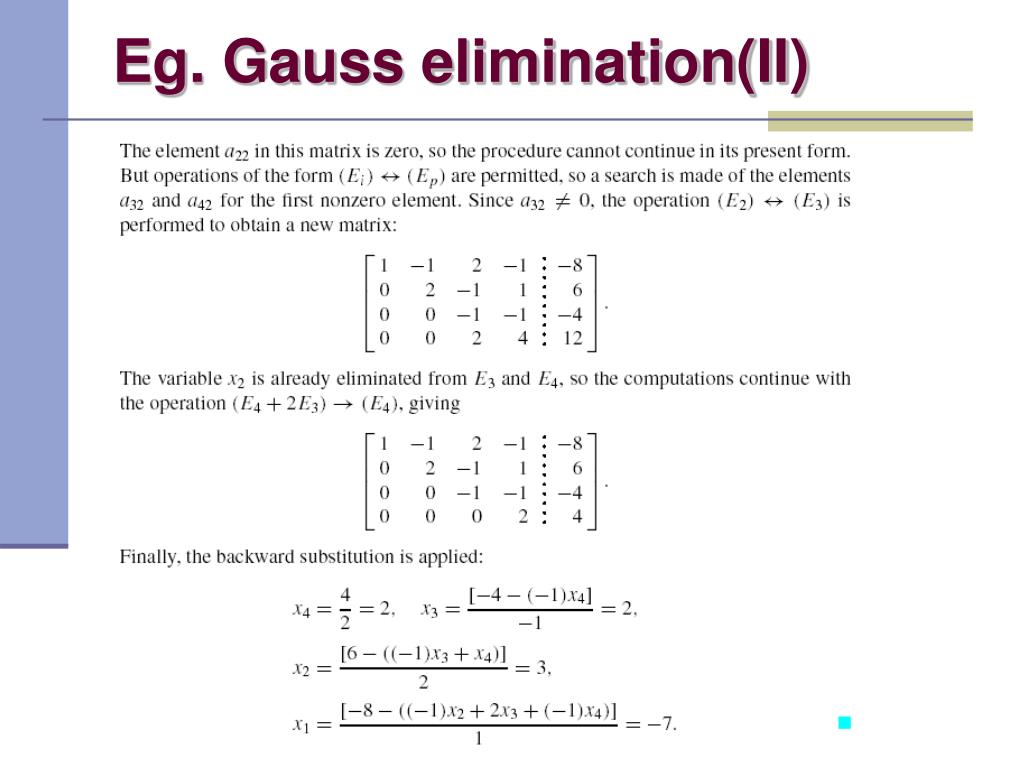

19. Eg. Gauss elimination(II)

20. Troubles in Gauss elimination • Harmful effect of round-off error in pivot coefficient Pivoting strategy

21. Eg. Trouble(I)

22. Eg. Trouble(II)

23. Pivoting strategy • To determine the smallest such that and perform  Partial pivoting dramatic enhancement!

24. Effect of partial pivoting

25. Scaled partial pivoting • Scaling is to ensure that the largest element in each row has a relative magnitude of 1 before the comparison for row interchange is performed.

26. Eg. Effect of scaling

27. Complexity of Gauss elimination  Too much!

28. Summary: Gauss elimination 1) Augmented matrix의 행을 최대값이 1이 되도록 scaling(=normalization) 2) 첫 번째 열에 가장 큰 원소가 오도록 partial pivoting 3) 둘째 행 이하의 첫 열을 모두 0이 되도록 eliminating 4) 2행에서 n행까지 1)- 3)을 반복 5) backward substitution으로 해를 구함 0 0 0

29. Gauss-Jordan elimination

30. Eg. Obtaining inverse matrix(I)

31. Eg. Obtaining inverse matrix(II) Backward substitution For each column

32. LU decomposition • Principle: Solving a set of linear equations based on decomposing the given coefficient matrix into a product of lower and upper triangular matrix. A=LU L-1 Ax = b  LUx = b  L-1 LUx = L-1 b Upper triangular  L-1 b=c  U x = c (1) L Lower triangular L L-1 b = Lc  L c = b (2) By solving the equations (2) and (1) successively, we get the solution x.

33. Various LU decompositions • Doolittle decomposition • L의 diagonal element 를 모두 1로 만들어줌 • Crout decomposition • U의 diagonal element 를 모두 1로 만들어줌 • Cholesky decomposition • L과 U의 diagonal element 를 같게 만들어줌 • symmetric, positive-definite matrix에 적합

34. Crout decomposition

35. Implementation of Crout method

36. Programming using NR in C(I) • Solving a set of linear equations

37. Programming using NR in C(II) • Obtaining inverse matrix

38. Programming using NR in C(III) • Calculating the determinant of a matrix

39. Homework #5 (Cont’) [Due: 10/22]

40. (Cont’) Homework #5
