  1. Automated Metering SystemsBuilding Blocks Jim Sheppard Director, Business Processes AMI/AMM Project Manager May , 2007

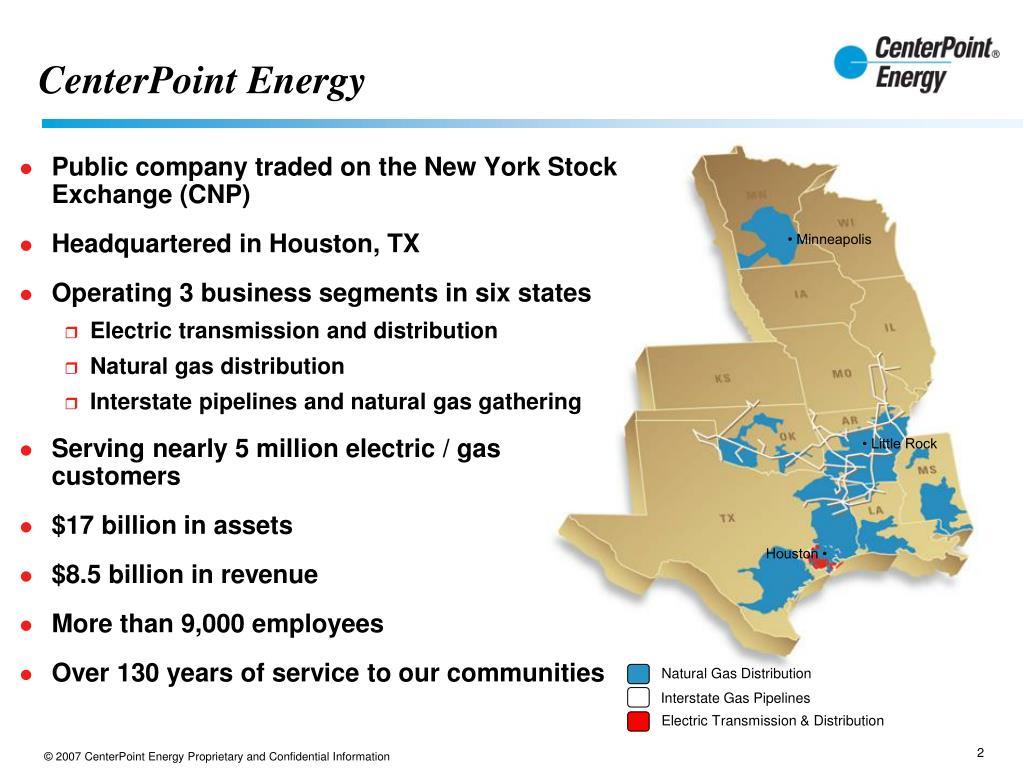

  2. • Minneapolis • Little Rock Houston • CenterPoint Energy • Public company traded on the New York Stock Exchange (CNP) • Headquartered in Houston, TX • Operating 3 business segments in six states • Electric transmission and distribution • Natural gas distribution • Interstate pipelines and natural gas gathering • Serving nearly 5 million electric / gas customers • $17 billion in assets • $8.5 billion in revenue • More than 9,000 employees • Over 130 years of service to our communities Natural Gas Distribution Interstate Gas Pipelines Electric Transmission & Distribution

  3. CenterPoint Energy – Houston • Chartered in 1882 • 5,000 square-mile service area • 3 million metered customers • 73.6 billion kilowatt hours delivered yearly for about 60 certified competitive retailers • Transmission and Distribution System • 3,640 miles of transmission lines • 41,913 miles of distribution lines • 225 substations Challenge: Effectively monitor and control millions of meters, line devices and miles of delivery wire which if laid end to end almost circle the earth twice around the equator

  4. Government Response to Changing Customer Needs Dept of Energy & FERC DOE “Grid 2030” “A National Vision for Electricity’s Second 100 years” A Call for Leadership – The Nation’s aging electro-mechanical electric grid cannot keep pace with innovations in the digital information and telecommuni-cations network. Power outages and power quality disturbances cost the economy billions of dollars annually. America needs an electric superhighway to support our information superhighway. (US DOE July 2003) PURPA - Pubic Utility Commission Each electric utility shall offer and provide individual customers upon customer request, a time-based rate schedule under which the rate charged… varies during different time periods (Public Utilities Regulatory Policy Act - PURPA) FERC “Assessment of Demand Response & Advanced Metering” Demand response has an important role to play in both wholesale and retail markets... Staff encourages states to consider ways to actively encourage demand response at a retail level. (August 2006 Staff Report)

  5. Government Response to Changing Customer Needs PURPA - Pubic Utility Commission Each electric utility shall offer and provide individual customers upon customer request, a time-based rate schedule under which the rate charged… varies during different time periods (Public Utilities Regulatory Policy Act - PURPA) • Texas-Set 3.0 PUC Terms & Conditions • Same day reconnect for non-pay • More timely completion of DNP, move-in and move-out work • Fewer allowed estimated readings • TDU accountable for bill after 3rd consecutive estimate • No aging of DNP workloads • (August 25, 2006) • Texas PUC Projects • Advanced metering and • time-differentiated pricing • Hardening of the Grid • Terms & Conditions • Texas Nodal • (August 2006)

  6. Business Transformation with an “Intelligent Grid”The Intelligent Utility Network: • Improves reliability • Increases Competition • Improves customer satisfaction • Easy fast and accurate customer switching • Removes barriers for smaller REP entry • Enables hardening of the grid

  7. What is the Intelligent Grid? Internet Web Services The Intelligent Grid links electricity with communications and computer control to create a highly automated, responsive and resilient power delivery system. EPRI - 2005 FIBER LINK BPL Substation Medium Voltage Line Sensor Low Voltage Line Injector node

  8. Meter Relay Portal Water Heater LV 120V BPL Repeater Utility Apps Retail Apps BPL Repeater Customer Self-Service Energy Management & Conservation Pool Pump Compressor

  9. Meter Relay Portal Water Heater LV 120V BPL Repeater Utility Apps Retail Apps BPL Repeater Customer Self-Service Energy Management & Conservation Smart Thermostat RF (Radio Frequency) Zigbee Pool Pump Compressor

  10. CNP Distribution Automation StrategyElectric Delivery Roadmap The CenterPoint Energy Intelligent Grid Roadmap aligns with the DOE’s “Grid 2030” and EPRI’s IntelliGrid Framework Preventive Identify and repair intermittent grid problems to minimize outages CenterPoint Energy INTELLIGENT GRID ROADMAP Self Healing Grid Objectives “The self healing grid is an important building block of the smart power delivery system” • Event Avoidance • Remote Load Profiling / Mgmt • Grid Event Diagnostics • Advanced Data Analysis • Grid Condition Sensing & Predictive Response Real Time Sensing & Responding Quickly react to disturbances to minimize impact • Self-Healing Grid • Improved Asset Mgmt / Visibility • Real time Grid Condition Monitoring • Automated Grid switching, etc. • Meter as a Sensor • Transformer Load Mgmt • Condition Based Crew Dispatching • Grid Event Detection and Location Continuous Monitoring • Automated Meter Infrastructure (AMI) • Meters • Meter Interrogation • Meter Connect / Disconnect Dynamically optimize the performance and robustness of the system

  11. Higher values through wholesale integration in a single, seamless communication system… T&D Planning & Engineering Enterprise Information Integration Supply & Market Operations Systems Planning Maintenance Mgmt Asset Mgmt Trading Scheduling DSM Settlements Distribution Management T&D Operations GIS OMS MWM EMS DMS SCADA Operations Planning Customer Services Billing Call Center CIS MDMS Communications Infrastructure Distribution/Feeder Automation Substation Automation Advanced Metering Infrastructure Plant Controls In-Home Network & Devices

  12. Customer Services Intelligent Grid Enabled Applications Delivers Significant Benefits… • System Operations Mgmt • Planning & Forecasting • Economic Dispatch • Switching Control Information Integration • Distribution System Mgmt • Asset Management • - Equipment Health • Monitoring • - Condition Based • Inspection / Maintenance • Distribution and • Feeder Automation • Voltage / VAR Management • Power Quality Management • Surveillance Cameras • Outage Management Mgmt • Outage Detection & Management • Fault Location & Restoration • Work force Management / • Mobile Workforce Communications Infrastructure • Customer Energy Mgmt • AMM • Revenue Enhancement • Direct Control • Demand Response • Remote CiCo • On-site Generation

  13. Advanced Metering Enables Consumer Choices and Control • Customer Portals Enable Consumer Appliance Control In Conjunction With Energy Management • 1. By Telephone • Examples: On Line Banking, Prescription • Refills, EZ Tag renewals, etc. • 2. By Simple Internet Portal • Examples: Power To Choose, On Line • Banking, Prescription Refills, etc. • 3. Intelligent Grid enables consumer portal choices that allows analysis: • - Web Data and Links • - REP Rate Information and Links • - Price Comparisons / Bill Projections • - Energy Conservation Choices and Links • - Services and/or products and Links 1 Comfortable Productive Enjoyable 2 & 3

  14. Advanced Grid Analytics: Asset Lifecycle Asset Lifecycle Analytics focuses on understanding when to replace assets, and how to extend the life deteriorating assets • Electrical Assets deteriorate with usage, e.g. insulation, which will deteriorate when heated • Assets of same type will fail in a similar manner • Analysis of the historic usage of assets can be used to build a pattern that indicates the expected remaining life for existing assets • Prediction of historic life is improved when augmented with data from remote asset monitoring and off-line condition monitoring • As assets start to fail, Remote Asset Monitoring may detect weaknesses which are only evident when the asset is loaded above a given level e.g. Dissolved Gas Analysis on transformers • Operations can be adjusted to protect the asset, i.e. keep it loaded at a level that will extend its life System Operations Analytics System Planning Optimization Data Warehouse Asset Life Analytics

  15. Advanced Grid Analytics: System Planning System Planning Analytics can reduce or delay capital expenditures, as well as help design networks that are cheaper to operate • Analysis of customer load patterns provides a detailed picture of which circuits need upgrading to avoid under-loading or overloading • The results from Asset Lifecycle Analytics can be used to optimize the planning of system maintenance • Detailed information on individual customer load patterns provides an opportunity to balance the load on each phase, reducing losses on the network • Capital expenditure can be optimized based on business value of various grid components System Operations Analytics System Planning Optimization Data Warehouse Asset Life Analytics

  16. System Operations Analytics System Planning Optimization Data Warehouse Asset Life Analytics Advanced Grid Analytics: System Operations System Operations Analytics can reduce or delay capital expenditures and improve reliability • Real-time analysis of faults can enable: • Grid reconfiguration to keep the system within safe limits • Analysis of meter energization and other power flow data allows faults to be analyzed off-line such that: • Field crews, with the right skills, are dispatched to the right place, with the right tools and the right parts for the job - so that restoration is faster • Real time management of power flows can avoid over-loading circuits, avoiding or delaying the need to upgrade those circuits

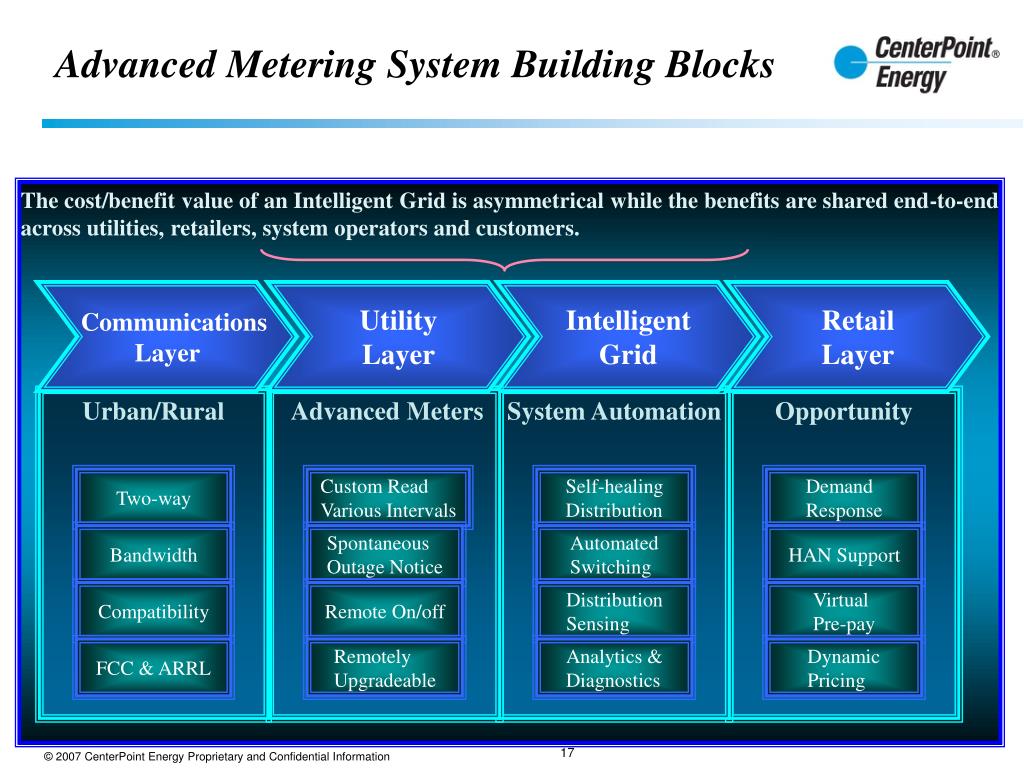

  17. The cost/benefit value of an Intelligent Grid is asymmetrical while the benefits are shared end-to-end across utilities, retailers, system operators and customers. Communications Layer Utility Layer Intelligent Grid Retail Layer Advanced Meters Urban/Rural System Automation Opportunity Custom Read Various Intervals Two-way Self-healing Distribution Demand Response Bandwidth Spontaneous Outage Notice Automated Switching HAN Support Compatibility Remote On/off Distribution Sensing Virtual Pre-pay FCC & ARRL Remotely Upgradeable Analytics & Diagnostics Dynamic Pricing Advanced Metering System Building Blocks

  18. Expanding the meter role from simply a Cash Register to a Network Sensor and Portal CNP is working to integrate advanced meters into the Intelligent Grid as another sensing device. Evolving Role of Metering • Time based rate support • Outage and restoration notification • Self serve customer usage portals • Remote (automated) service connect/disconnect • Advanced distribution management • Self healing distribution systems • Load Modeling • Intelligent Grid Sensor • Demand Mgmt • Gateway to limited home automation • Cash Register • Off-Cycle Reading • TOU Rates • Load Modeling Networked Data Collection System • Drive-by Automation • Improved Cash Register Value Chain (Partner) Integration • Basic Metering • Cash Register Technology Technological Capabilities Market Interests

  19. Automated Meter Management Advanced Metering Needs Model Business Needs Technical Needs • Advanced metering functionality • Voltage alerts & real time measurement • Time / Date stamped data • Open architecture • Data repository • Mechanism for access • Data security • Meters as distribution sensors • Heterogeneous meter population • Firmware push capability AMI Terms & Conditions • Timely and accurate • On demand reads PUC Advanced Metering Rules: • TOU • High read frequency • Performance tied to cost recovery Service Management • 2-way communication sessions • Outage / Restoration reporting • Remote device control • Meter status reporting • Distribution analytic and diagnostic support • Theft / Tampering flags • Analysis and usage reporting tools • Operating cost reductions • Remote meter connect/disconnect • Service status verification • Self healing systems • Self service sessions • Voltage Profiling & Load Modeling

  20. End-to-end market support Itron’s OpenWay architecture overview

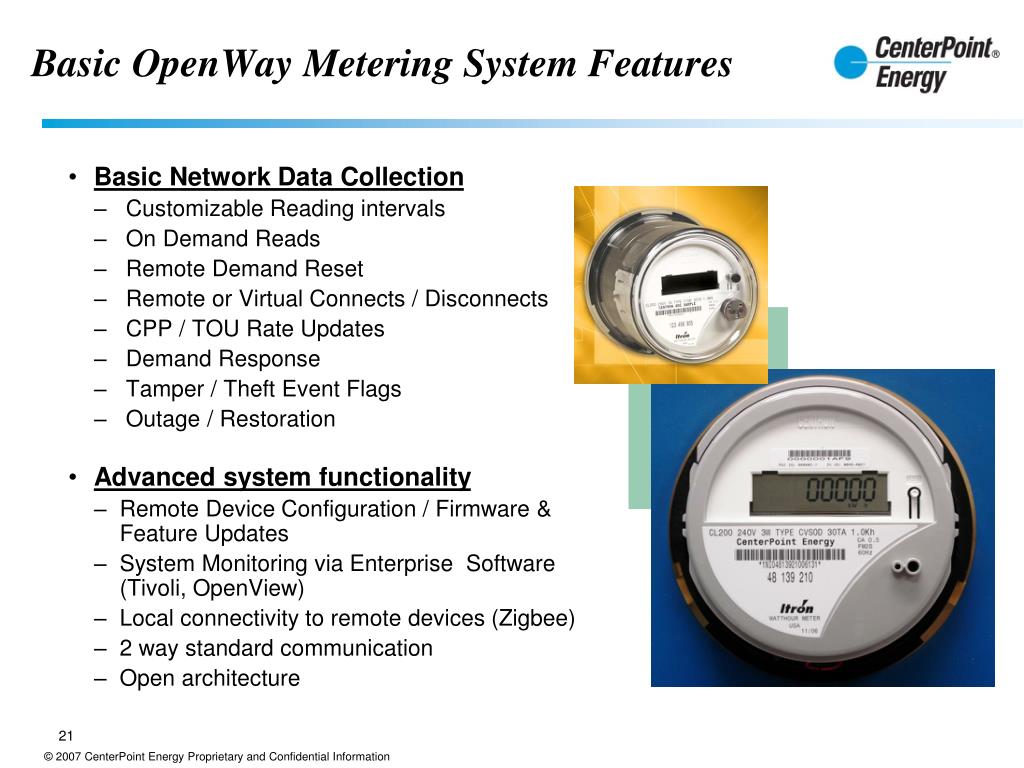

  21. Basic OpenWay Metering System Features • Basic Network Data Collection • Customizable Reading intervals • On Demand Reads • Remote Demand Reset • Remote or Virtual Connects / Disconnects • CPP / TOU Rate Updates • Demand Response • Tamper / Theft Event Flags • Outage / Restoration • Advanced system functionality • Remote Device Configuration / Firmware & Feature Updates • System Monitoring via Enterprise Software (Tivoli, OpenView) • Local connectivity to remote devices (Zigbee) • 2 way standard communication • Open architecture

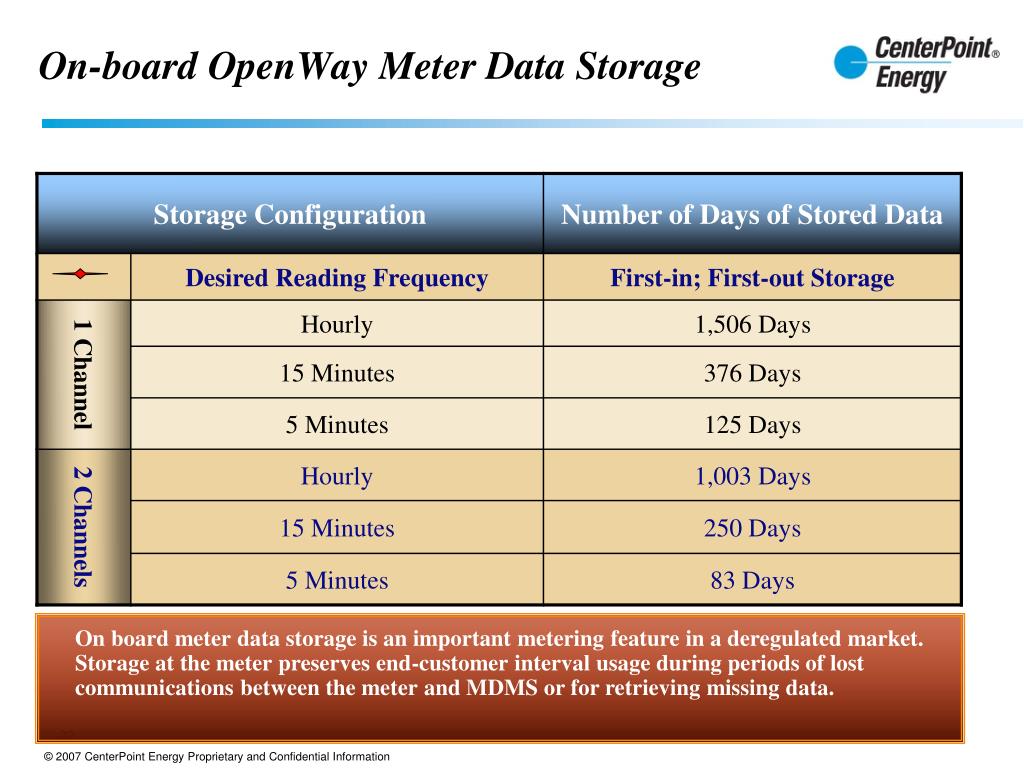

  22. On-board OpenWay Meter Data Storage On board meter data storage is an important metering feature in a deregulated market. Storage at the meter preserves end-customer interval usage during periods of lost communications between the meter and MDMS or for retrieving missing data.

  23. AMI Meter Project Technicians Mgr Installation CSR Mgr Utility Networks and Internet Meter Data Meter Data Meter Data Collection Collection Collection Server Server Server Core Automated Meter Management ArchitectureLimited Deployment Focus Enterprise Resource Planning CIS Web Site Work Mgmt Outage Mgmt Utility EAI AMI Systems and Asset Management PIPe Interface Adapters PIPe Message Bus AMI Management Data Metered Usage Data Repository PIPe Data Collection Adapters PIPe Application Modules

  24. Retail Energy Provider End Customer Customer Approved 3rd Party CNP Advanced Metering System Deployment….Cost Effective Technology that EmpowersConsumers and Retail Energy Providers ANSI C12.22 Data Transport ANSI C12.19 Data Tables Zigbee Enabled Devices BPL / Wireless Communication Fire Wall Home Area Network Smart Thermostat AMM System ZigBee Portal Access ZigBee Appliance Controls ZigBee Water Heater CiCo Advanced Metering System Regulated Environment Energy Conservation Demand Response Retail Domain Retail Environment

  25. Portal Utility Apps Retail Apps Customer Self-Service CenterPoint EnergyBusiness Ecosystem Automated Meter Management Utility Automation Sensing and Controls Intelligent Grid Retail Opportunities Utility Benefits Customer Benefits Energy Conservation Grid Diagnostics Smart Home Support Automated Meter Reading Demand Response Support Informed Choices Increased Reliability Information on Demand Outage Management Virtual Pre-payment Programs Street Light Management Dynamic Pricing Customer Satisfaction
