Nagman Temperature Calibrator
30 likes | 38 Vues

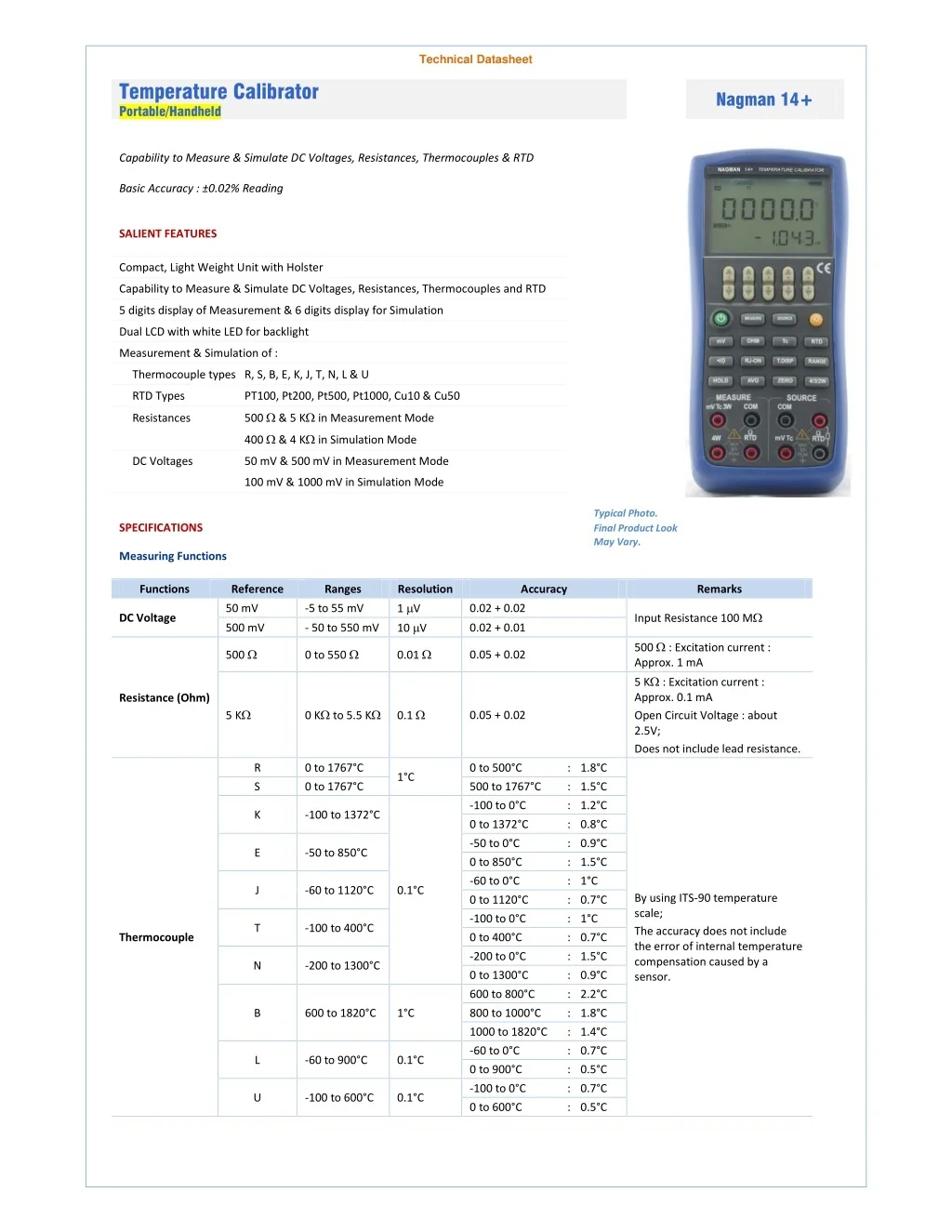

Compact, Light Weight Unit with Holster<br>Capability to Measure & Simulate DC Voltages, Resistances, Thermocouples and RTD<br>5 digits display of Measurement & 6 digits display for Simulation<br>Dual LCD with white LED for backlight<br>Measurement & Simulation of :<br>Thermocouple types : R, S, B, E, K, J, T, N, L & U<br>RTD Types : PT100, Pt200, Pt500, Pt1000, Cu10 & Cu50<br>Resistances : 500 u03a9 & 5 Ku03a9 in Measurement Mode; 400 u03a9 & 4 Ku03a9 in Simulation Mode<br>DC Voltages : 50 mV & 500 mV in Measurement Mode; 100 mV & 1000 mV in Simulation Mode
Télécharger la présentation
Nagman Temperature Calibrator
An Image/Link below is provided (as is) to download presentation
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.
E N D
Presentation Transcript
