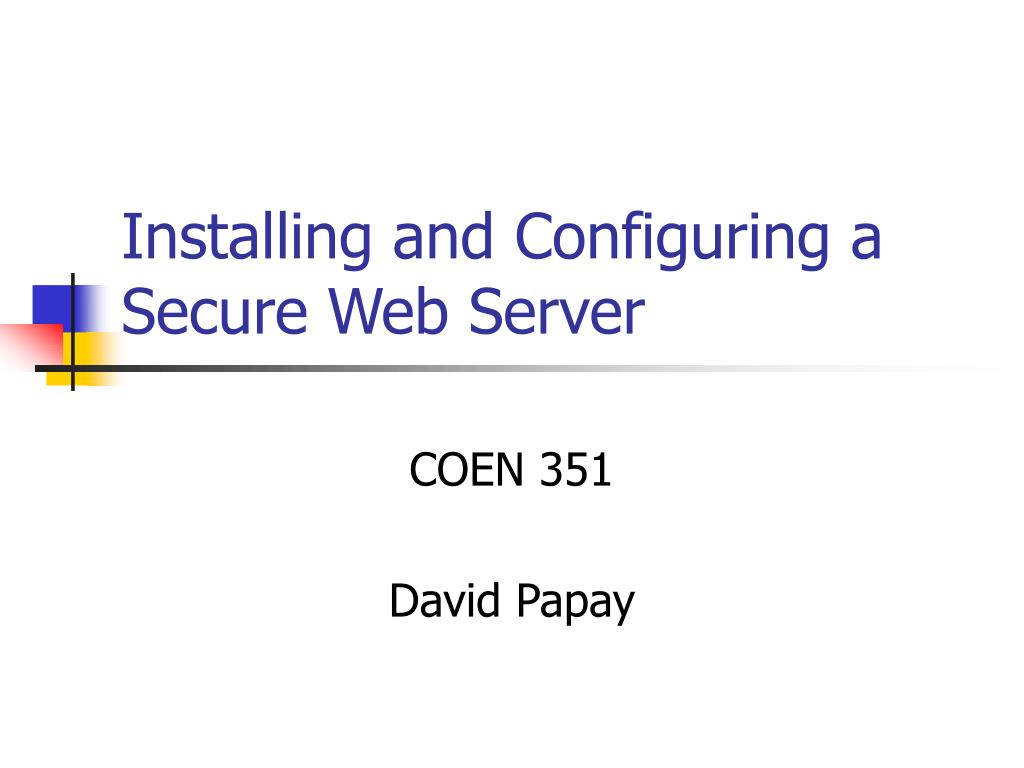

  1. Installing and Configuring a Secure Web Server COEN 351 David Papay

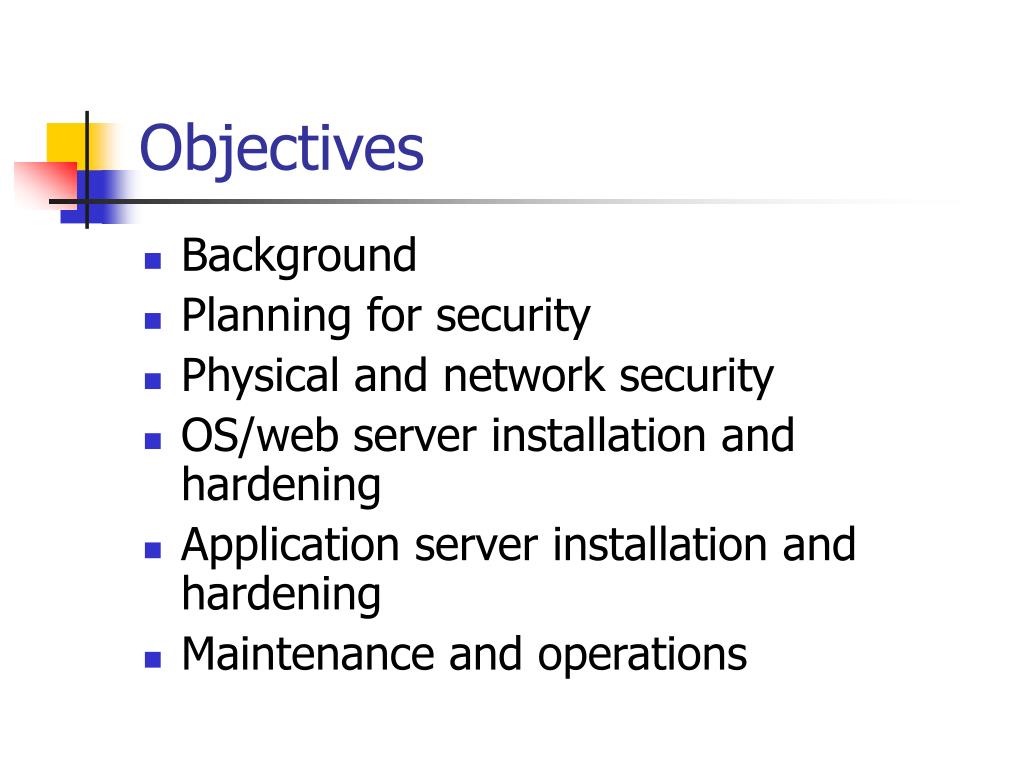

  2. Objectives • Background • Planning for security • Physical and network security • OS/web server installation and hardening • Application server installation and hardening • Maintenance and operations

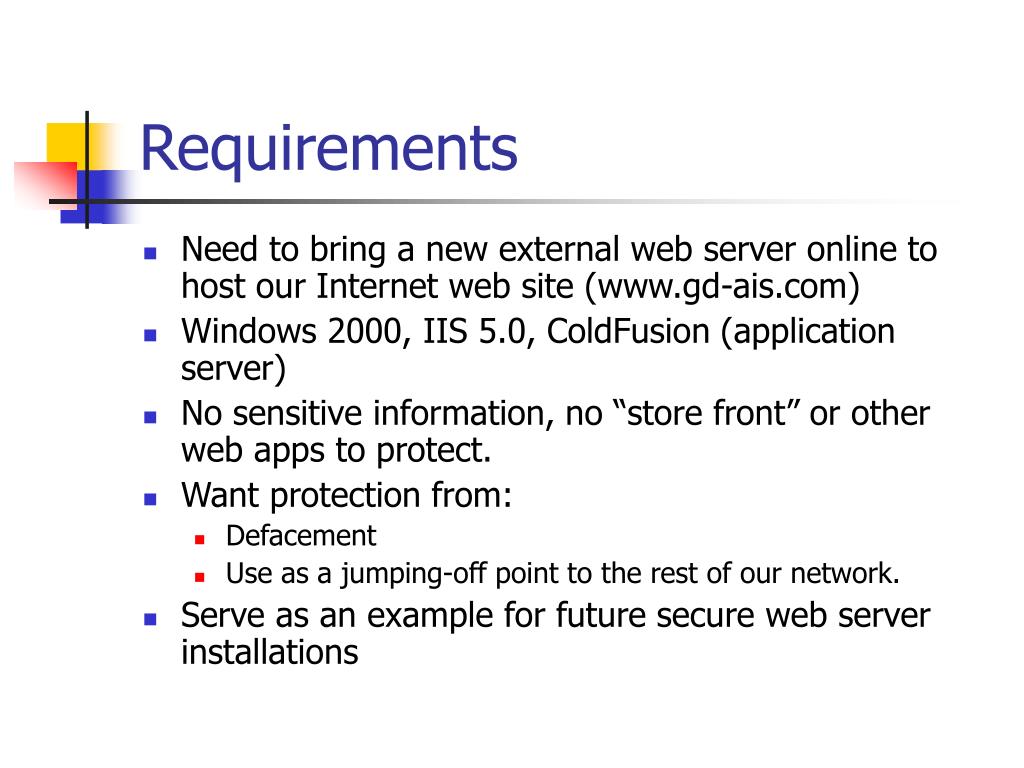

  3. Requirements • Need to bring a new external web server online to host our Internet web site (www.gd-ais.com) • Windows 2000, IIS 5.0, ColdFusion (application server) • No sensitive information, no “store front” or other web apps to protect. • Want protection from: • Defacement • Use as a jumping-off point to the rest of our network. • Serve as an example for future secure web server installations

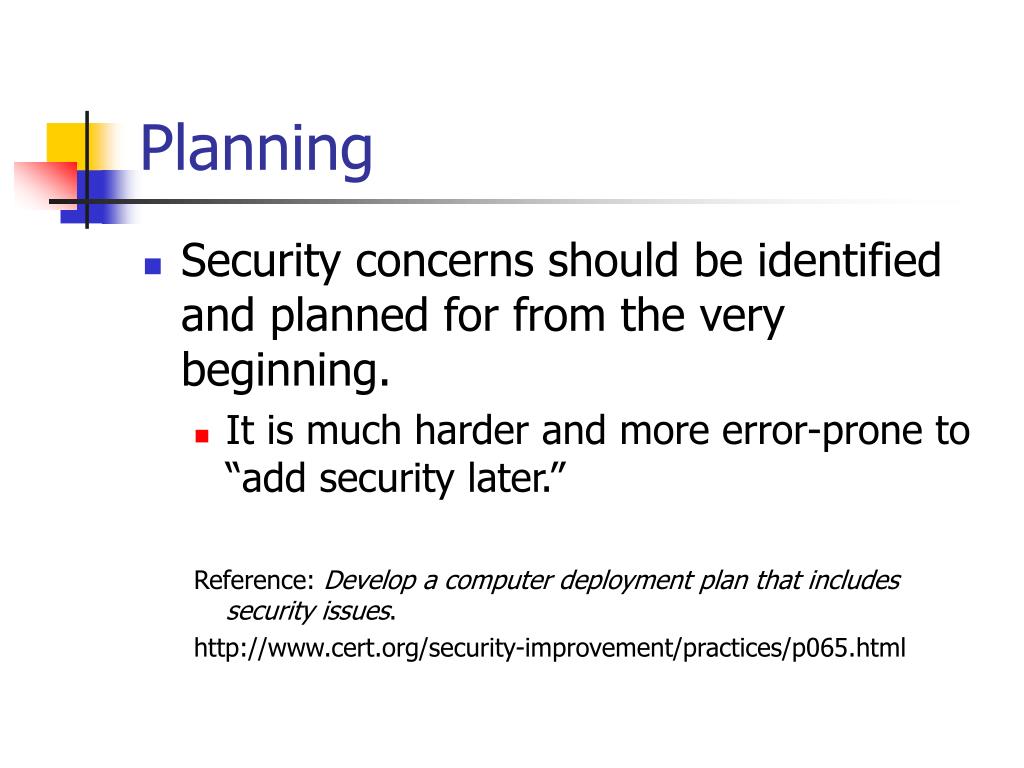

  4. Planning • Security concerns should be identified and planned for from the very beginning. • It is much harder and more error-prone to “add security later.” Reference: Develop a computer deployment plan that includes security issues. http://www.cert.org/security-improvement/practices/p065.html

  5. Planning • Examples of things to consider: • Purpose(s) of the server • Security requirements • Internet service(s) needed (e.g., http, ftp) • Categories of users, their privileges, and how they will be authenticated. • Patching, backup, and virus detection procedures

  6. Physical Security and Network Environment • Server is in a physically secure location • Consequences of this decision • Firewall and DMZ configuration • Consider an application layer firewall • Network-based IDS Reference: Guidelines on Securing Public Web Servers, chapter 8. http://cs-www.ncsl.nist.gov/publications/nistpubs/800-44/sp800-44.pdf

  7. Windows and IIS Installation • Install only necessary Windows and IIS components. • Install all patches and updates. • Run HotFix Checker, MBSA. • Document and baseline current configuration. • Note that W2k3 has alleviated the need for some of this. References: Microsoft documentation, TechNet, Knowledge Base articles.

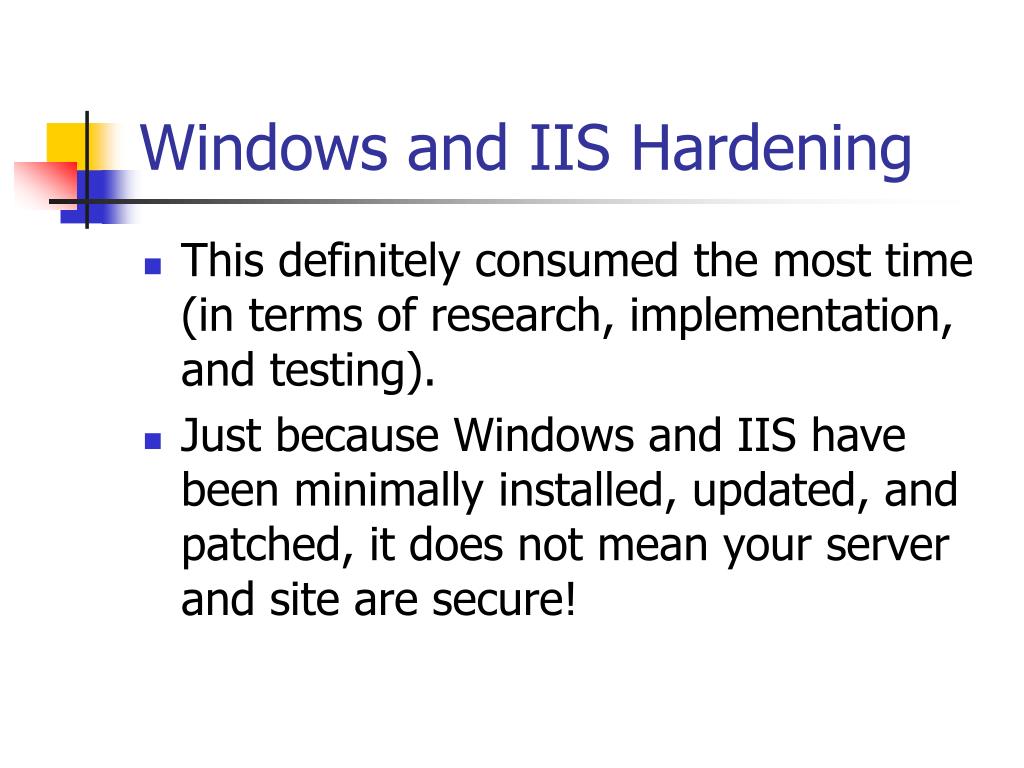

  8. Windows and IIS Hardening • This definitely consumed the most time (in terms of research, implementation, and testing). • Just because Windows and IIS have been minimally installed, updated, and patched, it does not mean your server and site are secure!

  9. Windows and IIS Hardening • Examples of Windows hardening: • Remove/disable unneeded default accounts and groups. • Rename necessary predefined accounts. • Least privilege for accounts and group. • Change default security settings on the file system • Windows Security Policies (e.g., strong passwords, account lockout, logging, auditing, user rights, unneeded services)

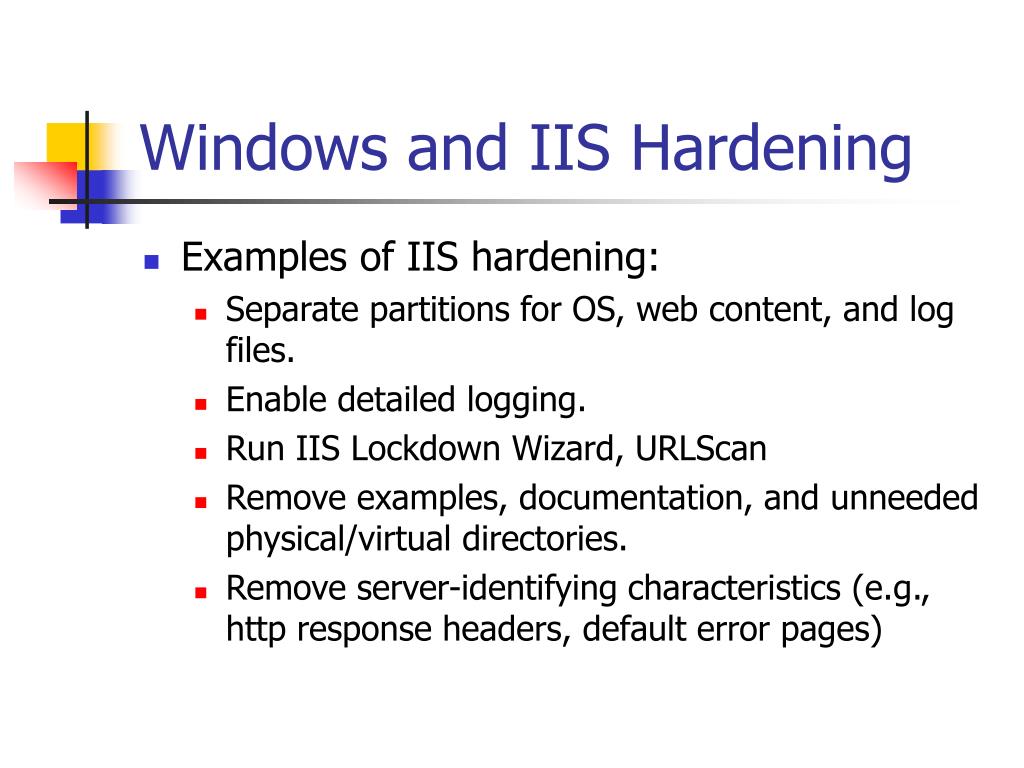

  10. Windows and IIS Hardening • Examples of IIS hardening: • Separate partitions for OS, web content, and log files. • Enable detailed logging. • Run IIS Lockdown Wizard, URLScan • Remove examples, documentation, and unneeded physical/virtual directories. • Remove server-identifying characteristics (e.g., http response headers, default error pages)

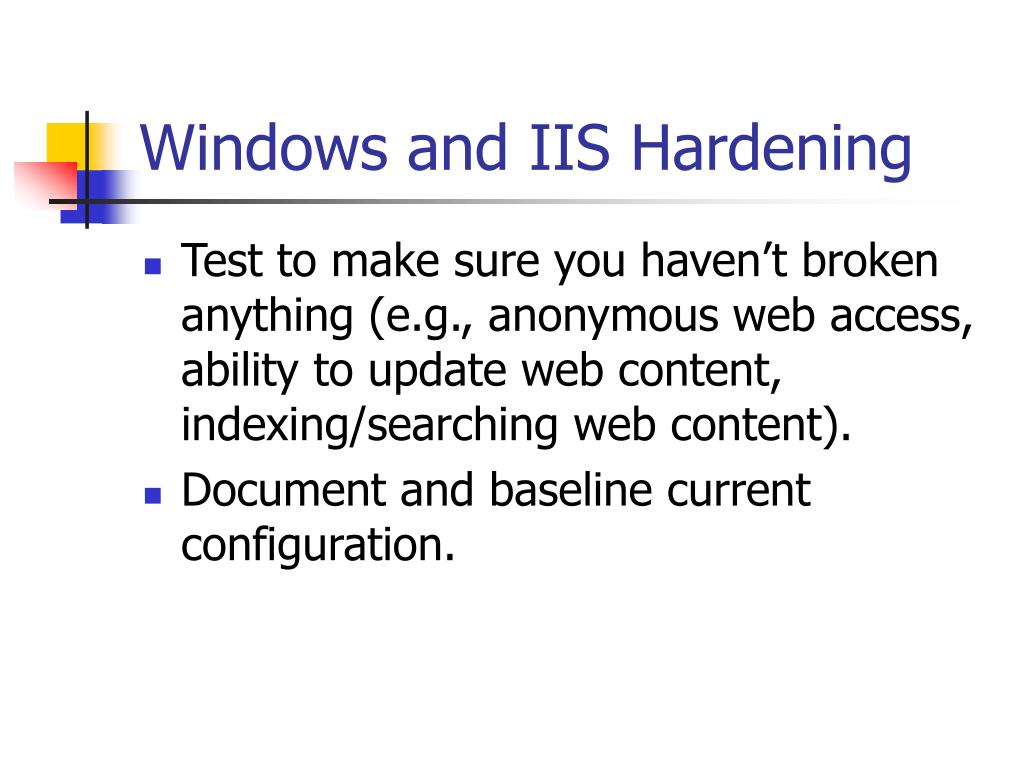

  11. Windows and IIS Hardening • Test to make sure you haven’t broken anything (e.g., anonymous web access, ability to update web content, indexing/searching web content). • Document and baseline current configuration.

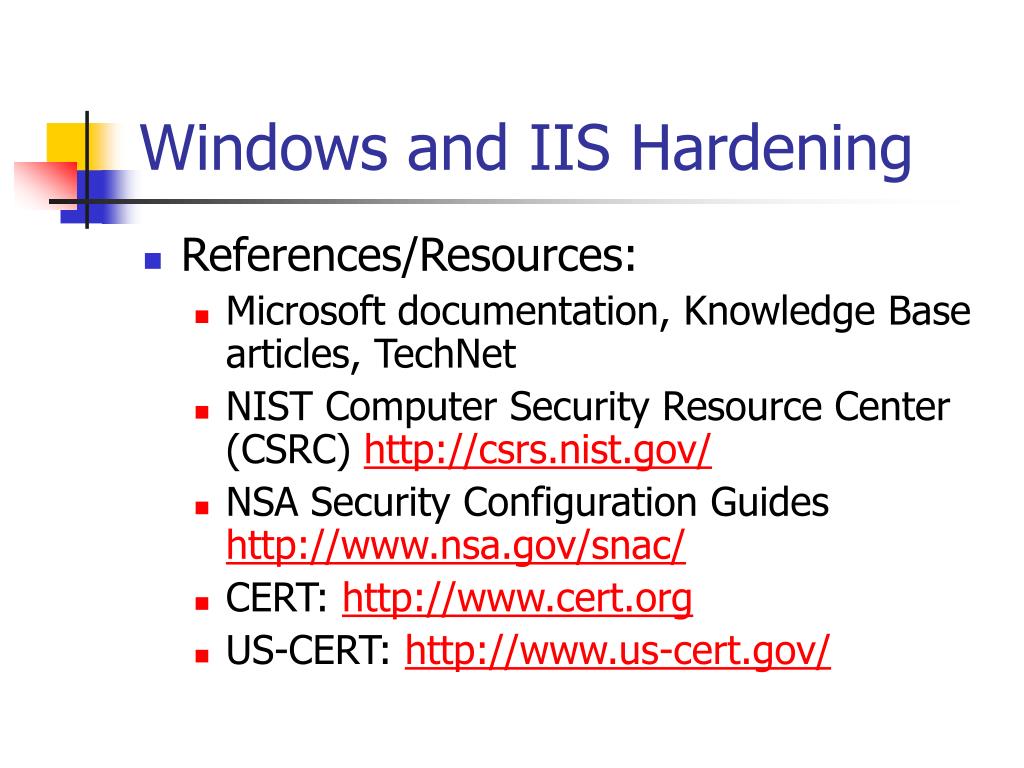

  12. Windows and IIS Hardening • References/Resources: • Microsoft documentation, Knowledge Base articles, TechNet • NIST Computer Security Resource Center (CSRC) http://csrs.nist.gov/ • NSA Security Configuration Guides http://www.nsa.gov/snac/ • CERT: http://www.cert.org • US-CERT: http://www.us-cert.gov/

  13. ColdFusion installation and hardening (This applies to any third-party application server server) • Research the product and its vulnerabilities • Be aware of what the installer is doing • Install latest updates and patches • Protect against unknown vulnerabilities by following good security practices (e.g., least privilege, remove/disable unnecessary features, change default values) • Test, document, and baseline!

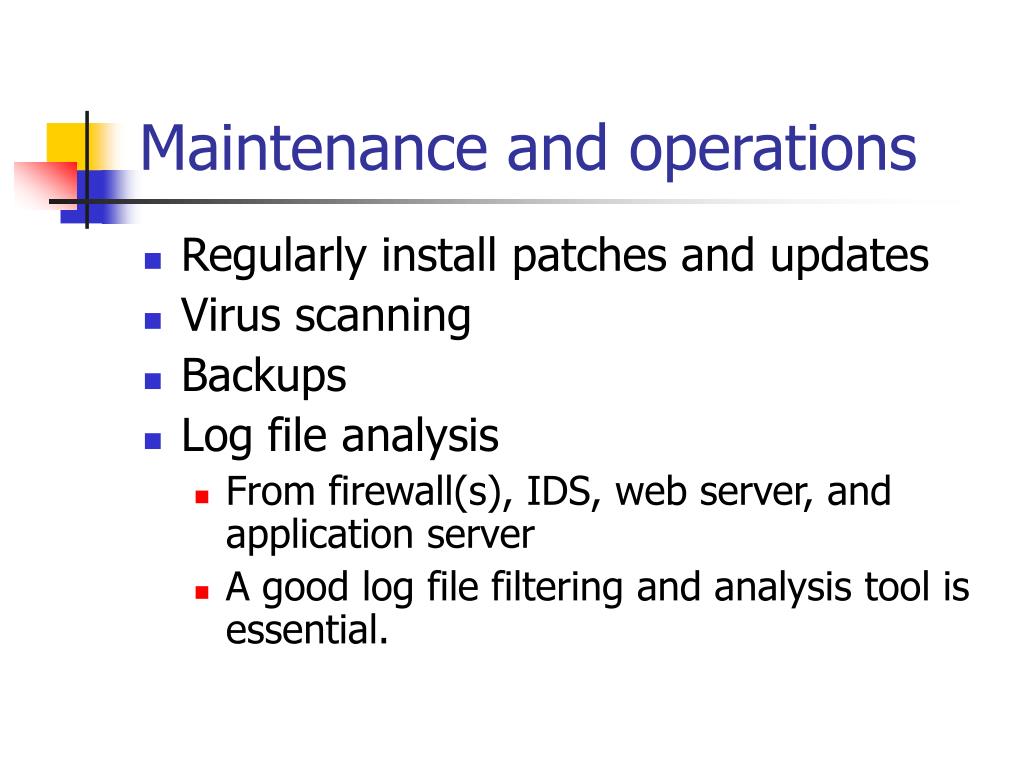

  14. Maintenance and operations • Regularly install patches and updates • Virus scanning • Backups • Log file analysis • From firewall(s), IDS, web server, and application server • A good log file filtering and analysis tool is essential.
