  1. SSB Aggregation Jacobo Tarragón IT/SDC September 23rd, 2013

  2. goals integrate SAM site status computations into SSB reuse virtual metrics system SSB Aggregation

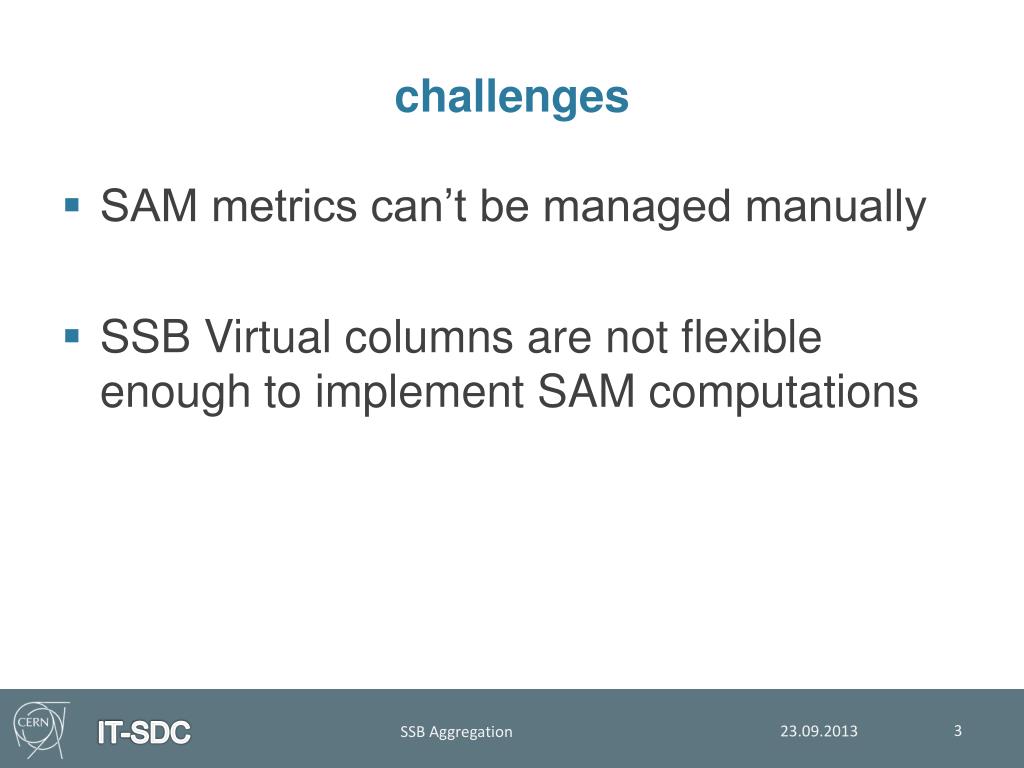

  3. challenges SAM metrics can’t be managed manually SSB Virtual columns are not flexible enough to implement SAM computations SSB Aggregation

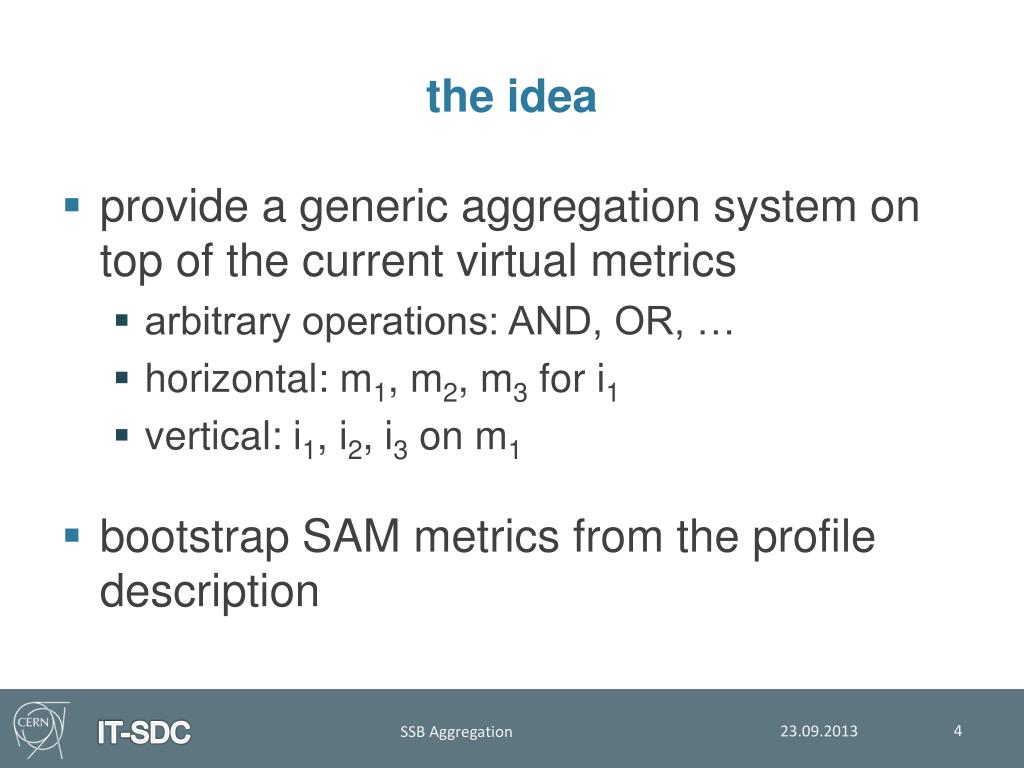

  4. the idea • provide a generic aggregation system on top of the current virtual metrics • arbitrary operations: AND, OR, … • horizontal: m1, m2, m3 for i1 • vertical: i1, i2, i3 on m1 • bootstrap SAM metrics from the profile description SSB Aggregation

  5. design • new Virtual Collector • regular virtual metrics + SAM metrics • SAM metrics bootstrapped on every run • read profiles from POEM API • get or create metrics on the fly SSB Aggregation

  6. bootstrapping (1/2) { “name”: “ATLAS_CRITICAL” “algorithm”: “CE * SRMv2” “metrics”: { “CE”: [{“name”: “m1”, “FQAN”: “f1”}, {“name”: “m2”, “FQAN”: “f1”}], “SRMv2”: [{“name”: “m3”, “FQAN”: “f1”},{“name”: “m4”, “FQAN”: “f1”}] }} (AND *) Site Status for ATLAS_CRITICAL(OR +) Site Flavour Status CE for ATLAS_CRITICAL (AND *) Service Flavour Status CE for ATLAS_CRITICAL m1_f1, m2_f1 (OR +) Site Flavour Status SRMv2 for ATLAS_CRITICAL (AND *) Service Flavour Status SRMv2 for ATLAS_CRITICAL m3_f1, m4_f1 SSB Aggregation

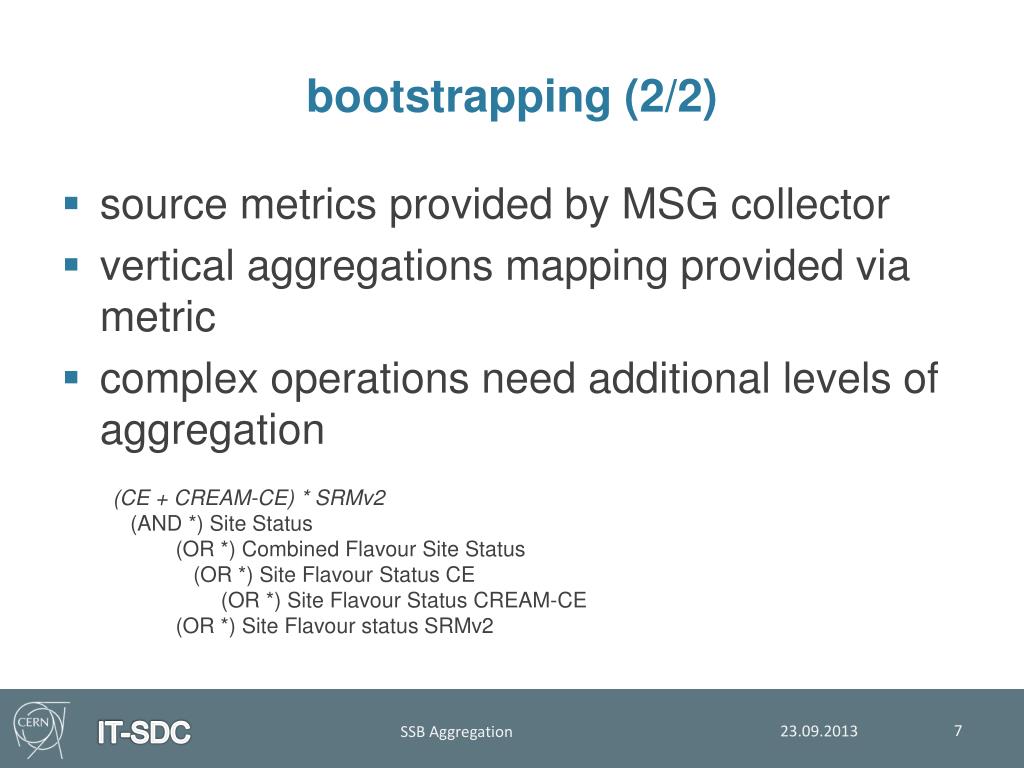

  7. bootstrapping (2/2) • source metrics provided by MSG collector • vertical aggregations mapping provided via metric • complex operations need additional levels of aggregation (CE + CREAM-CE) * SRMv2(AND *) Site Status (OR *) Combined Flavour Site Status (OR *) Site Flavour StatusCE (OR *) Site Flavour Status CREAM-CE (OR *) Site Flavour status SRMv2 SSB Aggregation

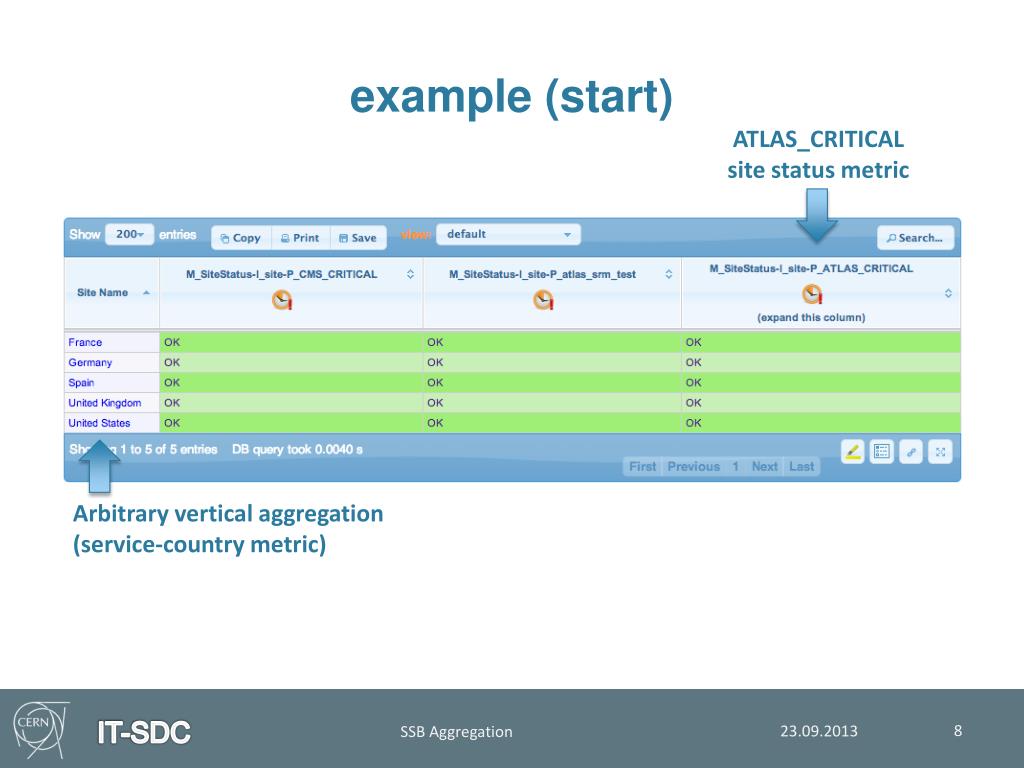

  8. example (start) ATLAS_CRITICAL site status metric Arbitrary vertical aggregation (service-country metric) SSB Aggregation

  9. example (site status) (CE + CREAM-CE + OSG-CE) * (SRMv2 + OSG-SRMv2) Step aggregation: Combined flavour status Flavour status metric (vertical aggregation over service status) SSB Aggregation

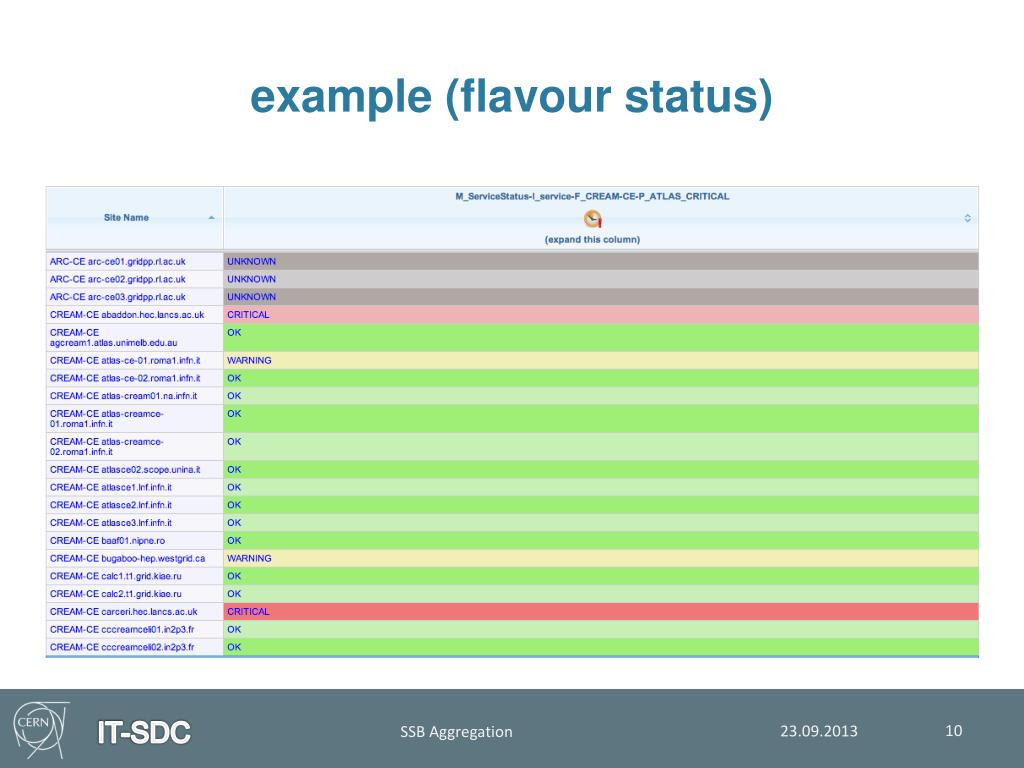

  10. example (flavour status) SSB Aggregation

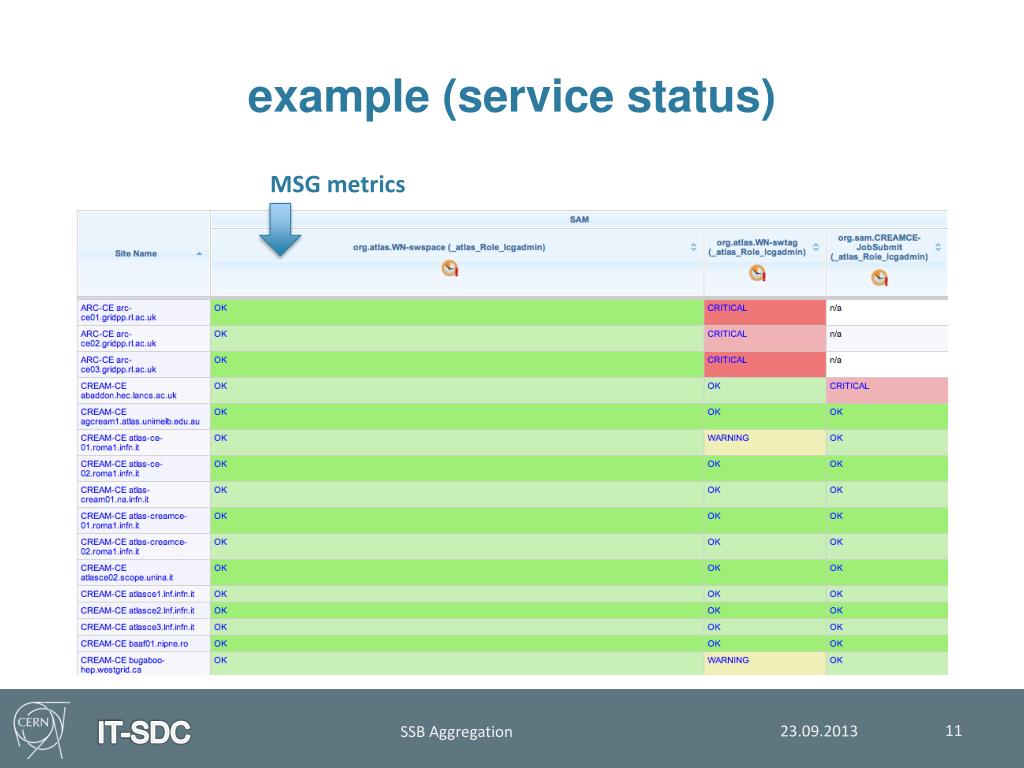

  11. example (service status) MSG metrics SSB Aggregation

  12. good things • SAM virtual metrics are stored as regular virtual metrics • minimal schema changes to store aggregation description • any metric may be a source metric, aggregations can get as complex as needed SSB Aggregation

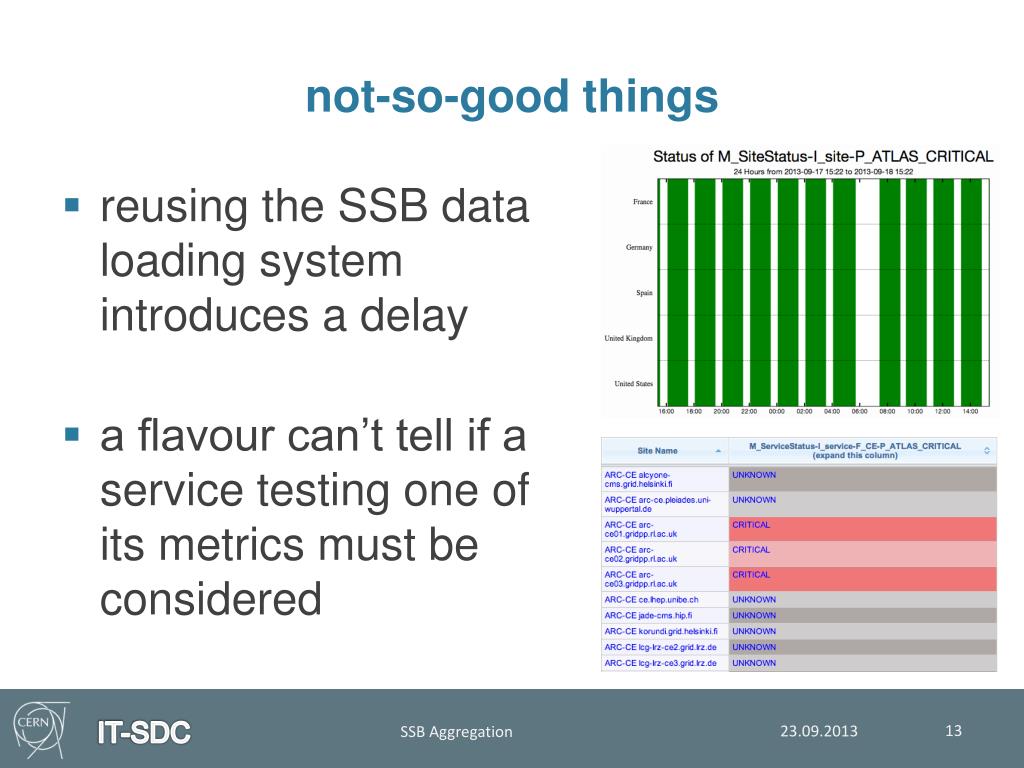

  13. not-so-good things reusing the SSB data loading system introduces a delay a flavour can’t tell if a service testing one of its metrics must be considered SSB Aggregation

  14. to do move algorithm definitions to POEM integrate old virtual collector availability values vertical aggregations visualization SSB Aggregation
