  1. Networking Components STEVEN ARGABRIGHT LTEC 4550.020 ASSIGNMENT 3 – NETWORKING COMPONENTS PRESENTATION MARCH 15TH, 2014 Identification, diagrams, costs, and purposes of varying networking equipment

  2. Networking Components - Hub A hub is a common point of connecting devices in a local area network. They can be passive, intelligent, or switching conduits for packet traffic All hubs Contain multiple access ports. A passive hub will act as a simple pipeline for the data, enabling it to go from one device or segment to another. An intelligent (active) hub has richer features that allow unique port configuration and traffic monitoring. A switching hub, or switch, will read the packet’s address and forward a packet to a specific port. Price range varies based on port count: 30.00 (4-port) to 70.00 (8-port) All devices can freely communicate and share information in this wired configuration as part of the same local network.

  3. Networking Components - Switch Similar to a hub, a switch controls the flow of traffic based on specific packet address information Hubs will repeat packet information to all ports and devices. Switches will only forward packets to a specific port identified by the packet’s destination address. This allows simultaneous communication, and improved bandwidth by reducing unnecessary network traffic thru the switch. Price range varies based on port count: 65.00 (8-port) to 190.00 (16-port) Switches are more common on larger (50 users or more) networks. Hubs are more common on smaller networks. -This device sends to printer address This device never sees print request This device only receives print request-

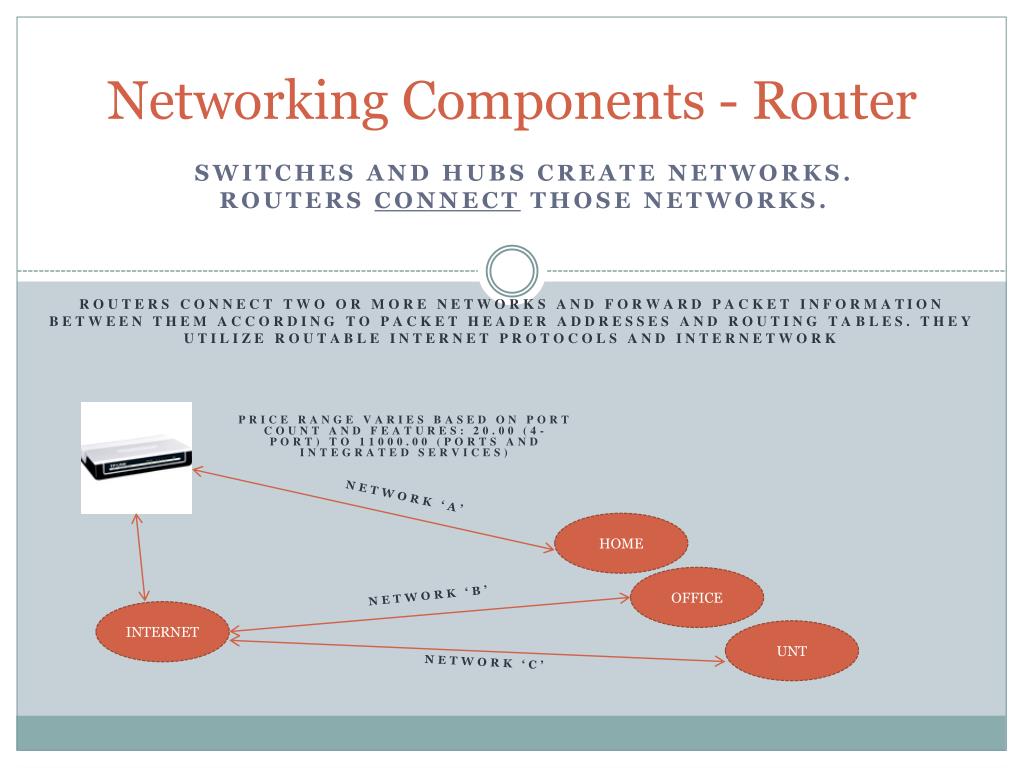

  4. Networking Components - Router Switches and hubs create networks. Routers connect those networks. Routers connect two or more networks and forward packet information between them according to packet header addresses and routing tables. They utilize routable internet protocols and internetwork Price range varies based on port count and features: 20.00 (4-port) to 11000.00 (ports and integrated services) NETWORK ‘A’ HOME OFFICE NETWORK ‘B’ INTERNET UNT NETWORK ‘C’

  5. Networking Components – Bridge Routers connect two or more networks using routable protocols. Bridges can connect two local area networks using non-routable protocols. Bridges connect Non-routable protocols, like netbios, using a bridging table to track devices, and filter packets based on physical address. They divide a network into a series of collision domains – reducing packet collision and increasing bandwidth. This is handy for small networks that may connect via dsl, isdn, or wireless access point to an internet service provider. Price range varies based on port count: 35.00 (4-port) to 110.00 (WIRELESS) Routers use ip and ipx protocols to communicate between multiple networks. Bridges only use physical (mac) addresses to communicate. Mac address Mac address Mac address

  6. Networking Components – Gateway A network gateway joins two networks that use different base protocols. A GATEWAY CAN ACT AS A ROUTER OR PROXY SERVER BETWEEN NETWORKS. IT IS GENERALLY EQUIPPED TO INTERFACE WITH ANOTHER NETWORK THAT USES DIFFERENT COMMUNICATION PROTOCOLS. A dedicated gateway can also be used for security reasons (e.g. a firewall) Gateway rule: your gateway should belong to the same subnet to which your pc belongs. Price range varies widely based on WIRED/WIRELESS MODELS & SECURITY FEATURES PROVIDED: 20.00 to 5000.00 GATEWAY ‘A’/SUBNET 192.20.X.X GATEWAY ‘B’/SUBNET 192.168.X.X

  7. Networking Components – Firewall A firewall monitors all data packets flowing in and out of the network. Firewalls, whether hardware- or software-based, utilize filtering tables to analyze the packets of data traffic and determine if they should be allowed through the network or not, based on an applied set of rules. Generally, they are barriers between trusted secure networks and others that are not trusted (e.g. the internet) Price range varies widely based on WIRED/WIRELESS MODELS, support & SECURITY FEATURES PROVIDED: 20.00 to 75,000.00 ROUTER firewall secure lan

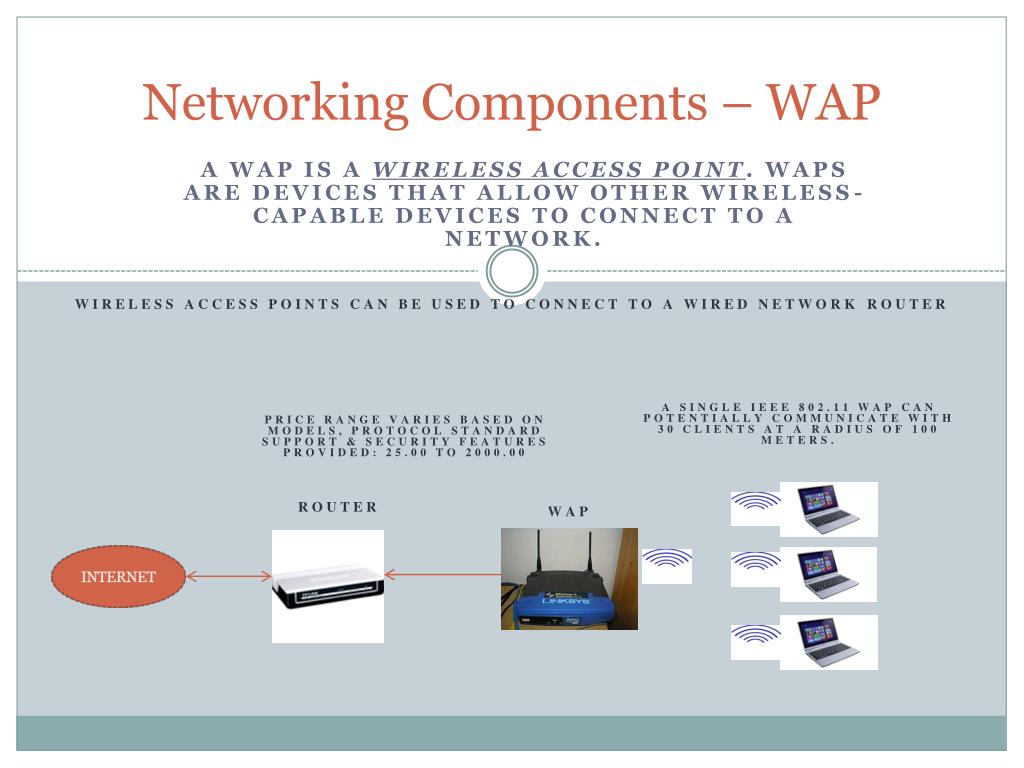

  8. Networking Components – WAP A WAP is a wireless access point. Waps are devices that allow other wireless-capable devices to connect to a network. Wireless access points can be used to connect to a wired network router A Single ieee 802.11 wap can potentially communicate with 30 clients at a radius of 100 meters. Price range varies based on MODELS, protocol standard support & SECURITY FEATURES PROVIDED: 25.00 to 2000.00 ROUTER wap

  9. Networking Components –Diagram Map GATEWAY HUB SWITCH ROUTER FIREWALL WAP BRIDGE

  10. Networking Components – Full Network Diagram GATEWAY ‘B’ HUB GATEWAY ‘A’ ROUTER FIREWALL SWITCH WAP HUB BRIDGE
