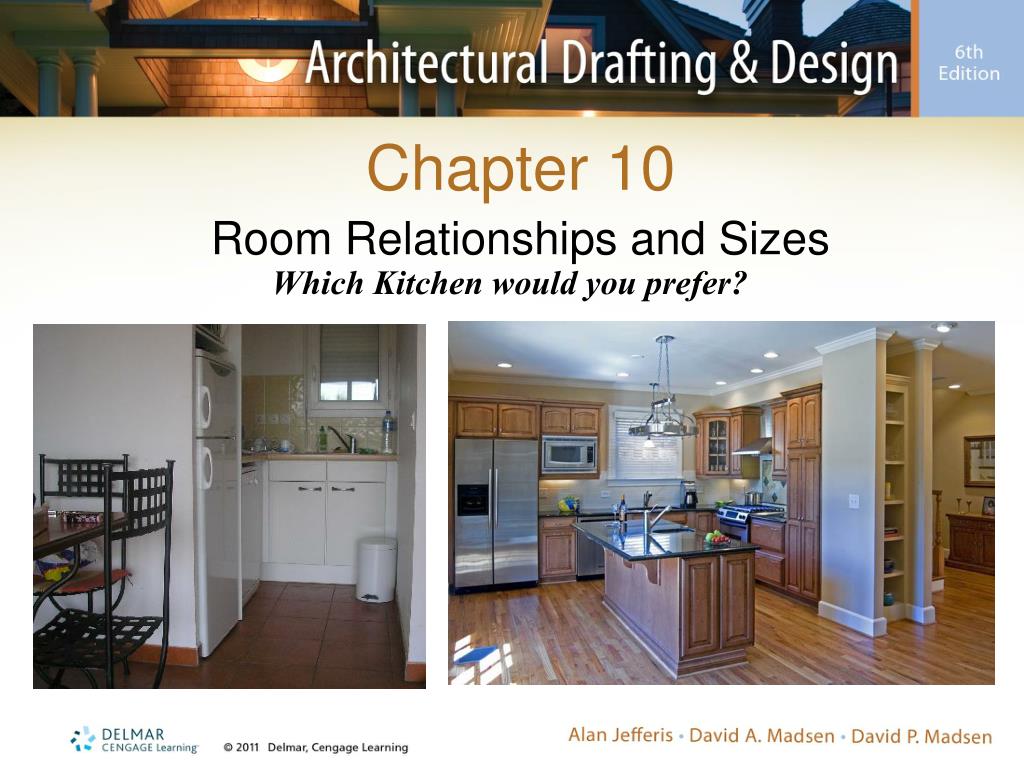

  1. Which Kitchen would you prefer? Chapter 10 Room Relationships and Sizes

  2. Introduction • Residential Architecture probably has more amateur experts than any other field • Wide exposure to houses causes many people to feel that they can design their own • Wide media exposure and availability of home improvement retail stores have produced educated consumers with an increased sensitivity to design

  3. Major Floor Plan Design Considerations • Number of inhabitants • Age & Gender • Family activities/ entertainment habits • Desired number of bedrooms and bathrooms • Desired kitchen appliances • Budget and home style • Intended length of stay • Future plans to add on or finish basement • Live in guest with disabilities • Style of Home • Neighborhood covenants, conditions, and restrictions (CC&R’s example)

  4. What is the most important room in a home? • Women • Kitchen • Family Room (Great Room) • Master Bedroom/ Bathroom • Exterior • Kids Rooms • Laundry Room • Bathrooms • Garage • Men • Garage • Master Bedroom/ Bathroom • Exterior • Bathrooms • Kitchen • Family Room (Great Room) • Kids Rooms • Laundry Room

  5. What would you consider the Living Area to be?Service Area?Sleeping Area? Entry/foyer Living room Den/Study/Office Family room (Great room) Dining room/ Nook Den/ Study/ Office

  6. What advantages/disadvantages do Main Entrances bring? • Main entry is the focal point of the house and provides protection against the weather • Typically no smaller than 36” door (30) • Side lights • Double doors (5’ or 6’) • Transom windows • Service entry is used by the family between the house and garage, yard, or service areas • No smaller than 32” door (28) • Flooring issues due to wet location

  7. Foyer/ Entry • Used to greet guests, hang coats, and provide access to the rest of the home • Should create a warm, inviting feeling and enhance traffic flow • Keep foyer proportional in size to the rest of the house • Typically in smaller homes 48” wide min. • Meet and greet center, so take into consideration your personal bubble

  8. Entries • Serve as a transition point • Main entry • Foyer • Service entry

  9. Living Area • Points to consider: • How the room will be used • How many people will use it • How often it will be used • Type and size of furniture that will be placed in it • Placement

  10. Living Room • Designed according to the needs and interests of the homeowner • Not common in starter home • Size is determined by the typical number of guests that will be entertained • 9’ diameter seating area is comfortable • Used for formal entertaining and quiet conversation • Untouchable room for guests only • Usually placed near the entry

  11. Family Room • Most used room in the house • Windows give a bigger feel • Used for many different activities for a variety of people • Space plan for TV seating arrangements etc. • Minimum size should be 13’ x 16’ • Subtract walkways • If fireplace is used, room should be increased in size • Space plan how furniture would work in at least two different ways to determine size

  12. Dining Room • Located near the kitchen for easy serving and the living room for easy passage • Formal dining is about 11’ x 14’ Min. • Plan for hutches or other furniture to be in room and still allow for traffic flow • Lighting considerations • Determine number of seating requirements and give at least 36”-44” around table for easy maneuvering with chairs pulled out.

  13. Dining Nook/ Bay Window or Door • Located near the kitchen for easy serving and the living room for easy passage • Small dining is 9’ x 11’ minimum • Determine number of seating requirements and give at least 36”-42” around table for easy maneuvering with chairs pulled out. • Nook needs to be near the dining and kitchen areas for family meals • Most commonly used as dual dining in starter homes • Bays work great to get out of traffic flow and allow lots of natural light

  14. Flex Room Den/Study/Office • If we want to count it as a bedroom what do we have to have? • _____________________ • _____________________ • Den, study, or office is used for quiet reading and study • Great room to be off front entry • Double doors or wide opening to feel more open and inviting

  15. Number of bedrooms will depend on the size of the family and the ages of the children • A minimum of two sleeping rooms should be provided • Keep plumbing away from bedroom walls by placing a closet between them • Bathroom access with full or ¾ in general area Sleeping Areas

  16. Bedrooms • Place on the southeast side of the house • Place on rear of home for privacy • Typically on one end of home separate from living areas • Minimum of one room size is 120 sq. ft. (No wall less than 7’) • Rule of thumb is no smaller than 10’ x 12’ so a dresser or furniture will fit • Size of bed and sex of child determines size • Try to stick with rectangle shape for furniture placement alternatives • Place windows as to allow functionality • Minimum of 24” on each side of the bed should be provided • Provide space of approx. 36” between dresser, desk and other objects (walkway)

  17. Master Bedrooms/ Bathrooms/ Closets • Master bedroom should have additional space for sitting and bathing • 13’ x 16’ is nice size to allow extra space for sitting area • 12’ x 14’ is minimum to feel like it is actual a master bedroom • Window seats are great way to give bigger feel in very little space • Bays are great options with separate entrance to private patio or covered patio with hot tub or other features • Typically have own bathroom • Soaker tub instead of standard tub/ shower combo (36” x 60” or 36” x 72”) • Separate toilet room with closing door • Typically two sinks or separate his/ her vanities • Typically have walk in closet (Min. of 6’ x 6’) • His/ her sides with space saver design • Built in shelves for shoes and sweaters, pants, etc.

  18. Closets • Males need at least 48” and females 72” • Minimum of 30” is needed to prevent wrinkling of clothes • 25” deep closets will provide finished dimension of 24” • Clothes typically stick out approx. 20” on hangers • Can be used to buffer noise between rooms • Coat closet should be near entrance • Min. 24” wide x 24” deep • Linen closet near all bathrooms • Min. 2’ wide x 18” deep for 12” shelves

  19. Bathrooms • Each bathroom should have an individual access • Jack n Jill bathrooms are very popular • Separate toilet and shower from sink area • Two-story house needs two full bathrooms • Place bathrooms back-to-back to reduce the amount of plumbing • Types: • ½ • ¾ • Full

  20. Service Areas • Kitchen • Serves for meal preparation and often includes areas for eating, working, and laundry • Considerations: • Kitchen work areas • Work triangle • Counter arrangements • Counter and cabinet size • Appliances

  21. Kitchen • Locate near dining area • Windows usually allow for supervision of children • Keep near garage or carport for easy grocery unloading • 150 sq. ft. considered small • Pantry/ Storage area • Appliances: • Microwave • Oven • Stove • Fridge • Dishwasher

  22. What are the 3 Kitchen Centers? • Cleaning Center • Includes sink, garbage disposal, and dishwasher • A 30” x 48” clear floor space should be provided in front of sink • Double sink is 32” x 21” and wider • Placed in 36” wide base cabinet • Dish storage should be near the dishwasher • Dishwasher in 24” wide cabinet • Place 21” away from cabinets at right angles to door • 36” of free space for loading and unloading dishwasher • Avoid placing sink and dishwasher on different counters

  23. Storage and Preparation • Storage Area • Need 18” beside refrigerator • Upper cabinets are 12” deep and base cabinets are 24” deep • Pantry in corner or as built in cabinets almost required • Place Fridge next to service areas & sink • Preparation Area • Includes sink, cooking units, and clear counter • Slide in range and cooktops fit in 30” wide base cabinet • Provide 18” each side of stove • Double wall ovens full height cabinet 30” wide • One clear area of 48” necessary or 72” if more than one person will be preparing food • 15” wide cabinets are smallest size suggested to keep usable

  24. Kitchen Work TriangleIs there a perfect arrangement? • Formed by drawing a line between the preparation, storage, and cleaning areas • Stove, Sink, Fridge • This maintains traffic flow and efficiency in preparing food • No side of triangle should be less than 4’ • Always place workspace between each station • Sum of sides should be at least 15’ but not more than 22’ • Avoid passing traffic through work triangle

  25. Counter Arrangements • Straight • Corridor or Galley • L-Shaped • U-Shaped • Islands

  26. Overhead Cabinets 12”-18” deep 24” above Fridge Full depth 9”- 48” wide 3” increments Kitchen Base Cabinets 24” deep 36” high 9”- 48” wide Cabinet Sizes • Bathroom Vanity Cabinet Depth • 22” deep x 32” high • Raised or adult height in Master bath • 36” tall

  27. Utility/ Laundry Room • Space needed for cleaning and caring for clothes and long term storage • Place near the kitchen or bedroom • Include a laundry chute if possible • Sinks • Ironing Board • Cabinets

  28. Garage • Minimum space for single car is 12’ x 20’ • Take into consideration the steps coming into garage and increase by that distance • Minimum space for two cars is 20’ x 20’ • Remember garage is a work area • Research what car is going to be parked in there • Trucks need 21’ sometimes plus 2’ to walk around • Provided 48” at rear of garage for workbench • Typical widths for 2 car garage door is 16’ • 18’ wide door gives more breathing room between cars • 2’ minimum wing walls on each side • 8’ wide door for 3rd car garage, 9’ door for more breathing room (Trucks) • Blend into the rest of the residence • Determine height requirements for cars as well

  29. Bonus Rooms • High pitched roof allow space to be converted to bonus room • Typically above garage

  30. Traffic Patterns • Traffic Flow - The route people follow as they move from one area to another • Circulation pathways should be between 36” and 48”

  31. Bringing it all together with exterior elements • A balcony is above ground that projects from a wall or building with no additional supports • Enclosed patio or deck • Walkways • Walkout Basements • Entrances other than front door
