  1. Background • 2010 Spokane River Forum Water Demand Presentations • Idaho Future Demand Study Draft Results presentation • Spokane County Water Demand Model presentation of project goals, objectives, concepts.

  2. Presentation Overview • Spokane County Water Demand Model • Idaho Future Demand Study • Study Compatibility

  3. Spokane County Water Demand Model • Segregated by Water Use Sector • each subsector has a unique submodel, or way of calculating water demand

  4. Spokane County Water Demand Model • Segregated Spatially • 487 separate forecast units • A unique water demand calculation is done for each forecast unit

  5. Spokane County Water Demand Model • Segregated in monthly increments

  6. Spokane County Water Demand Model • Disaggregated Model • In each forecast unit(487) there is a calculation for each submodel (13) for each month 12 • 75,972 water demand calculations per year Each forecast unit can have different inputs into each sub model Water demand calculation for each month

  7. Spokane County Water Demand Model • Developed and runs in Excel 2007 • Series of interconnected spreadsheets and formulas

  8. Spokane County Water Demand Model • Single Family Residential Model • Collected 20 years of data from 15 Water Systems: • monthly per connection water use from water systems, • weather data • demographic data • Time Series-Cross Sectional Regression • How does water use vary due to variables that are fixed such as home size. • How does water use vary due to variables that change with time such as weather.

  9. Spokane County Water Demand Model • Single Family Residential Model • Split into two models: • Indoor water use model • Outdoor water use model that adds water to indoor use May through October • Indoor model: • Water use is a function of household income • Outdoor model • Water use is a function of home value, temperature, precipitation, and lot size.

  10. Spokane County Water Demand Model Single Family Residential Model - Example Indoor model r2 = 0.55 Outdoor model r2 = 0.74

  11. Spokane County Water Demand Model Annual Public Water System Use: Modeled vs. Reported Reported in millions of gallons per year

  12. Spokane County Water Demand Model • Impact of weather on water use

  13. Spokane County Water Demand Model • Demand from SVRP Aquifer from Spokane County

  14. Spokane County Water Demand Model • Demand from SVRP Aquifer Reported in billions of gallons per year

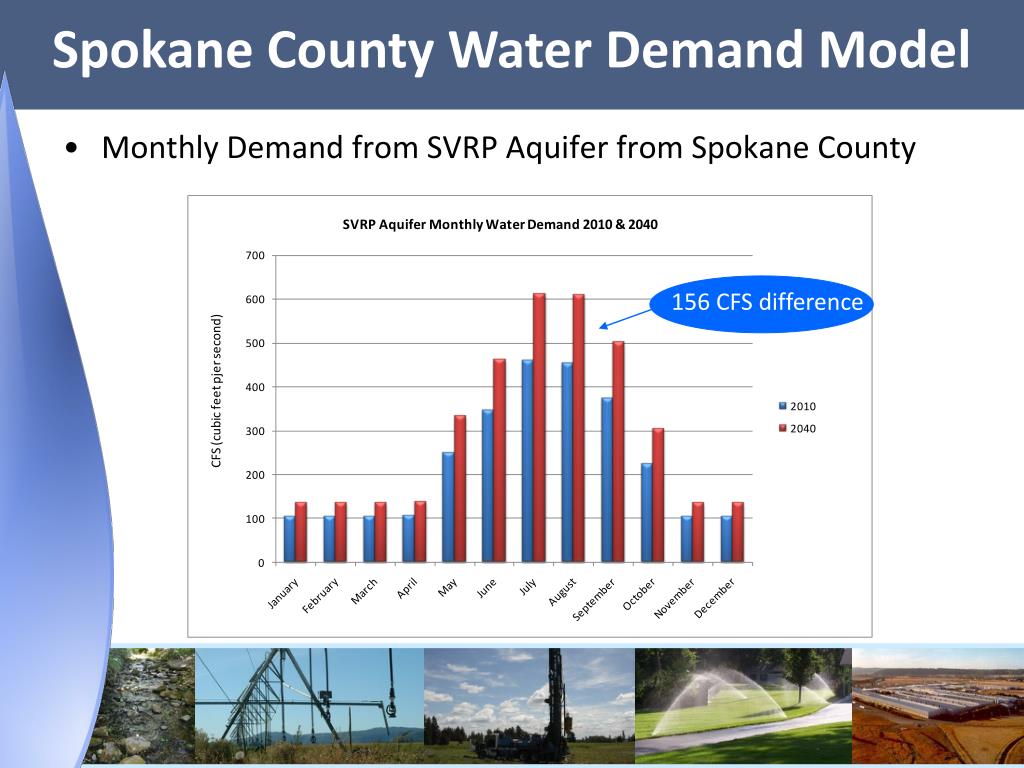

  15. Spokane County Water Demand Model • Monthly Demand from SVRP Aquifer from Spokane County 156 CFS difference

  16. Spokane County Water Demand Model no conservation no conservation no conservation • Conservation and Weather • Conservation efforts can be masked by changes in weather

  17. Idaho Future Demand Study • Includes an estimate of current and future use by water use sector on an annual basis: • Public Water Systems • Self Supplied Domestic • Self Supplied Commercial & Industrial • Agriculture • Separates Irrigation and Non-Irrigation Use

  18. Idaho Future Demand Study • Evaluates consumptive vs. non consumptive use • Range of population & employment growth scenarios • Detailed analysis of conservation scenarios • Evaluation of potential climate change impacts

  19. WA & ID Study Compatibility • Water Use by Sector Values in annual acre feet Values are total use

  20. WA & ID Demand • Aquifer Total Demand Idaho scenario – medium growth & no conservation

  21. WA & ID Demand • Additional Work that would enhance compatibility • Idaho: • evaluate demand on a monthly basis • Washington: • Utilize model to: • Develop alternate conservation scenarios • Develop alternate growth scenarios • Estimate consumptive/non consumptive use
