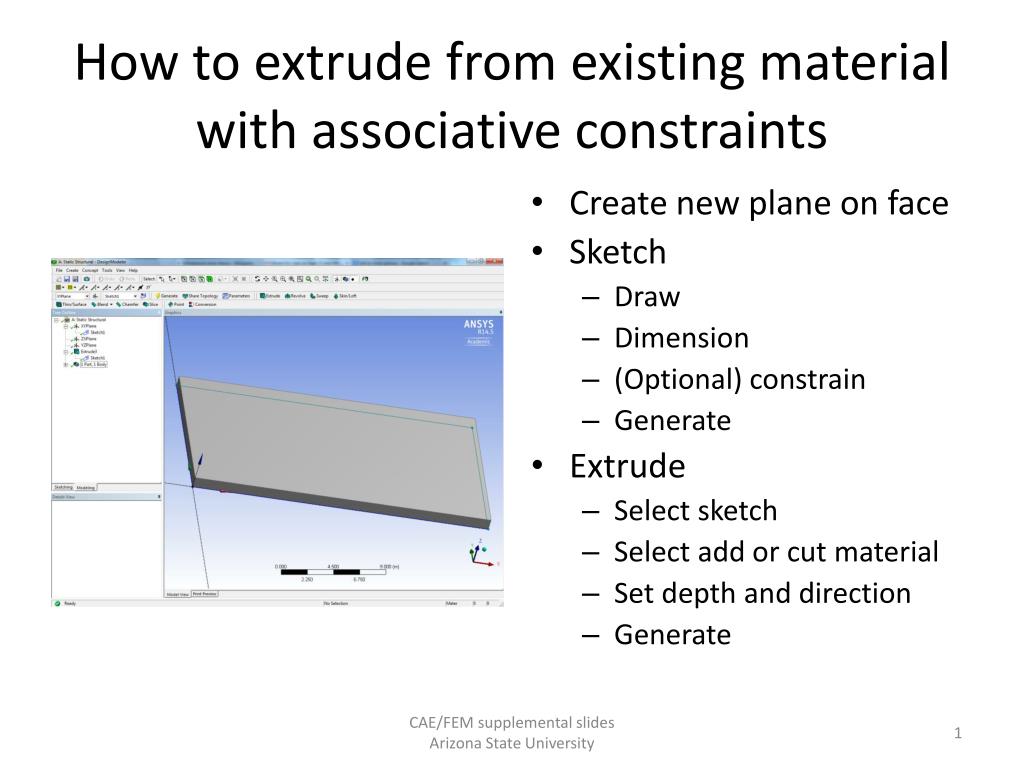

  1. How to extrude from existing material with associative constraints • Create new plane on face • Sketch • Draw • Dimension • (Optional) constrain • Generate • Extrude • Select sketch • Select add or cut material • Set depth and direction • Generate CAE/FEM supplemental slides Arizona State University

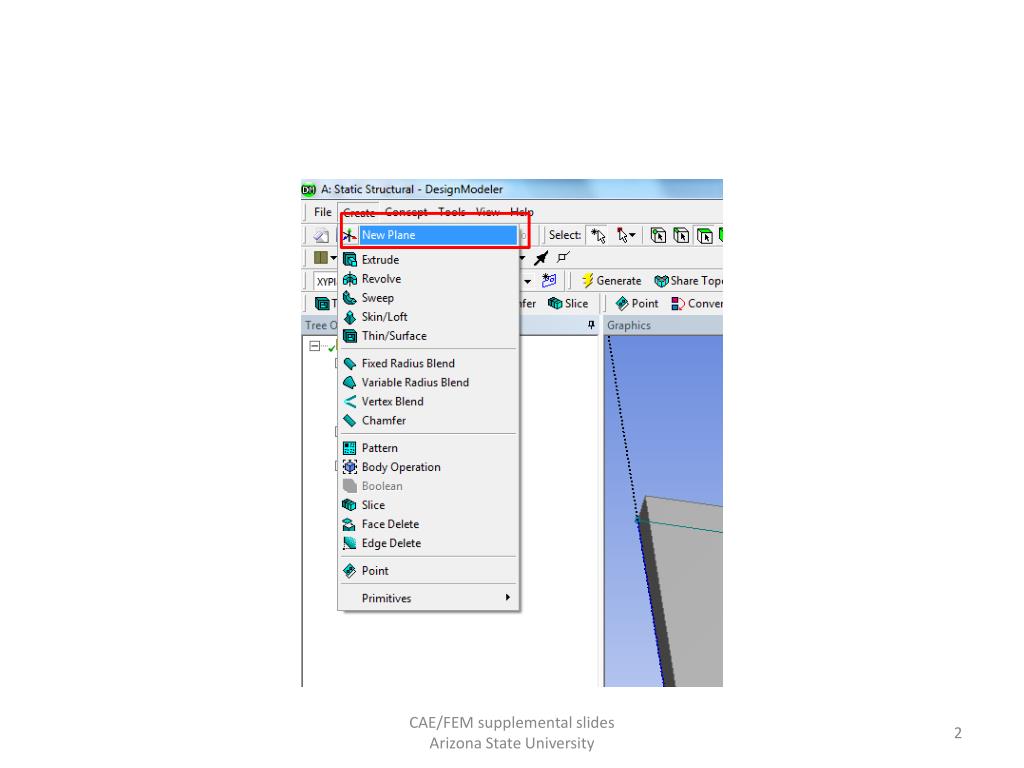

  2. CAE/FEM supplemental slides Arizona State University

  3. CAE/FEM supplemental slides Arizona State University

  4. Click 1 2 3 4 4 2 1 3 CAE/FEM supplemental slides Arizona State University

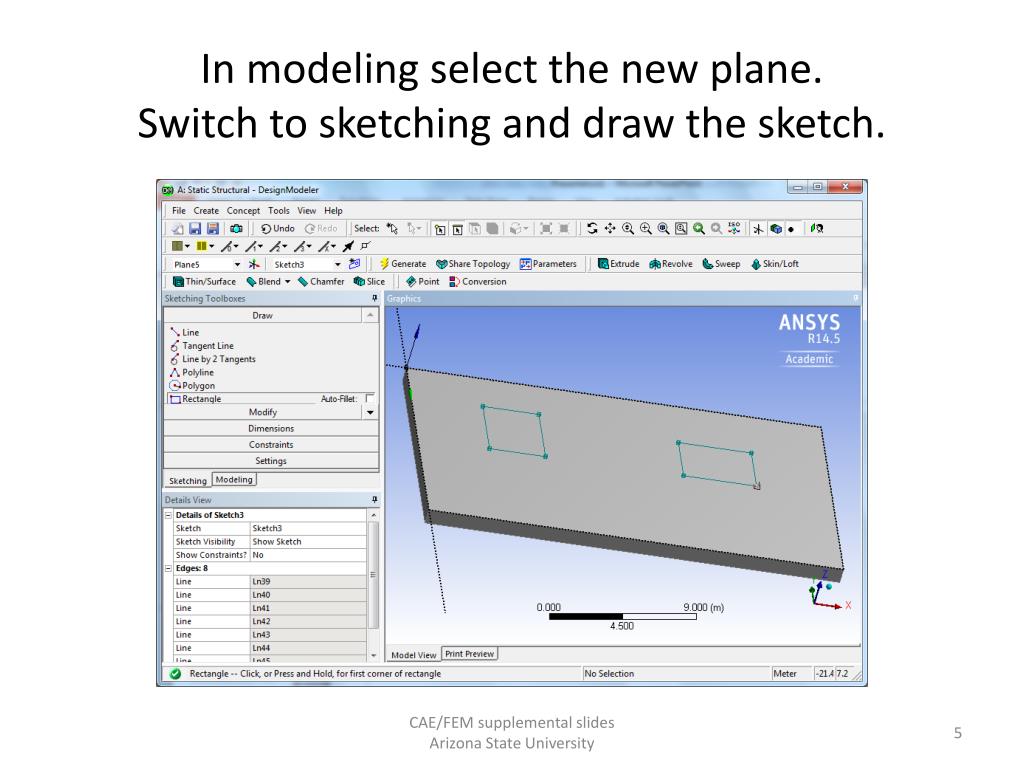

  5. In modeling select the new plane.Switch to sketching and draw the sketch. CAE/FEM supplemental slides Arizona State University

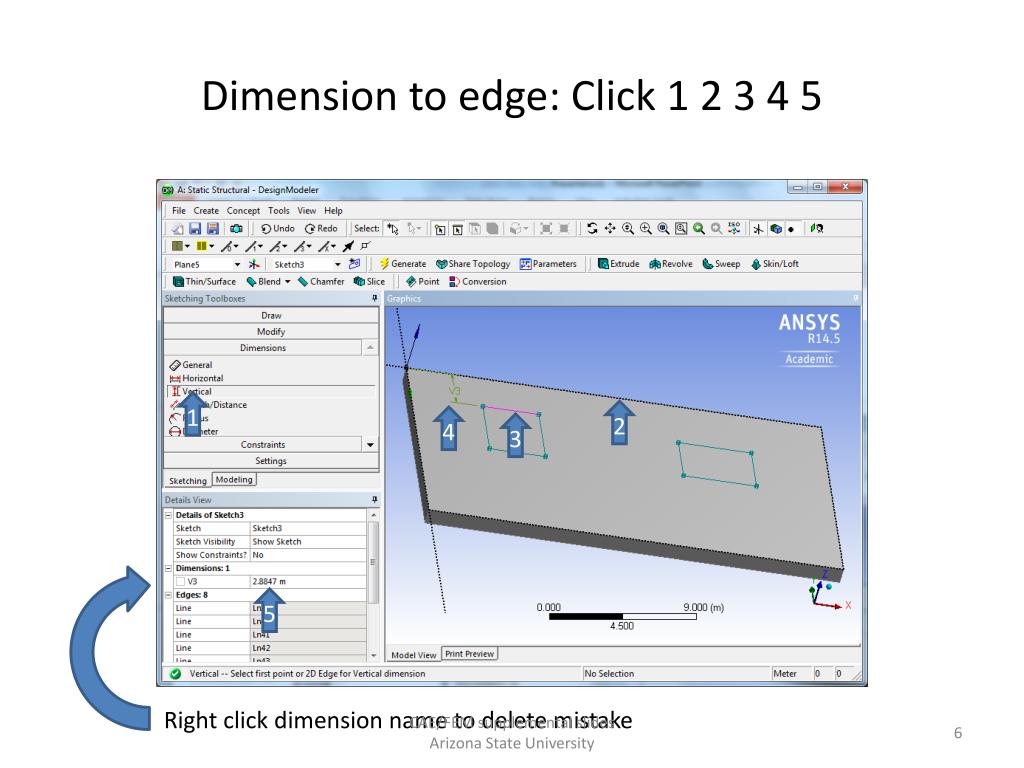

  6. Dimension to edge: Click 1 2 3 4 5 1 2 4 3 5 Right click dimension name to delete mistake CAE/FEM supplemental slides Arizona State University

  7. (Optional) Another approach: symmetry constraints 1 2 3 CAE/FEM supplemental slides Arizona State University

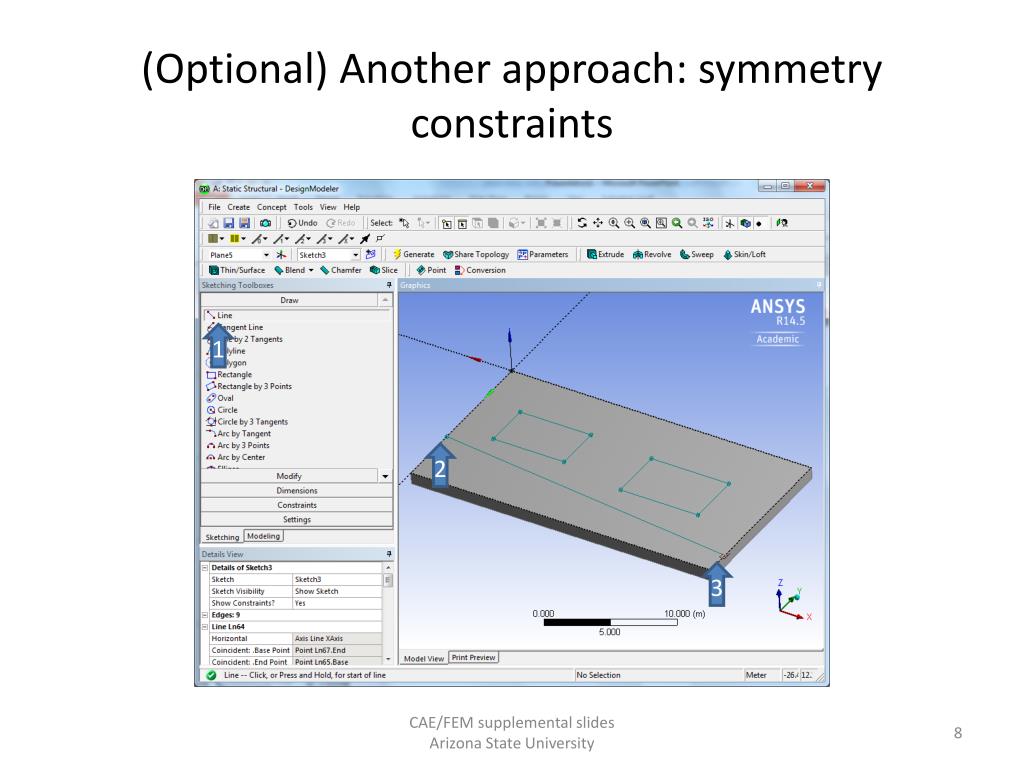

  8. (Optional) Another approach: symmetry constraints 1 2 3 CAE/FEM supplemental slides Arizona State University

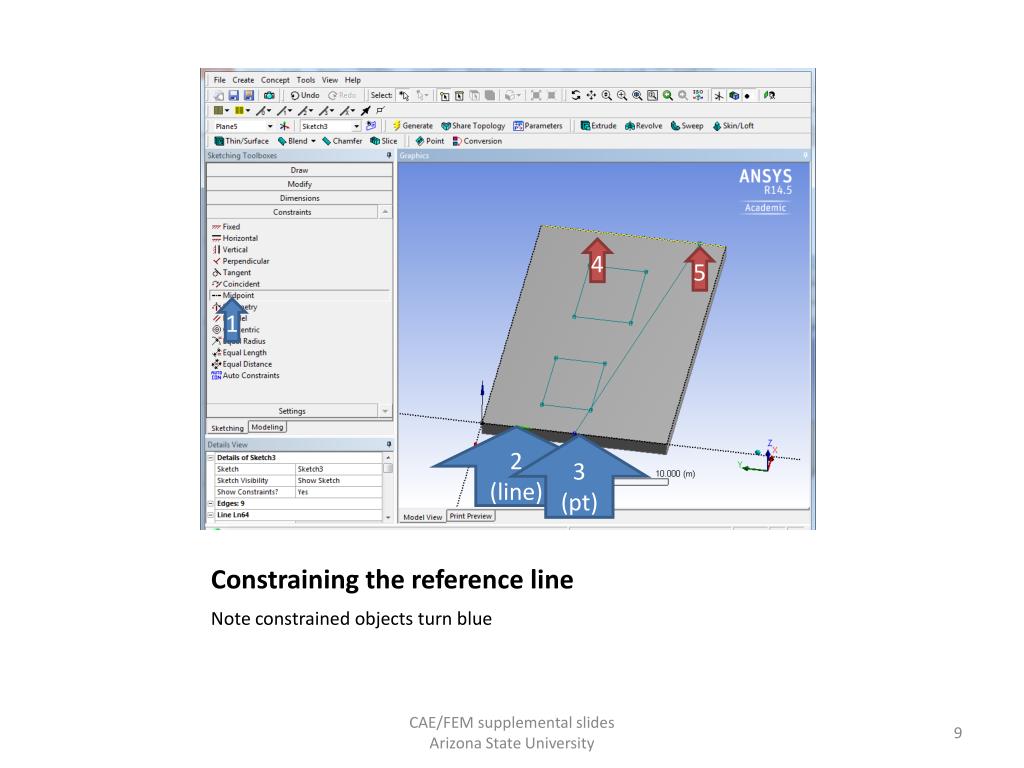

  9. 4 5 1 2 (line) 3 (pt) Constraining the reference line Note constrained objects turn blue CAE/FEM supplemental slides Arizona State University

  10. 4 1 3 2 Applying symmetry constraint Note constrained objects turn blue CAE/FEM supplemental slides Arizona State University

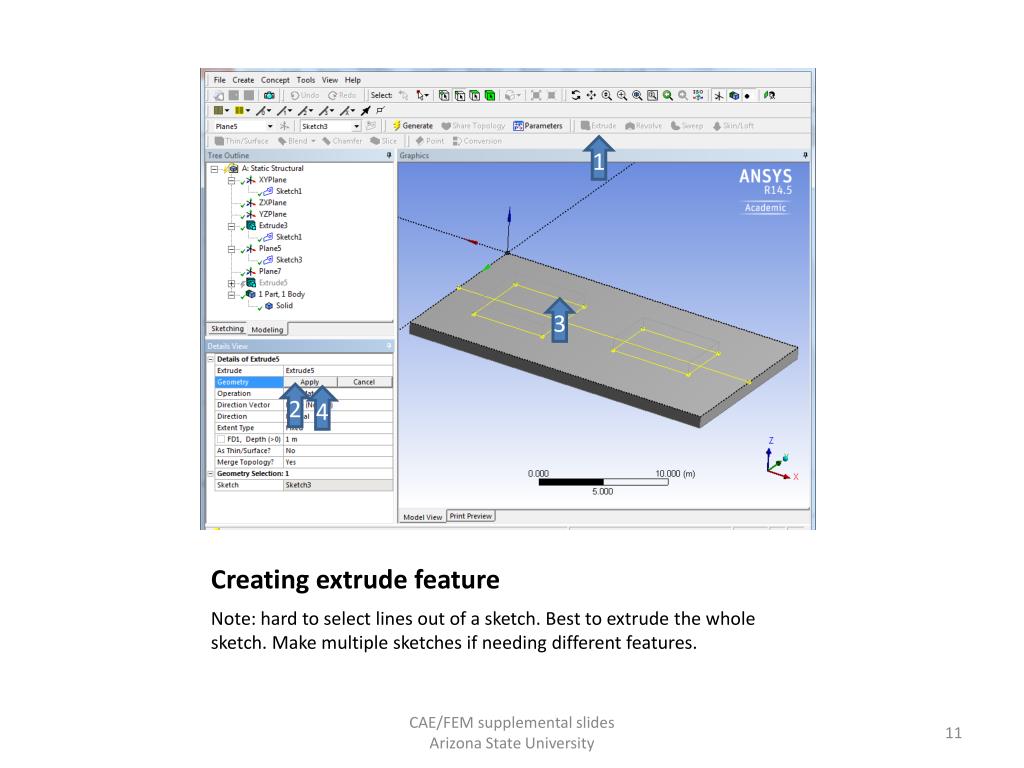

  11. 1 3 2 4 Creating extrude feature Note: hard to select lines out of a sketch. Best to extrude the whole sketch. Make multiple sketches if needing different features. CAE/FEM supplemental slides Arizona State University

  12. Check or modify Direction, Depth, then Generate CAE/FEM supplemental slides Arizona State University

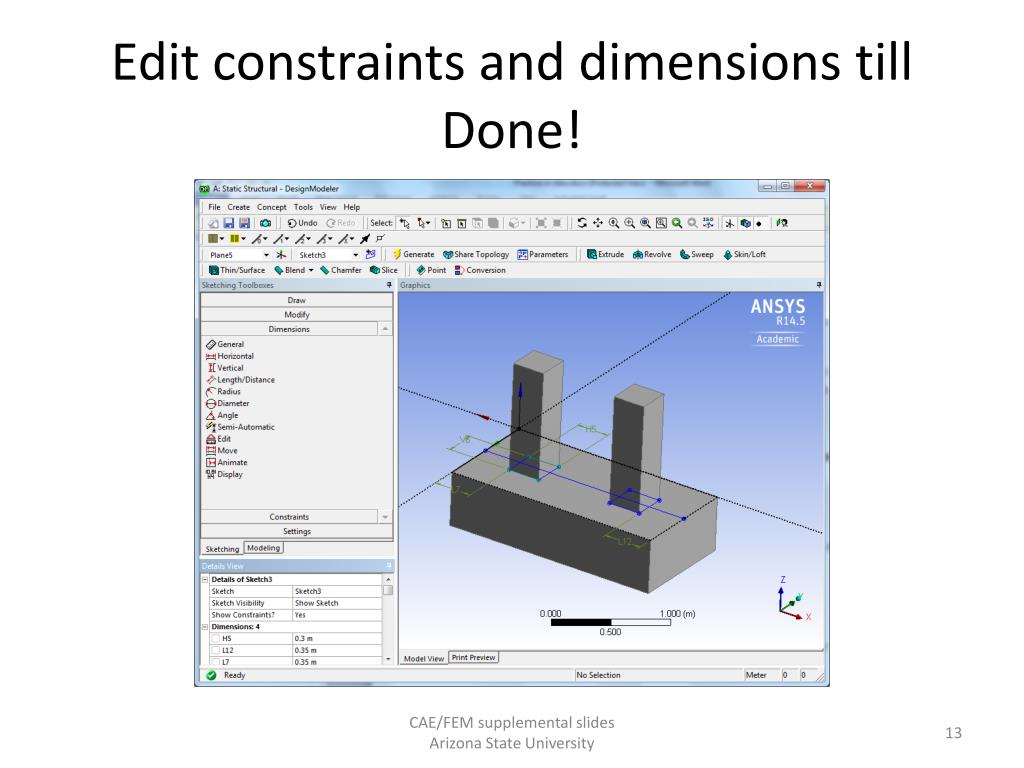

  13. Edit constraints and dimensions till Done! CAE/FEM supplemental slides Arizona State University

  14. Note 1 • Sketching>Modify>Trim to remove mistakes. • Sketching>Details>Show constraints. Occasionally you may want to delete inferred constraints. • Click the “select mode” button to escape zoom commands. CAE/FEM supplemental slides Arizona State University

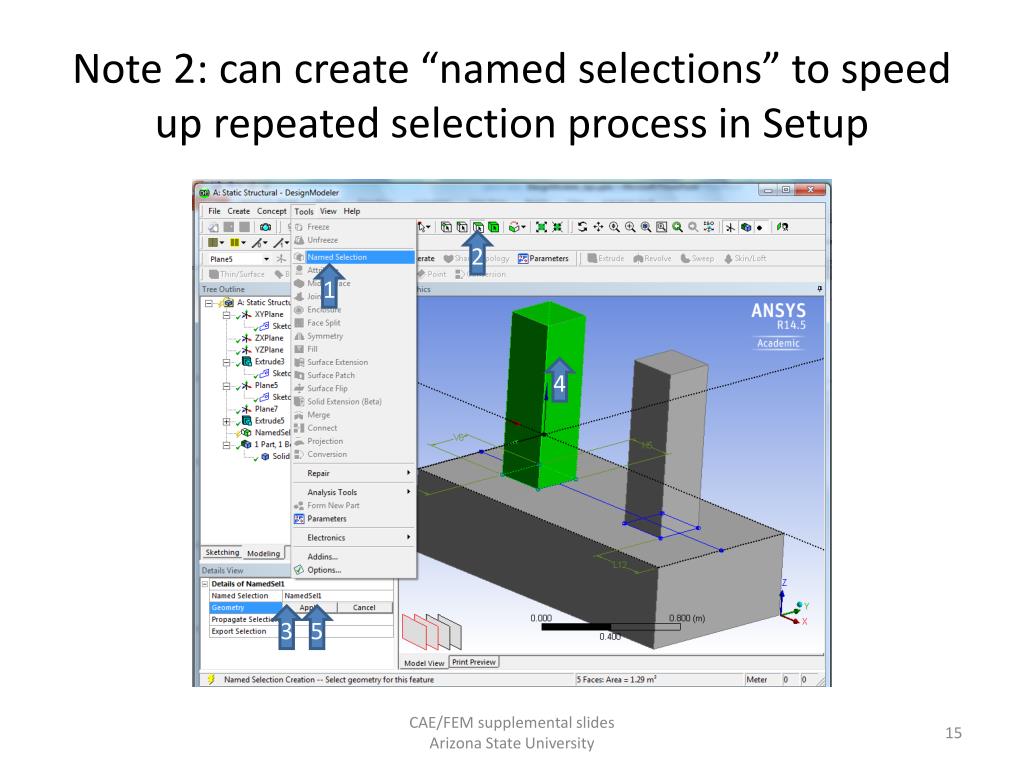

  15. Note 2: can create “named selections” to speed up repeated selection process in Setup 2 1 4 3 5 CAE/FEM supplemental slides Arizona State University
