  1. Defense Against The Dark Arts:Using Computer Security To Teach Core Computer Science Concepts Mark W. Bailey Associate Professor, Hamilton College Visiting Professor, University of Virginia

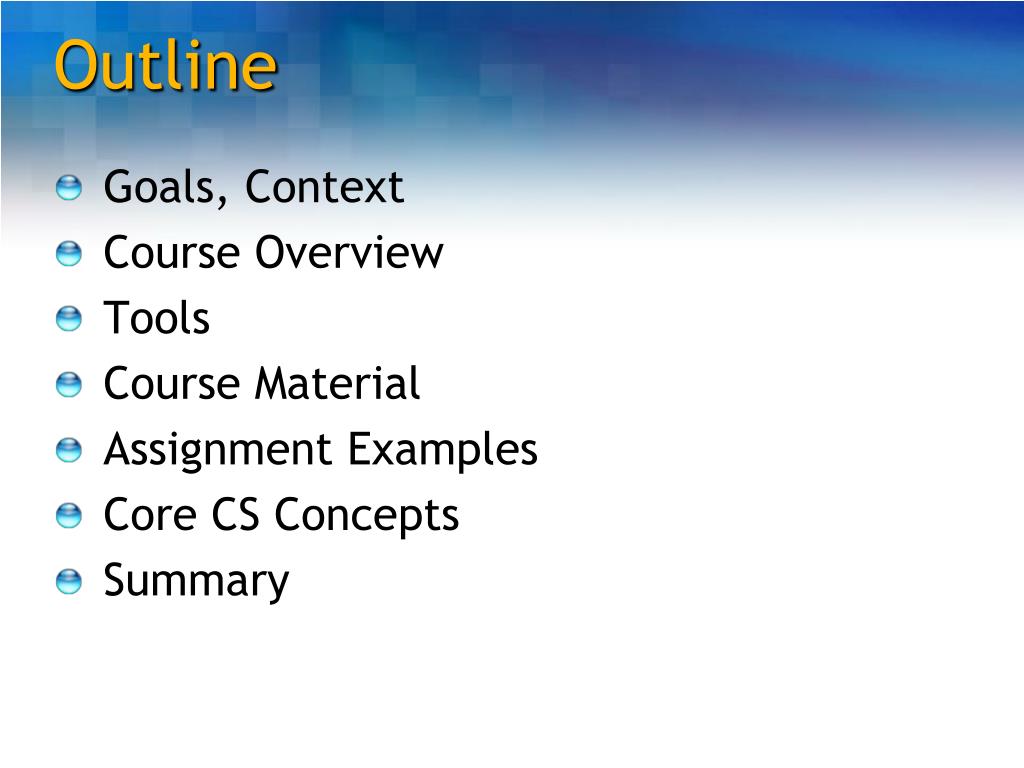

  2. Outline • Goals, Context • Course Overview • Tools • Course Material • Assignment Examples • Core CS Concepts • Summary

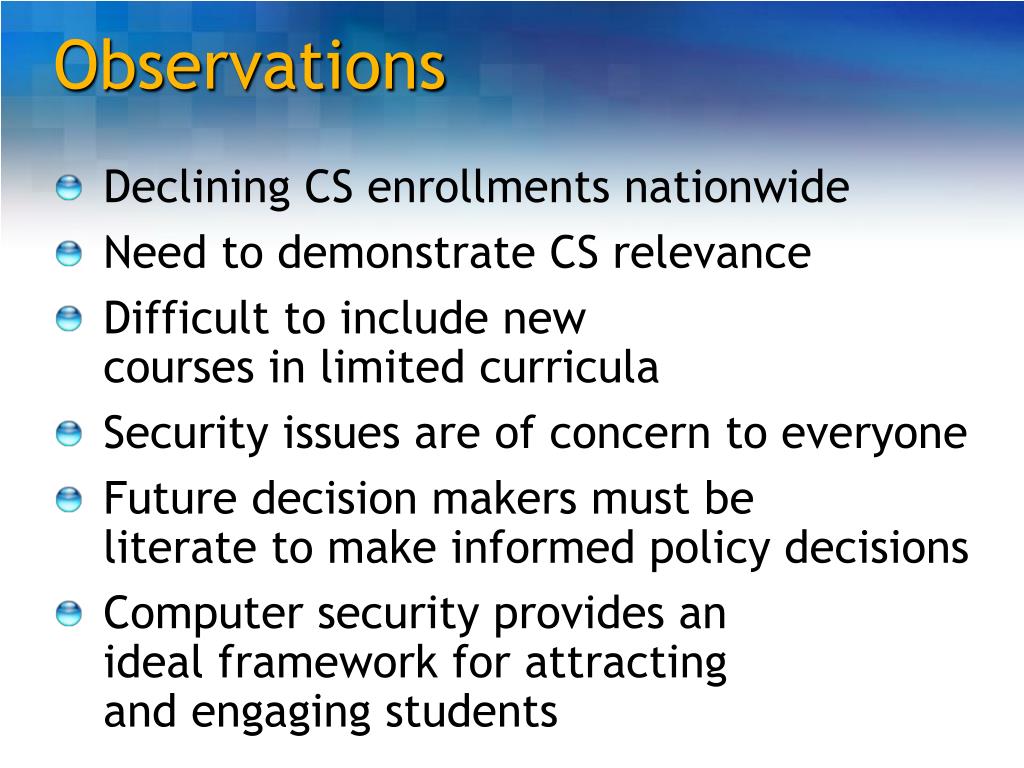

  3. Observations • Declining CS enrollments nationwide • Need to demonstrate CS relevance • Difficult to include new courses in limited curricula • Security issues are of concern to everyone • Future decision makers must be literate to make informed policy decisions • Computer security provides an ideal framework for attracting and engaging students

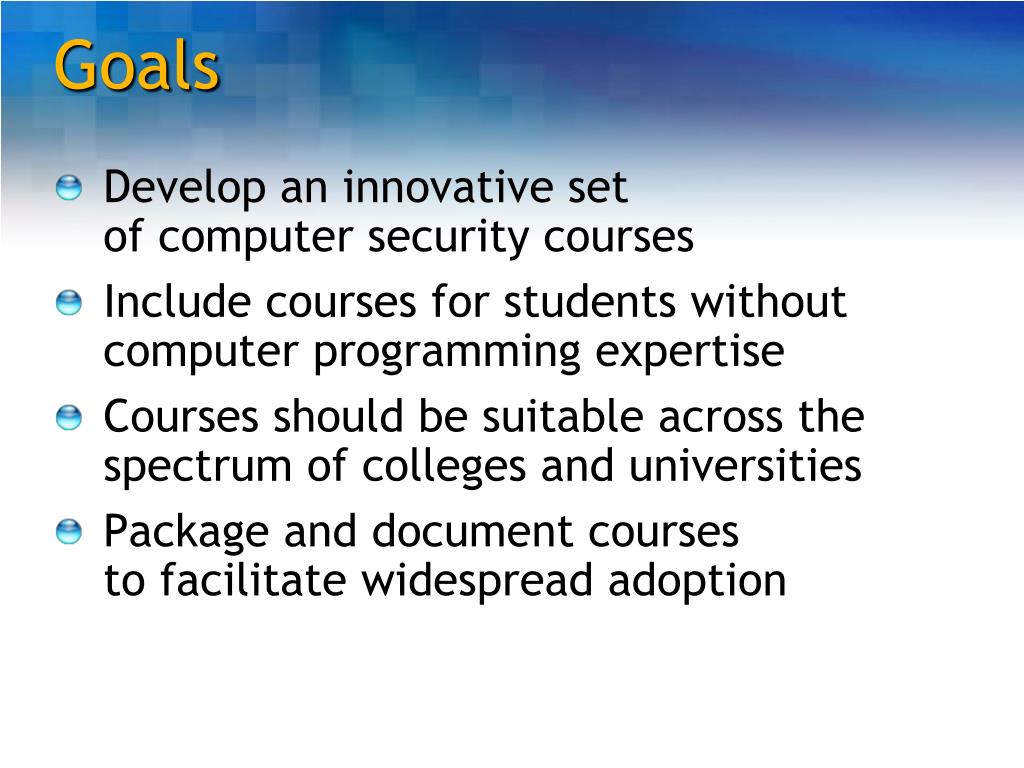

  4. Goals • Develop an innovative set of computer security courses • Include courses for students without computer programming expertise • Courses should be suitable across the spectrum of colleges and universities • Package and document courses to facilitate widespread adoption

  5. Participating Schools • Hamilton College (Liberal Arts) • Mark Bailey • University of Virginia(Research University) • Jack Davidson • Virginia State University(HBCU) • Jeff Zadeh

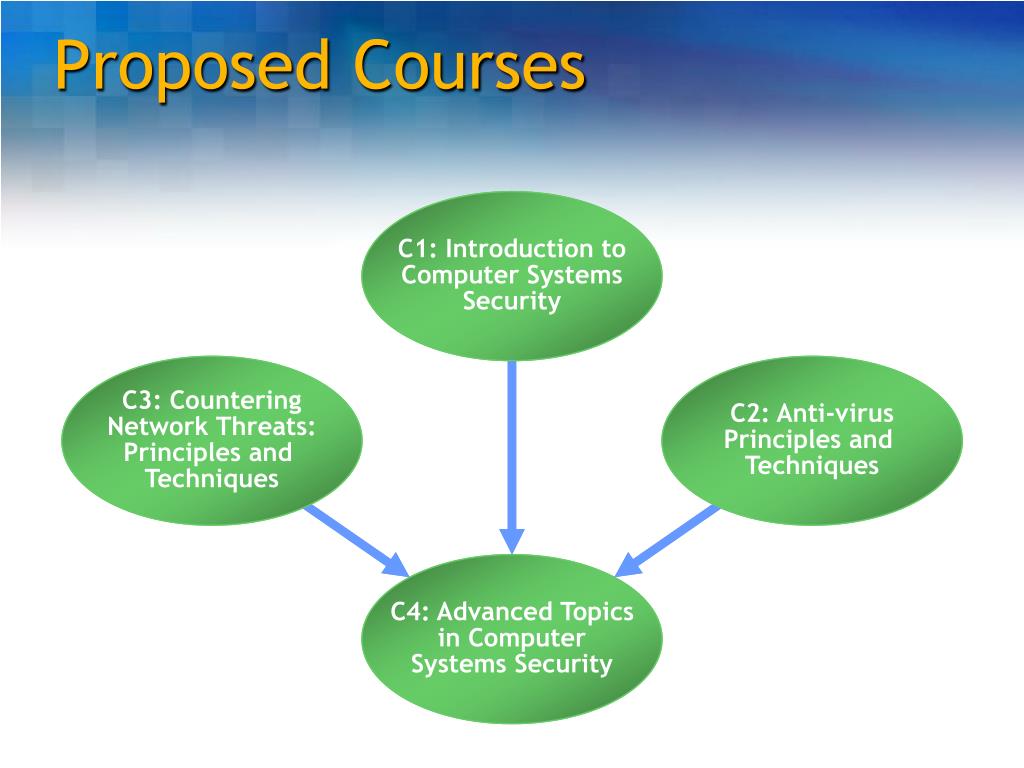

  6. C1: Introduction toComputer SystemsSecurity C1: Introduction toComputer SystemsSecurity C3: CounteringNetwork Threats:Principles and Techniques C3: CounteringNetwork Threats:Principles and Techniques C2: Anti-virusPrinciples and Techniques C2: Anti-virusPrinciples and Techniques C4: Advanced Topicsin ComputerSystems Security C4: Advanced Topicsin ComputerSystems Security Proposed Courses

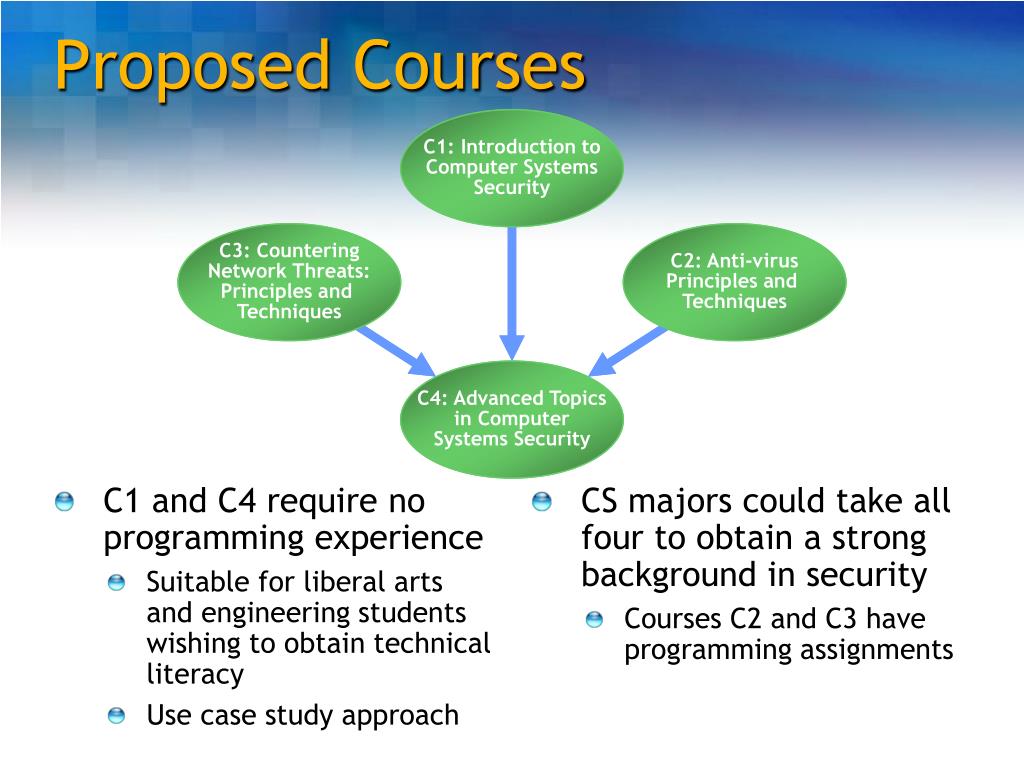

  7. C1 and C4 require no programming experience Suitable for liberal arts and engineering students wishing to obtain technical literacy Use case study approach CS majors could take all four to obtain a strong background in security Courses C2 and C3 have programming assignments C1: Introduction toComputer SystemsSecurity C1: Introduction toComputer SystemsSecurity C3: CounteringNetwork Threats:Principles and Techniques C3: CounteringNetwork Threats:Principles and Techniques C2: Anti-virusPrinciples and Techniques C2: Anti-virusPrinciples and Techniques C4: Advanced Topicsin ComputerSystems Security C4: Advanced Topicsin ComputerSystems Security Proposed Courses

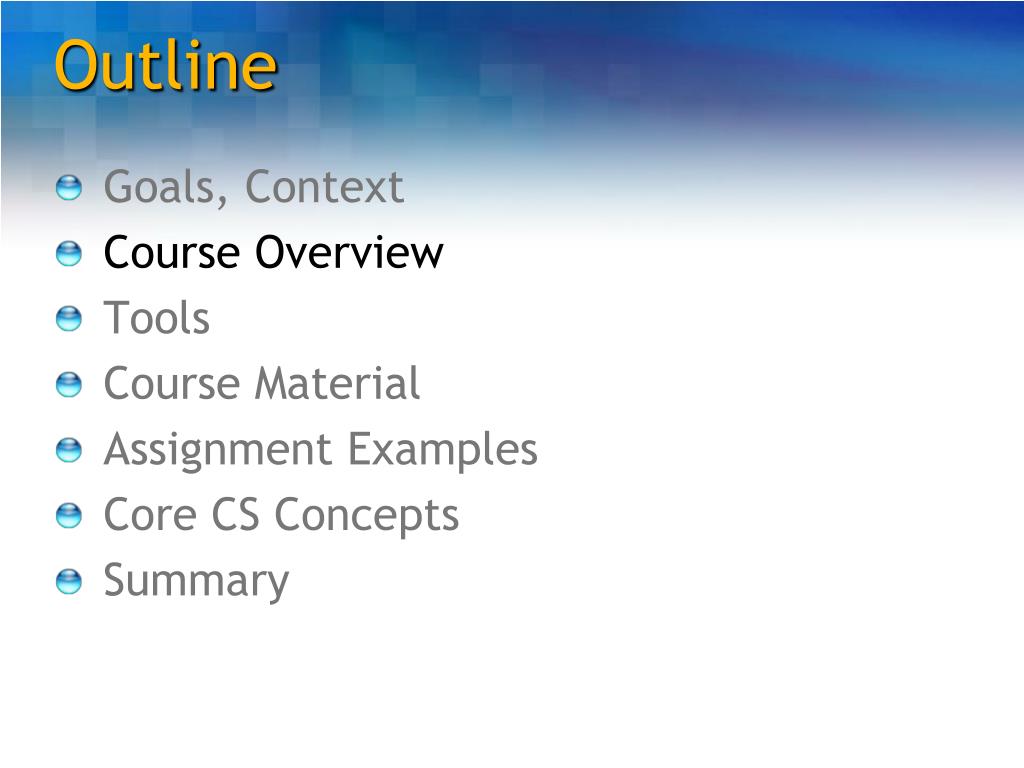

  8. Outline • Goals, Context • Course Overview • Tools • Course Material • Assignment Examples • Core CS Concepts • Summary

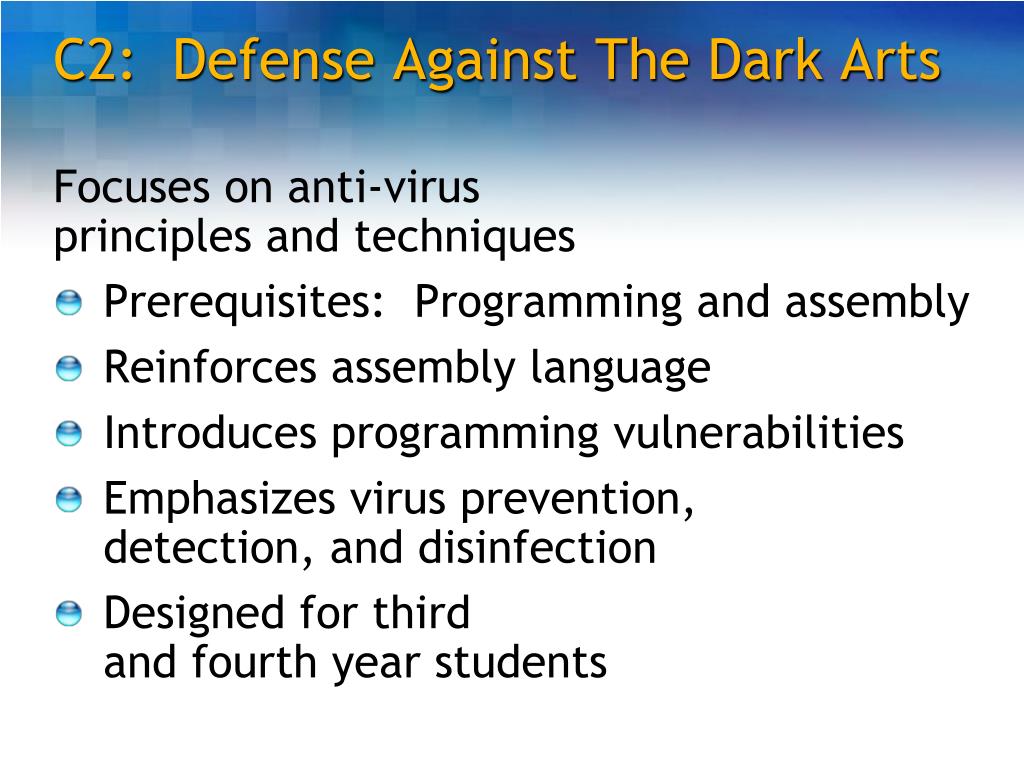

  9. C2: Defense Against The Dark Arts Focuses on anti-virus principles and techniques • Prerequisites: Programming and assembly • Reinforces assembly language • Introduces programming vulnerabilities • Emphasizes virus prevention, detection, and disinfection • Designed for third and fourth year students

  10. Anti-Virus Course Motivation • Threats to computers systems, such as viruses and worms, are a serious problem • CS students need to understand malware schemes and defenses against them • Teaches how to detect and defeat malicious software • Analyzing programs demands application of core theoretical concepts of CS • Teaches these concepts in an application area of great topical interest

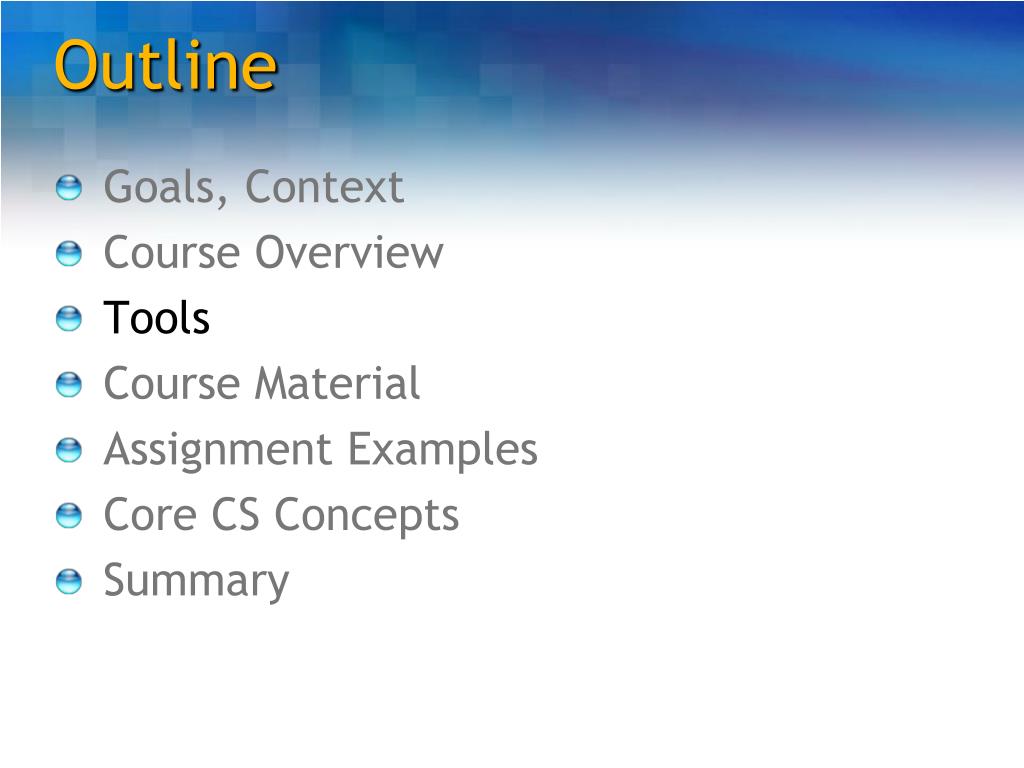

  11. Outline • Goals, Context • Course Overview • Tools • Course Material • Assignment Examples • Core CS Concepts • Summary

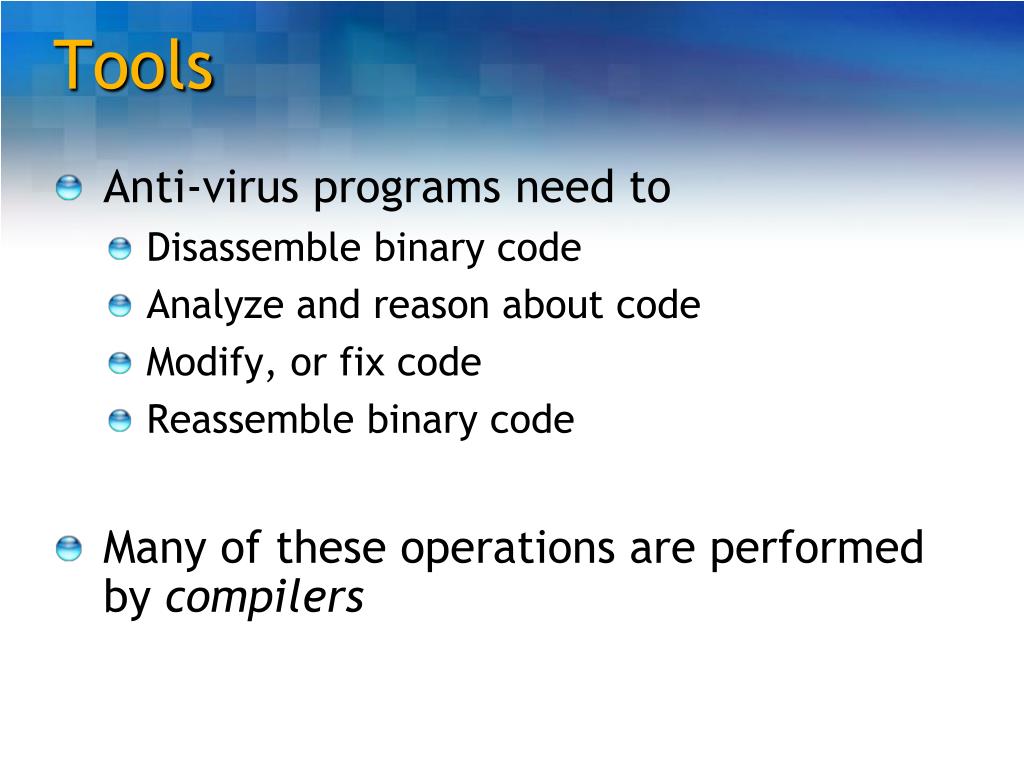

  12. Tools • Anti-virus programs need to • Disassemble binary code • Analyze and reason about code • Modify, or fix code • Reassemble binary code • Many of these operations are performed by compilers

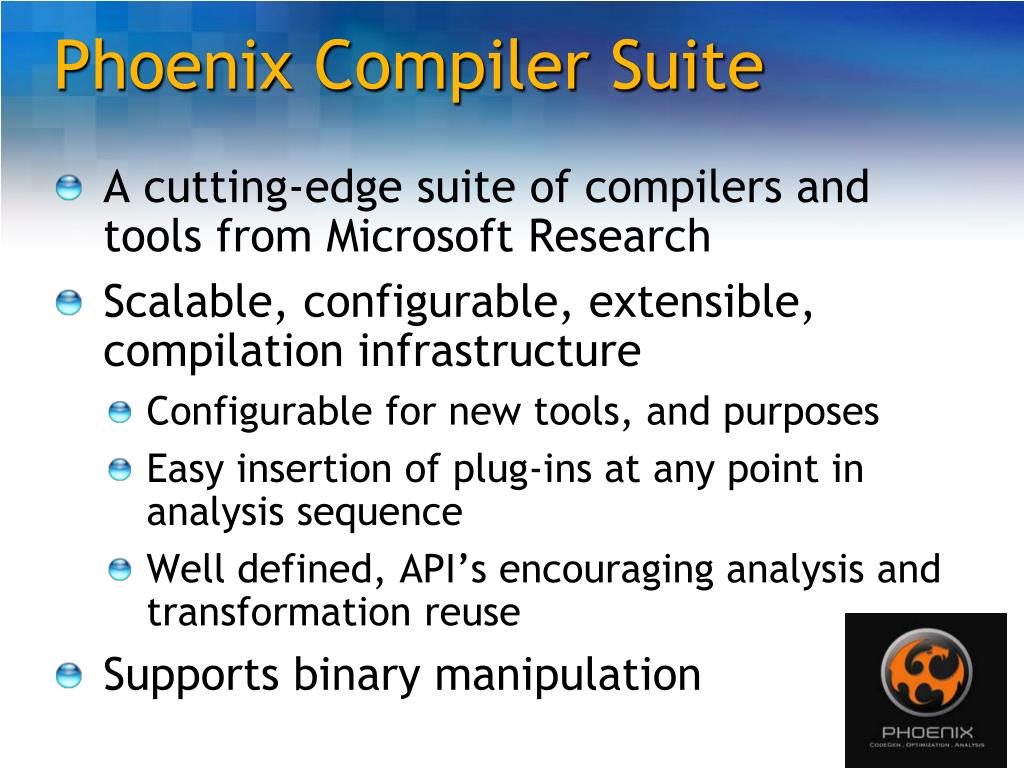

  13. Phoenix Compiler Suite • A cutting-edge suite of compilers and tools from Microsoft Research • Scalable, configurable, extensible, compilation infrastructure • Configurable for new tools, and purposes • Easy insertion of plug-ins at any point in analysis sequence • Well defined, API’s encouraging analysis and transformation reuse • Supports binary manipulation

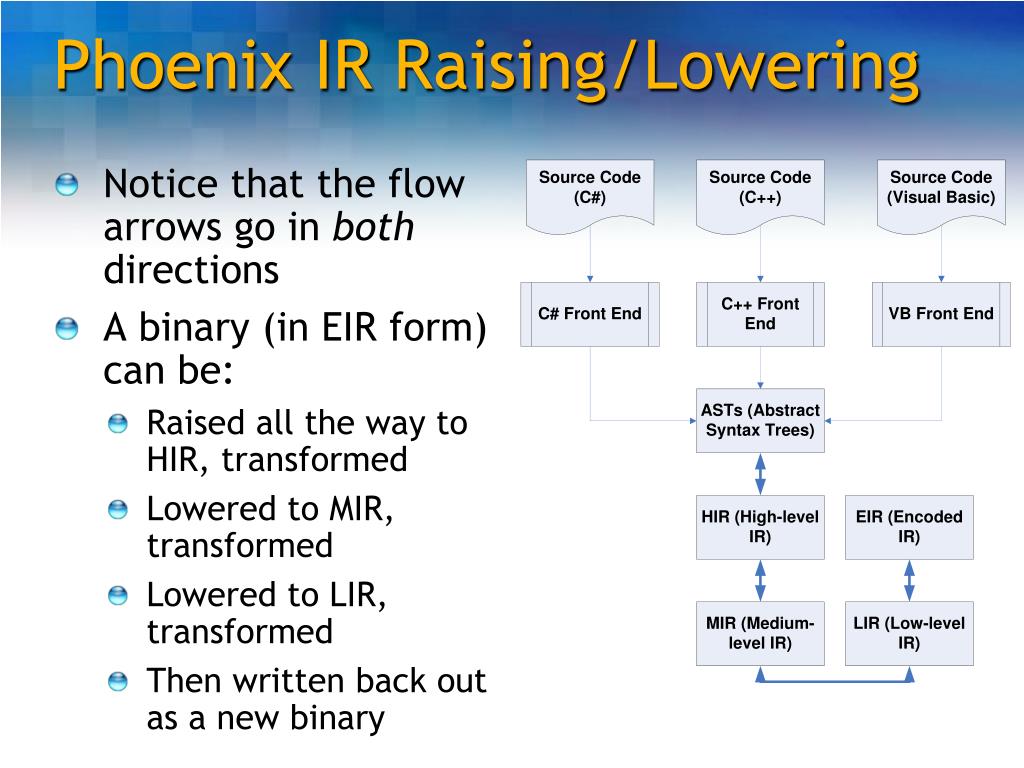

  14. Phoenix IR Raising/Lowering • Notice that the flow arrows go in both directions • A binary (in EIR form) can be: • Raised all the way to HIR, transformed • Lowered to MIR, transformed • Lowered to LIR, transformed • Then written back out as a new binary

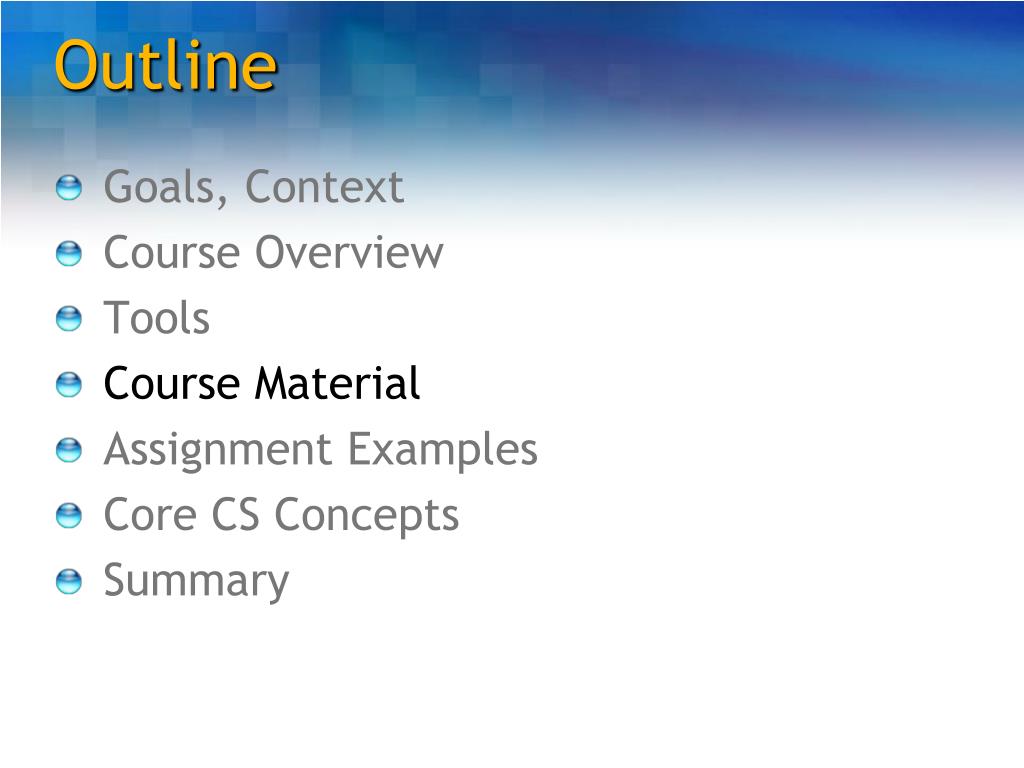

  15. Outline • Goals, Context • Course Overview • Tools • Course Material • Assignment Examples • Core CS Concepts • Summary

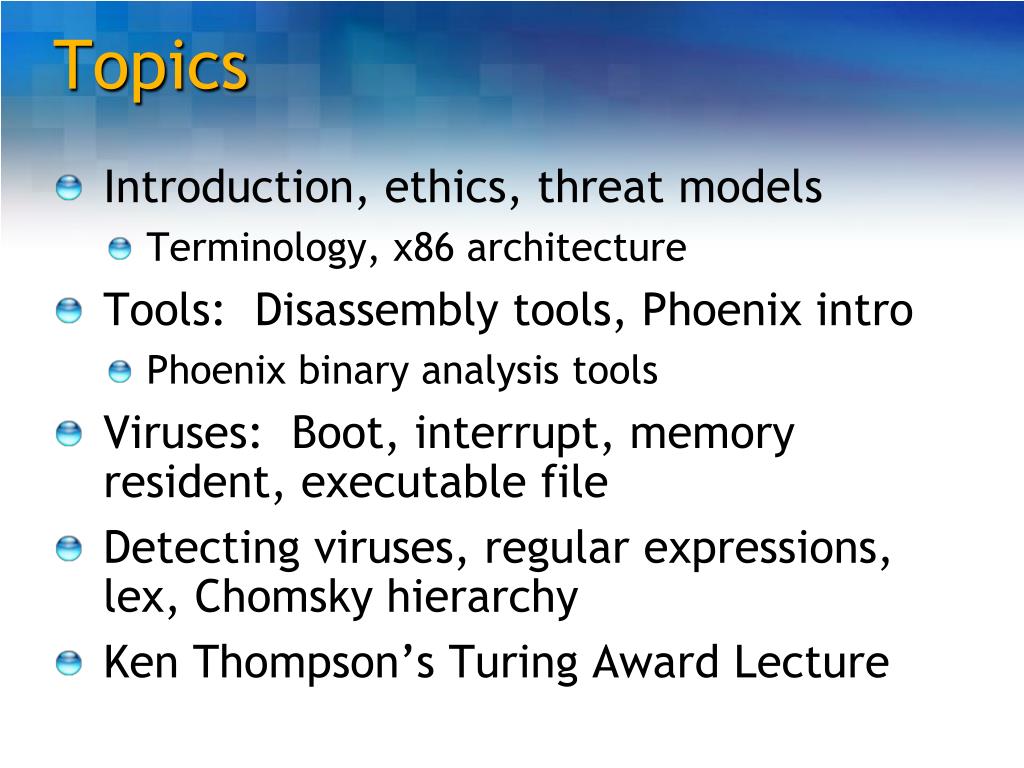

  16. Topics • Introduction, ethics, threat models • Terminology, x86 architecture • Tools: Disassembly tools, Phoenix intro • Phoenix binary analysis tools • Viruses: Boot, interrupt, memory resident, executable file • Detecting viruses, regular expressions, lex, Chomsky hierarchy • Ken Thompson’s Turing Award Lecture

  17. Topics (Continued) • Obfuscation, SSA form and Phoenix • Anti-anti-virus schemes, analyzing systems • Retroviruses, tunneling, armor, encryption, oligomorphic, polymorphic, metamorphic • Software Dynamic Translation (SDT) • Strata SDT framework; SDT security applications • Code vulnerabilities and exploits; secure coding, static security analyzers • Root kits

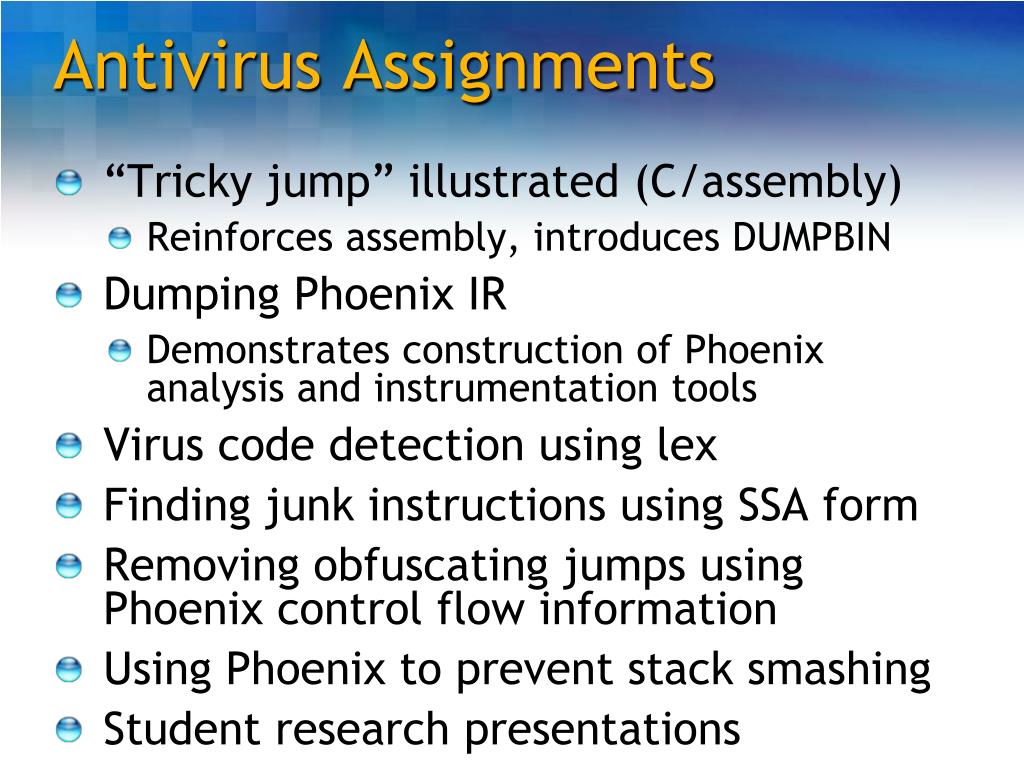

  18. Antivirus Assignments • “Tricky jump” illustrated (C/assembly) • Reinforces assembly, introduces DUMPBIN • Dumping Phoenix IR • Demonstrates construction of Phoenix analysis and instrumentation tools • Virus code detection using lex • Finding junk instructions using SSA form • Removing obfuscating jumps using Phoenix control flow information • Using Phoenix to prevent stack smashing • Student research presentations

  19. Outline • Goals, Context • Course Overview • Tools • Course Material • Assignment Examples • Core CS Concepts • Summary

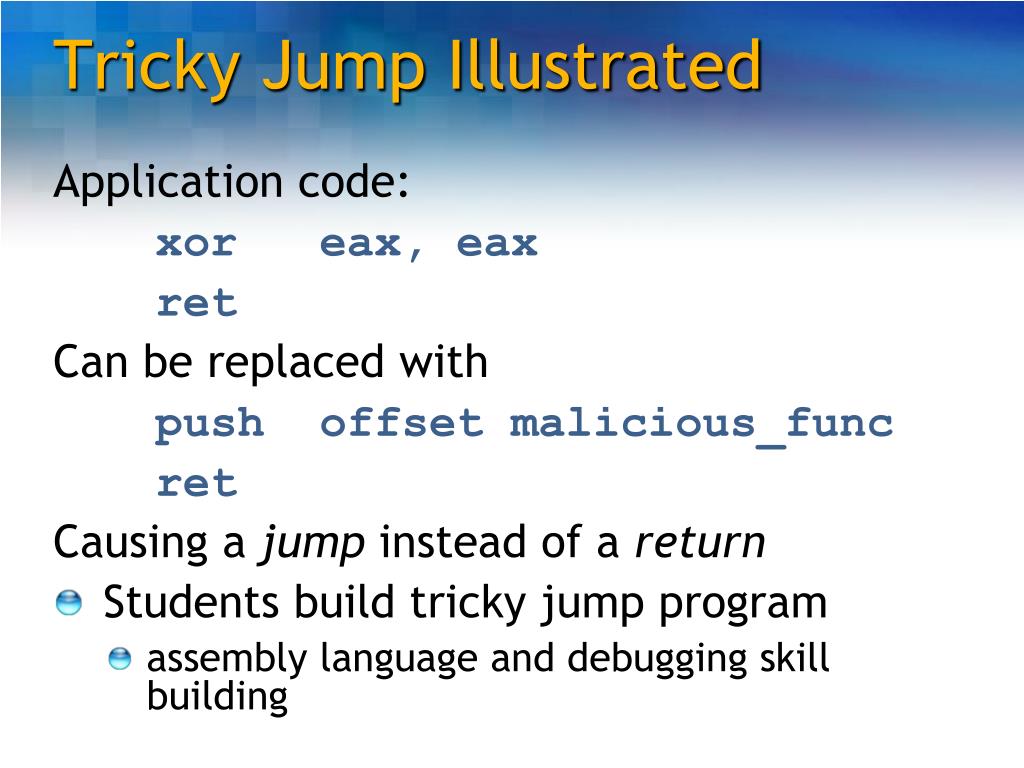

  20. Tricky Jump Illustrated Application code: xor eax, eax ret Can be replaced with push offset malicious_func ret Causing a jump instead of a return • Students build tricky jump program • assembly language and debugging skill building

  21. Virus Code Detection • A common virus excerpt changes the IVT: mov eax, 4CH mov dword ptr [eax], edx • Which register is used is irrelevant • Disassemble executable using dumpbin • Recognize pattern using lex • Introduces regular expressions and their limitations

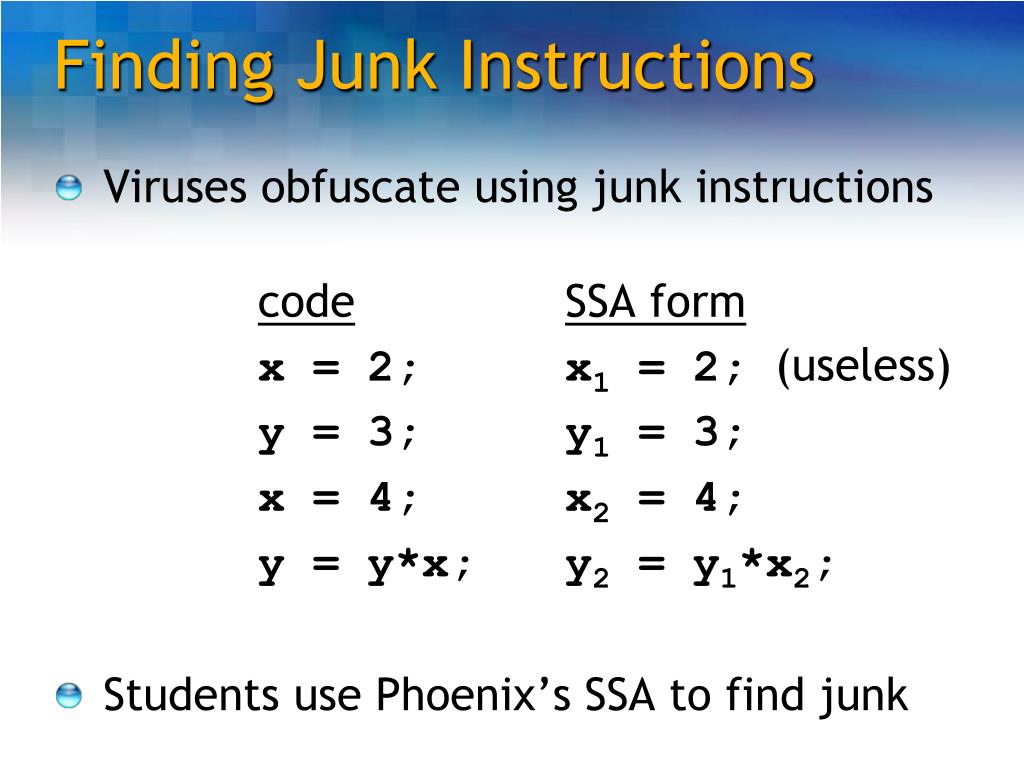

  22. Finding Junk Instructions • Viruses obfuscate using junk instructions codeSSA form x = 2; x1 = 2; (useless) y = 3; y1 = 3; x = 4; x2 = 4; y = y*x; y2 = y1*x2; • Students use Phoenix’s SSA to find junk

  23. Simple sequences like: x += 4; y +- (z – x); z -= 3; printf(“%d\n”, x); Can be obfuscated using jumps: x += 4; goto lab2; lab3: z -= 3; goto lab4; lab2: y += (z – x); goto lab3; lab4: printf(“%d\n”, x); Removing Obfuscating Jumps

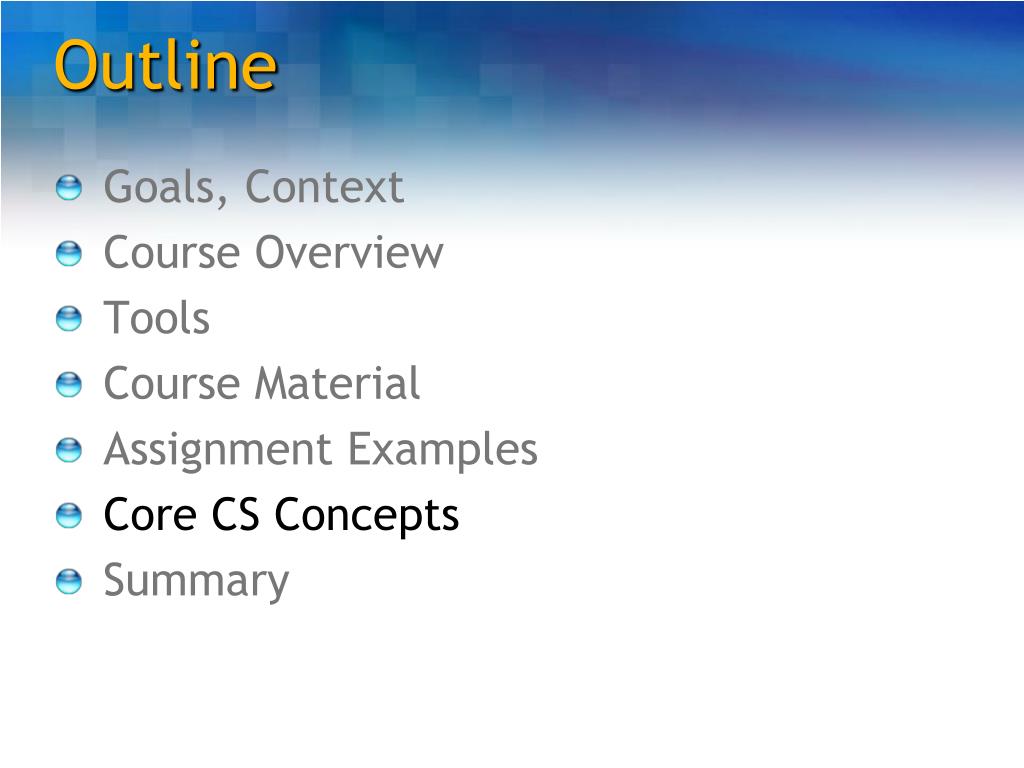

  24. Outline • Goals, Context • Course Overview • Tools • Course Material • Assignment Examples • Core CS Concepts • Summary

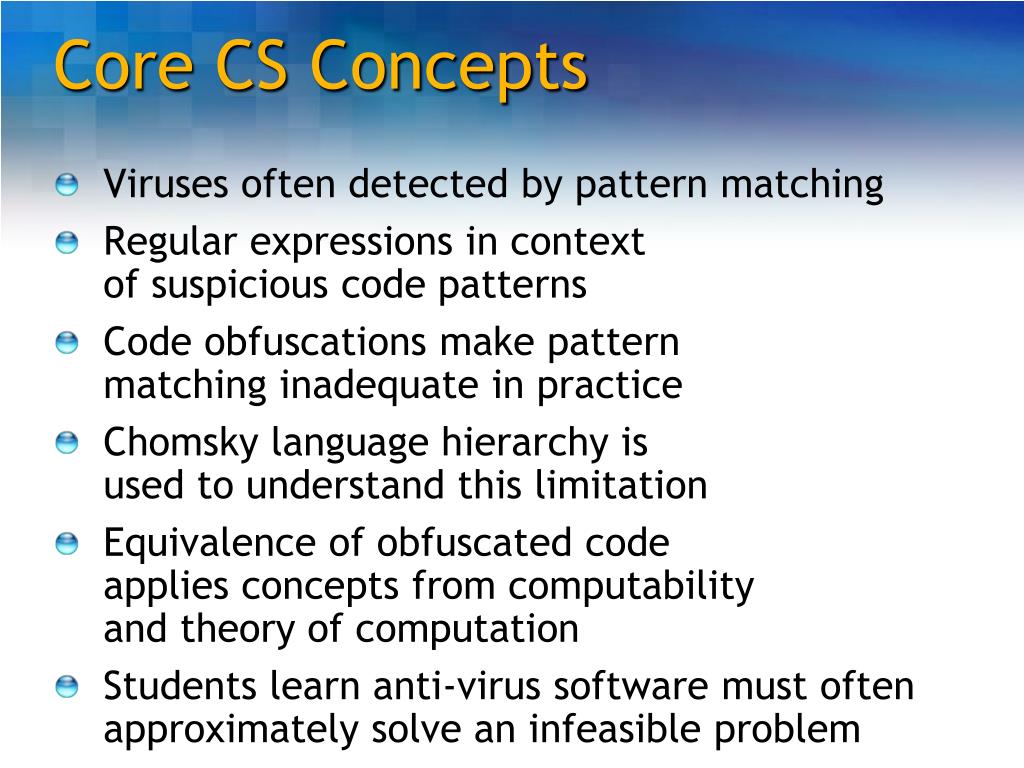

  25. Core CS Concepts • Viruses often detected by pattern matching • Regular expressions in context of suspicious code patterns • Code obfuscations make pattern matching inadequate in practice • Chomsky language hierarchy is used to understand this limitation • Equivalence of obfuscated code applies concepts from computability and theory of computation • Students learn anti-virus software must often approximately solve an infeasible problem

  26. Core CS Concepts Continued • Pattern matching limitations suggest semantic analyses found in compilers • Simple dataflow analysis and SA form for de-obfuscation • Simple register allocation/assignment used to defeat register renumbering—another obfuscation technique

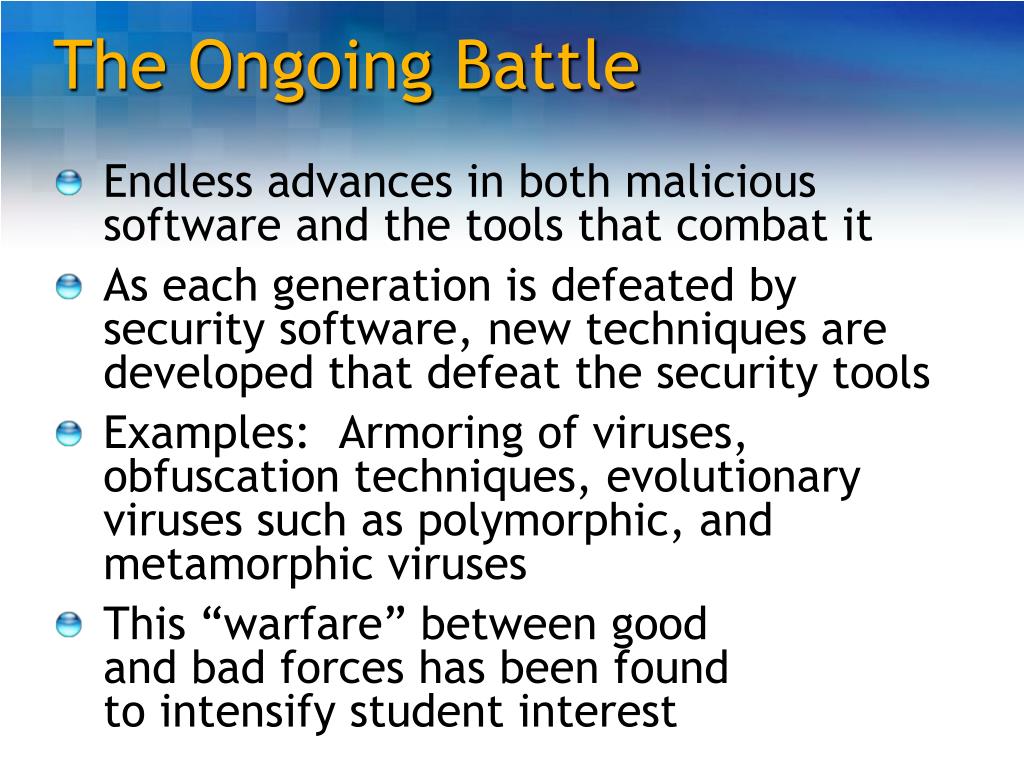

  27. The Ongoing Battle • Endless advances in both malicious software and the tools that combat it • As each generation is defeated by security software, new techniques are developed that defeat the security tools • Examples: Armoring of viruses, obfuscation techniques, evolutionary viruses such as polymorphic, and metamorphic viruses • This “warfare” between good and bad forces has been found to intensify student interest

  28. Outcomes • Taught twice at Virginia, once at Hamilton and VSU (Spring 2007) • UVa course overenrolled (had to turn away students) • Used Phoenix infrastructure as a vehicle for teaching anti-virus techniques (compilers in disguise) • Student feedback very positive • Students wanted more Phoenix assignments. “Would have liked to do more with Phoenix and less with Lex, but I guess time was too much of a limitation.”

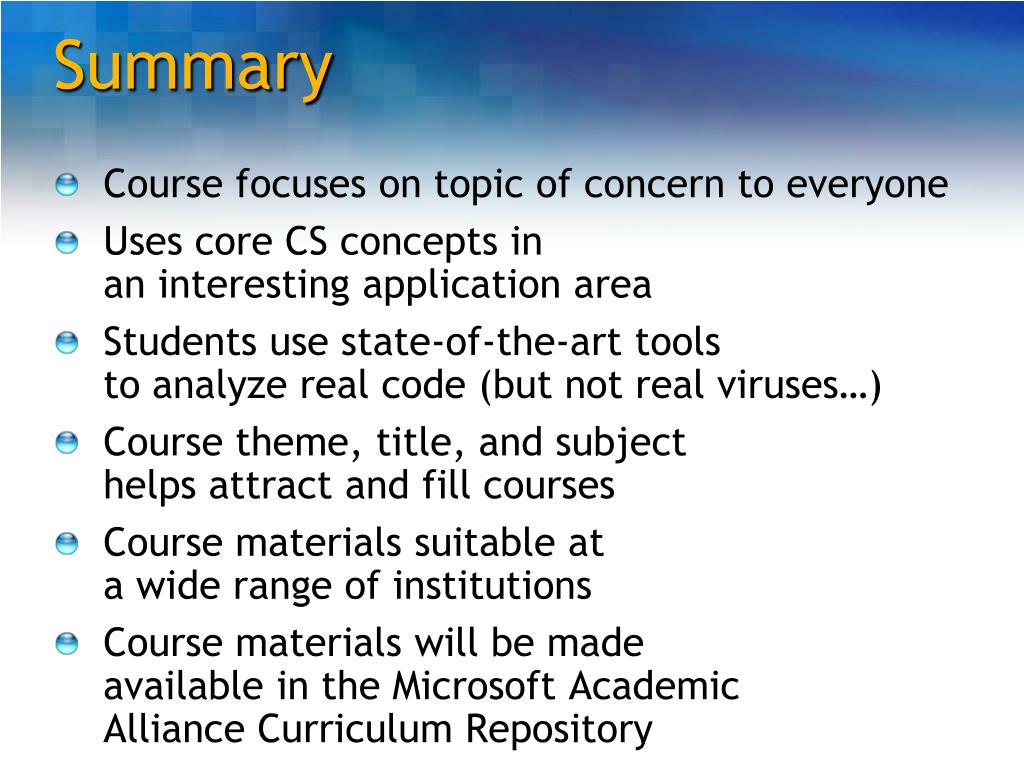

  29. Summary • Course focuses on topic of concern to everyone • Uses core CS concepts in an interesting application area • Students use state-of-the-art tools to analyze real code (but not real viruses…) • Course theme, title, and subject helps attract and fill courses • Course materials suitable at a wide range of institutions • Course materials will be made available in the Microsoft Academic Alliance Curriculum Repository

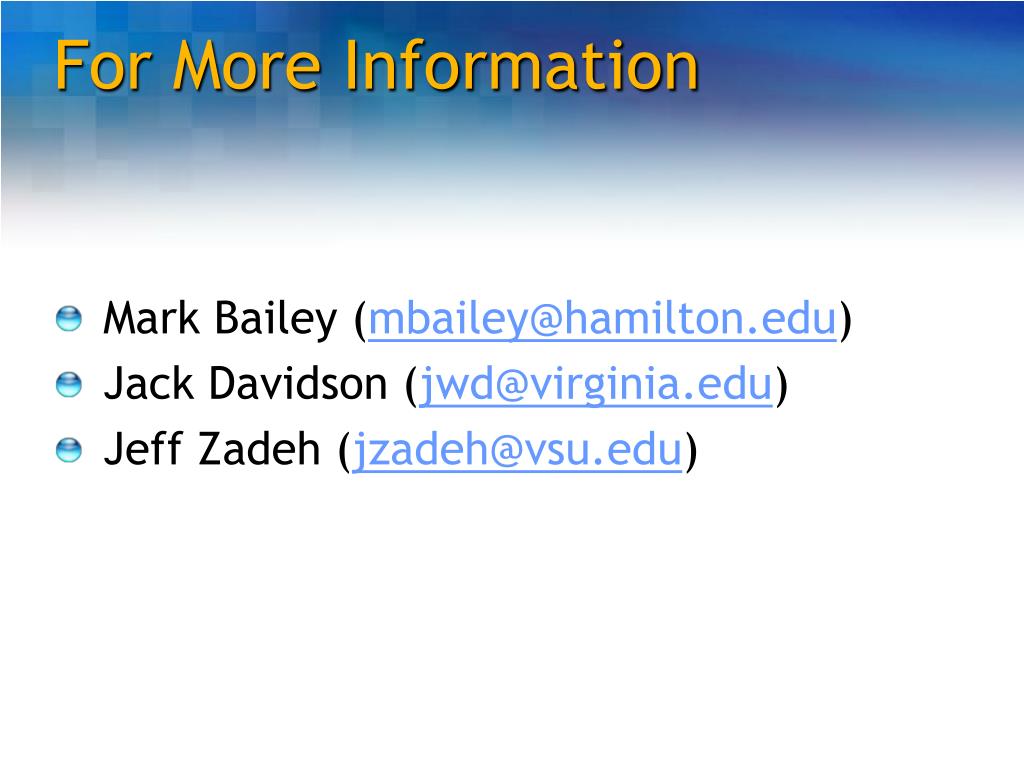

  30. For More Information • Mark Bailey (mbailey@hamilton.edu) • Jack Davidson (jwd@virginia.edu) • Jeff Zadeh (jzadeh@vsu.edu)

  31. Microsoft Research Faculty Summit 2007
