A Simple Image Compression : JPEG

A Simple Image Compression : JPEG. Overall Process : The image is broken into 8x8 blocks of pixels Working from Left to Right and Top to Bottom, Discrete Cosine Transform(DCT) is applied to each of the 8x8 blocks. Each Block is compressed through Quantization

neal
Télécharger la présentation

A Simple Image Compression : JPEG

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A Simple Image Compression : JPEG Overall Process : • The image is broken into 8x8 blocks of pixels • Working from Left to Right and Top to Bottom, Discrete Cosine Transform(DCT) is applied to each of the 8x8 blocks. • Each Block is compressed through Quantization • The array of compressed blocks that constitute the image is stored in a drastically reduced amount of space. • The image is reconstructed by the use if Inverse Discrete Cosine Transform(IDCT).

  2. DCT Computation The DCT Coefficient D(i,j) for the (i,j) pixel is computed as follows:

  3. DCT Computation For a standard (8x8) block as used in jpeg, N=8 and (x,y) range from 0 to 7. Hence, the DCT computation has reduced to:

  4. Matrix Representation of the DCT Equation Let Tij be computed as :

  5. Matrix form of Tij For an (8x8) block, it results in the matrix:

  6. DCT Computation on an (8x8) Block

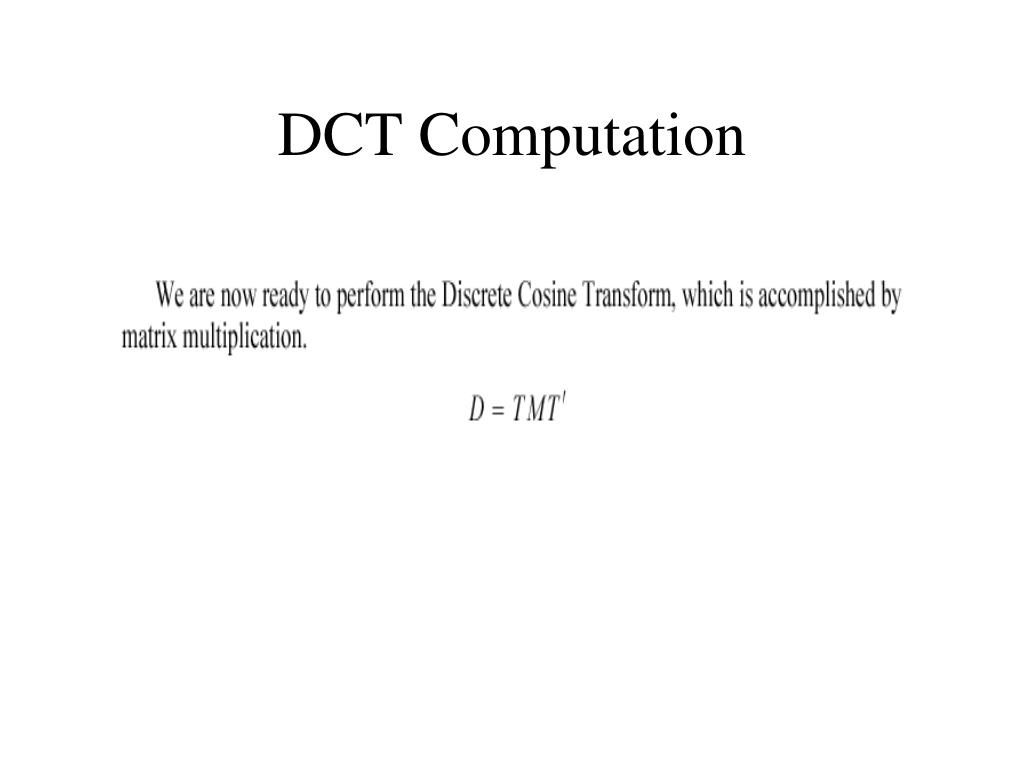

  7. DCT Computation

  8. DCT Computation

  9. DCT Computation

  10. Quantization

  11. Quantization

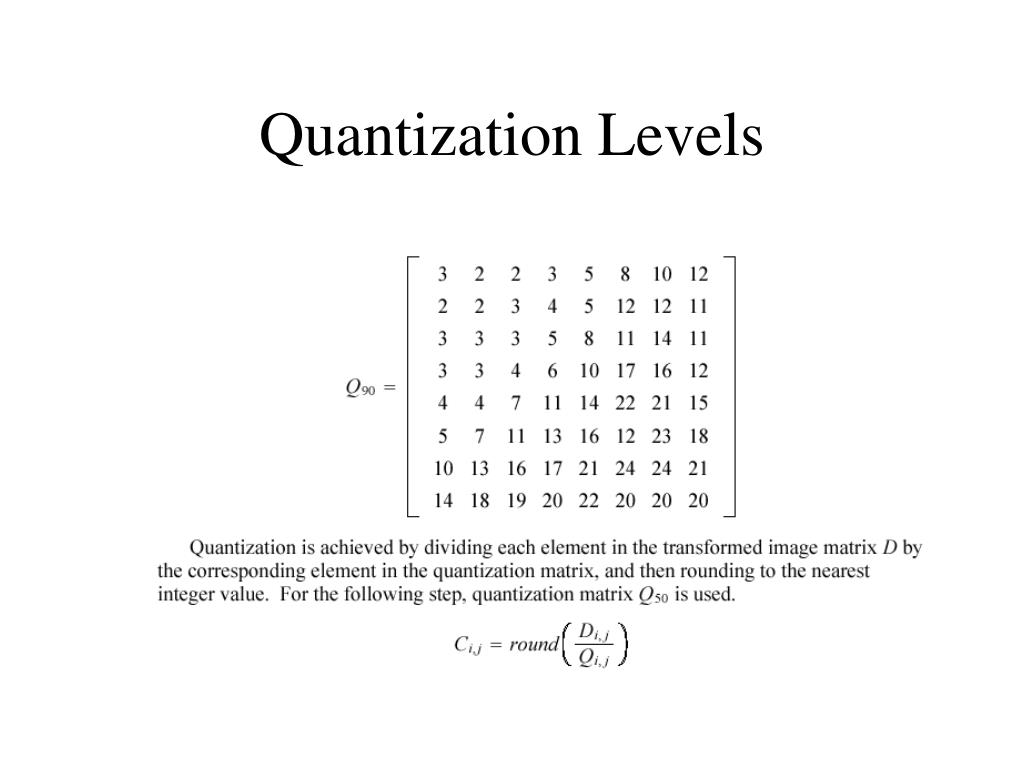

  12. Quantization Levels

  13. Quantization Levels

  14. Quantization

  15. Quantization Zeros represent less important higher frequencies that can be discarded.

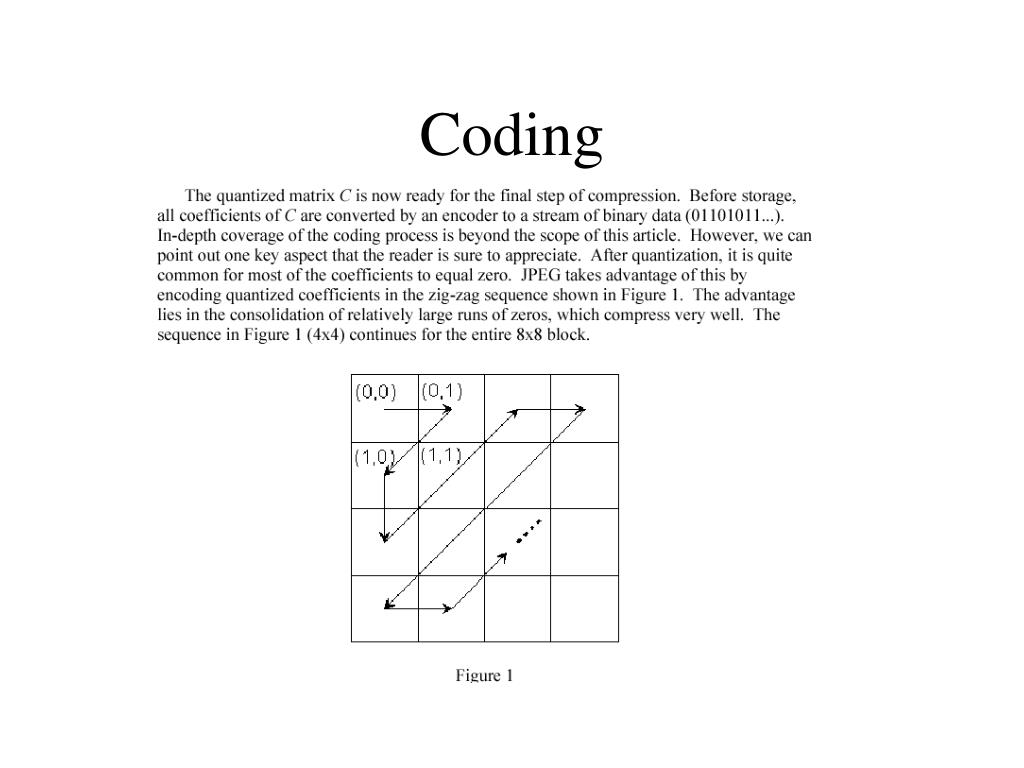

  16. Coding

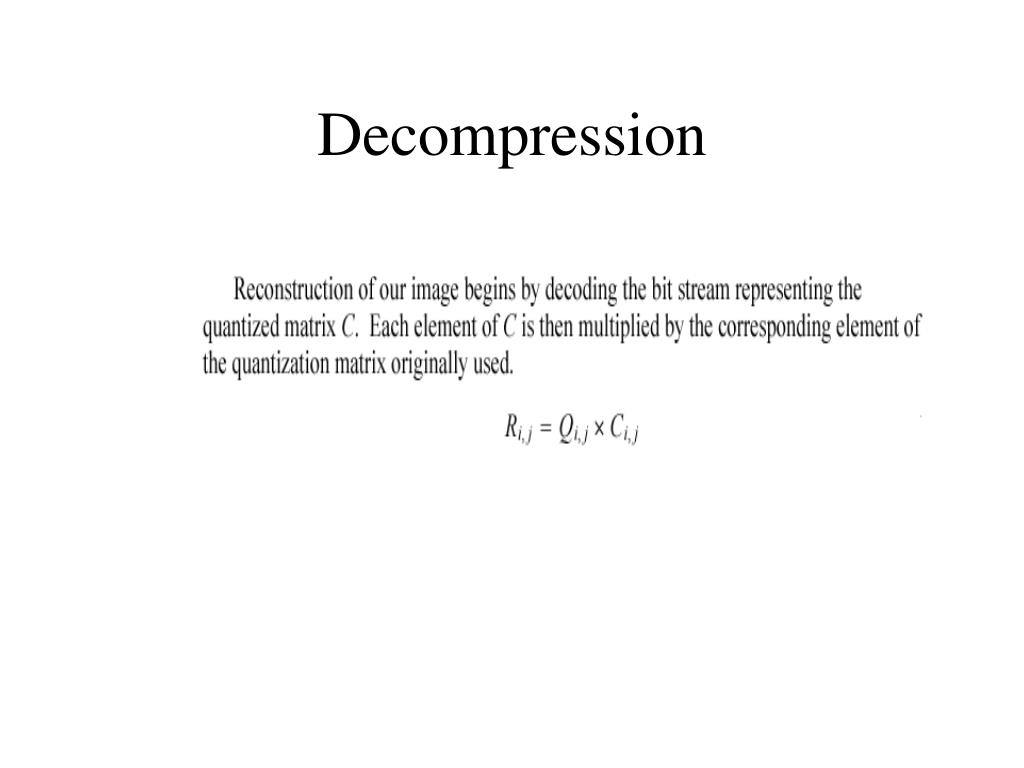

  17. Decompression

  18. Inverse DCT and Decompression

  19. Comparison

  20. Finally ….

  21. Further Levels
