  1. Table Descriptorsand Generator Preferences Compensating for Meaningless Primary Keys

  2. LOV LOV 113910031292 AngelaJoniSue Default Links and Descriptors It’s time to run the Generate Default Links utility. You can do more with thistool . . . Make lookups more descriptive

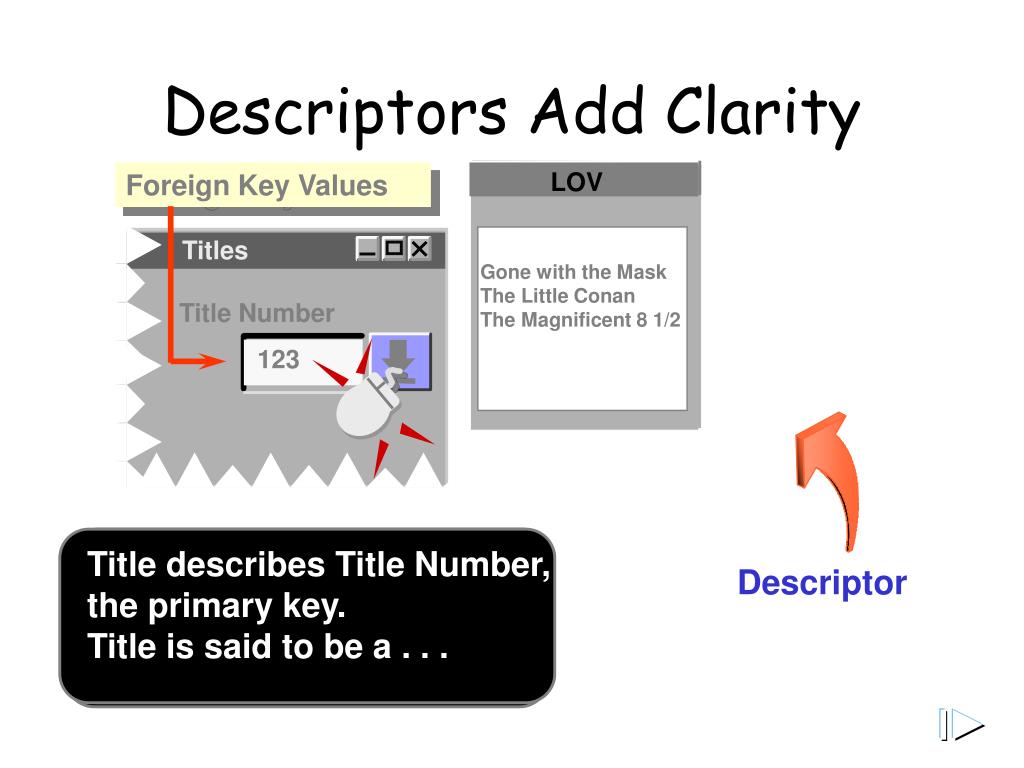

  3. LOV LOV 123245343412 Gone with the MaskThe Little ConanThe Magnificent 8 1/2 Users would like to see the titles instead of meaninglessnumeric primary key values LOV Gone with the MaskTheLittle Conan Title describes Title Number,the primary key. Title is said to be a . . . Descriptor ... Descriptors Add Clarity Foreign Key Values Titles Title Number 123

  4. HOLLYWOOD: Column Properties - Default Display . . . 1 Descriptor Sequence . . . Setting a Descriptor • Set a column as a descriptor

  5. DepartmentColumn: DepartmentColumn: Name Location Location Name 2 1 1 2 2 Descriptor Sequence Descriptor Sequence LOV Aylmer Rotterdam London Education Consulting Sales Education Consulting Sales Aylmer Rotterdam London Setting More than One Descriptor

  6. Generate Default Links... EMPLOYEES Lookup Links Create Table Usages for Descriptor Columns DEPARTMENTS EMPLOYEES Descriptor Columns and the Default Link Utility

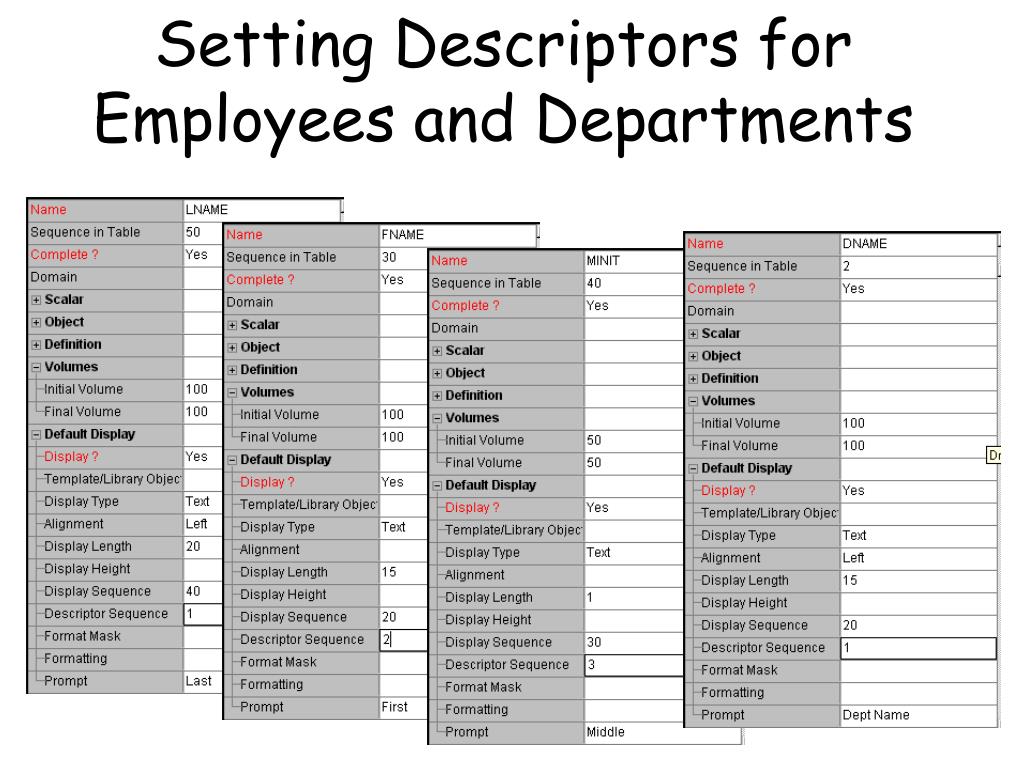

  7. Setting Descriptors for Employees and Departments

  8. Database has changed • So Regenerate it with the Generate Database from Server Module Utility just in case.

  9. Create a New Module

  10. Module Component Data Wizard

  11. Module Component Display Wizard

  12. Generate Default Links

  13. Module Diagram

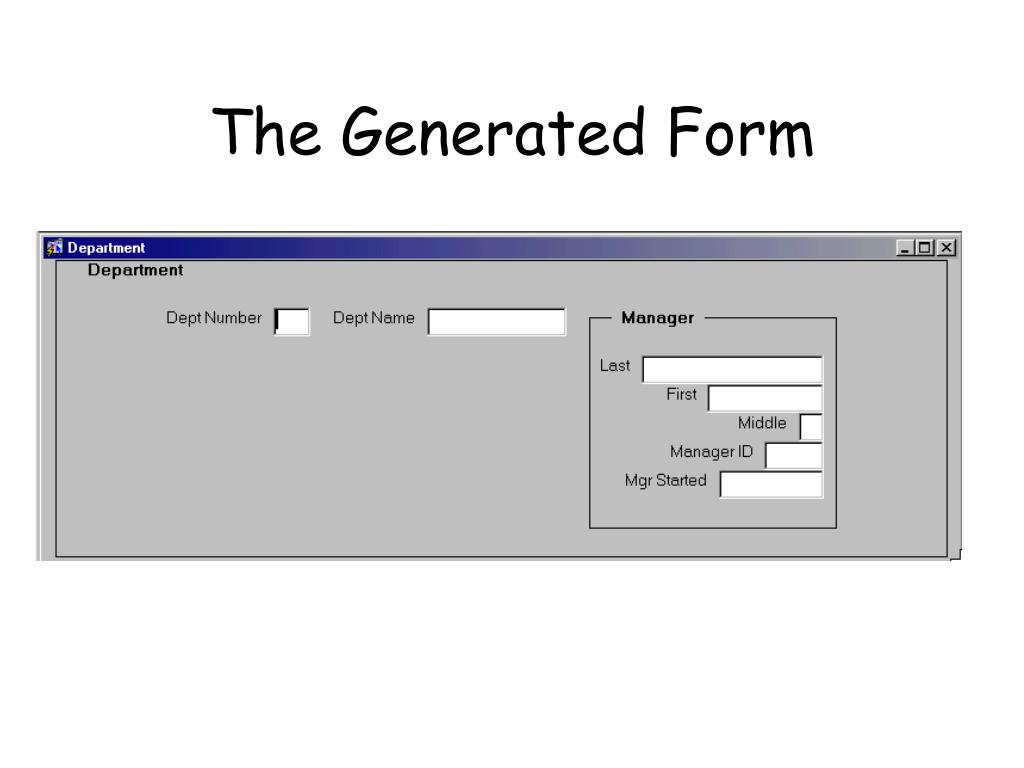

  14. The Generated Form

  15. Layout Problem • Generator Preferences • Steep Learning Curve • Example: this layout is a problem because of the item group’s “tab table usage” or GRPUTT

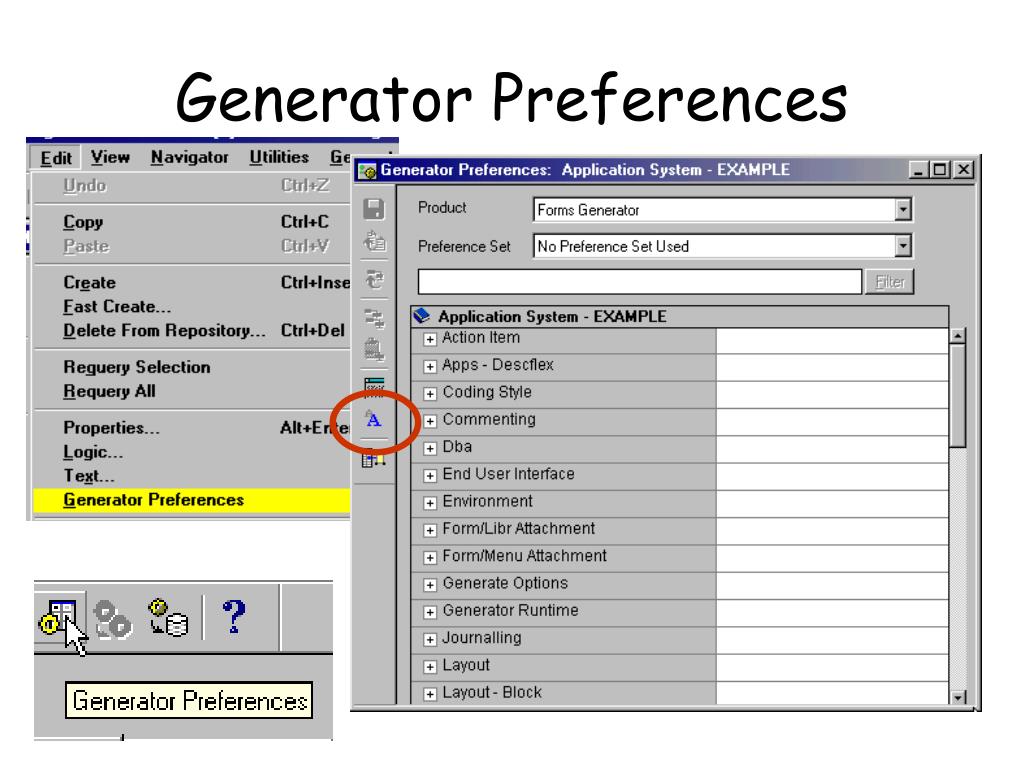

  16. Generator Preferences

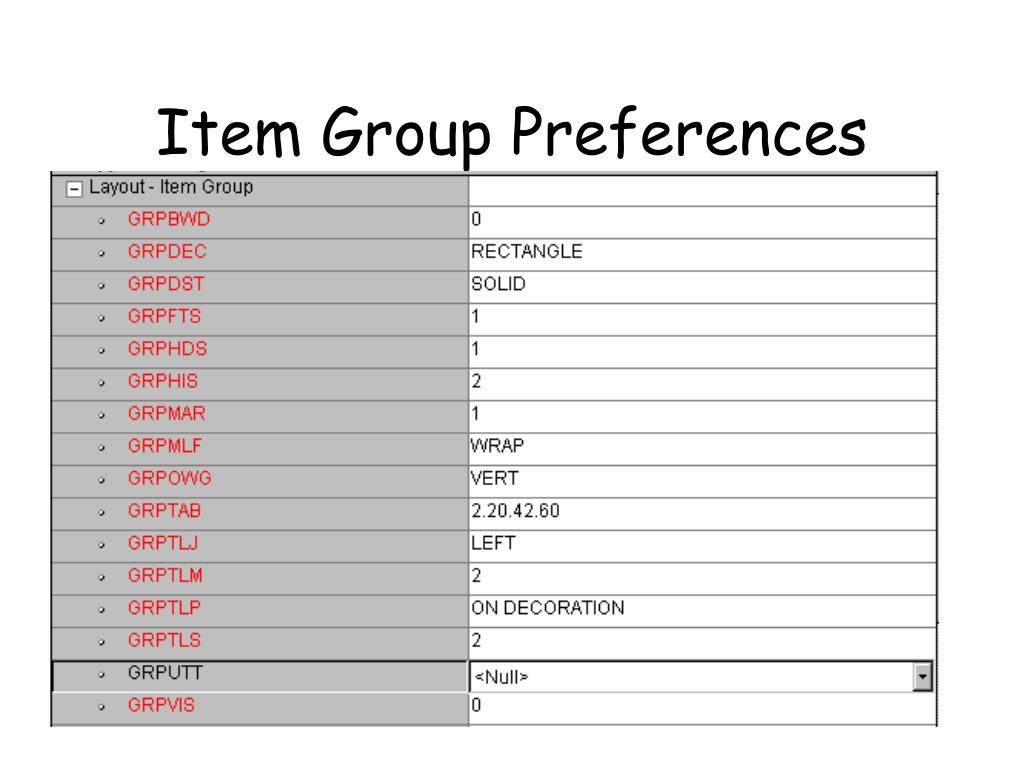

  17. Item Group Preferences

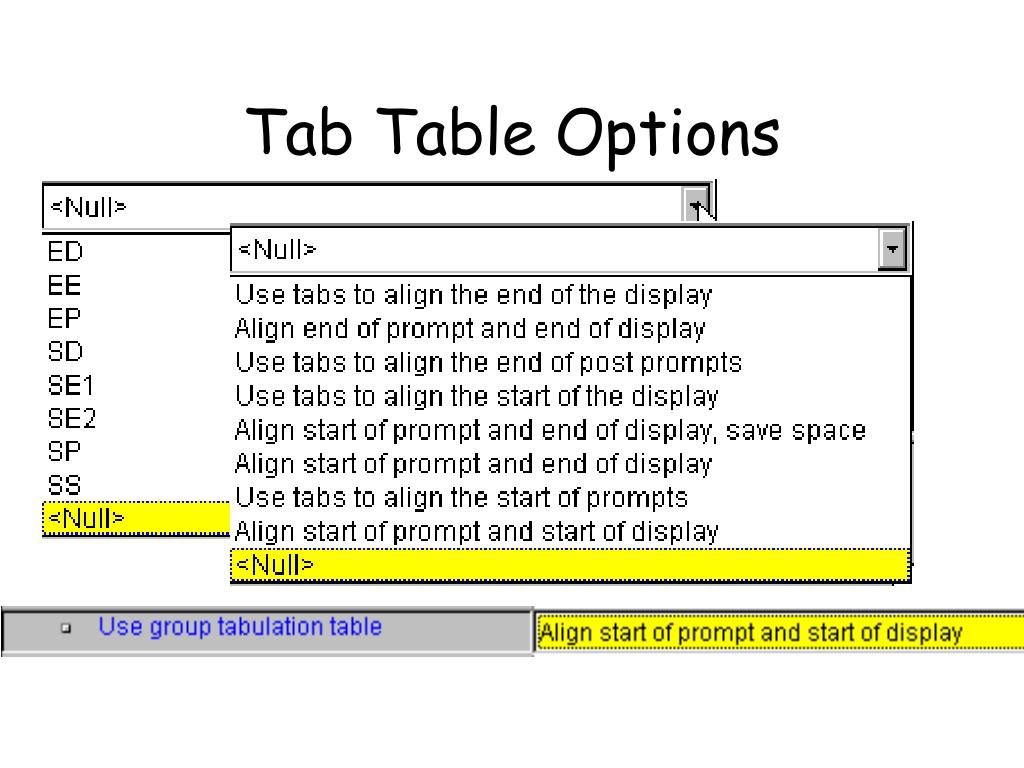

  18. Tab Table Options

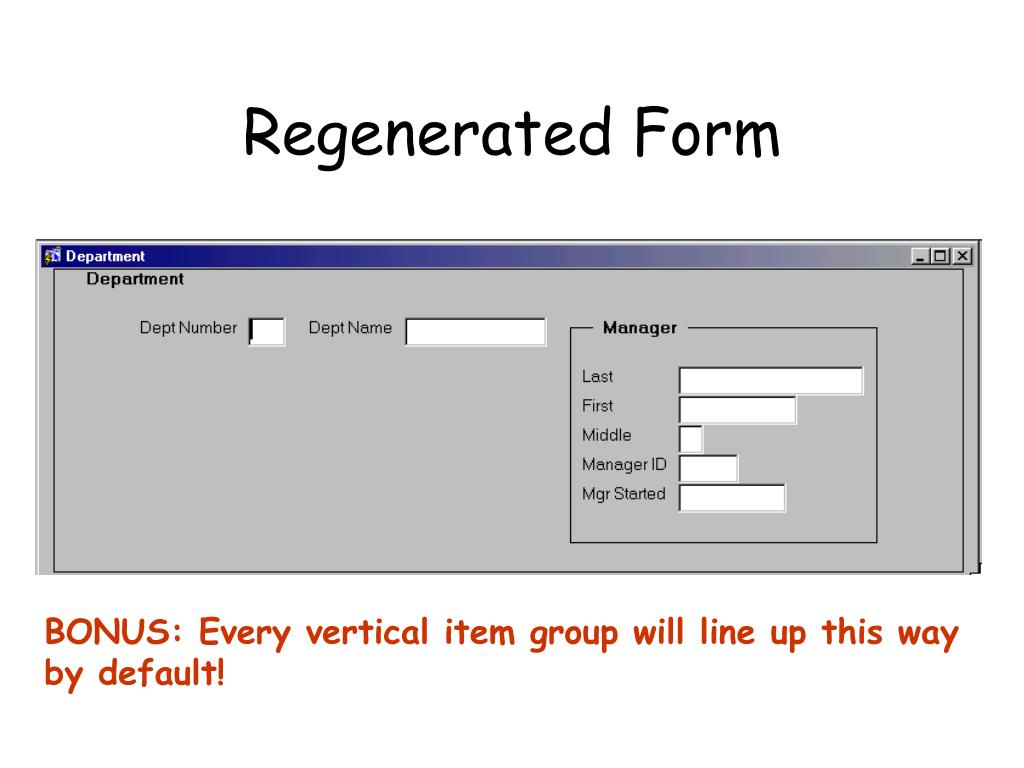

  19. Regenerated Form BONUS: Every vertical item group will line up this way by default!
